S.R.Smith heliX2 Instruction manual

06-755 SEPT19
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
SRS AUSTRALIA, PTY LTD
12 Enterprise St
Richlands QLD 4077
Australia
Phone [phone] • Fax [phone]
www.srsmith.com/au
S.R. SMITH, LLC
CORPORATE HEADQUARTERS
P.O. Box 400 • 1017 S.W. Berg Parkway
Canby, Oregon 97013
USA
Phone [phone] • Fax [phone]
www.srsmith.com
S.R. SMITH HELIX2 SLIDES ARE MANUFACTURED FOR INSTALLATION
AND USE ON RESIDENTIAL INGROUND SWIMMING POOLS ONLY. THE
HELIX2 IS NEVER TO BE INSTALLED AND USED ON ABOVEGROUND
POOLS, ONGROUND POOLS, HOUSEBOATS, BOAT DOCKS, FLOATING
DOCKS OR PLATFORMS OR OTHER BODIES OF WATER SUCH AS
LAKES, PONDS, RIVERS, ETC.

2
TABLE OF CONTENTS
INTRODUCTION...........................................................................................................................................3
INSTALLED HELIX2 STRUCTURAL & INSTALLATION CHECKLIST ........................................................4
MAINTENANCE INSTRUCTIONS................................................................................................................4
ASSEMBLED HELIX2 LAYOUT ...................................................................................................................5
PARTS LIST..................................................................................................................................................6
ASSEMBLY INSTRUCTIONS.......................................................................................................................7
Tools Required..........................................................................................................................................7
Gasket Installation.....................................................................................................................................7
HELIX2 Assembly .....................................................................................................................................8

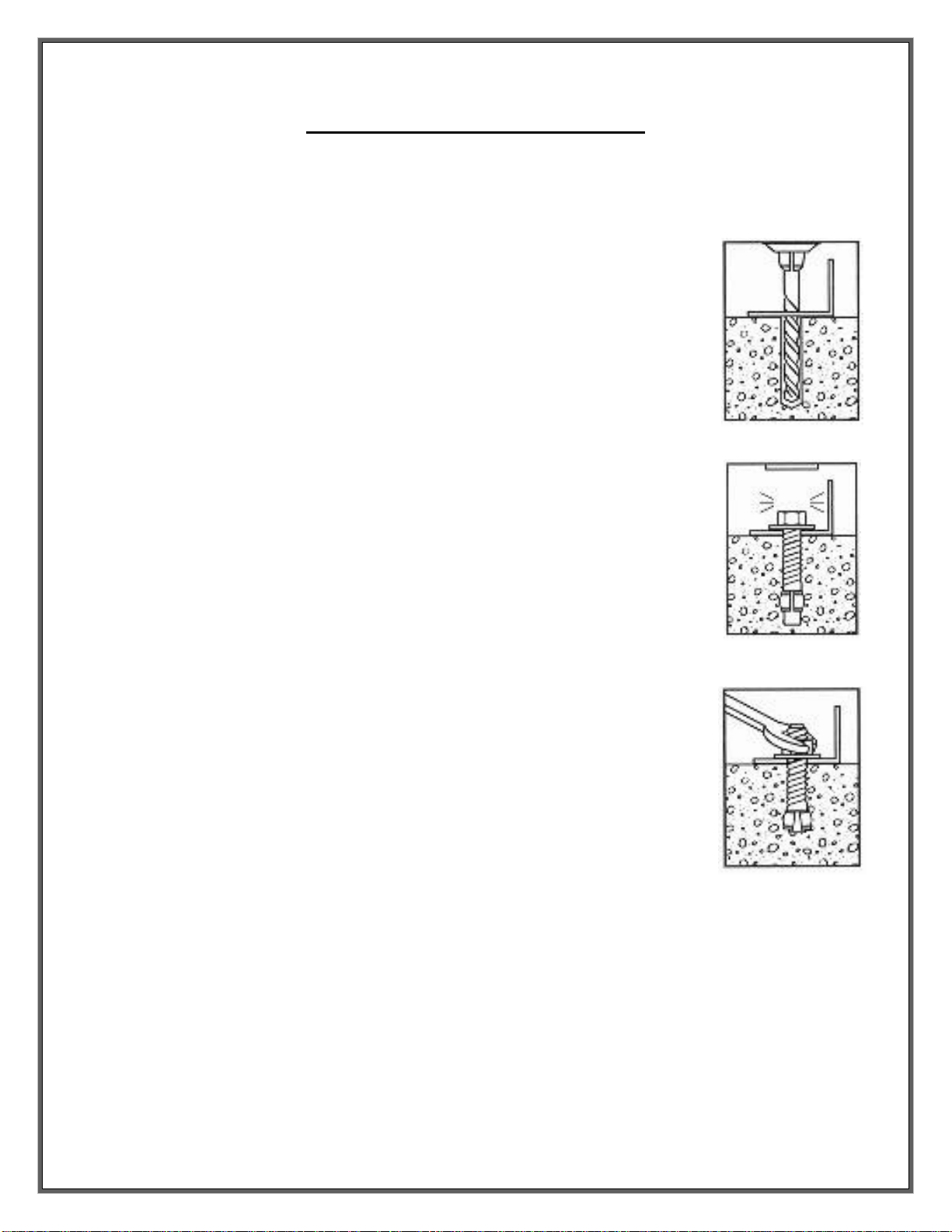

ON-DECK MOUNTING INSTRUCTIONS...................................................................................................15
SLIDE PLUMBING INSTRUCTIONS..........................................................................................................16

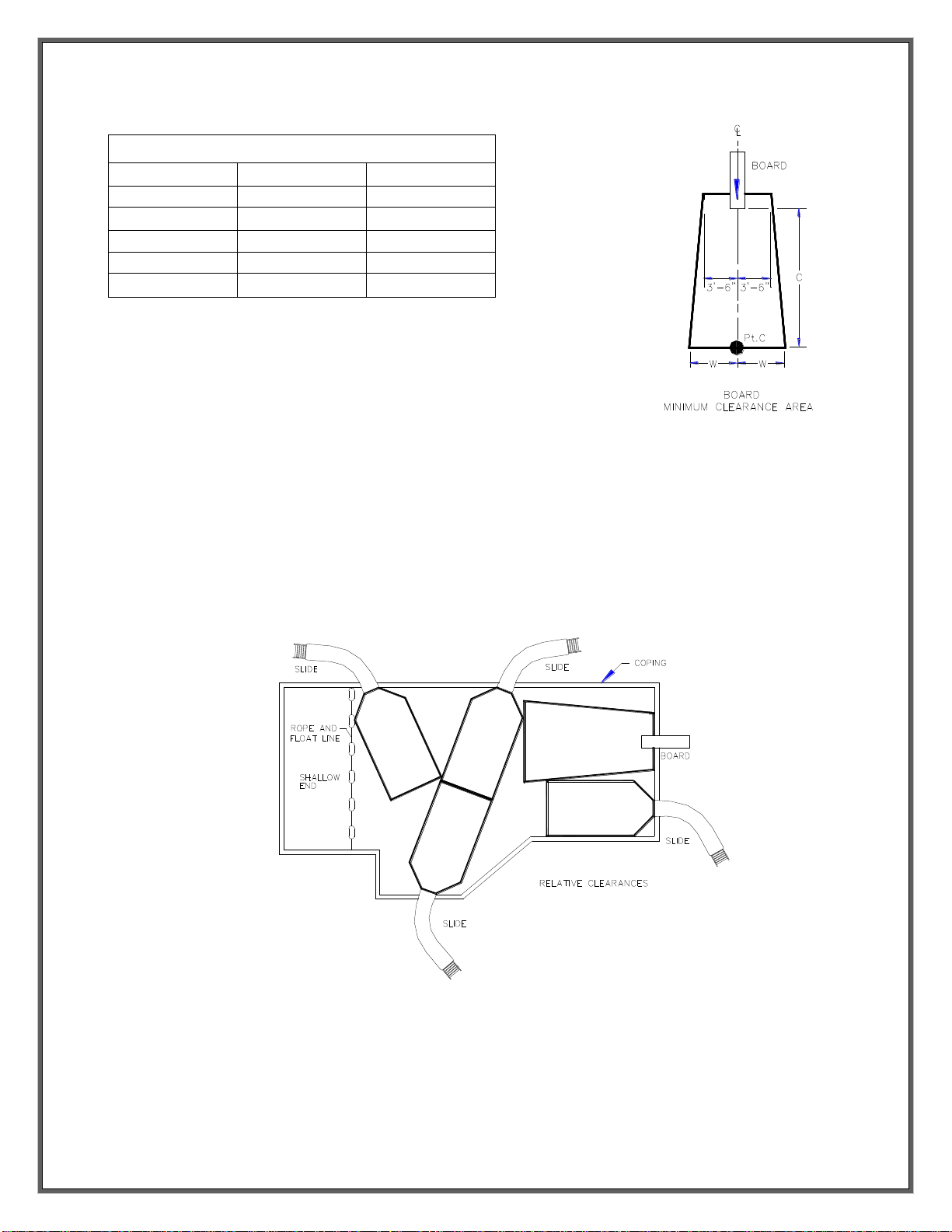

MANUFACTURER’S PLACEMENT INSTRUCTIONS ...............................................................................17
APPENDIX A.................................................................................................................................................A
APPENDIX B.................................................................................................................................................B
Visit srsmith.com for information on the complete line of
S.R.Smith pool products.
SLIDE ASSEMBLY AND INSTALLATION VIDEOS AVAILABLE AT
www.youtube.com/srsmithllc
REGISTER YOUR S.R. SMITH PRODUCT AT
www.srsmith.com/en/customer-service/product-registration

3
INTRODUCTION
DANGER –FAILURE TO FOLLOW THESE WARNINGS, INSTRUCTIONS, AND THE
OWNER’S MANUAL MAY RESULT IN SERIOUS INJURY OR DEATH.
THE HELIX2 SLIDE IS DESIGNED AND MANUFACTURED FOR INSTALLATION AND USE ON
INGROUND SWIMMING POOLS ONLY. DO NOT INSTALL THIS SLIDE ON ABOVE GROUND
POOLS, HOUSEBOATS, BOAT DOCKS, FLOATING DOCKS OR PLATFORMS, OR OTHER BODIES
OF WATER SUCH AS LAKES, PONDS, RIVERS, ETC. PROPER ASSEMBLY, INSTALLATION, USE,
AND SUPERVISION ARE ESSENTIAL FOR PROPER OPERATION AND TO REDUCE THE RISK OF
SERIOUS INJURY OR DEATH.
ALL NATIONAL AND LOCAL BUILDING CODES MUST BE FOLLOWED. THIS INCLUDES ANY
APPLIABLE REQUIREMENTS FOR SIZE OF CONCRETE FOOTING, OVERALL HEIGHT OF SLIDE,
AND BODING OR ELECTRICAL CODES.
CHECK INSIDE ALL BOXES AND PACKAGING MATERIALS FOR PARTS. BEFORE BEGINNING
ASSEMBLY, READ ALL INSTRUCTIONS AND IDENTIFY PARTS USING THE FIGURES AND PARTS
LISTED IN THIS DOCUMENT. IT IS CRITICAL THAT ALL PARTS BE CAREFULLY INSPECTED BY
THE INSTALLER PRIOR TO INSTALLATION TO ENSURE THAT NO DAMAGE OCCURRED IN
TRANSIT AND THAT A DAMAGED PART IS NOT USED. PROPER INSTALLATION CANNOT BE
OVERSTRESSED, IMPROPER INSTALLATION VOIDS S.R. SMITH’S WARRANTY AND MAY
AFFECT THE SAFETY OF THE USER.
INSTALLER MUST GIVE TO SLIDE OWNER: HELIX2 INSTALLATION AND OWNER’S MANUAL, THE
WARRANTY CARD, AND ANSWER ALL QUESTIONS REGARDING SAFE AND PROPER USE AND
SLIDE MAINTENANCE.
FOR COMPLETE SLIDE SAFETY INFORMATION REFER TO THE OWNER’S MANUAL.

4
INSTALLED HELIX2 STRUCTURAL & INSTALLATION CHECKLIST
Installer to review with slide owner upon completion of slide installation.
1. Inspect the runway for visible cracks or tears.
2. Inspect the ladder for sharp edges, protrusions, cracks, or tears.
3. Inspect all fasteners to make sure they are fully tightened.
4. Inspect the ladder for rigidity and attachment.
5. Measure the following dimensions and compare with the manufacturer’s placement instructions on
page 17.
•Pool water depth at the base of the slide should be at least 3’ (0.914 M) deep, and at 4’6”
(1.372 M) out from slide exit, should be at least 4’6” (1.372 M) deep.
•The height of the slide runway exit above the water should be 20” (0.508 M) maximum.
•The distance between the slide centerline and the edge of other pool equipment should be at
least 3’6” (1.067 M).
6. Observe the position of the exit of the slide as shown in FIGURE N, FIGURE O, and FIGURE Q on
pages 17 and 18.
MAINTENANCE INSTRUCTIONS
1. When hosing down the deck, hose your HELIX2 to wash away any dust, dirt or other debris, which
may have accumulated.
2. Be sure that all connections are secure. Tighten hardware if necessary.
3. All polyethylene parts require little maintenance. Hose and wipe to clean.
While cleaning slide, check and see that all nuts and bolts are tight and secure.
4. Inspect the runway for visible cracks or tears, sharp edges and protrusions.
5. Inspect all attachment points for loose or corroded fasteners.
6. Inspect all ladder tread or step-attachment points for evidence of shear, bending yield, or fatigue in
the ladder steps, rails, or attachments means. Yield is evidenced by crystallization or fine cracking of
the ladder tread and/or surface.
7. Inspect the ladder handrails for rigidity and attachment.

5
ASSEMBLED HELIX2 LAYOUT
FIGURE A
See Appendices A and B for additional slide layout details.
NOT A
PROJECTED
VIEW

6
(5)
(6)
(7)
(8)
(1)
PARTS LIST
Visit srsmith.com for hardware kit and replacement part information.
Item No.
Part No.
Description
Qty.
1
5-139
3/8” Hex Nut
9 ea.
2
5-151
3/8” Lock Washer
11 ea.
3
05-14-115
1/2" Lock Washer
8 ea.
4
5-145
3/8” Flat Washer
25 ea.
5
5-246
3/8” x 2-3/4” Carriage Bolt
2 ea.
6
5-247
3/8” x 3” Button Head Cap Screw
4 ea.
7
5-239
3/8” x 2-1/2” Stud
4 ea.
8
5-259
3/8” x 5” Lag Screw
6 ea.
9
5-237
3/8” x 5” Button Head Cap Screw
2 ea.
10
5-248
3/8” x 3.5” Hex Head Cap Screw
2 ea.
11
5-242
#14" x 1” Pan Head Tapping Screw
6 ea.
12
5-241
1/2" x 5” Anchor Stud
8 ea.
13
5-643
3/8”-16 x 2 Hex Head Tap Bolt
1 ea.
14
05-782
1.5” PVC Pipe Strap
2 ea.
15
05-767
1” Pipe Clamp
2 ea.
16
05-770
1” Ball Valve Gray
1 ea.
17
05-784
1” Coupling
1 ea.
18
05-773
Garden Hose Adapter
1 ea.
19
8-532
.5" HIGH X .5” WIDE X 32” LONG RUBBER GASKET
1 ea.
20
05-643
Dark Gray PVC, 1” Slip Pipe Fitting, Female Tee ,SCH80
1 ea.
21
05-660
D.G. 1” PVC Slip Reducer to ½” Threaded Female, SCH 80
1 ea.
22
05-667
3/8” to1/2” barbed 90° elbow fitting
1 ea.
23
05-786-1
1” PVC Flex Hose, 16” long (Not Shown)
1 ea.
24
05-786-2
1” PVC Flex Hose, 68” long (Not Shown)
1 ea.
25
05-661
1” PVC Pipe x 2” Long (Not Shown)
1 ea.
26
5-156
3/8” Acorn Nut
1 ea.
27
05-040-2
1/2" OD X 3/8" ID Polypropylene Tubing (23") (Not Shown)
1 ea.
28
05-642
Valve for .5” OD Tube, Push Fit (Not Shown)
1 ea.
29
8-545A
Kit, Top Runway Gasket (Not Shown)
1 ea.
(9)
(10)
(16)
(12)
(14)
(11)
(18)
(17)
(2)
(3)
(4)
(13)
(19)
(20)
(21)
(22)
(26)
(15)

7
ASSEMBLY INSTRUCTIONS
Tools Required
1. Ratchet handle
2. 9/16” deep socket
3. 9/16” wrench
4. 5/8” wrench
5. 3/4" socket or wrench
6. 7/32” allen wrench
7. Phillips head screwdriver
8. 1/2" (13 mm) concrete drill bit
9. 1/4" (6 mm) drill bit
10. Power drill
11. PVC pipe primer & glue
12. Anti-seize
13. Saw to cut PVC pipe
14. Knife
15. Level
16. Teflon tape (plumbers tape)
17. Silicone sealant
18. Pistol-grip clamp (optional)
Gasket Installation
•Most of the gasket material has been installed at the factory, however additional gasket has been
provided in case any gasket has fallen off during shipping. If gasket installation is required, follow
the instructions below. The gasket on the face of the ladder is not installed in the factory, but
detailed instructions are provided in step 8 on page 10.
•Apply gasket (PN 8-532) in the required locations as shown in the figures below.
•Place gasket along the section to determine the length needed.
•Cut gasket to appropriate length, within the width of the runway only, do not include the shoulder.
•Remove backing and adhere gasket to slide.
•All gaskets below are applied as shown in the gasket section detail (see step 8 for further details
on installing the ladder gasket, PN 8-531)
FIGURE B
NOTE:
BE SURE TO APPLY ANTI-SEIZE TO ALL
FASTENERS TO PREVENT GALLING.
NOTE: Use pistol-grip clamps as
necessary to align the molded parts.

8
HELIX2 Assembly
Before getting started:
•To prevent damage to the parts during assembly, it is recommended that cardboard or some
other protective barrier is laid down on the ground where the slide is to be assembled.
•Verify that the gasket material is affixed to the slide parts as shown on page 7
•During assembly, be sure to apply a thin coat of anti-seize compound to the threads of all
fasteners. Anti-seize helps aid in assembly, prevents galling, and improves corrosion resistance.

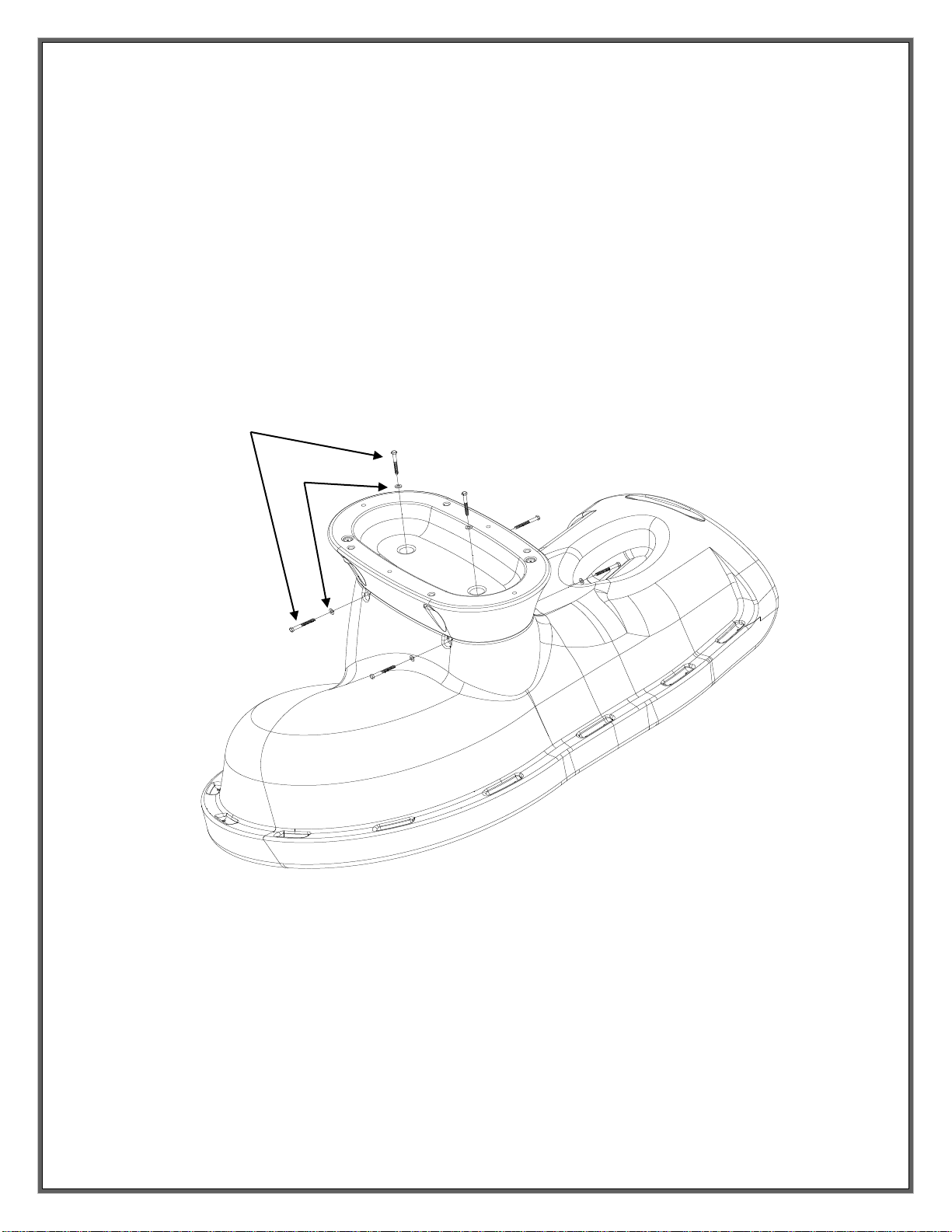

1. Attach the pedestal part to the runway exit section as shown in FIGURE C by inserting the two lag
screws into the holes located in the bottom of the pedestal.
2. Before inserting the lag bolts into the side of the runway exit part, 1/4” (6 mm) pilot holes must be
drilled into the center of each of the recesses, each location is marked with a dimple showing where
to drill. The pilot holes should be drilled through both the runway exit section and into the pedestal.

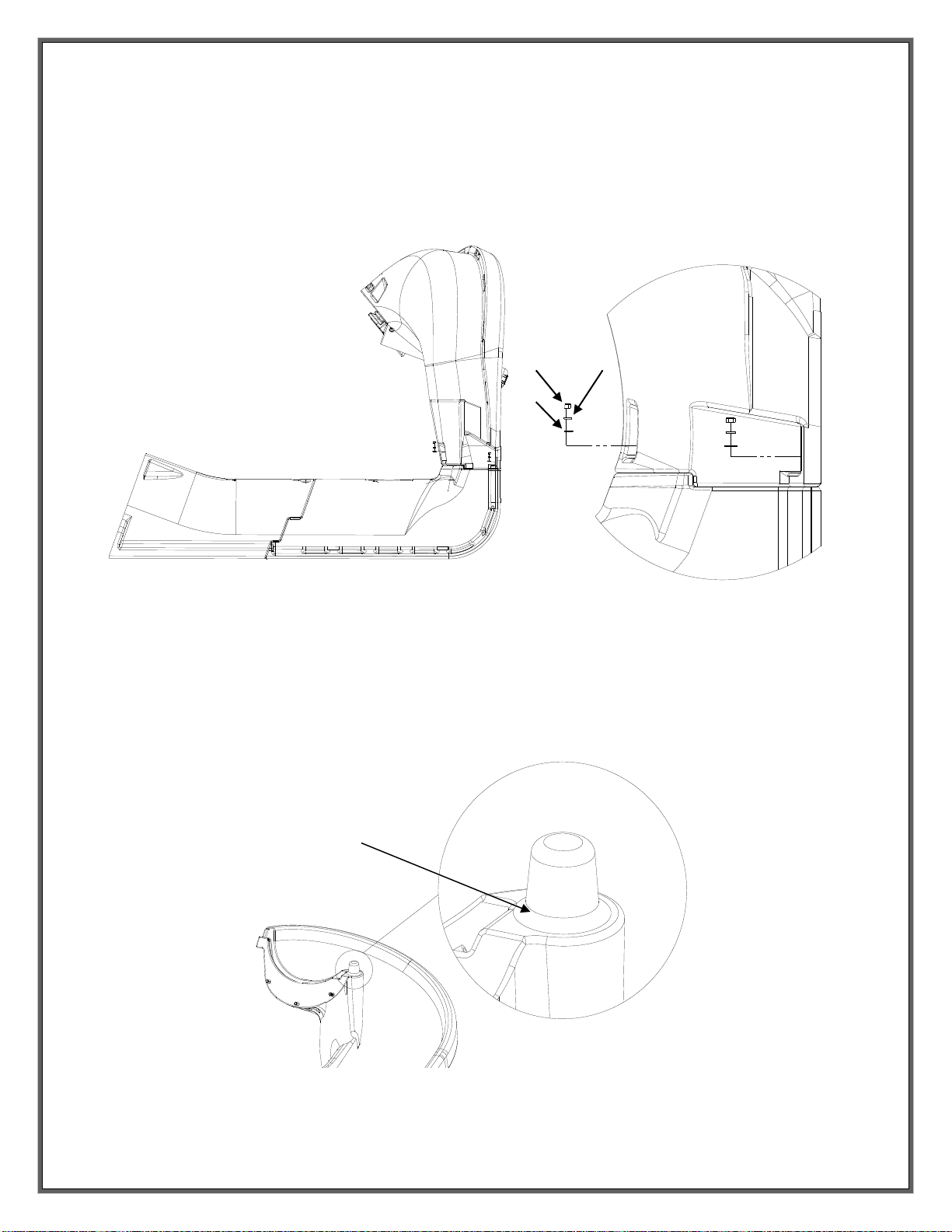

FIGURE C
3. Place the assembled runway exit section and pedestal upright so that the pedestal is resting on the
ground. Notes: It may take more than one person to perform this step. Verify that the gasket
material is properly attached before assembling the parts.
4. Insert the threaded studs into each of the threaded inserts as shown in FIGURE D. The studs should
be screwed in by hand until they reach the bottom of the insert. If the studs cannot be threaded in by
hand, pliers may be used. Before using pliers, a piece of cloth should be placed over the stud to
protect the threads from damage. Note: Be sure to apply anti-seize to all fasteners to prevent
galling.
(8)

9

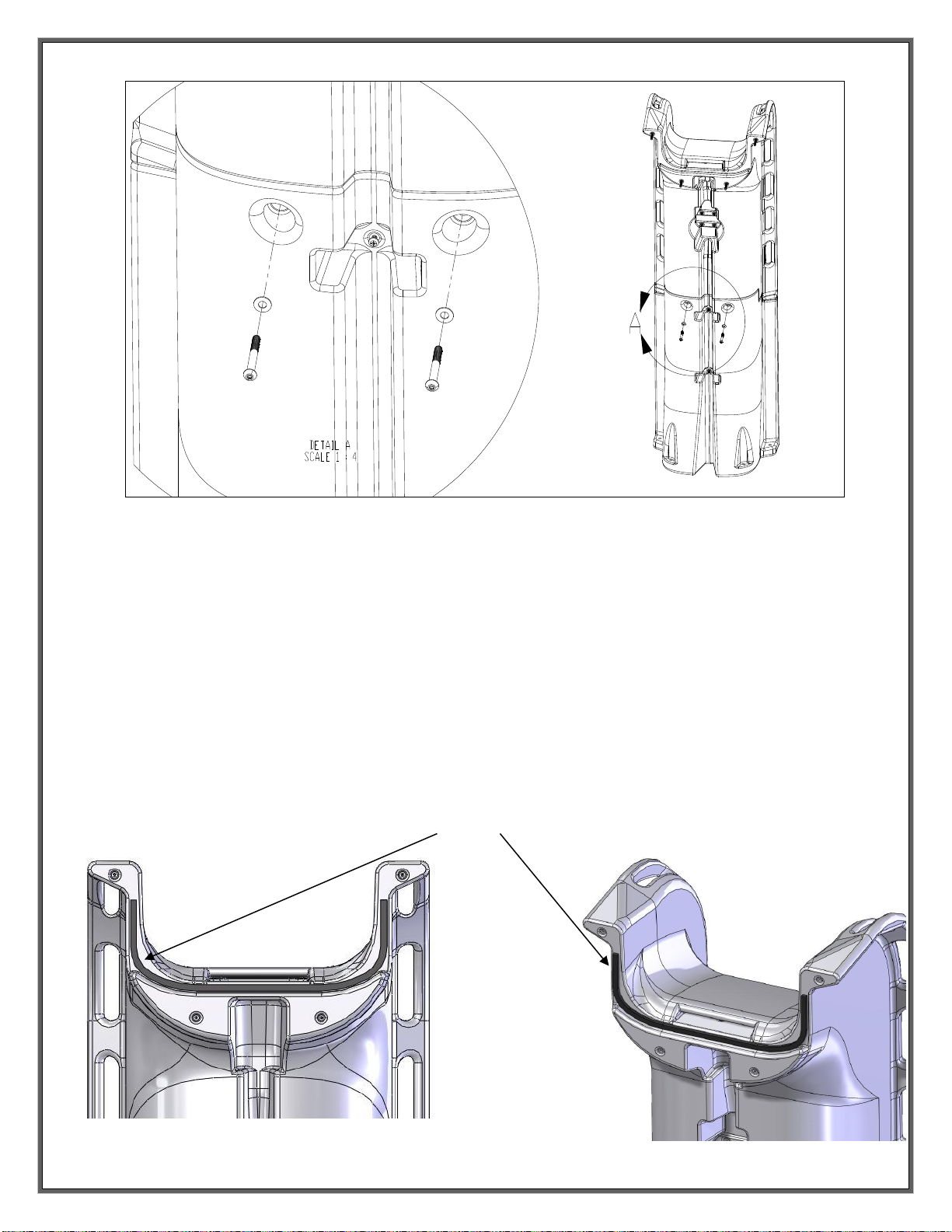

5. Assemble the top ladder section and lower ladder section as shown in FIGURE E. Insert the two
button head cap screws into the threaded inserts as shown in FIGURE E. Do not fully tighten the
screws at this point; start the screws into the threaded inserts. Note: Be sure to apply anti-
seize to all fasteners to prevent galling.
6. Insert the button head cap screws into the back side of the ladder as shown in FIGURE F. Tighten
the screws until snug. Go back and fully tighten the screws from Step 5. Note: Be sure to apply
anti-seize to all fasteners to prevent galling.
7. Insert the two carriage bolts into the steps as shown in FIGURE E. Tighten the nuts onto the
carriage bolt until the lock washer is fully compressed. Note: Be sure to apply anti-seize to all
fasteners to prevent galling
FIGURE D
FIGURE E
(2)
(1)
(4)
(6)
(4)
(5)

10
8. Before applying the gasket to the top of the ladder, be sure that the joint surfaces of the top runway
and ladder sections are clean and dry. Unroll the gasket material and hold so that length of the gasket
is centered on the center of the ladder joint. With the exposed adhesive side of the gasket facing the
ladder joint surface, apply the gasket starting at the center of the part, working outward to the sides.
Be sure that the bottom edge of the gasket material is held against the shelf on the ladder part during
installation, see reference images below. Do not make too tight of a bend radius with the gasket when
transitioning the gasket up the vertical edges of the joint. The transition radius should be as large as
possible. Making too tight of a bend radius will cause the gasket to kink and possibly leak. The
gasket should be centered on the available space in the vertical area of the joint, see reference
images below. Once the gasket is in place, firmly press down on the gasket in all locations to ensure
that the gasket has completely adhered to the ladder joint surface. Remove the paper backing on the
outward face of the gasket to expose the adhesive. Use caution not to remove the adhesive strip
from the gasket when removing the paper backing.
GASKET
FIGURE F

11
9. Lay the ladder assembly on the ground with the steps facing down as shown in FIGURE G. Lift the
upper runway section and align the threaded studs sticking out of the top ladder section with the
holes in the upper runway section. Attach the runway to the ladder using the hardware shown in
FIGURE G. Tighten until the lock washer is fully compressed.
Notes: It may take more than one person to perform this step. Verify that the gasket material
is properly attached before assembling the parts. Be sure to apply anti-seize to all fasteners
to prevent galling.
10. Apply a .25 inch (6 mm) bead of Silicone sealant (Silicone II or similar) around the base of the cone of
the slide’s center column. See FIGURE H.
FIGURE G
APPLY .25” (6MM) BEAD OF SILICONE
FIGURE H
(4)
(1)
(2)

12
11. Stand the ladder upright and attach the runway entrance section to the runway exit section using the
button head cap screw as shown in FIGURE I through the slides center column. Do not tighten the
bolt at this point. Notes: It may take more than one person to perform this step. Be sure to
apply anti-seize to all fasteners to prevent galling.
12. Finish assembling the two runway sections using the hardware shown in FIGURE J. Note: Be sure
to apply anti-seize to all fasteners to prevent galling.
a. First, the 2” Hex Head Tap Bolt (Item 13) should started into the threaded insert; do not
tighten at this point.
b. Install the 5” Button Head screw (Item 9) into the outside rail, and fully tighten.
c. Install the hex bolts (Items 10) through the underside of the run way.
d. Go through and tighten all of the hardware installed in steps 11and 12.
FIGURE I
(13)
(2)
(4)
(2)
(4)
(4)
(2)
(1)
(4)
(2)
(1)
(9)
(1)
(10)
(4)
(10)
(4)
FIGURE J

13
13. Attach the two 1” Pipe Clamps (15) with the #14 Pan Head Screws (11) as shown in FIGURE K,
Detail B. in the recessed area under the slide ladder.
14. Fully assemble the water system components as shown in FIGURE K Detail A without glue to ensure
that all components have the correct fit and function before permanently gluing them together.
a. The PVC 1” Slip Pipe “T” Fitting, Female (20) located directly below the 1” Ball Valve (16)
must be slightly rotated to the right with respect to the handle of the 1”Ball Valve (16), as
shown in FIGURE K Detail C.
b. With the plumbing assembled as shown in FIGURE K Detail C, ensure that the ½”
Polypropylene Tubing (27) is routed behind the 1” PVC Flex Hose (23) in the recessed area
of the ladder and does not interfere with movement of the handle on the 1”Ball Valve (16).
c. With the components oriented in the correct position, make reference marks on the 1” Ball
Valve (16), 1” PVC Slip Pipe “T” Fitting, Female (20) and 1” PVC Pipe 2” long (25) to ensure
correct orientation before gluing.
d. When attaching the assembled components with 1.5” Pipe Strap (14) to the slide ensure that
the ½” Polypropylene Tubing (27) is routed behind 1” PVC Flex Hose (23).
15. Once the plumbing fit and function has been verified, remove the plumbing components from the
ladder in preparation for final gluing and assembly.
16. Use PVC primer and glue to permanently assemble the parts together as described in Step 14 and
shown in FIGURE K. Ensure that The 1 “PVC Slip Pipe “T” Fitting, Female (20), 1” PVC Pipe 2” long
(25) and 1” Ball Valve (16) are completely fit together and reference marks are aligned per instruction
#14 b.
17. Use plumbers tape (Teflon tape) when permanently assembling the 3/8” to1/2” barbed 90° elbow
fitting (22) to the 1” PVC Slip Reducer to ½” Threaded Female (21).
18. Glue the top end of the 1” PVC Flex Hose 16” long (23) into the fitting in the ladder.
19. Route the ½” Polypropylene Tubing (27) behind the 1” PVC Flex Hose 16” long (23) as shown in
FIGURE K Detail C. Connect the ½” Polypropylene Tubing (27) to the small ball valve attached to
the top runway section by pushing the ½” Polypropylene Tubing (27) into the end of the ball valve
firmly as far as it will go. See Figure 13.
20. Secure the assemblies to the recessed area under the slide ladder by attaching the 1.5” PVC Pipe
Straps (14) with the #14 Pan Head Screws (11). See FIGURE K Detail A.
21. Secure the 1” PVC Flex Hose 68” long (24) in the hose recess under the ladder using the 1” pipe
Clamp (15) firmly pushing the 1” PVC Flex Hose 68” (24) into the 1” pipe Clamp (15).

14
(24)
(23)
(20)
(21)
(16)
(27)
GLUE TO FITTING
IN LADDER (Step 18)
(25)
(22)
(27)
PUSH INTO SMALL
BALL VALVE (Step 19)
(20)
(16)
(22)
FIGURE K
(14)
(11)
DETAIL C
(15)
(11)

15
ON-DECK MOUNTING INSTRUCTIONS
1. Place the assembled slide on the deck relative to the pool wall. Ensure that the exit flume clears
any coping. Slide may be angled slightly providing all dimensions are maintained as noted in the
Manufacturer’s Placement Instructions noted in the following section.
2. With the slide in its proper location, center punch or otherwise mark through
the (8) mounting holes at the bottom of the ladder and pedestal so that a
visible mark is apparent on the concrete.
3. Move the assembled slide aside to facilitate drilling of the anchoring holes.
4. Using a power drill and a 1/2” (13 mm) concrete drill bit, drill the holes to a
depth of 4” (0.102 M). Use tape or a marking on the drill bit to ensure that the
hole for the anchor is drilled to the required depth. Maintain drill hole straight
and perpendicular for proper holding strength of anchor stud.
5. Clear the holes of all debris. Assemble anchor with nut and washer so that the
top of the nut is flush with the top of the anchor. Move the slide over the
holes before inserting the anchors. Drive anchor through the slide
mounting holes so that nut and washer are flush with the surface material.
6. Expand anchor by tightening nut 3 to 5 turns. Once anchor is set remove nut
and install a lock washer, item # (3), and retighten nut to a torque of 25 ft.-lbs
(33.9 N-m).

16
SLIDE PLUMBING INSTRUCTIONS
1. The HELIX2™is designed for a water supply line of 1” pipe.
Plumb from pool return line with a 1” PVC pipe “stubbed up” at the
deck positioned at the base of the ladder. Refer to FIGURE A on
page 5. FIGURE A is for reference only. Assembled slide should
be placed in its correct location and the “stub up” location marked
and installed before mounting the slide to the deck. “Stub up”
should be dark grey PVC to match the plumbing assembly of the
slide. Note: “Stub up” should extend above the deck 18” (457
mm) in height; it will be cut down later in the installation
process.
2. If a garden hose is to be used, a garden hose adapter fitting is
included with the slide. Assemble the pieces as shown in FIGURE
M and attach to the end of the PVC plumbing assembly at the
base of the ladder.
3. Proceed to the following section for ON-DECK MOUNTING. After
the slide has been mounted to the deck, attach the “stub up” to the
plumbing assembly installed in the ladder.
4. The HELIX2™can handle up to 20 gallons per minute (75 L/min). Water flow to the main water
supply is to be regulated using the ball valve (16) near the center of the ladder. The fountain feature
can be regulated via the small ball valve just under the top of the ladder. FIGURE L shows the
location of the small ball valve.
5. The fountain feature and the main water supply can be either used together or alone.
a. To use only the main water supply, shut off the small ball valve. Adjust the large ball valve for
the desired water flow.
b. To use only the fountain, shut off the large ball valve. Adjust the small ball valve for desired flow.
6. To use both the fountain and the main water supply together, the large ball valve must be partially
closed. In general, closing the large ball valve more will increase the flow to the fountain. Adjust
the small and large ball valves to obtain the desired flow from each water feature.
(17)
(24)
FIGURE M
FIGURE L
(18)
SDGF
GFDG
DF(G
HGHJ
GHGJ
(17)
(24)
BROKEN OUT
SECTION
DETAIL A
SMALL BALL VALVE

17
MANUFACTURER’S PLACEMENT INSTRUCTIONS
PROPER ASSEMBLY, INSTALLATION, USE, AND SUPERVISION ARE ESSENTIAL FOR PROPER
OPERATION AND TO REDUCE THE RISK OF SERIOUS INJURY.
1. The critical dimensions for placement of the HELIX2 are as shown in FIGURE N and FIGURE O.
A. The slide exit runway surface shall not exceed 20” (0.508 M) above the water surface as
shown in FIGURE N.
B. The slide shall be positioned so that all water flowing off the runway exit drops into the pool.
The recommended overhand is 4” (0.102 M).
C. The minimum depth of water below the exit lip of the slide shall be 3’ (0.914 M) and increase
to 4’6” (1.371 M) at Pt. A, which is a distance of 4’6” (1.371 M) from the exit lip of the slide as
shown in FIGURE N.
D. A minimum depth of 4’6” (1.371 M) shall be maintained at a distance of 9” (2.743 M) along
the extended centerline of the slide from Pt. A as shown in FIGURE N.
2. A minimum clearance area in front of the slide shall be maintained at all
times as follows:
A. The minimum clearance distance on either side of the extended
centerline of the slide runway shall not be less than 3’6” (1. 067 M)
at a point no less than 2’6” (0.762 M) from the exit lip of the slide
and extending a distance of 13’6” (4.115 M) in front of the slide as
shown in FIGURE O.
B. The minimum clearance area in front of a properly installed diving
board on an inground swimming pool is a minimum distance of
3’6” (1.067 M) on either side of the board’s centerline as shown in
FIGURE P. Pt. C extends a minimum distance of “C” from the tip
end of the board as shown in FIGURE P. The width distance “W”
on either side of Pt. C is given in TABLE 1 and shown in FIGURE
P.
FIGURE N
FIGURE O
DECK/COPING SURFACE
3' MIN.
EXIT
RUNWAY SURFACE
PLUMBLINE
20" MAX.
WATER LEVEL
ENTRANCE
Pt.A
13'-6" MIN.
9' MIN. 4'-6"
4'-6" MIN.4'-6" MIN.
SLIDE MINIMUM CLEARANCE AREA
3'-6"
C
L
2'-6"
13'-6"
3'-6"
EXTENDED CENTERLINE

18
C. The minimum clearance area of a slide of diving board shall not intersect any coping or rope
and float line as shown in FIGURE Q. The minimum clearance area of a slide or diving board
may intersect each other provided that they are not used simultaneously.
See Article 5 contained in ANSI/APSP/ICC-5 2011 STANDARD
FOR RESIDENTIAL INGROUND SWIMMING POOLS and refer
to FIGURE 3 and Table 1 for Minimum Water Envelope
Dimensions AB, BC and Width at Point C.
TABLE 1
Board Minimum Clearance Area
Pool Type
“C” Dimension
“W” Dimension
I
14’ -6” (4.420 M)
5’ -0” (1.524 M)
II
14’ -6” (4.420 M)
6’ -0” (1.829 M)
III
16’ -6” (5.029 M)
6’ -0” (1.829 M)
IV
18’ -6” (5.639 M)
7’ -6” (2.286 M)
V
21’ -0” (6.401 M)
7’ -6” (2.286 M)
FIGURE P
“C” DIMENSION FOR BOARD = AB + BC
“W” DIMENSION FOR BOARD = WIDTH AT PT.C
FIGURE Q

A
APPENDIX A

B
APPENDIX B
