S.R.Smith TURBOTWISTER Instruction manual

06-693 June16
TURBOTWISTER®
ASSEMBLY AND INSTALLATION
INSTRUCTIONS
SRS AUSTRALIA, PTY LTD
12 Enterprise St
Richlands QLD 4077
Australia
Phone [phone] • Fax [phone]
www.srsmith.com/au
S.R. SMITH, LLC
CORPORATE HEADQUARTERS
P.O. Box 400 • 1017 S.W. Berg Parkway
Canby, Oregon 97013
USA
Phone [phone] • Fax [phone]
www.srsmith.com
S.R. SMITH TURBOTWISTER SLIDES ARE MANUFACTURED FOR
INSTALLATION AND USE ON RESIDENTIAL INGROUND SWIMMING
POOLS ONLY. THE TURBOTWISTER IS NEVER TO BE INSTALLED AND
USED ON ABOVEGROUND POOLS, ONGROUND POOLS, HOUSEBOATS,
BOAT DOCKS, FLOATING DOCKS OR PLATFORMS OR OTHER BODIES
OF WATER SUCH AS LAKES, PONDS, RIVERS, ETC.

2
TABLE OF CONTENTS
INTRODUCTION...........................................................................................................................................3
INSTALLED TURBOTWISTER STRUCTURAL & INSTALLATION CHECKLIST........................................4
MAINTENANCE INSTRUCTIONS................................................................................................................4
ASSEMBLED TURBOTWISTER LAYOUT...................................................................................................5
ASSEMBLY INSTRUCTIONS.......................................................................................................................6
Tools Required..........................................................................................................................................6
Gasket Installation.....................................................................................................................................6
MAIN SECTION PARTS LIST.......................................................................................................................7
MAIN SECTION ASSEMBLY........................................................................................................................8
CONCRETE WEDGE ANCHOR MOUNTING INSTRUCTIONS................................................................16
WATER SYSTEM PARTS LIST..................................................................................................................18
WATER SYSTEM ASSEMBLY..................................................................................................................19
MANUFACTURER’S PLACEMENT INSTRUCTIONS ...............................................................................22
Visit srsmith.com for information on the complete line of
S.R.Smith pool products.
SLIDE ASSEMBLY AND INSTALLATION VIDEOS AVAILABLE AT
www.youtube.com/srsmithllc
REGISTER YOUR S.R. SMITH PRODUCT AT
www.srsmith.com/en/customer-service/product-registration

3
INTRODUCTION
DANGER – FAILURE TO FOLLOW THESE WARNINGS, INSTRUCTIONS, AND THE
OWNER’S MANUAL MAY RESULT IN SERIOUS INJURY OR DEATH.
TURBOTWISTER IS DESIGNED AND MANUFACTURED FOR INSTALLATION AND USE ON
INGROUND SWIMMING POOLS ONLY. DO NOT INSTALL THIS SLIDE ON ABOVE GROUND
POOLS, HOUSEBOATS, BOAT DOCKS, FLOATING DOCKS OR PLATFORMS, OR OTHER BODIES
OF WATER SUCH AS LAKES, PONDS, RIVERS, ETC. PROPER ASSEMBLY, INSTALLATION, USE,
AND SUPERVISION ARE ESSENTIAL FOR PROPER OPERATION AND TO REDUCE THE RISK OF
SERIOUS INJURY OR DEATH.
ALL NATIONAL AND LOCAL BUILDING CODES MUST BE FOLLOWED. THIS INCLUDES ANY
APPLICABLE REQUIREMENTS FOR SIZE OF CONCRETE FOOTING, OVERALL HEIGHT OF SLIDE,
AND BODING OR ELECTRICAL CODES.
CHECK INSIDE ALL BOXES AND PACKAGING MATERIALS FOR PARTS. BEFORE BEGINNING
ASSEMBLY, READ ALL INSTRUCTIONS AND IDENTIFY PARTS USING THE FIGURES AND PARTS
LISTED IN THIS DOCUMENT. IT IS CRITICAL THAT ALL PARTS BE CAREFULLY INSPECTED BY
THE INSTALLER PRIOR TO INSTALLATION TO ENSURE THAT NO DAMAGE OCCURRED IN
TRANSIT AND THAT A DAMAGED PART IS NOT USED. PROPER INSTALLATION CANNOT BE
OVERSTRESSED, IMPROPER INSTALLATION VOIDS S.R. SMITH’S WARRANTY AND MAY
AFFECT THE SAFETY OF THE USER.
INSTALLER MUST GIVE TO SLIDE OWNER: TURBOTWISTER INSTALLATION AND OWNER’S
MANUAL, THE WARRANTY CARD, AND ANSWER ALL QUESTIONS REGARDING SAFE AND
PROPER USE AND SLIDE MAINTENANCE.
FOR COMPLETE SLIDE SAFETY INFORMATION REFER TO THE OWNER’S MANUAL.

4
INSTALLED TURBOTWISTER STRUCTURAL & INSTALLATION CHECKLIST
Installer to review with slide owner upon completion of slide installation.
1. Inspect the runway for visible cracks or tears.
2. Inspect the ladder for sharp edges, protrusions, cracks, or tears.
3. Inspect all fasteners to make sure they are fully tightened.
4. Inspect the ladder for rigidity and attachment.
5. Measure the following dimensions and compare with the manufacturer’s placement instructions on
pages 22-23.
•Pool water depth at the base of the slide should be at least 3’-0” (0.914 M) deep, and at 4’-6”
(1.372 M) out from slide exit, should be at least 4’-6” (1.372 M) deep.
•The height of the slide runway exit above the water should be 20” (0.508 M) maximum.
•The distance between the slide centerline and the edge of other pool equipment should be at
least 3’-6” (1.067 M).
6. Observe the position of the exit of the slide as shown in Figure W, Figure X, and Figure Z, on pages
22 and 23.
MAINTENANCE INSTRUCTIONS
1. When hosing down the deck, hose your TurboTwister to wash away any dust, dirt or other debris that
may have accumulated.
2. Be sure that all connections are secure. Tighten hardware if necessary.
3. All polyethylene parts require little maintenance. Hose and wipe to clean.
While cleaning slide, check and see that all nuts and bolts are tight and secure.
4. Inspect the runway for visible cracks or tears, sharp edges and protrusions.
5. Inspect all attachment points for loose or corroded fasteners.
6. Inspect all ladder tread or step-attachment points for evidence of shear, bending yield, or fatigue in
the ladder steps, rails, or attachment means. Yield is evidenced by crystallization or fine cracking of
the ladder tread and/or surface.
7. Inspect the ladder handrails for rigidity and attachment.

5
ASSEMBLED TURBOTWISTER LAYOUT
The left curve TurboTwister is shown for illustration.
The right curve TurboTwister is a mirror image of the left.
Figure A

6
ASSEMBLY INSTRUCTIONS
Tools Required
1. Ratchet handle
2. 9/16” deep socket
3. 9/16” wrench
4. 3/4" socket or wrench
5. 7/32” Allen wrench
6. Phillips head screwdriver
7. 1/2"Ø (12.7 mm) concrete drill bit
8. 1/4"Ø (6.3 mm) drill bit
9. Power drill
10. PVC pipe primer & glue
11. Anti-seize
12. Saw to cut PVC pipe
13. Knife
14. Level
Gasket Installation
•Most of the gasket material has been installed at the factory, however additional gasket has been
provided in case any gasket has fallen off during shipping. If gasket installation is required, follow
the instructions below in Figure B. The gasket on the face of the ladder is not installed in the
factory, but detailed instructions are provided on page 12, Figure K.
•Apply gasket in the required locations as shown in Figure B.
•Place gasket along the section to determine the length needed.
•Cut gasket to appropriate length.
•Remove backing and adhere gasket to slide.
•All gaskets below are applied as shown in Figure B in the Joint / Gasket Cross-Section Detail.
•See page 12, Figure K, for further details on installing the ladder gasket, PN 8-531.
Figure B

7
MAIN SECTION PARTS LIST

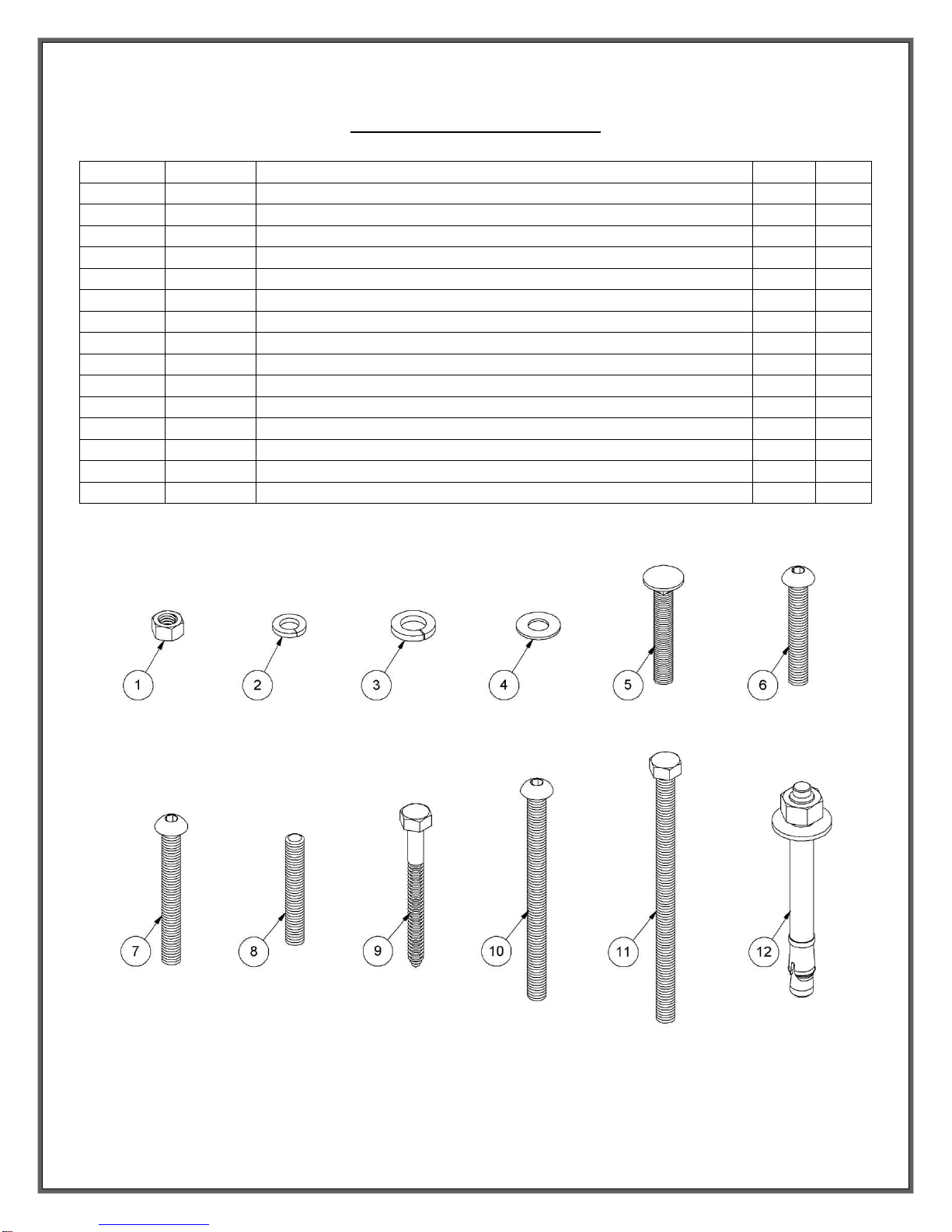

Visit srsmith.com for hardware kit and replacement part information.
ITEM NO.
PART NO.
DESCRIPTION
QTY.
KIT A
KIT A 69-209-168 TUROBOTWISTER HARDWARE CARTON 1 ea.
1 5-139 3/8” HEX NUT 14 ea. ●
2 5-151 3/8” LOCK WASHER 14 ea. ●
3 05-14-115 1/2" LOCK WASHER 8 ea. ●
4 5-145 3/8” FLAT WASHER 35 ea. ●
5 5-235 3/8” x 2-1/4” CARRIAGE BOLT 2 ea. ●
6 5-236 3/8” x 2-1/4” BUTTON HEAD CAP SCREW 2 ea. ●
7 5-249 3/8” x 3-1/4” BUTTON HEAD CAP SCREW 2 ea. ●
8 5-239 3/8” x 2-1/2” STUD 4 ea. ●
9 5-240 3/8” x 3-1/2” LAG SCREW 9 ea. ●
10 5-237 3/8” x 5” BUTTON HEAD CAP SCREW 4 ea. ●
11 5-238 3/8” x 6” HEX HEAD CAP SCREW 4 ea. ●
12 5-241 1/2" x 5” CONCRETE WEDGE ANCHOR WITH HARDWARE 8 ea. ●
13 8-532 1/2" HIGH x 1/2” WIDE x 32” LONG RUBBER GASKET (NOT SHOWN) 1 ea.
14 8-531 TOP RUNWAY GASKET KIT (NOT SHOWN) 1 ea.

8
MAIN SECTION ASSEMBLY
1. Place the Pedestal on the ground and set the Exit Slide Section on top as shown in Figure C.
2. Attach the Exit Slide Section to the Middle Slide Section as shown in Figure D.
If necessary lift up on the end of the exit runway in order to keep the joint tight while fastening.
Note: Ensure gasket material at the joint is intact before assembling.
The required hardware is as follows: 3/8” x 5” Socket Head Cap Screw (10), 3/8” Flat Washer (4), 3/8”
Flat Washer (4), 3/8” Lock Washer (2), 3/8” Hex Nut (1).
Note: When assembling the slide, apply a thin even coating of anti-seize to all stainless steel
fasteners. Anti-Seize aids in assembly, prevents galling, and improves corrosion resistance.
Anti-Seize can be purchased at most auto parts stores.
Figure D
Figure C

9
3. Once the sidewall connections have been made, remove the assembled Exit and Middle Slide
Sections from the Pedestal. Turn the assembly upside down and fasten the underside as shown in
Figure E. The required hardware is as follows: 3/8” x 6” Hex Head Cap Screw (11), 3/8” Flat Washer
(4), 3/8” Flat Washer (4), 3/8” Lock Washer (2), and 3/8” Hex Nut (1).
4. Attach the Pedestal to the Middle Runway Section and Exit Slide Sections. Install the fasteners, as
shown in Figure F. The required hardware is as follows: 3/8” x 3-1/2” Lag Screw (9), and 3/8” Flat
Washer (4).
Figure F
Figure
E

10
5. Install four 3/8” x 2-1/2” Studs (8) into the threaded inserts located at the top of the ladder as shown in
Figure G.
6. Assemble the Top and Bottom Ladder Sections as shown in Figure H, Figure I, and Figure J. Do not
fully tighten fasteners until all the hardware is in place. The hardware required for the connections
shown in Figure H are as follows: 3/8” x 2-1/4” Button Head Cap Screw (6) and 3/8” Flat Washer (4).
Figure G
Figure H

11
7. The hardware required for the connections shown in Figure I are as follows: 3/8” x 3-1/4” Button
Head Cap Screw (7) and 3/8” Flat Washer (4).
8. The hardware required for the connections shown in Figure J are as follows: 3/8” x 2-1/4” Carriage
Bolt (5), 3/8” Flat Washer (4), 3/8” Lock Washer (2), and 3/8” Hex Nut (1).
Figure
I
Figure
J

12
9. In preparation for the assembly of the Top Runway Section and Ladder, make sure that the joint
surfaces of the Top Runway Section and Ladder Sections are clean and dry. Unroll the Gasket (14)
and hold it so that the length of the Gasket is centered on the middle of the upper ladder joint surface.
With the exposed adhesive side of the Gasket facing the Ladder joint surface, apply the gasket
starting at the middle of the part, working outward toward both sides. Be sure that the bottom edge of
the gasket material is held against the shelf on the ladder section during installation, see Figure K.
Note: Make the bend radius as large as possible where the Gasket transitions up the vertical
edges of the joint surface. Making the bend radius too tight may cause the gasket to kink and
possibly leak.

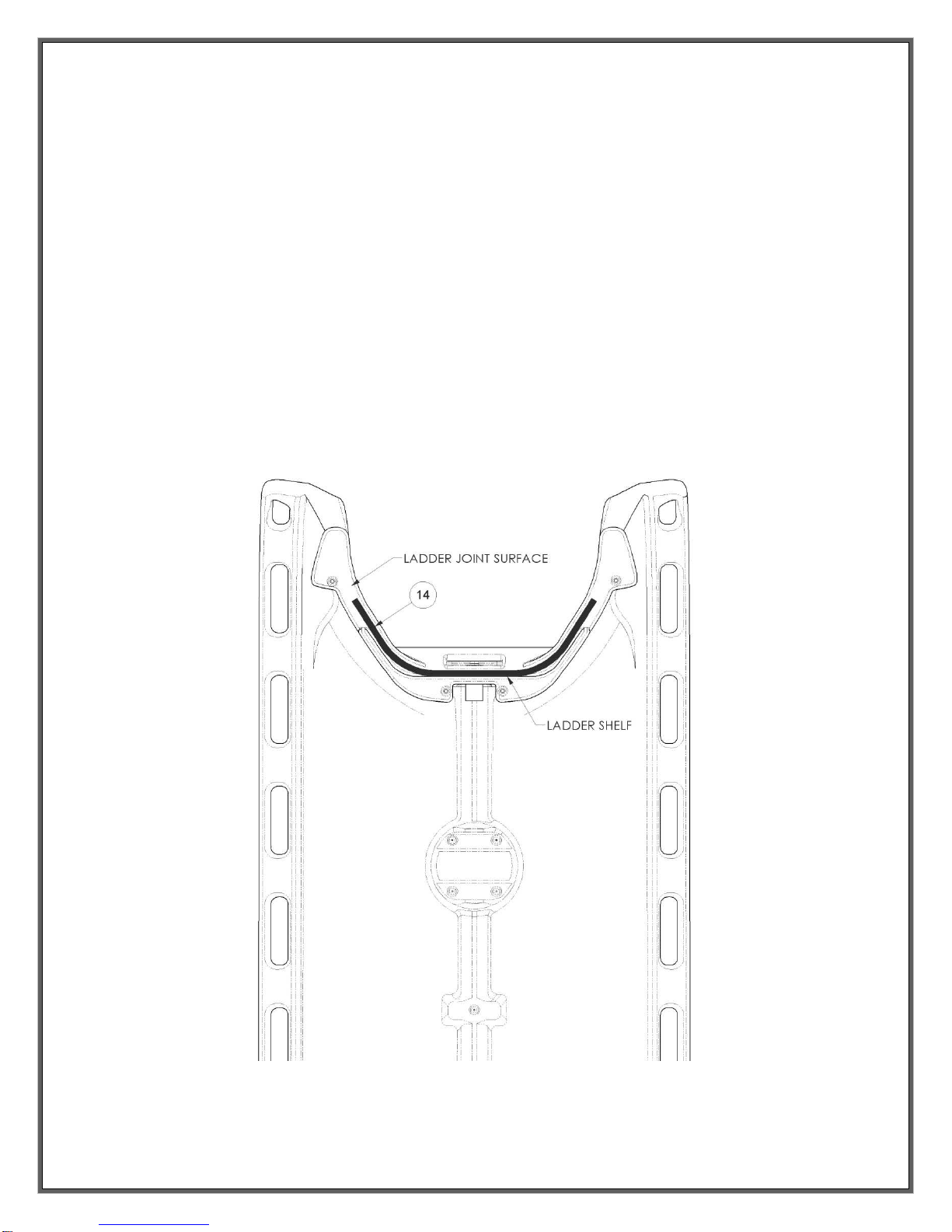

Center the gasket (14) on the available space in the vertical area of the joint, see Figure K. Once the
gasket is in place, firmly press down on the Gasket to ensure that it has completely adhered to the
Ladder’s joint surface. Remove the paper backing on the Gasket to expose the adhesive.
Figure K

13
10. Lay the Ladder assembly flat on the deck surface as shown in Figure L. Align the Upper Slide
Runway’s mounting holes with the four Studs in the Top Slide Section. The required hardware for
these connections is as follows: 3/8” Flat Washer (4), 3/8” Lock Washer (2), and 3/8” Hex Nut (1).
Notes:
- Use caution to protect the ladder from being scratched during this step.
- It is strongly recommended that a second person assist to help ensure that the Top
Runway Section is properly aligned with the Ladder Section. It is difficult to separate the
parts once the gasket adhesive comes into contact with the Top Runway Section, so it is
important that the two parts be aligned correctly the first time.
Figure L

14
Note: Ensure gasket material at the Runway joint is intact before assembling.
11. Stand the Ladder upright and assemble the Lower Slide Runway as shown in Figure M. Loosely
install the fasteners for both of the Runway sidewall connections. The required hardware is as
follows: 3/8” x 5” Socket Head Cap Screw (10), 3/8” Flat Washer (4), 3/8” Flat Washer (4), 3/8” Lock
Washer (2), 3/8” Hex Nut (1).
12. Install the fasteners on the underside of the runway. The required hardware is as follows: 3/8” x 6”
Hex Head Cap Screw (11), 3/8” Flat Washer (4), 3/8” Flat Washer (4), 3/8” Lock Washer (2), 3/8” Hex
Nut (1). After all of the fasteners are in place, tighten them.
Figure
M

15
13. Drill a 1/4ӯ pilot hole through the center of the 6 circular indentations around the perimeter of the
Pedestal / Runway connection. Then install a 3/8” x 3-1/2” Lag Screw (9) and 3/8” Flat Washer (4)
as shown in Figure N.
Figure N

16
CONCRETE WEDGE ANCHOR MOUNTING INSTRUCTIONS
1. Position the assembled slide on the deck relative to the pool wall. Ensure that the exit flume clears
any coping. Slide may be angled slightly providing all dimensions are maintained as noted in the
“Manufacturer’s Placement Instructions” noted on pages 22 and 23.
2. The TurboTwister slide must be anchored into a concrete pad that is a minimum of 4” thick. If
installing the slide on a paver deck, refer to S.R. Smith instruction 06-520 “Installation Instructions
for Paver Decks”.
3. With the slide in its proper location, center punch or otherwise mark through the (8) mounting holes at
the bottom of the Ladder and Pedestal so that a visible mark is apparent on the concrete.
4. In order to protect the slide from being damaged by the drill bit, move the slide aside before drilling
the holes into the concrete deck.
5. Using a power drill and a 1/2”Ø concrete drill bit, drill the holes to a depth of 4”. Use tape or a
marking on the drill bit to ensure that the hole for the anchor is drilled to the required depth. Keep the
drill straight and perpendicular to the deck surface while drilling in order to maintain proper holding
strength of the concrete wedge anchors (12).
6. Clear the newly drilled holes of all debris.
7. Move the slide back over the holes. Assemble the Wedge Anchor Stud (12) with the Wedge Anchor
Hex Nut (12) and the Wedge Anchor Flat Washer (12) so that the top of the Wedge Anchor Hex Nut
(12) is flush with the top of the Wedge Anchor Stud (12), and insert the assembled Wedge Anchors
(12) into the slide’s mounting holes as shown in Figure O.
Figure O

17
8. Drive the assembled Wedge Anchors (12) through the slide mounting holes until the Wedge Anchor
Flat Washers are flush with the slide’s surface material, as shown in Figure P.
9. Ensure the Slide Ladder is plumb by placing a level on a Ladder tread. If necessary, shims can be
provided by S.R. Smith to place beneath the base of the Ladder to ensure it is plumb due to varying
deck slopes. Call S.R. Smith at 800-824-4387 if shims are needed.
10. Expand the Wedge Anchor Stud (12) by tightening the Wedge Anchor Hex Nut (12) 3 to 5 turns.
Once the Wedge Anchor (12) is set, remove Wedge Anchor Hex Nut (12) and install a 1/2” Lock
Washer (3) between the Wedge Anchor Flat Washer (12) and Hex Nut (12).
11. Then retighten the Hex Nut (12) to a torque of 25 ft.-lbs. (33.9 N-m). See Figure Q for final assembly.
Figure P
Figure Q

18
WATER SYSTEM PARTS LIST
Visit srsmith.com for hardware kit and replacement part information.
ITEM NO.
PART NO.
DESCRIPTION
QTY.
KIT A
KIT A 69-209-168 TUROBOTWISTER HARDWARE CARTON 1 ea.
15 5-242 #14 x 1” PAN HEAD TAPPING SCREW 6 ea. ●
16 05-787 2”Ø PVC PIPE STRAP 2 ea. ●
17 05-788 1-1/2”Ø PIPE CLAMP 2 ea. ●
18 05-789-2 1-1/2”Ø PVC FLEX HOSE, 6’-0” LONG 1 ea.
19 05-789-1 1-1/2”Ø PVC FLEX HOSE,15” LONG 1 ea.
20 05-777 1-1/2”Ø BALL VALVE 1 ea. ●
21 05-781 1-1/2”Ø COUPLING 1 ea. ●
22 05-780 1-1/2”Ø x 3/4”Ø REDUCER 1 ea. ●
23 05-779 GARDEN HOSE ADAPTER 1 ea. ●

19
WATER SYSTEM ASSEMBLY
Note: It’s a good idea to dry fit all of the plumbing parts before gluing them together so you
can make adjustments accordingly.
1. Temporarily assemble the two lengths of 1-1/2ӯ Flex Hose (18) and (19) to the 1-1/2ӯ Ball Valve
(20). Then insert the 1-1/2ӯ Coupling (21) to the opposite end of the longer 1-1/2ӯ Flex Hose (18),
as shown in Figure R.
2. Make alignment marks on the parts with a pencil before disassembling. This will aid in reassembling
the parts while gluing them together.
3. Use PVC primer and glue to reassemble the plumbing parts.
4. Fasten the two 1-1/2”Ø Pipe Clamps (17) to the slide using #14 x 1” Pan Head Tapping Screws (15),
as shown in Figure S.
Figure
R
Figure S

20
5. Glue assembled water supply pipe onto the 1-1/2ӯ PVC fitting at the top of the slide, as shown in
Figure T.
6. Secure the 1-1/2ӯ Flex Hose (18) to the ladder with the two 1-1/2ӯ Pipe Clamps (17) that were
installed previously in Step 4, on page 19.
7. Secure the 1-1/2”Ø Ball Valve (20) with two 2”Ø Pipe Straps (16). Install them with the #14 x 1” Pan
Head Tapping Screws (15), as shown in Figure U.
Figure T
Figure
U
