Safco Defy 1981 User manual

990000161: 1 of 10; Rev A; Rev Date 06-JUN-2018
1981,1982
For questions or concerns, please call 1-888-971-6225
available Monday-Friday 7:30 AM to 5:00 PM (Central Time) (English-speaking operators)
Si vous avez des questions pour poser ou les préoccupations
pour exprimer, connecter au 1-888-971-6225
de 7H30 à 17H00 (Heure centrale) (Opérateurs de langue anglaise)
Si usted tiene preguntas o preocupaciones,
por favor llame 1-888-971-6225
de 7:30 AM a 5:00 PM (Hora Central) (Operadores que hablan inglés)
Instructions
PRODUCT WARRANTY is available online at: www.safcoproducts.com
INSTRUCTIONS
INSTRUCCIONES
• LA GARANTÍA DEL PRODUCTO está
disponible en la Internet: www.safcoproducts.com
• LA GARANTIE DU PRODUIT est
disponible sur l’Internet : www.safcoproducts.com
Defy™ Adjustable Height Desk
Defy™ Bureau Réglable En Hauteur
Defy™ Escritorio ajustable En Altura
Safco Products Company, New Hope, MN 55428
Minneapolis, MN 55428
www.safcoproducts.com
an LDI Company
Keep these instructions with product.
Conservez ces instructions avec le produit
Conserve estas instrucciones con el producto

Safco Products Company, New Hope, MN 55428
990000161: 2 of 10; Rev A; Rev Date 06-JUN-2018
CAUTION:
- Make sure no obstacles are in the desk path and the desktop is not touching any walls.
- Make sure all cords are apporpriate length to accomodate the change in height.
- Keep children away from electric height adjustable desks, control units and handsets. There is
a risk of electric shock.
- Keep all electrical components away from liquids.
- Do not sit or stand on the desk frame. Do not crawl under the desk frame.
- Do not place any objects taller than 20” underneath the desk.
- Do not open any of the components - the Frame, Control Box, or Switch. There is a danger of
electric shock.
INFORMATION:
- This product is designed with a duty cycle of 10% (2 min on, 18 min off).
- In the event of a power outage or if the power cord is unplugged, a manual reset may be
necessary.
USE/LIABILITY:
-The height adjustable desk has electric motors and is designed for use in dry work areas only.
The desk height is adjustable so that it can be positioned at the most ergonomically suitable
height. Any other use is at user’s risk. Under no circumstances does the manufacturer accept
warranty claims or liability claims for damages caused from improper use of handling of the
desk frame. Read all instructions before using desk. Keep instructions for reference.
- Weight Capacity: Maximum loading of the table assembly is (200 lb).
- Voltage (V)=120VAC, 60Hz / 4.25A maximum.
- For office use only.
- Assemble units as described here only. To do otherwise may result in instability. All
screws, nuts and bolts must be tightened securely and must be checked periodically
after assembly. Failure to assemble properly, or to secure parts may result in assembly
failure and personal injury.
PINCH POINTS
Moving part can crush or cut
KEEP CLEAR
!
WARNING
IMPORTANT:
Please read this manual carefully. If this is sold, please provide this manual to the buyer.

Hardware Pack / Paquet Matérial / Paquete Material:
900000178
Screw M6x14mm
Vis M6x14mm
Tornillo M6x14mm
Qty. / Qté. / Cant. 16
905000298
A
B
C
D
E
F
G
H
Safco Products Company, New Hope, MN 55428
990000161: 3 of 10; Rev A; Rev Date 06-JUN-2018
Foot /Pied / Pie 2610000129
Top Bracket Left / Jambe / Pierna 1610000261
Top Bracket Right / Arrière / Espalda 1610000262
Frame / Cadre / Marco 1610000377
Wire Management Cap / Cadre Arrière / Marco Trasero 2 635000044
Control Box / Pied / Pie 1635000057
Cup Holder / Capuchon De Tube / Tapón De Tubo 2635000058
Table Top / Dessus De Table / Tapa De Tabla
For Quick Ship 1640000114§
For Design Your Own 1640000119§§
CODE /
CODIGO
PARTS LIST / LISTE DES PIÈCES / LISTA DE PIEZAS
DESCRIPTION / DESCRIPTION /DESCRIPCIÓN QTY. /
QUANTITÉ/
CANTIDAD
PART NO. /
NODE PIECE / NO.
DE PIEZA
§Note: When corresponding about parts, be sure to state color: White (WH).
§Noter: Quand correspondre au sujet de parties, soyez sûr d’affirmer la couleur: Blanc (WH).
§Note: Al corresponder sobre las piezas, esté seguro declarar el color: Blance (WH).
K
Screw #8x3/4”
Vis #8x3/4”
Tornillo #8x3/4”
Qty. / Qté. / Cant. 2
905000354
I
Screw M8x20mm
Vis M8x20mm
Tornillo M8x20mm
Qty. / Qté. / Cant. 2
905000352
J
4mm Hex Key
4mm Clé Hexagonale
4mm Llave Hexagonal
Qty. / Qté. / Cant. 1
920000360
O
Screw M6x20mm
Vis M6x20mm
Tornillo M6x20mm
Qty. / Qté. / Cant. 8
905000286
M
5mm Hex Key
5mm Clé Hexagonale
5mm Llave Hexagonal
Qty. / Qté. / Cant. 1
920000019
N
Screw M6x16mm
Vis M6x16mm
Tornillo M6x16mm
Qty. / Qté. / Cant. 4
905000299
L
§§Note: When corresponding about parts, be sure to state color: Custom, Design, and Special.
§§Noter: Quand correspondre au sujet de parties, soyez sûr d’affirmer la couleur: Coutume, Motif, et Spécial.
§§Note: Al corresponder sobre las piezas, esté seguro declarar el color: Personalizado, Diseño, y Especial.
Leveler (Pre-Installed)
Niveleur (Pré-installé)
Nivelador (Pre-instalado)
Qty. / Qté. / Cant. 4
960000054
Q
Angle Lock Handle
Poignée De Verrouillage D’angle
Manija De La Cerradura Del Ángulo
Qty. / Qté. / Cant. 2
925000010
P
TOOLS REQUIRED: Phillips Screwdriver
OUTILS REQUIS : Tournevis À Pointe Cruciforme
HERRAMIENTAS REQUERIDAS: Destornillador Phillips

Safco Products Company, New Hope, MN 55428
990000161: 4 of 10; Rev A; Rev Date 06-JUN-2018
M
(4)
G
H
J
P
B
L
K(4)
A
Q
Q
Q
Q
K(4)
A
G
J
P
C
L
M(4)
E
K
(4)
K
(2)
E
L(2)
F
D
I
(2)
K
(2)

Safco Products Company, New Hope, MN 55428
990000161: 5 of 10; Rev A; Rev Date 06-JUN-2018
1
2L(4)
L(2)
L
(2)
Note: Tighten the four pre-installed (L) screws at the front of each actuator.
Noter: Serrez les quatre vis pré-installées (L) à l’avant de chaque actionneur.
Note: Apriete los cuatro tornillos pre-instalados (L) en la parte delantera de cada actuador.
D
L
L
N(1)

Safco Products Company, New Hope, MN 55428
990000161: 6 of 10; Rev A; Rev Date 06-JUN-2018
3K(8)
4J(2)
K
(4)
K(4)
A
A
B
J
PC
J
P
N(1)
O(1)
Note: Be sure the long side of the foot is facing forward.
Noter: Assurez-vous que le côté long du pied est orienté vers l’avant.
Note: Asegúrese de que el lado largo del pie esté orientado hacia adelante.

Safco Products Company, New Hope, MN 55428
990000161: 7 of 10; Rev A; Rev Date 06-JUN-2018
5M(8)
6I(2)
M(4)
M
(4)
H
I
(2)
F
O(1)

Safco Products Company, New Hope, MN 55428
990000161: 8 of 10; Rev A; Rev Date 06-JUN-2018
7K(8)
G
G
K(4)
K
(4)
E
E
Note: Plug in all cables.
Noter: Branchez tous les câbles.
Note: Conectar todos los cables.
O(1)

Safco Products Company, New Hope, MN 55428
990000161: 9 of 10; Rev A; Rev Date 06-JUN-2018
INITIALIZATION: Press and hold Down Button until RST appears on the display.
The desk will first go to the lowest position, then rise slightly and stop. Release the Down Button, Your
desk is now ready to use.
RESET: Please note that desk needs to be reset from time to time when it is not working properly
in events like sudden power outage and etc. The reset process is the same as initialization and requires
more than a simple power-off and power-on for most electronic devices. Unplug the power cord for 20
seconds, plug back in and follow initialization procedure.
PROGRAM UP/DOWN: Press the UP Button, the legs will move up; Press Down Button, the legs
will move down; release to stop movement.
PROGRAM HEIGHT LIMITS: Move the desk to your desire upper height limit. Press the Setting
Button and UP Button simultaneously for one second. The upper limit is set when HI is displayed. To cancel,
press same buttons again. The upper limit is cancelled when HCL is displayed. To set lower height limit,
press Setting Button and Down Button simultaneously for one second. The lower limit is set when LO is
displayed. To cancel, press the same buttons again. The lower limit is cancelled when LCL is displayed.
If you need to program height limits, always do it before you program preset.
PROGRAM POSITION PRESETS: Use Up and Down Buttons to move desk to your desired position,
press SETTING button and one of the four Preset Position buttons simultaneously. You can program up
to four presets. The panel will display 1CF, 2CF, 3CF and 4CF for each reset when it is done.
PROGRAM INCH/CM: Press the Setting Button for 7 seconds until SET is display, and then press
the first Preset Button. The LED will show the default unit of measurement, then press Up Button or Down
button to change.
OVERHEAT: To avoid overheating, don’t move the desk up and down continuously for over two
minutes within any 20 minute period. If the desk overheats, LED will display OH. Stop using the desk for
18 minutes and let the desk cool down.
MAINTENANCE: Apply a silicone lubricant to the legs should any noise or vibration occur.

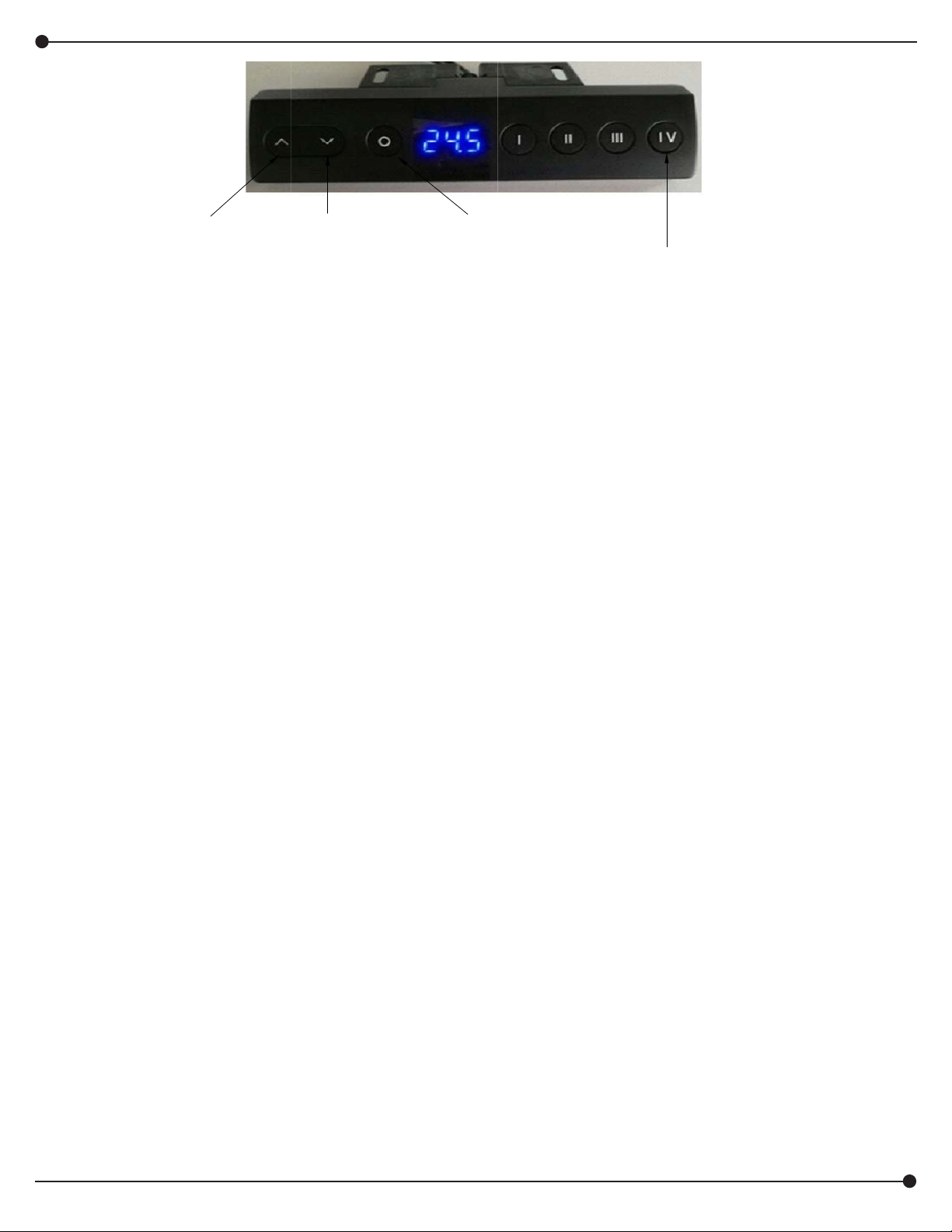

UP Button
Down Button Setting Button
4 Preset Position Buttons

Safco Products Company, New Hope, MN 55428
990000161: 10 of 10; Rev A; Rev Date 06-JUN-2018
TROUBLESHOOTING
Issues/Error Message Solution
Desk does not go up or down. The
controller illuminates when any
button is pressed.
Unplug the power cord. Wait for 20
seconds and re-plug. Reset desk. If
the problem persists, switch motor
cables at control box and attempt
another reset.
Desk does not go up or down. The
controller does not illuminates when
any button is pressed.
Check all connections. Make sure
power cord is plugged into the
control box and a power outlet.
Check fuse if the controller still does
not illuminate. Reset desk when the
controller illuminates. If the problem
persists, switch motor cables at
control box and attempt another
reset.
Desk is unusually noisy
The desk has multiple stages. It is
normal that it is noisier when one
stage extends into another. Apply
silicon lubricant if it is unusually
noisy.
Columns do not go up evenly
Unplug the power cord. Wait for 20
seconds and re-plug. Reset desk. If
the problem persists, switch motor
cables at control box and attempt
another reset.
Desk does not reset
Perform a hard reset. Unplug one
motor cable and press up button. ER1
or ER2 will be displayed. Re-plug the
motor cable and press down button
for 10 seconds until RST appears.
