Safe Fleet Prime Design ProMaster FBM-1007-BLK User manual

Page 2 Packaging Contents
Pages 3-7 L1H1 (118” Wheelbase)
Pages 8-12 L2H1 (136” Wheelbase)
Pages 13-16 L2H2 (Med Roof/136” Wheelbase)
Pages 17-21 L4H2 (159” Wheelbase)
Pages 22-26 L5H2 (159+” Wheelbase, Ext.)
2014+ Ram ProMaster Low/High Roof Base Mounting Kit
PRIME DESIGN, A SAFE FLEET BRAND ▪ Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118
Toll Free: 1.8.PRIME.RACK ▪ Fax: [phone] ▪ Email: [email protected] ▪ Website: www.primedesign.net

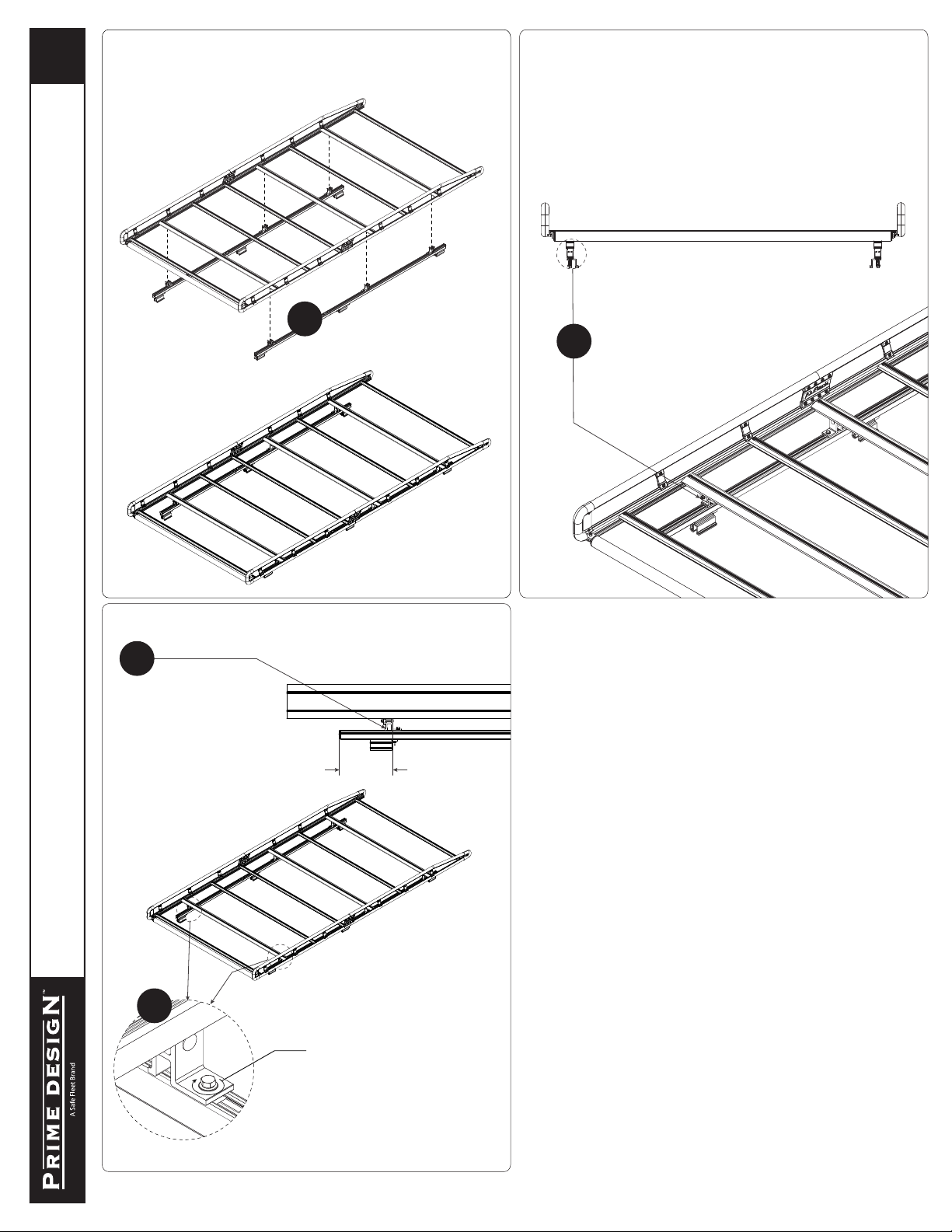

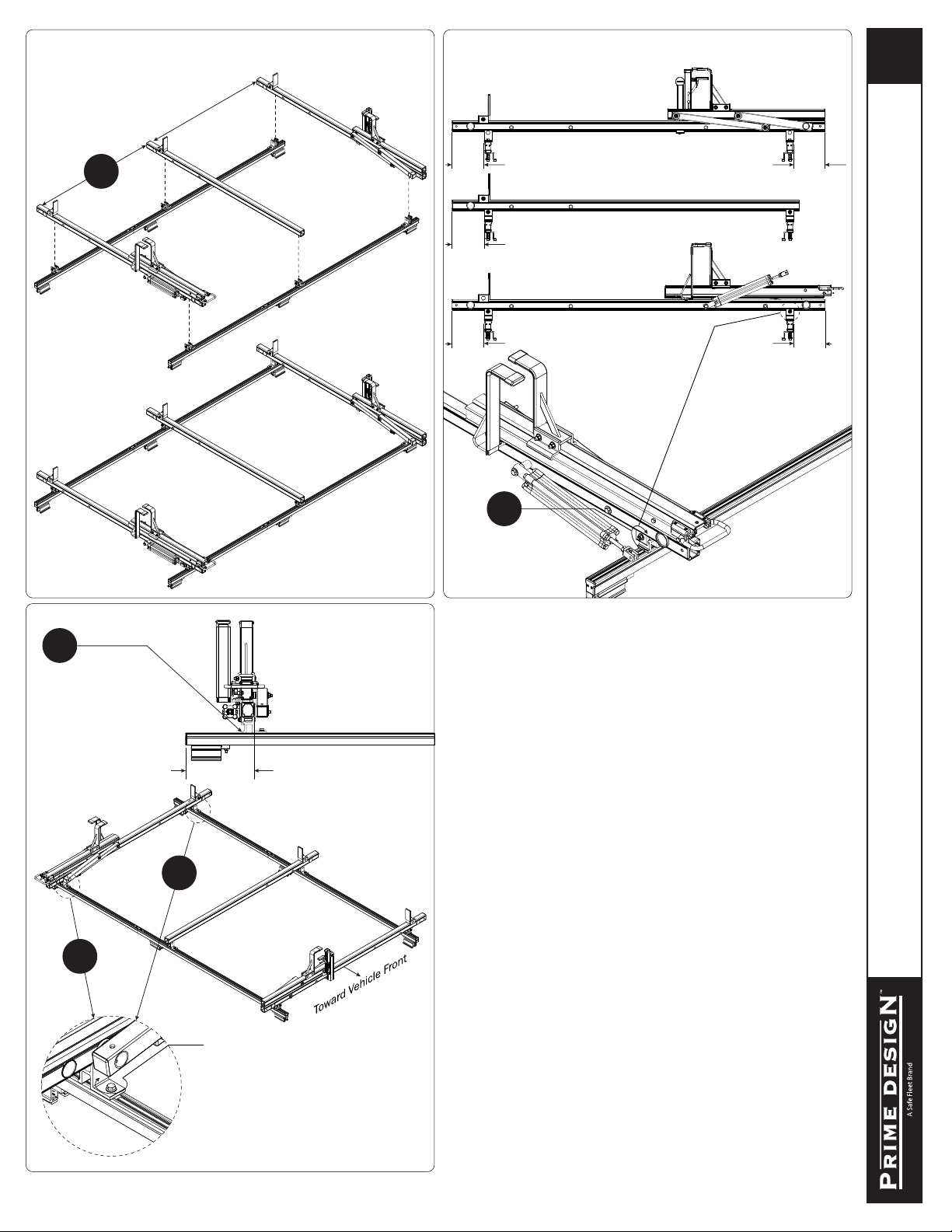

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING

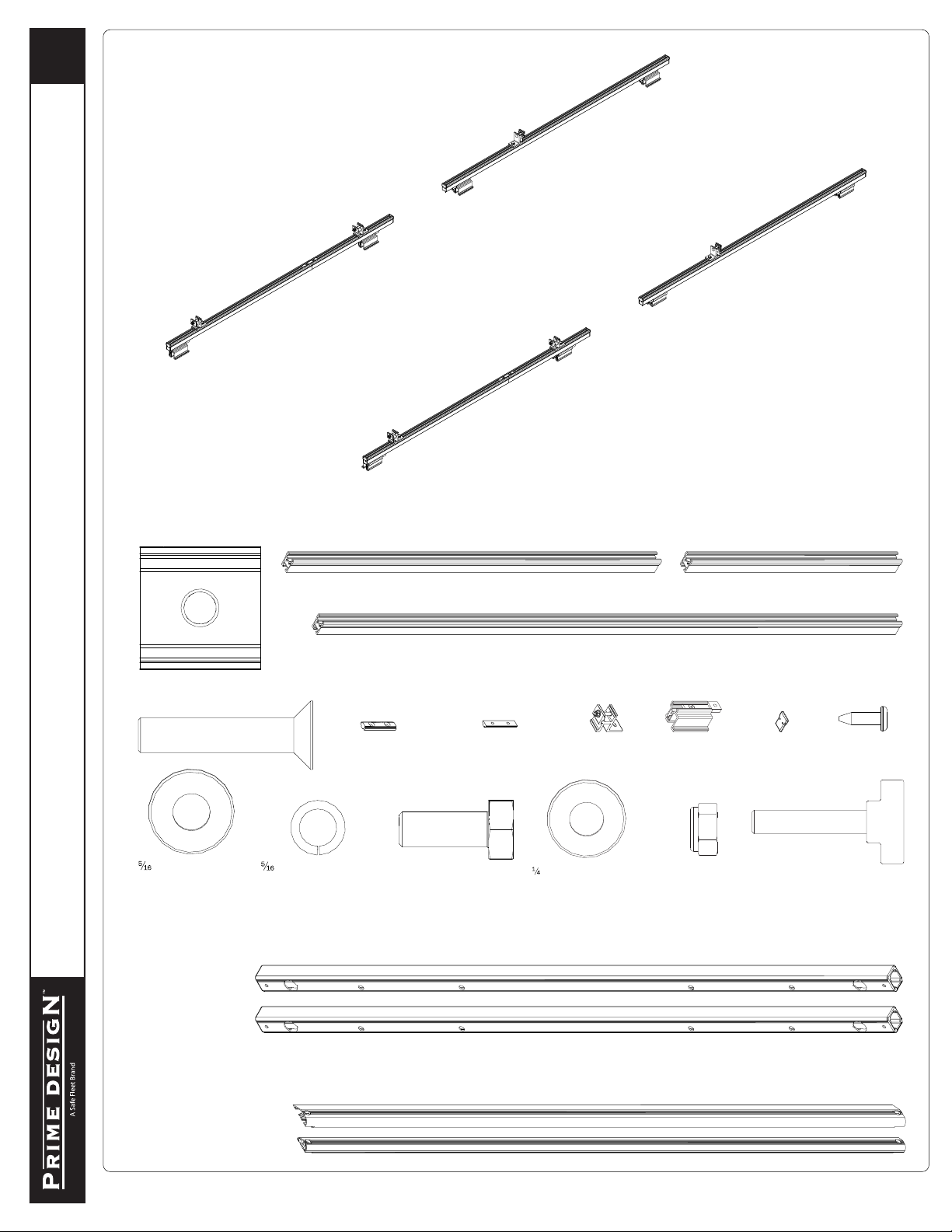

2
Mountings (8X)Top Connector (4X) Bottom Connector (4X)
M8 x 40MM Bolt (8X) End Caps (8X) Screws (16X)
Brackets (6X)
42” Channels (2X)
66” Channels (2X)
24” Channels (2X)
Aluminum Strip Nut (6X)
M6 Locknut (8X) M6 T-Bolt (8X)” Flat Washer (8X)
" Lock Washer (6X)
" Flat Washer (6X) M8 x 20MM (6X)
ErgoRack, Gen4
AluRack
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS
1—FBM-1007-BLK-BLK ......................................... (Qty 1)
Channels, 117.50” w/Hardware Kits
CONTENTS OVERVIEW
TWO & THREE CROSSBAR CONFIGURATIONS
NOTE:This Manual contains information covering
two and three Crossbar congurations. If your model
is a two Crossbar conguration, disregard all Center
Crossbar installation information.
2—Crossbars (shown for illustrative purposes only)
Ordered separately

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
3
Rear
Front
3E
3A
1
2
1
2
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L1H1 UNIVERSAL FBM
L1H1 (118.00”) FBM ASSEMBLY SEQUENCE
CHANNEL MOUNTINGS
Slide all Mounting Bodies
onto Base Puller Assembly 1.2
Position Base Pullers and
Nut onto Roof Mounting Boss 1.1
NOTE: Channel Mountings must be
disassembled for installation onto the
vehicle’s roof.
ERGORACK
CONFIGURATION
ALURACK
CONFIGURATION
NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for
illustrative purposes only. These features are not included with this Base
Mounting Kit, and must be purchased separately.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
4
Rear
Front
Crossbar Rear Crossbar Front
36.25”
7.00”
49.00”
66”
42”

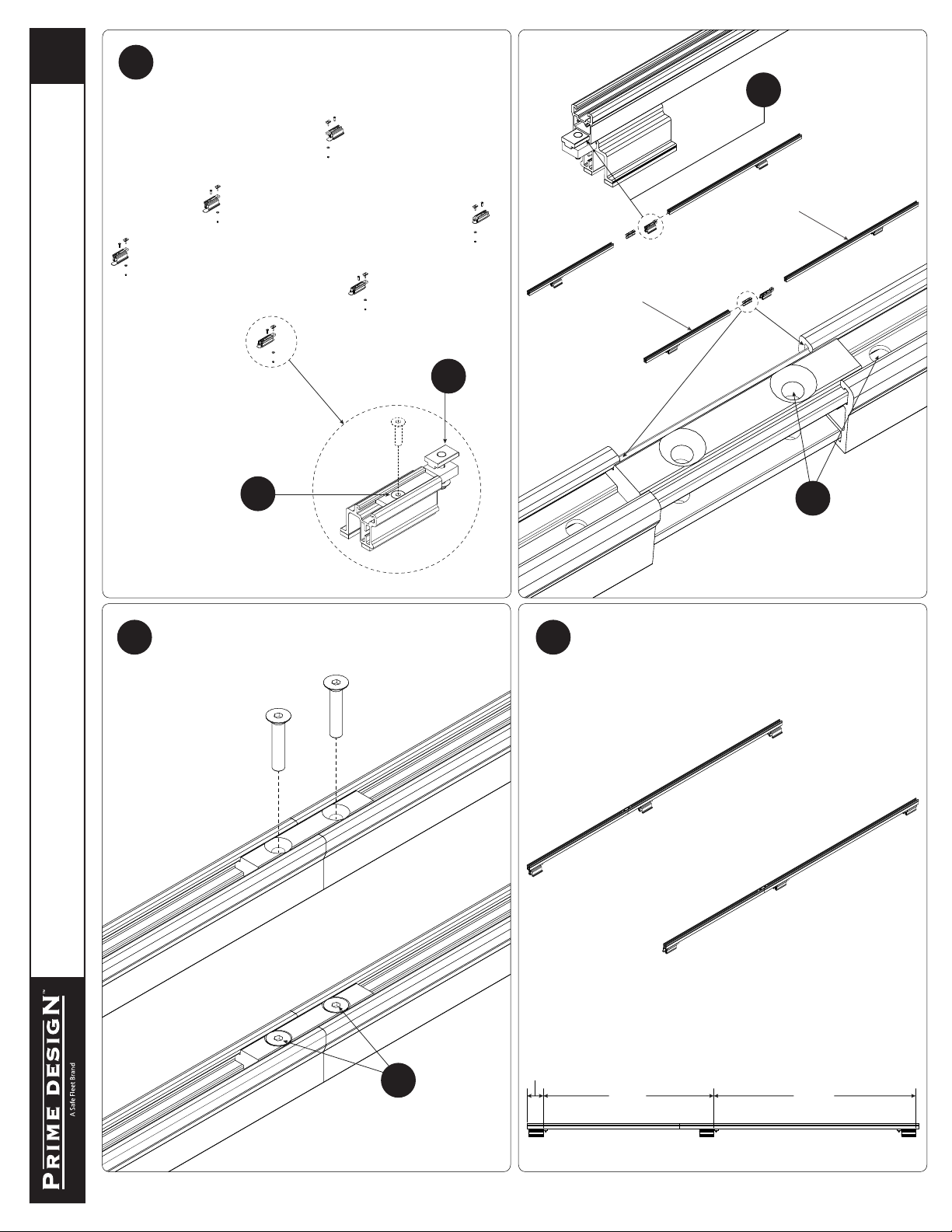

FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L1H1 UNIVERSAL FBM

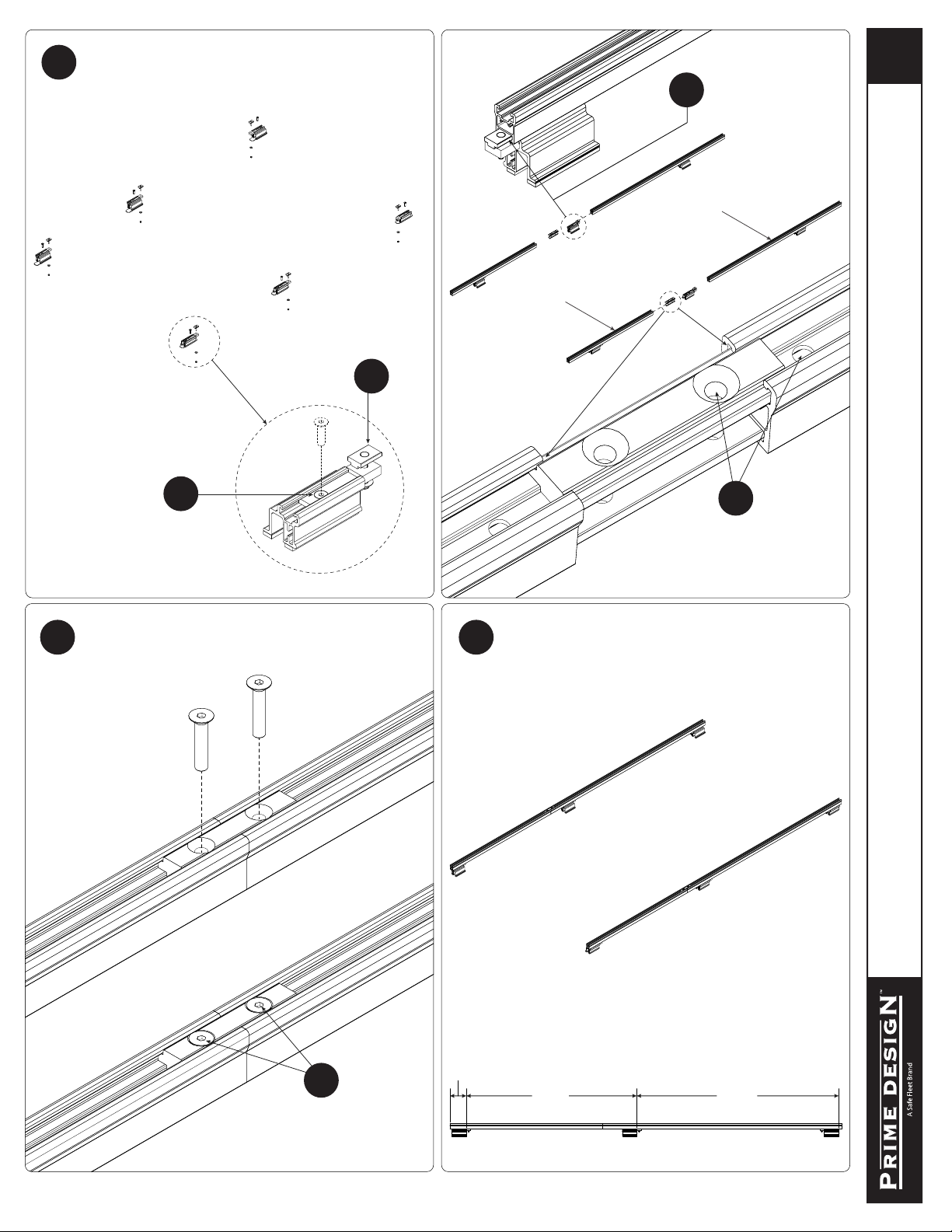

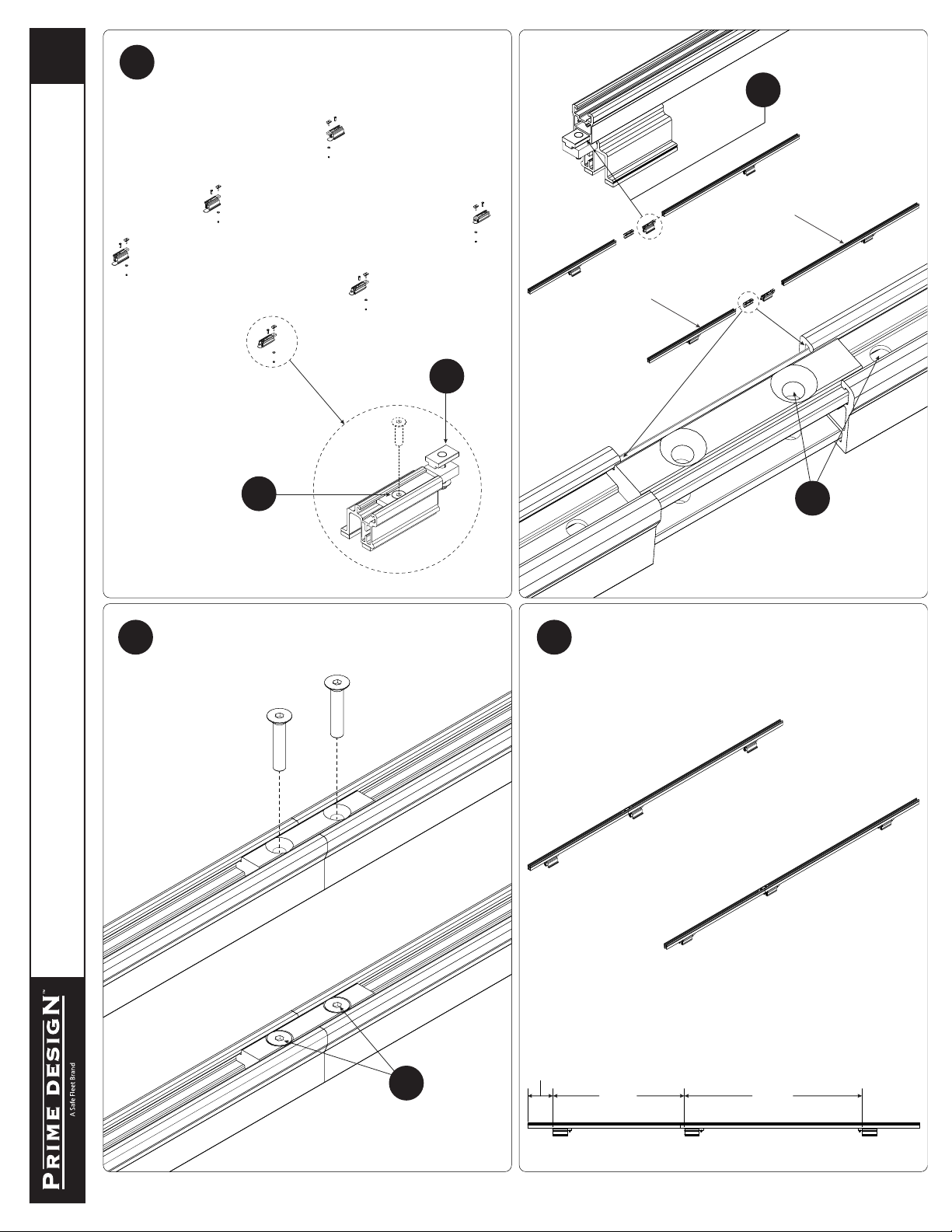

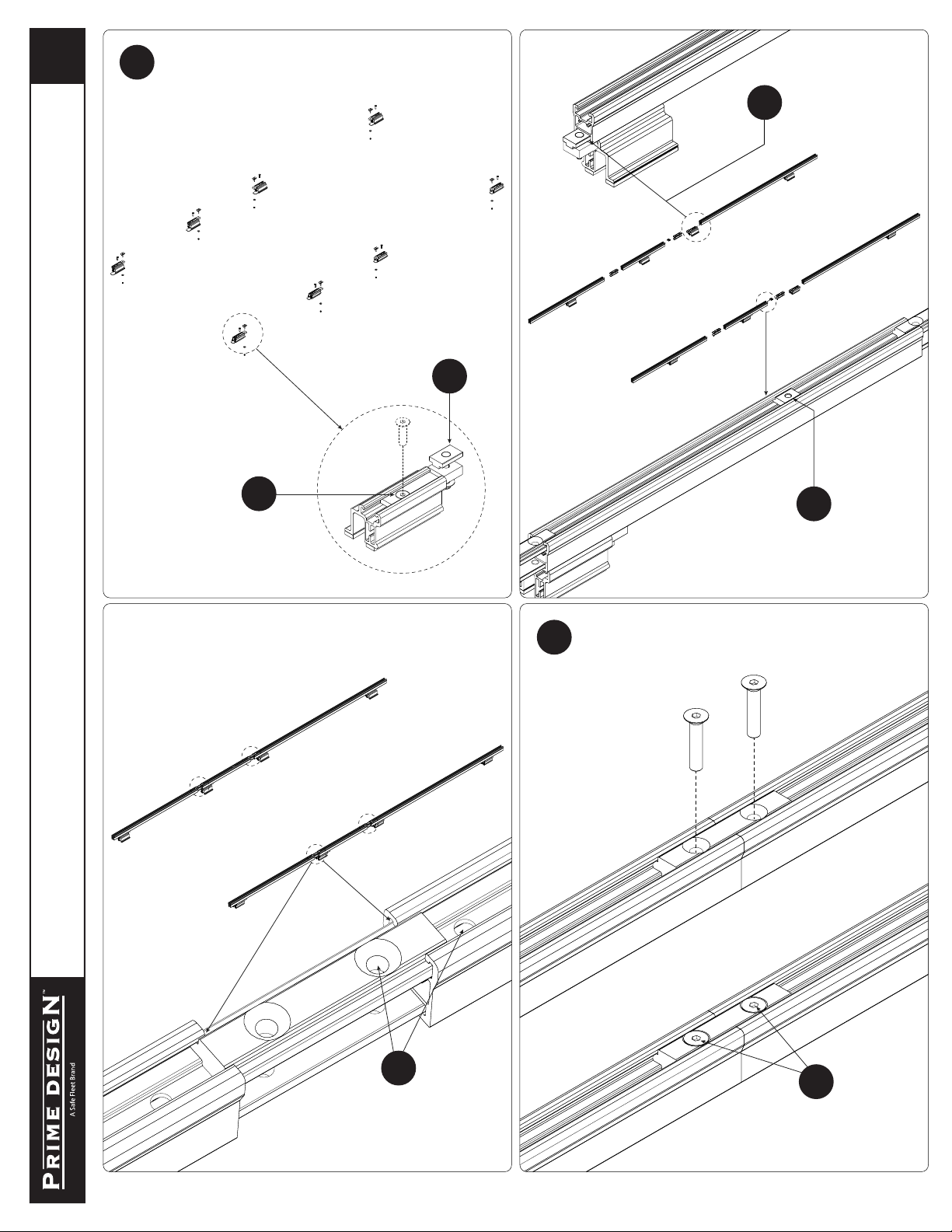

1.7
1.6 Slide Channels onto
Mounting Brackets
1.9
Torque screws to 90 in-lbs
Slide the upper and lower
Channel Connectors into
Channels and align holes
1.10 Set to distances shown below, then torque Mounting
Bracket nuts loosened at Step 1.5 to 80 in-lbs
1.8 Screw the M8 x 40MM Allen Head bolts into the Upper
and Lower Channel Splices. Due to tight manufacturing
tolerances, both bolts must remain loose until Step 1.9
Do not tighten
1.5
1.4
Torque to
80 in-lbs
1.3 Slide and position the Channel Connector into the
Mounting Body as shown, then screw the 30MM Flat
Head bolt into the Base Puller.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
5
Rear
Front
Rear
Front
ErgoRack
AluRack
11.375”
Crossbar Rear Crossbar Front
(B) 48.00” ErgoRack
29.00” AluRack
(A) 96.00” ErgoRack
72.50” AluRack
(B) 48.00” ErgoRack
43.50” AluRack
M8 X 20MM
Lock Washer
Flat Washer
ErgoRack
AluRack
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L1H1 UNIVERSAL FBM

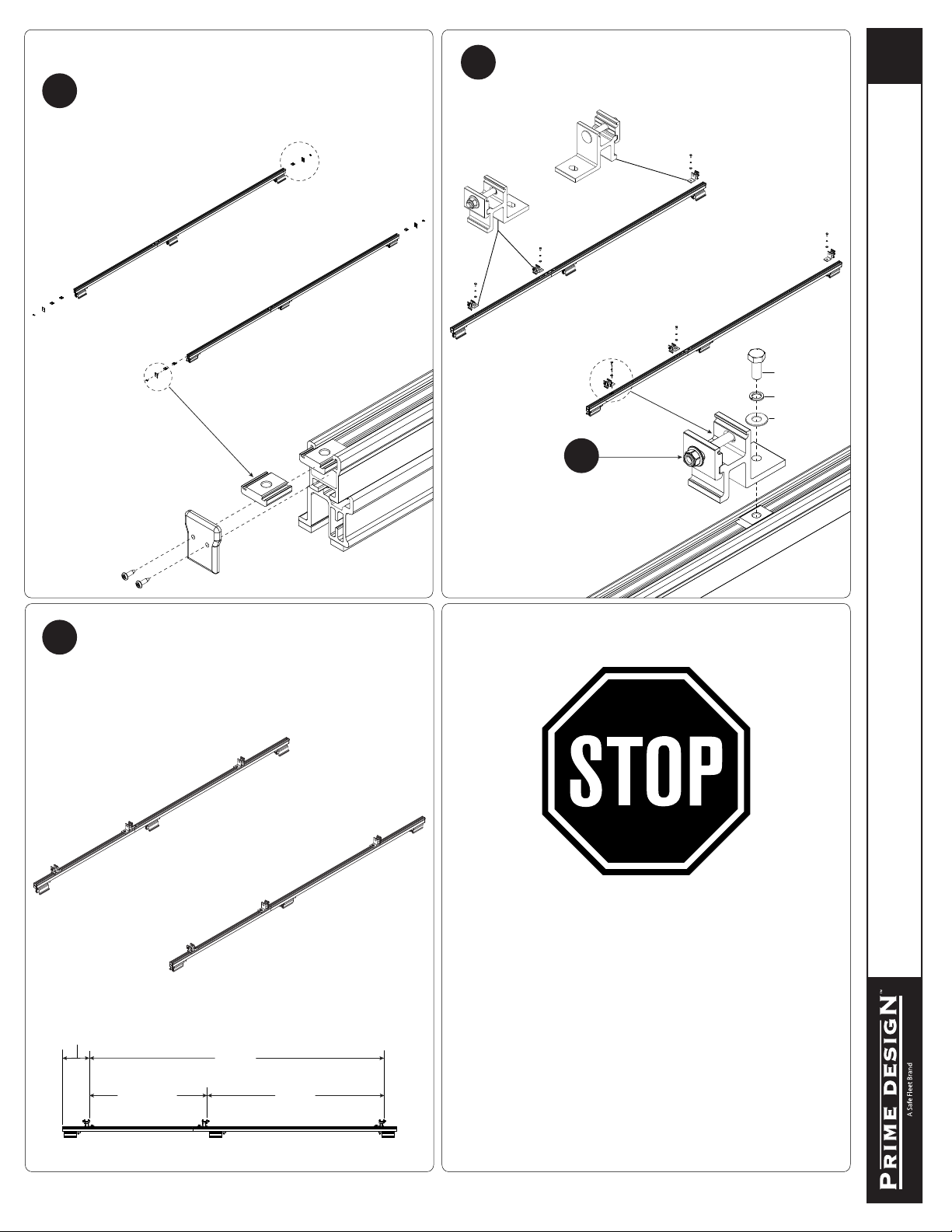

2.4 Set to distances shown below:
Use Dimensions A for 2 Crossbar models.
Use Dimensions B for 3 Crossbar models.
Do not torque the Crossbar Mounting Brackets until Step 3.4.
Finger-tighten them into designated dimension to hold them in
place, then proceed to your Feature (FEA) Assembly Manual.
2.3
Loosen nuts
3 Crossbar models:
Position the center
Mounting Brackets
as shown for ErgoRack
or AluRack models.
*2 & 3 Crossbar models:
Position the front Mounting
Brackets as shown.
MOUNTING BRACKETS Using the supplied fastening hardware, attach the Crossbar
Mounting Brackets into the Aluminum Strip Nuts placed into
the Channels at Step 2.1
2.2
2.1 Slide the Aluminum Strip Nuts into each end of the Channels,
and attach the Channel Caps
Do not mount the Crossbars to this FBM system at this time.
Refer to the respective FEA or AR Assembly Manual(s)
included with your chosen rack conguration features.
Depending upon the features chosen, you may need to
perform a complete feature assembly onto the Crossbars or
Side Rails as noted in that feature’s Assembly Manual.
WARNING: Failure to position the Crossbars as shown in this
FBM Assembly Manual may result in damage to the sliding
door and/or ladder rack.
NOTE: Crossbars, Side Rails, Base, Clamp Down, or Rotation
features are not included in this FBM kit, and must be
purchased separately. To purchase applicable features and
accessories, please contact your authorized distributor, or a
Prime Design Sales & Service Representative.
*2 Crossbar ErgoRack models:
See Page 24 regarding center
Crossbar Mounts.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
6
Vehicle Rear
Vehicle Front
Even
Even
Even
Even
Same as Front
Center
(if equipped)
Rear
Front
11.375”
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L1H1 UMOUNTING

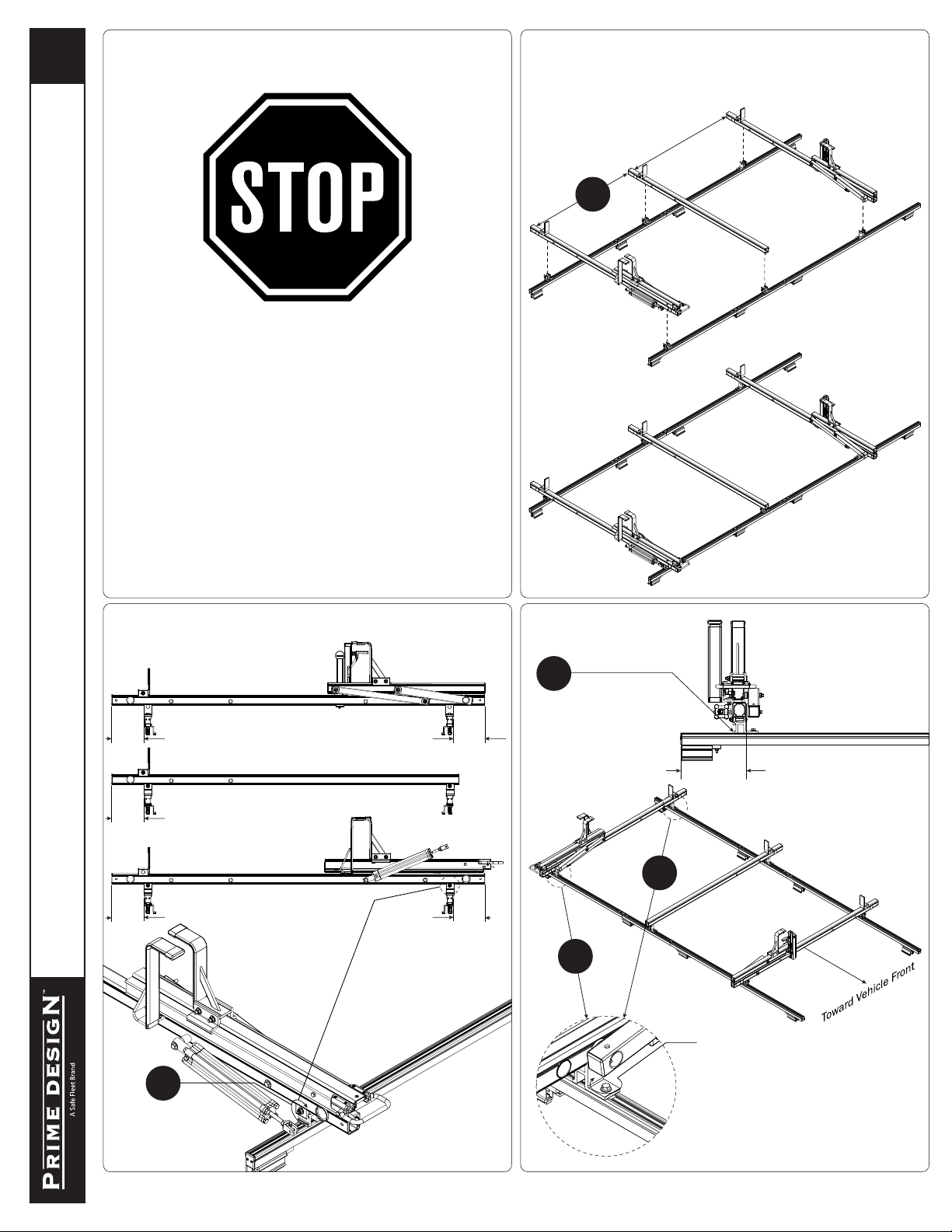

3.1
CROSSBARS (ERGORACK)
3.2
Torque all of these
Crossbar Clamp
nuts to 90 in-lbs
Shown with LH Base, and
RH Rotation for illustrative
purposes only
CROSSBAR ADJUSTMENT
3.3
Verify the specied
distance from the
ends of both Mounting
Bracket to the ends of
both Channels.
3.4
3.4
Torque only the Rear Crossbar Mounting
Bracket bolts to 90 in-lbs at this time.
The Center (if equipped) and Front
Crossbar Mounting Brackets will
be torqued to specication when
designated in the respective Feature
(FEA) Assembly Manual.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
7
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L1H1 UMOUNTING
Center
Vehicle Rear
Vehicle Front
11.375”

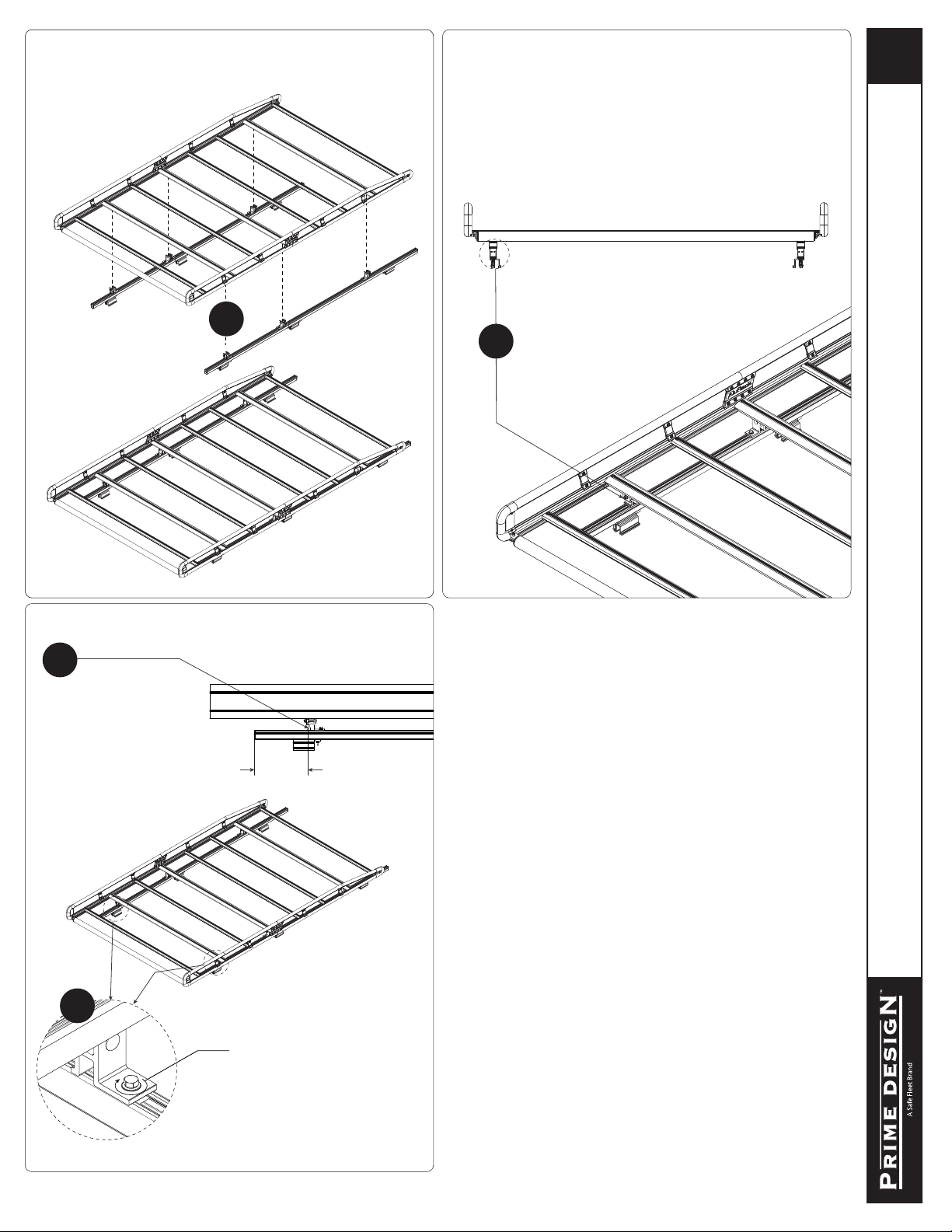

CROSSBARS (ALURACK)
Shown with L1H1 AluRack
for illustrative purposes only
3A.1
3A.2
CROSSBAR
ADJUSTMENT
3A.3
Verify the specied
distance from the
ends of both Mounting
Bracket to the ends of
both Channels.
3A.4
Torque all Crossbar Mounting
Bracket bolts to 90 in-lbs at
this time.
Torque all of these
Crossbar Clamp nuts
to 90 in-lbs.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
8
Rear
Front
3E
3A
1
2
1
2
L2H1 (136.00”) FBM ASSEMBLY SEQUENCE
CHANNEL MOUNTINGS
Slide all Mounting Bodies
onto Base Puller Assembly 1.2
Position Base Pullers and
Nut onto Roof Mounting Boss 1.1
NOTE: Channel Mountings must be
disassembled for installation onto the
vehicle’s roof.
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H1 UNIVERSAL FBM
NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for
illustrative purposes only. These features are not included with this Base
Mounting Kit, and must be purchased separately.
ERGORACK
CONFIGURATION
ALURACK
CONFIGURATION

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
9
Rear
Front
Crossbar Rear Crossbar Front
47.00”
4.50”
55.67”
66”
42”
1.7
1.6 Slide Channels onto
Mounting Brackets
1.9
Torque screws to 90 in-lbs
Slide the upper and lower
Channel Connectors into
Channels and align holes
1.10 Set to distances shown below, then torque Mounting
Bracket nuts loosened at Step 1.5 to 80 in-lbs
1.8 Screw the M8 x 40MM Allen Head bolts into the Upper
and Lower Channel Splices. Due to tight manufacturing
tolerances, both bolts must remain loose until Step 1.9
1.5
1.4
Torque to
80 in-lbs
1.3
Do not tighten
Slide and position the Channel Connector into the
Mounting Body as shown, then screw the 30MM Flat
Head bolt into the Base Puller.
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H1 UNIVERSAL FBM

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
10
Rear
Front
M8 X 20MM
Lock Washer
Flat Washer
Rear
Front
Left
Right
9.125”
Crossbar Rear Crossbar Front
(B) 48.00” ErgoRack
55.50 AluRack
(A) 96.00” ErgoRack
92.50” AluRack
(B) 48.00” ErgoRack
37.00” AluRack
2.4 Set to distances shown below:
Use Dimensions A for 2 Crossbar models.
Use Dimensions B for 3 Crossbar models.
Do not torque the Crossbar Mounting Brackets until Step 3.4.
Finger-tighten them into designated dimension to hold them in
place, then proceed to your Feature (FEA) Assembly Manual.
2.3
Loosen nuts
3 Crossbar models:
Position the center
Mounting Brackets
as shown.
*2 & 3 Crossbar models:
Position the front Mounting
Brackets as shown.
MOUNTING BRACKETS 2.2
2.1 Slide the Aluminum Strip Nuts into each end of the Channels,
and attach the Channel Caps
Do not mount the Crossbars to this FBM system at this time.
Refer to the respective FEA or AR Assembly Manual(s)
included with your chosen rack conguration features.
Depending upon the features chosen, you may need to
perform a complete feature assembly onto the Crossbars or
Side Rails as noted in that feature’s Assembly Manual.
WARNING: Failure to position the Crossbars as shown in this
FBM Assembly Manual may result in damage to the sliding
door and/or ladder rack.
NOTE: Crossbars, Side Rails, Base, Clamp Down, or Rotation
features are not included in this FBM kit, and must be
purchased separately. To purchase applicable features and
accessories, please contact your authorized distributor, or a
Prime Design Sales & Service Representative.
Using the supplied fastening hardware, attach the Crossbar
Mounting Brackets into the Aluminum Strip Nuts placed into
the Channels at Step 2.1
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H1 UNIVERSAL FBM
*2 Crossbar ErgoRack models:
See Page 24 regarding center
Crossbar Mounts.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
11
Vehicle Rear
Vehicle Front
9.125”
Even
Even
Even
Even
Same as Front
Center
(if equipped)
Rear
Front
3.1
CROSSBARS (ERGORACK)
3.2
Torque all of these
Crossbar Clamp
nuts to 90 in-lbs
Shown with LH Base, and
RH Rotation for illustrative
purposes only
CROSSBAR ADJUSTMENT
3.3
Verify the specied
distance from the
ends of both Mounting
Bracket to the ends of
both Channels.
3.4
3.4
Torque only the Rear Crossbar Mounting
Bracket bolts to 90 in-lbs at this time.
The Center (if equipped) and Front
Crossbar Mounting Brackets will
be torqued to specication when
designated in the respective Feature
(FEA) Assembly Manual.
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H1 UMOUNTING

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
12
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H1 MOUNTING
Center
Vehicle Rear
Vehicle Front
9.125”
CROSSBARS (ALURACK)
Shown with L2H1 AluRack
for illustrative purposes only
3A.1
3A.2
CROSSBAR
ADJUSTMENT
3A.3
Verify the specied
distance from the
ends of both Mounting
Bracket to the ends of
both Channels.
3A.4
Torque all Crossbar Mounting
Bracket bolts to 90 in-lbs at
this time.
Torque all of these
Crossbar Clamp nuts
to 90 in-lbs.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
13
Rear
Front
3A
1
2
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H2 UNIVERSAL FBM
L2H2 (136.00”) FBM ASSEMBLY SEQUENCE–ALURACK ONLY
CHANNEL MOUNTINGS
Slide all Mounting Bodies
onto Base Puller Assembly 1.2
Position Base Pullers and
Nut onto Roof Mounting Boss 1.1
NOTE: Channel Mountings must be
disassembled for installation onto the
vehicle’s roof.
NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for
illustrative purposes only. These features are not included with this Base
Mounting Kit, and must be purchased separately.
ALURACK ONLY
CONFIGURATION

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
14
Rear
Front
Crossbar Rear Crossbar Front
47.00”
4.50”
55.67”
66”
42”
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H2 UNIVERSAL FBM
1.7
1.6 Slide Channels onto
Mounting Brackets
1.9
Torque screws to 90 in-lbs
Slide the upper and lower
Channel Connectors into
Channels and align holes
1.10 Set to distances shown below, then torque Mounting
Bracket nuts loosened at Step 1.5 to 80 in-lbs
1.8 Screw the M8 x 40MM Allen Head bolts into the Upper
and Lower Channel Splices. Due to tight manufacturing
tolerances, both bolts must remain loose until Step 1.9
1.5
1.4
Torque to
80 in-lbs
1.3
Do not tighten
Slide and position the Channel Connector into the
Mounting Body as shown, then screw the 30MM Flat
Head bolt into the Base Puller.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
15
Rear
Front
M8 X 20MM
Lock Washer
Flat Washer
Rear
Front
Left
Right
9.125”
Crossbar Rear Crossbar Front
(B) 32.00”
80.00”
48.00”
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H2 UNIVERSAL FBM
2.4 Set to distances shown below (AluRack only). Do not torque the
Crossbar Mounting Brackets until Step 3.4. Finger-tighten them
into designated dimension to hold them in place, then proceed
to your Feature (FEA) Assembly Manual.
2.3
Loosen nuts
MOUNTING BRACKETS 2.2
2.1 Slide the Aluminum Strip Nuts into each end of the Channels,
and attach the Channel Caps
Do not mount the Crossbars to this FBM system at this time.
Refer to the respective FEA or AR Assembly Manual(s)
included with your chosen rack conguration features.
Depending upon the features chosen, you may need to
perform a complete feature assembly onto the Crossbars or
Side Rails as noted in that feature’s Assembly Manual.
WARNING: Failure to position the Crossbars as shown in this
FBM Assembly Manual may result in damage to the sliding
door and/or ladder rack.
NOTE: Crossbars, Side Rails, Base, Clamp Down, or Rotation
features are not included in this FBM kit, and must be
purchased separately. To purchase applicable features and
accessories, please contact your authorized distributor, or a
Prime Design Sales & Service Representative.
Using the supplied fastening hardware, attach the Crossbar
Mounting Brackets into the Aluminum Strip Nuts placed into
the Channels at Step 2.1

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
16
Center
Vehicle Rear
Vehicle Front
9.125”
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L2H2 MOUNTING (AR ONLY)
CROSSBARS (ALURACK)
Shown with L2H2 AluRack
for illustrative purposes only
3A.1
3A.2
CROSSBAR
ADJUSTMENT
3A.3
Verify the specied
distance from the
ends of both Mounting
Bracket to the ends of
both Channels.
3A.4
Torque all Crossbar Mounting
Bracket bolts to 90 in-lbs at
this time.
Torque all of these
Crossbar Clamp nuts
to 90 in-lbs.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
17
Rear
Front
3E
3A
1
2
1
2
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L4H2 UNIVERSAL FBM
L4H2 (159.00”) FBM ASSEMBLY SEQUENCE
CHANNEL MOUNTINGS
Place all Mounting Bodies
onto Base Puller Assembly 1.2
Position Base Pullers and
Nut onto Roof Mounting Boss 1.1
NOTE: Channel Mountings must be
disassembled for installation onto the
vehicle’s roof.
NOTE: Base, Rotation, Crossbar, and Side Rail features are shown for
illustrative purposes only. These features are not included with this Base
Mounting Kit, and must be purchased separately.
ERGORACK
CONFIGURATION
ALURACK
CONFIGURATION

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
18
Rear
Front
Rear
Front
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L4H2 UNIVERSAL FBM
1.7
1.6 Slide Channels onto
Mounting Brackets
1.10
Torque screws to 90 in-lbs
NOTE: An Aluminum Strip Nut
must be inserted into the 24”
Channel at this time.
Slide the upper and lower
Channel Connectors into
Channels and align holes
1.8
1.9 Screw the M8 x 40MM Allen Head bolts into the Upper
and Lower Channel Splices. Due to tight manufacturing
tolerances, both bolts must remain loose until Step 1.10
1.5
1.4
Torque to
80 in-lbs
1.3
Do not tighten
Slide and position the Channel Connector into the
Mounting Body as shown, then screw the 30MM Flat
Head bolt into the Base Puller.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
19
Crossbar Rear Crossbar Front
41.93” 28.11”
Flush to rear
55.67”
Rear
Front
M8 X 20MM
Lock Washer
Flat Washer
8.625”
Crossbar Rear Crossbar Front
(B) 48.00” ErgoRack
40.00” AluRack
(A) 96.00” ErgoRack
100.00” AluRack
(B) 48.00” ErgoRack
60.00” AluRack
1.11
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L4H2 UNIVERSAL FBM
2.42.2
Set to distances shown below, then torque Mounting
Bracket nuts loosened at Step 1.5 to 80 in-lbs MOUNTING BRACKETS
2.1 Slide the remaining Aluminum Strip Nuts into each
end of the Channels, and attach the Channel Caps
2.3
Loosen nuts
3 Crossbar models:
Position the center
Mounting Brackets
as shown.
*2 & 3 Crossbar models:
Position the front Mounting
Brackets as shown.
Set to distances shown below:
Use Dimensions A for 2 Crossbar models.
Use Dimensions B for 3 Crossbar models.
Do not torque the Crossbar Mounting Brackets until Step 3.4.
Finger-tighten them into designated dimension to hold them in
place, then proceed to your Feature (FEA) Assembly Manual.
Using the supplied fastening hardware, attach the Crossbar
Mounting Brackets into the Aluminum Strip Nuts placed into
the Channels at Step 2.1
*2 Crossbar ErgoRack models:
See Page 24 regarding center
Crossbar Mounts.

Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability
(the “Prime Design Limited Warranty”).
▪ TM & © 2020 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6427889, 6764268, 6971563, 8991889, 9415726, 9506292, 9481313, 9776476, 9796340, 10470565, 10486608 AND OTHER PATENTS PENDING
20
Vehicle Rear
Vehicle Front
Even
Even
Even
Even
Same as Front
Center
(if equipped)
Rear
Front
8.625”
FBM-1007-BLK ASSEMBLY INSTRUCTIONS–L4H2 MOUNTING
Do not mount the Crossbars to this FBM system at this time.
Refer to the respective FEA Assembly Manual(s) included
with your chosen rack conguration features. Depending
upon the features chosen, you may need to perform a
complete feature assembly onto the Crossbars as noted in
that feature’s Assembly Manual.
WARNING: Failure to position the Crossbars as shown in this
FBM Assembly Manual may result in damage to the sliding
door and/or ladder rack.
NOTE: Base, Clamp Down, or Rotation features are not
included in this FBM kit, and must be purchased separately.
To purchase applicable features and accessories, please
contact your authorized distributor, or a Prime Design Sales
& Service Representative.
3.1
CROSSBARS (ERGORACK)
3.2
Torque all of these
Crossbar Clamp
nuts to 90 in-lbs
Shown with LH Base, and
RH Rotation for illustrative
purposes only
CROSSBAR ADJUSTMENT
3.3
Verify the specied
distance from the
ends of both Mounting
Bracket to the ends of
both Channels.
3.4
3.4
Torque only the Rear Crossbar Mounting
Bracket bolts to 90 in-lbs at this time.
The Center (if equipped) and Front
Crossbar Mounting Brackets will
be torqued to specication when
designated in the respective Feature
(FEA) Assembly Manual.
