Congratulations on purchasing a Rear View Backup Camera System!
With this manual you will be able to properly install and operate the unit.
The Backup Camera System is intended to be installed as a supplement aid to
your standard rear view mirror that already exists in your vehicle. The Backup
Camera System should not be used as a substitute for the standard rear view
mirror or for any other mirror that exists in your vehicle.
In some jurisdictions, it is unlawful for a person to drive a motor vehicle equipped
with a TV viewer or screen located forward of the back of the driver’s seat or in
any location that is visible, directly or indirectly, to the driver while operating the
vehicle.
Please read all of the installation instructions
carefully before installing the product. Improper
installation will void manufacturer’s warranty.

4©Rear View Safety
SAFETY INFORMATION
Please read the entire manual and follow the instructions and warnings carefully.
Failure to do so can cause serious damage and/or injury, including loss of life.
Be sure to obey all applicable local trac and motor vehicle regulations as it
pertains to this product. Improper installation will void manufacturer’s warranty.
USAGE : The Rear View Camera System is designed to help the driver safely
detect people and/or objects helping to avoid damage or injury. However, you
the driver, must use it properly. Use of this system is not a substitute for safe,
proper or legal driving.
• Never back up while looking at the monitor alone. You should always check
behind and around the vehicle when backing up, in the same way as you would
if the vehicle did not have the Rear View Camera System. If you back up while
looking only at the monitor, you may cause damage or injury. Always back up
slowly.
• The Rear View Camera System is not intended for use during extensive back-
up maneuvers or backing into cross trac or pedestrian walkways.
• Please, always remember, the area displayed by the Rear View Camera System
is limited. It does not display the entire panorama that is behind you.
PLEASE READ THE ENTIRE MANUAL AND FOLLOW THE INSTRUCTIONS AND
WARNINGS CAREFULLY. FAILURE TO DO SO CAN CAUSE SERIOUS
DAMAGE AND/OR INJURY, INCLUDING LOSS OF LIFE. BE SURE TO OBEY ALL
APPLICABLE LOCAL TRAFFIC AND MOTOR VEHICLE REGULATIONS AS IT
PERTAINS TO THIS PRODUCT. IMPROPER INSTALLATION WILL VOID
MANUFACTURER’S WARRANTY.

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
5
SAFETY INFORMATION
INSTALLATION
Electric shock or product malfunction may occur if this product
is installed incorrectly.
• Use this product within the voltage range specified. Failure to do so can
cause electronic shock or product malfunction.
• Take special care when cleaning the monitor.
• Make sure to firmly ax the product before use.
• If smoke or a burning smell is detected, disconnect the system immediately.
• Where the power cable may touch a metal case, cover the cable with a
friction tape. A short circuit or disconnected wire may cause a fire.
• While installing the RVS System be careful with the wire positioning in
order to avoid wire damage.
• The RVS System should only be used when the vehicle is in reverse.
• Do not watch movies or operate the monitor while driving; as it may cause
an accident.
• Do not install the monitor where it may obstruct drivers view or obstruct an
air bag device.
• Dropping the unit may cause possible mechanical failure.
• When in reverse, monitor buttons are not functional

6©Rear View Safety
IN NO EVENT SHALL SELLER OR MANUFACTURER BE
LIABLE FOR ANY DIRECT OR CONSEQUENTIAL DAMAGES OF
ANY NATURE, OR LOSSES OR EXPENSES RESULTING FROM
ANY DEFECTIVE PRODUCT OR THE USE OF ANY PRODUCT.
If you have questions about this product,
please contact us at:
800.764.1028 [e-mail]
www.rearviewsafety.com
New York
1797 Atlantic Ave
Brooklyn, NY 11233
Indiana
319 Roske Dr.
Elkhart, Indiana 46516
Canada
68 Trafalgar Square
Thornhill, ON, L4J 7M5, Canada

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
7
BEFORE YOU BEGIN INSTALLATION
Before drilling please check that no cable or wiring is on the other side of the
wall. Please clamp all wires securely to reduce the possibility of them being
damaged while vehicle is in use.
Keep all cables away from hot or moving parts and electrical noisy
components.
We recommend doing a benchmark test before installation to insure that all
components are working properly.
Step 1: Choose the monitor and camera locations.
Step 2: Install all cables in vehicle, when necessary a 0.8" (20mm) hole should
be drilled for passing camera cable through vehicles walls.
Install split grommets where applicable.
Step 3: Once all cables and wiring have been properly routed, perform a system
function test by temporarily connecting the system.
If the system seems to not be operating properly see troubleshooting (page 18).

8©Rear View Safety
INSTALLATION GUIDE
REPLACEMENT INSTALLATION DIAGRAM
Cable
1. Be sure to position the cable properly. The aviation camera cable uses
aircraft grade connectors which means the camera cable can be exposed to
all weather elements. Do not run the cable over sharp edges, do not kink the
cable and keep away from HOT and rotating parts.
2. Fasten all cables and secure all excess cable.
Replacement Monitor
1. The Mirror Monitor replaces the existing rear view mirror in vehicle.
2. Replace existing mirror, and adjust mounting angle to allow optimum driver
viewing comfort. (see figure 1.1 and 1.2 below).
Figure 1.1 Figure 1.2

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
9
The Power Harness
• To power the system connect the power (RED) 12V+ wire to ignition power and
the ground (BLACK) wire to chassis ground.
• These are the only wires needed to power the entire system and all the
cameras. Each camera can be seen at any time by simply pressing the power
button and using the V1/2 button to toggle.
• The three positive trigger wires (CH2-Blue, CH3-Yellow, and CH4-Brown) each
represent one channel and will turn on their channel when the trigger wire
is energized with 12V.
• "Camera 2" is the designated backup channel. To have the backup camera
come on when you go into reverse, connect the BLUE wire to reverse power
(or any power source that comes on only in reverse).
• The other channels can similarly be triggered (i.e. side cameras can be
triggered by the turn signals etc.)
• To automatically have camera and monitor turn ON when vehicle activates,
simply twist BLUE positive trigger 12V+ to Red Power line 12V+ and wire to
ignition power.
Note: This setup will disable the menu in channel 3.
To access the menu simply move to channel 1 or 2 and
all the changes will apply to channel 3.
Note: When the blue wire is active it will have
precedence over the other triggers. Therefore, if you
wish to use multiple triggers, do not attach the blue
trigger to constant power.
WIRING CAMERA AND MONITOR

10 ©Rear View Safety
Audio: There is audio on channels 2 and 3. On channel 3 the blue trigger wire
must be energized (12V) to activate the audio. On channel 2 the audio
is always on.
Grid-lines: The grid-lines are also carried through the blue wire. To use the
grid-lines for reversing, connect the blue wire to a reverse power.
There is a built-in voltage regulator for our systems which can handle 12-24
volts. Real consumption is 10 to 30 Volts.
Note: The camera and monitor can always be activated
by manually pushing the power button on monitor. This is
in addition to utilizing the positive triggers..
Note: If connecting power directly to battery, the camera
is always ON and therefore can drain battery.
It is recommended to connect power to an ignition
switched accessory power source.
WIRING CAMERA AND MONITOR

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
11
CONNECTION DIAGRAM

12 ©Rear View Safety
MONITOR OPERATION
Use "Contrast", "Brightness", and "Saturation" to adjust the image properties.
Use "Language" to change
menu and display language.

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
13

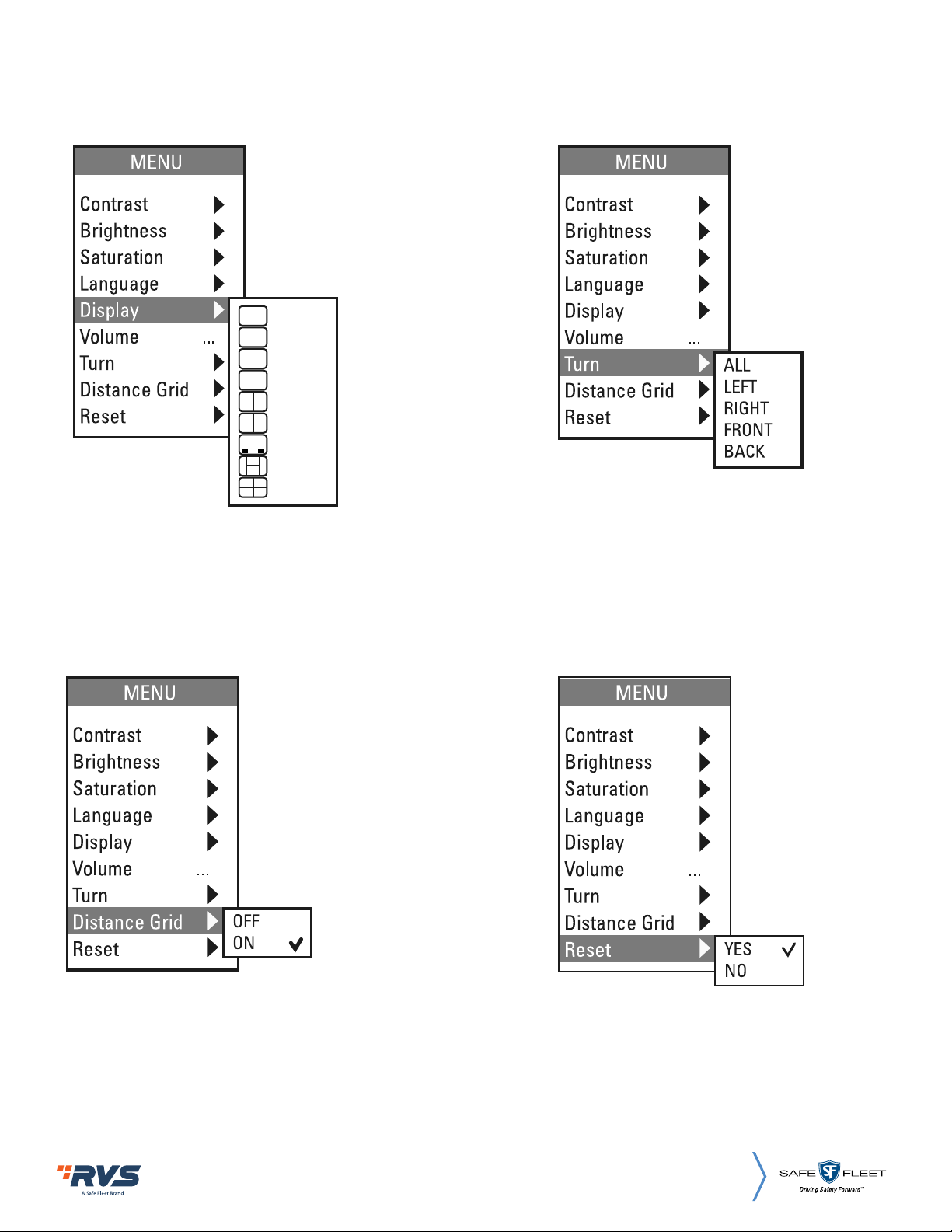

MONITOR OPERATION
Select a Turn direction
to set camera view triggers.
Use "Display" to select the camera
channel you want to view
Choose what channel the
Distance Grid will display on.
"Reset" will reset all settings
back to factory default.
1
1
2
2
4
1
1
2
2
3
3
4
4
3
4
34

14 ©Rear View Safety

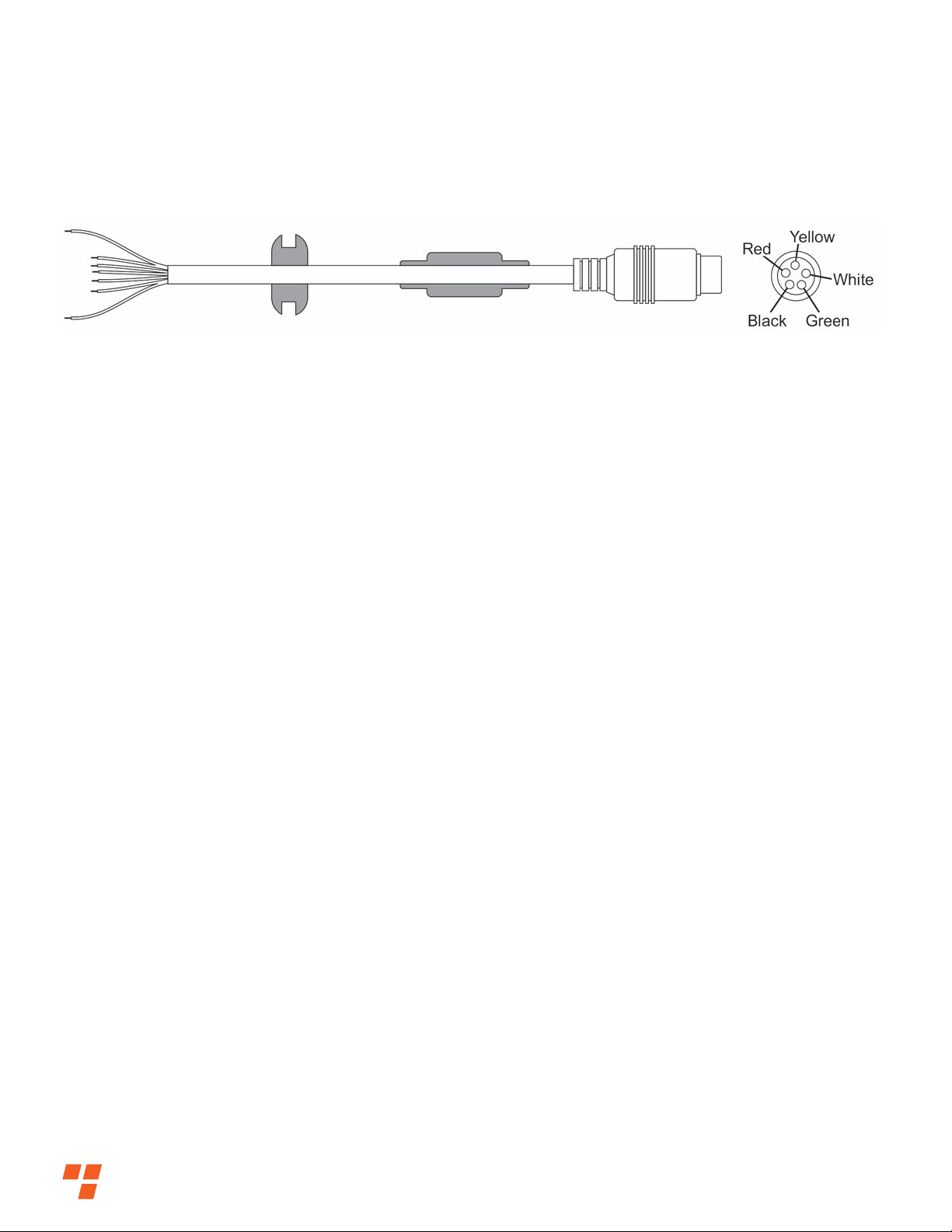

SPLICING
1. Red - Power (+)
2. Yellow - Video
3. Green - Mirror / Normal Imaging
4. White - Audio
5. Black - Ground (-)

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
15

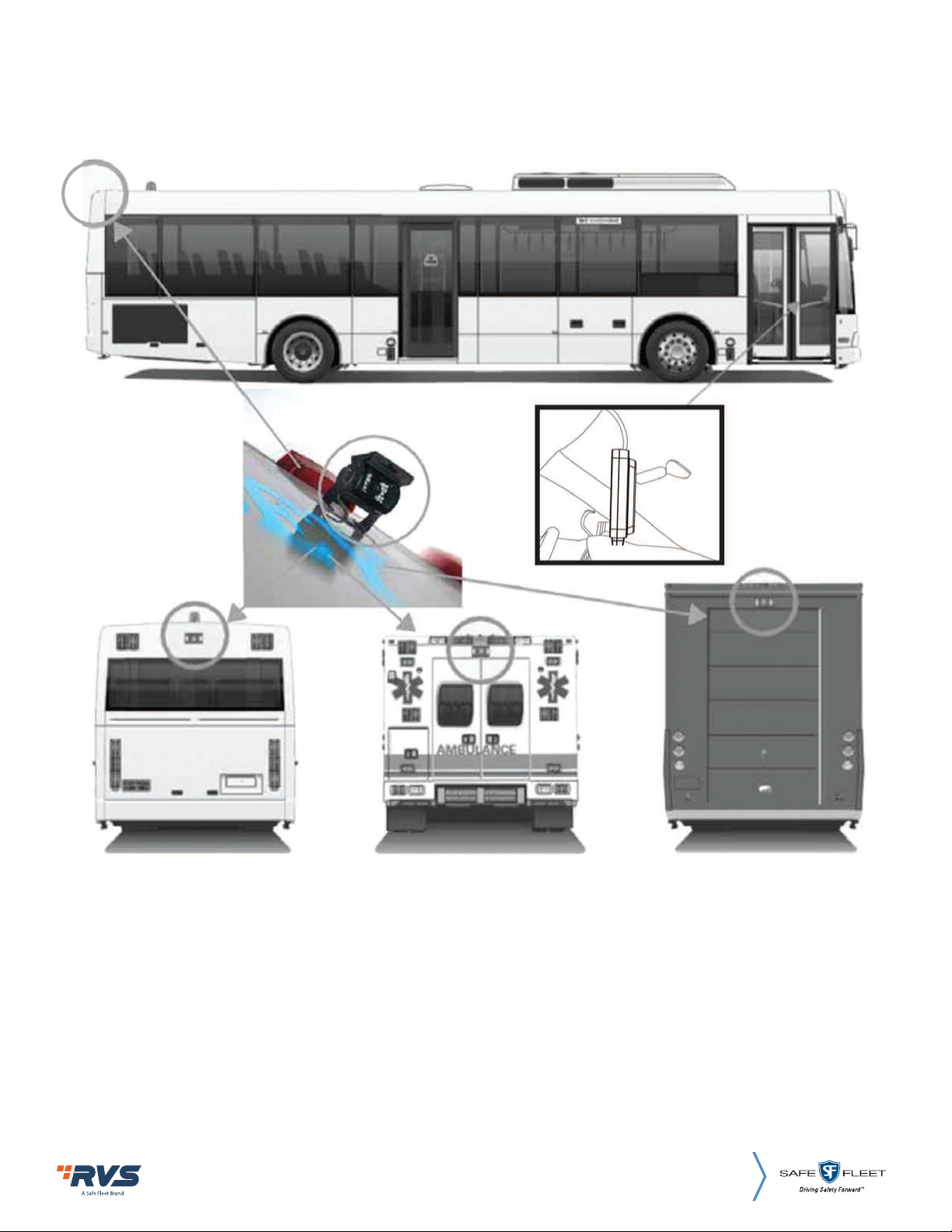

POSITIONING

16 ©Rear View Safety
MONITOR DIMENSIONS

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
17
SPECIFICATION
TFT LCD Digital Monitor
Screen Size and Type Digital 7”
Dot Resolution 800H x 3 (RGB) x 480V
Display Format 16:9
Display Brightness 400cd/m2
Viewing Angle 90° min
Video Input 4 Channel
Video Source 1Vp-p, 75Ω
Power supply DC 12V-24V (+/-10%)
Power Consumption 5W
Operating Temperature -10°C - +65° C
Video System Auto NTSC/PAL
Overall Dimensions 9”L x 4.5”H x 1”D
Weight 400G
Impact Rating 5G
Dot Pitch 0.192H x 0.1805V
Sync System Internal

18 ©Rear View Safety
TROUBLESHOOTING
Monitor Displays Blue Screen & Displays No Signal
• Do a hard reset, unplug all cables and power cables and leave out for 1
minute and then re-connect them.
• Check to ensure that the connection to the camera is tight.
• Verify camera cable is plugged into port labeled Backup Camera
• Verify that the blue positive trigger on power harness is put to power 12v+.
• If the problem still persists, verify that alternate ports work. If alternate
ports do not work, remove Blue Trigger wire from 12V+ and select alternate
channels.
Monitor Will Not Power-Up (no backlight on power button)
• Check fuse
• Check 12v+ to monitor
• Check ground connection
No Image On Screen
• Verify camera is in correct camera input
• Verify cable is connected to monitor
• Verify camera is connected to cable
• Connect known working camera and cable to monitor.
• Verify Blue trigger is receiving power
Audio on Camera (optional)
• Verify chosen camera has audio
• Verify volume setting
• Confirm that the Blue audio trigger is connected to 12v+

Rear View Safety, 1797 Atlantic Ave., Brooklyn NY 11233
800.764.1028 [email protected]
www.rearviewsafety.com
19
ONE YEAR WARRANTY
REAR VIEW SAFETY, INC. WARRANTS THIS PRODUCT AGAINST MATERIAL DEFECTS FOR A
PERIOD OF ONE YEAR FROM DATE OF PURCHASE. WE RESERVE THE RIGHT TO REPAIR OR
REPLACE ANY SUCH DEFECTIVE UNIT AT OUR SOLE DISCRETION. REAR VIEW SAFETY, INC.
IS NOT RESPONSIBLE FOR A DEFECT IN THE SYSTEM AS A RESULT OF MISUSE, IMPROPER
INSTALLATION, DAMAGE OR MISHANDLING OF THE ELECTRONIC COMPONENTS. REAR VIEW
SAFETY, INC. IS NOT RESPONSIBLE FOR CONSEQUENTIAL DAMAGES OF ANY KIND.
THIS WARRANTY IS VOID IF: DEFECTS IN MATERIALS OR WORKMANSHIP OR DAMAGES
RESULT FROM REPAIRS OR ALTERATIONS WHICH HAVE BEEN MADE OR ATTEMPTED BY
OTHERS OR THE UNAUTHORIZED USE OF NONCONFORMING PARTS; THE DAMAGE IS DUE
TO NORMAL WEAR AND TEAR, THIS DAMAGE IS DUE TO ABUSE, IMPROPER MAINTENANCE,
NEGLECT OR ACCIDENT; OR THE DAMAGE IS DUE TO USE OF THE REAR VIEW SAFETY, INC.
SYSTEM AFTER PARTIAL FAILURE OR USE WITH IMPROPER ACCESSORIES.
WARRANTY PERFORMANCE
DURING THE ABOVE WARRANTY PERIOD, SHOULD YOUR REAR VIEW SAFETY PRODUCT
EXHIBIT A DEFECT IN MATERIAL ORWORKMANSHIP, SUCH DEFECTWILL BE REPAIREDWHEN
THE COMPLETE REAR VIEW SAFETY, INC. PRODUCT IS RETURNED, POSTAGE PREPAID AND
INSURED, TO REAR VIEW SAFETY, INC. OTHER THAN THE POSTAGE AND INSURANCE
REQUIREMENT, NO CHARGE WILL BE MADE FOR REPAIRS COVERED BY THIS WARRANTY.
WARRANTY DISCLAIMERS
NO WARRANTY, ORAL OR WRITTEN, EXPRESSED OR IMPLIED, OTHER THE ABOVE WARRANTY
IS MADEWITH REGARDTOTHIS REARVIEW SAFETY, INC.REARVIEW SAFETY, INC. DISCLAIMS
ANY IMPLIED WARRANTY OR MERCHANT-ABILITY OR FITNESS FOR A PARTICULAR USE OR
PURPOSE AND ALL OTHER WARRANTIES IN NO EVENT SHALL REAR VIEW SAFETY. INC.
LIABLE FOR ANY INCIDENTAL, SPECIAL, CONSEQUENTIAL, OR PUNITIVE DAMAGES OR FOR
ANY COSTS, ATTORNEY FEES, EXPENSES, LOSSES OR DELAYS ALLEGED TO BE AS A
CONSEQUENCE OF ANY DAMAGE TO, FAILURE OF, OR DEFECT IN ANY PRODUCT INCLUDING,
BUT NOT LIMITED TO, ANY CLAIMS FOR LOSS OF PROFITS.

20 ©Rear View Safety
DISCLAIMER
REAR VIEW SAFETY AND/OR ITS AFFILIATES DOES NOT GUARANTEE OR PROMISE THAT THE
USER OF OUR SYSTEMSWILL NOT BE IN/PART OF AN ACCIDENT OR OTHERWISE NOT COLLIDE
WITH AN OBJECT AND/OR PERSON. OUR SYSTEMS ARE NOT A SUBSTITUTE FOR CAREFUL
AND CAUTIOUS DRIVING OR FORTHE CONSISTENT ADHERENCE TO ALL APPLICABLE TRAFFIC
LAWS AND MOTOR VEHICLE SAFETY REGULATIONS.THE REAR VIEW SAFETY PRODUCTS ARE
NOT A SUBSTITUTE FOR REAR VIEW MIRRORS OR FOR ANY OTHER MOTOR VEHICLE
EQUIPMENT MANDATED BY LAW. OUR CAMERA SYSTEMS HAVE A LIMITED FIELD OF VISION
AND DO NOT PROVIDE A COMPREHENSIVEVIEW OFTHE REAR OR SIDE AREA OFTHEVEHICLE.
ALWAYS MAKE SURETO LOOK AROUND YOURVEHICLE AND USE YOUR MIRRORSTO CONFIRM
REARWARD CLEARANCE AND THAT YOUR VEHICLE CAN MANEUVER SAFELY. REAR VIEW
SAFETY AND/OR ITS AFFILIATES SHALL HAVE NO RESPONSIBILITY OR LIABILITY
FOR DAMAGE AND/OR INJURY RESULTING FROM ACCIDENTS OCCURRING WITH VEHICLES
HAVING SOME OF REAR VIEW SAFETY PRODUCTS INSTALLED AND REAR VIEW SAFETY AND/
OR ITS AFFILIATES, THE MANUFACTURER, DISTRIBUTOR AND SELLER SHALL NOT BE LIABLE
FOR ANY INJURY, LOSS OR DAMAGE, INCIDENTAL OR CONSEQUENTIAL, ARISING OUT OF THE
USE OR INTENDED USE OF THE PRODUCT. IN NO EVENT SHALL REAR VIEW SAFETY AND/OR
ITS AFFILIATES HAVE ANY LIABILITY FOR ANY LOSSES (WHETHER DIRECT OR INDIRECT, IN
CONTRACT, TORT OR OTHERWISE) INCURRED IN CONNECTION WITH THE SYSTEMS,
INCLUDING BUT NOT LIMITED TO DAMAGED PROPERTY, PERSONAL INJURY AND/OR LOSS OF
LIFE. NEITHER SHALL REAR VIEW SAFETY AND/OR ITS AFFILIATES HAVE ANY
RESPONSIBILITY FOR ANY DECISION, ACTION OR INACTION TAKEN BY ANY PERSON IN
RELIANCE ON REAR VIEW SAFETY SYSTEMS, OR FOR ANY DELAYS, INACCURACIES AND/OR
ERRORS IN CONNECTION WITH OUR SYSTEMS FUNCTIONS.
