Saferhomee HB-4040S User manual

Wireless Alarm System
User Manual

1
1. Configuration List
2. System Components And Usage
1 piece (includes 1 power adapter)
1 pairs
1 piece
Wireless Alarm Receiver
Solar Wireless &
English Manual

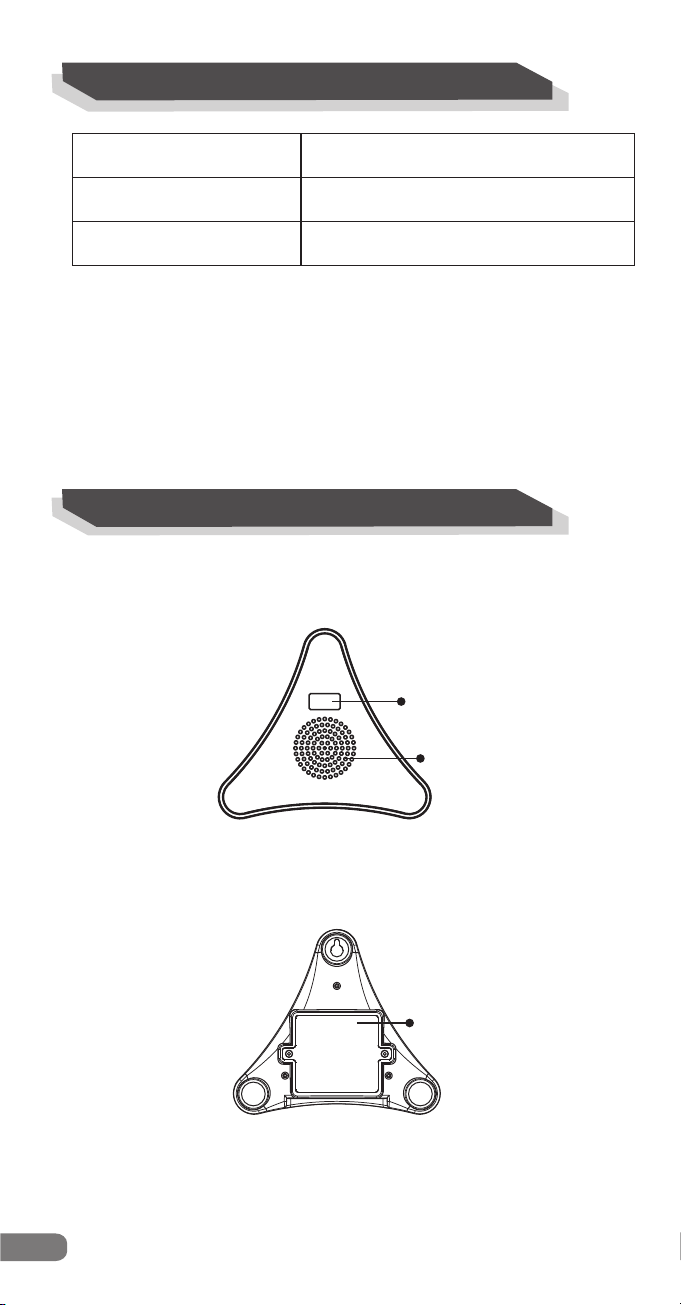

Wireless Alarm Receiver
Indicator Light: Will be red if power on;Will flash if on setting mode
Speaker: Will alarm for several seconds if the sensor be triggered
Indicator Light
Speaker
Backup Battery
Compartment
Backup Battery Compartment:4 pieces AA 1.5V batteries
(can keep the wireless alarm receiver working continuously
for 100 hours if AC power off)
Note:The alarm system has been programmed already,please
operate the system according to the part 3 of the manual;
If you want to add additional HTZSAFE sensors to
the system,please operate the system according to the part 4
of the manual or contact us directly;
After-sale Service E-mail:[e-mail]
(includes 1 set installation accessories)Photoelectric Beam Sensor
After-sale Service

2

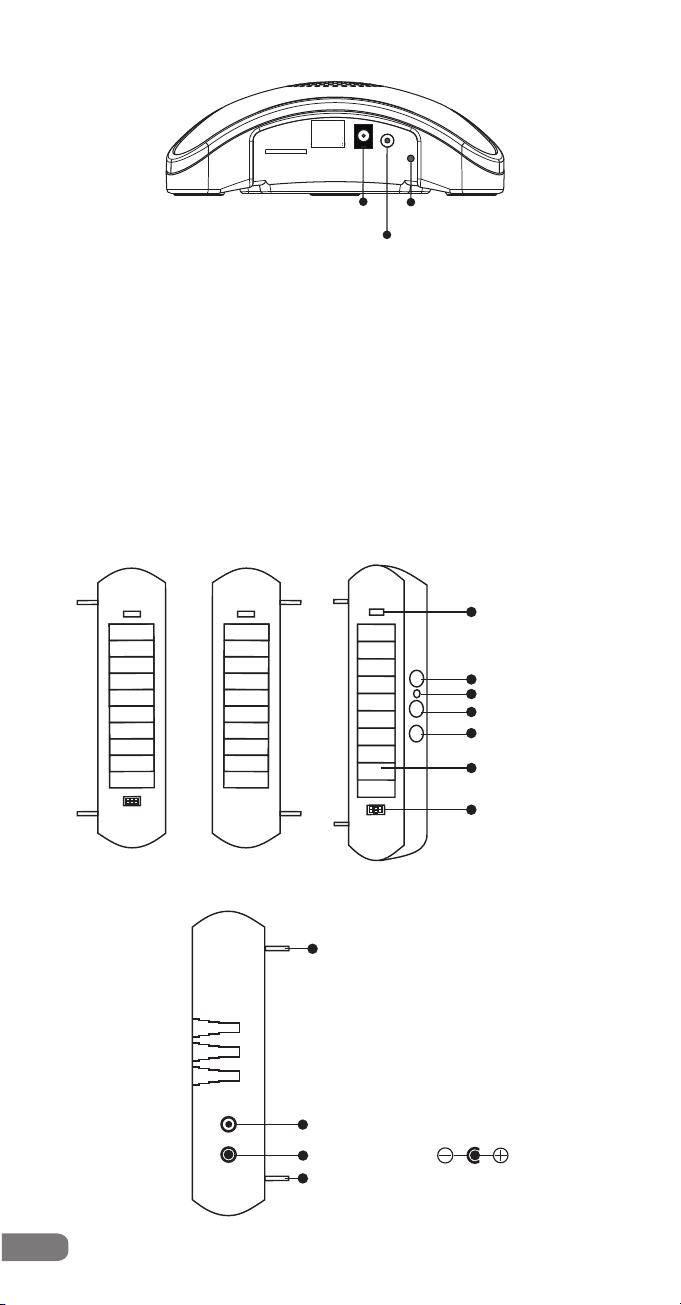

Solar & Wireless Photoelectric Beam Sensor
Power : power jack(DC5V)
ON/OFF: power switch(turn on/off the wireless alarm receiver)
set button(add/delete the sensors of the wireless alarm receiver)
Tone: Choose the ring tones(total 35 ring tones optional)
Power
ON/OFF
Tone
Infrared Beam
LCD Display
Calibration Hole
Infrared Beam
Solar Panel
Bubble Level
Infrared Beam
Receiver Transmitter
Screw Hole
Charge Jack
Screw Hole
ON/OFF
Volume:Press and hold the“ON/OFF”button first,and then press
the“Tone”button to adjust the alarm volume,total 4 volume levels.

3. Opration Instructions
Charge Jack
Bubble Level: easy to know the beams be installed horizontally
Infrared Beam: used to detect the intruder
Calibration Hole: easy to align with another beam sensor if
the beams apart far away
Solar Panel: charge the battery of the beam sensor even in
cloudy or rainy days
LCD Display: easy to know how well the beam sensor be aligned
with each other
ON/OFF: turn on/off the solar beam sensor
Charge Jack:pull out the red plug to charge the solar beam sensor
by DC5V-12V power adapter if the battery of the beam sensor go flat
Screw Hole: used to fix the installation accessories
Charge the solar beam sensors before use
Step 1
Method 1: charge the solar beam sensors by the sunlight
for a whole day
Method 2 pull out the red plug to charge the solar beam sensors
for 4 hours by the DC5V-12Vpower adapter the power adapter of
the alarm receiver is available)please insert the red plug back to
the charge jack after charging.
:
(
Charge Jack
3

Power
(more than 3 short beeps mean the built-in batteries
of the sensor have enough power)
)
(bleep prompt and LCD display more than “100”
means the beam sensors work properly,
Please note: “100” is a reference value,
different weather will get different value
and bigger value means better alignment
Transmitter Receiver
4
Step 4
Power on the by the power adapterwireless alarm receiver
Step 3
Make sure the beams aligned with each other
Step2:
Turn on the Solar
Press the ON/OFF button 3 times(Both the transmitter and receiver)
&Wireless Photoelectric Beams:

5

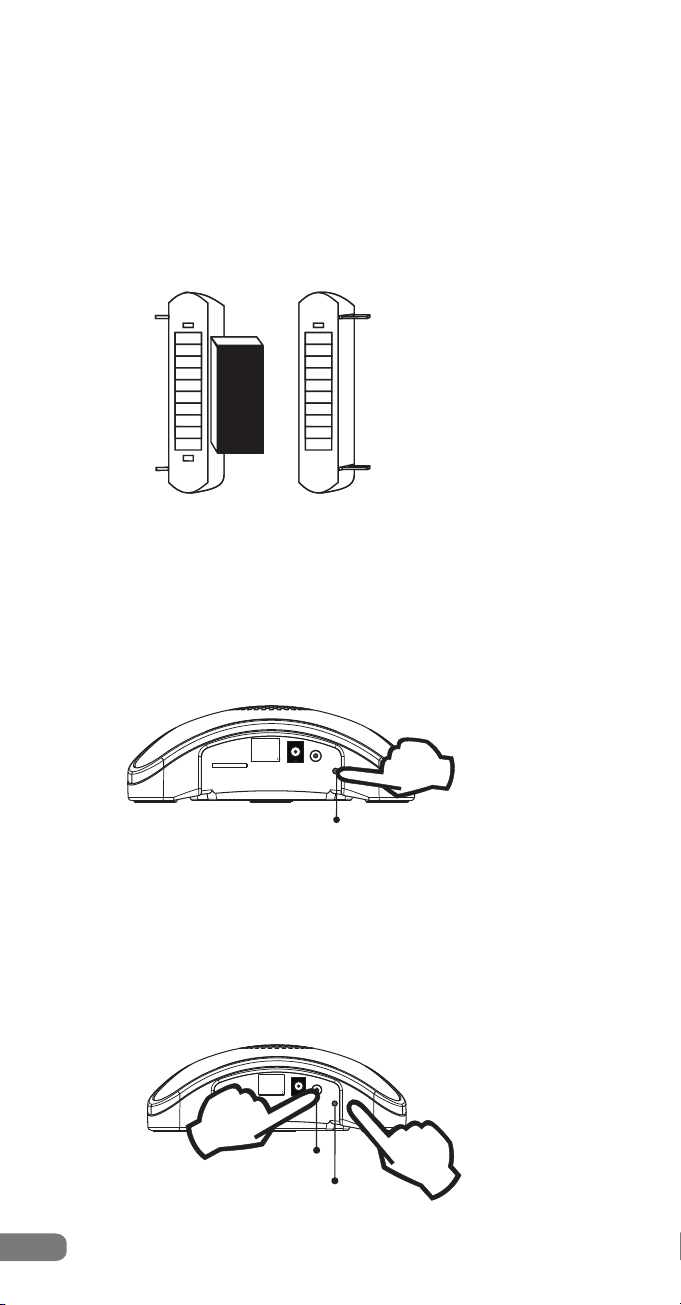

Step 5
Trigger the sensor
(completely block all the 3 infrared beams by thick materials,
such as books,and the wireless alarm receiver will alarm for
several seconds)
Step 6
Press“Tone” to choose the ring tone for this sensor,
there are 35 tones to choose from;
button
Step 7
Press and hold the“ON/OFF”button first,and then press
the“Tone”button to adjust the alarm volume,
total 4 volume levels adjustment.
ON/OFF
Tone
Adjust the alarm volume.
Tone

6
st

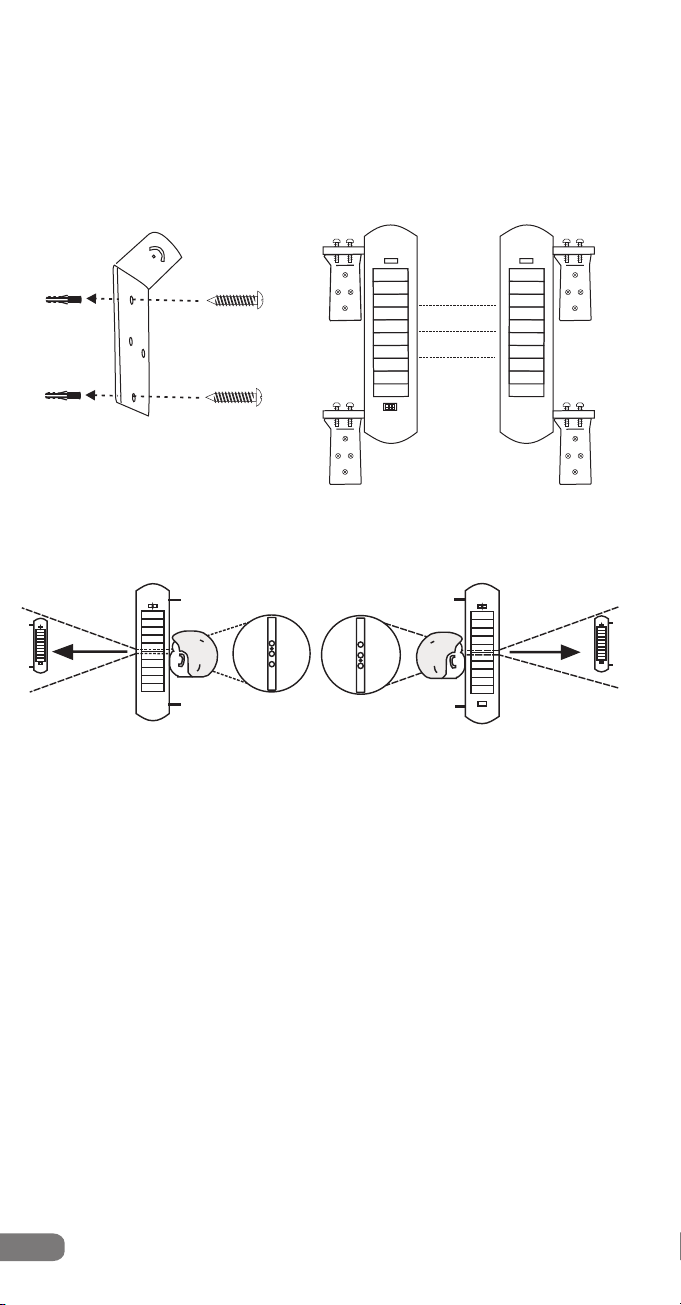

1 Installation method
T
R
R
T
Calibration
(1)Place the beam sensor on the same height.
(2)Ensure the beam sensor is vertical
(the bubble of the horizontal pipe should be in the middle).
(3)Adjust the direction of the beam sensor to make them align with each other.
Calibration Hole:used to find another device.
LCD Display:used to know how well the beam sensor be aligned
with each other (the LCD Display will shut down in an hour).
(4)b
(5)Tighten the screws to ensure the position and direction will
not be moved easily.
leep prompt and LCD display more than “100” means the beam
sensors work properly,Please note: “100” is a reference value,
different weather will get different value and bigger value means
better alignment
Step 8
Installation
4

7

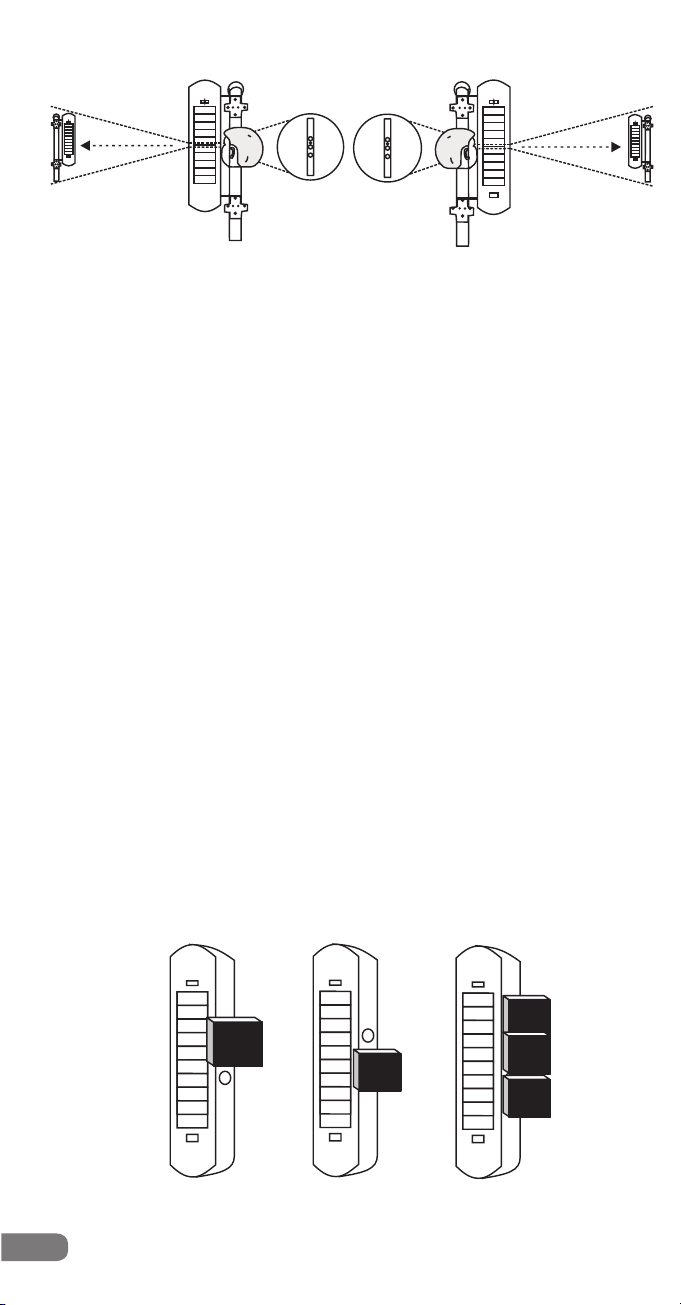

2 Installation method(with iron brackets)
nd

T
RT
R
(1)Place the beam sensor on the same height.
(2)Ensure the beam sensor is vertical
(the bubble of the horizontal pipe should be in the middle).
(3)Adjust the direction of the beam sensor to make them align
with each other.
Calibration Hole:used to find another device.
LCD Display:used to know how well the beam sensor be aligned
with each other
(the LCD Display will shut down in an hour).
(4)b
(5)Tighten the screws to ensure the position and direction will
not be moved easily.
leep prompt and LCD display more than “100” means the beam sensors
work properly,
Please note: “100” is a reference value,different weather will get
different value and bigger value means better alignment.
Calibration
Step 9
Test and verify the alignment
Block the infrared beams by thick materials(such as books)
(1) Block only top 2 beams---No Alarm
2 Block only bottom 2 beams---No Alarm
(3)Block all 3 beams---Alarm
The same way to test and verify another sensor
( )
(1) (2) (3)
8

4. Other Settings
(1)How to add extra sensors to the wireless alarm receiver
(up to 32 sensors can be added to the receiver)
Step 1
Power on the wireless alarm receiver by the power adapter;
Step 2
Press and hold the “ON/OFF” button for 5 seconds and release
the button when the indicator light flashing;
ON/OFF
ON/OFF
light up
press and hold the ON/OFF
button for 5 seconds
flashing
release the button
Step 3
Trigger the (for example,trigger the solar&
wireless photoelectric beam sensor)
sensor
(a ring tone prompt and the
indicator light stops flashing means
the sensor has been added to the
wireless alarm receiver successfully)
stop flashing
Receiver Transmitter
9

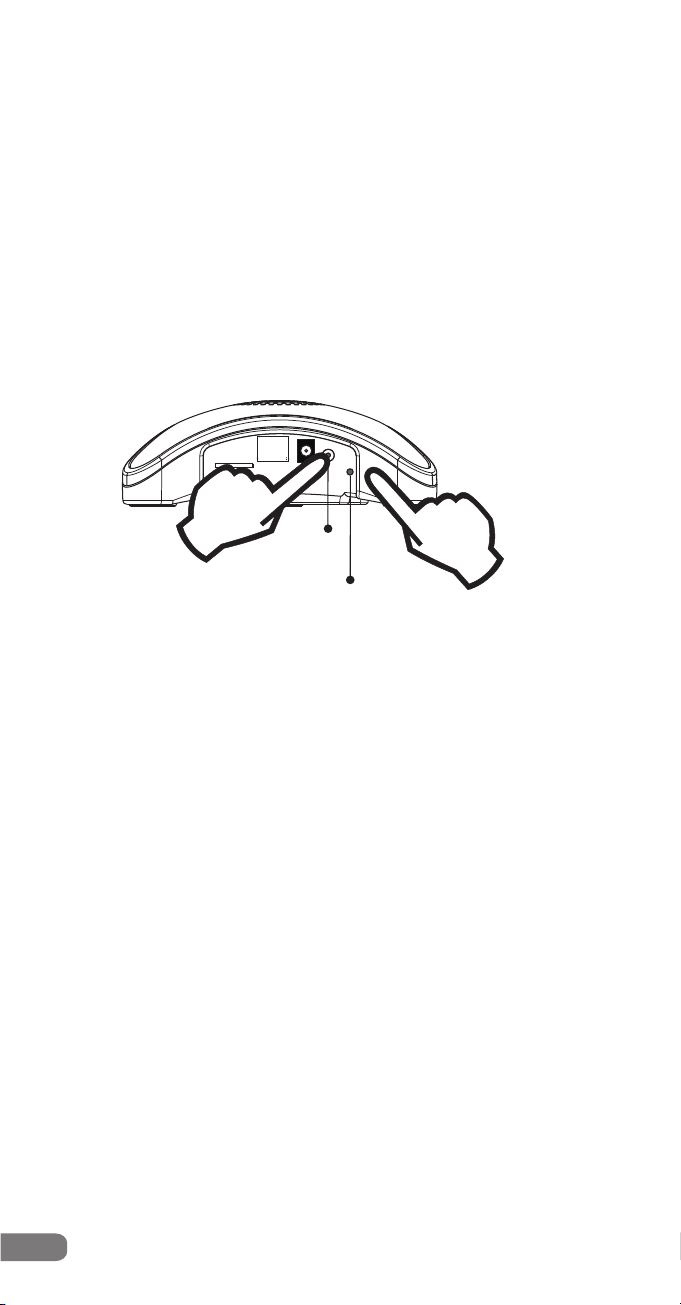

(2)How to delete the sensors of the wireless alarm receiver
Step 1
Power on the wireless alarm receiver by the power adapter
Step 2
Press and hold both the “ON/OFF” button and “Tone for
10 seconds and release the buttons when you heard a long bleep;
Note: all the sensors will be deleted by this operation;
” button
ON/OFF
Tone
10
Step 4
Trigger the sensor again to confirm the sensor has been added
to the wireless alarm receiver already.
Step 5
Press“Tone ”Button to choose the ring tone for this sensor,
there are 35 tones to choose from
Tone

(3)How to adjust the alarm volume
ON/OFF
Tone
Step 1
Step 2
Power on the wireless alarm receiver by the power adapter
Press and hold the“ON/OFF”button first,and then press
the“Tone”button to adjust the alarm volume,total 4 volume
levels
(4)How to change the ring tone for the sensors
Step 1
Power on the wireless alarm receiver by the power adapter
Step 2
Trigger the sensor first,and then press the "Tone" button to
choose the ring tone for this sensor;
Same steps for other sensors which have been added to
the wireless alarm receiver already.
(5)How to adjust the sensitivity of the solar beams
Sensitivity of the solar beams divided into 2 types:
200ms(factory default) and 100ms Please follow up the
operation steps if you want to adjust the sensitivity of the
beams to be 100ms
Step 1: Turn on the solar beams by press the ON/OFF
button 3 times(both the transmitter and receiver)
11

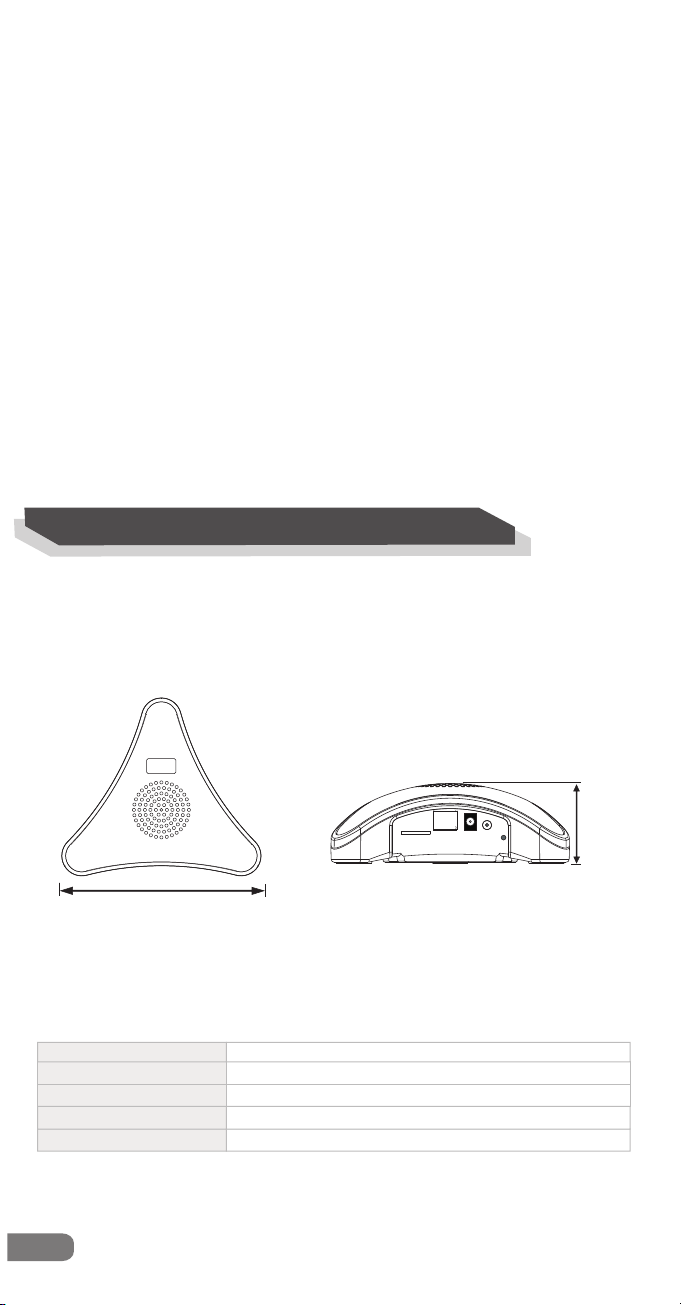

5. Technical Parameters
Wireless Alarm Receiver
12
Technical parameters
Static Current 20mA; Alarming Current 300mA
Working Current
DC5V
433MHz FSK+FHSS
Technical Parameters
4 pieces AA 1.5V batteries(package is not included)
Working Voltage
Wireless Frequency
Backup Battery
Item
162mm
Step 2: Press and hold the ON/OFF button for 10 seconds
and release the button when you hear bleep prompt,and then
press the ON/OFF button 6 times quickly(
)
Note:if adjust the sensitivity of the beams back to factory
default 200ms ,press the ON OFF button 5 times
both the transmitter
and receiver
( ) /
Step 3: Make sure the solar beams aligned with each other
Step 4: Press and hold the ON/OFF button for 10 seconds
and release the button when you hear bleep prompt
(only the receiver)
Step 5: Press the ON/OFF button 4 times(only the receiver)
Step 6: Adjustment is successful when you heard 6 times
bleep prompt
52mm

245mm
40mm
84mm
40mm
85mm
45mm
184mm
433MHz FSK+FHSS
≤200 times
Chargeable LiFePO4 Battery
3.3V
100m(300 feet)
Technical Parameters
1KM(3000 feet)
940nm±20nm
3
Transmitter:500mAh,Receiver:500mAh
≤0.5mA
-22°F to 158°F(-30℃ to 70℃)
1800L ux illumination levl: ≥2mA
(Remarks:The outdoor illumination
intensity on rainy days is about
2000L ux)
21-HB201905-4040S(1.2)+1T001Q3+(10.10)-02
Solar&Wireless Photoelectric Beam Sensor
Infrared Detection Range
Item
Wireless Transmission Range
Beam Quantity
Wireless Frequency
Maximum Trigger Number
In 24 Hours
Working Voltage
Battery Type
Battery Capacity
Static working Current
Infrared Wavelength
Solar Panel Output Current
Working Temperature Range
Technical parameters
After-sale Service
E-mail:[e-mail]
13
39mm
