INSTRUCTIONS AND WARRANTY
MODEL NO. SCPR1
SALTON COOKIE AND DECORATING KIT

2
Congratulations on purchasing our Salton Cookie and Decorating Kit. Each unit is manufactured to
ensure safety and reliability. Before using this appliance for the first time, please read the instruction
manual carefully and keep it for future reference.
FEATURES OF THE SALTON COOKIE AND DECORATING KIT
28W
Create beautiful home-made delights with ease

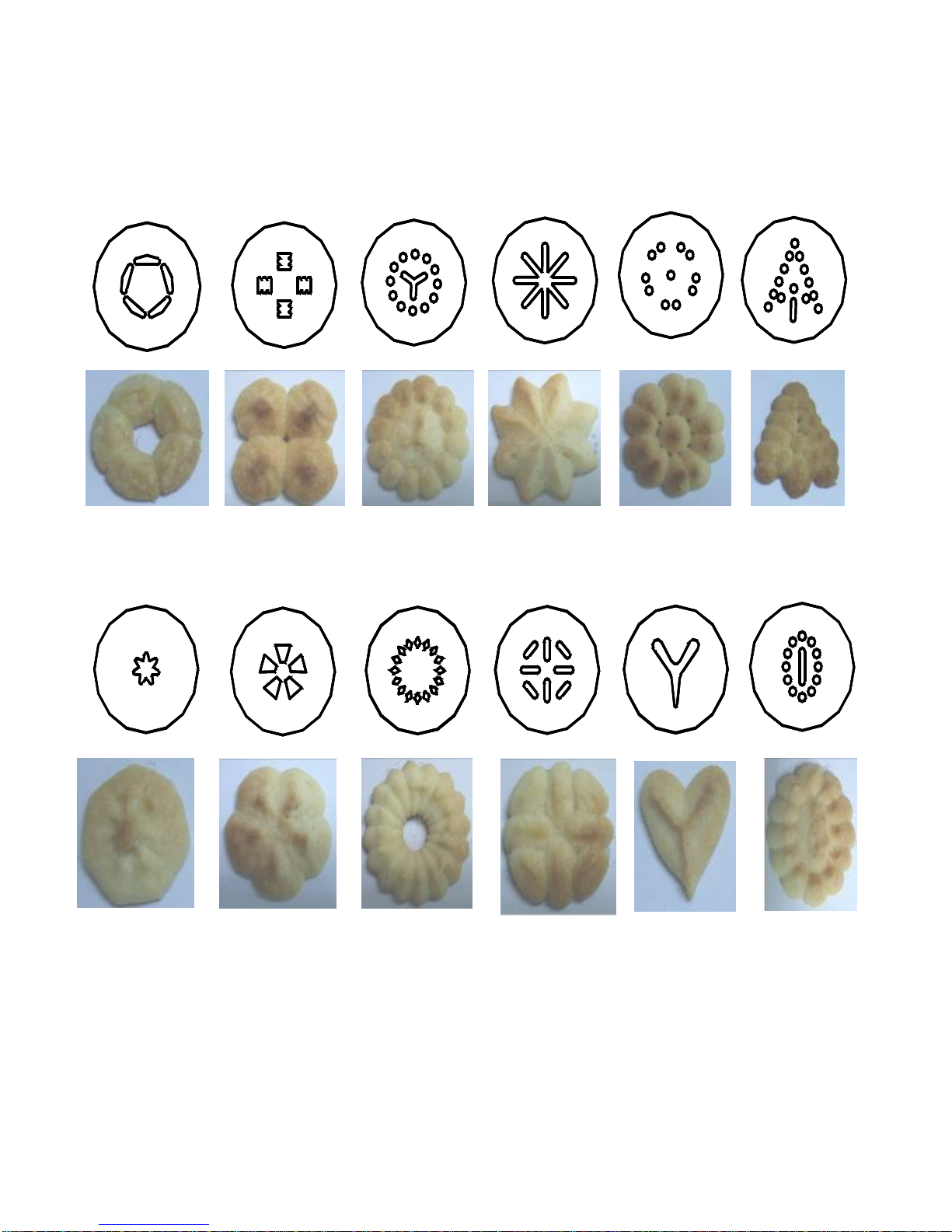

Includes 12 assorted cookie discs for assorted classic, fun and holiday cookie shapes
The kit also includes 3 special nozzles which are ideal for icing, decorative piping, fillings for
pasta shells, desserts, pastries, mouse and so much more!
Convenient one touch operation
Clear easy-view plastic tube
Folding handle for compact storage
Makes up to 30 cookies at a time!
Steady and consistent release
Great for home bakers, gifting and family fun
Includes recipes
12 assorted cookie discs for assorted classic, fun and holiday cookie shapes
3 special nozzles which are ideal for icing, decorative piping, fillings for pasta shells, desserts,
pastries, mouse and so much more!
IMPORTANT SAFEGUARDS
When using any electrical appliance, basic safety precautions should always be followed including the
following:
1. Please read the instructions carefully before using any appliance.
2. Always ensure that the voltage on the rating label corresponds to the mains voltage in your
home.
3. Incorrect operation and improper use can damage the appliance and cause injury to the user.

3
4. The appliance in intended for household use only. Commercial use invalids the warranty and
the supplier cannot be held responsible for injury or damage caused when using the appliance
for any other purpose than that intended.
5. Avoid any contact with moving parts.
6. Close supervision is required when any appliance is used near or by children or invalids.
7. Check the power cord and plug regularly for any damage. If the cord or the plug is damaged, it
must be replaced by the manufacturer or a qualified person in order to avoid an electrical
hazard.
8. Do not use the appliance if it has been dropped or damaged in any way. In case of damage,
take the unit in for examination and/or repair by an authorised service agent
9. To reduce the risk of electric shock, do not immerse or expose the motor assembly, plug or the
power cord to water or any other liquid.
10. Never immerse the motor assembly in water or any other liquid for cleaning purposes.
11. Do not use the appliance with wet hands or if the appliance itself is wet.
12. Do not touch the plug with wet or damp hands.
13. Remove the plug from the socket by gripping the plug. Do not pull on the cord to disconnect the
appliance from the mains. Always unplug the unit when not in use, before cleaning or when
adding or removing parts.
14. The use of accessory attachments which are not recommended or supplied by the manufacturer
may result in injuries, fire or electric shock.
15. A short cord is provided to reduce the hazards resulting from becoming entangled in or tripping
over a longer cord.
16. Do not let the cord hang over the edge of a table or counter. Ensure that the cord is not in a
position where it can be pulled on inadvertently.
17. Do not allow the cord to touch hot surfaces and do not place on or near a hot gas or electric
burner or in a heated oven.
18. Do not use the appliance on a gas or electric cooking top or over or near an open flame.
19. Use of an extension cord with this appliance is not recommended. However, if it is necessary to
use an extension lead, ensure that the lead is suited to the power consumption of the appliance
to avoid overheating of the extension cord, appliance or plug point. Do not place the extension
cord in a position where it can be pulled on by children or animals or tripped over.
20. This appliance is not suitable for outdoor use. Do not use this appliance for anything other than
its intended use.
21. DO NOT carry the appliance by the power cord.

4
22. Do not leave this appliance unattended during use. Always unplug the unit when not in use or
before cleaning.
23. Always operate the appliance on a smooth, even, stable surface. Do not place the unit on a hot
surface.
24. During operation, make sure that the appliance is not switched on continuously for longer than 2
minutes. Allow the appliance to completely cool down after each use.
25. Switch the appliance to the “Off” or “0” position before changing accessories or approaching
parts which move in use. Ensure that the appliance is in the “Off” or “0” position after each use.
26. Fill the cylinder only with dough and the ingredients suggested in this manual. Never fill the
cylinder with liquid or similar ingredients which are not recommended.
27. The manufacturer does not accept responsibility for any damage or injury caused by improper
or incorrect use, or for repairs carried out by unauthorised personnel.
28. In case of technical problems, switch off the appliance and do not attempt to repair it yourself.
Return the appliance to an authorised service facility for examination, adjustment or repair.
Always insist on the use of original spare parts. Failure to comply with the above mentioned
pre-cautions and instructions, could affect the safe operation of this appliance.
29. Close supervision is necessary when any appliance is used by or near children.
30. Do not operate any appliance with a damaged cord or plug or after the appliance malfunctions,
or has been damaged in any manner. Return appliance to the nearest authorised service facility
for examination, repair or adjustment.
31. Do not operate this appliance by means of an external timer or separate remote control system.
32. This appliance is intended to be used in household and similar applications such as:
–staff kitchen areas in shops, offices and other working environments;
–farm houses;
–by clients in hotels, motels and other residential type environments;
–bed and breakfast type environments

5
PARTS DIAGRAM
A. Motor unit/ body B. Foldable handle
C. On/Off button D. Threaded rod
E. Piston plate F. Cylinder
G. Cookie disc H. Cylinder end-cap
I. Nozzle adaptor J. Pastry nozzle
K. Nut for nozzle
E
G
H
A
B
C
D
E
F
G
H
I
J
K

6
BEFORE FIRST USE
Before using this unit, please read these instructions completely. Save this manual and pass it on to
next user.
Before using this appliance for the first time, unpack the appliance and remove all protective packaging
and wrappings. Please ensure to discard the protective packaging and wrappings immediately. It is
important to keep these away from babies, infants and children for safety purposes.
Before using, wash the threaded rod, piston plate, cylinder, cookie discs, cylinder end-cap, nozzle
adaptor, pastry nozzle and nut for nozzle, in warm soapy water. Dry thoroughly.

7
AX
ASSEMBLY INSTRUCTIONS
1. Insert the spear-shaped head of the threaded rod into the centre
hole of the piston plate until the rod snaps into place (see figure
1).
2. Pull out the foldable handle.
3. Insert the other end of the threaded rod into the centre hole of the
motor unit and go in as far as it can (see figure 2).
4. Select the appropriate cookie disk and place it in the cylinder
end-cap with the smooth side out. Place the cylinder end-cap
onto the cylinder and turn it clockwise until locked (see figure 3).
If a pastry nozzle is to be used, place the pastry adaptor in the
cylinder end-cap with the bolt out. Fit the desired nozzle into the
nut and secure them to the bolt. Place the cylinder end-cap onto
the cylinder and turn it clockwise until locked. Note: Pastry
nozzles are for custom decorating of cookies, cakes and more
(see figure 4).
5. Fill the cylinder with the soft cookie dough by spoon or spatula.
Do not fill over the Max line (see figure 5).
6. Wipe the cylinder with a dry cloth to clean away the grease and
dough that are left on the surface of the cylinder.
7. Fit the two protrusions at the end of the cylinder into the two slots
of the piston-plate. Align the arrow symbol on the cylinder with
the arrow symbol on the motor unit. Push and turn until the
arrow symbol on the cylinder stops at the lock position. A “Click”
sound will be heard when the cylinder is securely locked. If this
is not done correctly, the cookie press will not operate properly.
Once the cylinder is correctly fitted onto the motor unit, you may
hold the cookie press horizontally (see figure 6).
Figure 1.
Figure 2.
Figure 3.
Figure 4.
Figure 5.

8
AX
AX
AX
8. The cookie press is now ready for use.
Warning: During or after loading ingredients, do not hold the cookie press with the cylinder facing
upward as shown in figure 7 and 8, in order to avoid grease or liquid from entering the motor unit.
OPERATING INSTRUCTIONS
Switch the appliance to the “Off” or “0” position before changing accessories or approaching parts
which move in use. Ensure that the appliance is in the “Off” or “0” position after each use.
Figure 6.
Figure 7. Figure 8.

9
Prepare the cookie dough
Basic ingredients for one cylinder (one cylinder of dough can make about 2 dozen cookies):
120 g soft butter or margarine
90 g sugar
1/3 teaspoon baking powder
1 egg
150 g all-purpose flour
1. Beat the margarine or butter in a large mixing bowl with an electric mixer on ‘medium to high
speed’ for 30 seconds. Add sugar and baking powder and beat until combined.
2. Add the egg and beat until combined.
3. Beat in the flour with the mixer until the dough has been formed. If the dough is too soft or sticky
then the dough will stick to the cylinder and will be difficult to push out.
4. Now add some more flour to mix once again or just refrigerate for 15 minutes before using. If
the dough is too stiff, it won’t release from the cookie press. Freshly prepared cookie dough will
provide the best taste and results.
5. If refrigerated before and now you would like to use the dough, please add some yolk or egg to
the mix again before processing through the cookie press.

10
Making Cookies
1. Load the dough and assemble the cookie press as per the assembly instructions.
2. Plug the power cord into an appropriate power outlet.
3. Grasp the foldable handle. Stand the cookie press upright on an ungreased cookie sheet.
4. Press the On/Off button with your finger and hold the cookie press against the cookie sheet in
an upright position. The piston-plate will push downward and force out the cookie dough
through the disc or nozzle. It takes about 2 seconds to form a cookie.
5. Raise the cookie press and release the On/Off
Button.
6. Move to a new position and repeat the
operation to make another cookie. Refer to the
result of previous cookie; adjust the press time
and pressures for desired thickness of the
cookie. After a few practice runs, you will
master the operation (see figure 9).
7. Continue making cookies until the sheet is full or you may change design discs without
reloading.
8. Bake in a 180°C oven for 7 to 8 minutes or until done. Remove and cool.
During operation, hold the cookie press in an upright position as shown in figure 9. Never hold the
cookie press with the cylinder facing upward as shown in figure 8. in order to avoid grease or liquid
going into the motor unit.
Figure 9.

11
How to Reload the Cookie Press
Follow the instructions below if you would like to reload the cylinder and immediately continue after you
finished one cylinder of dough.
1. Grip the foldable handle with one hand and turn the cylinder until the arrow symbol on the
cylinder lines up with the arrow symbol on the motor unit. There are ribs around the cylinder to
prevent your hand from slipping.
2. Remove the cylinder from the motor unit.
3. Push the threaded rod back into the centre hole of the motor unit and go as far as it can (see
figure 2).
4. Turn the cylinder end-cap anti-clockwise to unlock it from the cylinder.
5. Reattach the cookie disc or nozzle as per the assembly instructions.
6. Fill the cylinder with the soft cookie dough by spoon or spatula.
7. Fit the two protrusions at the end of the cylinder into the two slots of the piston-plate.
8. Align the arrow symbol on the cylinder with the arrow symbol on the motor unit.
9. Push and turn until the arrow symbol on the cylinder until it stops at the lock position. A “Click”
sound will be heard when the cylinder is securely locked. If this is not done correctly, the cookie
press will not operate properly. When fitting the cylinder onto the motor unit, you may hold the
cookie press horizontally (see figure 6).
10. Plug the cookie press in to a power socket.
11. The cookie press is now ready for use again.

12
Important hints
1. To avoid greasing or wetting the motor unit, do not load the dough over the Max line on the
cylinder and wipe the cylinder with a dry cloth to clean away the grease and dough that are left
on the surface of the cylinder after loading.
2. Do not use greased or non-stick cookie sheets. It will be difficult to get the pressed cookie
dough to stick on it.
3. Over-night refrigerated cookie dough will be too stiff and hard to press. Always use freshly
prepared dough.
4. If dough is too soft or sticky, add some more flour to the mix or just refrigerate for 15 minutes
before using. If the dough is too stiff, add some yolk or egg to the mix again.
5. Use finely ground sugar or sugar powder to help make the cookie dough soft and sticky.
6. After you load the dough, use it immediately.
7. If you want to add decorations to your cookies which have been pressed out but the cookie
dough is not sticky enough to hold them, softly wipe a little water, yolk or milk where the
decorations are to be placed.
8. After baking, you could decorate or fill the cookies with jam, icing or cream using the pastry
nozzle.
9. The amount of time it will take to push cookie dough to form a perfect cookie will be different
when using the different cookie disks. Improve your skill through the a few practice runs.
10. One cylinder of dough can make about 2 dozen cookies. However, it depends on the thickness
and shape of the cookies.

13
Cookie Disc Shape Guide

14

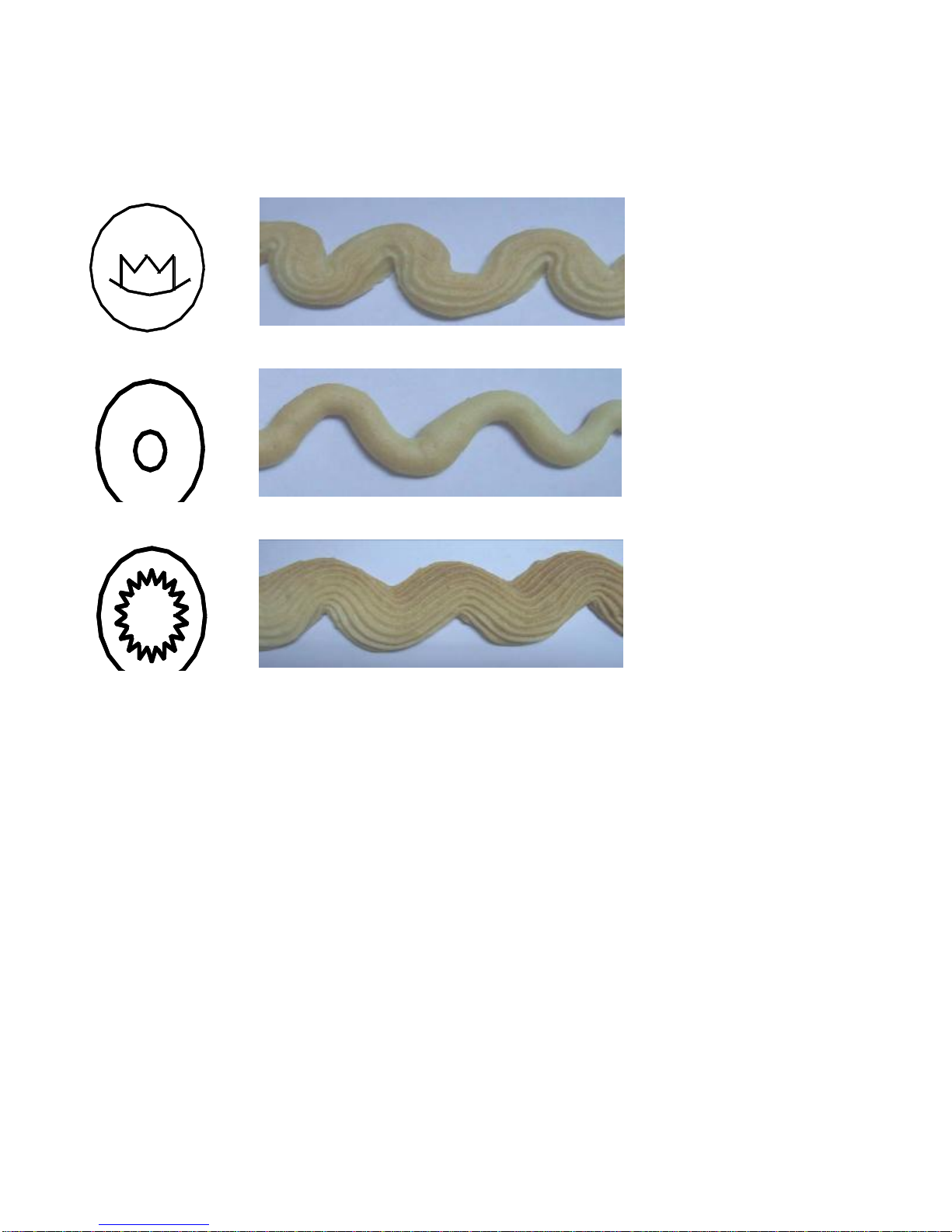

Pastry Nozzle Shape Guide

15
CLEANING AND MAINTENANCE
This appliance is for household use only and is not user-serviceable.
Do not open or change any parts by yourself. Please refer to a qualified electrical service
department or return to the supplier if servicing is necessary.
Always remember to unplug the unit from the electrical outlet when not in use and before
cleaning. Ensure that the appliance is set to the “OFF” or “0” position.
Grip the foldable handle with one hand and turn the cylinder until the arrow symbol on the
cylinder lines up with the arrow symbol on the motor unit.
Remove the cylinder and threaded rod from the motor unit.
Pull out the threaded rod from the piston-plate.
Turn the cylinder end-cap anti-clockwise to unlock it from the cylinder.
Wash the threaded rod, piston-plate, cylinder, cookie discs, cylinder end-cap, nozzle adaptor,
pastry nozzle and nut for nozzle, in warm, soapy water. Dry thoroughly. Do not wash in
dishwasher.
A bottle brush will help in cleaning the inside of the cylinder and nozzles.
Wipe the surface of motor unit and foldable handle with a damp sponge.
Do not immerse the motor unit into water or under a tap or in a dishwasher. Never allow the
motor body to come into contact with any liquid. To clean the motor body, gently wipe it with a
soft damp cloth, sponge or paper towel. Always ensure that the motor body is completely dry
before use or storing.
Do not use bleach or other abrasive substance or solvents to clean your appliance as it can be
damaging to the finish.
After cleaning, completely wipe the appliance dry with a soft cloth. Clean the appliance after
each use.

16
STORING THE APPLIANCE
Unplug the appliance from the wall outlet and clean all the parts as instructed above. Ensure
that all parts are dry before storing.
After cleaning, fold over the foldable handle. Store the cookie press and parts in its original box,
in a clean and dry place.
Never store the appliance while it is still wet or dirty.
Never wrap the power cord around the appliance.
SERVICING THE APPLIANCE
There are no user serviceable parts in this appliance. If the unit is not operating correctly,
please check the following:
You have followed the instructions correctly
That the unit has been wired correctly and that the wall socket is switched on.
That the mains power supply is ON.
That the plug is firmly in the mains socket.
If the appliance still does not work after checking the above:
- Consult the retailer for possible repair or replacement. If the retailer fails to resolve the
problem and you need to return the appliance, make sure that:
The unit is packed carefully back into its original packaging.
Proof of purchase is attached.
A reason is provided for why it is being returned.
If the supply cord is damaged, it must be replaced by the manufacturer or an authorised
service agent, in order to avoid any hazard. If service becomes necessary within the warranty
period, the appliance should be returned to an approved Home of Living Brands (Pty) Limited
service centre. Servicing outside the warranty period is still available, but will, however, be
chargeable.

17
CHANGING THE PLUG
Should the need arise to change the fitted plug, follow the instructions below.
This unit is designed to operate on the stated current only. Connecting to other power
sources may damage the appliance. Connect a three-pin plug as follows:
The wires in this mains lead are coloured in accordance with the following code:
Green/Yellow = Earth
Blue = Neutral
Brown = Live

18
PLEASE AFFIX YOUR PROOF OF PURCHASE/RECEIPT HERE
IN THE EVENT OF A CLAIM UNDER WARRANTY THIS RECEIPT MUST BE PRODUCED.
W A R R A N T Y
1. Home of Living Brands (Pty) Limited warrants to the original purchaser of this product (“the
customer”) that this product will be free of defects in quality and workmanship which under normal
personal, family or household use and purpose may manifest within a period of 1 (one) year from the
date of purchase (“warranty period”).
2. Where the customer has purchased a product and it breaks, is defective or does not work properly for
the intended purpose, the customer must notify the supplier from whom the customer bought the
product (“the supplier”) thereof within the warranty period. Any claim in terms of this warranty must be
supported by a proof of purchase. If proof of purchase is not available, then repair, and/or service
charges may be payable by the customer to the supplier.
3. The faulty product must be taken to the supplier's service centre to exercise the warranty.
4. The supplier will refund, repair or exchange the product in terms of this warranty subject to legislative
requirements. This warranty shall be valid only where the customer has not broken the product
himself, or used the product for something that it is not supposed to be used for. The warranty does
not include and will not be construed to cover products damaged as a result of disaster, misuse,
tamper, abuse or any unauthorised modification or repair of the product.
5. This warranty will extend only to the product provided at the date of the purchase and not to any
expendables attached or installed by the customer.
6. If the customer requests that the supplier repairs the product and the product breaks or fails to work
properly within 3 (three) months of the repair and not as a result of misuse, tampering or modification
by or on behalf of the customer, then the supplier may replace the product or pay a refund to the
customer.
7. The customer may be responsible for certain costs where products returned are not in the original
packaging, or if the packaging is damaged. This will be deducted from any refund paid to the
customer.
HOME OF LIVING BRANDS (PTY) LTD (JOHANNESBURG)
JOHANNESBURG TEL NO. [phone]
CAPE TOWN TEL NO. [phone]
DURBAN TEL NO. [phone]
www.homeoflivingbrands.com
www.salton.co.za
www.facebook.com/SaltonAppliances

19
Parabéns por ter adquirido o nosso Kit de bolachas e decoração da Salton. Cada unidade é fabricada
de forma a garantir segurança e fiabilidade. Antes de utilizar este aparelho pela primeira vez, leia o
manual de instruções atentamente e guarde-o para futura referência.
CARACTERÍSTICAS DO KIT DE BOLACHAS E DECORAÇÃO DA SALTON
28 W
Crie bonitas delícias feitas em casa com facilidade
Inclui 12 discos variados para biscoitos para formas de biscoitos clássicas, divertidas e de
férias
O kit inclui também 3 bocais especiais ideais para coberturas, criar tubos decorativos, recheios
para conchas de massa, sobremesas, doces, mousses e muito mais!
Operação conveniente com um toque
Tubo de plástico transparente de fácil visualização
Pega dobrável para armazenamento compacto
Cria até 30 biscoitos de cada vez!
Libertação firme e consistente
Excelente para pasteleiros caseiros, para dar de prenda e para diversão em família
Inclui receitas
12 discos variados para biscoitos para formas de biscoitos clássicas, divertidas e de férias
3 bocais especiais ideais para coberturas, criar tubos decorativos, recheios para conchas de
massa, sobremesas, doces, mousses e muito mais!
SALVAGUARDAS IMPORTANTES
Quando utilizar qualquer aparelho elétrico, deve seguir sempre as precauções de segurança básicas,
incluindo o seguinte:
1. Leia atentamente as instruções antes de utilizar qualquer aparelho.
2. Certifique-se sempre de que a tensão na etiqueta de classificação corresponde à tensão da
corrente elétrica na sua residência.
3. A operação incorreta e utilização imprópria podem danificar o aparelho e causar lesões no
utilizador.

20
4. O aparelho destina-se apenas a utilização doméstica. A utilização comercial invalida a garantia
e o fornecedor não pode ser responsabilizado por lesões ou danos causados quando o
aparelho for utilizado para qualquer outra finalidade diferente da prevista.
5. Evite qualquer contacto com as peças em movimento.
6. É necessária uma supervisão de perto quando qualquer aparelho for utilizado perto ou por
crianças ou pessoas com incapacidades.
7. Verifique o cabo de alimentação e a ficha regularmente para verificar a existência de quaisquer
danos. Se o cabo ou a ficha estiverem danificados, devem ser substituídos pelo fabricante ou
por uma pessoa qualificada de forma a evitar um perigo elétrico.
8. Não utilize o aparelho se este tiver sido deixado cair ou estiver danificado de qualquer forma.
Em caso de danos, devolva a unidade para verificação e/ou reparação por parte de um agente
de assistência autorizado
9. Para reduzir o risco de choque elétrico, não mergulhe ou exponha o conjunto do motor, ficha ou
cabo de alimentação em água ou em qualquer outro líquido.
10. Nunca coloque o conjunto do motor dentro de água ou qualquer outro líquido para fins de
limpeza.
11. Não utilize o aparelho com mãos molhadas ou se o próprio aparelho estiver molhado.
12. Não toque na ficha com as mãos molhadas ou humedecidas.
13. Remova a ficha da tomada ao agarrar na ficha. Não puxe pelo cabo para desligar o aparelho
da corrente elétrica. Desligue sempre a unidade quando esta não estiver a ser utilizada, antes
de limpar ou quando adicionar ou remover peças.
14. A utilização de acessórios não recomendados ou fornecidos pelo fabricante pode resultar em
lesões, incêndios ou choque elétrico.
15. É fornecido um cabo pequeno para reduzir os riscos resultantes de ficar preso ou de tropeçar
num cabo maior.
16. Não deixe o cabo suspenso pela extremidade de uma mesa ou balcão. Certifique-se de que o
cabo não se encontra numa posição em que possa ser puxado inadvertidamente.
17. Não permita que o cabo toque em superfícies quentes e não o coloque sobre ou perto de uma
caldeira elétrica ou a gás quente ou num forno aquecido.
18. Não utilize o aparelho sobre uma superfície de cozimento a gás ou elétrica ou sobre ou perto
de uma chama.
19. A utilização de uma extensão com este aparelho não é recomendada. No entanto, caso seja
necessário utilizar uma ficha de extensão, certifique-se de que a ficha é adequada para o
consumo de energia do aparelho para evitar o sobreaquecimento do cabo da extensão,
