Samson EB8048-2 Service manual

Translation of original instructions
EB 8048-2/-3 EN
Type3349-7 Control Valve with
Type3730 Electropneumatic Positioner
Type3349/3379 Control Valve with
Type3724 Positioner
Edition March 2017
Type3349 Aseptic Angle Valve with USP-VI diaphragm
In combination with an actuator,
e.g. a SAMSON Type3271 or Type3277 Pneumatic Actuator or
Type3379 Pneumatic Actuator

Note on these mounting and operating instructions
These mounting and operating instructions assist you in mounting and operating the device
safely. The instructions are binding for handling SAMSON devices.
ÎFor the safe and proper use of these instructions, read them carefully and keep them for
later reference.
ÎIf you have any questions about these instructions, contact SAMSON‘s After-sales Service
Department (aftersalesser[email protected]).
The mounting and operating instructions for the devices are included in
the scope of delivery. The latest documentation is available on our website
at www.samson.de > Service & Support > Downloads > Documentation.
Denition of signal words
Hazardous situations which, if not avoided,
will result in death or serious injury
Hazardous situations which, if not avoided,
could result in death or serious injury
Property damage message or malfunction
Additional information
Recommended action
DANGER
!
WARNING
!
NOTICE
!
Note
Tip
2 EB 8048-2/-3 EN

Contents
EB 8048-2/-3 EN 3
1 Safety instructions and measures ...................................................................5
1.1 Notes on possible severe personal injury .........................................................7
1.2 Notes on possible personal injury ...................................................................8
1.3 Notes on possible property damage ................................................................9
2 Markings on the control valve......................................................................10
2.1 Body inscription ...........................................................................................10
2.2 Actuator nameplate ......................................................................................10
2.3 Material number ..........................................................................................10
3 Design and principle of operation ................................................................12
3.1 Fail-safe positions ........................................................................................12
3.2 Versions ......................................................................................................15
4 Measures for preparation............................................................................20
4.1 Unpacking ..................................................................................................20
4.2 Transporting and lifting ................................................................................20
4.2.1 Transporting ................................................................................................21
4.2.2 Lifting ..........................................................................................................21
4.3 Storage .......................................................................................................23
4.4 Preparation for installation ............................................................................24
5 Mounting and start-up.................................................................................26
5.1 Mounting the actuator onto the valve .............................................................26
5.1.1 Version with Type3271 or Type3277 Actuator ..............................................26
5.1.2 Version with Type3379 Actuator ..................................................................27
5.2 Installing the valve into the pipeline ...............................................................28
5.2.1 Checking the installation conditions ...............................................................28
5.2.2 Installing the control valve .............................................................................30
5.3 Preparing for operation ................................................................................30
5.4 Quick check ................................................................................................31
6 Operation...................................................................................................32
6.1 CIP (cleaning-in-place) .................................................................................33
6.2 SIP (sterilization-in-place) .............................................................................33

Contents
4 EB 8048-2/-3 EN
7 Servicing.....................................................................................................34
7.1 Version with Type3271 or Type3277 Actuator ..............................................35
7.1.1 Replacing the packing ..................................................................................35
7.1.2 Replacing the diaphragm and plug ...............................................................37
7.2 Version with Type3379 Actuator ..................................................................39
7.2.1 Replacing the packing ..................................................................................39
7.2.2 Replacing the diaphragm and plug ...............................................................40
7.3 Checking the concentricity of the plug to the plug stem ....................................42
7.4 Preparation for return shipment .....................................................................42
7.5 Ordering spare parts and operating supplies .................................................43
8 Malfunctions ...............................................................................................44
8.1 Troubleshooting ...........................................................................................44
8.2 Emergency action ........................................................................................45
9 Decommissioning and disassembly ..............................................................46
9.1 Decommissioning .........................................................................................46
9.2 Removing the valve from the pipeline .............................................................46
9.3 Removing the actuator from the valve ............................................................47
9.4 Disposal ......................................................................................................47
10 Annex.........................................................................................................48
10.1 After-sales service ........................................................................................48
10.2 Certicates ..................................................................................................49
10.3 Spare parts .................................................................................................50

EB 8048-2/-3 EN 5
Safety instructions and measures
1 Safety instructions and measures
Intended use
The SAMSON Type3349 Angle Valve in combination with an actuator (e.g. Type3271,
Type3277 or Type3379 Pneumatic Actuator) is designed to regulate the ow rate, pressure
or temperature of liquids, gases or vapors. The angle valve is suitable for use in aseptic ap-
plications (e.g. in the pharmaceutical and food industries).
The valve with its actuator is designed to operate under exactly dened conditions (e.g.
operating pressure, process medium, temperature). Therefore, operators must ensure that the
control valve is only used in applications that meet the specications used for sizing the valve
at the ordering stage. In case operators intend to use the control valve in other applications
or conditions than specied, contact SAMSON.
SAMSON does not assume any liability for damage resulting from the failure to use the
valve for its intended purpose or for damage caused by external forces or any other external
factors.
ÎRefer to the technical data and nameplate for limits and elds of application as well as
possible uses.
Reasonably foreseeable misuse
The control valve is not suitable for the following applications:
−Use outside the limits dened during sizing and in the technical data
−Use outside the limits dened by the valve accessories mounted on the control valve
Furthermore, the following activities do not comply with the intended use:
−Use of non-original spare parts
−Performing service and repair work not described in these instructions
Qualications of operating personnel
The control valve must be mounted, started up, serviced, and repaired by fully trained and
qualied personnel only; the accepted industry codes and practices are to be observed.
According to these mounting and operating instructions, trained personnel refers to
individuals who are able to judge the work they are assigned to and recognize possible
hazards due to their specialized training, their knowledge and experience as well as their
knowledge of the applicable standards.

6 EB 8048-2/-3 EN
Safety instructions and measures
Personal protective equipment
We recommend wearing the following protective equipment depending on the process medi-
um:
−Protective clothing, gloves, and eyewear in applications with hot, cold, and/or corrosive
media
−Wear hearing protection when working near the valve.
ÎCheck with the plant operator for details on further protective equipment.
Revisions and other modications
Revisions, conversions or other modications to the product are not authorized by SAMSON.
They are performed at the user's own risk and may lead to safety hazards, for example. Fur-
thermore, the product may no longer meet the requirements for its intended use.
Safety features
Upon supply air or control signal failure, the valve moves to its fail-safe position (see sec-
tion3.1). The fail-safe action of the actuator is the same as its direction of action and is spec-
ied on the nameplate of SAMSON actuators (see actuator documentation).
Warning against residual hazards
To avoid personal injury or property damage, plant operators and operating personnel must
prevent hazards that could be caused in the control valve by the process medium, the operat-
ing pressure, the signal pressure or by moving parts by taking appropriate precautions. They
must observe all hazard statements, warning and caution notes in these mounting and oper-
ating instructions, especially for installation, start-up, and service work.
Responsibilities of the operator
The operator is responsible for proper operation and compliance with the safety regulations.
Operators are obliged to provide these mounting and operating instructions as well as the
referenced documents to the operating personnel and to instruct them in proper operation.
Furthermore, the operator must ensure that operating personnel or third persons are not
exposed to any danger.
Responsibilities of operating personnel
Operating personnel must read and understand these mounting and operating instructions as
well as the referenced documents and observe the hazard statements, warning and caution
notes specied in them. Furthermore, the operating personnel must be familiar with the ap-
plicable health, safety and accident prevention regulations and comply with them.

EB 8048-2/-3 EN 7
Safety instructions and measures
Referenced standards and regulations
The control valves meet the requirements in the Regulation (EC) No.1935/2004 for materi-
als and articles intended to come into contact with food
The control valves comply with the requirements of the European Pressure Equipment
Directive 2014/68/EU. This declaration of conformity is included in the Appendix of these
instructions (see section10.2).
According to the ignition risk assessment performed in accordance with EN13463-1:2009,
section 5.2, the non-electrical control valves do not have their own potential ignition source
even in the rare incident of an operating fault. As a result, they do not fall within the scope of
Directive 2014/34/EU.
ÎFor connection to the equipotential bonding system, observe the requirements specied in
section 6.4 of EN60079-14 (VDE0165 Part 1).
Referenced documentation
The following documents apply in addition to these mounting and operating instructions:
−Mounting and operating instructions for mounted actuator, e.g. uEB8310-X for
Type3271 and Type3277 Actuators or uEB8315 for Type3379 Actuator
−Mounting and operating instructions for mounted valve accessories (positioner, solenoid
valve etc.) e.g. uEB8395 for Type3724 Positioner
−uAB0100 for tools, tightening torques, and lubricant
1.1 Notes on possible severe personal injury
DANGER
!
Risk of bursting in pressure equipment.
Control valves and pipelines are pressure equipment. Improper opening can lead to
valve components bursting.
ÎBefore starting any work on the control valve, depressurize all plant sections
concerned as well as the valve.
ÎDrain the process medium from all the plant sections concerned as well as the
valve.
ÎWear personal protective equipment.

8 EB 8048-2/-3 EN
Safety instructions and measures
1.2 Notes on possible personal injury
WARNING
!
Crush hazard arising from moving parts.
The Type3349-1 or Type3349-7 Pneumatic Control Valve contains moving parts
(actuator and plug stems), which can injure hands or ngers if inserted into the valve.
ÎDo not insert hands or ngers into the yoke while the valve is in operation.
ÎWhile working on the control valve, disconnect and lock the pneumatic air supply as
well as the control signal.
Risk of personal injury when the actuator vents.
While the valve is operating, the actuator may vent during closed-loop control or when
the valve opens or closes.
ÎInstall the control valve in such a way that the actuator does not vent at eye level.
ÎUse suitable silencers and vent plugs.
ÎWear eye protection when working in close proximity to the control valve.
Risk of personal injury due to preloaded springs.
Valves in combination with pneumatic actuators with preloaded springs are under ten-
sion. These control valves with SAMSON pneumatic actuators can be identied by the
long bolts protruding from the bottom of the actuator.
ÎBefore starting any work on the actuator, relieve the compression from the preload-
ed springs (see associated actuator documentation).
Risk of personal injury due to residual process medium in the valve.
While working on the valve, residual process medium can escape and, depending on
its properties, may lead to personal injury, e.g. (chemical) burns.
ÎIf possible, drain the process medium from all the plant sections concerned and the
valve.
ÎWear protective clothing, safety gloves, and eyewear.

EB 8048-2/-3 EN 9
Safety instructions and measures
WARNING
!
Risk of burn injuries due to hot or cold components and pipelines.
Depending on the process medium, valve components, and pipelines may get very hot
or cold and cause burn injuries.
ÎAllow components and pipelines to cool down or heat up.
ÎWear protective clothing and safety gloves.
1.3 Notes on possible property damage
NOTICE
!
Risk of contamination of the process medium through the use of unsuitable lubricant
and/or contaminated tools and components.
ÎKeep the valve and the tools used free from solvents and grease.
ÎMake sure that only suitable lubricants are used.
Risk of valve damage due to contamination (e.g. solid particles) in the pipeline.
The plant operator is responsible for cleaning the pipelines in the plant.
ÎFlush the pipelines before start-up.
ÎObserve the maximum permissible pressure for valve and plant.
Risk of valve damage due to unsuitable medium properties.
The valve is designed for a process medium with dened properties.
ÎOnly use the process medium specied for sizing the valve.
Risk of leakage and valve damage due to excessively high or low tightening torques.
Observe the specied torques on tightening control valve components. Excessively tight-
ened torques lead to parts wearing out quicker. Parts that are too loose may cause leak-
age.
ÎObserve the specied tightening torques (uAB0100).
Risk of valve damage due to the use of unsuitable tools.
Certain tools are required to work on the valve.
ÎOnly use tools approved by SAMSON (uAB0100).

10 EB 8048-2/-3 EN
Safety instructions and measures
NOTICE
!
Risk of valve damage due to the use of unsuitable lubricants.
The lubricants to be used depend on the valve material. Unsuitable lubricants may cor-
rode and damage the valve surface.
ÎOnly use lubricants approved by SAMSON (uAB0100).
2 Markings on the control
valve
2.1 Body inscription
The details on the valve version are lasered
onto the front and back of the valve body
(see Fig.1). No nameplate is used.
2.2 Actuator nameplate
See associated actuator documentation.
2.3 Material number
The seat and plug of the valves have an arti-
cle number written on them. Specifying this
article number, you can contact us to nd out
which material is used.
Body
inscription
Fig.1: Body inscription

EB 8048-2/-3 EN 11
Safety instructions and measures
F
SAMSON
12
11
13
Made in
France
10
1SAMSON
2
3
4
5
6
8
9
7
1 Device modication index
2 Valve size:
DIN: DN · ANSI: NPS
3 Body material
4 Perm. operating gauge pressure at 20°C
bar/psi
5 Max. operating temperature °C/°F
6 Flow coefcient:
KV · CV
Characteristic:
% = Equal percentage · L = Linear
7 Seat-plug seal:
ME: metal
PK: soft seal with PEEK
PT: soft seal with PTFE
8Serial number
9 Conguration ID
10 Compliance with food industry require-
ments
11 CE marking or "Art. 4, Abs. 3" (PED
2014/68/EU)
12 If applicable, EAC mark including month
and year of production
13 SAMSON material marking
Fig.2: Information on the valve body

12 EB 8048-2/-3 EN
Design and principle of operation
3 Design and principle of oper-
ation
The Type3349 Angle Valve is preferably
combined with a SAMSON Type3271 or
Type3277 Pneumatic Actuator (see Fig.3)
as well as the Type3379 Pneumatic Actuator
(see Fig.4). The valve comes with welding
ends as standard. The valve is suitable for
aseptic applications and is designed without
any cavities.
The process medium ows through the valve
in the ow-to-close direction as indicated by
the arrow. The position of the valve plug de-
termines the ow rate across the cross-sec-
tional area of ow released between plug
and lathed seat.
In the standard version, the plug stem is
sealed by the USP-VI diaphragm. In the spe-
cial version, an additional backup packing is
used (see Fig.5). The test connection allows
the diaphragm to be monitored for leakage.
In the version with backup packing, the test
connection is sealed by a stopper. The stop-
per must be replaced with a suitable leakage
indicator (e.g. a contact pressure gauge, an
outlet to an open vessel or an inspection
glass) when the valve is installed. The test
connection of valves without a backup pack-
ing is tted with a pipe elbow to allow the
safe drainage of any medium that escapes.
When combined with the Type3271 or
Type3277 Actuator, the actuator stem and
plug stem are connected using stem connec-
tor clamps (A26/27). When combined with
the Type3379 Actuator, the actuator stem
and plug stem are screwed together.
3.1 Fail-safe positions
The fail-safe position depends on the mount-
ed actuator. Depending on how the com-
pression springs are arranged in the pneu-
matic actuator, the valve has two different
fail-safe positions:
Actuator stem extends (FA)
When the signal pressure is reduced or the
air supply fails, the springs move the actua-
tor stem downward and close the valve. The
valve opens when the signal pressure is in-
creased enough to overcome the force exert-
ed by the springs.
Actuator stem retracts (FE)
When the signal pressure is reduced or the
air supply fails, the springs move the actua-
tor stem upwards and open the valve. The
valve closes when the signal pressure is in-
creased enough to overcome the force exert-
ed by the springs.
The direction of action of the Type3271 and
Type3277 Pneumatic Actuator can be re-
versed, if required. Refer to the mounting
and operating instructions of the pneumatic
actuator:
uEB8310‑X for Type3271 and Type3277
Tip

EB 8048-2/-3 EN 13
Design and principle of operation
1 Body
2 Plug
3 Plug stem
5 Threaded bushing or stem
seal
6 Threaded pin
7 Travel indicator scale
10 Stem connector nut
13 Lock nut
15 Spring
19 Washer
20 Flange
23 V-ring packing
24 USP-VI diaphragm
34 Hex screw
36 Screw plug (test
connection) or nipple
(pipe)
40 Pipe
A7 Actuator stem
A26 Stem connector clamps
Valve with packing
20
5
34
40
6
1
13
10
A
26
A7
3
2
7
5
23
19
6
24
2
36
15
Valve with Type 3271 Actuator Type3277 Actuator
Fig.3: Type3349 Valve for combination with a Type3271 or Type3277 Actuator

14 EB 8048-2/-3 EN
Design and principle of operation
23
34
24
1
15
3
2
20
36
41
A
40
36
A
1 Body
2 Plug
3 Plug stem
15 Spring
20 Valve bonnet
23 V-ring packing
24 USP-VI diaphragm
34 Hex screw
36 Screw plug (test connection) or
nipple (pipe)
40 Pipe
41 Bearing
Version with packing
Version without packing

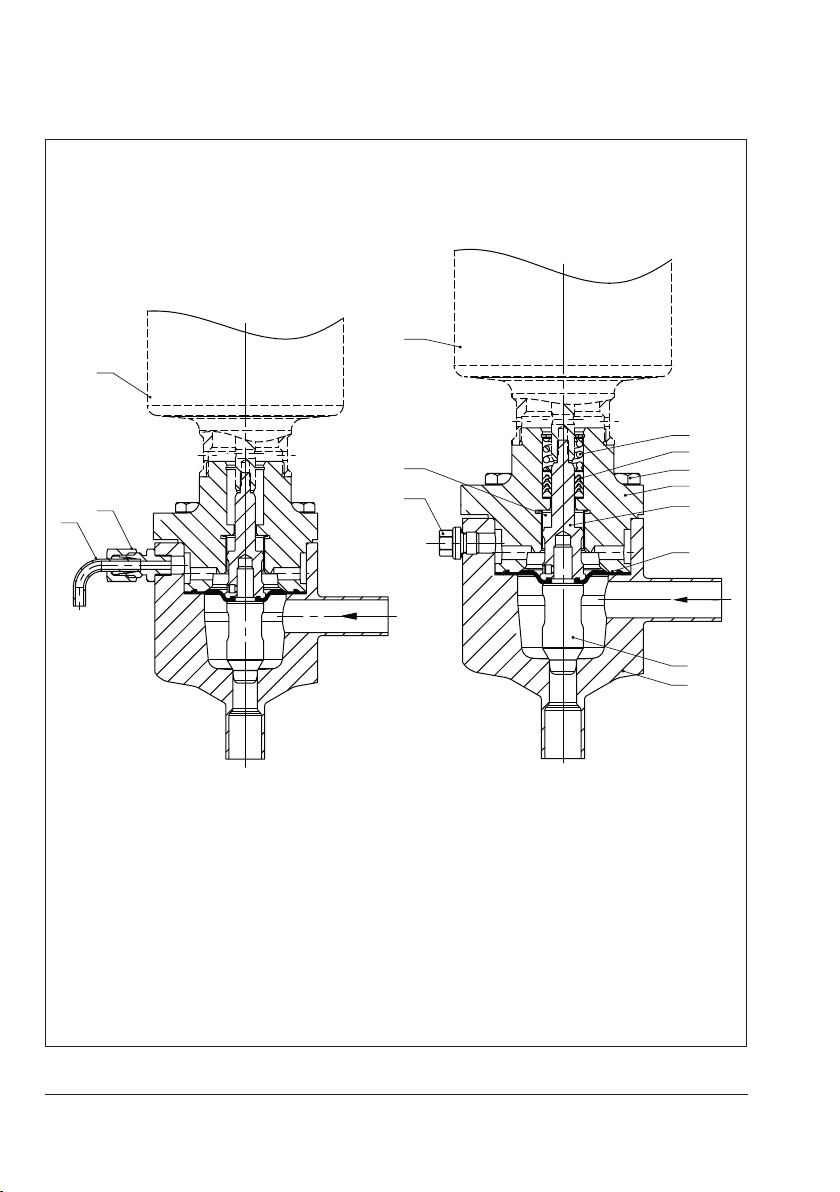

Fig.4: Type3349 Valve for combination with a Type3379 Actuator

EB 8048-2/-3 EN 15
Design and principle of operation
3.2 Versions
Micro-ow valve
The Type3349 Valve is also available as a
micro-ow valve.
With actuator Valve size
DN NPS
Type3271/
3277 8 to 25 ¼ to 1
Type3379 8 to 25 ¼ to 1
Actuators
In these instructions, the preferable combina-
tion with a Type3271, Type3277 or
Type3379 Pneumatic Actuator is described.
The pneumatic actuator can be replaced by
another pneumatic actuator in a different
size, but with the same travel.
ÎObserve the maximum permissible actu-
ator force.
If the travel range of the actuator is larger
than the travel range of the valve, the spring
assembly in the actuator must be preloaded
so that the travel ranges match. See associ-
ated actuator documentation.
Valve accessories
A Type3724 Positioner is frequently used
when the Type3349 Angle is combined with
a Type3379 Pneumatic Actuator.
Note
42
19
19
19
23
15
15 Spring
19 Washer
23 V-ring packing
42 Snap ring
Fig.5: Detailed view of backup packing

16 EB 8048-2/-3 EN
Design and principle of operation
3.3 Technical data
The inscription on the valve body and the
nameplate on the actuator provide informa-
tion on the control valve version. See sec-
tion2.1 and the actuator documentation.
More information is available in Data Sheets
uT8048‑2 and uT8048‑3.
Compliance
The Type3349 Valve bears both the CE and
EAC marks of conformity.
·
Temperature range
Depending on the version, the control valve
is designed for a temperature range from 0
to +160°C (32 to 320°F).
Leakage class
Depending on the version, the following
leakage class applies:
Seal (7 on
nameplate) ME PT, PK
Leakage class
(according to
IEC60534-4 or
ANSI/FCI70-2)
Min. IV VI
Noise emission
SAMSON is unable to make general
statements about noise emission as it
depends on the valve version, plant facilities,
and process medium.
Risk of hearing loss or deafness due to loud
noise.
Wear hearing protection when working near
the valve.
Note WARNING
!

EB 8048-2/-3 EN 17
Design and principle of operation
Dimensions and weights
Table1: Dimensions of Type3349 Angle Valve for mounting onto Type3271 and
Type3277 Actuators
DN 15 20 25 32 40 50 65 80 100
NPS ½ ¾ 1 1¼ 1½ 2 2½ 3 4
H1 mm 238 241 244 276 279 285 293 348 360
L11) mm 70 105 150
Gmm 86 113 144
Weight 2) kg 6 16 40
1) Length with welding ends (DIN version). Dimensions of other connections and versions uT8048-2
2) Weight with welding ends
Dimensional drawing
Type3349 for mounting onto
Type3271 and Type3277 Actuators
L1
H1
L1
G

18 EB 8048-2/-3 EN
Design and principle of operation
Table2: Dimensions of Type3349 Angle Valve for mounting onto Type3379 Actuator
DN 15 20 25 32 40 50
NPS ½ ¾ 1 1¼ 1½ 2
Rated travel mm 7.5 15
H1 mm 68 101
L11) mm 70 105
Gmm 84 112
Weight 2) kg 3.7 13
1) Length with welding ends (dimensions of other connections uT8048-3)
2) Weight with welding ends
Table3: Dimensions of Type3349 as micro‑ow valve for mounting onto Type3379 Actua-
tor
DN 8 10 15 20 25
NPS – ¼ ½ ¾ 1
Rated travel mm 7.5
L11) mm 50
DIN11866, Series A
H1 mm 61 61 65 65 70
Gmm 83
Weight 2) kg 1
DIN11866, SeriesB
H1 mm 61 65 65 70 70
Gmm 83
Weight 2) kg 1
DIN11866, Series C
H1 mm
–
61 61 65 70
Gmm 83
Weight 2) kg 1
1) Length with welding ends (dimensions of other connections uT8048-3)
2) Weight with welding ends

EB 8048-2/-3 EN 19
Design and principle of operation
Dimensional drawings
L1 H1
L1G
H1
G L1
L1
Type3349 for mounting onto Type3379
Actuator · Standard version
Type3349 for mounting onto Type3379
Actuator · Micro-ow valve version

20 EB 8048-2/-3 EN
Measures for preparation
4 Measures for preparation
After receiving the shipment, proceed as fol-
lows:
1. Check the scope of delivery. Compare
the shipment received against the deliv-
ery note.
2. Check the shipment for transportation
damage. Report any damage to
SAMSON and the forwarding agent
(refer to delivery note).
4.1 Unpacking
Do not remove the packaging until immedi-
ately before installing the valve into the pipe-
line.
Proceed as follows to lift and install the
valve:
1. Remove the packaging from the valve.
2. Dispose of the packaging in accordance
with the valid regulations.
Risk of valve damage due to foreign parti-
cles entering the valve.
The protective caps tted on the valve's inlet
and outlet prevent foreign particles from en-
tering the valve and damaging it.
Do not remove the protective caps until im-
mediately before installing the valve into the
pipeline.
4.2 Transporting and lifting
Hazard due to suspended loads falling.
Stay clear of suspended or moving loads.
Risk of lifting equipment tipping and risk of
damage to lifting accessories due to exceed-
ing the rated lifting capacity.
−Only use approved lifting equipment and
accessories whose minimum lifting
capacity is higher than the weight of the
valve (including actuator, if applicable).
−Refer to section3.3 and the corresponding
data sheets (uT8048‑2 and uT8048‑3)
for the weights.
Risk of personal injury due to control valve
tipping.
−Observe the valve's center of gravity.
−Secure the valve against tipping over or
turning.
Risk of valve damage due to incorrectly at-
tached slings.
−When lifting the control valve, make sure
that the slings attached to the valve body
bear the entire load.
−Do not attach slings to the pipe elbow.
−Do not attach load‑bearing slings to the
valve accessories.
Note
NOTICE
!
DANGER
!
WARNING
!
WARNING
!
NOTICE
!
