Samsung SHS-1321 User manual

1
Product Features
The door can be opened with a RF card.
The door can be opened with a transit RF card. Up to 20 cards be registered.
The door can also be opened with a password.
Once the user’s password is registered, the door can be opened without a key by entering the
registered password.
The door does not have to be locked manually.
Using the automatic lock function, the door is automatically locked when it closes, eliminating the
need to lock it manually.
The double-locking function adds security.
The double-locking function adds security by preventing the door from being opened from outside
at night or at times when extra security is needed.
Pranks played by children and juveniles can be prevented.
When an unregistered card or key tag is used, or when an invalid password is entered 5 or more
times consecutively, an alarm sound is generated and power to the lock is automatically cut off for
three minutes.
The built-in fire detection function helps occupants escape
in case of fire.
When the inside temperature rises to a certain level due to fire, an alarm is generated and the door
is opened automatically.

2
Contents
Product Features 1
Safety Cautions 3
Notes before Operation 6
Product Components 6
Outer Body Parts 7
Inner Body Parts 8
Replacing the Batteries 9
Using the Emergency Battery 10
Basic Functions 11
Initialization (Password, Card, Key Tag) 11
Password Change 12
Card and Key Tag Registration 14
Deleting the Card or Key Tag 16
Opening the Door from Outside with a Password 17
Opening the Door from Outside with a Card or Key Tag 18
Opening the Door from the Inside 19
Additional Functions 20
Multi-leveled Security Code Entry Mode Setting 20
Double Authorization Mode Setting 21
Automatic/Manual Locking Setting 22
Sound Setting and Releasing 23
Alarm Sound/Emergency Sound 24
Troubleshootings 28
Operation Summary 30
Product Specifications 32
Warranty 35

3
Safety Cautions
This section contains important information to ensure the user’s safety and prevent potential
damage to property. Please, read this section carefully and use the product accordingly.
Warning, Caution and Note Explained:
Warning
Information given under this heading is information the user must be aware of to
prevent physical harm.
Caution
Information given under this heading is information the user must be aware of to
prevent service problems or system damage.
Note
Information given under this heading provides additional information relating to
the text in this manual.
Descriptions of Symbols
General warning or caution
Prohibited activity
Recommended activity

4
Cautions during Installation
Cautions during Operation
The user shall not install or
repair the product without
authorization.
The manufacturer does not assume
responsibility for damage to the
product resulting from attempts to the
user to install or repair it without
authorization.
Do not use the excessive force or
sharp objects to push the lock
buttons, as this can damage
the product.
Make sure that no unauthorized
person has the access to the
password.
To minimize the risk of burglary, it is
recommended that you periodically
change the password.
Do not operate the product with
wet hands, and keep liquids such
as water or drinks away from the
product, or the product may
malfunction or be damaged.
Make sure that the door is
completely closed when going
outside. The manufacturer
does not assume the
responsibility for any harm
caused by engagement of
the lock on an improperly
closed door.
Do not install the product in the
place where the gap between
the door and the frame is 5mm
or more.
If the gap is too wide, the product may
not function properly.

5
Cautions during Repair or Maintenance
Replace all batteries immediately
after they run out of power, and
never mix new batteries with
used ones.
This can cause reduction of product life
or malfunction in the product.
Be sure to correctly match the
poles (+/-) when installing the
batteries. Install the batteries
with the correct poles (+/-).
Improperly installed batteries can
cause rupture or battery fluid leakage.
Do not use water, benzene or
alcohol when cleaning the
product, as these fluids can
cause product malfunction.
Use a soft and dry cloth instead.
Replace the batteries within 1 week
after the battery replacement alarm
sounds.
The product can stop operating
if the batteries are not replaced in time.

6
Notes before Operation
Product Components
The product components used may vary depending on the installation environment.
User Manual
'AA' Batteries (LR6)
Key Tag
Outer Body
Strike
ySupport Panel and Outer body Fastening Bolts
yStrike and Support Panel Fastening Bolts
yInner body Fastening Bolts
yOuter body Fastening (Rotating Prevention) Bolt
Inner Body
Support Panel

7
Outer Body Parts
No. Name Description
1Number Pad Enter numbers to register, change and delete a password. The door
can be opened by entering the registered password onto the
number pad.
2 LED Indicator It displays the operation status of the lock when it reads a card or it
operates.
3 Card Reader The Card Reader is used to recognize a card before opening the
door. Touch the number pad to operate the Card Reader.
4 Reset Switch Allows restart of the door lock when it does not respond to a
registered card or touches on the number pad.
5 External Power
Port
Power can be supplied from the emergency battery after the main
batteries have been completely discharged (9V battery).
Number Pad Unlighted
Number Pad
Number Pad Lighted
LED Indicator
Card Reader
Reset Switch
External Power Port

8

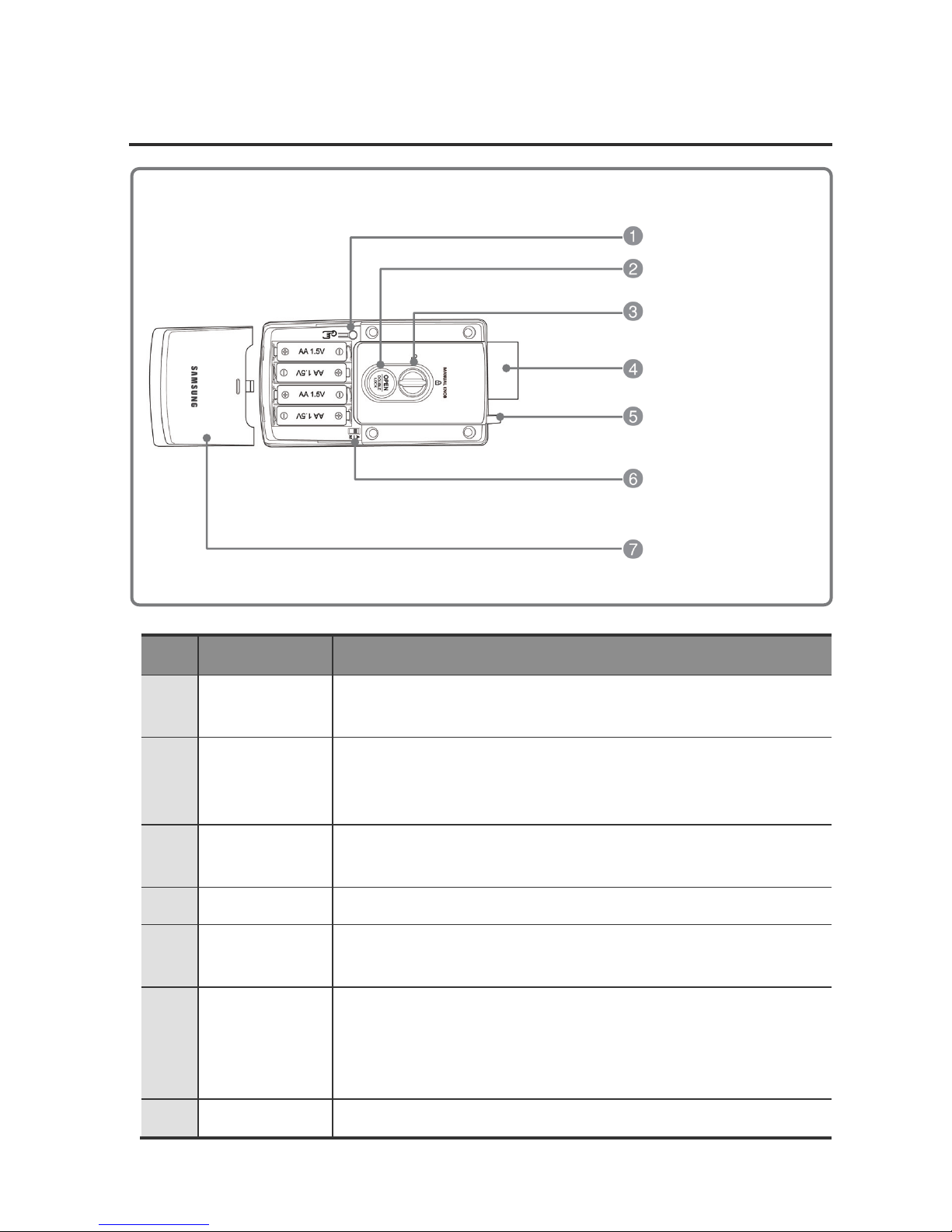

Inner Body Parts
No. Name Description
1 Registration
Button
This button is used to change the password and register a card or a
key tag.
2 OPEN/DOUBLE
LOCK Button
This button is used to unlock the door from the inside and to set the
double locking function. (It is also used to lock the door from indoor
in manual locking mode)
3 Manual Knob This is used to lock or unlock the door in case there is an emergency
or a circuit problem.
4 Deadbolt It fastens the door to the door frame.
5 Door Opening
Sensor
It monitors door opening and closing when the automatic locking
function is activated.
6 Automatic/
Manual
Locking Switch
This switch is used to switch between automatic locking and manual
locking. If it is set for automatic locking, the door is automatically
locked when closed. If it is set for manual locking, the door is not
automatically locked when closed.
7 Battery Cover The battery cover protects the batteries and the registration button.
Registration Button
OPEN/DOUBLE LOCK
Button
Manual Knob
Deadbolt
Door Opening Sensor
Automatic /Manual
Locking Switch
Battery Cover

9
Replacing the Batteries
1. Battery Replacement Alarm Generation
If the melody of “Blues for Elise” sounds when
opening the door with the password or a card (key
tag), it is time to replace the batteries.
2. Opening the Inner Body Cover

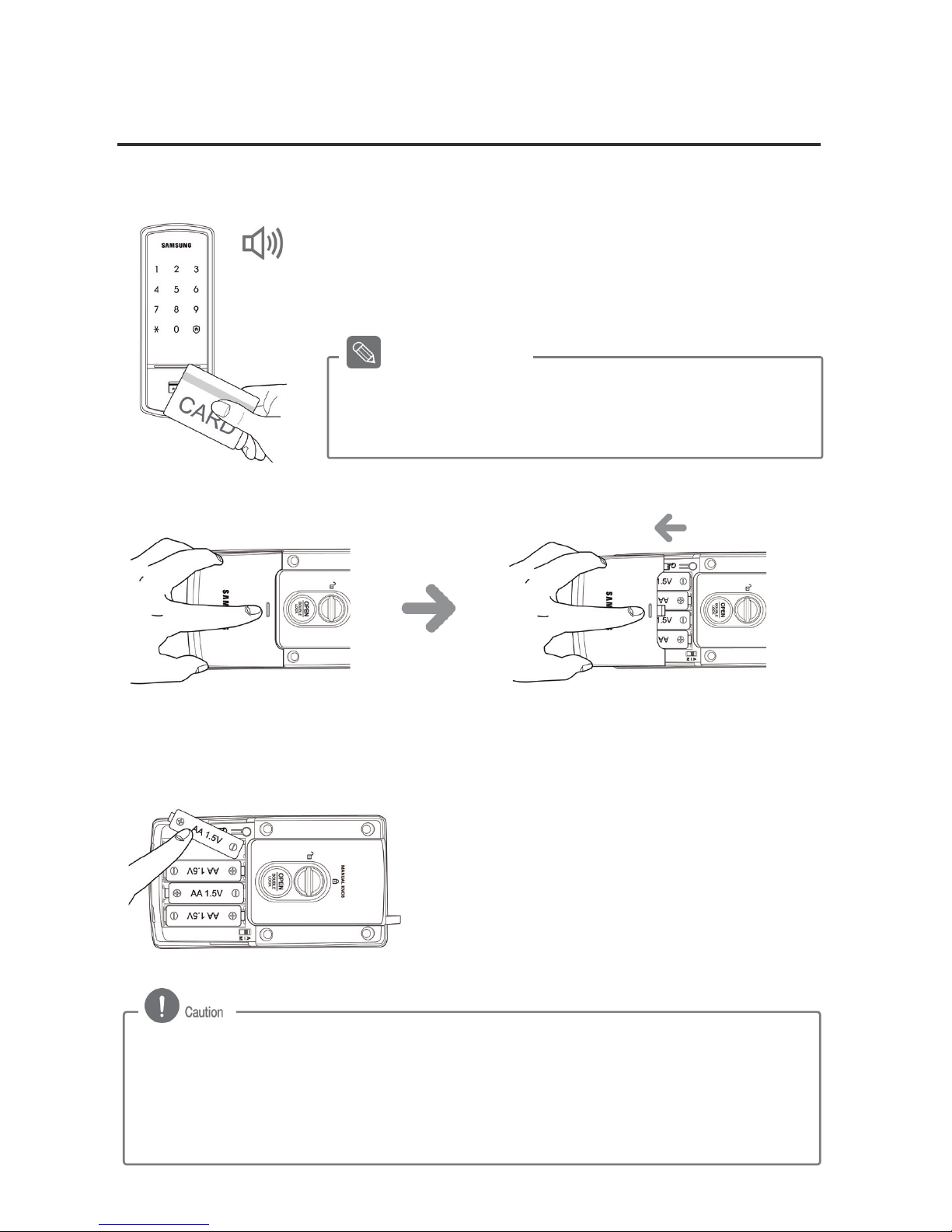

Press lightly on the battery cover of the inner body and pull it down in the direction of the arrow mark.
3. Replacing the Battery
Replace all 4 batteries within a 1 week of the first
alarm sound.
Although actual battery life differs depending on the manufacturer,
date of production and operation environment, 4 1.5V AA alkaline
batteries can last for ten months, based on an average of 10 uses
per day.
Battery Life
Blues for
Elise~
- If the poles of the batteries are not placed properly, the lock will not operate normally.
- Liquid leaks from batteries can damage the product. Check the batteries regularly
(every 6 months).
- After the battery replacement alarm has sounded, password/card information cannot be
registered, changed, deleted, initialized or configured until the batteries are replaced.
- The unit will stop operating suddenly if the batteries are not replaced.

10
Using the Emergency Battery
1. When the Lock Fails to Operate Due to Discharged AA Batteries
If the batteries are not replaced after their replacement time comes, they will be completely
discharged and the lock will not operate.
2. Using 9V Battery
Purchase an emergency battery (9V) at the nearest
store.
3. Opening the Door Using the Emergency Battery

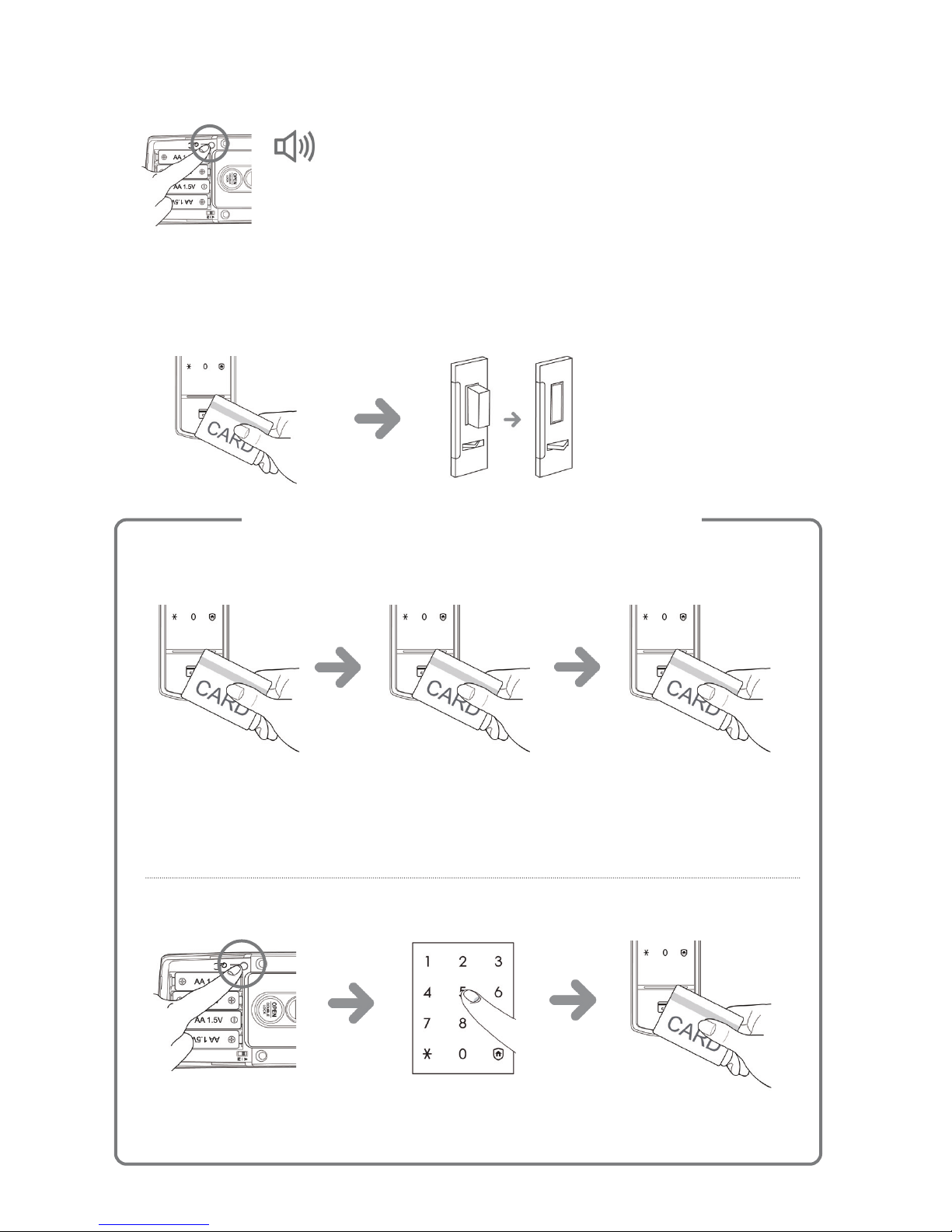

Place the card or key tag on the card reader, or enter the password, while the 9V battery is
connected to the external power port of the outer body.
Or
Password Entry The door is not opened.
Recognition of Card or Key Tag
Or
As the alkaline batteries offer longer life, they are
recommended over the manganese batteries or rechargeable
ones.

11
Basic Functions
This section describes the ways to initialize the information registered in the lock, to register the
password and card data, and to open or close the door.
Initialization (Password, Card, Key Tag)
All registered data (password, card, key tag) are deleted. After initialization, the password is set to
‘1234’, and the registered card, key tag data are erased.
1. Opening the Battery Cover (from the inside)
Lightly press the battery cover and pull it down, as
shown in the picture.

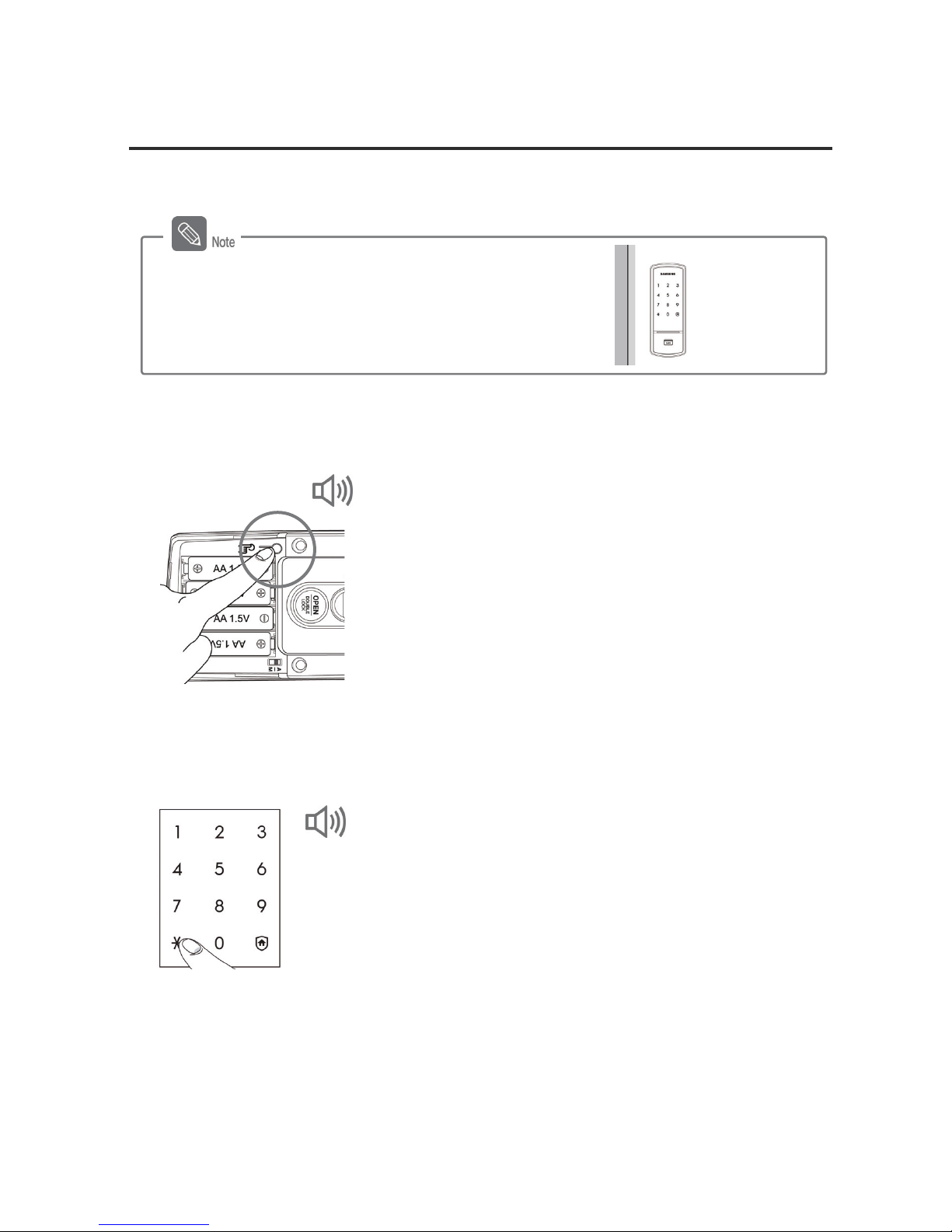

2. Pressing the [Register] Button (from the inside)
Press and hold the [Register] button for 10 seconds.
- Success: “DINGDONGÆDING DINGÆDING DING
DING DING” sounds are generated.
3. Entering the Password for Initialization (from the outside)
Press the registered password, or '4560852580', and
then press the [º] button.
- Success: “DING DONG DENG” sound is generated.
- Fail: “DING DONG DING DONG” sound is generated.
- After initializing the registered data, reregister the card and password.
- Initialization is available while the door is open.

12
Password Change
The password can be 4~12 digits number. Only one password can be registered. Please register a
new password after initialization.

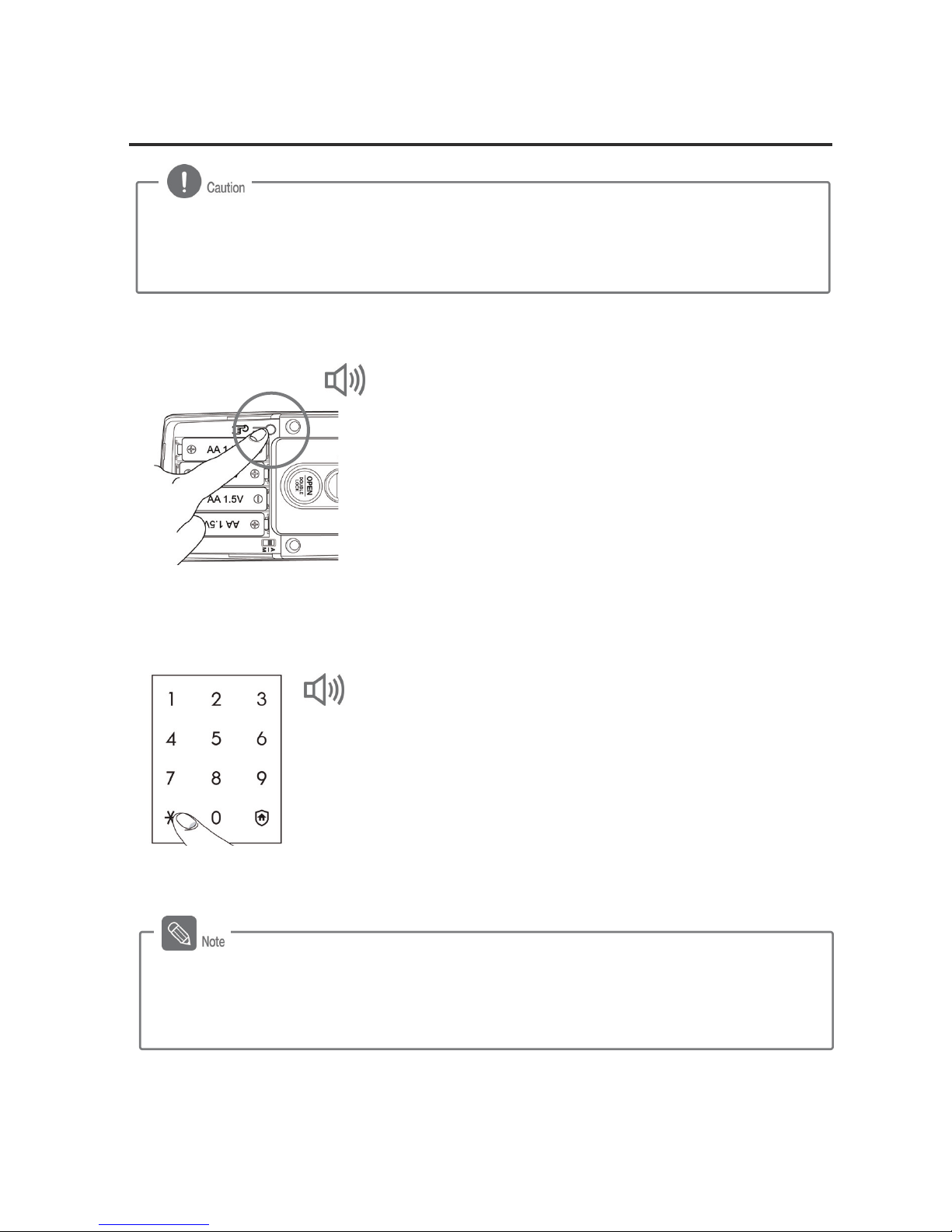

1. Pressing the [Register] button (from the inside)
Open the battery cover of the inner body and briefly
press the [Register] button.
2. Entering the Current Password (from the outside)
Enter the current password ('1234' after initialization)
when the number pad is lighted, and press the [¹]
button.
DING DONG
Always hold the door open while registering or
changing the password.
Open
DING DONG DENG, DING DONG

13

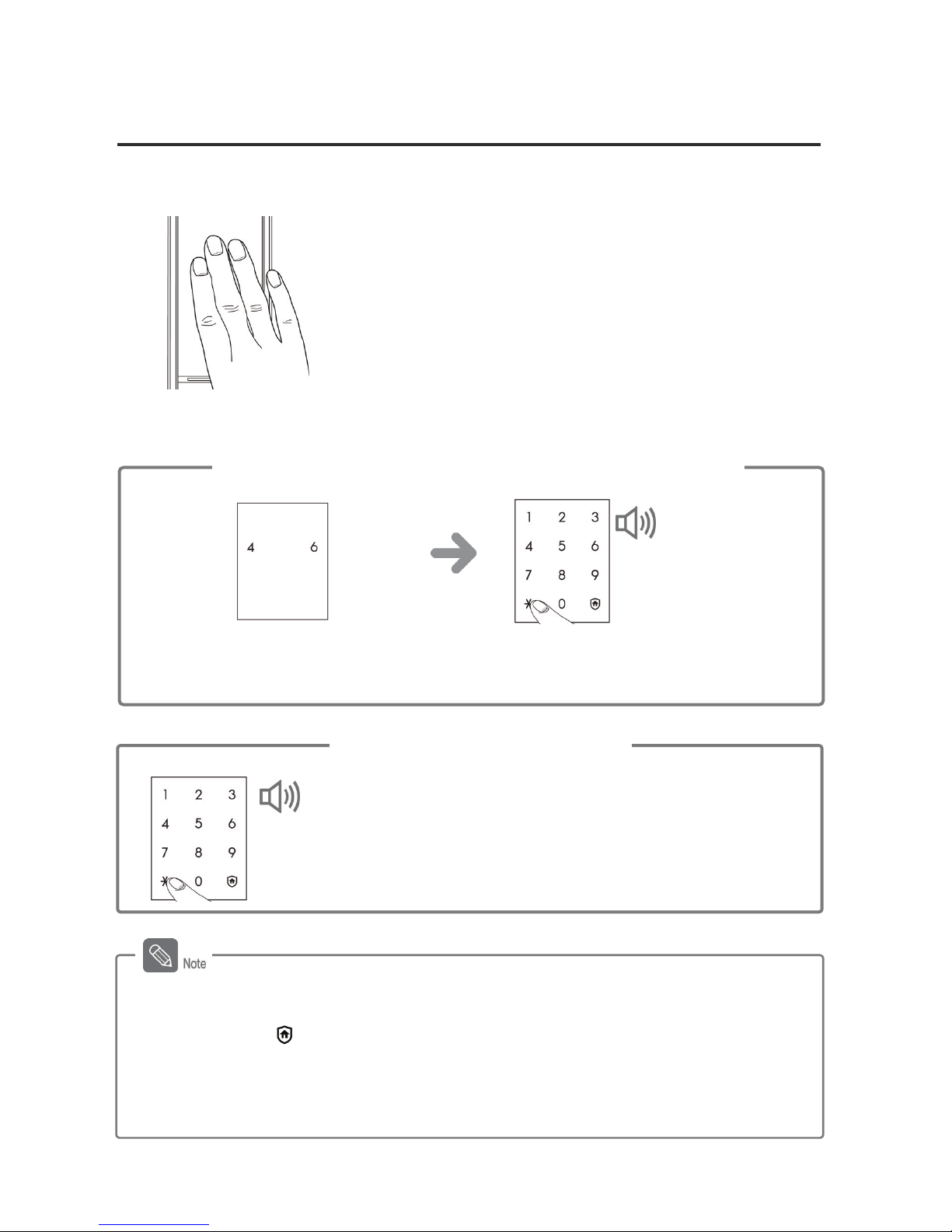

3. Entering a New Password (from the outside)
Enter the new password (4 to 12 digits) and press
the [¹] button.
- To prevent burglary, it is recommended to use a
password of 6 digits or longer. (Only numbers
between 0 and 9 can be used.)
4. Reentering a New Password (from the outside)
Enter the new password again to check if the new
password is accurately configured, and then press
the [¹] button.
5. Checking New Password Operation (from the outside)
To make sure the password has been properly
registered, check the new password and close the
door.
- Please refer to "Opening the Door from Outside
with a Password" on page 17.
DING DONG DENG DONG
DING DONG
DING DONG DENG
- To check the new password, press the door-opening sensor while the door is open.
When the dead bolt is pushed out, check the password, referring to the procedure
described in "Opening the Door from Outside with a Password."
- Manage your password with care so that unauthorized people will not have access to
it. Regularly changing your password can reduce the risk of it being leaked.
- A registered password cannot be deleted. Change the password to a new one or
initialize it to delete all registered data (password, card and key tag) and then
reregister them.

14
Card and Key Tag Registration
Up to 20 cards, including the key tag, can be registered. (Only ISO14443 A Type is available.)
1. Pressing the [Register] Button (from the inside)
Open the battery cover of the inner body and briefly
press the [Register] button.
2. Entering the Password (from the outside)
Enter the password when the number pad is lighted,
and press the [¹] button.
3. Placing the Card or Key Tag on the Card Reader (from the
outside)
Place the card or key tag to be registered on the
card reader of the outer body. You will know the card
or key tag has been registered when "DING DONG
DENG" sounds.
DING DONG DENG, DING DONG
DING DONG
DING DONG DENG
Registering a card or key tag is available while the door is open.

15
4. Terminating Card Registration
Press the [Register] button on the inner body to
terminate the registration.
5. Confirming Card or Key Tag Registration (from the outside)
Touch the [Number Pad], and then lightly press the registered card to the card reader.
- Please refer to "Opening the Door from Outside with a Card or Key Tag" on page 18.
€
Continued Registration
Registration at another Time
To register an additional card or key tag after the registration process is terminated, repeat
the registration process with the card or key tag.
To register multiple cards or key tags, lightly place another card or key tag to the card
reader within 10 seconds of registering the previous card or key tag. If another card or key
tag is not exposed to the card reader within 10 seconds of registering the previous card or
key tag, the registration process is automatically terminated.
Registering Additional Cards
DING DONG DENG

16
Deleting the Card or Key Tag
1. Pressing the [Register] Button (from the inside)
Open the battery cover of the inner body and press
and hold the [Register] button for 5 seconds.
2. Entering the Password (from the outside)
Enter the password when the number pad is lighted,
and press the [¹] button.
Successful: "DING DONG DENG" sound is generated.
Failed: "DING DONG DING DONG" sound is generated.
DING DONGÆDING DING
Registered cards cannot be individually deleted. All card information is deleted when
the card delete function is selected. Previously registered cards cannot be used to
open the locked door after they are deleted.
- Register a new card after deleting the card data.
- To open the locked door from outside after deleting card data, use the registered
password.
- Deleting the card or key tag is available while the door is open.

17
Opening the Door from Outside with a Password
1. Touching [Number Pad]
Touching [Number Pad] will light up the number
pad.
2. Entering the Password
- Password must be entered after the light is on, and if does not, touch [Number Pad] and
re-enter.
- To cancel, press [ ] button and re-enter.
- If the password is wrong 5 times, "peep" warning alarm will sound 20 times and the
system will shut-down for about 3 minutes. When malfunction happens, "beep" will sound
every 10 seconds, and stop mode will be turned off automatically after 3 minutes with
multiple 'beeps'.
Common Mode
Enter the password when the number pad is
lighted, and press the [º] button.
Success:
DING DONG DENG↑
DONG
Fail:
DING DONG DING
DONG
Multi-leveled Security Code Entry Mode
When the numbers on the number pad
are lighted, enter the password and press
the [º] button.
When two arbitrary buttons are lighted,
press the buttons in order.
Success:
DING DONG DENG↑
DONG
Fail:
DING DONG DING
DONG

18
Opening the Door from Outside with a Card or Key Tag
The door can be opened from outside using a card or key tag. Touch the [Number Pad] and place
the registered card or key tag on the card reader.
Applying the Card or Key Tag
- The recognition distance may differ depending on the card manufacturer.
- A “DING DONG DING DONG” alarm sound is generated when an unregistered card is
placed or the card is not recognized.
The door will be opened after
1 second.
Place the card or key
tag on the card reader.
Touch the [Number
Pad].
Success: DING DONG DENG↑
DONG
Fail: DING DONG DING DONG
