SANY SCC 2600A User manual

SCC2600A
SCC 2600A

1
SANY CRAWLER CRANE SCC2600A
1
SCC2600A
CONTENTS
SCC2600A Crawler Crane
Outline Dimensions
Main Technical Features
Main Performance Data
Transport Dimensions
Transporting scheme
Assembly and disassembly diagram
Specifi cations
Superstructure
Undercarriage
Operation Devices
Safety Devices
Operating Condition Combination
Operating Condition Combination
H Operating Condition
Fixed Jib Combination
Luffi ng Jib Combination
Shield Operating Condition Load Charts
P2
P16
P23

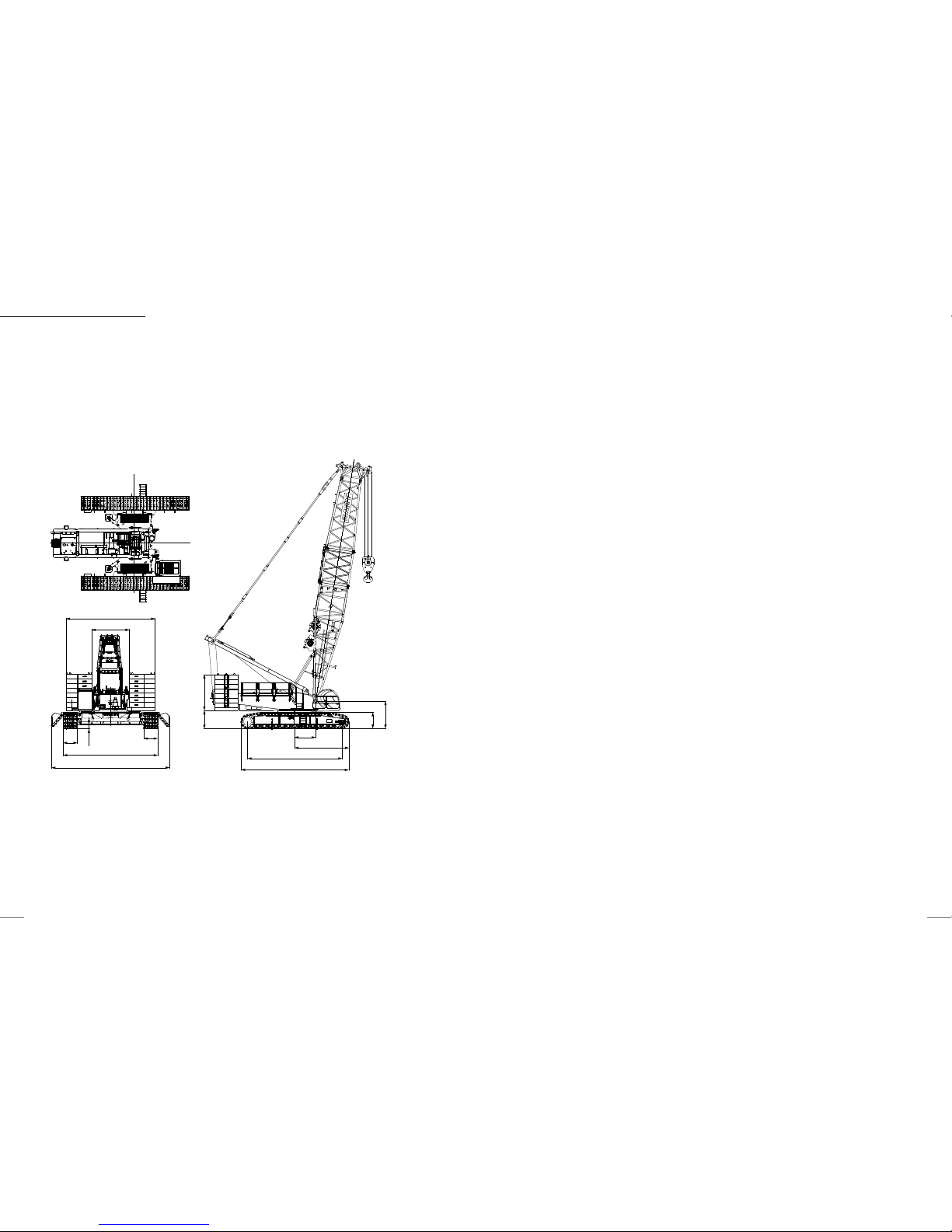

02 Outline Dimensions
03 Main Technical Features
04 Main Performance Data
05 Transport Dimensions
10 Transporting scheme
12 Assembly and disassembly diagram
CRAWLER CRANE

SANY CRAWLER CRANE SCC2600A
3
2
Main technical featuresOUTLINE dimensions
1. Safety Control System:
There are two convenient and reliable operation modes, working
and assembly. The electronic level indicator and bubble level
indicator are equipped to ensure dual protection for real-time
display. It has the leaving-machine stop action, emergency
electrical control, lightning protection, walking automatically
steering and closed circuit monitoring functions, with the
complete safety and monitoring system;
2. New Lift Operating Condition Design:
The operating condition of 20m boom + 12m heavy fixed jib is
adopted, to meet the lifting requirement of shield machine used
for subway construction and similar products. The turning-over
operation of shield machine can be automatically done, without
the auxiliary crane. The auxiliary hook is larger enough to lift the
heavy object up to 96T. The load moment limiter indicator can
dynamically reflect the loading capacities of main and auxiliary
hooks;
3. Beautiful and Comfortable Cab:
The cab is beautiful, comfortable and safe;
4. Superior Operating Performance:
The load sensor, limit load regulation and electronic-over-
hydraulic control can ensure the best all actions excellent action
and stability.;
5. Reliable Function Assurance:
The designed safety margin for structures and mechanisms are
sufficient; and the control system can operate stably in the cold,
high temperature, plateau, and large sand harsh environment;
6. Convenient Maintenance Technology:
It takes approximately no more than 10min/person to adjust;no
more than 30min/person for daily maintenance;no more than 2h/
person to repair.GPS remote monitoring system is optional for
maintenance and management.;
7. Powerful Lifting Capacity:
The maximum boom lifting moment is 183.8t ×8m = 1470.4t
• m and the longest boom length is 86m; the maximum lifting
capacity of luffing jib is 62.5t × 18m = 1125t • m and the longest
boom combination length is 62 m＋63m;
8. High Efficient Self-Handling Technology:
A button can be cocked to easily lift the mast, to ensure the
clutch traction winch reeving operation. It can support the
machine self-dismounting operation; and the quick-change rope
connectors and winch rope head are can be used;
9. Large Chassis Design:
The chassis with the track gauge of 6.7m is adopted, to ensure
the excellent operation stability within the range of 360°
rotation;
10. Globalization of Transportation Standards:
The transport weight of main machine is limited within 45 tons,
the transport width is less than 3m and the transport height is
less than 3.2m, thus saving the transport cost significantly;
11. Powerful Traveling Capacity with Load:
The powerful traveling traction and walking stability can make
the best advantage of crawler crane;
12. Reliable Transmission System:
The use of advanced hydraulic components and of load
feedback control technology with independent property rights
can ensure the stable and reliable operation of hydraulic system;
13. Large Fuel Tank Design:
The fuel tank capacity is 1050L, which is greatly increased
compared with the old models (400L), thus avoid the frequent
refueling;
14. Broad Adaptability:
In accordance with Europe and America non-road phase III
emission standards and has a wide application in boat building,
subway construction, metallurgy and infrastructure.
9145
8003
1200
1200
7980
7504
3164
10000
4622
1800
2350
1400
1550
369
3033

SANY CRAWLER CRANE SCC2600A
5
4
Main PerformanceData TransportDimensions
L
H
L
H
L
L
L
L
L
H
H
H
H
H
Basic Machine ×1
Length 13.32m
Width 3.0m
Height 3.20m
Weight 45t
Track Assembly ×2
Length 9.15 m
Width 1.20m
Height 1.40m
Weight 22t
Boom Head (including pulley block) ×1
Length 3.24m
Width 2.07m
Height 1.62m
Weight 3.5t
Boom Base (including winch) ×1
Length 10.35m
Width 2.60m
Height 2.99m
Weight 13.58t
3m Boom Insert ×1
Length 3.18m
Width 2.65m
Height 2.66m
Weight 1.3t
6m Boom Insert ×1
Length 6.18m
Width 2.65m
Height 2.66m
Weight 2.0t
12m Boom Insert ×5
Length 12 .18 m
Width 2.65m
Height 2.66m
Weight 3.6t
Main Performance Parameters of SCC2600A Crawler Crane
Performance index Unit Parameters
Boom operating
condition
Maximum lifting capacity t260
Maximum rated lifting moment t•m 1470.4
Boom length m20~86
Boom luffing angle °30~85
Fix jib operating jib
Longest boom + longest fixed jib m62+42
Fixed jib offset angle °10, 30
Heavy fixed jib
operating condition
Boom + fixed jib (shield operating
condition) m20+12
Angle between boom and jib °20
Luffing jib operating
condition
Maximum lifting moment t•m 62.5×18 =1125
Longest boom + longest lufffing jib m62+63
Jib luffing angle °65~88
Speed
Boom (jib) winch line speed (outmost
working layer) m/min 0 ~124
Main luffing winch line speed (outmost
working layer) m/min 0~108
Auxiliary luffing winch line speed
(outmost working layer) m/min 0 ~144
Swing speed rpm 0~1.25
Traveling speed km/h 0~1.2/0~0.53 (double speed)
Gradeability %30
Engine
Output power kW 242
Rated speed rpm 2100
Transportation data
Max. transport weight of single part
(including boom and jib lifting winches) t45
Transport dimension (L * W * H) mm 13320×3000×3200
Average ground pressure MPa 0.14

SANY CRAWLER CRANE SCC2600A
7
6
TransportDimensionsTransportDimensions
6m Transitional Boom Insert ×1
Length 6.20m
Width 2.65m
Height 2.66m
Weight 2.0t
Luffing Jib Tip ×1
Length 6.46m
Width 2 .12m
Height 2 .10 m
Weight 2.4t
3m Luffing Jib Insert ×1
Length 3.17m
Width 2 .12m
Height 1.91m
Weight 0.63t
6m Luffing Jib Insert ×1
Length 6.17m
Width 2 .12m
Height 1.91m
Weight 1.04t
6m Luffing Jib Insert ×1
Length 6.17m
Width 2 .12m
Height 1.91m
Weight 1.05t
12m Luffing Jib Insert ×3
Length 12 .17m
Width 2 .12m
Height 1.91m
Weight 1.95t
Boom Extension ×1
Length 2.2m
Width 0.95m
Height 1.44m
Weight 0.42t
Jib Base, Luffing Front and Rear Masts ×1
Length 11. 49m
Width 2 .11m
Height 3.26m
Weight 5.5 t
6m Fixed Jib Insert ×1
Length 6.11m
Width 1.50m
Height 1.42m
Weight 0.75t
11.5m Fixed Jib Insert ×2
Length 11. 6 7m
Width 1.50m
Height 1.42m
Weight 1.3 t
Fixed Jib Base and Mast ×1
Length 6.70m
Width 1.42m
Height 2.00m
Weight 1.75t
Fixed Jib Tip ×1
Length 7.10 m
Width 1.42m
Height 1.43m
Weight 1.75t
Carbody Counterweight ×2
Length 5.48m
Width 1.72m
Height 0.60m
Weight 15t
Counterweight Tray ×2
Length 7.5 0m
Width 1.96m
Height 0.70m
Weight 16t
L
L
L
L
L
L
L
W
H
H
H
H
H
H
L
H
W
H
H
H
H
W
L
L
L
L
L
L

SANY CRAWLER CRANE SCC2600A
9
8
TransportDimensionsTransportDimensions
16t Hook ×1
Length 0.53m
Width 0.57m
Height 1.10m
Weight 0.9 t
6t Counterweight Block ×14
Length 2.17m
Width 1.96m
Height 0.51m
Weight 6t
Dolly ×1
Length 2.56m
Width 1.74m
Height 1.00m
Weight 1t
260t Hook ×1
Length 1.04m
Width 1.02m
Height 2.93m
Weight 5.2t
160t Hook ×1
Length 0.59m
Width 1.02m
Height 2.64m
Weight 3.2t
100t Hook ×1
Length 0.51m
Width 1.02m
Height 2.48m
Weight 2.3t
50t Hook ×1
Length 0.45m
Width 1.02m
Height 2.30m
Weight 1.7t
H
H
H
H
H
W
L
L
L
L
L
LW
W
W
W
H
LW
Notes: 1. The transport dimensions of the par ts are marked on schematic
diagrams, but not drawn by scale; the dimensions indicated are
the design values excluding package.
2. The weight is the design value and there may be dif ference due
to the manufacturing error.

SANY CRAWLER CRANE SCC2600A
11
10
Transporting schemeTransporting scheme Transporting scheme
Platform lorry 498 -16165 Rated load：49.8t
Transport part Basic crane
Transport weight 45t
Quantity 1
Platform lorry 395 -16165 Rated load：39.5t
Transport part Left track frame assembly
Transport weight 22t
Quantity 1
Platform lorry 395 -16165 Rated load：39.5t
Transport part Right track frame assembly
Transport weight 22t
Quantity 1
Platform lorry 20 -14630 Rated load：20t
Transport part Counterweight tray × 1, 6m luf fing jib intermediate
section Ⅰ and 6m luffing jib intermediate section
Transport weight 17.7t
Quantity 1
Platform lorry 20 -14630 Rated load：20t
Transport part Central ballast frame × 1, 6m boom intermediate section
× 1 and 3m luffing jib intermediate section ×1
Transport weight 18t
Quantity 1
Platform lorry 20-146 30 Rated load：20t
Transport part Transpor t part: Counterweight block ×2 and 12m boom
intermediate section ×1
Transport weight 15.7t
Quantity 5
Platform lorry 20 -14630 Rated load：20t
Transport part Counterweight block × 2, 12m luffing jib intermediate
section ×1 and 50T hook ×1
Transport weight 15.2t
Quantity 1
2400
4117
2460
2460
4346
4844
4619
3916 859
2400
9146
9146
6000
6000
13115
13115
3227
3227
18018
18018
14630
14630
14630
14630
2840
6480
8500
13320
13115 3450
18341
1000
2400
1060
1060
1500
1500
1500
1500
1000
500
1000
1000
1000
1000 1840 3800 3860
1023
Platform lorry 20 -14630 Rated load：20t
Transport part Basic crane
Transport weight 13.5t
Quantity 1
Platform lorry 20 -14630 Rated load：20t
Transport part Central ballast frame × 1, 12m luf fing jib intermediate
section × 1 and 16T ball hook ×1
Transport weight 18t
Quantity 1
Platform lorry 20 -14630 Rated load：20t
Transport part Fixed jib 11.5m and intermediate section ×1
Transport weight 1.3t
Quantity 2
Platform lorry 20 -14630 Rated load：20t
Transport part Fixed jib base and mast × 1, fixed jib top ×1
Transport weight 2.6t
Quantity 1
Platform lorry 20 -14630 Rated load：20t
Transport part 160T hook ×1 and boom tapered inser t ×1, Boom head
(with pulley block) × 1 and luffing jib top ×1
Transport weight 13t
Quantity 1
Platform lorry 20-1614 0 Rated load：20t
Transport part Luf fing jib base and front and rear mast assembly ×1, 100T hook
× 1, 260t hook × 1 and fixed jib 6m in ter med iat e sec t io n ×1
Transport weight 13.5t
Quantity 1
Platform lorry 20 -16140 Rated load：20t
Transport part Boom base ×1, boom 3m intermediate section ×1,
boom extension ×1 and dolly ×1
Transport weight 16.7t
Quantity 1
2400
3916
3916
3454
3768
4062
4214
3932
1500
1500
1500
1500
990
990
990
2400
1000
1000
1000
500
500
500
2950
7440
600
16140
16140
16140
3390 1000
1840 6590
9500
14630
14630
14630
14630
7717

SANY CRAWLER CRANE SCC2600A
13
12

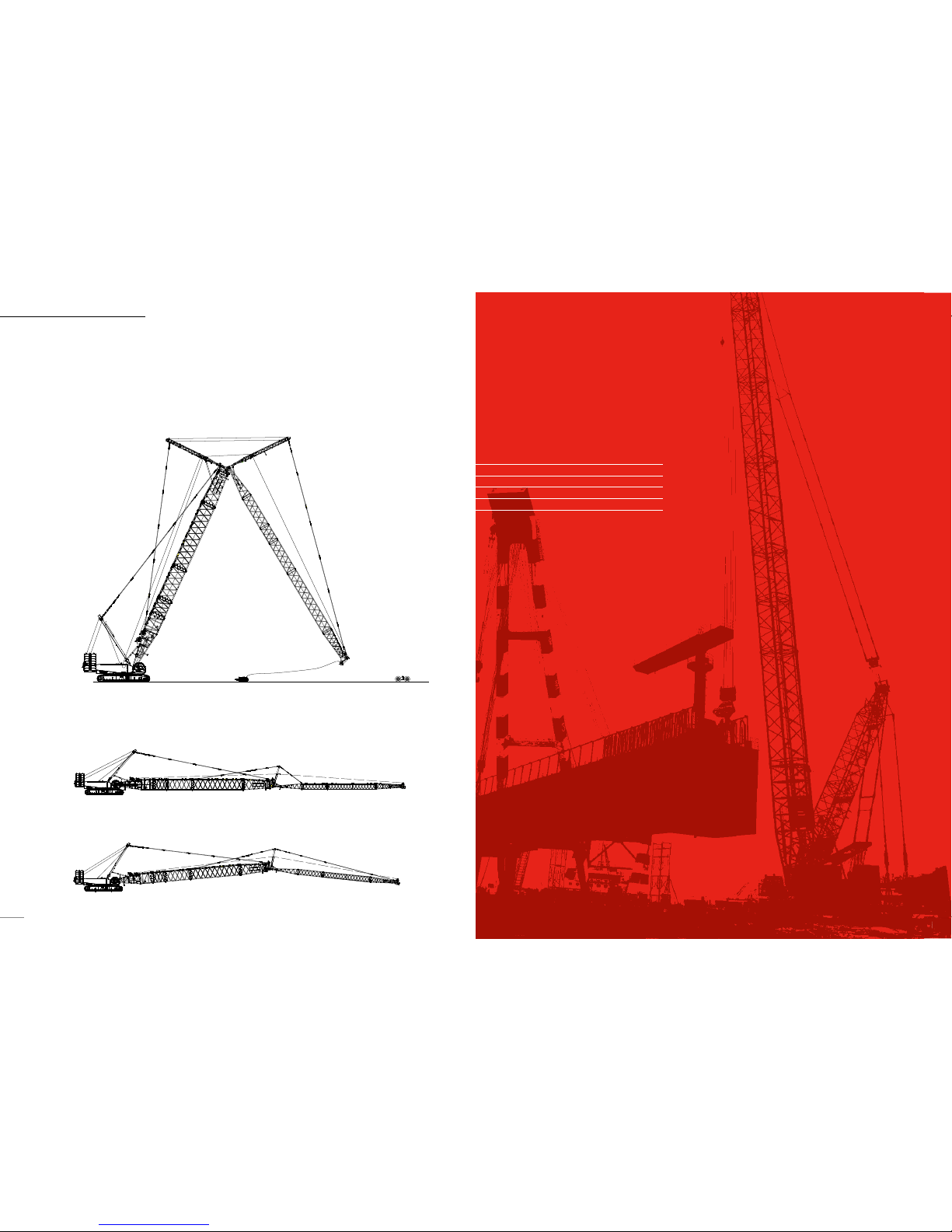

Assembly and disassembly diagram Assembly and disassembly diagram
1) Basic crane self-assembly
2) Track frame self-assembly
3) Counterweight self-assembly
4) Boom/jib base self-assembly
1) Basic boom installation
Main/Auxiliary winch wire rope
2) Jib frame installation under luffing jib operating condition
Boom frame installation diagram

SANY CRAWLER CRANE SCC2600A
15
14
15
SCC2600A
Superstructure 16
Undercarriage 18
Operation Devices 19
Safety Devices 20
3) Jib frame installation under fi xed jib operating condition
Assembly and disassembly diagram

SANY CRAWLER CRANE SCC2600A
17
16
NO.1 Main lifting device
Outermost working layer rope speed 0 ~11 0 m / mi n
Diameter of wire rope 28 mm
Length of wire rope of boom winch 480m
Rated single line pull 17t
NO.2 Auxiliary lifting device
Outermost working layer rope speed 0 ~11 0 m / mi n
Diameter of wire rope 28 mm
Length of wire rope of boom winch 390m
Rated single line pull 17t
1）Engine
■
Diesel engine with rated power of 242kw (324hp)/2100rpm
and rated torque output 1424N·m/1500rpm.
■
Emission standard: Tier III .
2）Electrical Control System
■
Advanced central control unit, load moment indicator,
display, sensor and closed-circuit monitoring system are
adopted.
■
Reliability: Advanced main electrical devices are
adopted to ensure the stable operation in the cold,
high temperature, plateau and large sand storm harsh
environment.
■
Security: Electrical design fully complies with the CE
standard; the multi-level safety limit control is adopted
and all safety signal indicators are complete.
■
Comfortableness: The electrical parameters of all points
can be seen through the combination instruments in the
cab, to monitor all operating parameter and working state
in real time.
■
Advancement: The vehicle electrical system adopts
the CAN bus system; the load power limit load
control is adopted, with the calibration of redundant
communications and with the optional GPS.
3）Hydraulic System
■
The hydraulic system includes: Main valve hydraulic
system, main lifting hydraulic structure, boom luffing
hydraulic structure, jib luffing hydraulic structure, and
auxiliary hydraulic structure. .
■
Features: The main system is of open circuit, widely
adopting the electronic proportional control components.
The system adopts the load sensitive LUDV system,
which can achieve the flow distribution irrelevant with
load. The hydraulic proportional pilot control is adopted,
which is characterized by the sensitive operation and
good micro-mobility.
■
The system pressure is 32MPa.
4）Main and Auxiliary Hoisting Devices
■
The boom and jib winch mechanisms can be driven
separately, which is characterized by the compact
structure, easy installation, and low wear. The
maintenance-free built-in wet brake can ensure the
safety of winch.
■
The displacement of variable hydraulic motor of lifting
mechanism can be automatically adjusted according
to the load, to achieve the maximum winch speed.
■
The high-quality anti-rotation wire rope is adopted, to
ensure the high lifting safety and long life.
■
The pouch socket with swaged sleeve is adopted to
ensure the convenient and quick dismounting of wire
rope.
SUPERSTRUCTURE
NO.3 Boom luffing device
Outermost working layer rope speed 0 ~121m/min
Diameter of wire rope 28mm
Length of boom luffing wire rope 310m
Rated single line pull 17t
5）Boom Luffing Device
The boom luffing drum is equipped with the ratchet pawl
locking device, to ensure the parking safety of boom
under non-working state.
NO.4 Jib luffing device
Outermost working layer rope speed 0~72m/min
Diameter of wire rope 20mm
Length of jib luffing wire rope 410 m
Rated single line pull 8t
6）Jib luffing Device
The jib luffing drum is equipped with the ratchet pawl
locking device, to ensure the parking safety of jib under
non-working state.
7）Swing Mechanism
■
It adopts the three-row roller slewing ring and is driven
by the large-displacement single motor reducer, with
the slewing speed of 0-1.1r/min; it has the median
free slipping function, with 360°rotation provided.
When the handle is at middle position and there is no
slewing speed, the brake is at the closed position and
the slewing is at the locking state through the locking
device. If the traveling or transportation is done with
load, the upper rotary impact should be prevented.
8）Counterweight
■
Carbody counterweight: 2; total weight: 30t (15t ×2)
■
Rear counterweight: 6t counterweight block, with a
total of 14; a counterweight tray of 16t, with a total of
100t.
9）Cab
■
The full-enclosed and wide-vision cab having a
smooth shape and the Sany unique style is adopted,
with the tempered glass equipped at front and sides.
The GE structural sheet material is adopted at the
top, which is characterized by a good transparency,
high strength and high wear resistance; the indoor
noise is low (less than 85dB). Air-conditioning, control
devices, instrumentation, fire alarms and closed circuit
monitoring system are installed indoors, in accordance
with the ergonomic design.
■
The cab can pitching 25 degrees upwards, expanding
the vision of driver’s operation, improving the
operational safety, with the transport width reduced
due to its rotatable characteristics.
10）Control Operation
■
The track traveling operation can be controlled
through the handle or the traveling pedal, having the
control automatically forward direction function. With
the function of automatic change of the direction of
steering, no matter the superstructure rotates to no
matter the superstructure rotates to any direction,
the forward direction refers to the operator’s forward
direction.
■
The boom winch, jib winch, luffing and rotary actions
can be controlled by switching the handle function;.
■
There are all operation buttons and control switches
as well as the air conditioning control panel on the left
and right armrest box, to achieve the different control
function.
11）Alarm Display
All alarm information, including the wind speed, water
temperature, oil temperature, oil level, oil pressure,
working hours time and engine rotation errors, can be
shown on the display in the cab, while giving the audible
and visual alarm.

SANY CRAWLER CRANE SCC2600A
19
18
1）Traveling Drive
Each track part has an independent travel drive device,
The traveling motor drives the machine to achieve
independent traveling and turning through drive wheel
and planetary gear reducer if travelling motor.
2）Traveling Brake
The travelling brake is a normally closed, built-in brake
with automatic compensation function. When the control
pedal valve is pressed down, the brake will be released to
achieve travelling operation.
3）Track Shoe
The track shoe is made of high-strength and high wear-
resistance material, with its tension regulated by the
hydraulic jacks after installation. The ideal tension can be
achieved through adjusting the position of gaskets.
UNDERCARRIAGE
1）Boom
■
The main chord pipe is made of high-strength material.
And the boom frame is of lattice the space truss
structure with the constant cross section at middle of
boom and with the variable cross-section at two ends.
■
Factory standard sections include: Boom base 10m,
transition insert 6m, boom head 1m, intermediate
section 3m×1, intermediate section 6m×1 an d
intermediate section 12m×5.
■
The boom length can be variable between the basic
boom (20m) and longest length (86m), which is
increased by 3m.
■
The 2.0m boom extension can be installed not only on
the boom head but also on the luffing jib head.
2）Fixed Jib
■
The main chord pipe is made of high-strength material.
And the boom frame is of lattice the space truss
structure with the constant cross section at middle of
boom and with the variable cross-section at two ends.
■
Jib top 6.5m, jib base 6.5m, intermediate section 6m ×1
and 11.5 m × 2; the usable fixed jib length includes 13m,
19m, 24.5m, 30.5m, 36m and 42m and the fixed jib can be
mounted on the boom of the length of 29~62m.
3）Luffing Jib
■
The main chord pipe is made of high-strength material.
And the boom frame is of lattice the space truss
structure with the constant cross section at middle of
boom and with the variable cross-section at two ends.
■
Jib top 6m, jib base 6m, intermediate section 3m × 1, 6m×2
and 12m × 3; the usable fixed jib length includes 21m,
24m, 27m, 30m, 33m, 36m, 39m, 42m, 45m, 48m,
51m, 54m, 57m, 60m and 63m the luffing jib can be
mounted on the boom of the length of 26~62m.
4）Hook Block
■
16t hook
■
50t hook
■
100t hook
■
160t hook
■
260t hook
OperationDevices

SANY CRAWLER CRANE SCC2600A
21
20
1）Load moment Indicator
■
The SCC2600A-type load moment indicator is a
overload protection system specially designed for
the Sany SCC series boom crawler crane, with the
performance structure parameters of all Sany series
crawler cranes stored directly in it, such as load curve,
boom weight, center of gravity and other geometric
parameters. The moment calculation adopts the
targeted optimized model with tailor-made advantage,
integrating Sany’s technology accumulated over
years in the area of crawler crane. It ensures lifting
safety, maximizes the utilization efficiency by
avoiding technology disjunction and after-sale service
difficulties caused by different manufacturers of the
crane and LMI, so as to enhance quality of the whole
machine.
■
As an independent safety control system completely
controlled by a computer, the load moment limiter can
automatically detect the load weight, working radius
and lifting boom angle, and compare them with the
rated load capacity and actual load, rated working
radius and rated boom angle. Under normal operating
condition, it can intelligently judge and automatically
cut off the crane moving towards danger direction, It is
also equipped with black box to record the overloading
information.
■
Its main components include display, controller, angle
sensor and force sensor.
2）Three-color Load Alarm Light
Its corresponding moment limiter display can show the
load progress bar state, reflecting the safety status of
lifting load.
3）Main and Auxiliary Hoisting Limiter
When the lifting hook is raised to the height limit, it can
send produce the alarm message and while cut off the
lifting action of hook.
4）Lowering Limiter of Main and Auxiliary
Winch
When the wire rope releases to the last three loops, it
can send produce the alarm message, so the electrical
control system can automatically cut off the lowering
action.
5）Switch between Assembly/Operation
Mode
In assembly mode, over hoisting limiter, boom angle
limiter and load moment indicator will be bypassed for the
assembly of the crane. In operation mode, all safety limit
devices will function.
6）Lifting Boom Limit Detection Device
Under different operating conditions, through the
detection of the limit switch and the boom angle signal of
force limiter system, the crane boom or jib can operate
within the safety angle.
7）Lifting Boom Back-stop Device
■
The boom adopts the cylinder back-stop structure,
with the larger compression and amount, the greater
back-stop force. The maximum output force of back-
stop cylinder is 38t.
■
There is a pair of mechanical back-stop device on the
rear mast of luffing jib, to prevent the mast overturn roll
backward and to tension the rear mast pendant bar.
■
If the angle between jib and boom is too small, the
cylinder back-stop device can prevent it overturn roll
backward, with the maxim output force of back-stop
cylinder of 50t.
Safety Devices
8）Winch Brake
All winch brakes adopt the spring-loaded normally closed
disc brakes, which are characterized by the larger braking
force, free maintenance, safe and reliable operation and
long service life.
9）Monitoring System
With the high-definition camera adopted, the operator in
the cab can monitor the real-time states of luffing drum,
lifting winch drum and vehicle rear through the monitor.
10）Self-diagnosis System
It can automatically give the fault alarm message, and
check the work powered state of electrical circuit, to
quickly eliminate the electrical fault.
11）Phraos
It is mounted on the top of boom, to give the boom
altitude lighting, so the boom lowering at night is not
needed.
12）Anemometer
It is installed at the top of boom, to measure the wind
speed in real time, and to transfer the data to the monitor
display in the cab.
13）Level Gauge
The bubble level gauge is adopted as the validation basis
and the electrical level indicator is adopted to give the
high-precision display in real time, showing the crane
tilting angle and informing the crane safety working
ground environment.
14）Hook Latch Device
There are baffle on the hook to prevent the wire rope fall
off.
15）Operating Alarm
Before any operation, press the horn to give an alarm,
informing the crane will start work operation done now
and other staff to pay attention to danger.
16）Traveling or Swing Alarm Message
In traveling or slewing operation, the working alarm lamps
flashes, accompanied by a buzzer sound.
17）Function Lock
If the operator leaves the seat or the function locking
handle is not at the proper position, all other functional
control handles will not be working so as to are invalid,
thus effectively avoiding misuse.
18）Automatic Reverse Traveling
No matter what the relative position of superstructure
and chassis is pulled forwarded, the vehicle will travel
forward; if pulled backwards, the vehicle will travel
backward.
19）Monitor Display
The high-precision true color display with that is the
vehicle electrical man-machine dialogue display terminal
can show the working state and real-time parameters of
engine system, hydraulic system and electrical system.

SANY CRAWLER CRANE SCC2600A
23
22
SANY CRAWLER CRANE
SCC2600A
22
SCC2600A
23 Operating Condition Combination
24 H Operating Condition
28 Fixed Jib Combination
38 Luffi ng Jib Combination
56 Shield Operating Condition Load Charts
Operating conditioncombination
21m-63m
26m-62m29m-62m
13m-42m
20m-86m
H operating
condition (H)
Fixed jib operating
condition (FJ)
Luffing jib operating
condition (LJ)
Shield operating
condition (FJh)
20m
12m

SANY CRAWLER CRANE SCC2600A
25
24
Hoperating condition
Boom length Insert
m3 m 6 m 12m
20 1 - -
23 1 -
26 1 1 -
29 - - -1
32 1-1
35 - 1 1
38 111
41 - - 2
44 1-2
47 - 1 2
50 112
53 - - 3
56 1-3
59 - 1 3
62 113
65 - - 4
68 1-4
71 - 1 4
74 114
77 - - 5
80 1-5
83 - 1 5
86 115
Boom head（1m）
Transitional insert（6m）
12m boom insert（5 pieces）
6m boom insert（1 pieces）
3m boom insert（1 pieces）
Boom base（10m）
64
60
68
72
76
92
96
84
88
80
56
48
52
44
40
36
28
32
20
24
12
16
8
5
0
85°
30°
68
62
65
71
74
77
80
86
89
92
83
59
53
56
47
50
44
38
41
29
32
35
23
26
20
0 8 12 16 20 24 28 32 36 40 44 48 52 56 60 64 68
Working radius (m)
Lifting height(m)

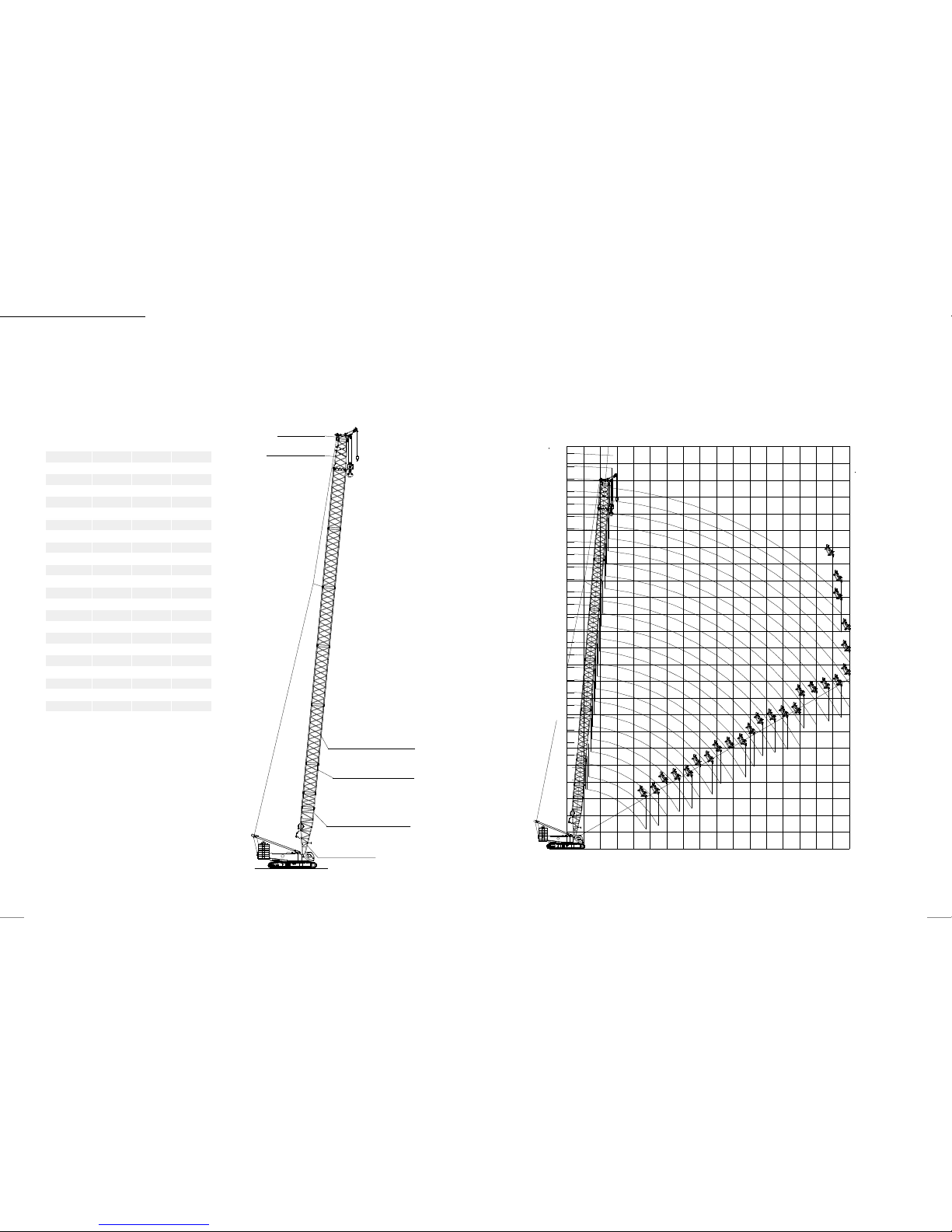

H operating condition working radius diagram
Hoperating condition

SANY CRAWLER CRANE SCC2600A
27
26
H OPERATIng CONDITION LOAD CHARTS H OPERATIng CONDITION LOAD CHARTS
Unit：(t)
SCC2600A Crawler Crane – H Operating Condition Load Charts
Boom length 20- 86m Rear counterweight 100t Carbody counterweight 30t
Boom length (m)
Radius(m) 56 59 62 65 68 71 74 77 80 83 86 Boom length (m) Radius(m)
88
9114.0 114.0 98.9 98.9 9
10 92.0 90.0 90.0 90.0 89.0 83.3 83.3 83.3 10
12 91.0 8 7. 2 85.6 76.3 72.8 67.0 63.7 60.4 60.0 59.0 59.0 12
14 79 .1 7 7.7 74. 9 73.1 71.8 6 5.1 60.3 54.9 51.8 51. 2 50.0 14
16 68.1 6 7. 0 65.6 64.4 63.0 62.0 54.8 5 2 .1 48.2 47.5 46.0 16
18 59.4 58.5 5 7. 3 56.2 5 5 .1 54.2 53.0 47. 4 45.5 44.9 39.0 18
20 52.4 51.6 50.5 49.6 48.6 47.8 46.8 45.9 42.9 39.4 35.9 20
22 46.6 45.9 44.9 4 4 .1 43.2 42.5 41.5 40.8 39.8 36.6 3 2 .1 22
24 41.8 41.1 40.2 39.5 38.6 38.0 3 7.1 36.4 35.6 35.0 31.1 24
26 37. 6 3 7.1 36.2 35.6 34.7 34.2 33.4 32.7 31.9 31.4 28.7 26
28 33.7 33.6 32.8 32 .1 31.4 30.9 3 0.1 29.5 28.7 28.2 27.4 28
30 30.2 3 0 .1 29.8 29.2 28.4 28.0 2 7. 2 26.6 25.9 25.4 24.7 30
32 27.2 2 7.1 26.8 26.5 25.8 25.4 24.7 24.1 23.4 23.0 22.3 32
34 24.6 24.5 24.2 24.0 23.5 23.1 22.4 21.9 21.2 20.8 20 .1 34
36 22.3 22.2 21.9 21.7 21.3 2 1.1 20.4 19.9 19.2 18.8 18 .2 36
38 20.3 20.2 19. 8 19.6 19.3 1 9.1 18.6 18.1 17. 4 1 7.1 16.4 38
40 19.0 18.4 18.2 17.8 17.4 17.3 16.9 16.5 15.8 15.5 14.8 40
42 17. 5 17.1 16.9 16.3 16.0 15 .7 15.3 15.0 14.3 14.0 13.4 42
44 16.2 15.9 15.5 14.9 14.7 14. 5 13.8 13.6 13.0 12 .7 12 .1 44
46 15.0 14.5 14.0 13.7 13. 4 13. 2 12.5 12.3 11. 8 11. 5 10.8 46
48 13.4 13.5 1 3.1 12.6 12 .5 12.3 11. 3 11.1 10.6 10.3 9.7 48
50 12.5 12.5 12 .0 11.7 11. 5 11.2 10.2 9.9 9.6 9.3 8.7 50
52 11. 5 11.0 10.5 10.3 10.0 9.2 8.9 8.5 8.3 7.7 52
54 10.2 10.0 9.5 8.6 8.2 8.0 7.6 7.4 6.8 54
56 9.0 8.8 8.7 7. 3 7.1 6.7 6.6 6.0 56
58 7.9 7.8 6.5 6.3 5.9 5.8 5.2 58
60 7.0 7. 0 5.8 5.5 5.1 5.0 4.5 60
62 6.0 5.0 4.8 4.4 4.3 3.8 62
64 5.4 4.4 4.1 3.8 3.6 3.1 64
66 3.7 3.5 3 .1 3.0 2.5 66
68 2.9 2.5 2.4 68
SCC2600A Crawler Crane – H Operating Condition Load Charts
Boom length 20- 86m Rear counterweight 100t Carbody counterweight 30t
Boom length (m)
Radius(m) 20 23 26 29 32 35 38 41 44 47 50 53 Boom length (m) Radius(m)
5260.0 5
6238.4 224.9 223.6 204.2 194.0 6
7207. 9 2 0 7.6 202.2 191.4 174. 4 16 9 .1 165.0 158.0 7
8183. 8 178.3 174 .4 170. 6 166.3 157. 9 15 6.5 141.8 126. 3 125.0 124.0 122.0 8
915 6 .1 153.4 149.4 145.4 142.7 142.7 141. 3 130.2 12 2.1 117. 6 115. 0 113 . 0 9
10 141. 2 13 7. 8 135.7 132.2 13 0 .1 129.2 128.0 125.8 115 . 5 115 . 5 1 07.1 104.9 10
12 110 .1 108.2 107.7 1 07.4 10 7.1 107.7 10 5.5 102.4 102.4 100.0 9 7. 8 95.8 12
14 89.6 88.8 8 8 .1 87.7 87. 2 87.2 86.9 86.8 85.8 84.2 82.4 80.9 14
16 74. 6 74. 2 73.8 73.5 72.8 72.6 73.8 72.3 72.3 72.3 70.8 69.5 16
18 63.8 63.3 62.8 62.5 62.5 62.6 62.0 62.3 61.6 61.5 61.7 60.7 18
20 60.7 5 5 .1 54.7 54.4 54.3 54.6 54.5 54.3 54.2 5 4 .1 53.8 53.5 20
22 49.5 48.8 48.3 48.2 48.2 4 8 .1 48.0 47.8 47. 7 47.5 47. 6 22
24 43.8 43.5 4 3 .1 43.0 42.8 42.7 42.6 42.5 42.3 42.7 24
26 39.1 39.0 39 .1 38.9 38.9 38.0 38.3 38.2 3 8 .1 26
28 37. 0 35.0 3 5 .1 34.9 34.8 34.5 34.5 34.2 34.0 28
30 31.4 31.6 31.4 31.3 31.1 31.0 30.7 30.5 30
32 28.6 28.4 28.3 2 8 .1 28.0 2 7.7 27. 5 32
34 25.8 25.7 25.5 25.4 2 5.1 24.9 34
36 24.6 23.4 23.4 23.1 22.8 22.7 36
38 22.3 21.7 22.0 20.8 20.6 38
40 20.0 20.2 19.5 19.2 40
42 17. 8 17. 7 17.6 42
44 16.9 16.8 16.5 44
46 16.5 15.2 46
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Unit：(t)

SANY CRAWLER CRANE SCC2600A
29
28
Fixed jib combination
Jib length
（m）
Insert Boom length
(m)
Angle between boom
and jib
6 m 11. 5 m
13 - - 29～62 10°，30°
19 1 - 29～62 10°，30°
24.5 - 1 29～62 10°，30°
30.5 1 1 29～62 10°，30°
36 - 2 29～62 10°，30°
42 1 2 29～62 10°，30°
Fixed jib working range diagram
Jib tip（6.5m）
11.5m jib insert（2 pieces）
6m jib insert（1 pieces）
Jib base（6.5m）
Angle between boom and jib（10°，30°）
30°
Boom（29m-62m）
Fixed jib (jib angle: 10° +30°)
Lifting height(m)
Working radius (m)
80
75
85
90
95
115
105
110
100
70
60
65
55
50
45
35
40
25
30
15
10
20
5
5 1510 20 25 30 35 40 45 50 55 60 65 70 75 80 85 90
Boom (62m)
Jib (+42m)
Boom (62m)
Boom (62m)
Boom (62m)
Boom (62m)
Boom (62m)
Boom (62m)
Boom (62m)
Boom (62m)
Boom (62m)
Jib (+36m)
Jib (+30.5m)
Jib (+24.5m )
Jib (+19m )
Jib (+13m)
Jib (+36m)
Jib (+30.5m)
Jib (+24.5m )
Boom (62m)
Jib (+19m )
Boom (62m)
Jib (+42m)
Boom (29m)
Jib (+42m )
Boom (29m)
Jib (+36m)
Boom (29m)
Jib (+30.5m )
Boom (29m)
Jib (+24.5m)
Boom (29m)
Jib (+19m )
Boom (29m)
Jib (+13m )
Boom (29m)
Jib (+42m )
Boom (29m)
Jib (+36m)
Boom (29m)
Jib (+30.5m )
Boom (29m)
Jib (+24.5m)
Boom (29m)
Jib (+19m )
Boom (29m)
Jib (+13m )

SANY CRAWLER CRANE SCC2600A
31
30
Unit：(t)
Fixed jib load CHARTS
SCC2600A Fixed Jib Load Charts (Without Jib Head Pulley Block)
Without main hook; jib angle: 10°
Boom length (m) 29 35 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
964.1 9
10 64.4 64.4 10
12 59.3 52.9 62.7 54.2 12
14 53.1 49.7 44.4 34.7 56.6 51. 5 45.2 14
16 47. 9 44.7 38.9 31.9 24.5 51.4 4 7. 3 41.6 32.8 24.1 16
18 43.7 40.6 34.1 2 8 .1 23.7 17. 4 47.1 43.2 36.5 29.9 23.4 17. 2 18
20 40.1 3 7. 2 30.4 25.0 21.8 16.8 42.5 39.8 32.6 26.8 22.7 16.7 20
22 37.1 34.4 2 7.5 22.7 19.7 16.2 38.0 36.9 29.8 24.2 20.9 16 .1 22
24 34.1 31. 8 24.9 20.5 17.9 15.7 33.8 34.0 26.9 22.1 19.0 15.6 24
26 30.5 29.3 22.9 18.8 16.3 14.4 34.2 30.8 24.8 20 .1 17.5 15 .2 26
28 29.2 26.9 20.9 17.3 15 .1 13. 2 30.6 2 7. 6 23.0 18.7 1 6.1 14.0 28
30 28.0 25.0 19.4 16.0 13.9 12.2 29.3 25.0 21.4 17. 3 14.9 13.0 30
32 26.9 23.0 18 .1 14.9 12.8 11. 3 26.6 22.7 19.9 16.1 14.0 11. 9 32
34 24.5 22.5 17. 0 13.9 12.0 10.5 24.9 22.1 18.6 15.1 12.9 11.1 34
36 21.8 16.7 13 .1 11. 8 9.8 23.3 21. 4 17. 4 14. 2 12 .1 10.4 36
38 20.1 16.2 12. 2 11. 6 9.7 21. 3 19.6 16.4 13. 3 11. 4 9.8 38
40 18.5 15.8 11.5 11 .1 9.1 19.5 18.1 15 .5 12.6 10.7 9.2 40
42 15.0 11.3 10.5 9.0 16.7 15.4 11.9 10.5 9.0 42
44 14.3 10.7 9.9 8.5 15.4 14.5 11.3 10.2 8.5 44
46 10.3 9.4 8.0 13 .5 10.7 9.7 8.0 46
48 9.8 8.9 7.7 12.6 10.2 9.1 7.6 48
50 9.4 8.4 7.1 11. 6 9.7 8.7 7.2 50
52 8.0 6.8 9.3 8.4 6.8 52
54 6.8 6.5 8.9 7.9 6.5 54
56 6.1 7.5 6.2 56
58 5.9 7. 2 5.9 58
60 5.5 7.0 5.6 60
62 5.4 62
64 5.1 64
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Fixed jib load CHARTS
Unit：(t)
SCC2600A Fixed Jib Load Charts (Without Jib Head Pulley Block)
Without main hook; jib angle: 10°
Boom length (m) 41 47 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
10 10
12 63.3 53.0 6 4.1 12
14 57.3 47. 7 42.5 59.3 53.1 14
16 52.6 43.7 38.5 30.5 51.1 50.4 42.8 30.7 16
18 46.4 40.4 35.5 29.7 22.1 44.6 44.3 40.9 3 0 .1 22.5 18
20 41.0 3 7. 8 32.9 2 7. 8 21.5 16.6 39.5 39.2 3 7. 2 29.4 22.0 16.3 20
22 36.5 35.2 30.8 25.4 20.9 16 .1 35.2 35.0 33.8 27.0 21.4 15.8 22
24 32.8 32.7 29.0 23.3 20.0 15.6 33.6 31.5 31.0 24.7 20.9 15.5 24
26 29.6 29.6 26.4 21. 5 18.2 15 .1 32.2 28.5 28.5 22.8 19.4 15.0 26
28 30.2 26.9 24.5 20.0 17. 0 14.7 31.0 25.9 26.0 21.3 1 7.9 14.6 28
30 27.1 24.5 22.9 18.4 15.7 14. 2 28.1 23.6 23.7 19.9 16.8 14.3 30
32 27.5 22.3 21.4 17.2 14.6 13.2 2 7. 0 21.6 21.8 18.5 15.7 13 .5 32
34 24.9 23.0 20.0 16.1 13.8 12.4 24.4 2 1.1 20.0 17.5 14.6 12.5 34
36 22.7 20.9 18.8 15.2 12.9 11. 5 22.2 20.5 18.4 16.4 13.9 11. 9 36
38 21.8 19.2 17. 4 14.3 12 .1 10.8 21.3 18 .7 17. 0 15. 5 13 .1 11. 2 38
40 20 19.0 16.0 13.6 11.5 10.2 19.5 18.2 15.5 14.6 12.4 10.5 40
42 18.3 1 7.7 15 .7 12.9 10.8 9.7 1 7. 8 16.7 15. 3 13.9 11.7 9.9 42
44 16.8 16.3 14.5 12.2 10.3 9.0 16.3 16.2 15.0 13 .2 11 .1 9.4 44
46 15 .1 13. 4 11. 6 9.8 8.7 15 15.6 13.8 12. 5 10.5 8.9 46
48 14.9 12.4 11.0 9.3 8.2 13.7 14. 4 13.4 11. 5 10 .1 8.5 48
50 13.7 11.4 10.6 8.8 7.7 13.2 12.4 10.6 9.6 8.0 50
52 10.6 10.1 8.5 7. 3 12 .2 11.4 9.8 9.2 7.7 52
54 10.5 10. 2 8.0 7. 0 11.2 10.5 9.7 8.7 7.4 54
56 9.4 7.7 6.7 9.7 9.5 8.4 7. 0 56
58 8.7 7. 4 6.4 9.0 8.8 8.0 6.8 58
60 8.6 7.1 6.1 8.2 7.4 6.4 60
62 6.8 5.9 7.9 6.9 6.2 62
64 6.5 5.5 7.6 6.4 5.9 64
66 5.3 5.9 5.6 66
68 5.1 5.4 5.4 68
70 4.9 5.1 70
72 4.7 72
74 4.4 74
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.

SANY CRAWLER CRANE SCC2600A
33
32
Fixed jib load CHARTS
SCC2600A Fixed Jib Load Charts (Without Jib Head Pulley Block)
Without main hook; jib angle: 10°
Boom length (m) 53 56 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
10 10
12 58.8 58.8 12
14 56.9 52.7 55.7 49.5 14
16 49.1 48.5 39.8 48.2 47. 6 38.2 16
18 43.0 42.6 39.2 28.8 21.8 4 2 .1 41.8 37.7 2 8.1 18
20 38.0 37.7 3 7. 6 28.3 21.4 16.0 3 7. 2 37. 0 36.8 2 7. 6 22.4 16.9 20
22 33.8 33.7 33.6 27. 8 20.9 15.6 35.3 33.0 32.9 27.2 22.0 16.5 22
24 32.3 30.3 30.2 25.9 20.5 15. 2 31.6 29.6 29.6 26.6 21.5 16 .1 24
26 29.1 2 7. 3 2 7. 4 24.1 20.0 14.9 30.2 26.7 26.8 24.5 21.0 15.8 26
28 28.3 24.8 24.9 22.4 18.8 14.5 28.9 24.2 24.3 22.8 20.6 15.4 28
30 26.9 22.6 22.7 20.9 17.7 14.2 27. 6 23.4 2 2 .1 21.5 19.2 15.0 30
32 27.2 22.0 20.8 19.6 16.5 13.8 26.5 22.8 20.3 20.2 1 8.1 14.6 32
34 24.8 21.3 19.1 18.5 15.6 13.3 24.1 2 2.7 18. 5 18.6 17.0 14.3 34
36 22.7 20.7 1 7. 5 17.3 14.6 12.5 22 22.4 17.0 17.1 15. 9 13.7 36
38 20.7 19.1 16 .1 16. 2 13.9 11. 9 20.2 20.5 16.6 15.7 15 .1 12.9 38
40 18.9 18.5 15. 8 14.9 13.2 11.1 18.4 18.8 16.3 14.5 14.4 12.2 40
42 17. 2 17.9 15.5 13.8 12.5 10.6 16.9 17. 3 15.0 13.4 13.7 11.5 42
44 15.7 16.4 14.3 12 .8 11.9 1 0.1 15.4 15 .9 14. 6 12.3 13.0 11 .0 44
46 14.4 15 13 .3 11.8 11 .2 9.5 14 14. 6 14.0 11.4 12.2 10.5 46
48 13 .1 13. 8 12. 2 11. 0 10.8 9 .1 12.7 13.4 13.8 10.5 11. 4 9.9 48
50 12 12.6 11.1 10 .1 10.2 8.6 11. 6 12. 2 12.7 10.3 10.5 9.4 50
52 10.9 11.5 10.9 10.0 9.5 8.2 10.5 11.2 11 .7 1 0.1 9.7 9.0 52
54 9.9 10.6 10.0 9.8 8.8 7. 9 9.6 10.2 10.7 9.4 9.0 8.6 54
56 9.7 9.4 9.3 8.2 7. 5 8.7 9.3 9.8 9.4 8.2 8.2 56
58 8.8 9.3 9.0 7. 5 7. 2 8.4 99.3 7.6 7.7 58
60 8.6 8.9 7.0 6.9 7.7 8.2 8.5 7.0 7.1 60
62 7.8 8.2 6.4 6.5 7. 5 7. 8 6.4 6.5 62
64 7.1 7.5 5.9 6.0 6.8 7.1 5.9 6.0 64
66 6.8 5.4 5.6 6.1 6.5 5.4 5.4 66
68 6.2 5.0 5.1 5.9 4.9 5.0 68
70 4.5 4.7 5.3 4.5 4.6 70
72 4.1 4.2 4.0 4.1 72
74 3.7 3.8 3.6 3.7 74
76 3.5 3.2 3.3 76
78 3.2 3.0 78
80 2.6 80
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Fixed jib load CHARTS
SCC2600A Fixed Jib Load Charts (Without Jib Head Pulley Block)
Without main hook; jib angle: 10°
Boom length (m) 59 62 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
10 10
12 12
14 54.7 46.5 53.6 14
16 47. 3 46.0 36.5 46.4 43.5 35.0 16
18 41.4 41.1 3 6 .1 27.3 40.5 40.3 34.7 26.6 18
20 36.5 36.4 35.6 26.9 20.7 35.8 35.6 34.2 26.3 20.3 20
22 34.7 32.5 32.4 26.5 20.3 15.3 36.0 31.8 31.7 25.8 20.0 15.2 22
24 31.0 2 9.1 2 9.1 26.0 19.9 15.0 32.3 28.5 28.5 25.4 19.6 14.9 24
26 30.7 26.3 26.3 25.2 19.5 14.6 30.7 25.7 25.8 25.0 19.3 14.6 26
28 29.9 23.8 23.9 23.6 19.1 14.3 30.8 24.8 23.3 23.3 18.9 14.2 28
30 28.6 23.0 21.8 21.8 18.5 14.0 2 7. 9 23.9 21.2 21.2 18.5 14.0 30
32 26 22.9 19.9 19.9 1 7.3 13.8 25.3 23.8 19.4 19.4 17. 7 13.7 32
34 23.7 22 .1 18.2 18. 2 16.3 13 .4 23 23.3 1 7.7 17.8 16.7 13.4 34
36 21.6 21. 9 16.7 16.7 15.5 13.1 20.9 21.3 17.3 16.3 15.8 13 .1 36
38 19.7 20.1 16.3 15. 4 14.6 12 .4 1 9.1 19.4 16.8 14.9 14.9 12.7 38
40 18 18 .4 15.9 14.2 13.9 11.7 1 7.4 17.8 16.3 13.7 13.8 11. 9 40
42 16.5 16.9 14.6 1 3.1 13 .1 11. 2 15.9 16.3 14.9 12.6 12.8 11. 4 42
44 15 .1 15.5 13.4 12.0 12 .2 10.5 14.5 14.9 13.8 11.6 11.7 10.7 44
46 13.8 14.2 12 .4 11.1 11. 2 10.0 13 .2 13 .6 12.9 11. 4 10. 8 10.3 46
48 12.6 13 11.4 10.9 10.4 9.5 12 12.4 12.8 11.1 10.0 9.8 48
50 11. 4 11. 9 11.1 10.6 9.5 9.2 10.9 11. 3 11.8 10.6 9.2 9.2 50
52 10.4 10.9 10.7 10.4 9.4 9.3 9.9 10.3 10.8 10 .1 8.4 8.5 52
54 9.4 10 10.4 9.9 8.6 8.7 99.4 9.8 1 0.1 7.7 7. 8 54
56 8.5 9.1 9.5 9.7 8.0 8.0 8 .1 8.5 99.2 7.1 7.1 56
58 7.7 8.3 8.7 8.9 7.4 7.4 7.3 7.7 8 .1 8.4 6.5 6.5 58
60 7.5 7.9 8.2 6.7 6.8 6.5 6.9 7.4 7. 6 5.9 6.0 60
62 6.7 7. 2 7.4 6.2 6.2 6.2 6.7 6.9 5.4 5.5 62
64 6.1 6.5 6.8 5.6 5.7 5.5 66.2 4.9 5.0 64
66 5.9 6.1 5.1 5.2 4.9 5.3 5.6 4.4 4.5 66
68 5.3 5.5 4.6 4.7 4.7 54.0 4 .1 68
70 4.9 4.2 4.2 4.2 4.4 3.5 3.6 70
72 4.4 3.8 3.8 3.9 3.2 3.2 72
74 3.9 3.4 3.4 3.4 2.8 2.9 74
76 3.0 3.0 2.9 2.4 2.5 76
78 2.6 2.6 2.0 2.1 78
80 2.3 1.7 1.8 80
82 2.0 1.5 82
84 1.7 1.2 84
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Unit：(t)
Unit：(t)

SANY CRAWLER CRANE SCC2600A
35
34
SCC2600A Fixed Jib Load Charts (Without Jib Head Pulley Block)
Without main hook; jib angle: 30°
Boom length (m) 29 35 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
12 12
14 27.8 28.4 14
16 26.2 26.9 16
18 24.7 20.6 25.5 21 18
20 23.4 19.4 17.5 24.3 19.9 20
22 22.3 18.4 16.5 23.2 19 16.8 22
24 21.3 17.5 15.7 13.9 22.3 18.1 16 1 4.1 24
26 20.5 16.7 14. 9 13. 2 21.4 1 7. 3 15.3 13.5 26
28 19.7 16 14.2 12.6 11.8 20.7 16.7 14.7 12.9 12 28
30 19 15.3 13 .6 12 11.2 20 16 14.1 12.3 11. 5 30
32 18.4 14.8 13 11. 5 10.7 10 19.4 15.5 13. 5 11. 8 11 10.3 32
34 17. 9 14.3 12.5 11 10.3 9.5 18.8 14.9 13 .1 11. 4 10.5 9.8 34
36 17. 5 13. 8 12 .1 10.5 9.8 9.1 18.3 14.5 12. 6 10.9 1 0.1 9.4 36
38 13.4 11.7 10.2 9.4 8.7 17. 9 14 .1 12. 3 10.6 9.8 938
40 13 11. 3 9.8 9.1 8.4 17. 6 13.7 11.9 10.2 9.4 8.7 40
42 12.7 11 9.5 8.7 8.1 17. 3 13. 3 11. 5 9.9 9 .1 8.4 42
44 10.7 9.2 8.4 7. 8 13 11.2 9.6 8.8 8.1 44
46 10.5 8.9 8.2 7. 5 12.8 10.9 9.3 8.5 7. 8 46
48 10.2 8.6 7. 9 7. 2 10.7 98.2 7.6 48
50 8.4 7.7 6.9 10.5 8.8 87. 3 50
52 8.2 7.4 6.6 10.3 8.6 7. 8 752
54 87.2 6.4 8.4 7.6 6.8 54
56 7.1 6.2 8.2 7. 4 6.5 56
58 6.9 5.9 8.1 7.2 6.3 58
60 6.8 5.7 7.1 660
62 5.5 6.9 5.9 62
64 5.3 6.8 5.7 64
66 5.5 66
68 5.4 68
70 5.2 70
Fixed jib load CHARTS Fixed jib load CHARTS
SCC2600A Fixed Jib Load Charts (Without Boom Hook and Counterweight 100+30t)
Without main hook; jib angle: 30°
Boom length (m) 41 47 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
14 14
16 26.9 27.9 16
18 25.7 20.9 26.7 18
20 24.6 19.9 25.6 20.7 20
22 23.6 19 16.7 24.7 19. 8 17. 4 22
24 22.7 18.2 16 23.8 19.1 16.7 24
26 21.9 17.5 15.3 13 .3 23 18.4 16 13. 9 26
28 21.1 16.9 14.7 12.8 11.8 22.2 17. 7 15.4 13.3 28
30 20.4 16.3 14.2 12.3 11.4 21.6 17.1 14.9 12. 8 11. 8 30
32 19.8 15.7 13.7 11.8 10.9 10 20.9 16.6 14.4 12.4 11.4 10.4 32
34 19.3 15.2 13.2 11.4 10.5 9.6 20.4 16.1 13 .9 12 11 10 34
36 18.8 14.8 12.8 11 10.1 9.3 19.9 15.6 13.5 11.6 10.6 9.7 36
38 18.3 14.3 12.4 10.5 9.8 8.9 19.4 15.2 13 .1 11.2 10.3 9.4 38
40 17. 9 14 12 .1 1 0.1 9.4 8.6 18.9 14.8 12 .7 10.9 9.9 940
42 17. 6 13. 6 11.7 9.6 9.1 8.3 18 .5 14. 4 12.4 10.6 9.6 8.7 42
44 17. 3 13. 3 11. 4 9.2 8.8 816.9 14 .1 12 .1 10.3 9.3 8.5 44
46 15.8 13 11.1 8.9 8.6 7. 8 15.5 13.8 11. 8 10 9.1 8.2 46
48 12.8 10.9 8.5 8.3 7.5 14.2 13.5 11. 5 9.7 8.8 848
50 12.5 10.6 8.3 8 .1 7. 3 12.9 13.3 11.3 9.5 8.6 7.7 50
52 12.3 10.4 87. 9 7.1 12.8 11.1 9.3 8.4 7.5 52
54 10.2 7. 8 7. 7 6.9 11.7 10.8 9 .1 8.2 7. 3 54
56 10 .1 7.7 7. 5 6.7 10.7 10.6 8.9 87.1 56
58 7.5 7. 3 6.5 10.5 8.7 7.8 6.9 58
60 7.4 7.1 6.3 9.8 8.5 7. 6 6.8 60
62 7.3 76.1 8.9 8.4 7. 5 6.5 62
64 6.9 5.9 8.2 7. 3 6.3 64
66 6.7 5.8 8 .1 7. 2 6.2 66
68 6.6 5.6 7.4 7668
70 5.4 6.9 5.8 70
72 5.3 6.7 5.7 72
74 5.2 5.5 74
76 5.3 76
78 5.3 78
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
unit：(t)
Unit：(t)
Unit：(t)

SANY CRAWLER CRANE SCC2600A
37
36
SCC2600A Fixed Jib Load Charts (Without Boom Hook and Counterweight 100+30t)
Without main hook; jib angle: 30°
Boom length (m) 53 56 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
14 14
16 28.3 28.5 16
18 27.2 27. 4 18
20 26.2 21 26.4 21.1 20
22 25.2 20.2 25.5 20.3 22
24 24.4 19.4 16.9 24.6 19.6 17 24
26 23.6 18.8 16.3 14 23.9 19 16.4 26
28 22.9 18.2 15.7 13. 5 23.2 18. 3 15.9 13.6 28
30 22.2 17. 6 15.2 13.1 12 22.5 1 7. 8 15.4 13.2 12 .1 30
32 21.6 17.1 14.7 12.6 11. 6 21.9 17. 3 14.9 12.7 11.7 32
34 21 16.6 14.3 12. 2 11. 2 10. 2 21.4 16.8 14.4 12.3 11. 3 10.2 34
36 20.5 16 .1 13.9 11.8 10.8 9.8 20.8 16.3 14 12 10.9 9.9 36
38 20 15.7 13.5 11. 5 10.5 9.5 20.4 15. 9 13.6 11.6 10.6 9.6 38
40 19.6 15.3 13 .1 11.2 10.2 9.2 19.5 15.5 13.3 11. 3 10.3 9.3 40
42 18 14.9 12.8 10.9 9.9 8.9 17. 7 15.2 12.9 11 10 942
44 16.4 14.6 12.4 10.6 9.6 8.7 16 .1 14.8 12.6 10.7 9.7 8.7 44
46 15 14.3 12 .2 10.3 9.3 8.4 14.7 14. 5 12.3 10.4 9.4 8.5 46
48 13.7 14 11.9 10 9 .1 8.2 13.4 14. 2 12 .1 10. 2 9.2 8.3 48
50 12.5 13.5 11 .7 9.8 8.9 7. 9 12 .2 13 .2 11 .9 9.9 9850
52 11. 4 12.3 11. 4 9.6 8.6 7.7 11.1 12 11.6 9.7 8.8 7. 8 52
54 10.3 11.3 11 .2 9.4 8.4 7. 5 10 11 11.4 9.5 8.5 7.6 54
56 10.3 11 9.2 8.2 7.3 9.1 10 10.8 9.3 8.4 7.4 56
58 9.4 10.2 987. 2 8.1 9 .1 9.9 9.1 8.2 7. 3 58
60 8.5 9.3 8.8 7. 9 78.2 9 8.9 87.1 60
62 8.5 8.6 7.7 6.8 7. 4 8.2 8.8 7. 8 6.9 62
64 7.7 8.4 7. 6 6.6 6.6 7. 4 8 .1 7.7 6.8 64
66 77.7 7. 4 6.4 6.7 7.4 7. 5 6.6 66
68 77.3 6.2 66.7 7. 3 6.3 68
70 6.3 6.9 6 6 6.6 6.2 70
72 5.7 6.3 5.9 5.4 6 6 72
74 5.7 5.8 4.8 5.4 5.8 74
76 5.1 5.6 4.8 5.3 76
78 4.5 54.3 4.7 78
80 4.5 3.7 4.2 80
82 43.7 82
84 3.5 3.2 84
86 2.7 86
Fixed jib load CHARTS
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
SCC2600A Fixed Jib Load Charts (Without Boom Hook and Counterweight 100+30t)
Without main hook; jib angle: 30°
Boom length (m) 59 62 Boom length (m)
Jib length (m)
Radius(m) 13 19 24.5 30.5 36 42 13 19 24.5 30.5 36 42 Jib length (m) Radius(m)
16 16
18 27.6 2 7. 7 18
20 26.6 21.2 26.8 20
22 25.7 20.5 25.9 20.6 22
24 24.9 19.8 1 7.1 25.1 19.9 17. 2 24
26 24 .1 19.1 16.5 24.4 19.3 16.7 26
28 23.5 18.5 16 13 .7 23.7 18.7 16.1 13.8 28
30 22.8 18 15.5 13.3 1 2.1 23.1 18. 2 15.6 13.4 30
32 22.2 17. 5 15 12.8 11.7 22.5 17.7 15.2 12.9 11. 8 32
34 21.6 17 14.6 12.5 11. 4 10.3 21.9 17. 2 14.7 12.6 11 .4 10.3 34
36 21.1 16.5 14.2 12.1 11 10 21.4 16.7 14. 3 12. 2 11.1 10 36
38 20.6 16 .1 13.8 11. 7 10.7 9.7 20.3 16.3 14 11.9 10.8 9.7 38
40 19 .1 15.7 13.5 11.4 10.4 9.4 18.5 15.9 13 .6 11.5 10.5 9.4 40
42 17. 5 15. 4 13 .1 11.1 1 0.1 9.1 16.9 15.6 13 .3 11.2 10.2 9.2 42
44 16 15 12.8 10.8 9.8 8.8 15.4 15. 2 13 11 9.9 8.9 44
46 14.6 14.7 12.5 10.6 9.6 8.6 14.1 14.9 12.7 10.7 9.7 8.7 46
48 13.3 14.2 12 .3 10. 3 9.3 8.4 12. 8 13.7 12 .4 10.4 9.4 8.4 48
50 12 .1 13 12 10 .1 9 .1 8.1 11. 6 12.5 12. 2 10.2 9.2 8.2 50
52 10.9 11.9 11.8 9.9 8.9 7.9 10.6 11. 4 12 10 9852
54 9.9 10.8 11.6 9.6 8.7 7.7 9.9 10.4 11.1 9.8 8.8 7.8 54
56 99.9 10.7 9.4 8.5 7. 5 8.6 9.4 10.2 9.6 8.6 7. 6 56
58 8.1 99.8 9.3 8.3 7. 4 7. 7 8.5 9.3 9.4 8.4 7. 5 58
60 7.2 8.1 8.9 9.1 8 .1 7. 2 6.9 7. 7 8.4 98.2 7. 3 60
62 7.3 8.1 8.7 8 7 6.1 6.9 7.6 8.2 8.1 7.1 62
64 6.5 7.3 7.9 7.8 6.8 6.1 6.9 7.5 7.9 6.9 64
66 5.8 6.6 7. 2 7.6 6.6 5.4 6.2 6.7 7. 3 6.8 66
68 5.9 6.5 76.5 4.7 5.5 6 .1 6.6 6.6 68
70 5.3 5.8 6.4 6.3 4.8 5.4 66.4 70
72 5.2 5.8 6.2 4.2 4.8 5.3 5.8 72
74 4.6 5.2 5.6 3.6 4.2 4.7 5.2 74
76 44.6 53.6 4.2 4.6 76
78 44.5 3.1 3.6 4.1 78
80 3.5 3.9 3.1 3.5 80
82 33.4 2.6 382
84 2.9 2.1 2.5 84
86 2.5 2.1 86
88 21.6 88
Fixed jib load CHARTS
Notes: 1. The actual weight is a value that the rated weight in this table is subtracted by the weights of the hooks, hangers, and wire ropes winding on the hooks and on the boom head.
2. The rated load in this table is measured under the condition that the heavy object is lifted slowly and stably from the level and hard soil ground.
Unit：(t) Unit：(t)
