SCC3000US Crawler Crane ― Operation Manual
Table of Contents
- II -
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
- 1 / 16 -
SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts
Table 3-1 Hook Parameters
Notes:Weight of wire ropes reeving between hooks (main hook, auxiliary hook) and boom/jib heads is
calculated by 3.3kg/m(2.22lb/ft).
Model
(t) (USt)
250
(275)
150
(165)
100
(110)
80
(88)
35
(39)
13.5
(15)
Deadweight (kg)
(lb)
4300
(9,480)
3100
(6,830)
2000
(4,400)
1500
(3,300)
1200
(2,640)
450
(990)
1 General
1.1 Calculation of Rated Loads
Rated loads in the load charts are determined either by strength or by stability.
Rated loads determined by stability are calculated according to ISO 4305:1991 Mobile Cranes——
Determination of Stability and these rated loads are always within the 75% of tipping load.
1.2 Use the Load Charts Properly
1)Ground conditions: rated loads in the load charts are calculated in the condition that the crane is
on hard, horizontal and evenly-supported ground with gradient smaller than 1%. If these condition
requirements are not fullled, the value of rated loads must be decreased for calculation.
2)Actual Lifting Capacity: the weight of hook blocks, lifting devices, and wire ropes reeving between
the hooks and boom/jib heads must be deducted from the rate load to obtain a net lifting value, i.e. the
actual lifting capacity.
3)Wind Speed: Calculating rated loads also takes allowable wind speed of each operating condition
into consideration. The SCC3000US crawler crane is allowed to operate when the speed of stable wind
or gust is not exceeding 16m/s(35.8mph). Hence the maximum allowable wind speed for SCC3000US
crawler crane is 9.8m/s(21.9mph)~16.0m/s (35.8mph) (equivalent to 60~160 N/m2(0.009~0.023psi)
dynamic pressure); when the wind speed is higher than 16m/s and lower than 22m/s(49.2mph), the
crane is not allowed to operate but allowed to have the boom system upstanding; when wind speed is
higher than 22m/s(49.2mph), the boom system must be lowered down to the ground.
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 2/16 -
Table 3-2 Allowable Wind Speed in H Operating Condition
Table 3-3 Allowable Wind Speed in FJ (LJ) Operating Condition
Boom length
(m) (ft in)
Allowable wind speed
(m/s) (mph)
Corresponding allowable dynamic
pressure (N/m2) (psi)
＜28.5～31.5
(93′6″ ～103′4″)
16
(35.8)
160
(0.023)
31.5～34.5
(103′4″～113′ 2 ″)
15
(33.6)
140
(0.02)
37. 5～64.5
(123′0″～211′ 7 ″)
13.8
(30.9)
120
(0.017)
67. 5～82.5
(221′5″～ 270′8″)
11.3
(26.40)
80
(0.012)
＞85.5
(280′6″)
9.8
(21.9)
60
(0.009)
Length of boom + jib
(m) (ft in)
Allowable wind speed
(m/s)(mph)
Corresponding allowable dynamic
pressure (N/m2)(psi)
＜28.5～31.5
(93′6″ ～103′4″)
16
(35.8)
160
(0.023)
31.5～37.5
(103′4″～123′0″)
15
(33.6)
140
(0.02)
37. 5～44.5
(123′0″～145′12″)
13.8
(30.9)
120
(0.017)
44.5～
71.5
(145′12″～234′7″)
11.3
(26.40)
80
(0.012)
＞98.5 (323′2″) 9.8
(21.9)
60
(0.009)
If the wind speed at operating site cannot fulll the requirements listed above, the crane is not allowed
to operate until the load is reduced accordingly based on the actual situation. For further information
on inuences of wind speed, please refer to “Inuence of Wind Speed” in "Operation Manual-Section
4 Operating Instructions" .
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
- 3 / 16 -
SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts
4) Scope of Application: values or rated loads listed in the load charts are all applicable for the whole
360°slewing range.
5) Rated Load for Traveling Crane: values of rated loads listed in the load charts are calculated in
condition that the crane is not traveling, and these values should be decreased accordingly when
the crane is traveling. For traveling steadily at low speed, 90% of the rated load is allowed to attach
in H operating condition for straight-line traveling, or 70% of the rated load is allowed to attach in H
operating condition for turning, or 50% of the rated load is allowed to attach in FJ operating condition
and LJ operating condition for straight-line traveling.
Notices requiring special care for traveling with load:
a) It is suggested to move the load in an area as small as possible and make the load close to the ground enough
(with maximum distance of 500mm (1′7.7″) to the ground);
b) Only the low gear can be used if possible, and take proper measures to prevent the load swinging. For
specications on traveling, please refer to the “Traveling Operation” in Chapter
Ⅱ
of this manual.
Chapter Load ChartsⅢSCC500E Operating Manual
5). Rated Load for Traveling Crane: values of rated loads listed in the load charts are calculated
in condition that the crane is not traveling, and these values should be decreased accordingly
when the crane is traveling. For traveling steadily at low speed, 90% of the rated load is
allowed to attach in H operating condition for straight-line traveling, or 70% of the rated load
is allowed to attach in H operating condition for turning, or 50% of the rated load is allowed
to attach in FJ operating condition and LJ operating condition for straight-line traveling.
Notices requiring special care for traveling with load:
a) It is suggested to move the load in an area as small as possible and make the load close
to the ground enough (with maximum distance of 500mm (1 7.7 ) to the ground);
b) Only the low gear can be used if possible, and take proper measures to prevent the load
swinging. For specifications on traveling, please refer to the “Traveling Operation” in
Chapter Ⅱof this manual.
Versions:02 page 4 of 9 3-1
longitudinal
center line of
lower-works
360°
Center line of track
Center line of track
slewing center
Center line of
operating equipment
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 4/16 -
2 Operating Condition Codes
Operating Condition Codes
NO. Operating Condition Code
1 Main Boom H
2 Main Boom + Fixed Jib FJ
3Main Boom + Lufng Jib LJ
4 Main Boom + Extension Jib HC
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
- 5 / 16 -
SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts

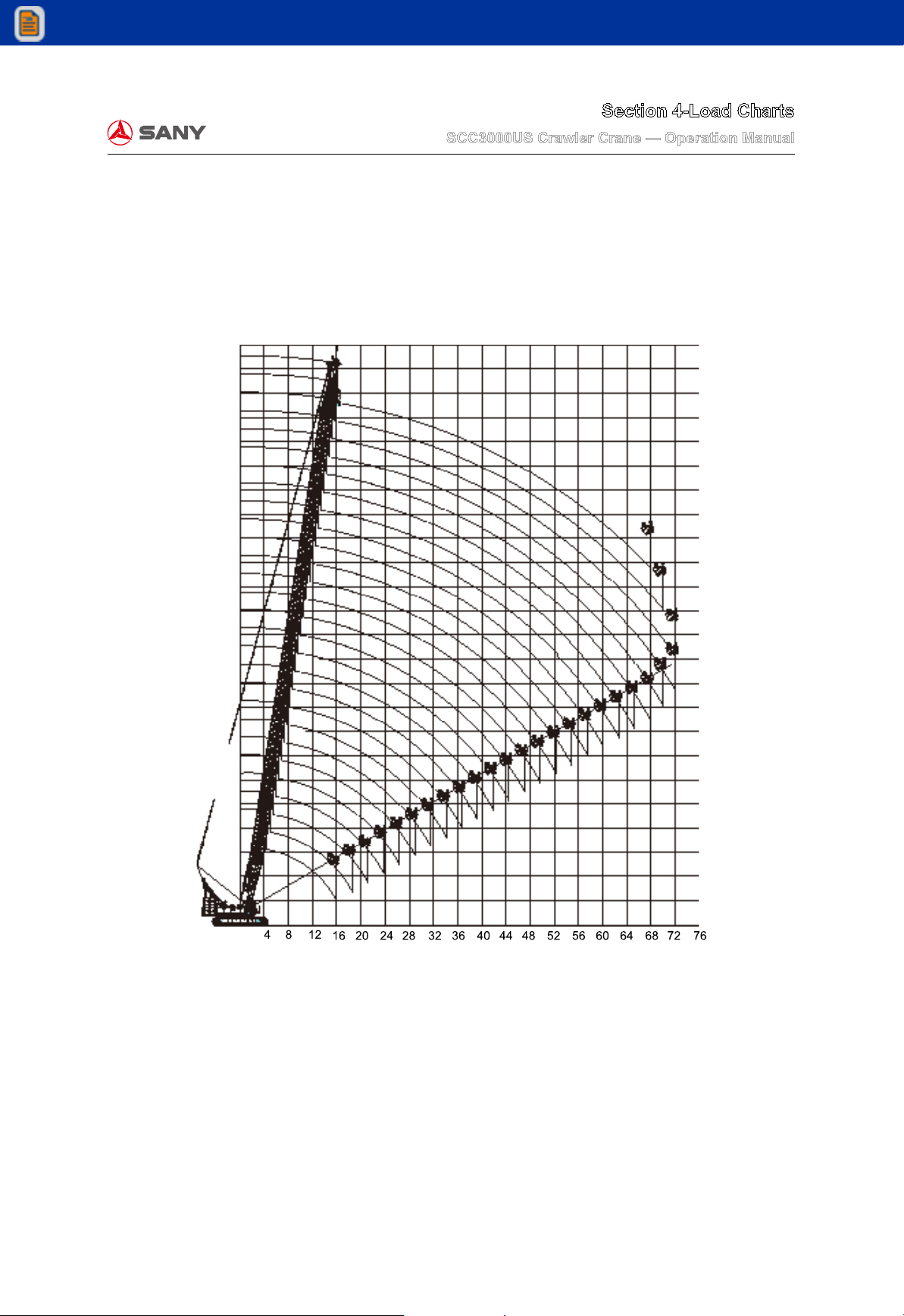

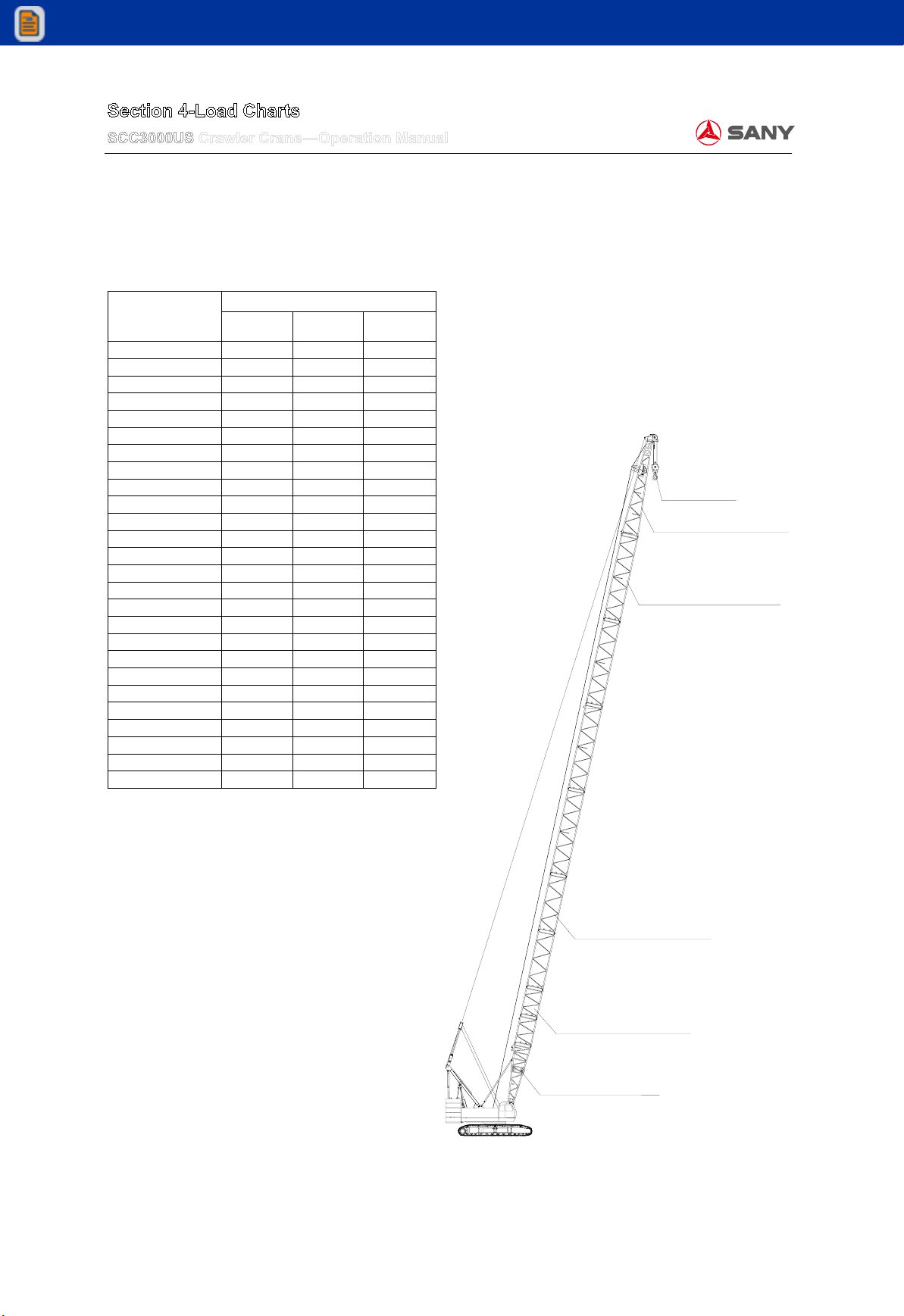

3 Operating Range Diagrams
96 341'11
"
92 301'10
"
88 288'9
"
84 275'7
"
80 262'6
"
76 249'4
"
72 236'3
"
68 223'1
"
64 209'12
"
60 196'10
"
56 183'9
"
52 170'7
"
48 157'6
"
44 144'4
"
40 131'3
"
36 118'1
"
32 104'12
"
28 91'10
"
24 78'9
"
20 65'7
"
16 52'6
"
12 39'4
"
826'3
"
413'1
"
00'0
"z
13'1
"
39'4
"
65'7
"
91'10
"
118'1
"
144'4
"
170'7
"
196'10
"
223'1
"
249'4
"
26'3
"
52'6
"
78'9
"
104'12
"
131'3
"
157'6
"
183'9
"
209'12
"
236'3
"
300'2" 91.5
290'4" 88.5
280'6" 85.5
270'8" 82.5
260'10" 79.5
250'12" 76.5
241'2" 73.5
231'4" 70.5
221'5" 67.5
211'7" 64.5
201'9" 61.5
191'11"58.5
182'1" 55.5
172'3" 52.5
162'5" 49.5
152'7" 46.5
142'9" 43.5
132'10" 40.5
123'0" 37.5
113'2" 34.5
103'4" 31.5
93'6" 28.5
83'8" 25.5
73'10" 22.5
63'12" 19.5
54'2" 16.5
81°
6.5m 21'4"
3.1 Main Boom Operating Condition(H)
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 6/16 -
3.2 Fixed Jib Operating Condition(FJ)
76.5m 250'12" boom
+31m 101'8" jib
76.5m 250'12" boom
+25m 82'0'' jib
76.5m 250'12'' boom
+19m 62'4" jib
76.5m 250'12" boom
+13m 42'8" jib
28.5m 93'6" boom
+31m 101'8'' jib
28.5m 93'6" boom
+25m 82'0" jib
28.5m 93'6" boom
+19m 62'4" jib
28.5m 93'6" boom
+13m 42'8" jib
F ixed Jib(Jib Angle: 10° and 30° )
11 5377'4"
11 0360'1
105 344'6"
100 328'1"
95 311'8"
90 295'3"
85 278'10"
80 262'6"
75 246'1"
70 229'8"
65 213'3"
60 196'10"
55 180'5"
50 164'0"
45 147'8"
40 131'3"
35 114'10"
30 98'5"
25 82'0"
20 65'7"
15 49'3"
10 32'10"
516'5"
00'0"
16'5" 49'3" 82'0" 114'10" 147'8" 180'5" 213'3" 246'1" 278'10" 311'8"
32'10" 65'7'' 98'5" 131'3" 164'0" 196'10'' 229'8" 252'6" 295'3" 328'1"
Hight Above Ground(m) (ft in)
Operating Range (m) (ft in)
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
- 7 / 16 -
SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts
3.3 Lufng Jib Operating Condition(LJ)
170'7"
52m
141'1"
43m
121'4"
37m
101'8"
31m
201'9"
61.5m
123'
37.5m
52m 170'7"
43m 141'1"
37m 121'4"
31m 101'8"
25m 82'0"
22m 72'2"
61m 200'1"
Main boom angle: 88°
75°
5m 16’4”
75°
120 393'8"
11 5377'4"
11 0360'1
105 344'6"
100 328'1"
95 311'8"
90 295'3"
85 278'10"
80 262'6"
75 246'1"
70 229'8"
65 213'3"
60 196'10"
55 180'5"
50 164'0"
45 147'8"
40 131'3"
35 114'10"
30 98'5"
25 82'0"
20 65'7"
15 49'3"
10 32'10"
516'5"
00'0"
16'5" 49'3" 82'0" 114'10" 147'8'' 180'5" 213'3" 246'1" 278'10"
32'10" 65'7" 98'5" 131'3" 164'0" 196'10" 229'8" 252'6" 295'3"
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 8/16 -
4 Load Charts
Meaning of Signs
Operating Radius (R) Main Boom (H) Fixed Jib (FJ)
Lufng Jib (LJ)
Counterweight, additional
counterweight, counterweight
+ additional counterweight
Central Ballast
Extension Jib Boom Hook Jib Hook
Extension Jib Hook
Please refer to the annex to "Operation Manual-Section 4 Load Charts" for detailed load charts.
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
- 9 / 16 -
SCC3000US Crawler Crane ― Operation Manual
Section 4-Load Charts
4.1 Load Charts of Boom Hook for H Operating Condition
Boom Combination of H Operating Condition
Boom Length
(m)(ft)
Boom Insert(m)(ft)
3 m(9′10″) 6 m(19′8″) 12 m(39′4″)
16.5 (54′2″)- - -
19.5 (63′12″) 1 - -
22.5 (73′10″) - 1 -
25.5 (83′8″) 1 1 -
28.5 (93′6″) - - 1
31.5 (103′4″) 1 - 1
34.5 (113 ′ 2 ″) - 1 1
37.5 (123′) 1 1 1
40.5 (132′10″) - - 2
43.5 (142′9″) 1 - 2
46.5 (152′7″) - 1 2
49.5 (162′5″) 1 1 2
52.5 (172′3″) - - 3
55.5 (182′1″) 1 - 3
58.5 (191′11″) - 1 3
61.5 (201′9″) 1 1 3
64.5 (211′7″) - - 4
67. 5 (221′5″) 1 - 4
70.5 (231′4″) - 1 4
73.5 (241′2″) 1 1 4
76.5 (251′) - - 5
79.5 (260′10″) 1 - 5
82.5 (270′8″) - 1 5
85.5 (280′6″) 1 1 5
88.5 (290′4″) - 2 5
91.5 (300′2″) 1 2 5
Load Charts of Boom Hook For SCC2500C H Operating Condition
Boom Combination of H Operating
Condition
Boom Length Boom Insert
（m）
3 m
(9 10")
6 m
(19 8")
12 m
(39 4")
16.5 (54 2") ---
19.5 (63 12") 1--
22.5 (73 10") -1-
25.5 (83 8") 11-
28.5 (93 6") --1
31.5 (103 4") 1-1
34.5 (113 2") -11
37.5 (123 ) 111
40.5 (132 10") --2
43.5 (142 9") 1-2
46.5 (152 7") -12
49.5 (162 5") 112
52.5 (172 3") --3
55.5 (182 1") 1-3
58.5 (191 11") -13
61.5 (201 9") 113
64.5 (211 7") --4
67.5 (221 5") 1-4
70.5 (231 4") -14
73.5 (241 2") 114
76.5 (251 ) --5
79.5 (260 10") 1-5
82.5 (270 8") -15
85.5 (280 6") 115
88.5 (290 4") -25
91.5 (300 2") 125
Boom Hook
Boom tip 8.5m(27'10")
Boom insert 6m (19'8")
(2 sections)
Boom insert 3m(9'10" )
Boom base 8m
H Operating Condition
(26'3" )
Boom insert 12m(39'4")
(5 sections)
(1 section)
H Operating Condition
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
Radius（m）
（ft）16.5 19.5 22.5 25.5 28.5 31.5 34.5 37.5
(54′2″) (63′12″) (73′10″) (83′8″) (93′6″) (103′4″) (113′2″) (123′0″)
4 4.8/272.1
(13′1″) (15′9″/600)
5 235.5 228.5 5.4/206.5
(16′5″) (519.1) (503.7) (17′9″/455)
6 196.3 193.5 191.2 5.9/184.0 6.6/175.5
(19′8″) (432.7) (426.5) (421.5) (19′4″/405) (21′8″/386)
7 168.9 168.2 167.2 166.6 165.7 7.1/155.5 7.7/145.5
(22′12″) (372.3) (370.8) (368.6) (367.2) (365.3) (23′4″/342) (25′3″/320)
8 148.2 147.5 146.6 145.8 145.6 145.5 143.3 8.2/128.2
(26′3″) (326.7) (325.1) (323.1) (321.4) (320.9) (320.7) (315.9) (26′11″/282)
9 132.5 131.6 130.2 129.9 128.9 128.3 127.8 125.6
(29′6″) (292.1) (290.1) (287) (286.3) (284.1) (282.8) (281.7) (276.8)
10 120.5 119.7 117.8 116.9 116.4 116.1 115.8 112.1
(32′10″) (265.6) (263.8) (259.7) (257.7) (256.6) (255.9) (255.2) (247.1)
12 94.6 94.6 94.5 94.5 94.4 94.3 93.7 93.4
(39′4″) (208.5) (208.5) (208.3) (208.3) (208.1) (207.8) (206.5) (205.9)
14 75.9 75.9 75.8 75.8 75.7 75.7 75.6 75.5
(45′11″) (167.3) (167.3) (167.1) (167.1) (166.8) (166.8) (166.6) (166.4)
16 15.9/53 64.0 63.6 63.4 63.4 63.4 63.3 63.2
(52′6″) (52′2″/116) (141) (140.2) (139.7) (139.7) (139.7) (139.5) (139.3)
18 55.3 54.1 54.1 54.1 54.1 53.9 53.8
(59′1″) (121.9) (119.2) (119.2) (119.2) (119.2) (118.8) (118.6)
20 18.5/50.5 47.4 47.2 47.1 46.9 46.7 46.6
(65′7″) (60′8″/111) (104.4) (104) (103.8) (103.3) (102.9) (102.7)
22 21.1/41.2 41.6 41.5 41.3 41.1 41.0
(72′2″) (69′3″/90) (91.7) (91.4) (91) (90.6) (90.3)
24 23.7/35.2 36.9 36.7 36.5 36.4
(78′9″) (77′9″/77) (81.3) (80.9) (80.4) (80.2)
26 33.6 33.0 32.8 32.7
(85′4″) (74) (72.7) (72.3) (72)
28 26.3/31.8 29.8 29.6 29.5
(91′10″) (86′3″/70) (65.6) (65.2) (65)
30 28.9/27.2 26.9 26.9
(98′5″) (94′10″/59) (59.3) (59.3)
32 31.5/23.8 24.5
(104′12″) (103′4″/52) (54)
34 21.5
(111′7″) (47.3)
36
(118′1″)
Counter- 85.2 85.2 85.2 85.2 85.2 85.2 85.2 85.2
weight (187.8) (187.8) (187.8) (187.8) (187.8) (187.8) (187.8) (187.8)
Notes: 1. the rated hoisting capacity specified in the table means the operating condition under which standard counterweight and
additional counterweight are included, while the vertical value specified in the black box means the operating condition under
which only standard counterweight is included.
2. The grey filling part specified in the above table is determined by strength.
Notice: 1. the actual hoisting capacity shall be the value of rated hoisting capacity deducting the weight of hook blocks, wire
ropes and all the spreaders.
2. The rated load shown in the table is the weight of cargo which is slowly and steadily lifted by crane on flat and hard ground
under the non-travel load condition.
3.The load rating is calculated not exceed 75percent of the load depending on stability or structure.
Load Charts of Boom Hook For SCC3000US H Operating Condition
kg(lb)×1000
Length of Main Boom（m）（ft）
4.1: 1/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
Radius（m）
（ft）40.5 43.5 46.5
(132′10″) (142′9″) (152′7″)
8 8.7/120.5
(26′3″) (28′7″/265)
9 118.5 9.2/108.8 9.8/99.5
(29′6″) (261.2) (30′2″/239) (32′2″/219)
10 108.2 104.8 97.8 10.3/93.5 10.3/93.5 10.8/85.6 10.8/85.6
(32′10″) (238.5) (231) (215.6) (33′10″/206) (33′10″/206) (35′5″/188) (35′5″/188)
12 86.5 86.1 85.1 83 83 80.2 80.2
(39′4″) (190.6) (189.8) (187.6) (182.9) (182.9) (176.8) (176.8)
14 75.5 75.3 66.202 64.828 70.8 68.8 68.8
(45′11″) (166.4) (166) (145.9) (142.8) (156) (151.6) (151.6)
16 62.7 62.4 61.5 60.7 61.9 60.0 61.2
(52′6″) (138.2) (137.5) (135.5) (133.8) (136.4) (132.2) (134.9)
18 53.6 53.4 52.8 52.3 53.3 51.6 52.7
(59′1″) (118.1) (117.7) (116.4) (115.3) (117.5) (113.7) (116.1)
20 46.4 46.2 46.0 45.7 46.6 45.1 46.1
(65′7″) (102.2) (101.8) (101.4) (100.7) (102.7) (99.4) (101.6)
22 40.8 40.6 40.3 40.1 40.9 39.9 40.7
(72′2″) (89.9) (89.5) (88.8) (88.4) (90.1) (87.9) (89.7)
24 36.2 36.0 35.7 35.6 36.3 35.3 36.0
(78′9″) (79.8) (79.3) (78.7) (78.4) (80) (77.8) (79.3)
26 32.4 32.2 32.0 31.8 32.5 31.5 32.2
(85′4″) (71.4) (70.9) (70.5) (70.1) (71.6) (69.4) (70.9)
28 29.3 29.1 28.8 28.6 29.2 28.4 29.0
(91′10″) (64.5) (64.1) (63.4) (63) (64.3) (62.6) (63.9)
30 26.6 26.4 26.1 25.9 26.5 25.7 26.3
(98′5″) (58.6) (58.2) (57.5) (57) (58.4) (56.6) (57.9)
32 24.3 24.0 23.8 23.6 24.2 23.4 23.9
(104′12″) (53.5) (52.9) (52.4) (52) (53.3) (51.5) (52.6)
34 22.3 22.0 21.8 21.6 22.1 21.3 21.8
(111′7″) (49.1) (48.5) (48) (47.6) (48.7) (46.9) (48)
36 20.6 20.3 20.1 19.9 20.3 19.6 20.1
(118′1″) (45.4) (44.7) (44.3) (43.8) (44.7) (43.2) (44.3)
38 36.7/19.4 18.8 18.5 18.3 18.8 18.0 18.5
(124′8″) (120′5″/42) (41.4) (40.7) (40.3) (41.4) (39.6) (40.7)
40 39.3/17.3 17.1 16.9 17.3 16.6 17.1
(131′3″) (128′11″/38) (37.6) (37.2) (38.1) (36.5) (37.6)
42 41.9/15.5 15.7 16.1 15.4 15.8
(137′10″) (137′6″/34) (34.6) (35.4) (33.9) (34.8)
44 14.6 15.0 14.3 14.6
(144′4″) (32.1) (33) (31.5) (32.1)
46 44.5/13.7 44.5/14.6 13.3 13.6
(150′11″) (145′12″/30) (145′12″/32) (29.3) (29.9)
48 47.1/11.7 47.1/12.5
(157′6″) (154′6″/25) (154′6″/27)
Counter- 85.2 85.2 85.2 85.2 85.2+5.8 85.2 85.2+5.8
weight (187.8) (187.8) (187.8) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7)
49.5
(162′5″)
52.5
(172′3″)
Load Charts of Boom Hook For SCC3000US H Operating Condition
kg(lb)×1000
Length of Main Boom（m）（ft）
4.1: 2/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
(ft)
10 11.4/82.3 11.4/82.3 11.9/76.8 11.9/76.8
(32′10″) (37′5″/181) (3
7
′5″/181) (39′0″/169) (3
9
′0″/169)
12 76.5 76.5 75.2 75.2 12.4/69.1 12.4/69.1 12.9/67.8 12.9/67.8
(39′4″) (168.6) (168.6) (165.7) (165.7) (40′8″/152) (40′8″/152) (42′4″/149) (42′4″/149)
14 68.3 68.3 63.8 63.8 61.2 61.2 59.2 59.2
(45′11″) (150.5) (150.5) (140.6) (140.6) (134.9) (134.9) (130.5) (130.5)
16 59.3 60.5 57.8 57.8 56.6 56.6 54.9 54.9
(52′6″) (130.7) (133.3) (127.4) (127.4) (124.7) (124.7) (121) (121)
18 51.1 52.1 50.5 51.5 50.0 51.1 49.4 50.5
(59′1″) (112.6) (114.8) (111.3) (113.5) (110.2) (112.6) (108.9) (111.3)
20 44.6 45.5 44.1 45.0 43.7 44.6 43.2 44.1
(65′7″) (98.3) (100.3) (97.2) (99.2) (96.3) (98.3) (95.2) (97.2)
22 39.5 40.3 38.9 39.7 38.6 39.4 38.1 38.9
(72′2″) (87) (88.8) (85.7) (87.5) (85) (86.8) (83.9) (85.7)
24 35.1 35.8 34.7 35.5 34.4 35.2 33.9 34.7
(78′9″) (77.3) (78.9) (76.4) (78.2) (75.8) (77.6) (74.7) (76.4)
26 31.3 32.0 31.1 31.7 30.9 31.6 30.5 31.1
(85′4″) (69) (70.5) (68.5) (69.8) (68.1) (69.6) (67.2) (68.5)
28 28.2 28.8 27.9 28.5 27.8 28.4 27.5 28.1
(91′10″) (62.1) (63.4) (61.5) (62.8) (61.2) (62.6) (60.6) (61.9)
30 25.5 26.1 25.2 25.7 25.0 25.6 24.8 25.3
(98′5″) (56.2) (57.5) (55.5) (56.6) (55.1) (56.4) (54.6) (55.7)
32 23.1 23.7 22.8 23.3 22.7 23.3 22.4 23.0
(104′12″) (50.9) (52.2) (50.2) (51.3) (50) (51.3) (49.3) (50.7)
34 21.1 21.6 20.8 21.3 20.7 21.2 20.4 20.9
(111′7″) (46.5) (47.6) (45.8) (46.9) (45.6) (46.7) (44.9) (46)
36 19.4 19.8 19.0 19.5 18.9 19.4 18.6 19.1
(118′1″) (42.7) (43.6) (41.8) (42.9) (41.6) (42.7) (41) (42.1)
38 17.8 18.2 17.5 17.9 17.4 17.8 17.1 17.5
(124′8″) (39.2) (40.1) (38.5) (39.4) (38.3) (39.2) (37.6) (38.5)
40 16.4 16.8 16.1 16.5 16.0 16.4 15.7 16.1
(131′3″) (36.1) (37) (35.4) (36.3) (35.2) (36.1) (34.6) (35.4)
42 15.2 15.6 14.8 15.2 14.7 15.1 14.4 14.8
(137′10″) (33.5) (34.3) (32.6) (33.5) (32.4) (33.2) (31.7) (32.6)
44 14.1 14.4 13.7 14.1 13.6 14.0 13.3 13.7
(144′4″) (31) (31.7) (30.2) (31) (29.9) (30.8) (29.3) (30.2)
46 13.1 13.4 12.7 13.1 12.6 12.9 12.3 12.6
(150′11″) (28.8) (29.5) (27.9) (28.8) (27.7) (28.4) (27.1) (27.7)
48 12.1 12.4 11.8 12.1 11.6 12.0 11.3 11.7
(157′6″) (26.6) (27.3) (26) (26.6) (25.5) (26.4) (24.9) (25.7)
50 49.7/10.8 49.7/11.2 11.0 11.3 10.8 11.1 10.5 10.8
(164′0″) (163′1″/23) (163′1″/24) (24.2) (24.9) (23.8) (24.4) (23.1) (23.8)
52 10.3 10.3 10.0 10.3 9.7 10.0
(170′7″) (22.7) (22.7) (22) (22.7) (21.3) (22)
54 52.3/9.1 52.3/9.6 9.3 9.6 8.9 9.3
(177′2″) (171′7″/20) (171′7″/21) (20.5) (21.1) (19.6) (20.5)
56 54.9/8.1 54.9/8.5 8.3 8.6
(183′9″) (180′1″/17) (180′1″/18) (18.2) (18.9)
58 57.5/7.2 57.5/7.7
(190′3″) (188′8″/15) (188′8″/16)
Counter- 85.2 85.2+5.8 85.2 85.2+5.8 85.2 85.2+5.8 85.2 85.2+5.8
weight (187.8) (187.8＋12.7) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7)
Load Charts of Boom Hook For SCC3000US H Operating Condition
kg(lb)×1000
Radius（m）55.5 58.5
(182′1″) (191′11″) (201′9″)
61.5 64.5
Length of Main Boom（m）(ft)
(211′7″)
4.1: 3/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
(ft)
12 13.5/63.9 13.5/63.
9
(39
′4″)
(44
′3″/140)
(44
′3″/140)
14 58.5 58.5 57.8 57.
8
14.5/54.8 14.5/54.
8
15.1/50.2 15.1/50.
2
(45′11″) (128.9) (128.9) (127.4) (127.4) (47′7″/120) (4
7
′7″/120) (49′6″/110) (4
9
′6″/110)
16 53.3 53.
3
51.1 51.1 50.2 50.
2
48.9 48.
9
(52
′6″)
(117
.
5)
(117
.
5)
(112
.
6)
(112
.
6)
(110
.
6)
(110
.
6)
(107
.
8)
(107
.
8)
18 48.9 49.
9
48.4 49.
4
47.9 48.
9
46.2 46.
2
(59
′1″)
(107
.
8)
(110)
(106
.
7)
(108
.
9)
(105
.
6)
(107
.
8)
(101
.
8)
(101
.
8)
20 42.6 43.5 42.2 43.1 41.7 42.
6
41.3 42.
2
(65′7″) (93.9) (95.9) (93) (95) (91.9) (93.9) (91) (93)
22 37.6 38.
4
37.2 38.
0
36.7 37.
6
36.4 37.
2
(72′2″) (82.8) (84.6) (82) (83.7) (80.9) (82.8) (80.2) (82)
24 33.5 34.
2
33.1 33.
8
32.7 33.
4
32.3 33.1
(78′9″) (73.8) (75.3) (72.9) (74.5) (72) (73.6) (71.2) (72.9)
26 30.0 30.
7
29.6 30.
3
29.3 29.
9
28.9 29.
6
(85′4″) (66.1) (67.6) (65.2) (66.7) (64.5) (65.9) (63.7) (65.2)
28 27.1 27.
7
26.7 27.
3
26.4 27.
0
26.1 26.
7
(91′10″) (59.7) (61) (58.8) (60.1) (58.2) (59.5) (57.5) (58.8)
30 24.5 25.1 24.2 24.
8
23.9 24.
4
23.6 24.1
(98′5″) (54) (55.3) (53.3) (54.6) (52.6) (53.7) (52) (53.1)
32 22.2 22.
7
21.9 22.5 21.7 22.
3
21.4 21.
9
(104′12″) (48.9) (50) (48.2) (49.6) (47.8) (49.1) (47.1) (48.2)
34 20.1 20.
6
19.9 20.
4
19.7 20.
2
19.5 20.
0
(111′7″) (44.3) (45.4) (43.8) (44.9) (43.4) (44.5) (42.9) (44)
36 18.4 18.
8
18.1 18.
6
17.9 18.
4
17.7 18.
2
(118′1″) (40.5) (41.4) (39.9) (41) (39.4) (40.5) (39) (40.1)
38 16.8 17.
2
16.6 17.
0
16.3 16.
8
16.1 16.
6
(124′8″) (37) (37.9) (36.5) (37.4) (35.9) (37) (35.4) (36.5)
40 15.4 15.
8
15.2 15.
6
14.9 15.
4
14.7 15.1
(131′3″) (33.9) (34.8) (33.5) (34.3) (32.8) (33.9) (32.4) (33.2)
42 14.2 14.
6
13.9 14.
3
13.7 14.1 13.5 13.
9
(137′10″) (31.3) (32.1) (30.6) (31.5) (30.2) (31) (29.7) (30.6)
44 13.0 13.
4
12.8 13.1 12.6 12.
9
12.3 12.
7
(144′4″) (28.6) (29.5) (28.2) (28.8) (27.7) (28.4) (27.1) (27.9)
46 12.0 12.
4
11.8 12.1 11.6 11.
9
11.3 11.
7
(150′11″) (26.4) (27.3) (26) (26.6) (25.5) (26.2) (24.9) (25.7)
48 11.0 11.
4
10.8 11.
2
10.6 10.
9
10.3 10.
7
(157′6″) (24.2) (25.1) (23.8) (24.6) (23.3) (24) (22.7) (23.5)
50 10.2 10.
6
9.9 10.
3
9.7 10.
0
9.4 9.
8
(164′0″) (22.4) (23.3) (21.8) (22.7) (21.3) (22) (20.7) (21.6)
52 9.4 9.
7
9.1 9.
4
8.9 9.
2
8.6 9.
0
(170′7″) (20.7) (21.3) (20) (20.7) (19.6) (20.2) (18.9) (19.8)
54 8.7 9.
0
8.3 8.
7
8.1 8.
4
7.9 8.
2
(177′2″) (19.1) (19.8) (18.2) (19.1) (17.8) (18.5) (17.4) (18)
56 8.0 8.
3
7.7 8.
0
7.4 7.
7
7.2 7.5
(183′9″) (17.6) (18.2) (16.9) (17.6) (16.3) (16.9) (15.8) (16.5)
58 7.4 7.
7
7.1 7.
4
6.8 7.1 6.5 6.
8
(190′3″) (16.3) (16.9) (15.6) (16.3) (14.9) (15.6) (14.3) (14.9)
60 59.9/6.6 59.9/6.
8
6.5 6.
8
6.2 6.5 6.0 6.
3
(196′10″) (196′6″/14) (19
6
′6″/14) (14.3) (14.9) (13.6) (14.3) (13.2) (13.8)
62 5.9 6.
2
5.7 6.
0
5.4 5.
7
(203′5″) (13) (13.6) (12.5) (13.2) (11.9) (12.5)
64 62.7/5.3 62.7/5.
9
5.1 5.
4
4.9 5.
2
(209′12″) (205′8″/11) (20
5
′8″/13) (11.2) (11.9) (10.8) (11.4)
66 65.3/4.5 65.3/4.
9
4.4 4.
7
(216′6″) (214′3″/9) (21
4
′3″/10) (9.7) (10.3)
68 67.9/3.6 67.9/4.1
(223′1″) (222′9″/7) (22
2
′9″/9)
Counter- 85.2 85.2+5.8 85.2 85.2+5.8 85.2 85.2+5.8 85.2 85.2+5.8
weight (187.8) (187.8＋12.7) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7)
(221′5″) (231′4″) (241′2″) (250′12″)
Load Charts of Boom Hook For SCC3000US H Operating Condition
kg(lb)×1000
Radius（m）70.5 73.5 76.5
Length of Main Boom（m）(ft)
67.5
4.1: 4/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
(ft)
14 15.6/45.8 15.6/45.8
(45′11″) (51′2″/100) (51′2″/100)
16 45.5 45.5 16.1/42.8 16.1/42.8 16.6/38.9 16.6/38.9 17.2/34.2 17.2/34.2
(52′6″) (100.3) (100.3) (52′10″/94) (52′10″/94) (54′6″/85) (54′6″/85) (56′5″/75) (56′5″/75)
18 43.2 43.2 39.3 39.3 36.5 36.5 33.4 33.4
(59′1″) (95.2) (95.2) (86.6) (86.6) (80.4) (80.4) (73.6) (73.6)
20 40.8 41.7 37.8 37.8 34.1 34.1 32.2 32.2
(65′7″) (89.9) (91.9) (83.3) (83.3) (75.1) (75.1) (70.9) (70.9)
22 35.9 36.7 35.4 36.2 32.4 32.4 29.7 29.7
(72′2″)(79.1) (80.9) (78) (79.8) (71.4) (71.4) (65.4) (65.4)
24 31.8 32.6 31.4 32.1 31.0 30.7 28.6 28.6
(78′9″) (70.1) (71.8) (69.2) (70.7) (68.3) (67.6) (63) (63)
26 28.5 29.1 28.1 28.7 27.7 28.3 25.9 25.9
(85′4″) (62.8) (64.1) (61.9) (63.2) (61) (62.3) (57) (57)
28 25.6 26.2 25.2 25.8 24.8 25.4 24.4 24.0
(91′10″) (56.4) (57.7) (55.5) (56.8) (54.6) (55.9) (53.7) (52.9)
30 23.2 23.7 22.8 23.3 22.4 22.9 22.0 22.5
(98′5″) (51.1) (52.2) (50.2) (51.3) (49.3) (50.4) (48.5) (49.6)
32 21.0 21.5 20.6 21.1 20.2 20.8 19.9 20.4
(104′12″)(46.2) (47.3) (45.4) (46.5) (44.5) (45.8) (43.8) (44.9)
34 19.1 19.6 18.7 19.2 18.4 18.9 18.0 18.5
(111′7″) (42.1) (43.2) (41.2) (42.3) (40.5) (41.6) (39.6) (40.7)
36 17.4 17.9 17.0 17.5 16.7 17.2 16.3 16.8
(118′1″) (38.3) (39.4) (37.4) (38.5) (36.8) (37.9) (35.9) (37)
38 15.9 16.3 15.5 16.0 15.2 15.7 14.9 15.3
(124′8″) (35) (35.9) (34.1) (35.2) (33.5) (34.6) (32.8) (33.7)
40 14.5 14.9 14.2 14.6 13.9 14.3 13.5 13.9
(131′3″) (31.9) (32.8) (31.3) (32.1) (30.6) (31.5) (29.7) (30.6)
42 13.2 13.6 12.9 13.3 12.7 13.1 12.3 12.7
(137′10″)(29.1) (29.9) (28.4) (29.3) (27.9) (28.8) (27.1) (27.9)
44 12.1 12.4 11.8 12.2 11.5 11.9 11.2 11.6
(144′4″) (26.6) (27.3) (26) (26.8) (25.3) (26.2) (24.6) (25.5)
46 11.0 11.4 10.7 11.1 10.4 10.8 10.1 10.5
(150′11″) (24.2) (25.1) (23.5) (24.4) (22.9) (23.8) (22.2) (23.1)
48 10.0 10.4 9.7 10.1 9.5 9.9 9.1 9.5
(157′6″) (22) (22.9) (21.3) (22.2) (20.9) (21.8) (20) (20.9)
50 9.1 9.5 8.9 9.2 8.6 8.9 8.2 8.6
(164′0″) (20) (20.9) (19.6) (20.2) (18.9) (19.6) (18) (18.9)
52 8.3 8.7 8.0 8.3 7.7 8.1 7.4 7.8
(170′7″)(18.2) (19.1) (17.6) (18.2) (16.9) (17.8) (16.3) (17.1)
54 7.6 7.9 7.3 7.6 7.0 7.4 6.7 7.0
(177′2″) (16.7) (17.4) (16) (16.7) (15.4) (16.3) (14.7) (15.4)
56 6.9 7.2 6.6 6.9 6.4 6.7 6.0 6.3
(183′9″) (15.2) (15.8) (14.5) (15.2) (14.1) (14.7) (13.2) (13.8)
58 6.2 6.5 6.0 6.2 5.7 6.0 5.3 5.6
(190′3″) (13.6) (14.3) (13.2) (13.6) (12.5) (13.2) (11.6) (12.3)
60 5.7 6.0 5.4 5.7 5.1 5.4 4.8 5.0
(196′10″) (12.5) (13.2) (11.9) (12.5) (11.2) (11.9) (10.5) (11)
62 5.1 5.4 4.8 5.1 4.6 4.8 4.2 4.5
(203′5″)(11.2) (11.9) (10.5) (11.2) (10.1) (10.5) (9.2) (9.9)
64 4.6 4.9 4.3 4.5 4.0 4.3 3.7 4.0
(209′12″) (10.1) (10.8) (9.4) (9.9) (8.8) (9.4) (8.1) (8.8)
66 4.1 4.4 3.8 4.1 3.5 3.8 3.2 3.5
(216′6″) (9) (9.7) (8.3) (9) (7.7) (8.3) (7) (7.7)
68 3.7 3.9 3.3 3.6 3.1 3.3 2.7 3.0
(223′1″) (8.1) (8.5) (7.2) (7.9) (6.8) (7.2) (5.9) (6.6)
70 3.5 3.5 2.9 3.2 2.7 2.9 2.4 2.6
(229′8″) (7.7) (7.7) (6.3) (7) (5.9) (6.3) (5.2) (5.7)
72 2.5 2.8 2.3 2.5
(236′3″)(5.5) (6.1) (5) (5.5)
Counter- 85.2 85.2+5.8 85.2 85.2+5.8 85.2 85.2+5.8 85.2 85.2+5.8
weight (187.8) (187.8＋12.7) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7)
(260′10″) (270′8″) (280′6″) (290′4″)
Load Charts of Boom Hook For SCC3000US H Operating Condition
kg(lb)×1000
Radius（m）Length of Main Boom（m）(ft)
85.5 88.579.5 82.5
4.1: 5/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
(ft) (ft)
16 17.7/33.1 17.7/33.1 16
(52′6″) (58′1″/72) (58′1″/72) (52′6″)
18 30.8 30.8 18
(59′1″) (67.9) (67.9) (59′1″)
20 29.9 29.9 20
(65′7″) (65.9) (65.9) (65′7″)
22 28.3 28.3 22
(72′2″) (62.3) (62.3) (72′2″)
24 27.1 27.1 24
(78′9″) (59.7) (59.7) (78′9″)
26 25.1 25.1 26
(85′4″) (55.3) (55.3) (85′4″)
28 23.0 23.0 28
(91′10″) (50.7) (50.7) (91′10″)
30 21.1 21.1 30
(98′5″) (46.5) (46.5) (98′5″)
32 19.5 20.0 32
(104′12″) (42.9) (44) (104′12″)
34 17.6 18.1 34
(111′7″) (38.8) (39.9) (111′7″)
36 15.9 16.4 36
(118′1″) (35) (36.1) (118′1″)
38 14.5 14.9 38
(124′8″) (31.9) (32.8) (124′8″)
40 13.1 13.5 40
(131′3″) (28.8) (29.7) (131′3″)
42 11.9 12.3 42
(137′10″) (26.2) (27.1) (137′10″)
44 10.8 11.2 44
(144′4″) (23.8) (24.6) (144′4″)
46 9.8 10.1 46
(150′11″) (21.6) (22.2) (150′11″)
48 8.8 9.2 48
(157′6″) (19.4) (20.2) (157′6″)
50 7.9 8.3 50
(164′0″) (17.4) (18.2) (164′0″)
52 7.1 7.5 52
(170′7″) (15.6) (16.5) (170′7″)
54 6.4 6.7 54
(177′2″) (14.1) (14.7) (177′2″)
56 5.7 6.0 56
(183′9″) (12.5) (13.2) (183′9″)
58 5.1 5.4 58
(190′3″) (11.2) (11.9) (190′3″)
60 4.5 4.7 60
(196′10″) (9.9) (10.3) (196′10″)
62 3.9 4.2 62
(203′5″) (8.5) (9.2) (203′5″)
64 3.4 3.7 64
(209′12″) (7.4) (8.1) (209′12″)
66 2.9 3.1 66
(216′6″) (6.3) (6.8) (216′6″)
68 2.4 2.7 68
(223′1″) (5.2) (5.9) (223′1″)
70 70
(229′8″) (229′8″)
Counter- 85.2 85.2+5.8
weight (187.8) (187.8＋12.7)
(300′2″)
Load Charts of Boom Hook For SCC3000US H Operating Condition
kg(lb)×1000
Radius（m）Radius（m）
91.5
Length of Main Boom（m）(ft)
4.1: 6/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
SCC3000US Crawler Crane―Operation Manual
Section 4-Load Charts
- 10/16 -
4.2 Load Charts of Boom Hook for HC Operating Condition
Boom Combination of HC Operating Condition
Boom Length
(m)(ft)
Boom Insert(m)(ft)
3
m(9′10″)
6
m(19′8″)
12
m(39′4″)
16.5 (54′2″) - - -
19.5 (63′12″) 1 - -
22.5 (73′10″) - 1 -
25.5 (83′8″) 1 1 -
28.5 (93′6″) - - 1
31.5 (103′4″) 1 - 1
34.5 (113′2″) - 1 1
37.5 (123′) 1 1 1
40.5 (132′10″) - - 2
43.5 (142′9″) 1 - 2
46.5 (152′7″) - 1 2
49.5 (162′5″) 1 1 2
52.5 (172′3″) - - 3
55.5 (182′1″) 1 - 3
58.5 (191′11″) - 1 3
61.5 (201′9″) 1 1 3
64.5 (211′7″) - - 4
67.5 (221′5″) 1 - 4
70.5 (231′4″) - 1 4
73.5 (241′2″) 1 1 4
76.5 (251′) - - 5
79.5 (260′10″) 1 - 5
82.5 (270′8″) - 1 5
85.5 (280′6″) 1 1 5
88.5 (290′4″) - 2 5
91.5 (300′2″) 1 2 5
HC Operating Condition
Load Charts of Boom Hook For SCC2500C HC Operating Condition
Boom Combination of HC Operating
Condition
Boom Length Boom Insert
（m）
3 m
(9 10")
6 m
(19 8")
12 m
(39 4")
16.5 (54 2") ---
19.5 (63 12") 1--
22.5 (73 10") -1-
25.5 (83 8") 11-
28.5 (93 6") --1
31.5 (103 4") 1-1
34.5 (113 2") -11
37.5 (123 ) 111
40.5 (132 10") --2
43.5 (142 9") 1-2
46.5 (152 7") -12
49.5 (162 5") 112
52.5 (172 3") --3
55.5 (182 1") 1-3
58.5 (191 11") -13
61.5 (201 9") 113
64.5 (211 7") --4
67.5 (221 5") 1-4
70.5 (231 4") -14
73.5 (241 2") 114
76.5 (251 ) --5
79.5 (260 10") 1-5
82.5 (270 8") -15
85.5 (280 6") 115
88.5 (290 4") -25
91.5 (300 2") 125
HC Operating Condition
Boom Hook
12m(39'4'')Boom insert
(5 sections)
Boom tip 8.5m (27'10")
6m (19'8'')Boom insert
(2 sections)
3m (9'10'')Boom insert
(1 sections)
Boom base 8m (26'3'')
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
16.5 19.5 22.5 25.5 28.5 31.5 34.5 37.5
(ft) (54′2″) (63′12″) (73′10″) (83′8″) (93′6″) (103′4″) (113′2″) (123′0″)
4.0 4.8/271
(13′1″) (15′9″/597)
5.0 235.0 228.0 5.4/206
(16′5″) (518) (502.6) (17′9″/454)
6.0 195.8 193.0 190.7 5.9/183 6.6/175
(19′8″) (431.6) (425.4) (420.4) (19′4″/403) (21′8″/385)
7.0 168.4 167.7 166.7 166.1 165.2 7.1/155 7.7/145
(22′12″) (371.2) (369.7) (367.5) (366.1) (364.1) (23′4″/341) (25′3″/319)
8.0 147.7 147.0 146.1 145.3 145.1 145.0 142.8 8.2/127.7
(26′3″) (325.6) (324) (322) (320.3) (319.8) (319.6) (314.8) (26′11″/281)
9.0 132.0 131.1 129.7 129.4 128.4 127.8 127.3 125.1
(29′6″) (291) (289) (285.9) (285.2) (283) (281.7) (280.6) (275.7)
10.0 120.0 119.2 117.3 116.4 115.9 115.6 115.3 111.6
(32′10″)(264.5) (262.7) (258.5) (256.6) (255.5) (254.8) (254.1) (246)
12.0 94.1 94.1 94.0 94.0 94.0 94.0 93.2 92.9
(39′4″) (207.4) (207.4) (207.2) (207.2) (207.2) (207.2) (205.4) (204.8)
14.0 75.3 75.2 75.2 75.2 75.2 75.2 75.1 75.0
(45′11″) (166) (165.7) (165.7) (165.7) (165.7) (165.7) (165.5) (165.3)
16.0 15.9/52.5 63.5 63.1 62.9 62.9 62.9 62.8 62.7
(52′6″) (52′2″/115) (139.9) (139.1) (138.6) (138.6) (138.6) (138.4) (138.2)
18.0 54.8 53.6 53.6 53.6 53.6 53.4 53.3
(59′1″) (120.8) (118.1) (118.1) (118.1) (118.1) (117.7) (117.5)
20.0 18.5/50 46.9 46.7 46.6 46.4 46.2 46.1
(65′7″) (60′8″/110) (103.3) (102.9) (102.7) (102.2) (101.8) (101.6)
22.0 21.1/40.2 41.1 41.0 40.8 40.6 40.5
(72′2″) (69′3″/88) (90.6) (90.3) (89.9) (89.5) (89.2)
24.0 23.7/34.7 36.4 36.2 36.0 35.9
(78′9″) (77′9″/76) (80.2) (79.8) (79.3) (79.1)
26.0 33.1 32.5 32.3 32.2
(85′4″) (72.9) (71.6) (71.2) (70.9)
28.0 26.3/31.3 29.3 29.1 29.0
(91′10″) (86′3″/69) (64.5) (64.1) (63.9)
30.0 28.9/26.7 26.4 26.4
(98′5″) (94′10″/58) (58.2) (58.2)
32.0 31.5/23.3 24.0
(104′12″) (103′4″/51) (52.9)
34.0 21.0
(111′7″) (46.2)
Counter- 85.2 85.2 85.2 85.2 85.2 85.2 85.2 85.2
weight (187.8) (187.8) (187.8) (187.8) (187.8) (187.8) (187.8) (187.8)
Notes: 1. the rated hoisting capacity specified in the table means the operating condition under which standard
counterweight and additional counterweight are included, while the vertical value specified in the black box means the
operating condition under which only standard counterweight is included.
2. The grey filling part specified in the above table is determined by strength.
Notice: 1. the actual hoisting capacity shall be the value of rated hoisting capacity deducting the weight of hook blocks, wire
ropes and all the spreaders.
2. The rated load shown in the table is the weight of cargo which is slowly and steadily lifted by crane on flat and hard
ground under the non-travel load condition.
3.The load rating is calculated not exceed 75percent of the load depending on stability or structure.
Load Charts of Boom Hook For SCC3000US HC Operating Condition
(including extension Jib and ball hook) Unit：Kg(lb)×1000
Length of Main Boom（m）(ft)
Radius（m）
4.2: 1/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
40.5 43.5 46.5
(ft) (132′10″) (142′9″) (152′7″)
8.0 8.7/120
(26′3″) (28′7″/264)
9.0 118.0 9.2/108.3 9.8/99
(29′6″) (260.1) (30′2″/238) (32′2″/218)
10.0 107.7 104.3 97.3 10.3/93 10.3/93 10.8/85.1 10.8/85.1
(32′10″) (237.4) (229.9) (214.5) (33′10″/205) (33′10″/205) (35′5″/187) (35′5″/187)
12.0 86.0 85.6 84.6 82.5 82.5 79.7 79.7
(39′4″) (189.5) (188.7) (186.5) (181.8) (181.8) (175.7) (175.7)
14.0 75.0 74.8 65.7 64.3 70.3 68.3 68.3
(45′11″) (165.3) (164.9) (144.8) (141.7) (154.9) (150.5) (150.5)
16.0 62.2 61.9 61.0 60.2 61.4 59.5 60.7
(52′6″) (137.1) (136.4) (134.4) (132.7) (135.3) (131.1) (133.8)
18.0 53.1 52.9 52.3 51.8 52.8 51.1 52.2
(59′1″) (117) (116.6) (115.3) (114.1) (116.4) (112.6) (115)
20.0 45.9 45.7 45.5 45.2 46.1 44.6 45.6
(65′7″) (101.1) (100.7) (100.3) (99.6) (101.6) (98.3) (100.5)
22.0 40.3 40.1 39.8 39.6 40.4 39.4 40.2
(72′2″) (88.8) (88.4) (87.7) (87.3) (89) (86.8) (88.6)
24.0 35.7 35.5 35.2 35.1 35.8 34.8 35.5
(78′9″) (78.7) (78.2) (77.6) (77.3) (78.9) (76.7) (78.2)
26.0 31.9 31.7 31.5 31.3 32.0 31.0 31.7
(85′4″) (70.3) (69.8) (69.4) (69) (70.5) (68.3) (69.8)
28.0 28.8 28.6 28.3 28.1 28.7 27.9 28.5
(91′10″) (63.4) (63) (62.3) (61.9) (63.2) (61.5) (62.8)
30.0 26.1 25.9 25.6 25.4 26.0 25.2 25.8
(98′5″) (57.5) (57) (56.4) (55.9) (57.3) (55.5) (56.8)
32.0 23.8 23.5 23.3 23.1 23.7 22.9 23.4
(104′12″) (52.4) (51.8) (51.3) (50.9) (52.2) (50.4) (51.5)
34.0 21.8 21.5 21.3 21.1 21.6 20.8 21.3
(111′7″) (48) (47.3) (46.9) (46.5) (47.6) (45.8) (46.9)
36.0 20.1 19.8 19.6 19.4 19.8 19.1 19.6
(118′1″) (44.3) (43.6) (43.2) (42.7) (43.6) (42.1) (43.2)
38.0 36.7/18.9 18.3 18.0 17.8 18.3 17.5 18.0
(124′8″) (120′5″/41) (40.3) (39.6) (39.2) (40.3) (38.5) (39.6)
40.0 39.3/16.8 16.6 16.4 16.8 16.1 16.6
(131′3″) (128′11″/37) (36.5) (36.1) (37) (35.4) (36.5)
42.0 41.9/15 15.2 15.6 14.9 15.3
(137′10″) (137′6″/33) (33.5) (34.3) (32.8) (33.7)
44.0 14.1 14.5 13.8 14.1
(144′4″) (31) (31.9) (30.4) (31)
46.0 44.5/13.2 44.5/14.1 12.8 13.1
(150′11″) (145′12″/29) (145′12″/31) (28.2) (28.8)
48.0 47.1/11.2 47.1/12
(157′6″) (154′6″/24) (154′6″/26)
50.0
(164′0″)
Counter- 85.2 85.2 85.2 85.2 85.2+5.8 85.2 85.2+5.8
weight (187.8) (187.8) (187.8) (187.8) (187.8＋12.7) (187.8) (187.8＋12.7)
(162′5″) (172′3″)
52.549.5
Radius（m）Length of Main Boom（m）(ft)
Load Charts of Boom Hook For SCC3000US HC Operating Condition
(including extension Jib and ball hook) Unit：Kg(lb)×1000
4.2: 2/6
View thousands of Crane Specifications on FreeCraneSpecs.com
View thousands of Crane Specifications on FreeCraneSpecs.com
Table of contents
Other SANY Construction Equipment manuals
