Sanyipace F927ADFB User manual

FHD Sewer Pipe Inspection Camera
User Manual
-----------------------------------------------------------------------------------------------------------------------------------------
Please contact us at the first time if you got issues with the product
[e-mail]

Catalog
1. Notice ............................................................................................. 1
2. Range of Product Use ....................................................................1
3. Product Specification ..................................................................... 1
4. Product Parts and Operation ..........................................................2
(1) Display Screen ......................................................................... 2
(2) Camera (IP68 waterproof) ....................................................... 5
(3) Cable Coil .................................................................................5
(4) 4500mAh Battery ..................................................................... 6
(5) Power Charger ......................................................................... 6
(6) Remote Control ........................................................................ 7
5. Accessories List ..............................................................................7
6. Device Installation .......................................................................... 8
7. Failure and Diagnosis .................................................................... 9
8. Warranty ....................................................................................... 10
Attention: The illustrations and screenshots of this manual are to explain the
product's operation, which may be a little different from actual products due to
the products' version upgrades and different production batches. If the content
in this manual does not match your machine, please refer to the machine!

1
1. Notice
a. Please read the manual carefully before using the product.
b. Handle the device with care when operating, do not drop or push hard.
c. Do not dismantle the machine without permission.
d. Please turn off the monitor and disconnect the device after use.
e. Before inserting the TF card into the device, please back up the
information on the TF card to avoid loss of information.
f. Do not cut off the power suddenly during recording and playback,
otherwise, the product and video files may be damaged.
2. Range of Product Use
a. Household pipeline blockage inspection
b. Pipe inspection camera, pipeline tools
c. Underground water pipes, HVAC systems, oil and gas pipelines
d. Rescue operations in narrow spaces
e. For underground exploration
f. Scientific research on underwater riverbeds
g. Sewer system inspection
h. Any other hard-to-reach locations/areas
3. Product Specification
---Camera and Cable---
Sensor: 1/3 CMOS
Camera resolution: 1000TVL
Camera diameter: 0.9in/23mm
Camera light source: 12pcs 1W high white LED (adjustable)
Camera angle: 145-degree
Camera material: stainless steel, sapphire lens, IP68 waterproof
Camera protective cover size: 1.5in*1.1in/38mm*28mm
Camera pipe pulley: 5.1in*1.1in/130mm*28mm

2
Cable Length: 66ft/20m, 100ft/30m, 164ft/50m (optional)
Cable diameter and material: 0.2in/5mm high elastic cable
---Monitor Screen---
Size: 7-inch
Camera/monitor picture: color IPS LCD
SD card: package includes 16GB card, support max 128GB
Display resolution: 16:9, 1024*600 IPS
Menu Language：English/Germany/French optional
Display port: power input/Video
Display video format: AVI with Year,Month,Date,Time and Seconds
Display operate: button and remote control
Working temperature: -4~140℉/-20~60℃
Storage temperature: -22~176℉/-30~80℃
---Battery Box---
Charger: 100VAC-240VAC/DC 12.6V 1000MA
Charging time: about 5 hours
Battery: lithium battery 12V 4500mAh
Battery continuous working time: about 6-8 hours
4. Product Parts and Operation

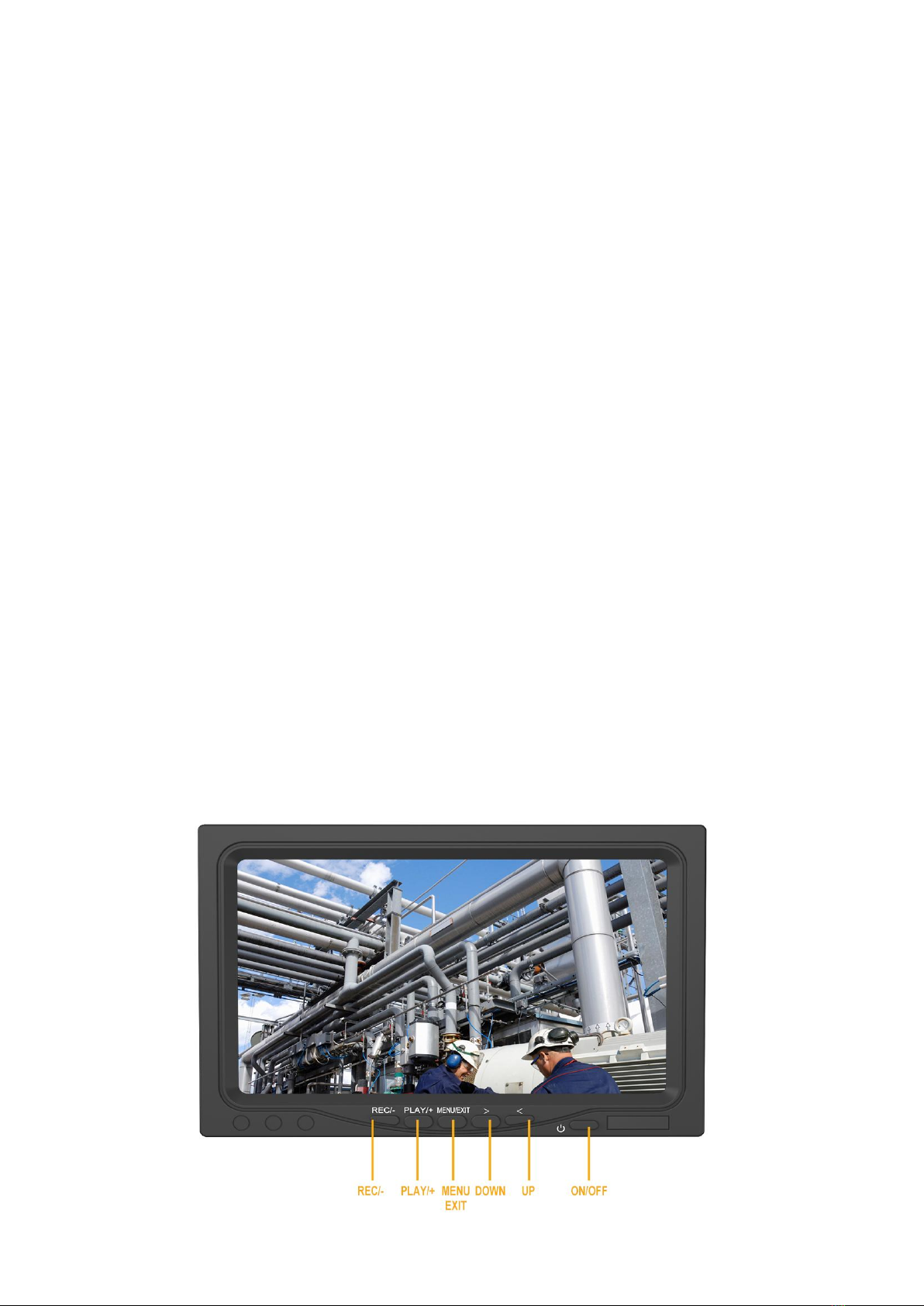

(1) Display Screen

3
Display Operation:
-Menu setting (need to exit the REC mode)
Press MENU enter, Press "<" ">" to select, press “Rec/- ” to confirm your
selection, Press EXIT to back. you can set display setting/playback/video
setting/storage/system setting.
-How to zoom in image during recording:
Press "<" to zoom in 0-5 x, press it 5 times to zoom in to the limit, and at the
6th time press to return to normal.
-How to record a video:
Press “Rec/- ” to start recording, press “Rec/- ” again to stop.
-How to take a snapshot:
Pres “>” to take a photo quickly.
-Video Browsing:
Press “PLAY/+” first time to enter photo viewing, press it second time to
enter video playback, press it again to exit. Press “>””<” to select, press
“REC/-” to play.
-How to delete the picture or video:
Press “PLAY/+” to enter photo/video viewing, press “>” to choose one of the
pictures or videos, press “MENU” and “>” to enter selection of delete or
delete all, press “REC” to confirm the selection, press “PLAY” again to exit.
-How to revise the video length of recording:
The recorded video will be divided into fixed-length videos and stored on
the memory card, the default duration is 3mins, you can revise it to up to
10mins. press "Menu" and ">" to choose "Video Menu" and press "REC/-"
times to revise it to 5mins, 10mins, 1mins, or 3mins, at last press "Menu" to
exit.

4
-How to remove the screen and take out the memory card:
A. Press the buttons on both sides of the display at the same time to pop
the display out.
B. There is an SD card slot on the left side of the display. press the card to
pop it out.

5
(2) Camera (IP68 waterproof)
(3) Cable Coil
Put the cable on the hook, pull to release, or push back to coil the cable.

6

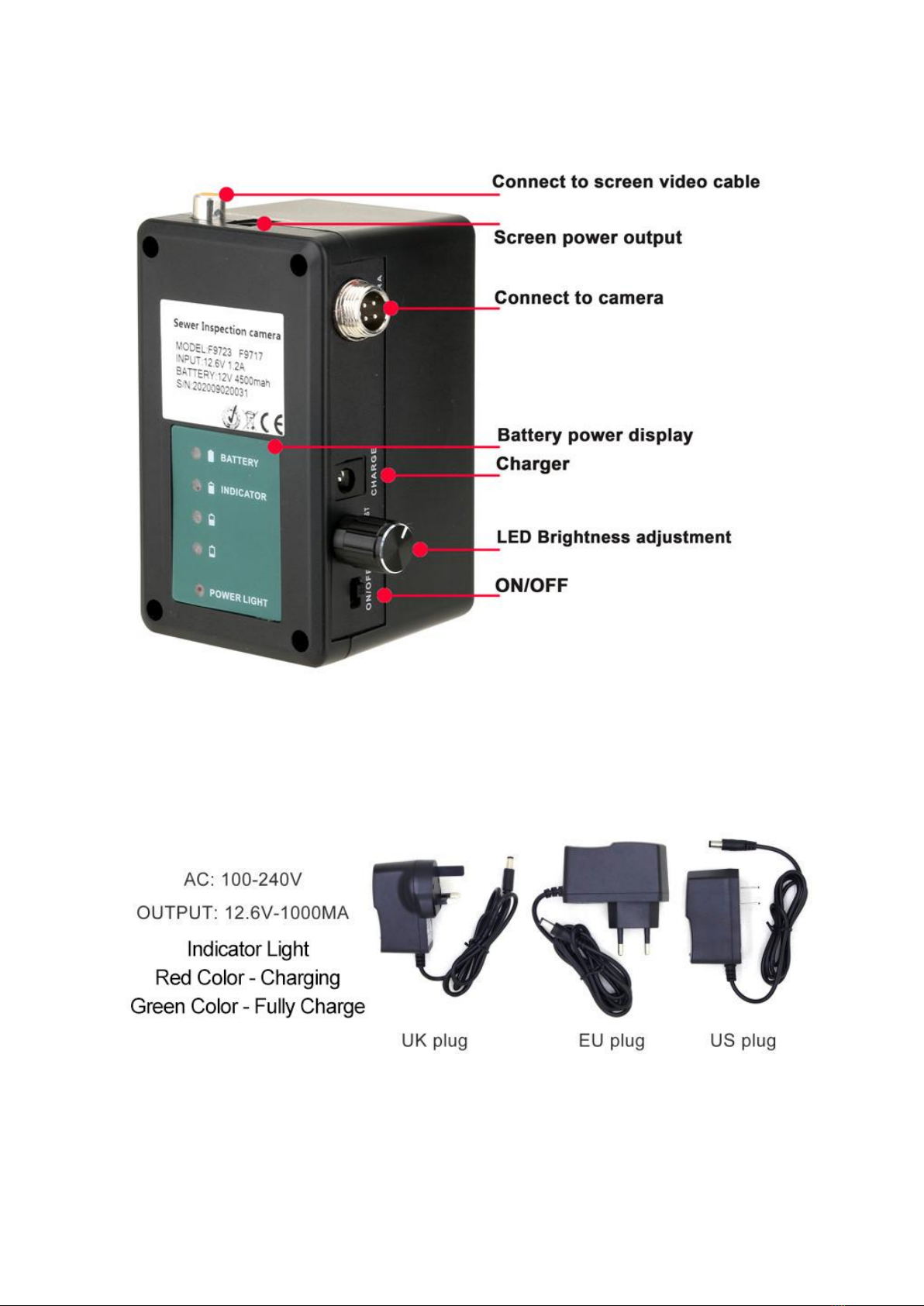

(4) 4500mAh Battery
(5) Power Charger
When the battery is low power (< 20% ), please recharge it, the charging time
is about 4-5 hours. Working time is 6-8 hours after full charging
Note: To make sure the battery has longer use age, please recharge it timely;

7
otherwise, the battery may be damaged.
(6) Remote Control
Please be noted that the transparent insulating card protects the battery, you
need to remove it before use.
VIDEO SELECT: function same with the screen button “PLAY/+”
MODE SELECT: function same with the screen button “REC/-”
◀: function same with the screen button “<”
▶: function same with the screen button “>”
5. Accessories List
①aluminum box *1 ②display * 1 ③battery * 1 ④connection cable * 1
⑤cable coil *1 ⑥camera head * 1 ⑦camera protective cover * 1
⑧pipe pulley * 1 ⑨16GB SD card ⑩charger * 1
⑪remote control * 1 ⑫mini screwdriver * 1

8
6. Device Installation

9
7. Failure and Diagnosis
Common problems /
faults
Solutions
No power
a. Check whether each interface is connected
correctly;
b. Check whether the battery is out of power, check
the power display.
Can't record
a. Whether the SD card is inserted correctly;
b. Insufficient SD card memory;
c. Check whether the power off during the
recording process.
Can not be charged
a. Is the DC adapter plug-in correctly;
b. Check if the indicator light of the DC adapter is
on.

10
8. Warranty
----Contact Us----
Go to our website to download the user manual or view more products:
https://www.sanyipace.com
Website After-sale: serv[email protected]m
Amazon After-sale: [e-mail]
Facebook: Sanyipace
WhatsApp: [phone]
No signal
a. Check if the connection is well connected and
make sure all cable is correct connected;
b. Check the camera head. and slowly rotate the
connection adjust its tightness.
Recording videos in
black and white color
Adjust the LED light button to the appropriate
brightness, observe the screen display, and select
a brightness that is clearer and more colorful.
Screen display turn
blue
a. Check the video cable if wrong connected, and
reconnected it to battery;
b. The video cable is broken, need to replace the
new video cable. contact seller or our customer
service email for help.
Video works ok but
LED doesn't work
a. Check if you turn on the led or not, try to rotate
the knob on the battery to adjust the brightness;
b. Rotate the camera connector a little tighter or
looser, check if it works or not;
c. Use voltage tester pen to test all the connector,
find out the broken part and contact seller for free
replace.
