Sanyipace F929ADFBAB8R User manual

FHD Sewer Camera with
512Hz Transmitter and Detector Locator
Set
User Manual
----------------------------------------------------------------------------------------------------------------------
Please contact us at the first time if you got issues with the product
[e-mail]

Catalog
1. Notice ............................................................................................1
2. Range of Product Use ..................................................................1
3. Product Specification ....................................................................1
4. 9’’ LCD Monitor Operation ............................................................2
5. 4500mAh Battery ..........................................................................4
6. Power Charger ............................................................................. 5
7. Cable Coil ..................................................................................... 5
8. Remote Controller ........................................................................ 6
9. Camera with Self-leveling Function & 512Hz Transmitter .......... 7
10. 512HZ Locator Detector .............................................................8
11. Wire Diagram ............................................................................10
12. Failure and Diagnosis .............................................................. 11
13. Warranty ................................................................................... 12
Attention: The illustrations and screenshots of this manual are to
explain the product's operation, which may be a little different from
actual products due to the products' version upgrades and different
production batches. If the content in this manual does not match
your machine, please refer to the machine!

—1—
1. Notice
a. Please read the manual carefully before using the product.
b. Handle the device with care when operating, do not drop or
push hard.
c. Do not dismantle the machine without permission.
d. Please turn off the monitor and disconnect the device after
use.
e. Before inserting the TF card into the device, please back up
the information on the TF card to avoid loss of information.
f. Do not cut off the power suddenly during recording and
playback, otherwise, the product and video files may be
damaged.
2. Range of Product Use
a. Household pipeline blockage inspection
b. Pipe inspection camera, pipeline tools
c. Underground water pipes, HVAC systems, oil and gas
pipelines
d. Rescue operations in narrow spaces
e. For underground exploration
f. Scientific research on underwater riverbeds
g. Sewer system inspection
h. Any other hard-to-reach locations/areas
3. Product Specification
---Camera and Cable---
Sensor: 1/3 CMOS
Resolution: AHD 1080P
Camera angle: 145 degrees

—2—
Camera diameter: 0.9in/23mm (built-in 512Hz transmitter,
self-leveling)
Camera light source: 12pcs 1W high white LED (adjustable)
Camera material: stainless steel, sapphire lens, IP68 waterproof
Camera protective cover size: 1.5in*1.1in/38mm*28mm
Camera pipe pulley: 5.1in*1.1in/130mm*28mm
Cable Length: 100ft/30m, 164ft/50m (optional)
Cable diameter and material: 0.2in/5mm high elastic cable
---Monitor Screen---
Size: 9-inch
Camera/monitor picture: IPS LCD color
Monitor input voltage: DC 12V
TF card: package includes 16GB card, support max 128GB
Display resolution: 1024*600 IPS
Menu Language: English/Germany/French optional
Screen port: power input/video
Screen operation: press buttons
Video format: AVI with Year,Month,Date,Time and Seconds
Photo format: JPG
Working temperature: -4~140℉/-20~60℃
Storage temperature: -22~176℉/-30~80℃
---Battery Box---
Charger: 100VAC-240VAC/DC 12.6V 1000MA
Charging time: about 5 hours
Battery: lithium battery 12V 4500mAh
Battery continuous working time: about 6-8 hours
4. 9’’ LCD Monitor Operation
(Built-in microphone and speaker)

—3—
Display Operation :
-Turn on
Connect each component, turn on the switch button on battery
and press the power button on screen, the system starts working
-Menu setting (need to exit the REC mode)
Press MENU to enter, Press "<" ">" to select, press “Rec/- ” to
confirm your selection, Press EXIT to back. you can set display
setting/playback/video setting/storage/system setting.
-How to zoom in image when recording
Press "<" to zoom in and 5 gears in total, press it 5 times to zoom
in to the limit, and at the 6th time pressing to return to normal
-How to record a video
Press “Rec/- ” to start recording , press “Rec/- ” again to stop.
-How to take a snapshot
Press “>” to take photo quickly
-Video Browsing
press “PLAY/+” first time to enter photo viewing, press it second
time to enter video playback, press it again to exit.
Press “>” “<” to select, press “REC/-” to play.

—4—
-How to delete the picture or video
press “PLAY/+” to enter photo/video viewing, press “>” to choose
one of the pictures or videos, press “MENU” and “>” to enter
selection of delete or delete all, press “REC” to confirm the
selection, press “PLAY/+” again to exit.
-How to revise the video length of recording
The recorded video will be divided into fixed-length videos and
stored on the memory card, the default duration is 3mins, you can
revise it to up to 10mins. press "Menu" and ">" to choose "Video
Menu" and press "REC/-" times to revise it to 5mins, 10mins,
1mins or 3mins, at last press "Menu" to exit
-How to turn off the audio record function
Press Menu "Menu" and ">" to choose "system setting", press
"REC/-" go to the sub-option, press ">" to find "sound settings",
press "REC/-" to turn on or off, press Menu to exit

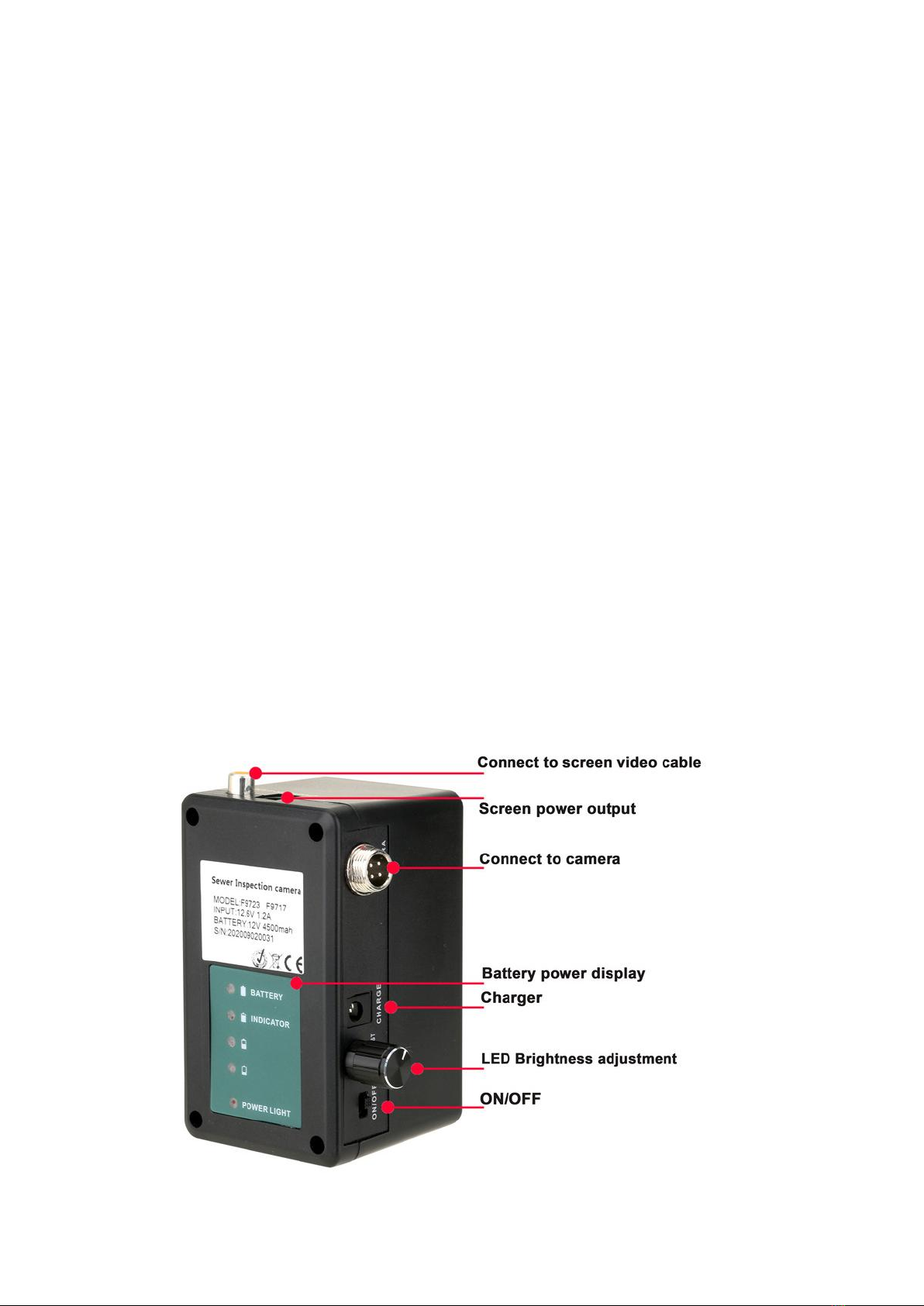

5. 4500mAh Battery

—5—

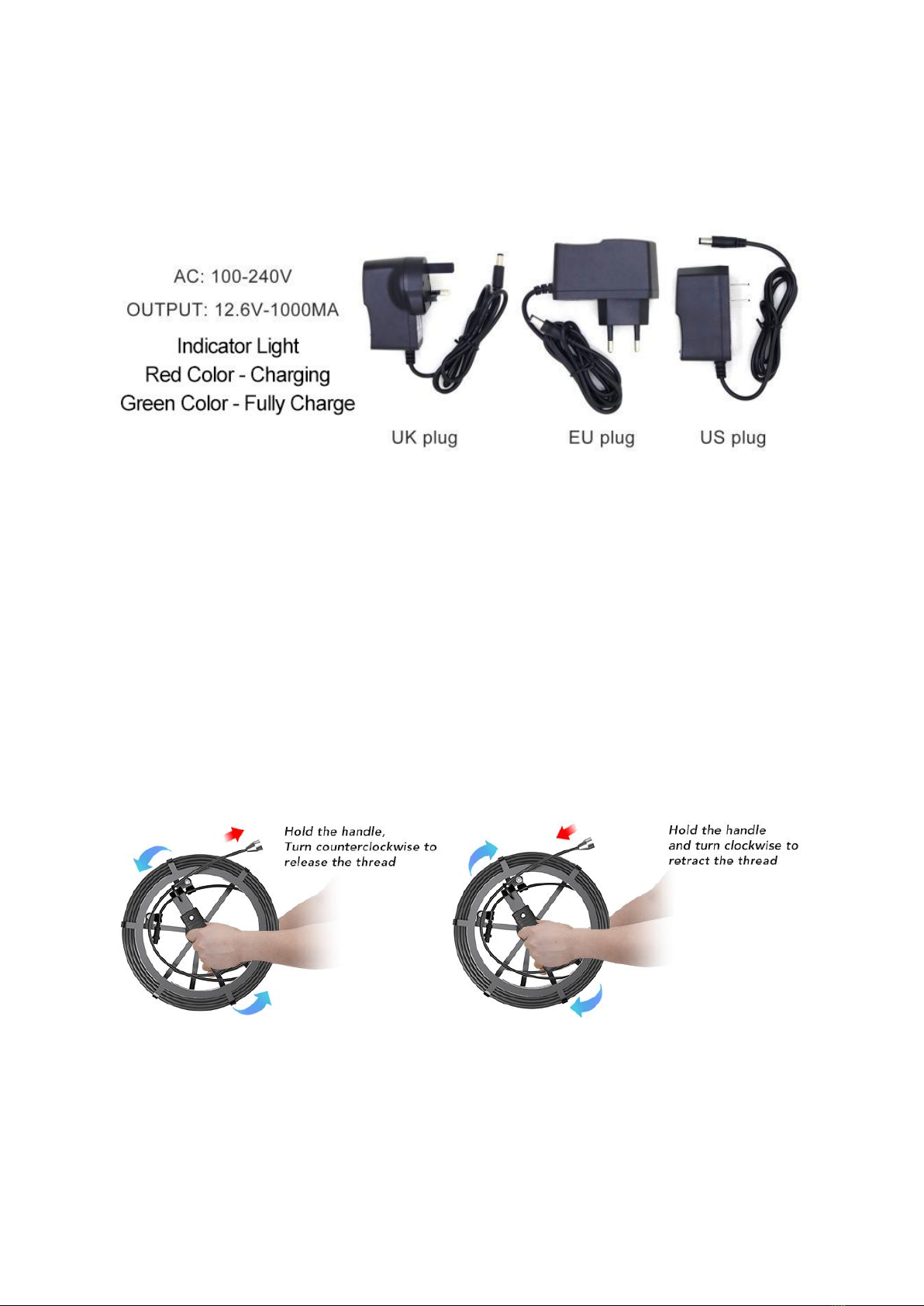

6. Power Charger
When the battery is low power (< 20% ), please recharge it, the
charging time is about 4-5 hours. Working time is 6-8 hours after
full charging
Note: To make sure the battery has longer use age, please
recharge it timely; otherwise, the battery may be damaged.
7. Cable Coil
put the cable on the hook, pull to release or push back to coil the cable.

—6—

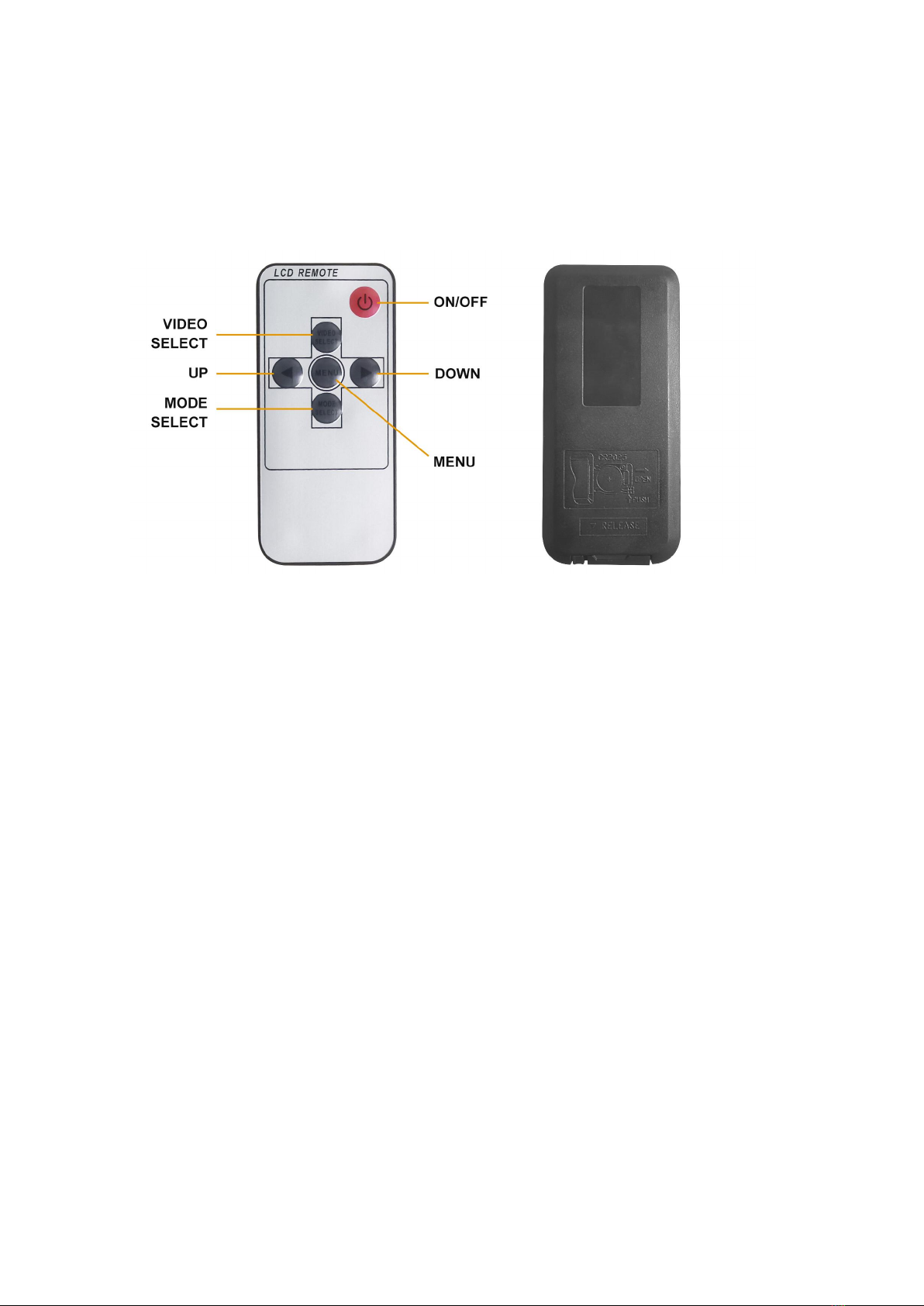

8. Remote Controller
Please be noted that the transparent insulating card protects the
battery, you need to remove it before use.
VIDEO SELECT: function same with the screen button “PLAY/+”
MODE SELECT: function same with the screen button “REC/-”
◀: function same with the screen button “<”
▶: function same with the screen button “>”

—7—
9. Camera with Self-leveling Function &
512Hz Transmitter

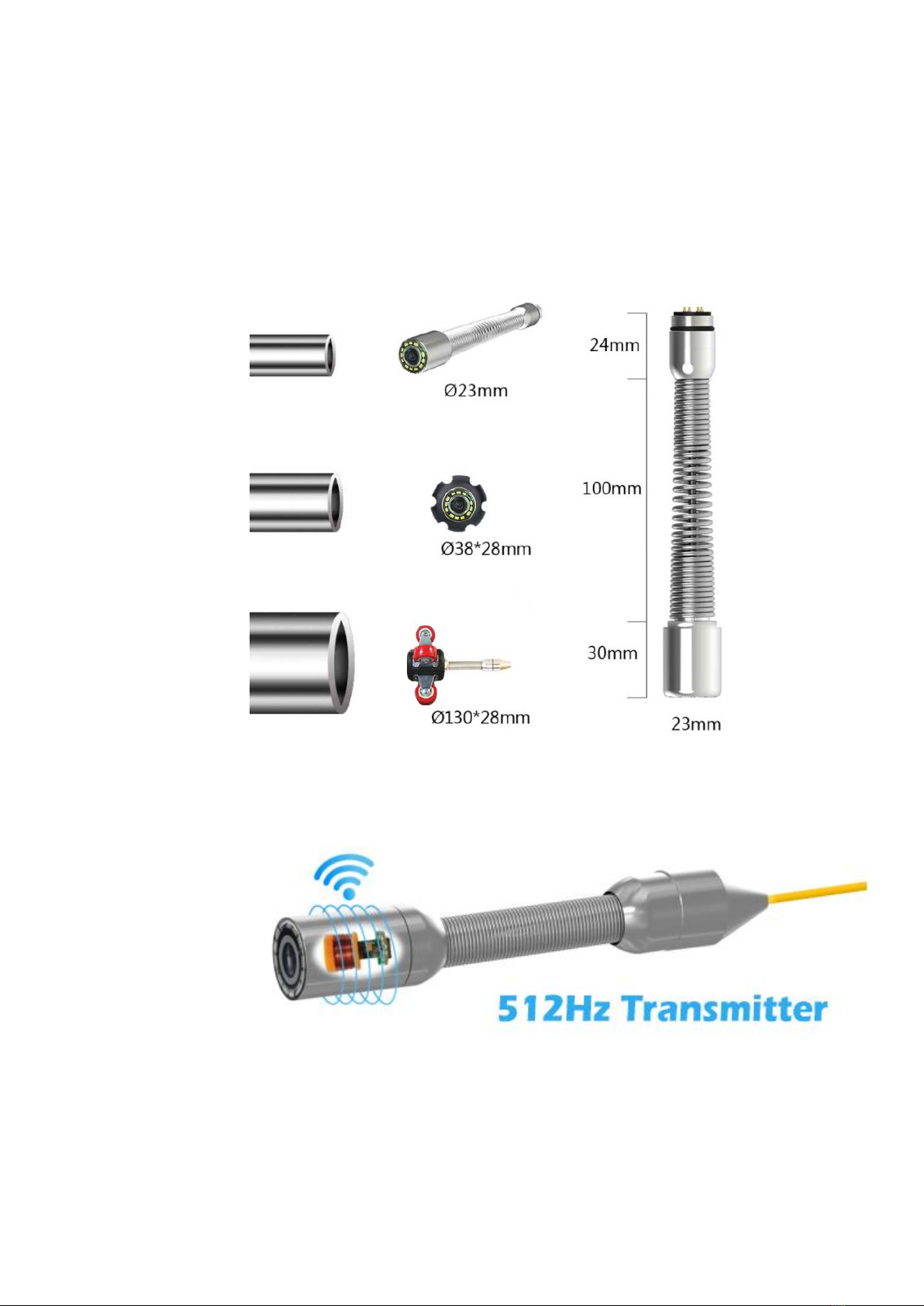

Camera probe size details:
The Camera probe has a built-in 512Hz transmitter, which
transmits a 512Hz frequency signal through a built-in chip,
compatible with any 512Hz pipe locator.
Transmit Frequency: 512Hz
Output Waveform: sine wave
Transmit Distance: about 16.4ft/5m

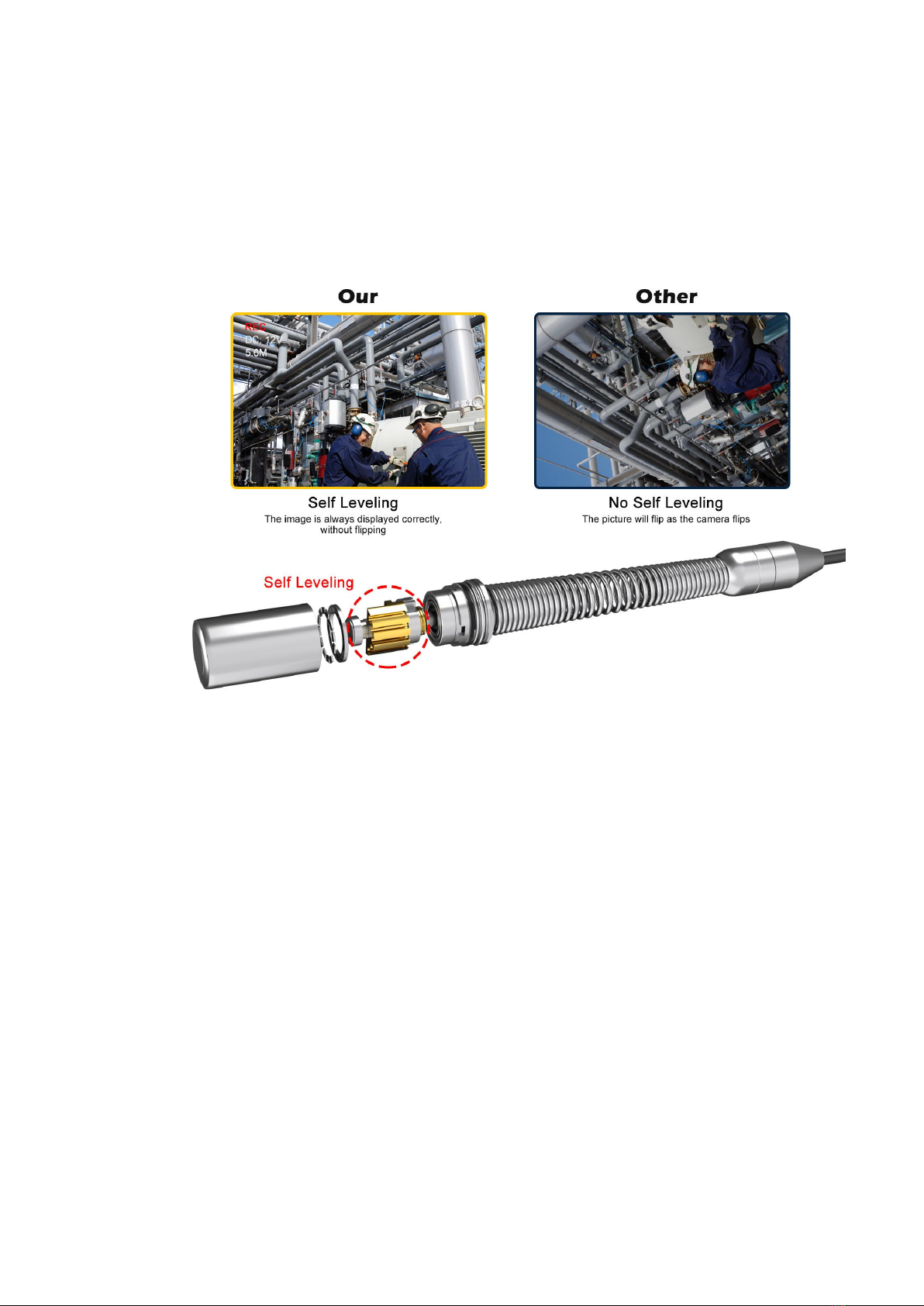

Self-leveling can be defined as the ability of any instrument to

—8—
level itself regardless of the angle of inclination.
Camera probe is equipped with a self-leveling gravity bearing
on the camera probe that could automatically adjust direction
and level when taking videos/pictures to deliver upright pictures
all time, helping users to position.

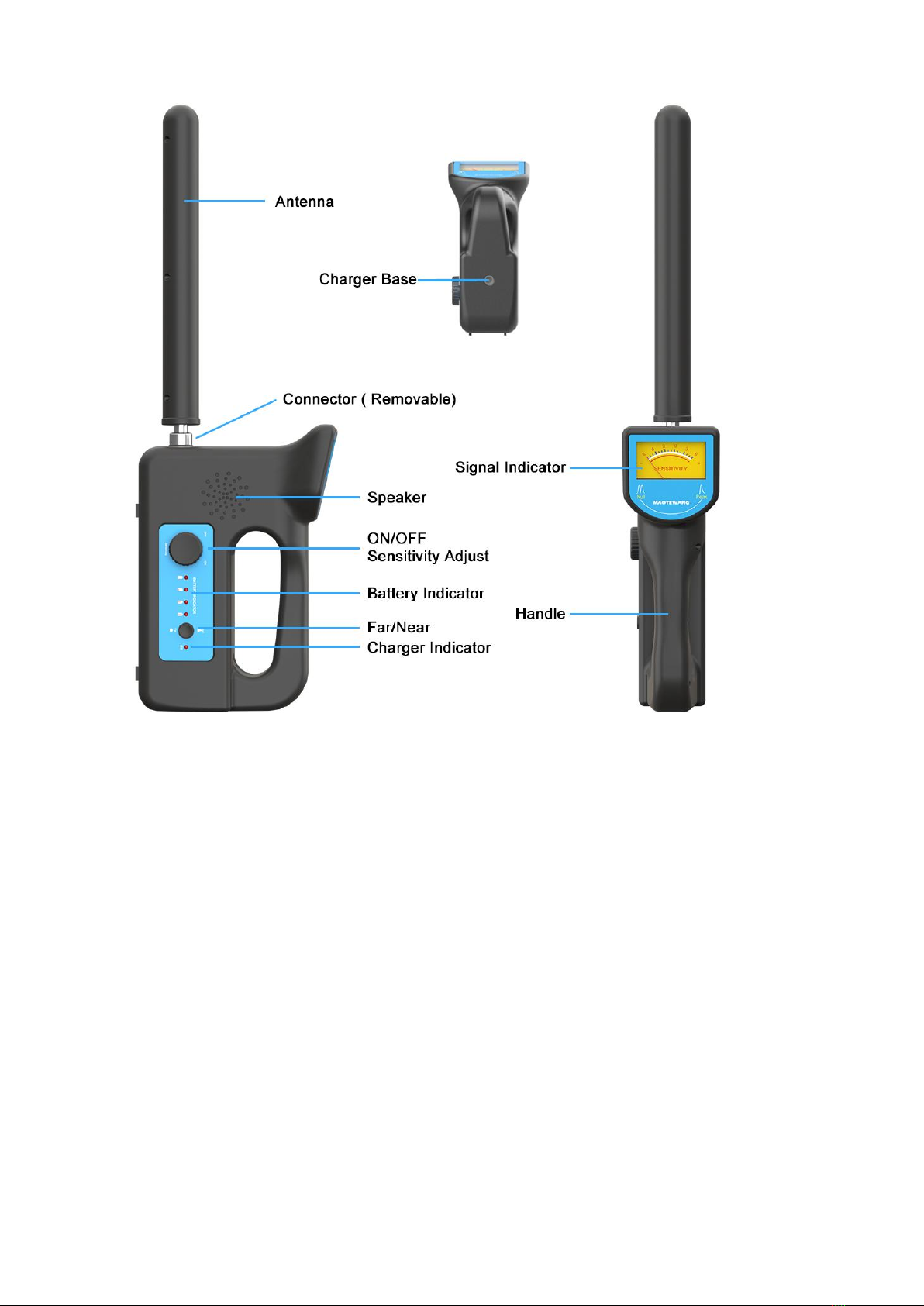

10. 512HZ Locator Detector
The detector locator has a built-in induction coil to receive the
magnetic signal from the pipeline, and the coil generates an
induced current to calculate the direction and position of the
transmitter.
The detector locator has two detecting modes: far mode and near
mode. Firstly, open the sensitivity to the strongest gear, and
switch to far mode (about 16.4ft/5m) to detect and find the signal
source, adjust the sensitivity knob, \when its signal is up to the full
strongest signal position (far mode), switch to near mode
(detecting depth: 3.3ft/1m) to detect until the 512Hz signal reach
strongest signal position (near mode).

—9—
Detector Locator Technical Parameters：
Receiver Frequency: 512Hz
Detect Distance: about 16.4ft/5m
Battery: 3.7V 3000MAH built-in lithium battery
Charger: 5V 0.5A
Charger time: about 6 hours
Battery Indicator: 4 gear, it is flashing when battery is low
Battery working time: about 10 hours
Signal strength: 6 gear
Speaker: support
Detect Mode: Far/ Near
How to Use Detector Locator to Detect Camera Position：
a. Turn on the detector, set the sensitivity knob to the strongest
gear.

—10 —
b. Set it as far mode to detect first. When the signal light is on, it
means that you have entered into the 512Hz locator position
within 16.4ft/5m.
c. Then move forward to the direction of the signal, keep finding
and moving to the strongest signal, and try slowly reducing
sensitivity, until finding out the position which is the strongest
signal when sensitivity is weakest.
d. After that, switch the button on the left side of the handle to the
near mode and set the sensitivity knob to the strongest gear to
continue to detect, keep moving, and find the signal source. when
it reaches the strongest signal position, the receiver has entered
into the 512Hz transmitter position within 3.3ft/1m.
11. Wire Diagram

—11 —
12. Failure and Diagnosis
Common problems /
faults
Solutions
No power
a. Check whether each interface is connected
correctly;
b. Check whether the battery is out of power, check
the power display.
Can't record
a. Whether the SD card is inserted correctly;
b. Insufficient SD card memory;
c. Check whether the power off during the
recording process.
Can not be charged
a. Is the DC adapter plug-in correctly;
b. Check if the indicator light of the DC adapter is
on.
No signal
a. Check if the connection is well connected and
make sure all cable is correct connected;
b. Check the camera head. and slowly rotate the
connection adjust its tightness.
Recording videos in
black and white color
Adjust the LED light button to the appropriate
brightness, observe the screen display, and select
a brightness that is clearer and more colorful.
Screen display turn
blue
a. Check the video cable if wrong connected, and
reconnected it to battery;
b. The video cable is broken, need to replace the
new video cable. contact seller or our customer
service email for help.
Video works ok but
LED doesn't work
a. Check if you turn on the led or not, try to rotate
the knob on the battery to adjust the brightness;
b. Rotate the camera connector a little tighter or
looser, check if it works or not;
c. Use voltage tester pen to test all the connector,
find out the broken part and contact seller for free
replace.

—12 —
13. Warranty
We provide a one-year product quality warranty from the date of
purchase and provide free lifetime product technical support.
For normal faults or quality problems within the warranty period,
we provide free replacement or repair services. For damage
caused by manual operation, we will charge the cost of product
parts for repair. Our technical support team is at your service 24
hours a day. If you encounter any problems during use, please
feel free to contact us.
