Sauder Dakota Pass 424120 User manual

Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-19
Français pg 20-22
Español pg 23-25
Lot # 522701 10/23/18
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Lift-Top Coee Table
Dakota Pass Collection | Model 424120
It's addicting.

Table of Contents Assembly Tools Required
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty

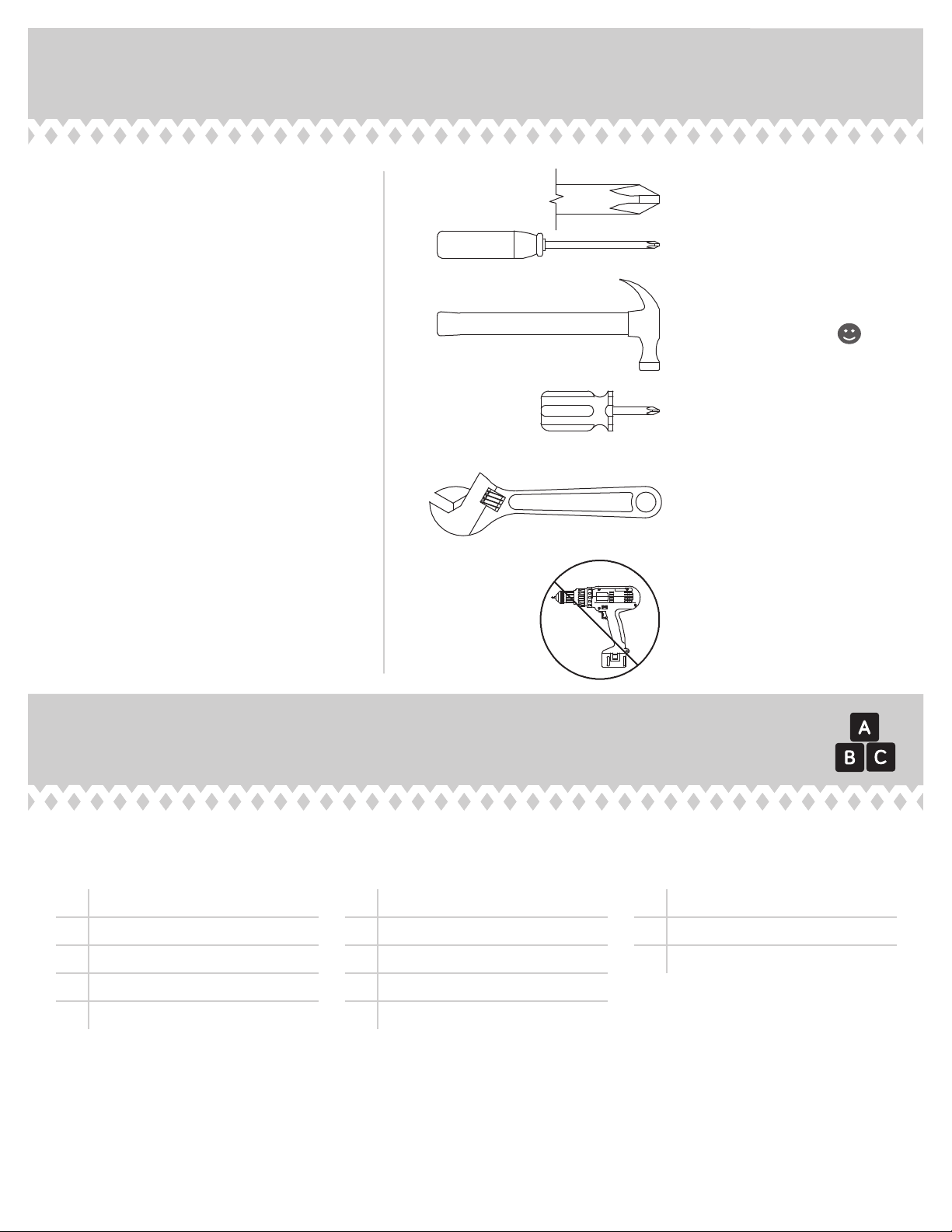

No. 2 Phillips Screwdriver
Tip Shown Actual Size
2-3
4
5-19
20-22
23-25
26
27
Hammer
Not actual size
Skip the power trip.
This time.
Short Screwdriver
(provided)
Now you know
our ABCs.
Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
Now you know
our ABCs.
Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A RIGHT END (1)
B LEFT END (1)
C UPRIGHT (1)
D TOP (1)
E2 BOTTOM (1)
F SHELF (1)
H RIGHT FRONT/LEFT REAR LEG (2)
I LEFT FRONT/RIGHT REAR LEG (2)
J PANEL (2)
K SKIRT (2)
L BRACE (1)
M PANEL MOLDING (2)
N SHELF MOLDING (2)
424120 www.sauder.com/servicesPage 2
Adjustable Wrench

Now you know
our ABCs.
Part IdentificationPart Identification
424120www.sauder.com/services Page 3
B
A
C
D
E2
H
I
J
K
K
F
L
M
H
I
J
M
N
N

Hardware Identification
424120 www.sauder.com/servicesPage 4
åScrews are shown actual size. You may receive extra hardware with your unit.
BLACK 9/16" LARGE HEAD SCREW - 24
1S
CAM COVER - 18
19P
CAM DOWEL - 10
2F
HIDDEN CAM - 18
1F CAM SCREW - 8 8F
WASHER - 8
13M
NUT - 8
24M
BUMPER - 6
2M
SUPPORT
BRACKET - 2
37G
BLACK 3/4" MACHINE SCREW - 4
92S
BLACK 1-1/4" MACHINE SCREW - 4
93S
23M LIFT TABLE
MECHANISM SET - 1
METAL BRACKET - 4
4G
SILVER 1-1/8" FLAT HEAD SCREW - 6
10S
SCREW COVER - 6
17P
BLACK 1-15/16" FLAT HEAD SCREW - 10
113S
BLACK 3/4" PAN HEAD SCREW - 2
85S
BUSHING - 2
91M

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.

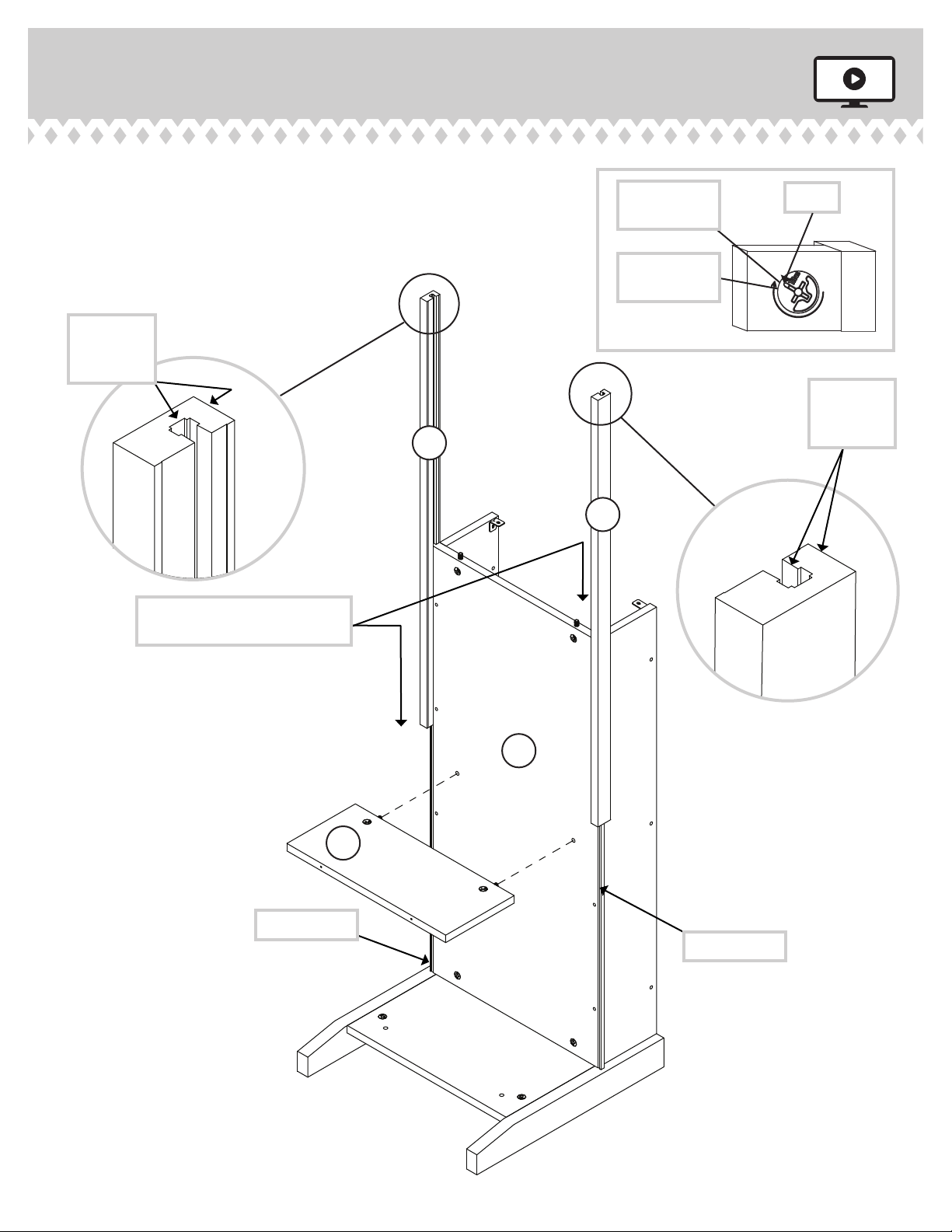

å Push ten HIDDEN CAMS (1F) into the UPRIGHT (C),
BOTTOM (E2), and SHELF (F). Then, insert the metal end
of a CAM DOWEL (2F) into each HIDDEN CAM.
424120www.sauder.com/services Page 5
Insert the metal end of the CAM
DOWEL into the HIDDEN CAM.
Arrow
Arrow
1F
2F
(10 used)
Do not tighten the HIDDEN CAMS in this step.
Arrow
1F
2F
C
E2
F
Scan this QR code or go to this address:
http://qr.sauder.com/?ID=2295
to watch a video on how to assemble your unit.

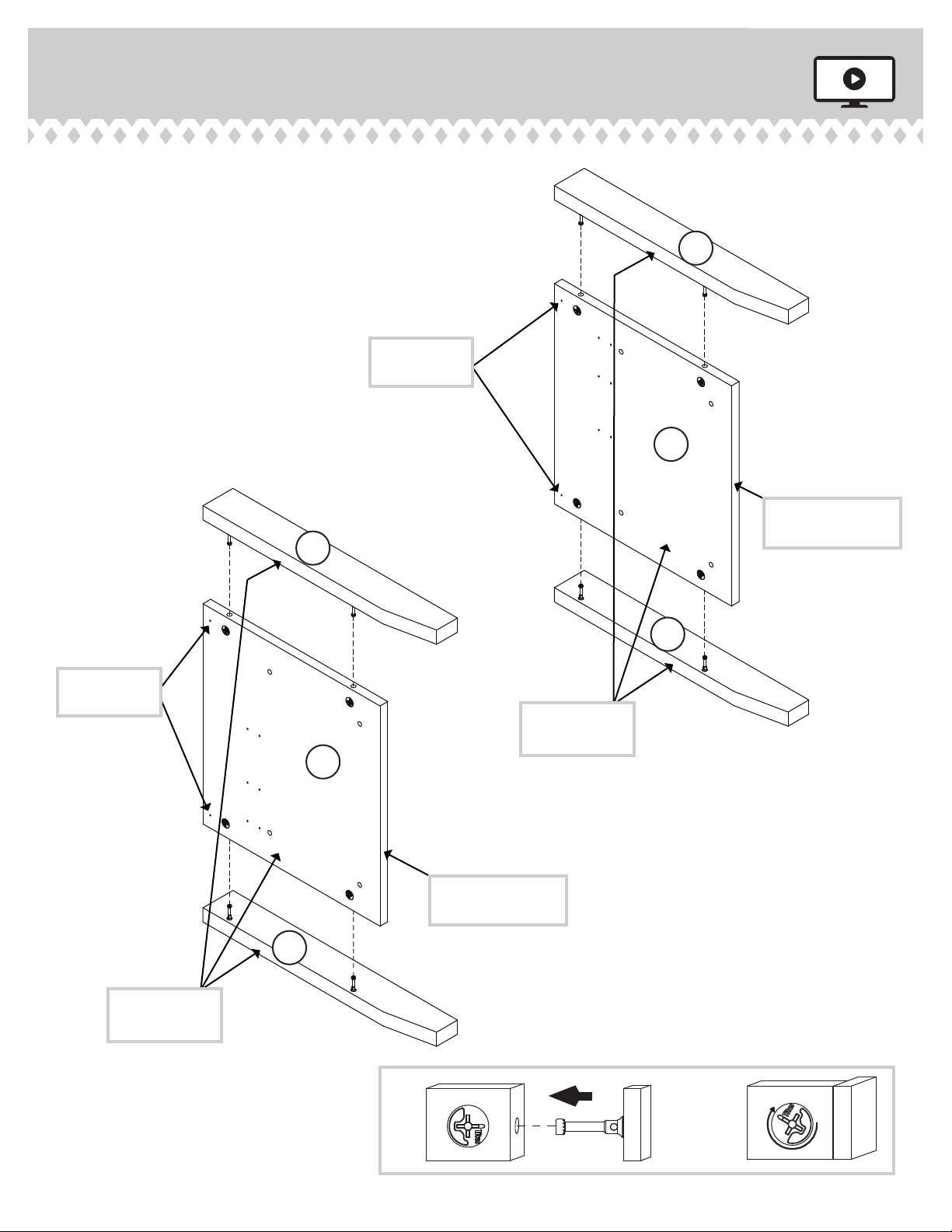

Step 2
424120 www.sauder.com/servicesPage 6
8F
å Turn eight CAM SCREWS (8F) into exact holes shown in
the LEGS (H and I).
å Push eight HIDDEN CAMS (1F) into the exact holes shown
in the ENDS (A and B).
Arrow
Arrow
1F
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
1F
Arrow
(8 used)
A
B
(8 used)
H
I
H
I

å Fasten the LEGS (H and I) to the ENDS (A and B). Tighten
eight HIDDEN CAMS.
Step 3
424120www.sauder.com/services Page 7
12
B
I
H
Surface with
HIDDEN CAMS
The LEGS will
overhang this edge.
These surfaces
should be even.
A
H
I
Surface with
HIDDEN CAMS
The LEGS will
overhang this edge.
These surfaces
should be even.
These holes
must be here.
These holes
must be here.

Step 4
424120 www.sauder.com/servicesPage 8

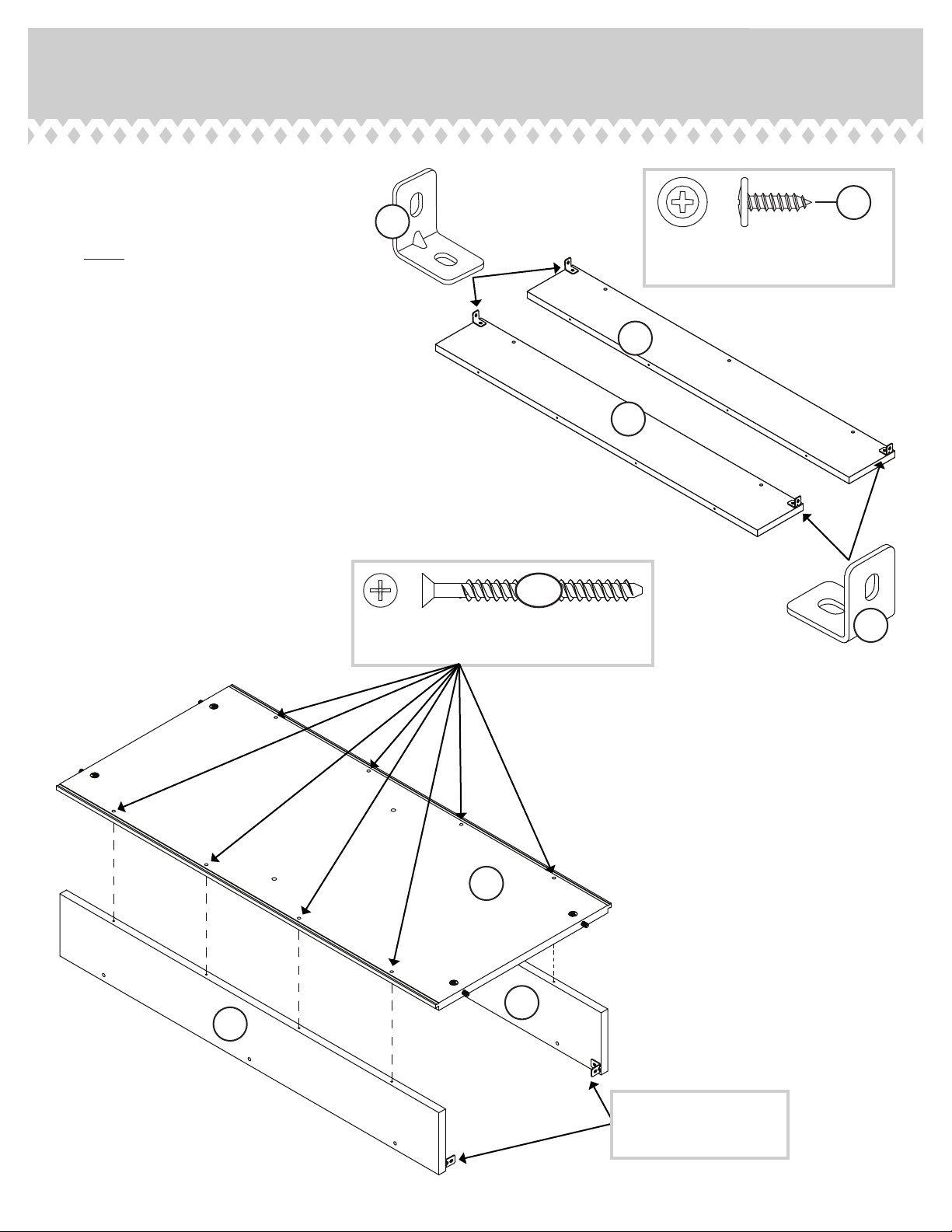

å Fasten four METAL BRACKETS (4G)
to the PANELS (J). Use four BLACK
9/16" LARGE HEAD SCREWS (1S).
å NOTE: Be sure the METAL
BRACKETS are even with the edges
of the PANELS.
å Fasten the PANELS (J) to the SHELF
(F). Use eight BLACK 1-15/16" FLAT
HEAD SCREWS (113S).
BLACK 9/16" LARGE HEAD SCREW
(4 used for the METAL BRACKETS)
1S
4G
4G
J
J
These METAL BRACKETS
should be located here
and facing each other.
J
J
BLACK 1-15/16" FLAT HEAD SCREW
(8 used in this step)
113S
F
Surface with
HIDDEN CAMS

å Fasten the SHELF (F) to the LEFT END (B). Tighten two
HIDDEN CAMS.
å Fasten the PANELS (J) to the LEFT END (B). Use two
BLACK 9/16" LARGE HEAD SCREWS (1S) through the
METAL BRACKETS and into the LEFT END.
Step 5
424120www.sauder.com/services Page 9
BLACK 9/16" LARGE HEAD SCREW
(2 used for the METAL BRACKETS)
1S
Start Tighten
Arrow
Minimum
190 degrees
Caution
Risk of damage or
injury. HIDDEN CAMS
must be completely
tightened. HIDDEN
CAMS that are not
completely tightened
may loosen, and parts
may separate. To
completely tighten:
Arrow
Maximum
210 degrees
J
J
F
B
Surface with
HIDDEN CAMS
I
H
Surface with
HIDDEN CAMS

Step 6
424120 www.sauder.com/servicesPage 10

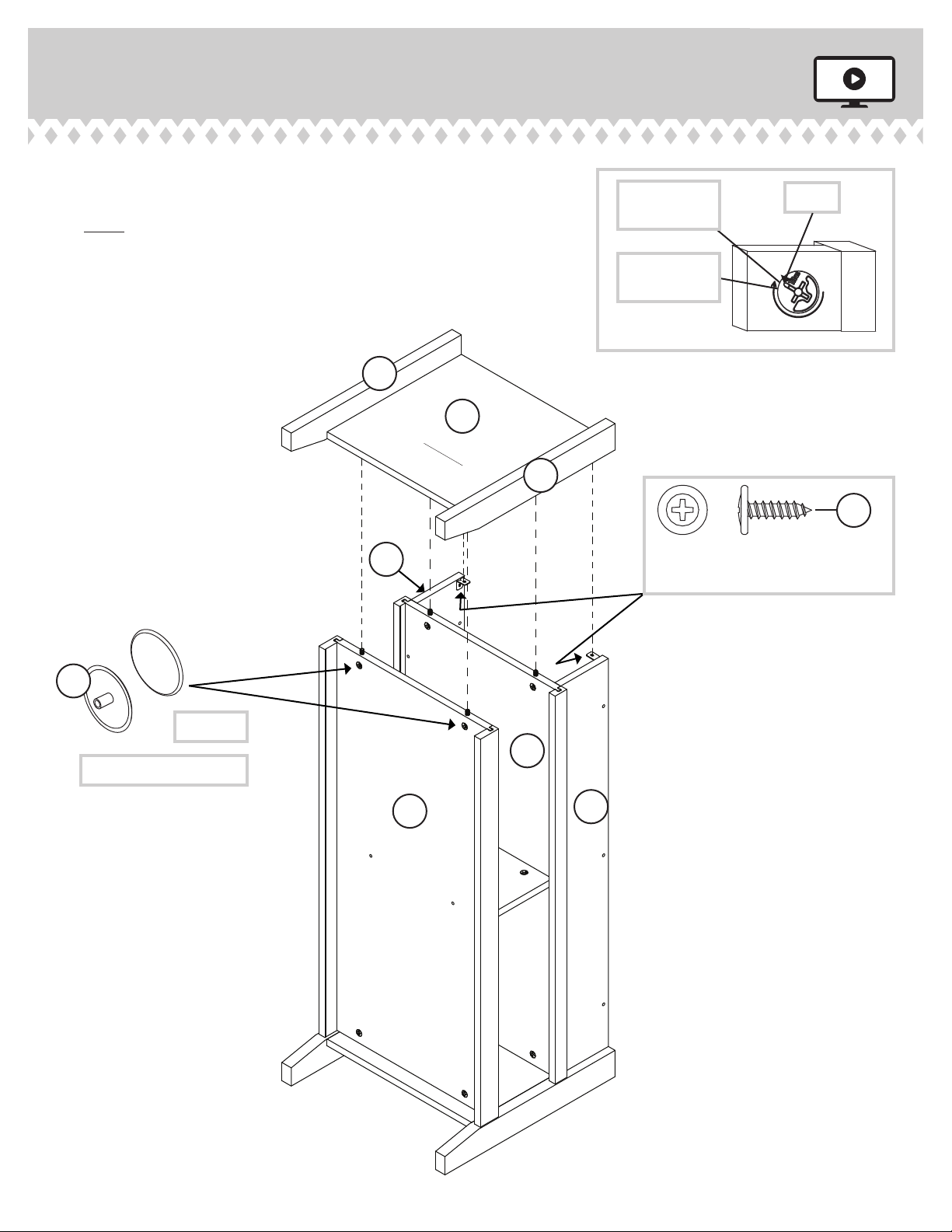

å Slide the SHELF MOLDINGS* (N) onto the notched edges of
the SHELF (F).
å Fasten the UPRIGHT (C) to the SHELF (F). Tighten two
HIDDEN CAMS.
å *U.S. Patent No. 5,499,886
Arrow
Minimum
190 degrees
Maximum
210 degrees
F
C
Surface with
HIDDEN CAMS
Slide the SHELF MOLDINGS (N)
onto the notched edges.
N
N
Notched edge
Notched edge
The groove
is closer to
this edge.
The groove
is closer to
this edge.

å Fasten the BOTTOM (E2) to the LEFT END (B). Tighten
two HIDDEN CAMS.
å Fasten the BOTTOM (E2) to the UPRIGHT (C). Use two
BLACK 1-15/16" FLAT HEAD SCREWS (113S).
å Slide the SKIRTS* (K) onto the notched edges of the
BOTTOM (E2).
å *U.S. Patent No. 5,499,886
Step 7
424120www.sauder.com/services Page 11
Arrow
Minimum
190 degrees
Maximum
210 degrees
C
The groove
is closer to
this edge.
B
E2
BLACK 1-15/16" FLAT HEAD SCREW
(2 used in this step)
113S
Surface with
HIDDEN CAMS
Slide the SKIRTS (K)
onto the notched edges.
Notched edge
Notched edge
K
K
The groove
is closer to
this edge.

å Fasten the RIGHT END (A) to the BOTTOM (E2) and
SHELF (F). Tighten four HIDDEN CAMS.
å NOTE: Use the provided Short Screwdriver to tighten the
HIDDEN CAMS in the SHELF (F).
å Fasten the PANELS (J) to the RIGHT END (A). Use two
BLACK 9/16" LARGE HEAD SCREWS (1S) through the
METAL BRACKETS and into the RIGHT END.
å Using your hammer, gently tap a CAM
COVER (19P) onto each HIDDEN CAM.
Step 8
424120 www.sauder.com/servicesPage 12
Arrow
Minimum
190 degrees
Maximum
210 degrees
BLACK 9/16" LARGE HEAD SCREW
(2 used for the METAL BRACKETS)
1S
E2
F
J
J
H
A
I
Surface without
HIDDEN CAMS
(18 used)
To cover HIDDEN CAMS
19P

Step 9
424120www.sauder.com/services Page 13
å Carefully stand your unit upright.
å Fasten the PANEL MOLDINGS (M) to the PANELS (J). Use
six SILVER 1-1/8" FLAT HEAD SCREWS (10S).
å NOTE: There are no pre-drilled holes in the PANEL
MOLDINGS. The SCREWS will tighten into the grooves.
å Center a SCREW COVER (17P) over the head of each
SCREW and press firmly.
å Push six BUMPERS (2M) into the LEGS (H and I)
and PANELS (J).
å NOTE: You may need to gently tap the BUMPERS in with
your hammer.
SILVER 1-1/8" FLAT HEAD SCREW
(6 used in this step)
10S
To cover screws (10S)
(6 used)
17P
2M
J
J
H
I
H
I
M
M
The top edges of the PANELS and
PANEL MOLDINGS should be even.
Pro Tip: Lift with your
legs. And, you know,
your arms.
The groove is
closer to this edge.

Step 10
424120 www.sauder.com/servicesPage 14

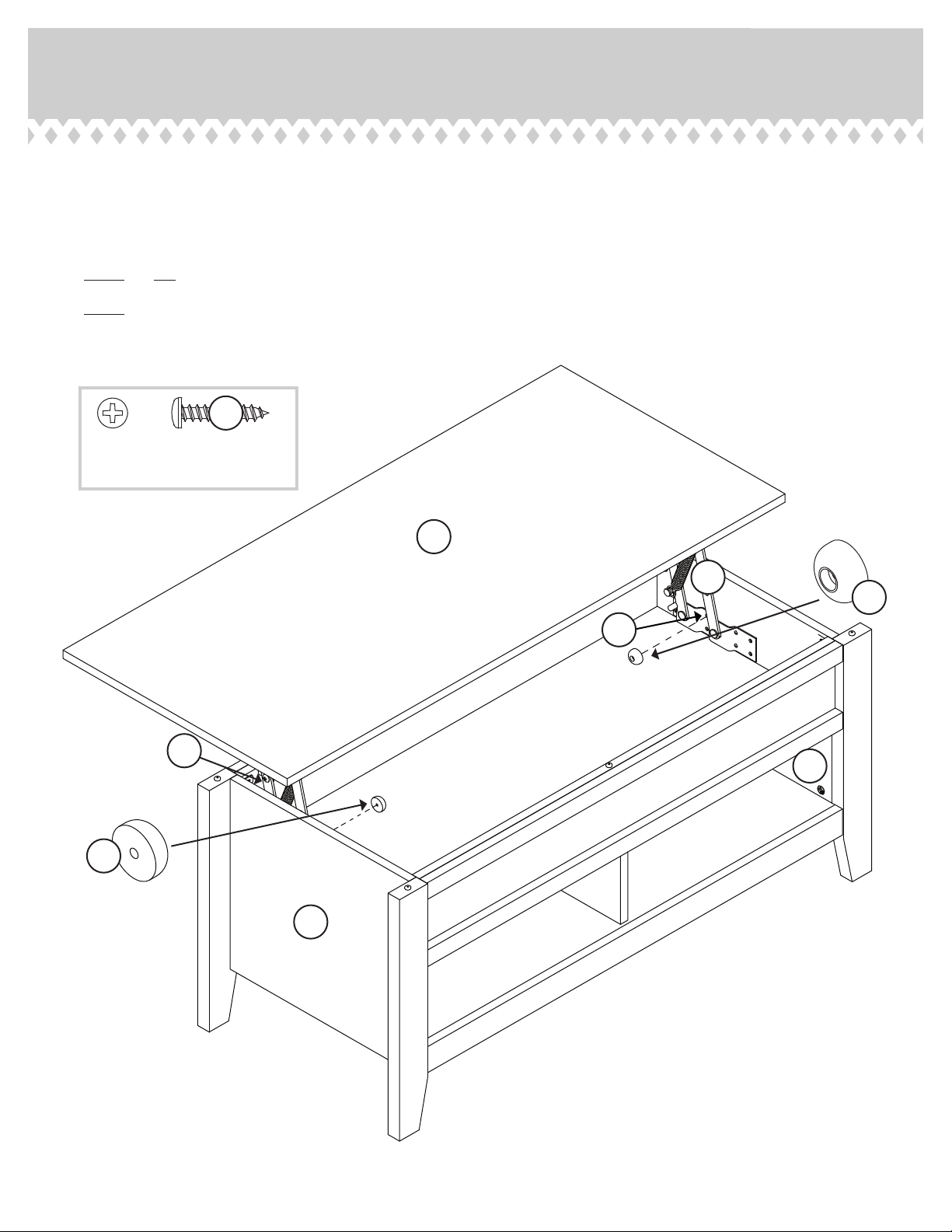

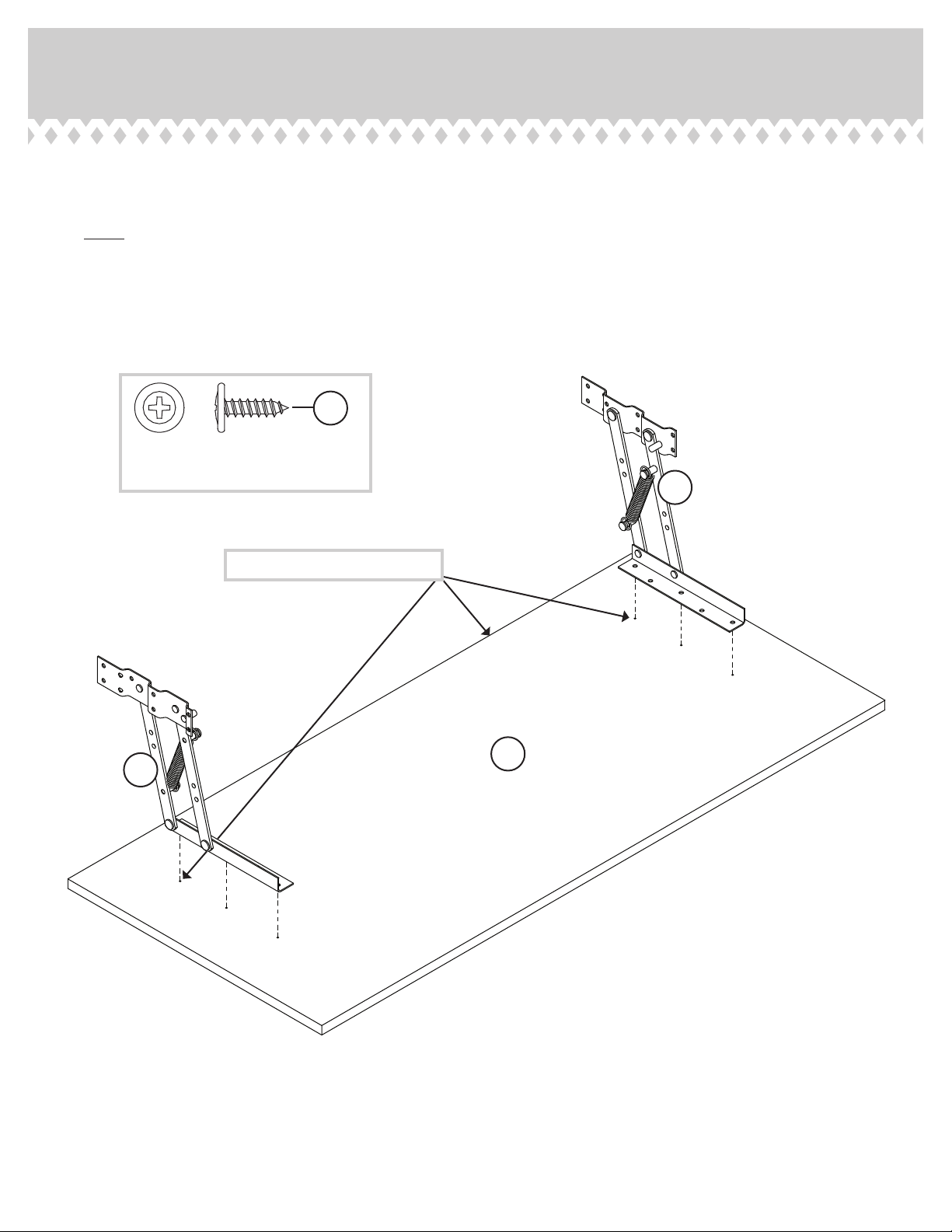

å Fasten the LIFT TABLE MECHANISMS (23M) to the TOP (D).
Use six BLACK 9/16" LARGE HEAD SCREWS (1S).
å NOTE: Be sure to position the LIFT TABLE MECHANISMS on
the TOP exactly as shown.
23M
23M
D
BLACK 9/16" LARGE HEAD SCREW
(6 used in this step)
1S
The holes are closer to this edge.

Step 11
424120www.sauder.com/services Page 15

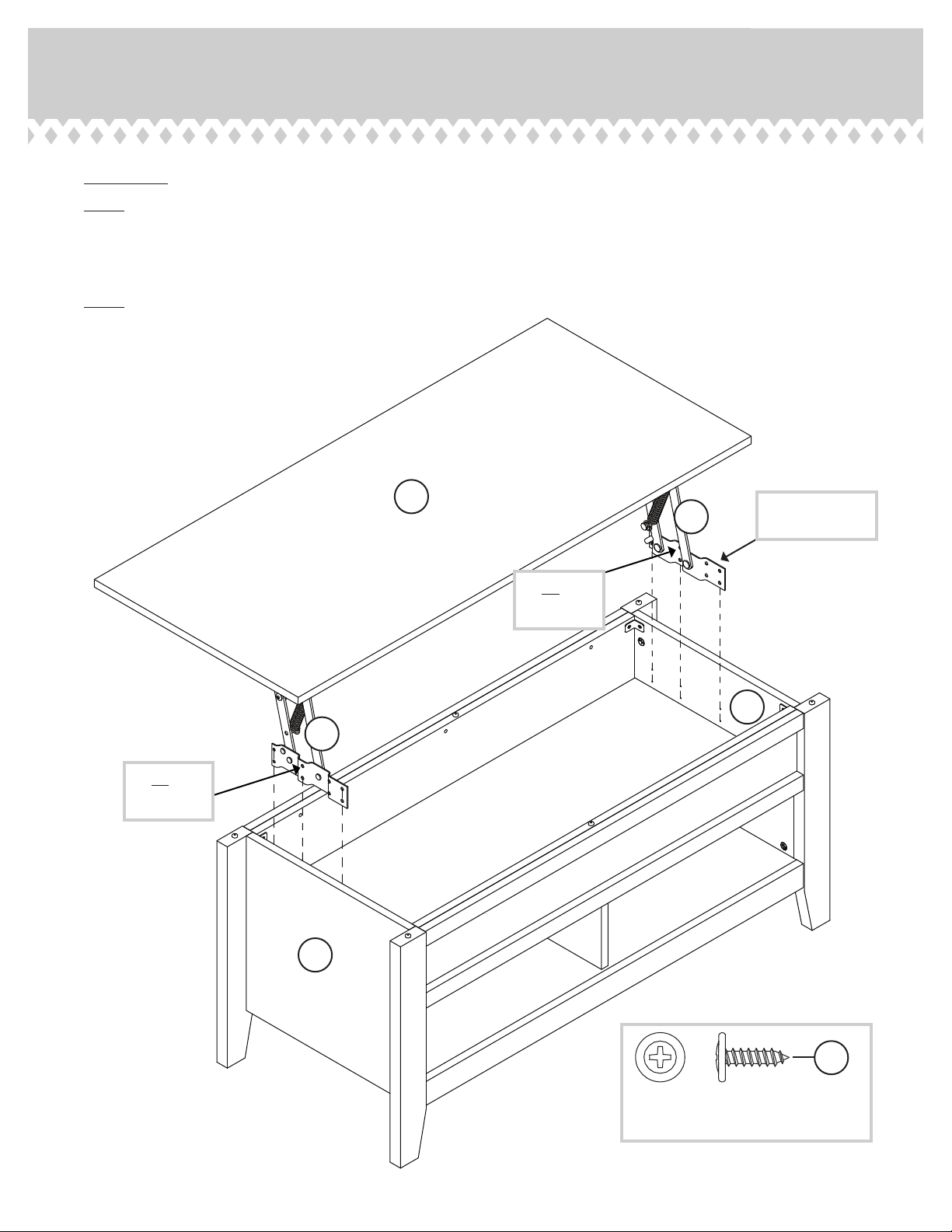

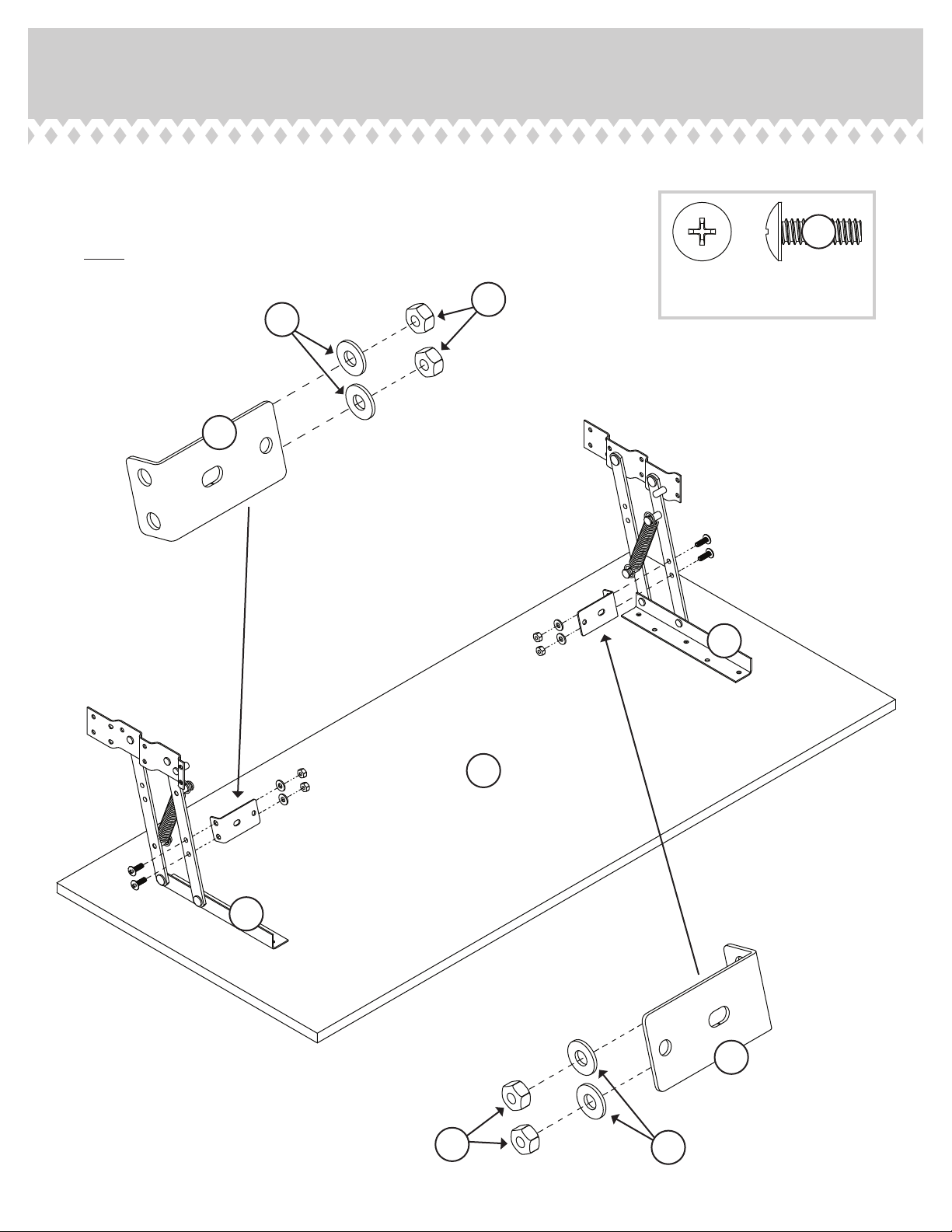

å Fasten the SUPPORT BRACKETS (37G) to the LIFT
TABLE MECHANISMS (23M). Use four WASHERS (13M),
NUTS (24M), and BLACK 3/4" MACHINE SCREWS (92S).
å NOTE: Use the adjustable wrench in this step.
37G
13M
24M
37G
24M 13M
23M
23M
D
BLACK 3/4" MACHINE SCREW
(4 used in this step)
92S

Step 12
424120 www.sauder.com/servicesPage 16
å IMPORTANT: You will need someone's help in this step.
å NOTE: Be careful when lining up the holes in the LIFT TABLE MECHANISMS (23M) with the holes in the ENDS (A and B)
as to not damage any parts.
å Fasten the TOP (D) to the ENDS (A and B). Use ten BLACK 9/16" LARGE HEAD SCREWS (1S) through the LIFT TABLE
MECHANISMS (23M) and into the holes in the ENDS.
å NOTE: You should start each SCREW a few turns before completely tightening any of them. You will have to lift up on the
back of the LIFT TABLE MECHANISMS to find the back holes.
These four holes
must be here.
D
A
B
23M
23M
BLACK 9/16" LARGE HEAD SCREW
(10 used in this step)
1S
Do not insert
a SCREW
into this hole.
Do not insert
a SCREW
into this hole.

Step 13
424120www.sauder.com/services Page 17
å Fasten the TOP (D) to the ENDS (A and B). Use two
BUSHINGS (91M) and two BLACK 3/4" PAN HEAD
SCREWS (85S) through the exact holes shown in the LIFT
TABLE MECHANISMS (23M) and into the holes in the ENDS.
å NOTE: Do not overtighten the SCREWS (85S).
å NOTE: The BUSHINGS allow the LIFT TOP to close lightly. Over
time, after opening and closing the LIFT TOP, the BUSHING will
allow the LIFT TOP to close completely.
91M
BLACK 3/4" PAN HEAD SCREW
(2 used for the BUSHINGS)
85S
85S
91M
B
A
23M
D
23M

Step 14
424120 www.sauder.com/servicesPage 18
Almost time to
celebrate! With a nap.

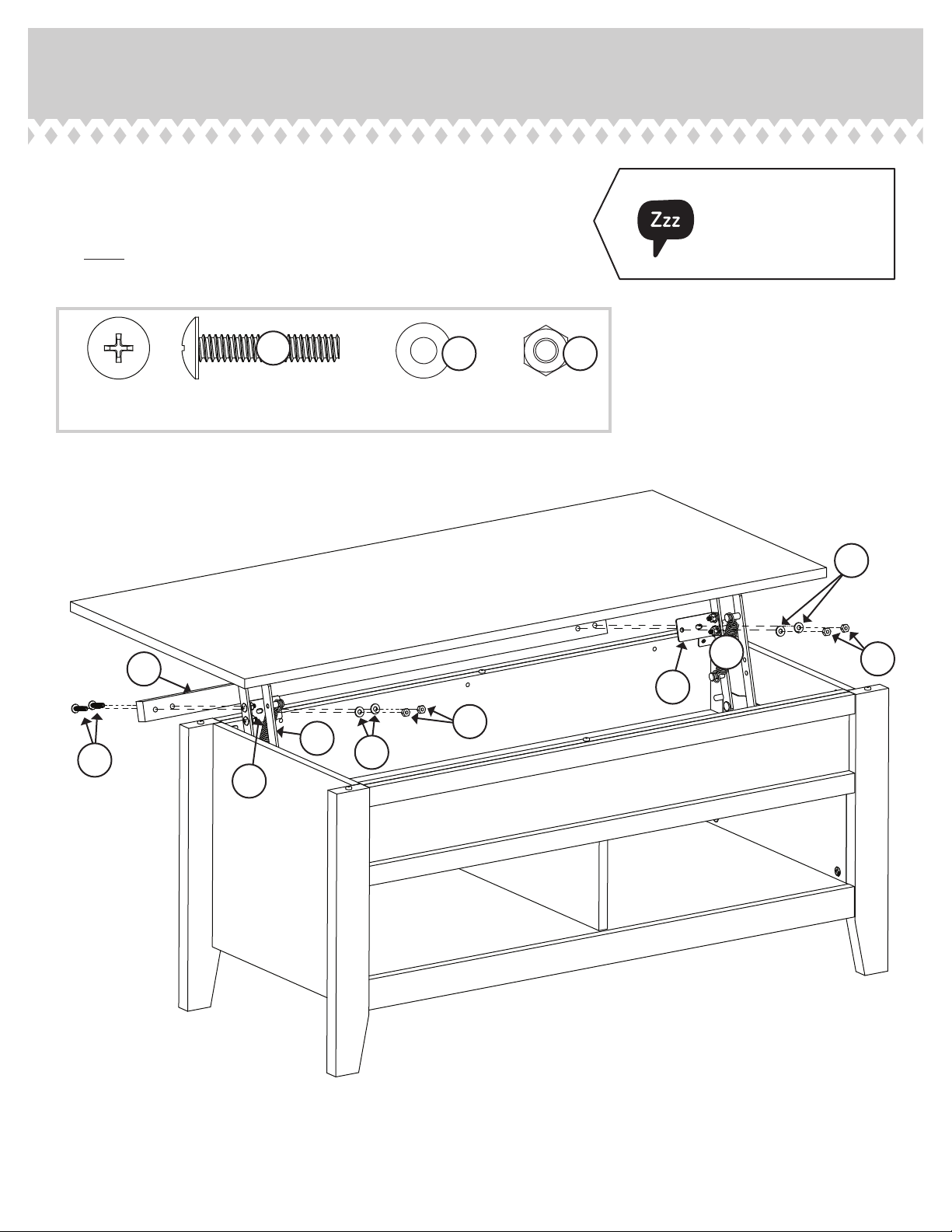

å Fasten the BRACE (L) to the SUPPORT BRACKETS (37G) on the
LIFT TABLE MECHANISMS (23M). Use four WASHERS (13M),
NUTS (24M), and BLACK 1-1/4" MACHINE SCREWS (93S).
å NOTE: Use the adjustable wrench in this step.
23M
13M
24M
24M
13M
37G
37G
23M
L
93S
WASHER
(4 used in this step)
NUT
(4 used in this step)
13M 24M
BLACK 1-1/4" MACHINE SCREW
(4 used in this step)
93S

Step 15
424120www.sauder.com/services Page 19
å IMPORTANT: Do not place valuables in the storage space.
å NOTE: Please read the back pages of the instruction booklet for important safety information.
å This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry.
And to celebrate, why not share your success story?
40 lbs.
25 lbs.
40 lbs. total

A l’usage exclusif du
Canada Noter la date
d’achat de cet élément
et conserver le livret
pour future référence.
Pour contacter Sauder
en ce qui concerne cet
élément, faire référence
au numéro de lot et
numéro de modèle en
appelant notre numéro
sans frais.
Lot nº : ____________
Date de
l’achat: ____________
LISTE DE PIÈCES
REFERENCE DESCRIPTION QUANTITÉ
LISTE DE PIÈCES
REFERENCE DESCRIPTION QUANTITÉ
NOUS SOMMES LA POUR VOUS AIDER!
Nous faisons de notre mieux pour nous assurer que votre meuble
arrive dans d’excellentes conditions. Nos représentants du service
Clientèle sont aimables et prêts à vous aider au cas où une pièce
aurait été endommagée ou manquerait (ou si vous aviez besoin
d’aide pour l’assemblage). NE RAMENEZ PAS LE MEUBLE AU
MAGASIN. Au Canada, composez ce numéro d’appel gratuit:
1-800-523-3987
Du lundi au vendredi, de 9 heures du matin à
5:30 heures du soir (horaire Côte Est)
(sauf jours fériés)
Si une pièce a besoin d’être remplacée, la pièce de remplacement
sera envoyée dans les 48 heures. (Sauf week-ends et jours fériés)
Utilisez les instructions d’assemblage en français avec les
schémas étape par étape du manuel d’instruction en anglais.
Chaque étape en français correspond à la même étape
en anglais. La pièce devant être attachée à l’élément est
représentée en gris sur les schémas de chaque étape pour plus
de précision. Comparer la “Liste de pièces” ci-dessous avec
la “PART IDENTIFICATION” du manuel en anglais pour vous
familiariser avec les pièces avant l’assemblage.
REMARQUE : CE MANUEL D’INSTRUCTIONS CONTIENT
D’IMPORTANTES INFORMATIONS RELATIVES À LA SÉCURITÉ.
À LIRE ET CONSERVER POUR TOUTE RÉFÉRENCE FUTURE.
1F EXCENTRIQUE ESCAMOTABLE.................. 18
2F CHEVILLE D'EXCENTRIQUE ...........................10
8F VIS D'EXCENTRIQUE ...............................................8
4G CONSOLE EN MÉTAL .............................................4
37G CONSOLE DE SUPPORT......................................2
2M TAMPON............................................................................6
13M RONDELLE.......................................................................8
23M ENSEMBLE DE MÉCANISMES
DE LEVAGE DE TABLE.............................................1
24M ÉCROU ................................................................................8
91M MANCHON.......................................................................2
19P COUVERCLE D'EXCENTRIQUE....................18
17P CACHE-VIS ......................................................................6
1S VIS TÊTE LARGE 14 mm NOIRE..................24
10S VIS TÊTE PLATE 28 mm ARGENTÉE.........6
85S VIS TÊTE GOUTTE DE SUIF
19 mm NOIRE................................................................2
92S VIS À MÉTAUX 19 mm NOIRE..........................4
93S VIS À MÉTAUX 32 mm NOIRE.........................4
113S VIS TÊTE PLATE 49 mm NOIRE..................10
A EXTRÉMITÉ DROITE..................................................1
B EXTRÉMITÉ GAUCHE...............................................1
C MONTANT..........................................................................1
D DESSUS ..............................................................................1
E2 DESSOUS...........................................................................1
F TABLETTE..........................................................................1
H PIED AVANT DROIT/ARRIÈRE GAUCHE..2
I PIED AVANT GAUCHE/ARRIÈRE DROIT..2
J PANNEAU..........................................................................2
K PLINTHE.............................................................................2
L ENTRETOISE....................................................................1
M MOULURE DE PANNEAU.....................................2
N MOULURE DE TABLETTE ....................................2
Table basse à dessus relevableModèle 424120
424120 www.sauder.com/servicesPage 20
