Sauder Dakota Pass 422596 User manual

NOTE: THIS INSTRUCTION
BOOKLET CONTAINS IMPORTANT
SAFETY INFORMATION.
PLEASE READ AND KEEP FOR
FUTURE REFERENCE.
English pg 1-20
Français pg 21-24
Español pg 25-28
Lot # 506893 07/19/17
Purchased: __________________
Be sure to give us a ring before
making any returns. 1-800-523-3987
Anywhere Console
Dakota Pass Collection | Model 422596
Need help? Visit Sauder.com to view video assembly tips or chat with a live rep.
Prefer the phone? Call 1-800-523-3987.
Share your journey!
sauder.com
For things 'n such.

Table of Contents Assembly Tools Required
3
4
5-20
21-24
25-28
29-30
31
Part Identification
Hardware Identification
Assembly Steps
Français
Español
Safety
Warranty
Hammer
Not actual size
No. 2 Phillips Screwdriver
Tip Shown Actual Size
Use of a TV that is too heavy or large is hazardous. A TV that is too heavy will create a risk of a tip-over that can cause severe injury or
death. A TV that is too large for the available space might be accidentally pushed or bumped o the furniture, or subject to tip-over.
• Check the size and weight of your TV. Compare it to the diagram below – before you begin assembly!
• This Sauder unit is designed for use with televisions weighing less than 50 pounds. Never use with a TV that weighs more.
• The size of the television, front-to-back and side-to-side, must fit within the space defined in the diagram.
• Never place the front edge of the TV past the front edge of the TV support shelf (or stop molding – if equipped)
• Never allow the sides of the TV to extend past the side edges of the TV support surface.
• If the TV has a CRT picture tube, the picture tube cone may extend past the rear of the support shelf.
• Be sure to apply the warning label as instructed in the last assembly step. The label provides important safety related information.
WARNING
!
50 lbs.
50 lbs.
16-1/2"
16-1/2"
42"
42"
Skip the power trip.
This time.
422596 www.sauder.com/servicesPage 2

Part Identification
åWhile not all parts are labeled, some of the parts will have a label or an inked letter on the edge
to help distinguish similar parts from each other. Use this part identification to help identify similar parts.
A RIGHT END (1)
B LEFT END (1)
C2 UPRIGHT (1)
D2 TOP (1)
E2 BOTTOM (1)
F BACK (1)
G ADJUSTABLE SHELF (2)
H RIGHT FRONT LEG (1)
I LEFT FRONT LEG (1)
J BACK LEG (2)
K TOP MOLDING (1)
L BOTTOM MOLDING (1)
M ADJUSTABLE SHELF MOLDING (2)
Now you know
our ABCs.
422596www.sauder.com/services Page 3
A
B
C2
D2
E2
F
G
H
I
J
K
L
M
G
M
J

Hardware Identification
åScrews are shown actual size. You may receive extra hardware with your unit.
422596 www.sauder.com/servicesPage 4
WARNING
Never use this furniture with a TV that is
too large or too heavy. Severe injury or
death can occur.The TV and furniture
will be unstable and may tip.
-The TV must less than 50 lbs.
-The base of the TV must be able to sit
completely on this shelf.
Refer to instruction book for complete
safety information.
Note: This is a permanent label. Do not
try to remove. Surface will be damaged.
08/05 2 6 9 2 2 0 269220
WARNING LABEL - 1
1L
(Refer to Step 14 for proper
location and application)
CARD SHEET - 1
38M
ADJUSTABLE FOOT - 1
34E
SILVER 1/2" MACHINE SCREW - 8
38S
BLACK 9/16" LARGE HEAD SCREW - 4
1S BLACK 2-1/4" FLAT HEAD SCREW - 6 26S
CAM COVER - 4
12P
7F TWIST-LOCK®
FASTENER - 10
MOLDING
CONNECTOR - 2
17F
METAL PIN - 8
1R
HOLE PLUG - 1
41P
CAM SCREW - 9
8F
NAIL - 43
1N
HIDDEN
CAM - 9
1F
CARD HOLDER - 4
35M
RUBBER SLEEVE - 8
2R
SAFETY STRAP - 1
Locate this nylon SAFETY
STRAP (60M) to be used
later in assembly. Do not
accidentally throw away.
60M SAFETY DRYWALL
ANCHOR - 1
61M
WASHER - 1
13M
BLACK 1-15/16" FLAT HEAD SCREW - 2
113S

Step 1 Look for this icon. It means a
video assembly tip is available at
www.sauder.com/services/tips
å Assemble your unit on a carpeted floor or on the empty
carton to avoid scratching your unit or the floor.
å To begin assembly, push a SAUDER TWIST-LOCK®
FASTENER (7F) into the large holes in the ENDS (A and B),
UPRIGHT (C2), and BOTTOM (E2).
422596www.sauder.com/services Page 5
(10 used)
7F
Do not tighten the TWIST-LOCK® FASTENERS in this step.
A
B
C2
E2
7F

Step 2
422596 www.sauder.com/servicesPage 6
Arrow
Arrow
1F
The arrow in the HIDDEN
CAM must point toward the
hole in the edge of the board.
Hole
å Push nine HIDDEN CAMS (1F) into the ENDS (A and B)
and TOP (D2).
å Fasten the SAFETY STRAP (60M) to the TOP (D2). Use a
BLACK 9/16" LARGE HEAD SCREW (1S).
å NOTE: Position the SAFETY STRAP (60M) exactly
as shown.
(9 used)
1F
Arrow
A
B
D2
60M
BLACK 9/16" LARGE HEAD SCREW
(1 used in this step)
1S

å Turn nine CAM SCREWS (8F) into the FRONT LEGS (H
and I) and TOP MOLDING (K).
Step 3
422596www.sauder.com/services Page 7
8F
I
K
H
(9 used)

Step 4
å Fasten the BACK LEGS (J) to the ENDS (A and B). Use six
BLACK 2-1/4" FLAT HEAD SCREWS (26S).
422596 www.sauder.com/servicesPage 8
B
J
J
BLACK 2-1/4" FLAT HEAD SCREW
(6 used in this step)
26S
Surface with
TWIST-LOCK®
FASTENERS
Remember:
Righty tighty.
Lefty loosey.
These surfaces
should be even.
A
Surface with
TWIST-LOCK®
FASTENERS
Edge with
TWIST-LOCK®
FASTENERS
Edge with
TWIST-LOCK®
FASTENERS
These surfaces
should be even.
Angled edge
Angled edge

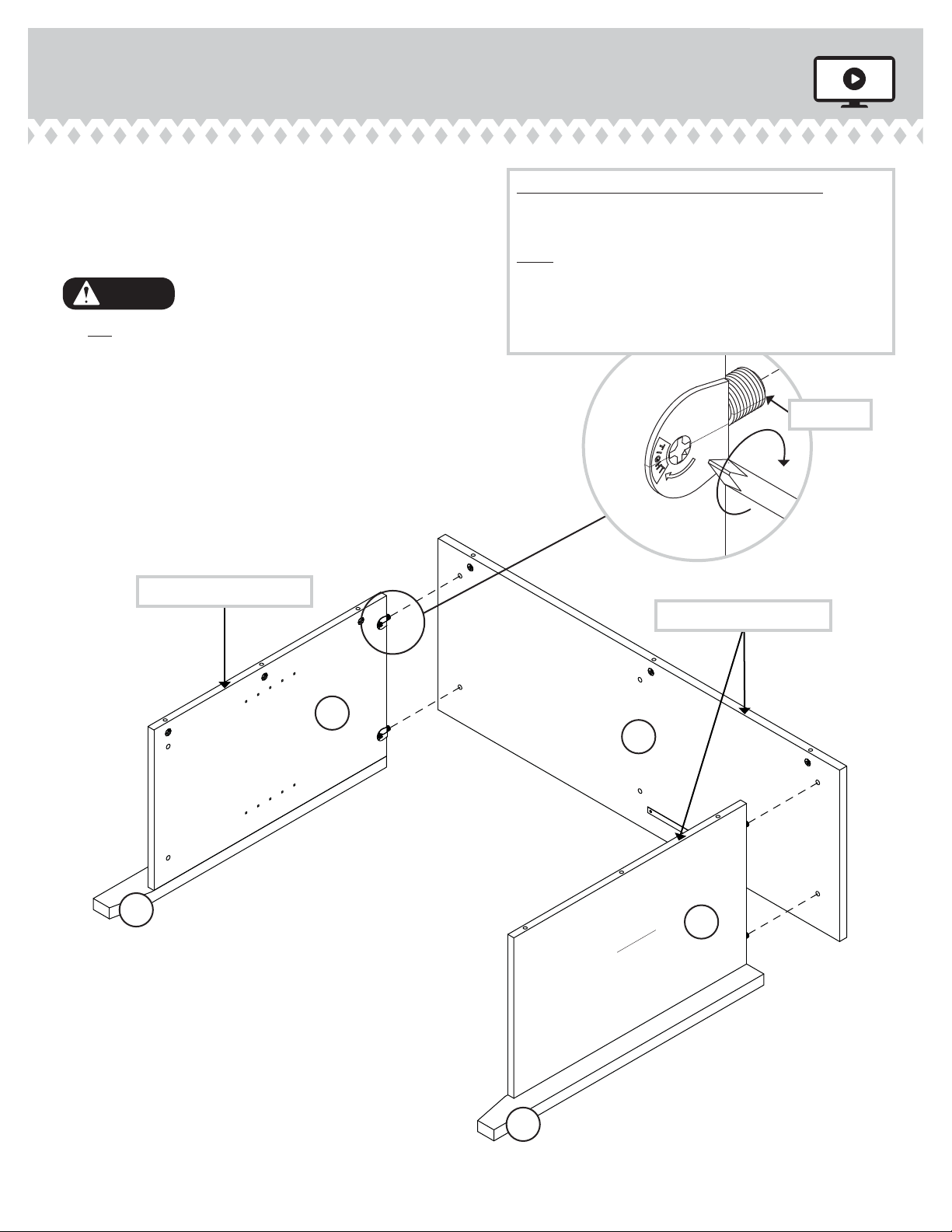

å Fasten the ENDS (A and B) to the TOP (D2). Tighten four
TWIST-LOCK® FASTENERS.
Step 5
422596www.sauder.com/services Page 9
How to use the SAUDER TWIST-LOCK®FASTENER
1. Insert the dowel end of the FASTENER into the hole of the
adjoining part.
NOTE: The dowel end of the FASTENER must remain fully
inserted in the hole of the adjoining part while locking
the FASTENER.
2. Tighten the FASTENER with a Phillips screwdriver as tight
as possible.
Dowel end
Surface with
TWIST-LOCK®
FASTENERS
B
Surface without
TWIST-LOCK®
FASTENERS
A
D2
Surface
with
HIDDEN
CAMS
J
J
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
Edge with HIDDEN CAMS
Edge with HIDDEN CAMS

Step 6
å Fasten the UPRIGHT (C2) to the TOP (D2). Tighten two
TWIST-LOCK® FASTENERS.
422596 www.sauder.com/servicesPage 10
Surface with
TWIST-LOCK®
FASTENERS
C2
D2
Notched edge

å Tap two MOLDING CONNECTORS (17F) into the notches
in the FRONT LEGS (H and I) and TOP MOLDING (K).
Step 7
422596www.sauder.com/services Page 11
Flat end
Flat end
K
H
I
Use your hammer to tap the MOLDING CONNECTORS (17F) into the notches in the FRONT LEGS and TOP MOLDING.
17F
17F

Step 8
å NOTE: Be very careful when flipping over the FRONT
LEGS and TOP MOLDING to fasten to your unit.
å Fasten the FRONT LEGS (H and I) to the ENDS (A and B).
Tighten six HIDDEN CAMS.
å Fasten the TOP MOLDING (K) to the TOP (D2). Tighten
three HIDDEN CAMS.
422596 www.sauder.com/servicesPage 12
K
H
I
D2
B
A
1
2

Step 9
422596www.sauder.com/services Page 13
å Slide the BOTTOM MOLDING* (L) onto the notched edge of
the BOTTOM (E2).
å Fasten two CARD HOLDERS (35M) to the BOTTOM
MOLDING (L). Use four SILVER 1/2" MACHINE SCREWS (38S).
å *U.S. Patent No. 5,499,886
Slide the BOTTOM
MOLDING (L) onto
the notched edge.
Surface with
TWIST-LOCK®
FASTENERS
Almost time to
celebrate! With a nap.
SILVER 1/2" MACHINE SCREW
(4 used for the CARD HOLDERS)
38S
L
L
E2
Notched edge
35M
The groove
is closer to
this edge.
Open end
These surfaces
should be even.

Step 10
å Fasten the BOTTOM (E2) to the ENDS (A and B). Tighten
four TWIST-LOCK® FASTENERS.
å NOTE: The BOTTOM will be fastened to the UPRIGHT in
the next step.
422596 www.sauder.com/servicesPage 14
Surface with
TWIST-LOCK®
FASTENERS
E2
L
B
A

å Fasten the ADJUSTABLE FOOT (34E) to the BOTTOM (E2). Use
three BLACK 9/16" LARGE HEAD SCREWS (1S).
å NOTE: Adjustments to the ADJUSTABLE FOOT will be made once
your unit is standing upright.
å Fasten the BOTTOM (E2) to the UPRIGHT (C2). Use two BLACK
1-15/16" FLAT HEAD SCREWS (113S).
å NOTE: One of the SCREWS for the BOTTOM will go through the
ADJUSTABLE FOOT and into the UPRIGHT.
Step 11
422596www.sauder.com/services Page 15
BLACK 9/16" LARGE HEAD SCREW
(3 used in this step)
1S
E2
C2
34E
BLACK 1-15/16" FLAT HEAD SCREW
(2 used in this step)
113S

Step 12
422596 www.sauder.com/servicesPage 16
å Carefully turn your unit over onto its front edges. Unfold the
BACK (F) and lay it over your unit.
å A perforation in the BACK (F) has been provided for access
to the SAFETY STRAP (60M). Punch out the perforation
and push the SAFETY STRAP through the hole.
å Make equal margins along the top and side edges of the
BACK (F). Push on opposite corners of your unit if needed to
make it "square".
å Fasten the BACK (F) to your unit using the NAILS (1N).
å NOTE: Be sure to tap NAILS into the holes that line up over
the UPRIGHT (C2).
Do not stand the unit upright without the
BACK fastened. The unit may collapse.
Caution
These holes must line up
over the UPRIGHT (C2).
NAIL
(43 used in this step)
1N
F
Before fastening the
BACK, punch out the
perforation and push
the SAFETY STRAP
through the hole.

Step 13
422596www.sauder.com/services Page 17
å Carefully stand your unit upright and position the unit in
its final location.
å Turn the ADJUSTABLE FOOT (34E) downward until it
touches the floor.
å IMPORTANT: The ADJUSTABLE FOOT should not extend
beyond the bottom edges of the LEGS (H, I, and J).
With your No. 2 Phillips Screwdriver,
turn the ADJUSTABLE FOOT
downward until it touches the floor.
34E
Floor
J I
34E
Pro Tip: Lift with your
legs. And, you know,
your arms.

Step 14
422596 www.sauder.com/servicesPage 18
60M
61M
13M
å We recommend using the SAFETY STRAP (60M) for added stability.
å NOTE: Do not turn the SAFETY DRYWALL ANCHOR (61M) into a wall stud. If you prefer to fasten the SAFETY
STRAP (60M) to a wall stud, go to your local hardware store for proper hardware.
å INSTALLATION INSTRUCTIONS:
1. Insert the SAFETY DRYWALL ANCHOR (61M) through the WASHER (13M) and the end of the SAFETY STRAP (60M).
2. Using a Phillips screwdriver or a hand drill, press the screw slightly onto the drywall.
3. Apply pressure; turn the screw until a pilot hole is made and the nylon sheath slips through.
4. Turn the screw until it is flush against the wall and you feel a firm resistance.
5. Continue to turn until the screw starts spinning freely.
å NOTE: Before moving your unit to a dierent location, unscrew the SAFETY DRYWALL ANCHOR (61M) from your wall.
The nylon sheath will remain behind your wall.
å Apply the WARNING LABEL (1L) to the TOP (D2). You should be able to read the label when the TV is removed from the
unit. When the TV is in place, it should hide the label. Peel o the backing and apply the label as shown in the diagram.
å NOTE: This is a permanent label intended to last for the life of the product.
Once applied, do not try to remove it.
D2
WARNING
Never use this furniture with a TV
that is too large or too heavy. Severe
injury or death can occur. The TV and
furniture will be unstable and may tip.
-The TV must weigh less than 50 lbs.
-The base of the TV must be able to
sit completely on this shelf.
Refer to instruction book for
complete safety information.
Note: This is a permanent label. Do
not try to remove. Surface will be
damaged.
08/05 2 6 9 2 2 0 269220
1L

Step 15
422596www.sauder.com/services Page 19
å Slide an ADJUSTABLE SHELF MOLDING* (M) onto the notched edge of the ADJUSTABLE SHELF (G).
å Then, fasten a CARD HOLDER (35M) to the ADJUSTABLE SHELF MOLDING (M). Use two SILVER 1/2"
MACHINE SCREWS (38S).
å Repeat this step for the other ADJUSTABLE SHELF (G).
å *U.S. Patent No. 5,499,886
G
M
M
SILVER 1/2" MACHINE SCREW
(4 used for the CARD HOLDERS)
38S
Notched edge
35M
The groove
is closer to
this edge.
Open end
Slide the ADJUSTABLE
SHELF MOLDING (M)
onto the notched edge.
These surfaces
should be even.
(2 used)

Step 16
å Push the RUBBER SLEEVES (2R) over the METAL PINS (1R). Insert the METAL PINS into the hole locations of your
choice in the ENDS (A and B) and UPRIGHT (C2). Set the ADJUSTABLE SHELVES (G) onto the METAL PINS.
å Separate a CARD from the CARD SHEET (38M) and insert into each CARD HOLDER.
å Using your hammer, gently tap a CAM COVER (12P) onto each visible HIDDEN CAM in the ENDS (A and B).
å Insert the HOLE PLUG (41P) into the hole in the BOTTOM (E2).
å NOTE: Please read the back pages of the instruction booklet for important safety information.
å This completes assembly. Clean with your favorite furniture polish or a damp cloth. Wipe dry.
422596 www.sauder.com/servicesPage 20
And to celebrate, why not share your success story?
(8 used)
2R
1R
50 lbs.
25 lbs.
40 lbs. total
B
C2
A
G
E2
41P
To cover HIDDEN CAMS
(4 used)
12P
38M
(4 used)
25 lbs.
G
