Saxby Lighting Atlantis Spike Manual

Instruction leaflet
Atlantis Spike
14018
Waste electrical products should not be disposed of with household waste. Please recycle where facilities
exist. Check with your Local Authority or retailer for recycling advice.
Recycling advice
Fitting/replacing bulbs (Max. 7W LED GU10)
Care and Cleaning
V8 08/04/2022
www.saxbylighting.com Saxby Lighting
EU Manufacturer: Brilliant AG,
Brilliantstrasse 1, D-27442 Gnarrenburg
UK Manufacturer: BH17 7BY
Do not use solvents or abrasive cleaners as these could
damage the finish.
In normal circumstances, stainless steel is very resistant
to corrosion. It does however require maintenance to
preserve the high quality appearance. Wash the product
with warm soapy water, removing all surface deposits.
Rinse with clear water and with a soft cloth, wipe dry.
In some cases, surface corrosion may arise after
installation. This is normally caused by tiny iron particles
left behind after the brushing process when finishing.
Wash and dry as detailed above. Then with a soft cloth
soaked with a protective oil, wipe all over.
However if the product is subject to extreme
environmental conditions such as marine locations,
industrial pollution and acid rain these maintenance
procedures should be carried out around four times a
year. For severe corrosion, non-abrasive cream cleaners
or proprietary stainless steel cleaners should be used to
remove the corrosion. Wash and dry as detailed above.
Then with a soft cloth soaked with a protective oil, wipe
all over.
When changing a bulb, always switch off at the mains and allow the bulb to cool before handling. Dispose of
used bulbs carefully. Use a soft cloth to handle bulbs, avoid directly touching the bulbs as this will shorten their life.
Do not exceed the wattage stated or use a different shape bulb from that indicated on the fitting.
Check with your retailer re bulb dimming capability before purchasing replacement bulbs.
Bulb type - 7W LED GU10
1. Unscrew the bezel
2. Remove the old bulb by turning anti-clockwise.
3. Insert new bulb.
4. Replace the bezel ensuring that it is tightly secured.
7W LED GU10
For your safety, always switch off the power supply before changing lightbulbs, or cleaning.
Safety information
The shade must be replaced immediately should the shade become cracked or damaged. This fitting
must not be used without the shade in place.
Replace Cracked Shade

Thank you for purchasing this light fitting. Please read the instructions carefully before use to ensure safe and
satisfactory operation of this product. Please retain these instructions for future reference.
Warning
Specification
Voltage: 220-240V~ 50Hz
Lamp: 1 x Max. 7W LED GU10
IP rating: 65
Layout
Wiring
• Decide on the position of the luminaire. Depending
on the location, an approved outdoor rated plug and
socket may be required. Alternatively an approved
outdoor rated external terminal block may be used.
• Avoid locating any cables in positions that would
cause a hazard. Position cables and connector block
away from areas where they may be at risk from
being cut, trapped or damaged.
• Cables that are to be in walls and concealed
underground must be protected using suitable
conduit or plastic trunking.
• Ensure that the ground is suitable for pushing the
spike into, and can support the luminaire. Do not
install in very wet or boggy areas.

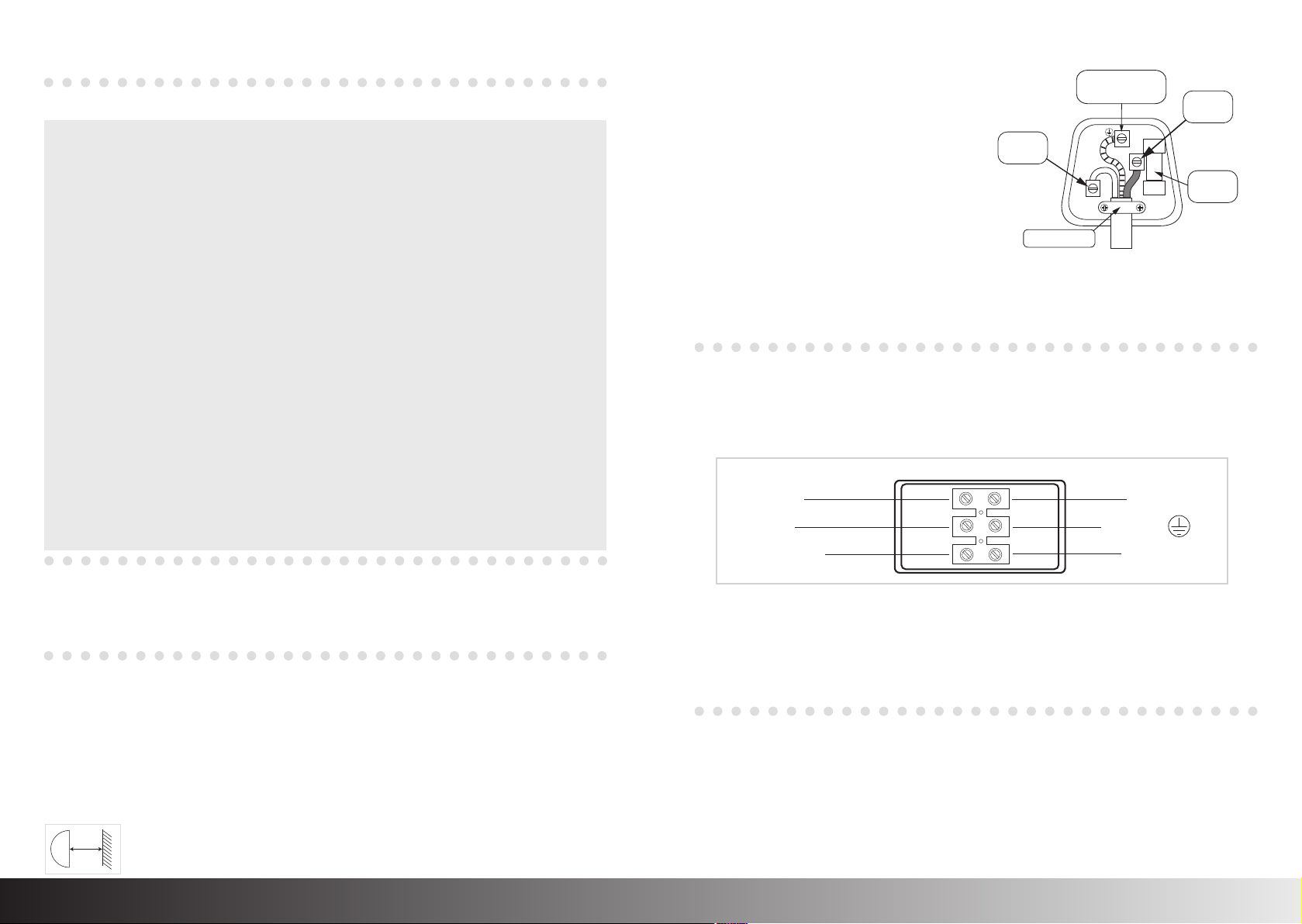

Plug Wiring
• The appliance must be connected to a 240 volts AC
supply.
• The appliance can be fitted to a rewireable 3 pin plug
fitted with a 3 amp fuse. Should the fuse require
replacement, it must be replaced with a fuse rated at
3 amp and approved to BS1362.
• The wires in the mains lead on this appliance are
coloured in accordance with the following code:
Blue – Neutral
Green / Yellow - Earth
Brown – Live
Having correctly identified the wiring from your existing
light fitting, connect to the approved outdoor rated
external terminal block in the following way:
Wiring
• You have correctly identified the wires
• The connections are tight
• No loose strands have been left out of the connection
block.
• Ensure that all cord grips are tightly secured.
• Ensure that all seals are re-fitted correctly.
Check that...
Commissioning
• Ensure that the ground is suitable for pushing the
spike into, and can support the luminaire. Do not
install in very wet or boggy areas. Push the spike into
the ground.
• Replace fuse or circuit breaker and switch on. Your
light is now ready for use.












Spotlights give a concentrated beam of light and must not be positioned any closer than 0.5M
(50cm) to the illuminated surface.
This is a Class 1 product and must be earthed.
Please read these instructions carefully before
commencing any work.
This unit must be fitted by a competent and qualified
electrician.
Install in accordance with IEE Wiring regulations and
current Building Regulations.
To prevent electrocution switch off at mains supply
before installing or maintaining this fitting. Ensure
other persons cannot restore the electrical supply
without your knowledge. If you are in any doubt,
please consult a qualified electrician.
This light fitting should be connected to a fused circuit.
If replacing an existing fitting, make a careful note of
the connections.
Always use the correct type and wattage bulb. Never
exceed the wattage stated.
This product is suitable for dimming.
When changing a bulb, always switch off at the mains
and allow the old bulb to cool down before handling.
Dispose of used bulbs carefully and responsibly.
Waste electrical products should not be disposed of
with household waste. Please recycle where facilities
exist. Check with your local authority or retailer for
recycling advice.
This product is rated at IP65.
This product is suitable for location in or near a marine
or sea environment. Please pay particular attention
to the care and cleaning instructions to minimise any
effects from a corrosive atmosphere.
Please note: entire unit gets hot whilst on for a period
of time.
This light fitting should be connected to a 30mA RCD.
This product may require the use of a outdoor rated
connector block.
If the external flexible cable or cord of this lamp is
damaged the lamp must be returned to the service
agent for repair.
If not fitting to a plug then the product must be wired to a
IP68 outdoor rated terminal block. We recommend item
90131/ 90132 (ourtdoor rated terminal block).
NEUTRAL
EARTH
SWITCHED LIVE
BLUE (N)
BROWN (L)
GREEN/YELLOW
SUPPLY LIGHT FITTING
0.5m
The distance between the cable entry and the ground
surface should be at least 10cm when installing the
spike. Spike is to not be inserted past the disc on
the spike.
The product will not withstand long periods of
immersion in water
