Scell-it ELEMENT 008 User manual

CORDLESS RIVET
NUT TOOL
FOR BLIND NUT
USER MANUAL
min. max.
M3 - M6

2 • E-008 - User Manual
EN
FR
PL
CZ
IT
SPECIFICATIONS
205 mm
225 mm
210 mm
215 mm
12
4
5
8
6
3
7
9

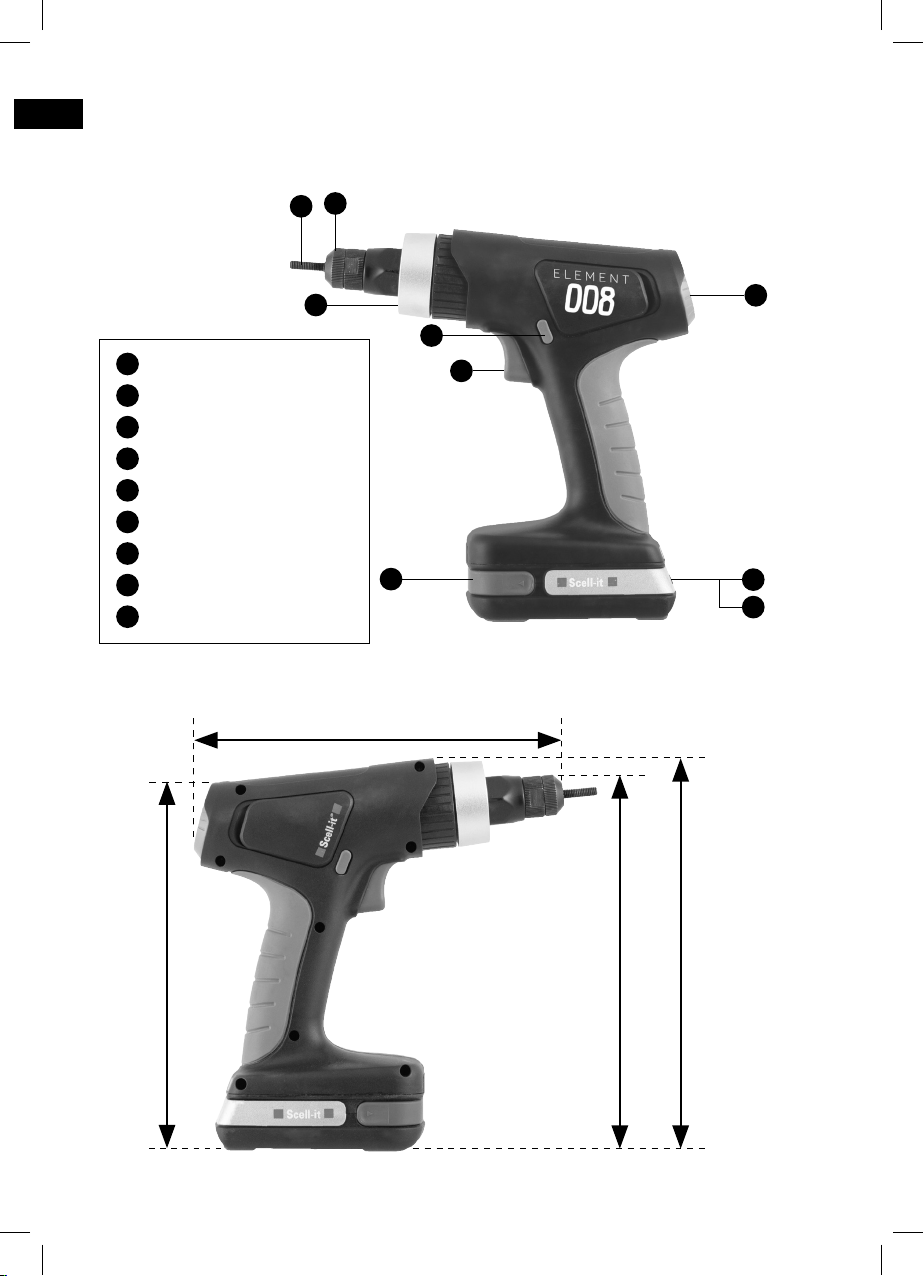

Mandrel
Nosepiece
Stroke setting dial
Trigger
Unlock battery buttons
Battery charge test button
Battery charge indicator
LED lights
Reverse button
1
2
3
4
5
6
7
8
9

E-008 - User Manual • 3
EN
FR
PL
CZ
IT
TOOL
cordless rivet nut tool for blind nut
M3 TO M6
Force de traction : 6 000 N
Course : 1-9 mm
Poids (avec batterie) : 1,25 kgs
CAPACITY
NUTS M3 M4 M5 M6 M8
ALUMINIUM - STEEL - STAINLESS STEEL
SPYDER XS - STEEL
IT IS ESSENTIAL THAT ALL OF THE SAFETY PRECAUTIONS, WARNINGS AND
OPERATING INSTRUCTIONS IN THIS MANUAL ARE READ AND UNDERSTOOD BEFORE
OPERATING OR MAINTAINING THIS POWER TOOL.
BATTERY
Rated Voltage: 18V
Battery Type: Li-ion
Cells: 5 cells
Capacity: 2.0 Ah
Weight: 0.36 kgs
CHARGER
Input Voltage: 100-240VAC/50-60Hz
Output Voltage: 18VDC
Output Current: 2.5A max.
Weight: 0.37 kgs
*
• Accessories included:
• 4 nosepieces and mandrels M3-M4-M5-M6 for blind nuts.
(*nosepieces and mandrels M8 available as an option for installation of SPYDER XS in M8)
REFERENCE
CONTENTS
NUT TOOL E-008 BATTERY18V
Li-Ion -2.0Ah
QUICK
CHARGER 18V ACCESSORIES RIGID CARRYING
CASE
E-008-1XBAT 1 1 1 1 1
E-008-BODY 1 1
E-BATT 1
E-CHARG 1

4 • E-008 - User Manual
EN
FR
PL
CZ
IT
IMPORTANT
SAFETY
INFORMATION
WARNING:
Read all safety warnings
and all instructions. Failure
to follow the warnings and
instructions may result in
electric shock, fire and/
or serious injury. Save all
warnings and instructions
for future reference.
Work area
1. Keep work area clean and well
lit. Cluttered and dark areas invite
accidents.
2. Do not operate power tools on
explosive atmospheres, such as in the
presence of flammable liquids, gases
or dust. Power tools create sparks
which may ignite the dust of fumes.
3. Keep children and bystanders
away while operating a power tool.
Distractions can cause you to lose
control.
Electric safety
1. Do not expose power tools to rain or
wet conditions. Water entering a power
tool will increase the risk of electric
shock.
Personal safety
1. Stay alert, watch what you are
doing and use common sense when
operating a power tool. Do not use a
power tool while you are tired or under
the influence of drugs, alcohol or
medication. A moment of inattention
while operating power tools may result
in serious personal injury.
2. Use personal protective equipment.
Always wear goggles. Protective
equipment such as dust mask,
non-skid safety shoes, hard hat, or
hearing protection used for appropriate
conditions will reduce personal injuries.
3. Prevent unintentional starting.
Ensure the switch is in the off-position
before connecting to power source
and/or battery pack, picking up or
carrying the tool. Carrying power
tools with your finger on the switch or
energizing power tools that have the
switch on invites accidents.
4. Remove any adjusting wrench or
wrench before turning the power tools
on. A wrench or wrench left attached
part of the power tool may result in
personal injury.
5. Do not overreach. Keep proper
footing and balance at all times. This
enables better control of the power tool
in unexpected situations.
6. Dress properly. Do not wear loose
clothing. Keep your hair, clothing and
gloves away from moving parts. Loose
clothes or a long hair can be caught in
moving parts.
Power tool use and care
1. Do not force the power tool. Use the
correct power tool for your application.
The correct power tool will do the job
better and safer at the rate for which it
was designed.
2. Do not use the power tool if the
on-off switch is defective. Any power
tool that cannot be controlled with
the switch is dangerous and must be
repaired.
3. Disconnect the battery from
the power tool before making an
adjustment, changing accessories, or
storing power tools. Such preventive
safety measures reduce the risk of
starting the power tool accidentally.
4. Store the power tool out of the reach
of children and do not allow persons
unfamiliar with the power tool or these
instructions to operate the power tool.
Power tools are dangerous in the hands
of untrained users.
5. Maintain your power tool. Check
for misalignment of binding of moving
parts, breakage of parts and any other
condition that may affect the power
tools operation. If damaged, have
the power tool repaired before use.
Many accidents are caused by poorly
maintained power tools.
6. Use the power tool, accessories
and tool bits etc., in accordance with
these instructions and in the manner
intended for the particular type of
power tool, taking into account the
working conditions and the work to be
performed. The use of the power tool
for operations different from intended
could result in a hazardous situation.
Service
1. Have your power tool serviced by
a qualified repair person using only
identical replacement parts. This will
ensure that the safety of the power tool
is maintained.
Specific warnings
1.Hold power tool by insulated
gripping surfaces, when performing
an operation where the fastener may
contact hidden wiring.
Fasteners contacting a «live» wire may
make exposed metal parts of the power
tool «live» and could give the operator
an electric shock.
IMPORTANT SAFETY
INSTRUCTIONS FOR
CHARGER & BATTERY
1. Before using the battery charger,
read all instructions and cautionary
markings on battery charger, battery,
and product using battery.
2. Do not expose battery & battery
charger to water, rain or snow.
3. Use power tool only with specifically
designated battery packs. The use of
any other battery packs may create a
risk of injury and fire.
4. Do not charge at voltage higher
than indicated as charger specification;
otherwise, the charger will burn up.
5. Recharge only with the charger
specified by the manufacturer. A
charger that is suitable for one type of
battery pack may create a risk of fire
when used with another battery pack.
6. To reduce risk of damage of the
charger plug and cord, pull by plug
when disconnecting battery charger.
7. Make sure charger is located so that
it will not be stepped on, cord tripped
over, or otherwise subjected to damage
or stress.
8. An extension cord should not be
used unless absolutely necessary.
The use of improper extension cord
could result in a risk of fire and electric
shock. If extension cord must be used
make sure, it is correct and property
connected.
9. Do not operate battery charger with
damaged cord or plug - replace them
immediately.
10. Do not operate battery charger
if it has received a sharp blow, been
dropped, or otherwise damaged in any
way; send it back to a qualified service
engineer.
11. To reduce risk of electric shock,
unplug charger from receptacle
before attempting any maintenance or
cleaning. Removing the battery will not
reduce this risk.
12. Never recharge a fully charged

E-008 - User Manual • 5
EN
FR
PL
CZ
IT
battery. Overcharging shortens the
battery service life.
13. Under abusive conditions, liquid
may be ejected from the battery; avoid
contact. If contact accidentally occurs,
flush with water. If liquid contacts eyes,
additionally seek medical help. Liquid
ejected from the battery may cause
irritation or burns.
14. Suitable charging environment:
a. Charging temperature:
0°C ~40°C (32°F~104°F)
b. Discharging temperature:
0°C ~40°C (32°F~104°F)
c. Storage temperature:
-20°C ~60°C (-4°F~140°F)
Please wait one-hour first before
charging, if the battery pack is stored
under 0°C (32°F).
15. Storage instructions of battery:
When battery pack is not in use, keep
it away from other metal objects like
paper clips, coins, wrenchs, nails,
screws, or other small metal objects
that can make a connection from
one terminal to another. Shorting the
battery terminals together may cause
burns or a fire.
a. If battery pack is at a low
temperature (under -20°C / -4°F) its
chemical elements will be in solid state
and resistance in charging will become
too high for the battery to be charged.
b. If battery pack is at a high
temperature (above 60°C / 140°F),
its chemical elements will be in a
vapor state that can make the battery
ineffective in a short time.
16. The lithium battery safe protection
function:
a. The «low-voltage protect function»
will start when the lithium battery is
used the first time. Please charge the
lithium battery to prevent battery from
damage.
b. After using, the temperature of the
lithium battery will keep rising. When
the temperature of the lithium battery
exceeds the max temperature, battery
“temperature protects function “will
start.
The lithium battery will be locked to
prevent dangerous overheating please
wait till the lithium battery cools down.
c. The overload on the battery can
cause a voltage peak on the tool. The
lithium battery pack will start “electric
current overload protection function” to
protect the lithium battery and battery
PCB. In this situation, the protecting
function will stop the tool for a few
seconds. If the tool can not be used
after few minutes, the lithium battery
might be in “low-voltage protecting
function” or “temperature protecting
function”. Please follow above
mentioned ways to relieve.
17. A small leakage of liquid from
the battery pack may occur under
extreme usage or temperature. This
does not necessarily indicate a
failure of the battery pack. However,
if the outer seal is broken and
this leakage comes into contact
with your skin: Wash the affected
area quickly with soap and water.
Neutralize the liquid with a mild acid
such as lemon juice or vinegar. If the
leakage gets in your eyes. Flush your
eyes with clean water for a minimum
of 10 minutes and seek immediate
medical attention. Inform the medical
staff that the liquid is a 25-35% solution
of potassium hydroxide.
18. Do not store or carry a spare
battery pack in a pocket or toolbox or
any other place where it may come into
contact with metal objects. The battery
pack may be short circuited causing
damage to the battery pack, burns or
a fire. If storing or disposing the battery
pack, cover the terminals with a heavy
insulation tape to ensure short circuit
cannot occur. Batteries, when stored
for a long period of time, will discharge.
19. DANGER: If the battery pack is
cracked or damaged in any other way,
do not insert it in the charging base.
There is a danger of electric shock or
electrocution.
20. WARNING: Do not allow any liquid
to come into contact with the charger.
There is a danger of electric shock.
21. Do not place any object on the
top of the charger as it could cause
overheating. Do not place the charger
near any heat source.
22. Do not disassemble the charger.
Take it to an authorized service center
when service or repair is required.
Incorrect re-assembly may result
in the risk of fire, electric shock or
electrocution.
23. This appliance is not intended for
use by persons (including children)
with reduced physical, sensory
or mental capabilities, or lack of
experience and knowledge, unless
they have been given supervision
or instruction concerning use of the
appliance by a person responsible for
their safety.
24. lf the supply cord is damaged, it
must be replaced by the manufacturer,
its service agent or similarly qualified
persons in order to avoid a hazard.

6 • E-008 - User Manual
EN
FR
PL
CZ
IT
1
OPERATING INSTRUCTIONS

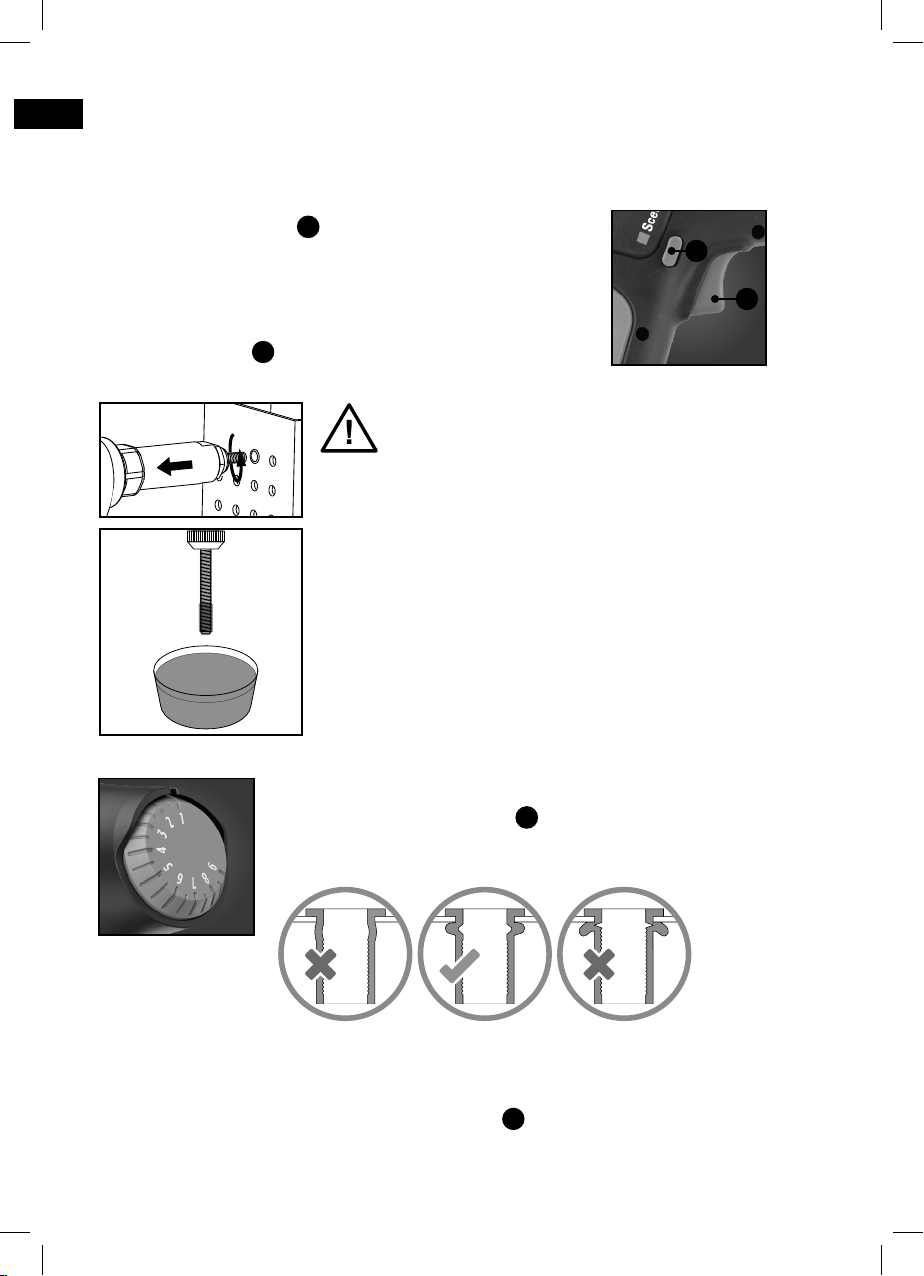

● BLIND NUT INSTALLATION:
1.Set the reverse button 9to the ‘screwing’ position
(i.e. pushed in on the right side).
2.Manually screw the rivetnut on the mandrel
3.Insert the nut into the hole, ensuring correct alignment
hole-nut-tool
4.Press the trigger 4to set the rivetnut
5.Release the trigger to unscrew and release the mandrel
IMPORTANT :
Aid the automatic unscrewing by pulling
the tool back slightly.
In order to reduce wear and avoid stoppages, it is
highly recommended to regularly add some grease on
the end of the mandrel approximately every 5 rivetnut
settings. (pot of grease supplied).
Simply dip the mandrel into the pot and wipe off the
excess with a cloth if necessary.
●ADJUSTING THE STROKE:
Adjust the stroke setting dial 3to adjust the stroke depth
for crimping.
Blank test on a rivetnut to reach the optimum crimp.
9
4
● HOW TO REMOVE THE BATTERY:
Battery is locked to the riveting tool with a spring.
To remove the battery, press the 2 unlock buttons 5and slide the battery.
Do not force it.

E-008 - User Manual • 7
EN
FR
PL
CZ
IT
2
REPLACE THE MANDREL
1.Remove the battery
2.Unscrew the ring
3.Remove + from the body, separate the mandrel
4.Separate and by unscrewing
Mandrel
Anvil locknut
Front sleeve
Ring
5.Then reassemble the 3 parts with the new anvil and mandrel:
- Screw the anvil in the front sleeve assemble the mandrel
- Reassemble the + + assembly on the tool by aligning the LEDs with
the small notches
6.Screw the silver ring

8 • E-008 - User Manual
EN
FR
PL
CZ
IT
4
LED LIGHTS
The tool is equipped with 3 powerful LED
lights 8to light up the working area.
Turn on the light only
Press the trigger half way to turn on the light.
The lights will shutdown after 10 seconds.
Turn on the tool with the lights on
Press the trigger to set the blind nut. The
lights turn on and remain on for 10 seconds
after the trigger is released.
4 lights on the battery panel allows you to
check the remaining power. Press and hold
the blue button 6to check the battery level:
4 lights on : 100% remaining
3 lights on : 75% remaining
2 lights on : 50% remaining
1 light on : 25% remaining
The information on the battery panel can vary
(+/- 5%) due to environmental conditions.
3
BATTERY LEVEL
INDICATOR
100%
75%
50%
25%
Green light on the charger:
the battery is fully charged
Red light on the charger: the
battery has to be charged

E-008 - User Manual • 9
EN
FR
PL
CZ
IT
6
WARRANTY CONDITIONS
7
DISPOSAL OF OLD
ELECTRICAL & ELECTRIC
EQUIPMENT
5
TROUBLESHOOTING
This product (including battery and charger) shall not be treated as household waste.
It shall be handed over the applicable collection point for the recycling of electrical and
electric equipment. By ensuring this product is disposed of correctly, you will help prevent
potential negative consequences for the environment and human health, which could
otherwise be caused by inappropriate waste handling of this product. The recycling of
materials will help to conserve natural ressources.
For more detailed information about recycling of this product, please contact your local
city office, your household waste disposal service or the shop where you purchased the
product.
During the warranty period, the customer must not perform any alterations other than
those permitted by the manufacturer (maintenance). The repairs must be done by an
authorized serice center.
To admit warranty repair, the customer must return the defective tool to the service center
of the manufacturer with the proof of purchase. Warranty is valid only if the tool is in
its warranty period (12 months from the date of purchase confirmed by the proof of
purchase) and if the conditions of use have been respected.
Warranty is not valid if worn spare parts have to be replaced (further to a normal use of
the tool).
Trouble Reason Solution
Flashing LED Low battery charge or
damaged battery
Charge or replace the battery
Tool capacity
exceeded
Check working limits of the tool.
Tool overheating Let the tool cool down for a moment
Hard to screw
the hollow wall
anchor on the
mandrel
Worn or damaged
mandrel
Replace mandrel

10 • E-008 - User Manual
EN
FR
PL
CZ
IT
DECLARATION OF CONFORMITY
EC DECLARATION OF CONFORMITY – EC DIRECTIVE 2006/42/EC ANNEX II 1A
The manufacturer:
SCELL-IT
28 RUE PAUL DUBRULE
59810 LESQUIN
FRANCE
[phone]
declares hereby that the following product:
Product designation:
• E-5 / E-6 / E-T / E-7 / E-8 / E-SP / E-12 / E-HC / E-005 / E-008 / E-007 / E-007-T
• Universal quick charger 18V (E-CHARG)
Complies with the following relevant conditions:
• 2006/42/EC Machinery Directive
• 2014/35/EU Low Voltage Directive
• 2014/30/EU Electromagnetic Compatibility Directive
If the machine is modified without our knowledge and consent, this EC Declaration of
Conformity will be voided.
Most important applied standards:
EN 60204-1:2006+A1:2009
EN ISO 12100:2010
EN 55014-1:2017
EN 55014-2:2015
Name of documentation officer:
Nadia FAYTRE
Address of documentation officer:
see address of manufacturer
Lesquin, 22-07-2021
Franck De Bruyne
(Managing Director)

48 • E-008 - User Manual
EN
FR
PL
CZ
IT
28 rue Paul Dubrule - 59810 Lesquin - FRANCE
