Schaeffler HEATER Series User manual

Induction Heating Devices
HEATER
User manual

Foreword
The induction heating devices HEATER25, HEATER50, HEATER100,
HEATER200, HEATER400, HEATER800 and HEATER1600 give rapid,
clean operation. Their high efficiency level allows energy-efficient
heating and shorter mounting times. This reduces the operating
costs. The uniform, controlled heating allows consistently good
quality of mounting.
Operation is simple and user-friendly, the touch-sensitive screen is
oil-resistant, dustproof and waterproof.
When heating by induction is used, there is no need at all to use
oil – this gives particularly good environmental compatibility.
The scope of application is very extensive. It is possible to heat
the loose inner rings of cylindrical or needle roller bearings as well as
sealed and greased bearings. Compared with previous models,
further improvements have been made in performance capacity and
safety and the part to be heated need no longer be of a minimum
mass.
In order to ensure durability in demanding industrial operation,
the devices are extremely robust and reliable.
Current version An induction heating unit is controlled by means of an operator
unit with a touch-sensitive screen. The operator software can be
developed further and an update is possible free of charge.
Changes to the software can lead to adjustments in the user manual.
A current version of this user manual can be found at
http://medien.schaeffler.com using the search term BA42.

2 BA42 Schaeffler Technologies
Page
Contents
About the user manual Symbols .................................................................................... 4
Signs......................................................................................... 4
Availability ................................................................................ 5
Legal guidelines ........................................................................ 5
Original user manual ................................................................. 5
General safety guidelines Usage for the intended purpose ................................................. 6
Usage not for the intended purpose ........................................... 6
Qualified personnel................................................................... 6
Hazards..................................................................................... 7
Safety devices ........................................................................... 8
Protective equipment ................................................................ 9
Safety regulations ..................................................................... 10
Scope of delivery ................................................................................................. 12
Accessories............................................................................... 18
Damage during transit ............................................................... 18
Defects...................................................................................... 18
Description Overview ................................................................................... 19
Temperature sensor................................................................... 20
Function .................................................................................... 21
Operation.................................................................................. 22
Operating modes....................................................................... 23
Temperature hold mode............................................................. 27
Transport and storage Transport................................................................................... 28
Storage ..................................................................................... 32
Commissioning Hazard area............................................................................... 33
Initial stages ............................................................................. 34
Voltage supply .......................................................................... 34
Configuration ............................................................................ 36

Schaeffler Technologies BA42 3
Page
Operation Selecting a heating device ........................................................ 48
Selecting a support ledge.......................................................... 48
Changing the slewing ledge ...................................................... 49
Changing the vertical ledge ....................................................... 50
Positioning the rolling bearing .................................................. 51
Connecting the temperature sensor........................................... 55
Selecting the heating method ................................................... 57
Setting values........................................................................... 58
Heating..................................................................................... 59
Cancelling temperature hold ..................................................... 60
Removing the temperature sensor ............................................. 61
Removing the rolling bearing..................................................... 62
Saving the heating curve........................................................... 66
Troubleshooting General errors........................................................................... 67
Slight error ............................................................................... 67
Serious error............................................................................. 68
Repair....................................................................................... 68
Maintenance Maintenance plan ..................................................................... 69
Decommissioning ................................................................................................ 70
Disposal Regulations .............................................................................. 70
Technical data and accessories HEATER25................................................................................. 71
HEATER50................................................................................. 72
HEATER100............................................................................... 73
HEATER200............................................................................... 74
HEATER400............................................................................... 75
HEATER800............................................................................... 76
HEATER1600............................................................................. 77
Original accessories.................................................................. 77
Appendix EU Declaration of Conformity..................................................... 78

4 BA42 Schaeffler Technologies
Induction heating devices HEATER
About the user manual This user manual is part of the device and contains important
information.
Symbols The warning and hazard symbols are defined in accordance with
ANSI Z535.6-2006.
DANGER
In case of non-compliance, death or serious injury will occur. 
WARNING
In case of non-compliance, death or serious injury may occur. 
NOTICE
In case of non-compliance, damage or malfunctions in the product or
the adjacent construction will occur.

Signs The warning, prohibition and instruction signs are defined
in accordance with DIN 4884-2 and DIN EN ISO 7010.
Warning, prohibition and
instruction signs
Signs and descriptions
Warning of magnetic field
Warning of non-ionising, electromagnetic radiation
Warning of hot surface
Prohibited for persons with heart pacemaker
Prohibited for persons with metallic implants
Carrying of metallic parts or watches prohibited
Observe manual
Wear safety gloves
Wear safety shoes

Schaeffler Technologies BA42 5
Availability This user manual is supplied with each device and can also be
ordered retrospectively.
WARNING
If the user manual is missing, incomplete or illegible, the user may
make errors.
The Safety Officer must ensure that this user manual is always
complete and legible and that any persons using the device have
the user manual available. 
Legal guidelines The information in this manual corresponded to the most recent
status at the close of editing. The illustrations and descriptions
cannot be used as grounds for any claims relating to devices that
have already been delivered. Schaeffler Technologies AG & Co. KG
accepts no liability for any damage or malfunctions if the device or
accessories have been modified or used in an incorrect manner.
Original user manual The original user manual is taken to be a user manual in
the German language. A user manual in another language is to be
taken as a translation of the original user manual.

6 BA42 Schaeffler Technologies
Induction heating devices HEATER
General safety guidelines A description is given of how the device may be used, who may use
the device and what must be observed when using the device.
Usage for the intended
purpose
Usage for the intended purpose of the induction heating device is
defined as the industrial heating of rolling bearings and other rota-
tionally symmetrical, ferromagnetic workpieces. Sealed and greased
rolling bearings can also be heated. In this case, the maximum
permissible heating temperatures for the seal and grease must be
observed.
Usage not for the intended
purpose
The heating device may not be used for the heating of parts that
are not ferromagnetic or not rotationally symmetrical. Do not use the
heating device in an environment with a risk of explosion.
Usage not for the intended purpose can lead to the injury or death of
persons or damage to the device.
Qualified personnel For safety reasons, the heating device may only be operated by
qualified personnel.
A person defined as qualified personnel:
■ has all the necessary knowledge
■ is aware of all the hazards and safety guidelines
■ is authorised to use the heating device by the safety co-ordinator
■ has fully read and understood this user manual.
Work on electrical devices The heating device HEATER1600 may only be connected by a trained
electrician. The switch cabinet may only be opened by an electrician.
Only an electrician is in a position, on the basis of his technical
training, knowledge and experience as well as his knowledge of
the appropriate regulations, to carry out work on electrical devices
correctly and recognise possible hazards.

Schaeffler Technologies BA42 7
Hazards During operation, the device always generates an electromagnetic
field. The electromagnetic field heats ferromagnetic parts and
can disrupt or destroy electronic components.
Examples include watches, clocks, mobile telephones, credit cards
and other data carriers as well as electronic circuits.
DANGER
Danger of heart stoppage in persons fitted with a pacemaker due to
the strong electromagnetic field.
Persons fitted with a pacemaker must remain outside the hazard
area of the heating device, see page 33.

WARNING
Danger of death for persons with artificial heart valves made
from metal, hazard of severe burns due to heating of implants by
the electromagnetic field.
Persons with ferromagnetic implants must remain outside
the hazard area of the heating device, see page 33. 
Implants Persons with implants must clarify with a doctor whether
the implants are ferromagnetic before working with an induction
heating device.
The following list is not exhaustive but is intended to give the user
an initial overview of the types of implants that may be hazardous:
■ artificial heart valve
■ ICD
■ stent
■ hip implant
■ knee implant
■ metal plate
■ metal screw
■ dental implant and dentures
■ cochlear implant
■ neurostimulator
■ insulin pump
■ hand prosthesis
■ subcutaneous piercing.

8 BA42 Schaeffler Technologies
Induction heating devices HEATER
Metallic objects Persons with a metallic object must clarify whether it is ferro-
magnetic before working with an induction heating device.
The following list is not exhaustive but is intended to give
the user an initial overview of the types of metallic objects that
may be hazardous:
■ prosthetic
■ spectacles
■ hearing aid
■ earring
■ piercing
■ brace
■ chain
■ ring
■ armband
■ keys
■ timepiece
■ coin
■ ballpoint pen, fountain pen
■ belt
■ shoes with metal caps or metal springs in the sole.
Safety devices In order to protect the user and the heating device, the following
safety devices are present:
■ The temperatures of the cooling element, coil and housing are
continuously monitored. The thermal protection system will
switch off the heating device before any component is over-
heated. Once the thermal protection system has been triggered,
the heating device can be put back into operation once the error
has been eliminated and the device has been checked.
■ The heating of the rolling bearing is continuously monitored.
If the specified increase in temperature is not achieved within a
certain period, the heating device is switched off by the software.

Schaeffler Technologies BA42 9
Operation In order that the user can move out of the hazard area before
the electromagnetic field is generated, the following operating
options are available:
■ The operator can set the time on the heating device that
is counted down after pressing the START/STOP key before
the electromagnetic field is generated. The user can then move
out of the hazard area within the countdown time.
WARNING
Risk of damage to health from remaining in a strong electromagnetic
field, since the device starts the heating operation unexpectedly.
Set a sufficiently long countdown time in order to allow exit from
the hazard area. 
Activity display During the heating operation, an animation with a red rectangle is
visible. The user can thus recognise during heating when the electro-
magnetic field is being generated. During demagnetisation,
the electromagnetic field is indicated by a red circle with a white
exclamation mark.
Protective equipment Personal protective equipment is intended to protect operating
personnel against health hazards. This comprises safety shoes and
gloves that are heat-resistant up to +250 °C and these must be used
in the interests of personal safety.

10 BA42 Schaeffler Technologies
Induction heating devices HEATER
Safety regulations The following safety regulations must be observed when
working with the heating device. Further guidance on hazards and
specific guidelines for action can be found, for example,
in the section Operation , page 48.
Transport The heating device must not be moved directly after heating.
Storage The heating device must always be stored under the following
ambient conditions:
■ humidity max. 90%, non-condensing
■ protected against sunlight and UV radiation
■ no explosion risk in the environment
■ no aggressive chemicals in the environment
■ temperature from –40 °C to +40 °C.
If the heating device is stored under unsuitable ambient conditions,
this will probably have consequences such as damage to
the electronic unit, corrosion of the ground contact surfaces and
deformation of the plastic housing.
Commissioning The heating device must not be modified.
The heating device may only be commissioned if it fulfils
the regulations to be adhered to at the place of use.
Only original accessories and replacement parts may be used.
The heating device may only be used in well ventilated rooms.
Do not feed the mains connection cable through the U-shaped core.

Schaeffler Technologies BA42 11
Operation The heating device may only be operated under the following
ambient conditions:
■ closed room
■ subsurface flat and capable of supporting loads
■ humidity min. 5%, max. 90%, non-condensing
■ no explosion risk in the environment
■ no aggressive chemicals in the environment
■ temperature from 0 °C to +40 °C.
If the heating device is operated under unsuitable ambient
conditions, this can have consequences such as damage to
the electronic unit, corrosion of the ground contact surfaces and
deformation of the plastic housing.
The heating device may only be operated at the correct supply
voltage.
Workpieces must not be heated if they are covered.
Workpieces must not be heated if they exceed the maximum
permissible mass, see
table , page 48.
Workpieces must not be suspended from ropes or chains made
from ferromagnetic material while they are heated.
During the heating process, the user must maintain a distance of at
least 2 m from the heating device.
Objects made from ferromagnetic material must be kept at
a distance of at least 1 m from the heating device.
Support, slewing and vertical ledges must not be produced
independently.
The heating device may only be switched on if the support,
slewing or vertical ledge is correctly positioned.
The support, slewing or vertical ledge must never be removed during
the heating process.
The heating device must not be switched off by means of the main
switch while the device is heating a component.
Any smoke or vapour occurring during the heating process must not
be inhaled.
The heating device must be switched off using the main switch
if it is not in use.
WARNING
Back injuries due to incorrect handling of heavy rolling bearings.
In the case of heavy rolling bearings, use suitable lifting gear. 

12 BA42 Schaeffler Technologies
Induction heating devices HEATER
Maintenance The heating device must be switched off before maintenance is
carried out.
Disposal Locally applicable regulations must be observed.
Conversion The heating device must not be converted.
Scope of delivery The scope of supply comprises the heating device, standard
accessories, safety guidelines, user manuals, and a USB stick.
Scope of delivery
Heating device HEATER25
1)
Minimum inside diameter of rolling bearing.
2)
Designation deviates from the naming system as the component is also used
for HEATER50.
Component Designation d
1)
mm
Heating device HEATER25 –
Support ledge HEATER50.LEDGE-55
2)
55
Grease ARCANOL-MULTI3-250G –
Temperature sensor HEATER.SENSOR-500MM –
Lifting tool HEATER50.CARRY
2)
–
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Support ledge 55
 Grease
 Temperature sensor,
magnetic
 Lifting tool
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick

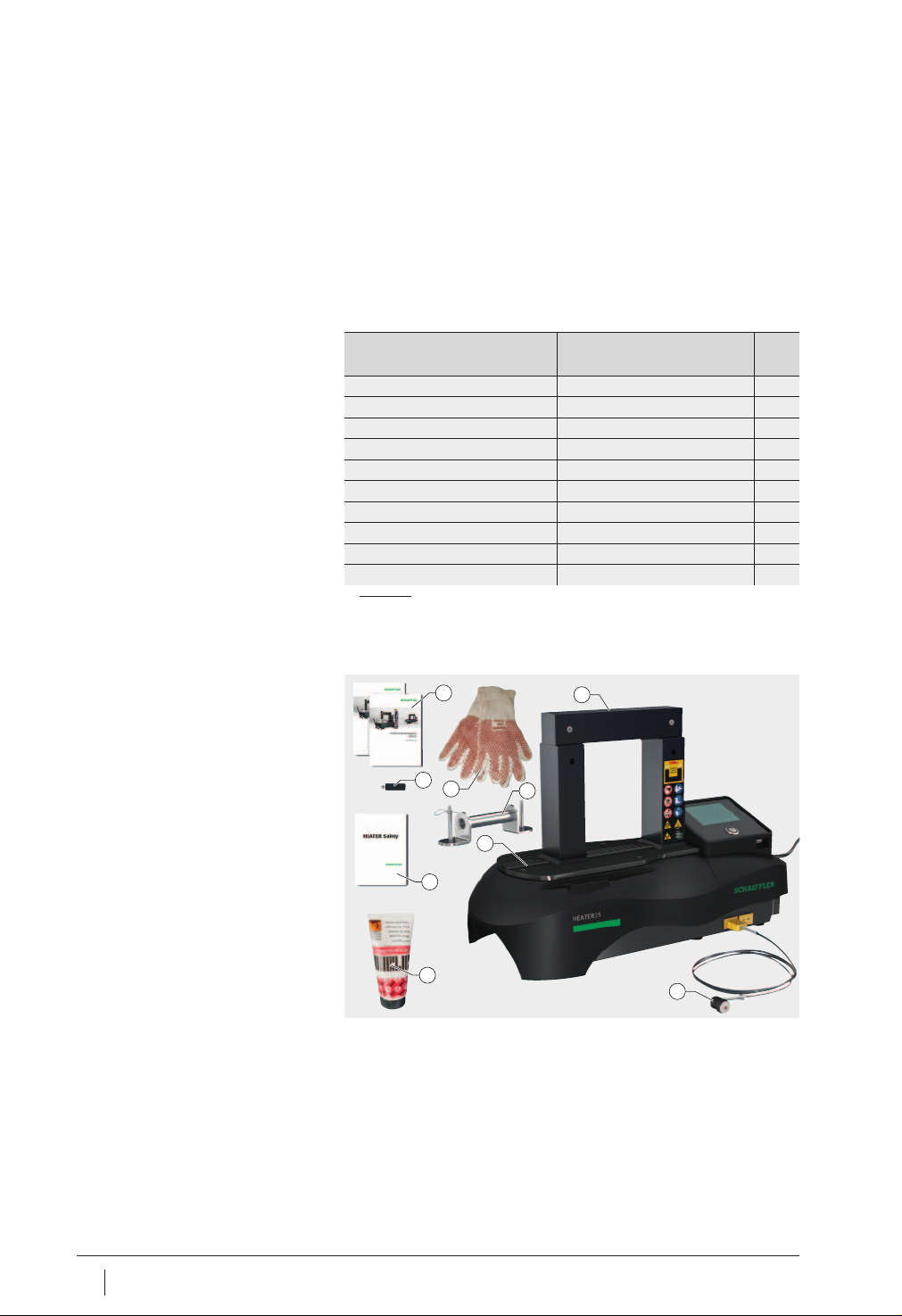

Figure 1
Scope of delivery
Heating device HEATER25
1
6
2
4
7
5
3
8
9
0011E1C00011E1C0

Schaeffler Technologies BA42 13
Scope of delivery
Heating device HEATER50
1)
Minimum inside diameter of rolling bearing.
Component Designation d
1)
mm
Heating device HEATER50 –
Support ledge HEATER50.LEDGE-55 55
Grease ARCANOL-MULTI3-250G –
Temperature sensor HEATER.SENSOR-500MM –
Lifting tool HEATER50.CARRY –
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Support ledge 55
 Grease
 Temperature sensor,
magnetic
 Lifting tool
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick

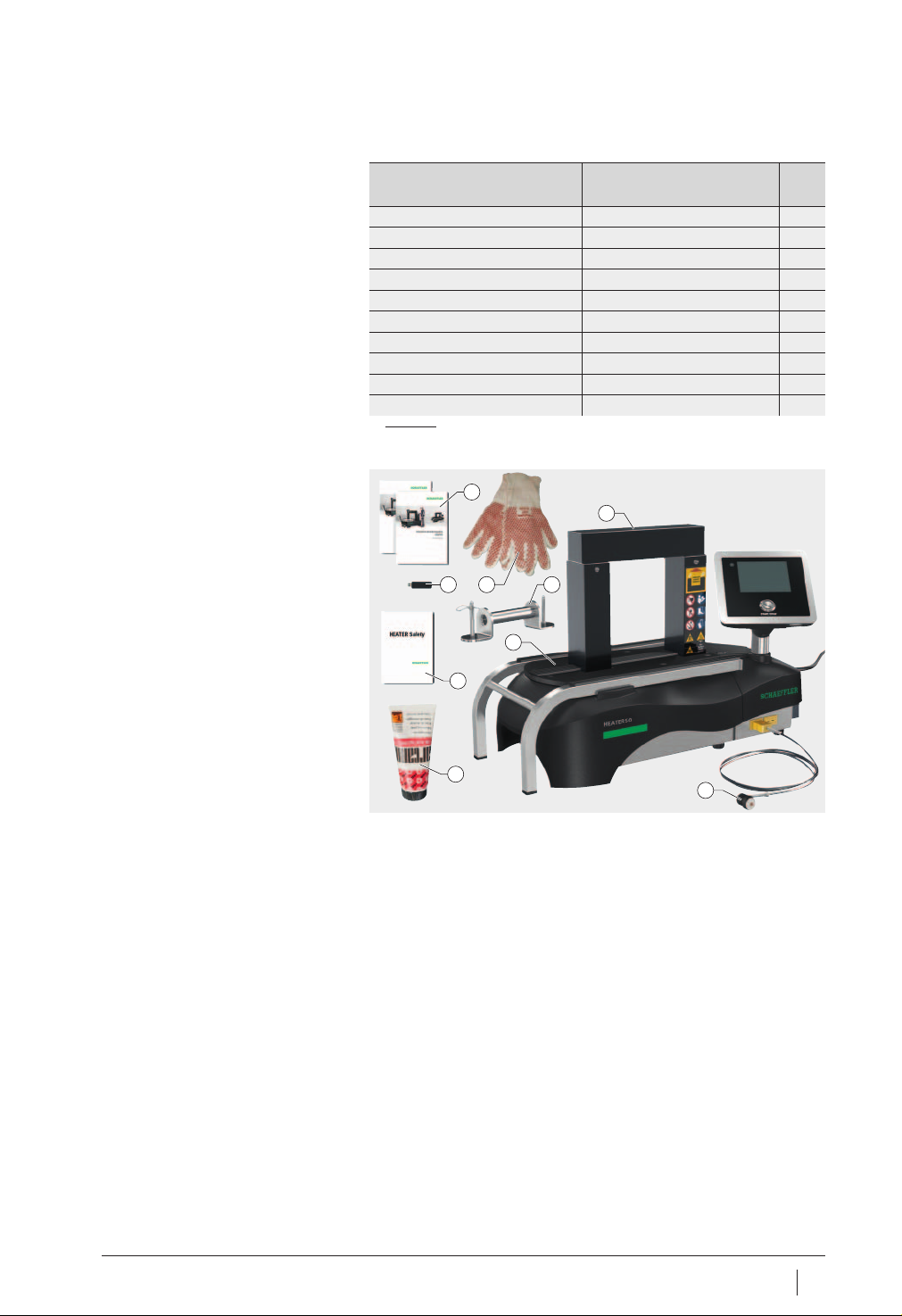

Figure 2
Scope of delivery
Heating device HEATER50
1
6
2
4
7
5
3
8
9
0011E1CF0011E1CF

14 BA42 Schaeffler Technologies
Induction heating devices HEATER
Scope of delivery
Heating device HEATER100
1)
Minimum inside diameter of rolling bearing.
Component Designation d
1)
mm
Heating device HEATER100 –
Slewing ledge HEATER100.LEDGE-70 70
Grease ARCANOL-MULTI3-250G –
Temperature sensor HEATER.SENSOR-500MM –
Lifting tool HEATER100.CARRY –
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Slewing ledge 70
 Grease
 Temperature sensor,
magnetic
 Lifting tool
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick

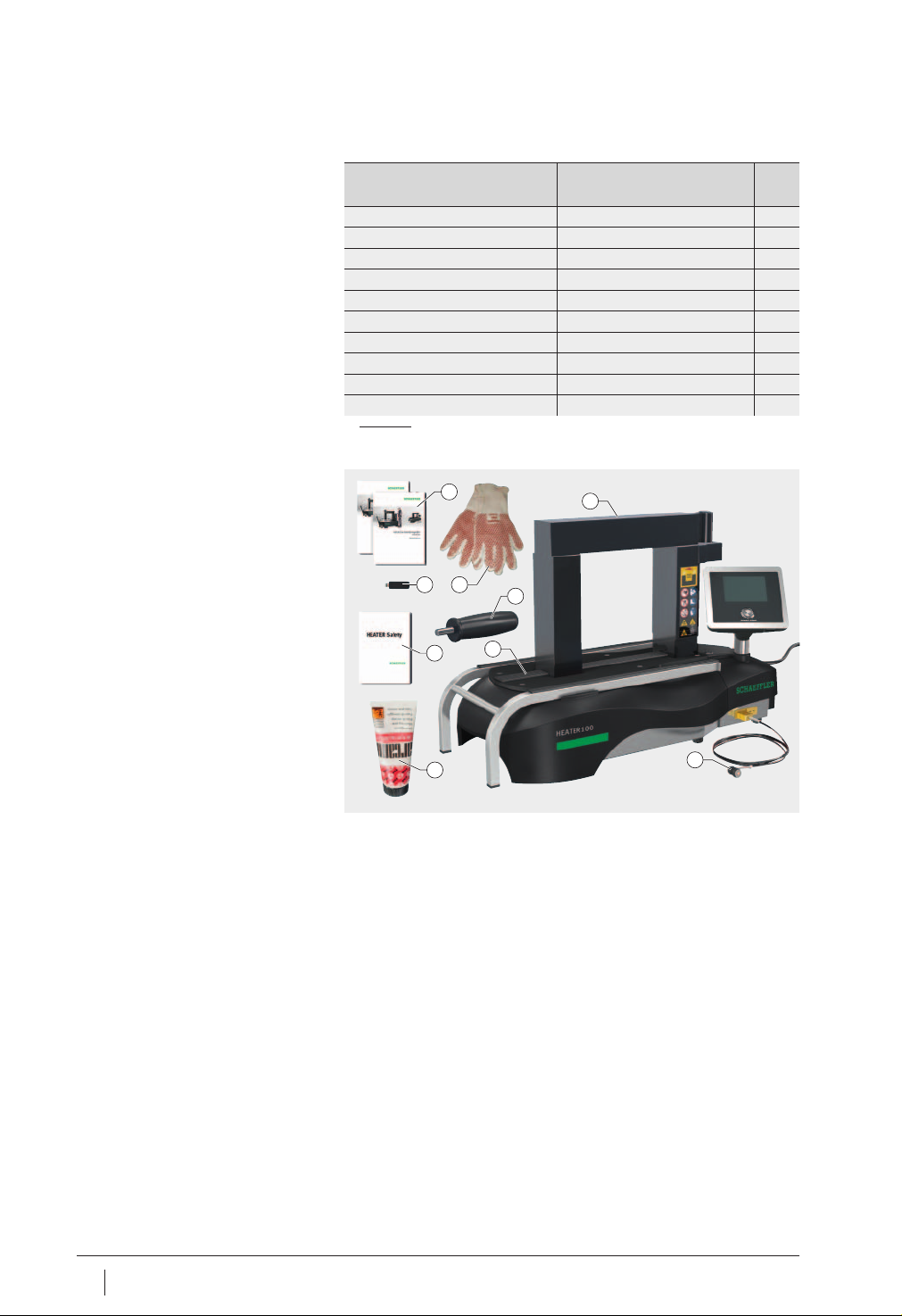

Figure 3
Scope of delivery
Heating device HEATER100
1
6
2
4
7
5
3
8
9
0011E1DE0011E1DE

Schaeffler Technologies BA42 15
Scope of delivery
Heating device HEATER200
1)
Minimum inside diameter of rolling bearing.
Component Designation d
1)
mm
Heating device HEATER200 –
Slewing ledge HEATER200.LEDGE-100 100
Grease ARCANOL-MULTI3-250G –
2 ⫻ temperature sensor HEATER.SENSOR-1000MM –
Lifting tool HEATER200.CARRY –
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Slewing ledge 100
 Grease
 Temperature sensor,
magnetic
 Lifting tool
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick
Figure 4
Scope of delivery
Heating device HEATER200
1
3
5
2
44
7
8
6
9
0011E1ED0011E1ED

16 BA42 Schaeffler Technologies
Induction heating devices HEATER
Scope of delivery
Heating device HEATER400
1)
Minimum inside diameter of rolling bearing.
Component Designation d
1)
mm
Heating device HEATER400 –
Vertical ledge HEATER400.LEDGE-120 120
Grease ARCANOL-MULTI3-250G –
2 ⫻ temperature sensor HEATER.SENSOR-1000MM –
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Vertical ledge 120
 Grease
 Temperature sensor,
magnetic
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick

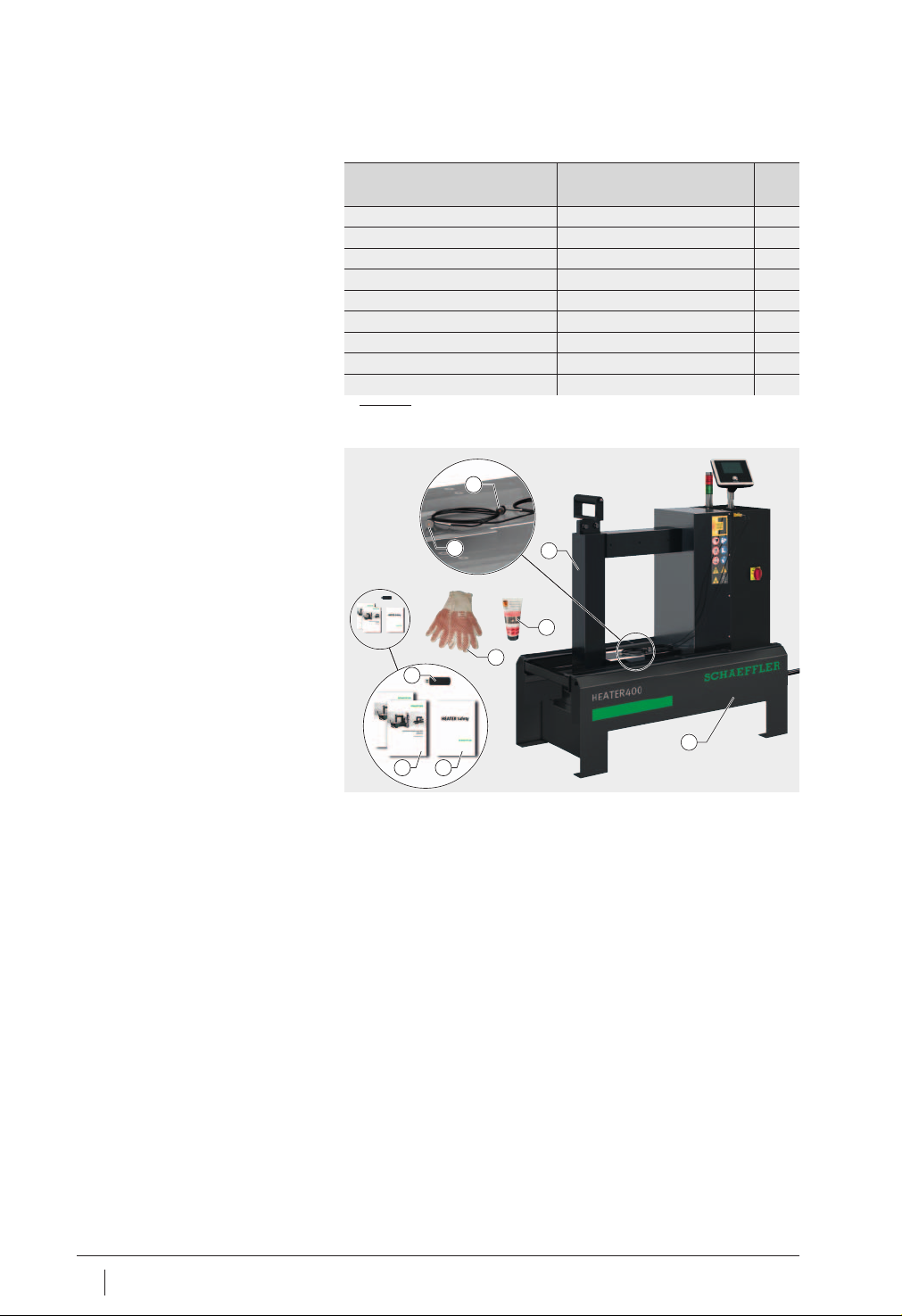

Figure 5
Scope of delivery
Heating device HEATER400
1
2
4
4
7
8
6
3
5
0011E1FC0011E1FC

Schaeffler Technologies BA42 17
Scope of delivery
Heating device HEATER800
1)
Minimum inside diameter of rolling bearing.
Component Designation d
1)
mm
Heating device HEATER800 –
Vertical ledge HEATER800.LEDGE-150 150
Grease ARCANOL-MULTI3-250G –
2 ⫻ temperature sensor HEATER.SENSOR-1500MM –
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Vertical ledge 150
 Grease
 Temperature sensor,
magnetic
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick
Figure 6
Scope of delivery
Heating device HEATER800
4
1
2
7
8
6
4
5 3
0011E20B0011E20B

18 BA42 Schaeffler Technologies
Induction heating devices HEATER
Scope of delivery
Heating device HEATER1600
1)
Minimum inside diameter of rolling bearing.
Accessories The heating device is supplied with standard accessories.
Special accessories such as support, slewing or vertical ledges in
other sizes are available, see page 71.
Damage during transit Any damage during transit must be reported as a complaint to
the carrier.
Defects Any defects must be reported promptly to Schaeffler Technologies
AG & Co. KG.
Component Designation d
1)
mm
Heating device HEATER1600 –
Vertical ledge HEATER1600.LEDGE-220 220
Grease ARCANOL-MULTI3-250G –
2 ⫻ temperature sensor HEATER.SENSOR-1500MM –
Gloves – –
Safety guidelines – –
German user manual – –
English user manual – –
USB stick – –
 Heating device
 Vertical ledge 220
 Grease
 Temperature sensor,
magnetic
 Gloves
 Safety guidelines
 User manuals
(German and English)
 USB stick
Figure 7
Scope of delivery
Heating device HEATER1600
4
1
2
5 3
4
7
8
6
0011E21A0011E21A
