Schaeffler RUE-F Series Guide

Linear Recirculating Roller Bearing and
Guideway Assembly RUE-F
Mounting manual

Schaeffler Technologies MON 103 1
Linear recirculating roller bearing and
guideway assemblies RUE-F
About the mounting manual This manual applies to linear recirculating roller bearing and guide-
way assemblies RUE..-F. The guidance systems should only be fitted
in accordance with this manual.
Symbols The warning and hazard symbols are defined in accordance with
ANSI Z535.6-2011.
CAUTION
In case of non-compliance, minor or moderate injury may occur. 
NOTICE
In case of non-compliance, damage or malfunctions in the product or
the adjacent construction may occur.

Tools and ancillary
equipment required
The following tools and ancillary equipment are required
for the mounting of linear recirculating roller bearing and
guideway assemblies RUE..-F:
■ cleaning agent
■ oil stone
■ spring steel strip
■ plastic hammer
■ vernier
■ dial gauge
■ feeler gauge
■ Allen key
■ torque wrench
■ open-end wrench
■ lubricant
Mounting area,
mounting tools
NOTICE
Malfunction caused by contamination. Unsuitable or contaminated
tools can reduce the function and operating life of the guidance
systems considerably. Contamination and moisture will impair
the accuracy and function of the elements considerably and lead to
an ongoing reduction in their operating life.
It must be ensured that contaminants and moisture cannot
penetrate the units.
Guidance systems should only be fitted using the tools specified.
Machines, devices or equipment that generate cutting debris or
dust must not be used in the vicinity of the fitting area.
The adjacent construction should be kept clean.


2 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
Checking
the adjacent construction
Checking the locating faces  Check the holes and locating edges for burrs.
 Remove any burrs using an oil stone.
 Check the locating heights and corner radii, Figure 1 and table .
 Correct any deviations.
 Ensure that the locating surfaces on the adjacent construction
are in full contact with the locating surfaces on the carriage and
guideway.
Locating heights and corner radii
 Locating face
 Marked face
Figure 1
Locating heights and corner radii




r
h
1
1
h2
r2
0019502900195029
Designation Locating heights Corner radii
h
1
h
2
r
1
r
2
mm mm mm mm
max. max. max.
RUE35-F (-L, -H, -HL) 8610,8
RUE45-F (-L, -H, -HL) 10 8 1 0,8
RUE55-F (-L, -H, -HL) 12 9,5 10,8
RUE65-F (-L, -H, -HL, SL) 15 10,5 10,8

Schaeffler Technologies MON 103 3
Checking the dimensional and
positional tolerances
 Checking the dimensional and positional tolerances of the screw
mounting and locating surfaces, see
table and Figure 2 , page 4.
 Machine the surfaces if necessary.
 If the machine bed has two defined locating surfaces,
check the parallelism of the locating surfaces.
 Checking the parallelism, flatness and perpendicularity of
the locating surfaces, see
table and Figure 3 , page 4.
At the specified maximum values, the displacement resistance
may increase.
 The tolerance for parallelism, flatness and perpendicularity is
determined by the preload class, see
table . If deviations are
identified, rework the support and locating surfaces for the guide-
ways on the adjacent construction.
Values for geometry and position
1)
Valid for all guideway variants.
2)
Standard preload class.
Guideway
1)
Preload class
V1, V2 V3
2)
, V4, V5
Parallelism, flatness, perpendicularity
t
␮ m
TSX35-E 15 10
TSX45-E 17 10
TSX55-E 20 10
TSX65-E 20 10

4 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
 Not convex
(for all machined surfaces)
Figure 2
Tolerances of mounting surfaces
and parallelism of mounted units
A
A
A
BB
A
b
A
A
b
zx
y
t
t
t
t
t
t
t
⌬H
⌬H
1
1
0019503900195039
 Not convex
(for all machined surfaces)
Figure 3
Tolerances of mounting surfaces
and parallelism of mounted units
⌬H
b
xz
y
tC
t
C
t
1
0019504900195049

Schaeffler Technologies MON 103 5
Determining the height difference  Determine the height difference ⌬ H ( ␮ m) of the support surfaces.
 Calculate the height difference, see formula , and compare this
with the measured value.
 Machine the surfaces if necessary.
Height difference ⌬ H For ⌬ H, permissible values are in accordance with the following
equation.
⌬ H ␮ m
Maximum permissible deviation from the theoretically precise position,
Figure 2 , page 4
a–
Factor, dependent on the preload class,
see table
bmm
Centre distances between guidance elements
Factor a
1)
Standard preload class.
⌬Hab=⋅
Preload class Factor
a
V1 0,15
V2 0,09
V3
1)
0,075
V4 0,06
V5 0,06

6 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
Checking the scope of delivery Do not remove the units from their packaging until immediately
before fitting.
The carriage and guideway are protected by a preservative.
CAUTION
Sharp-edged counterbores. Risk of injury due to contact with
sharp edges. The adhesive strip should only be removed when
the units are fitted.

NOTICE
Open counterbores. Risk of damage to the seal lips as a result of
moving the carriage over counterbores which have not been closed
off. Do not move the carriage over counterbores that have not been
closed off. If the carriage must be moved, protect the seal lips by
sliding a spring steel strip (0,2 mm thick) between the guideway
surface and the carriage. Bend the ends up slightly at both ends of
the carriage.

The spring steel strip  must be produced by the customer.
 Carriage
 Guideway
 Adhesive strip
(dependent on guideway variant)
 Closing plugs
(according to order)
 Mounting set
 Lubrication connector
(according to order)
 Dummy guideway
Figure 4
Scope of delivery
(by way of example)
1
234
6
7
5
0019505900195059
Figure 5
Spring steel strip with
bent ends at both ends of
the carriage
8
001958FC001958FC

Schaeffler Technologies MON 103 7
Multi-piece guideways are packed in sets. The joints  ,  ,  are
marked consecutively,
Figure 6 .
Mount the guideways such that the numbers and letters adjacent to
each other are identical.
As standard, carriages have grease nipples similar to
DIN 71412-A-M6 for lubrication via the end faces or sides (included
in delivery)  . If a different lubrication connector was selected
when ordering, this is included instead of the standard lubrication
connector. Alternatively, carriages can also be lubricated from
above via the adjacent construction
 , Figure 7 .
Other lubrication connectors for grease or oil lubrication are avail-
able as accessories.
 ,  ,  Joints
Figure 6
Multi-piece guideways
1
2
3
1A
1A
1A
1A
1B
1B
1B
1B
2A
2A
2A
2A
0019506900195069
 Lubrication from the side
 Lubrication from above
Figure 7
Lubrication
4
5
0019507900195079

8 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F

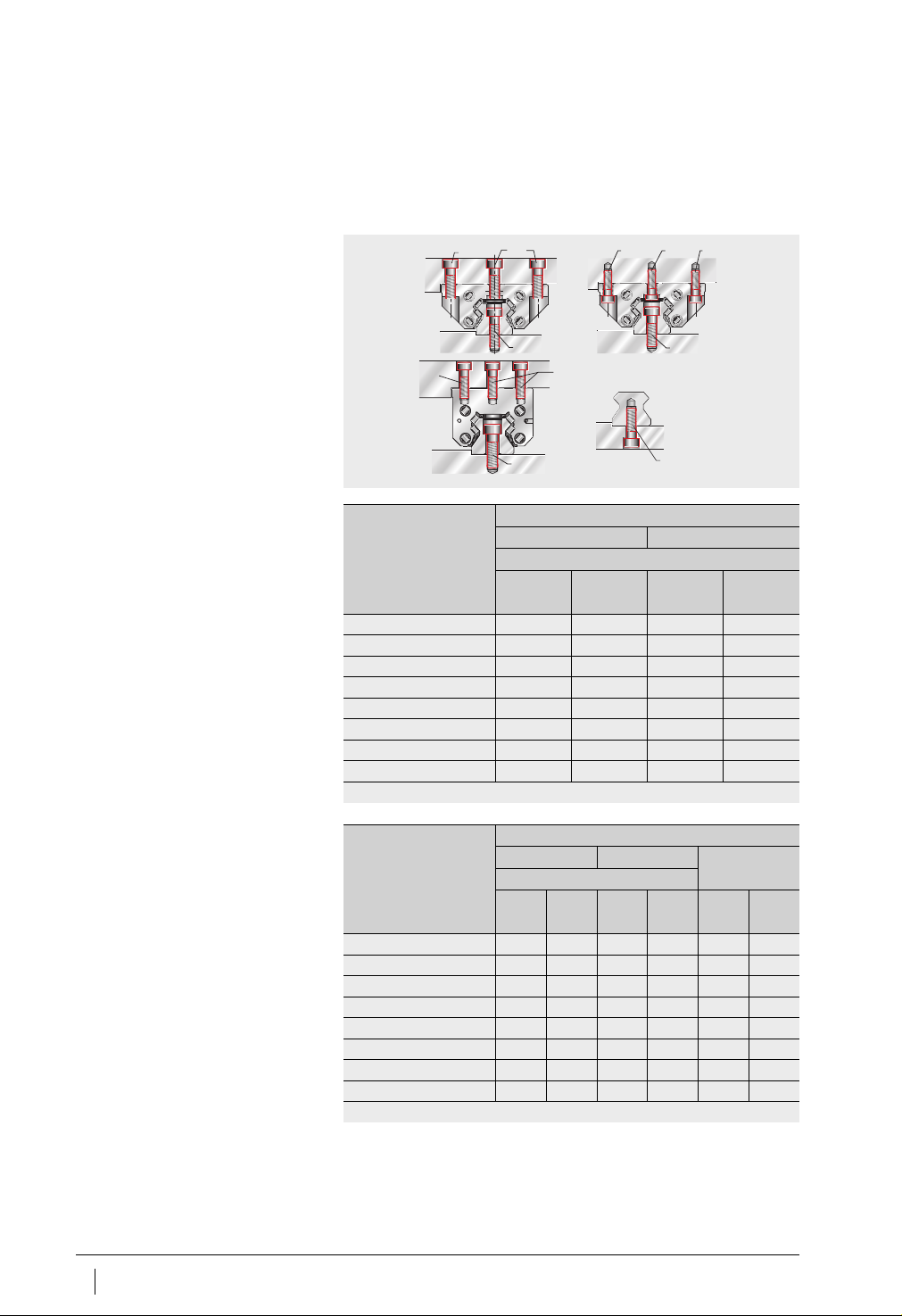

Fixing screws and
tightening torques
Units must only be located using the screws specified.
It is absolutely essential that the correct size, quantity, grade and
tightening torque are used, Figure 8 and table .
Tightening torques
Tightening torques
Figure 8
Fixing screws
G
1
K
3
K
6
K
3
G
2
G
2
K
1
K
1
G
2
G
2
K
1
0019508900195089
Designation Fixing screws
G
1
G
2
DIN EN ISO 4762-12.9
M
A
M
A
Nm Nm
RUE35-F (-L) M8 41 M10 41
RUE35-F-H (-HL) M8 41 M8 41
RUE45-F (-L) M12 140 M12 83
RUE45-F-H (-HL) M12 140 M10 83
RUE55-F (-L) M14 220 M14 140
RUE55-F-H (-HL) M14 220 M12 140
RUE65-F (-L) M16 340 M16 220
RUE65-F-H (-HL, -SL) M16 340 M14 220
continued ▼
Designation Fixing screws
K
1
K
3
K
6
DIN EN ISO 4762-12.9 DIN 7984-8.8
M
A
M
A
M
A
Nm Nm Nm
RUE35-F (-L) M8 41 M8 41 M8 24
RUE35-F-H (-HL) M8 41 – – – –
RUE45-F (-L) M12 140 M10 83 M10 48
RUE45-F-H (-HL) M12 140 – – – –
RUE55-F (-L) M14 220 M12 140 M12 83
RUE55-F-H (-HL) M14 220 – – – –
RUE65-F (-L) M16 340 M14 220 M14 130
RUE65-F-H (-HL, -SL) M16 340 – – – –
continued ▲

Schaeffler Technologies MON 103 9
Dismantling and fitting of
carriages
The dummy guideway  prevents damage to the rolling element set
while the carriage is separated from the guideway.
NOTICE
Risk of rolling elements falling out and ingress of contamination.
Possible damage to the rolling element set. Carriages should only be
removed from or slid onto the guideway if it is necessary to do so,
and only then using the dummy guideway.

Dismantling for guideways
with right-angled end
 With the carriage fitted, position the dummy guideway 
with the right-angled end  aligned against the end of
the guideway
 .
 Slide the carriage onto the dummy guideway.
 After dismounting, leave the carriage on the dummy guideway.
Dismantling for guideways
with chamfered end
 With the carriage fitted, position the dummy guideway 
with the chamfered end  aligned against the end of
the guideway
 .
 Slide the carriage onto the dummy guideway.
 After dismounting, leave the carriage on the dummy guideway.
Fitting for guideways
with right-angled end
 If the carriage is separate from the guideway, position the dummy
guideway
 and carriage with right-angled end  aligned
against the end of the guideway
 .
 Slide the carriage from the dummy guideway onto the guideway.
 Keep the dummy guideway for further mounting operations.
Fitting for guideways
with chamfered end
 If the carriage is separate from the guideway, position the dummy
guideway
 and carriage with chamfered end  aligned against
the end of the guideway
 .
 Slide the carriage from the dummy guideway onto the guideway.
 Keep the dummy guideway for further mounting operations.

10 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
 Dummy guideway
 Guideway
Figure 9
Dismantling and fitting the carriage
1
2
001955A7001955A7
 Right-angled end
 Chamfered end
Figure 10
Ends of the dummy guideway
3 4
001955B7001955B7

Schaeffler Technologies MON 103 11
Fitting of preassembled
linear roller bearing and
guideway assemblies

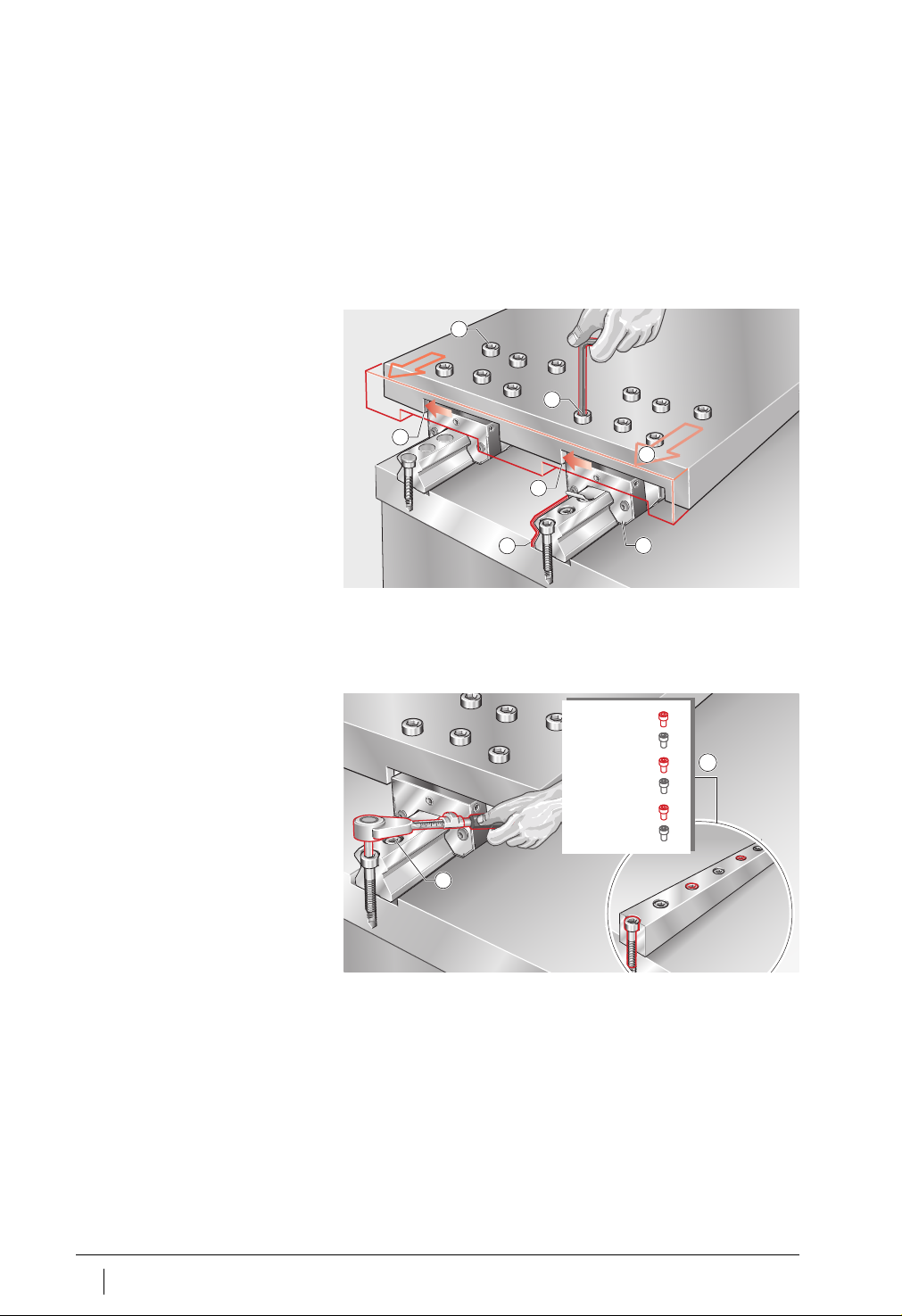

The carriage  is on the guideway  and is mounted on the table.
A unit that is not preassembled should be fitted in a similar way.

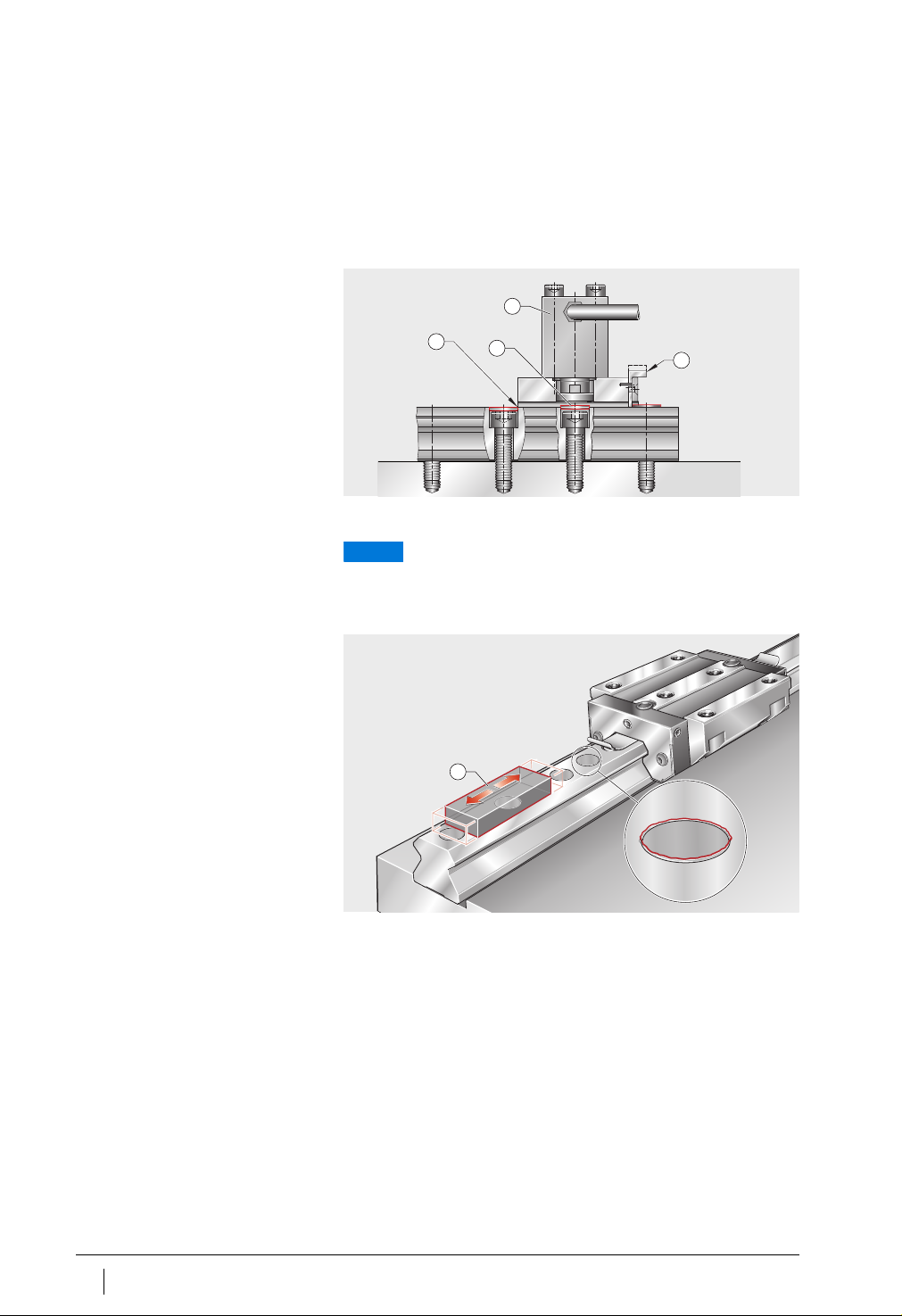

Fitting the datum side  Protect the seal lips using a spring steel strip  .
 Position the recirculating unit with its datum side  on
the machine bed.
 If multi-piece guideways are used, observe the correct sequence
of the guideways
 ,  .
The gap at the end face
 must be ⬍ 0,05 mm.
Figure 11
Fitting the recirculating unit on
the datum side
1
4
2
3
001955C7001955C7
Figure 12
Observing the correct sequence of
the guideways and
checking the gap dimension
5
6
2A
2A
2A
2A
7
⬍0,05 mm
001955D7001955D7

12 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
 Remove the adhesive strip  one hole at a time,
insert the screws
 in the holes and tighten finger tight.
 Press the guideway  against the locating surface (arrows).
 Tighten the screws in the sequence shown in the tightening
scheme
 . In each step, tighten the screws marked in red first,
followed by the screws marked in black. For tightening torque M
A
,
see
table , page 8.
Figure 13
Locating the guideway
with screws and pressing against
the locating surface
8
9
2
001955E7001955E7
Figure 14
Tightening the screws in accordance
with the tightening scheme
MA
2
10
10
1.
2.
3.
0,4 ⫻MA
0,4 ⫻MA
0,7 ⫻MA
1,0 ⫻MA
0,7 ⫻MA
1,0 ⫻MA
001955F7001955F7

Schaeffler Technologies MON 103 13
Fitting of plastic closing
plugs KA..-TN/B
 Premount plastic closing plugs (KA..-TN/B)  with the clinch ring
in the counterbore by hand.
 Drive the closing plugs in flush using a hammer and
press-in block
 .
Do not work the plastic closing plugs using an oil stone
 or
similar implement.
Figure 15
Driving in the plastic closing plugs
2
1
2
0019572900195729
Figure 16
Do not work the plastic plugs
using an oil stone
3
0019563700195637

14 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
Fitting of brass closing
plugs KA..-M
 Drive brass closing plugs (KA..-M)  in flush using a block 
(or fitting device MVH.TSX, see page 15).
 Smooth the surfaces using an oil stone  .
NOTICE
Damaged surface coating, for example Corrotect. Loss of coating
characteristics. Do not use an oil stone or similar implement on
the surfaces of guideways treated with coatings.

 Clean the surfaces using a lint-free cloth.
Figure 17
Driving in the brass closing plugs
2
1
0019560700195607
Figure 18
Smoothing the surfaces
using an oil stone
3
0019561700195617

Schaeffler Technologies MON 103 15
Fitting of two-piece steel closing
plugs KA..-ST/A
The two-piece steel closing plug (KA..-ST/A) can only be fitted to
guideway TSX..-KA+ST.
 Insert the aluminium clinch ring  in the hole.
 Locate the steel closing plug  in the hole by hand.
 Press the closing plug in flush using the fitting device MVH.TSX  .
Fitting device MVH.TSX optionally available as an accessory.
 Connect fitting device MVH.TSX to the hydraulic source  and
ensure that the bleed
 is activated.
Figure 19
Fitting of two-piece steel closing
plugs
1
2
0019564900195649
Figure 20
Preparing and positioning
the fitting device
3
4
5
0019565900195659

16 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
 Position the fitting device  over the closing plug  until
the pawl
 contacts the next closing plug that has not yet been
pressed in (for the last closing plug, carry out the alignment of
fitting device MVH visually  ).
 Press in the closing plug (max. 300 bar).
 Smooth the surfaces using an oil stone  .
NOTICE
Damaged surface coating, for example Corrotect. Loss of coating
characteristics. Do not use an oil stone or similar implement on
the surfaces of guideways treated with coatings. 
 Clean the surfaces using a lint-free cloth.
Figure 21
Pressing in the closing plug
using the fitting device
3
2
7
6
0019566900195669
Figure 22
Smoothing the surfaces
using an oil stone
8
0019562700195627

Schaeffler Technologies MON 103 17
Fitting the adjustment side  Place the recirculating unit for the adjustment side  on
the machine bed, ensuring that the locating surfaces are on
the correct sides. If multi-piece guideways are used,
observe the correct sequence of the guideways.
The gap at the end face must be
⬍ 0,05 mm, see page 11.
 Protect the seal lips using a spring steel strip.
 Remove the adhesive strip  one hole at a time,
insert the screws
 in the holes and tighten finger tight.
 Check the seating of the O rings  .
Position the O rings correctly with grease if necessary.
 Align the carriages  with the holes in the machine table  and
place the table without shock contact on the carriages
 .
Figure 23
Fitting the recirculating unit on
the adjustment side
2
4
1
3
0019567900195679
Figure 24
Aligning the carriages and
positioning the machine table
without shock contact
6
7
7
6
0019568900195689

18 MON 103 Schaeffler Technologies
Linear recirculating roller bearing and
guideway assemblies RUE-F
 Insert the screws  in the holes in the table and tighten finger
tight.
 Press the carriage  against the locating surfaces  of
the table
 (arrow) and tighten the screws  to the tightening
torque M
A
. For tightening torque M
A
, see table , page 8.
 Move the table  in order to align the guideway  on the adjust-
ment side.
 Tighten the screws  in the guideway in accordance with
the tightening scheme. In each step, tighten the screws marked in
red first, followed by the screws marked in black. For tightening
torque M
A
, see table , page 8.
Figure 25
Screw mounting the table on
the carriage and aligning the guide-
way on the adjustment side
3
3
7
8
8
56
0019569900195699
Figure 26
Tightening the screws in accordance
with the tightening scheme
3
MA
1.
2.
3.
0,4 ⫻MA
0,4 ⫻MA
0,7 ⫻MA
1,0 ⫻MA
0,7 ⫻MA
1,0 ⫻MA
3
001956A9001956A9
