Schischek ExMax CY Series User manual

EXPLOSIONPROOF
ExMax - ... - CY
ExMax - ... - CYF
ExMax - ... - CTS
ExMax - ... - VAS
ExMax-...-CY
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. [phone], Fax [phone], E-Mail [email protected]
ExMax-S-CY_en
V04 – 19-Nov-2018
Subject to change!
Compact. Easy installation. Universal. Cost effective. Safe.
Product views and applications
Description Highlights
VAV (variable air volume)
Electrical, explosion proof 24 VAC/DC rotary actuators
4...20 mA control mode, with feedback
0...10 VDC , 95° angle of rotation
5/10 Nm, 15/30 Nm without and 5/10 Nm, 15 Nm with safety operation (spring return)
ATEX tested in acc. with directive 2014/34/EU for zone 1, 2, 21, 22
ExMax ¼ turn actuators – size S
►For all types of gases, mists, vapours and dusts in zones 1, 2, 21 and 22
►Universal supply unit from 24 VAC/DC
►5 different motor running times 7,5–15–30–60–120 s/90°, adjustable on site
►Optional spring return running time ~ 10 s/ 90°
►Control mode 4...20 mA
► Feedback signals 0...10 VDC
►5–10 –15– 30 Nm actuators in the same housing size
►100 % overload protected and self locking
►Compact design and small dimension (L × W × H = 210 × 95 × 80 mm)
►Direct coupling to the damper shaft with double square connection 12 × 12 mm
►95° angle of rotation inclusive 5° pretension
►Robust aluminium housing (optional with seawater resistant coating)
or in stainless steel
►IP66 protection
►Simple manual override included + preparation for comfortable manual override
►Gear made of stainless steel and sinter metal
►Weight only ~ 3,5 kg
►Integrated heater for ambient temperatures down to −40 °C
►Integrated safety temperature sensor
►Integrated equipment for manual adjustment (push button, lamp, switch)
►Preparation for adaptable and adjustable auxiliary switches type ...Switch
►Wide range of accessories
The ExMax actuators are a revolution for safety, control and shut-off
dampers, VAV systems, ball valves, throttle valves and other motorized
applications for HVAC systems in chemical, pharmaceutical, industrial
and offshore/onshore plants, for use in Ex-areas zone 1, 2 (gas) and
zone 21, 22 (dust).
Highest protection class (ATEX) and IP66 protection, small dimensions,
only 3,5 kg weight, universal functions and technical data, an integrated
heater and an optional stainless steel housing guarantee safe operation
even under difficult environmental conditions. High quality brushless
motors guarantee long life.
All actuators are programmable and adjustable on site. Special tools or
equipment are not required. Motor running times and torques as well as
spring return times, according to the actuator type, are selectable or
adjustable on site. The integrated universal power supply is self adaptable
to input voltage of 24 VAC/DC. The actuators are 100 % overload protected
and self locking.
...Max-...-CYF actuators are equipped with spring return fail safe function.
Standard shaft connection is a double square direct coupling with
12 × 12 mm.
Different accessories are available to adapt auxiliary switches, terminal
boxes or adaptions for ball valves and throttle valves and other armatures.
Type Torque Supply Motor running time Spring return Control mode Feedback Wiring diagram
ExMax- 5.10 - CY 5 / 10 Nm 24 VAC/DC 7.5 / 15 / 30 / 60 / 120 s/90° – 4...20 mA 0...10 VDC SB 6.0
ExMax-15.30 - CY 15 / 30 Nm 24 VAC/DC 7.5 / 15 / 30 / 60 / 120 s/90° – 4...20 mA 0...10 VDC SB 6.0
ExMax- 5.10 - CYF 5 / 10 Nm 24 VAC/DC 7.5 / 15 / 30 / 60 / 120 s/90° 10 s/90° 4...20 mA 0...10 VDC SB 6.1
ExMax- 15 - CYF 15 Nm 24 VAC/DC 7.5 / 15 / 30 / 60 / 120 s/90° 10 s/90° 4...20 mA 0...10 VDC SB 6.1
ExMax- ... - CTS Types as above with aluminium housing and seawater resistant coating (cable glands brass nickel-plated)
ExMax- ... - VAS Types as above with stainless steel housing for aggressive ambient (cable glands brass nickel-plated)
1 / 4

EXPLOSIONPROOF
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. [phone], Fax [phone], E-Mail [email protected]
ExMax-S-CY_en
V04 – 19-Nov-2018
ExMax-...-CY ExMax-...-CYF
Special options ... -CTS ... -VAS
Technical data ExMax- 5.10 -CY ExMax- 15.30 -CY ExMax- 5.10 -CYF ExMax- 15 -CYF
Approbations Special solutions and accessories
...-CTS Types in aluminium housing with seawater resistant coating,
parts nickel-plated
...-VAS Types in stainless steel housing, parts nickel-plated
ExBox-Y/S... Ex-e terminal boxes for zone 1, 2, 21, 22
MKK-S Mounting bracket for boxes type ...Box-... directly on actuator
ExSwitch 2 external aux. switches, adjustable for zone 1, 2, 21, 22
HV-S... Comfortable manual override for...Max actuators size S
KB-S Clamp for damper shafts Ø 10...20 mm and □10...16 mm
AR-12-xx Reduction part for 12 mm square connection to 11, 10, 9 or 8 mm shafts
Kit-S8 Cable glands nickel-plated
Adaptions for dampers and valves on request
Torque motor (min.) 5 / 10 Nm selectable on site 15 / 30 Nm selectable on site 5 / 10 Nm selectable on site 15 Nm
Torque spring (F) – – min. 10 Nm min. 15 Nm
Torque blockade In blockade and end positions torques are higher than above specified torques for motor and spring.
Dimensioning of external load Upon spring return the external load should be max. 80 % of torque spring (F).
Supply voltage / frequency 24 VAC / DC ± 10 %, self adaptable, frequency 50...60 Hz ± 20 %
Power consumption max. starting currents see Extra information (in acc. with voltage, I start >> I rated ), approx. 5 W holding power, approx. 16 W for heater
Protection class Class I (grounded)
Angle of rotation and indication 95° incl. ~ 5° pretension, mechanical value indication
Working direction Selectable by left/right mounting to the damper/valve shaft
Motor running times 7,5 / 15 / 30 / 60 / 120 s/90° selectable on site
Motor Brushless DC motor
Control mode Y 4…20 mA , galvanic separation between supply and Y-signal
Feedback signal U 0…10 VDC
Resistance of Y and U signals Input signal: YU0...10 VDC at 10 kΩ. Feedback signal: UU 0...10 VDC at 2.000...∞ Ω
Adjustment of Y and U In case of external mechanical limitation of the angle of rotation, it is possible to perform an adjustment drive started by pushing the button (T)
Spring return (F) – – spring return upon voltage interruption
Spring return response time – – up to 1 sec. after voltage interruption
Spring return running time (F) – – ~ 10 s/90°
Safety operations at 10 sec. (F) – – min. 10,000 acc. to construction of damper and ambient
Axle of the actuator Double square 12 × 12 mm, direct coupling, 100 % overload protected and self locking up to 15 Nm
Electrical connection Cable ~ 1 m, wire cross section 0.5 mm², equipotential bonding 4 mm².
Connections in hazardous areas require an Ex-e terminal box!
Diameter of cable ~ Ø 8 mm ~ Ø 8 mm ~ Ø 8 mm ~ Ø 8 mm
Cable gland M16 × 1.5 mm
Manual override Use delivered socket wrench, max. 4 Nm
Heater Integrated, controlled heater for ambient temperature down to max. −40 °C
Housing material Aluminium die-cast housing, coated. Optional with seawater resistant coating (...-CTS) or stainless steel housing,
№1.4581 / UNS-J92900 / similar AISI 316Nb (...-VAS)
Dimensions (L × W × H) 210 × 95 × 80 mm, for diagrams see Extra information
Weight ~ 3,5 kg aluminium housing, stainless steel ~ 7 kg
Ambients Storage temperature −40…+70 °C, working temperature −40…+40 °C at T6 and −40…+50 °C at T5
Humidity 0...90 % rH, non condensing
Operating 7,5 sec. motor run time at 24 V: S3 – 50 % ED intermittent mode (ED = duty cycle)
≥15 sec. motor run time at 15 / 30 / 60 / 120 s 100 % of ED is permitted
Self adjustment Before initial operation you need to start the self adjustment mode for “gentle” blockade and adjustment of rotation angle
Wiring diagrams SB 6.0 SB 6.0 SB 6.1 SB 6.1
Scope of delivery Actuator, 4 screws M4 × 100 mm, 4 nuts M4, Allen key for simple manual override
Parameter at delivery 5 Nm, 30 s/90° 15 Nm, 30 s/90° 5 Nm, 30 s/90° 15 Nm, 30 s/90°
ATEX Directive 2014/34/EU
EU-Type Examination EPS 17 ATEX 1 132 X
IECEx Conformity IECEx EPS 17.0065X
Marking Gases II 2 (2) G Ex db [ib Gb] IIC T6, T5 Gb
Types ...-CTS II 2 (2) G Ex db [ib Gb] IIB T6, T5 Gb
Marking Dusts II 2 (2) D Ex tb [ib Db] IIIC T80°C, T95°C Db
CE Marking CE 0158
EMC Directive 2014 / 30 / EU
Low Voltage Directive 2014 / 35 / EU
Enclosure Protection IP66 in acc. with EN 60529
2 / 4

EXPLOSIONPROOF
ExMax- 5.10-CY ►
ExMax- 15.30-CY ►
ExMax- 5.10-CYF ►
ExMax- .15-CYF ►
7,5 s/90° ►
15 s/90° ►
30 s/90° ►
60 s/90° ►
120 s/ 90° ►
00
01
02
03
04
05
06
07
08
09
S
T
ExBox
ExReg
ExReg
+
~
+
~
−
~
−
~
PE
PE
1
1
2
2
3
3
4
4
5
5
PA
PA
YmA
YmA
T
GND
T
GND
UVDC
UVDC
5 Nm
15 Nm
5 Nm
15 Nm
▼
10 Nm
30 Nm
10 Nm
▼
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. [phone], Fax [phone], E-Mail [email protected]
ExMax-S-CY_en
V04 – 19-Nov-2018
ExMax-...-CY ExMax-...-CYF
Special options ... -CTS ... -VAS
Electrical connection
All actuators are equipped with a universal supply unit working at a voltage of 24 VAC/DC.
The safety operation of the spring return function works if the supply voltage is cut.
An over-current protection fuse < 10 A has to be provided by installer.
Note: the initial current is appr. 2 A for 1 second.
Installation
Ex area –
zone 1, 2, 21, 22 Safe area
Parameters, adjustments and failure indication
Parameter selection
Functions, adjustments and parameters
Type
Running times Position of switch (S)
Torques
Example:
ExMax-15.30-CY
Requested parameter:
Torque 30 Nm
Motor running time 30 s/ 90°
Result:
Switch position 07
Switch – Push button – Lamp
for adjustment
(behind the blanking plug)
10-position switch (S)
Push button (T)
3-colour LED
Supply 24 VAC/DC ± 10 %
Set point
Optional feedback
Supply 24 VAC/DC ± 10 %
Set point
Optional feedback
Modulating – with spring return SB 6.1
Modulating – without spring return SB 6.0
Self adjustment:
To adjust the signal input /output to the angle of
rotation of the damper/ valve the button (T) must
be pushed for a minimum of 3 sec.
Self adjustment:
To adjust the signal input /output to the angle of
rotation of the damper/ valve the button (T) must
be pushed for a minimum of 3 sec.
24...240 VAC/DC
24...240 VAC/DC
Attention
During commissioning apply a self adjustment drive.
Regard duty cycle at motor running times!
Never use spring return actuators without external load.
A) Self adjustment of angle of rotation
Turn switch (S) to position 02 (low torque) or 07 (high torque). Press button (T) for
a minimum of 3 seconds. The actuator drives to both end positions and detects the
blocking positions. The LED flashes GREEN during adjustment.
The adjustment takes about 60 seconds (30 sec. “On”, 30 sec. “Off”).
B) Selecting motor running time and torque
Adjust parameters only if actuator is in idle state or without applied potential.
Turn switch (S) to the position required for the intended operation acc. to table
above. The selected parameters will be carried out at the actuator’s next operation.
C) Additional information for operation
The rotation direction (clockwise/counter clockwise)depends on left/right
mounting of the actuator to the damper.
▪ Do not open the cover when circuits are live
▪ Connect potential earth
▪ Close all openings to ensure enclosure protection
▪ Clean only with damp cloth, avoid dust accumulation
3 / 4

EXPLOSIONPROOF
E. Operation at ambient temperatures below −20 °C
All actuators are equipped with a regulated integrated heating device designed for
employments down to −40 °C ambient temperature. The heater will be supplied automatically
by connecting the constant voltage supply on the clamps 1 and 2.
1. After mounting the actuator must bei immediately electrically connected.
2. The heater switches on automatically when actuator reaches internally −20 °C. It
heats up the actuator to a proper working temperature, then heater switches off
automatically. Actuator will not run during heating process.
3. The adjustment options are only ensured after this heating up period.
F. Excess temperatures
In acc. to the ATEX rules and regulations Ex actuators must be protected against excess
temperature. The internal thermostat works as a maximum limiter and, in the event of
failure at incorrect temperatures, shuts off the actuator irreversible. An upstream connected
temperature sensor stops the actuator before reaching its max. temperature. This safety
feature is reversible, after cooling down the actuator is completely functional again. In
this case the failure must be eliminated immediately on site!
G. Synchron mode
Do not connect several actuators to one shaft or link mechanically together.
H. Mechanical protection
Actuators must be operated with a minimum external load.
After installing the actuator to the damper/armature a self adjustment drive has to be
performed in order to protect the damper/armature against mechanical overload.
During operation the actuator reduces briefly its speed (motor power) before reaching
the end position for a “gentle” blockade/stop.
I. Intrinsically safe circuits
The actuator has a flameproof enclosure acc. to EN 60079. The supply of the push
button (adjustment drive), the 10-position switch (adjustment of torque and running time)
and the LED indicator is performed intrinsically safe!
www.schischek.com
Schischek GmbH Germany, Muehlsteig 45, Gewerbegebiet Sued 5, 90579 Langenzenn, Tel. [phone], Fax [phone], E-Mail [email protected]
ExMax-S-CY_en
V04 – 19-Nov-2018
ExMax-...-CY ExMax-...-CYF
Special options ... -CTS ... -VAS
Important information for installation and operation
Extra information (see additional data sheet)
Additional technical information, dimensions, installation intruction, illustration
and failure indication
A. Installation, commissioning, maintenance
All national and international standards, rules and regulations for hazardous Ex-areas
must be complied with. Certified apparatus must be installed in accordance with manufacturer
instructions. If the equipment is used in a manner not specified by the manufacturer, the
safety protection provided by the equipment may be impaired. For electrical installations
design, selection and erection, EN/IEC 60079-14 can be used.
For electrical connection an Ex-e terminal box is required (e.g. ExBox-...).
Attention: If the actuator is put out of operation all Ex rules and regulationsmust be
applied. You have to cut the supply voltage before opening the terminal box!
The cablesof the actuator must be installed in a fixed position and protected against
mechanical and thermical damage. Connect potential earth. Avoid temperature transfer
from armature to actuator! Close all openings with min. IP66.
For outdoor installation a protective weather shield against sun, rain and snow should be
applied to the actuator as well as a constant supply at terminal 1 and 2 for the integrated
heater. During commissioning apply a self adjustment drive.
Actuators are maintenance free. An annual inspection is recommended. For electrical
installations inspection and maintenance, EN/IEC 60079-17 can be used. Ex-actuators
must not be opened by the customer.
B. Manual override
Manual override only if supply voltage is cut. Use delivered socket wrench with slow
motions, usage can be tight. Attention: Releasing or letting go the Allen key too fast at
manual operating actuators with spring return causes risk of injury!
C. Shaft connection, selection of running time
Actuators are equipped with a direct coupling double square shaft connection of 12 × 12 mm.
For round shafts there are adaptors/clamping connection (as accessories, e.g. KB-S)
available. The housing of the actuator is built axially symmetrically to select Open-close
direction of the spring return function by left-right mounting. Using the 10-position switch
different motor running times and spring return running times can be selected on site in
acc. to the actuator type.
D. Spring return
Spring return function works only if the supply voltage for terminal 1 or 2 is cut. In the
event of an electrical interruption, the spring returns to its end position even if supply
voltage is available again during return function. Thereafter operation will continue.

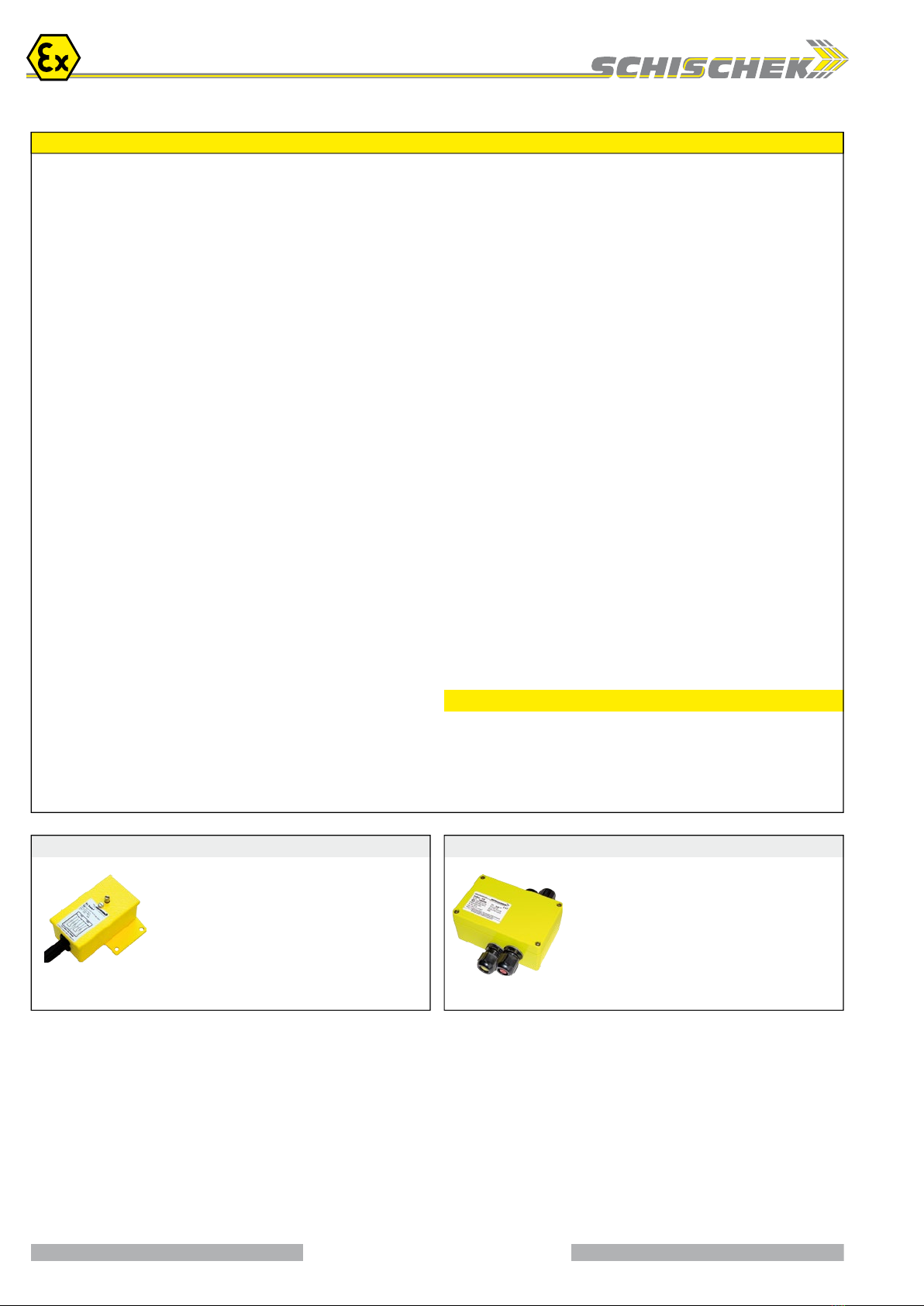

Accessory ExBox – Ex-e terminal boxAccessory ExSwitch – Ex-d auxiliary switch
For electrical connection of the ...Max actuator in a hazardous
area an explosion proof terminal box is required.
To adapt the ...Box directly to the actuator housing a mounting
bracket is required.
ExBox- Y/S for ...Max-...-CY and ...-CYF
For an end or inclined position indication it is possible to
retrofit external, adjustable, explosion proof auxiliary switches
type ExSwitch.
The ...Switch is mounted directly to the actuator. The switches
deliver a potential free output and can be adjusted separately.
They are connected by cable.
4 / 4
