CYLINDERS,KEYS
AND KEY CONTROL

Patented Key and High Security
Cylinder System
The Primus®system offers a new dimension
in high security cylinders and key control.
The system features a specially designed,
patent protected key which operates a choice
of Underwriters Laboratories Listed 20-500
series, Controlled Access 20-700 series and
standard cylinders all in one integrated key
system. Primus cylinders are compatible
with Schlage's commercial grade locks.
Multiple security levels are available to
provide the choice of geographical exclusivity,
key control, convenience, and service which
best meets the demands of each installation.
CYLINDERS, KEYS AND KEY CONTROL
Springs
Top pins
Master pins (as required)
Bottom pins
Side-bitting
Drill resistant plug (optional)
5 Finger pins
Cam screw
Cam
Shell
Sidebar
2 Sidebar springs
Finger pin springs

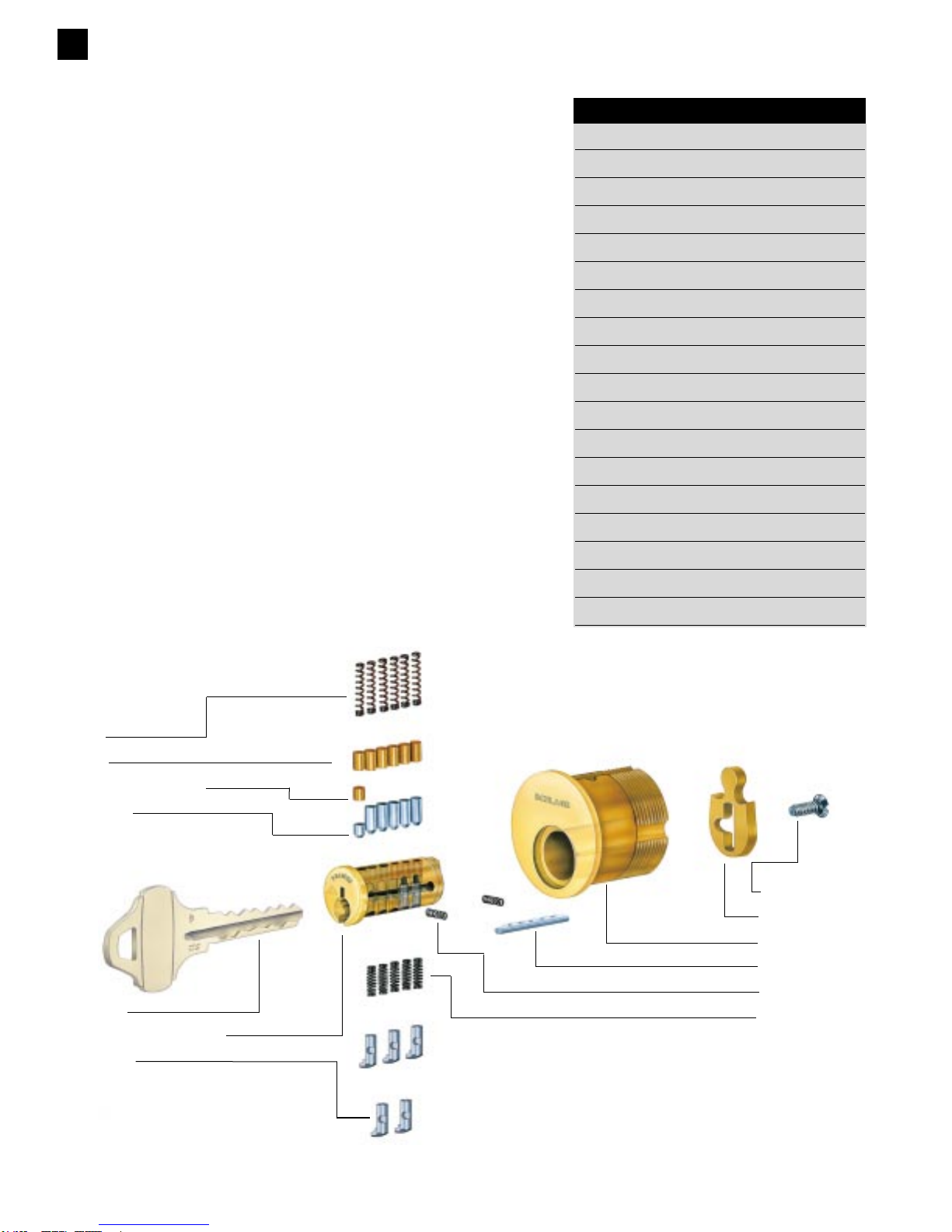

Exploded View - Primus Mortise Cylinder
Authorization Forms 27
Bulk Pack Cylinder Kit 26
Classic Key and Keyways 22 - 23
Cylinders for Schlage locksets 8 - 17
Cylinders for Other Manufacturers’ Locks 18 - 19
Cylinder Terminology 29
Everest Key and Keyways 20 - 21
Exploded View: Mortise Cylinder ii
How to Order 28
I.D. Cards 27
Interchangeable Core 10 - 17
Multiple Tail Piece Cylinder 26
Performance Features 2
Security Levels 28
Service Equipment & Tolls 25
Small Format Key Blanks 24
Special Cams 9
Specifications 1
INDEX
ii

Certifications
ANSI:
20-500 High Security cylinder – A156.5, Grade 1.
20-700 Controlled Access cylinder – ANSI A156.5, Grade 1
Operational.
UL / ULC:
20-500 Series Primus cylinders are UL437 Listed Locking
Cylinders.
1
Specifications
Key Control Patents*:
Everest and Primus cylinders and keys are covered by
one or more of the following U.S. utility patents:
4,756,177
4,815,307
5,715,717
5,809,816
For international Patent coverage information, please
contact Schlage Commercial Customer Service.
Materials:
Cylinder plug and shell are brass. Bottom pins, finger
pins, sidebar, and keys are nickel silver. Top pins and
master pins are brass.
Standard Keying:
All Primus cylinders have six conventional pins and five
finger pins. Everest C123 keyway standard with two
keys per cylinder.
Keying Options:
Interchangeable core cylinders. Master keying, grand
master keying, and construction keying.
Warranty:
Three-year limited.
Software:
Primus Cylinders can be used in conjunction with
SITEMASTER 200® key control management software,
for highly effective key control.
*Any infringement of these patents will be forcefully defended in the
courts of law by the Schlage Lock Company.
CYLINDERS, KEYS AND KEY CONTROL

2
CYLINDERS, KEYS AND KEY CONTROL
Performance Features
The Schlage Primus High Security cylinder is precision built to extremely close tolerances and the highest standards of quality.
These “dual-locking” cylinders consist of two independent locking mechanisms, operated by a single specially designed
Primus key. In addition to a standard 6 pin tumbler mechanism there is a locking sidebar which is independently controlled
by a set of 5 fingerpins that interface with the side bitting on the patented Primus key.
Primus cylinders are offered in two different versions. The 20-500 High Security series which is UL Listed and the 20-700
Controlled Access series which offers the same key control protection when UL Listed cylinders are not necessary. Both series
are fully compatible in application and can be combined into the same master key system, along with other Schlage
conventional cylinders. For added flexibility, all Primus cylinders can be retrofitted into existing Schlage locks as well as
many competitive products.
Primus Flexibility
Unlike many other brands of high security cylinders, Schlage can easily integrate Primus UL 437 Listed cylinders, Primus
Controlled Access cylinders, and Schlage conventional cylinders all into the same key system, and this happens with no
adverse affects on keying capacity!

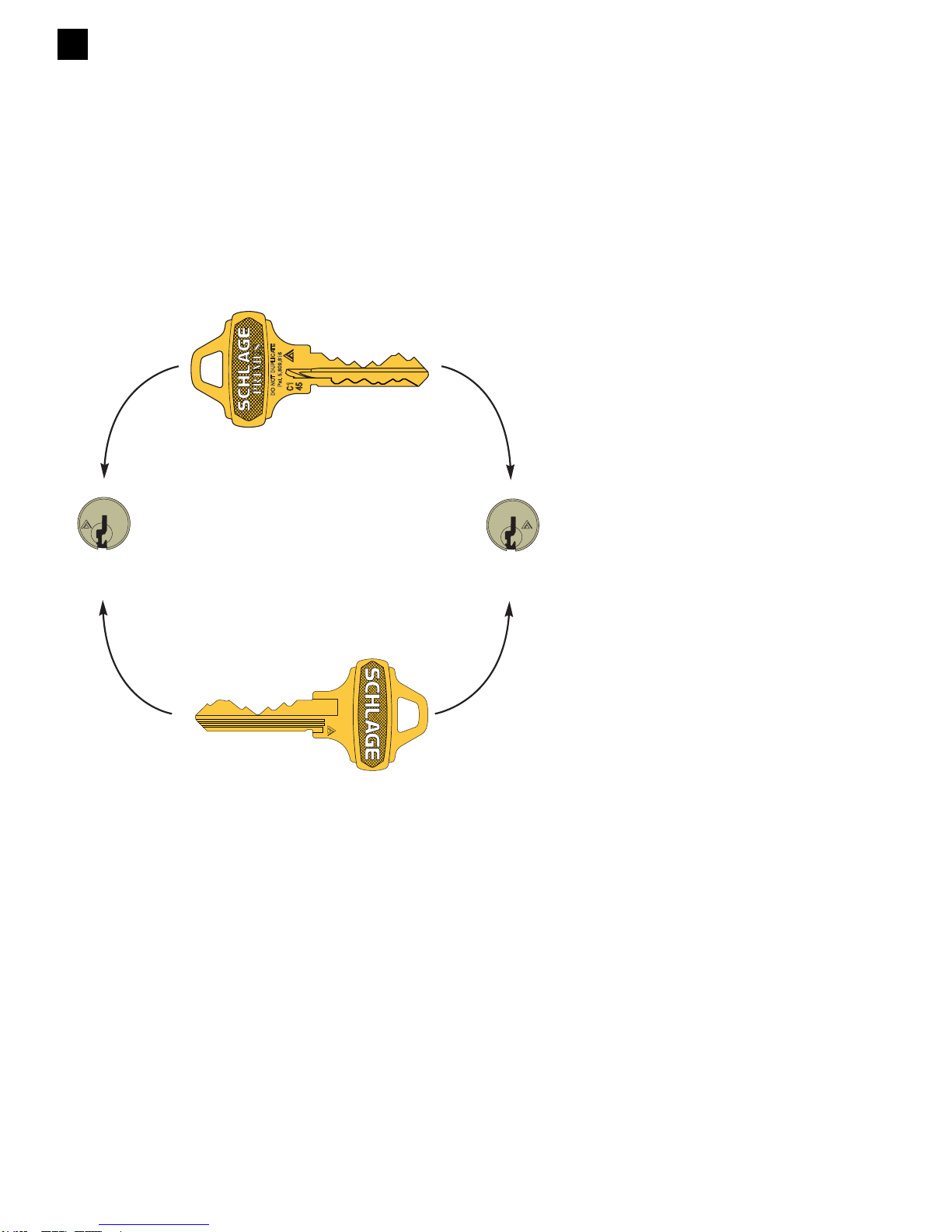

Primus keys will operate conventional cylinders but conventional keys will not operate Primus cylinders. You can secure
exterior doors and sensitive areas with Primus cylinders and use conventional cylinders on the remaining doors. This cuts the
cost of the overall job.
Security can be tailored to meet the exact needs of each door without sacrificing the convenience of having a single building
master key.
Conventional
Everest Cylinder
Everest Primus
Cylinder
Everest Primus Key
(will operate
both cylinders)
P
R
I
M
U
S
Conventional Everest Key
(will
not operate Everest Primus cylinder)
DO NODO NOTDUPLICADUPLICATETE
Pat.at. 5,715,7175,715,717
X
Note: Everest Primus keys are compatible with Everest C Family Open or
Everest D Family Restricted key systems.

Schlage®locks are provided with cylinders precision built
to extremely close tolerances and the highest standards
of accuracy. Using only solid brass
bar stock plugs and shells, phosphor
bronze springs, nickel silver keys and
bottom pins, ensures long life and
ease of operation.
6-pin Everest cylinders in C123
keyway with two patented keys are
standard for stock. C145 is standard for new master
key systems.
3

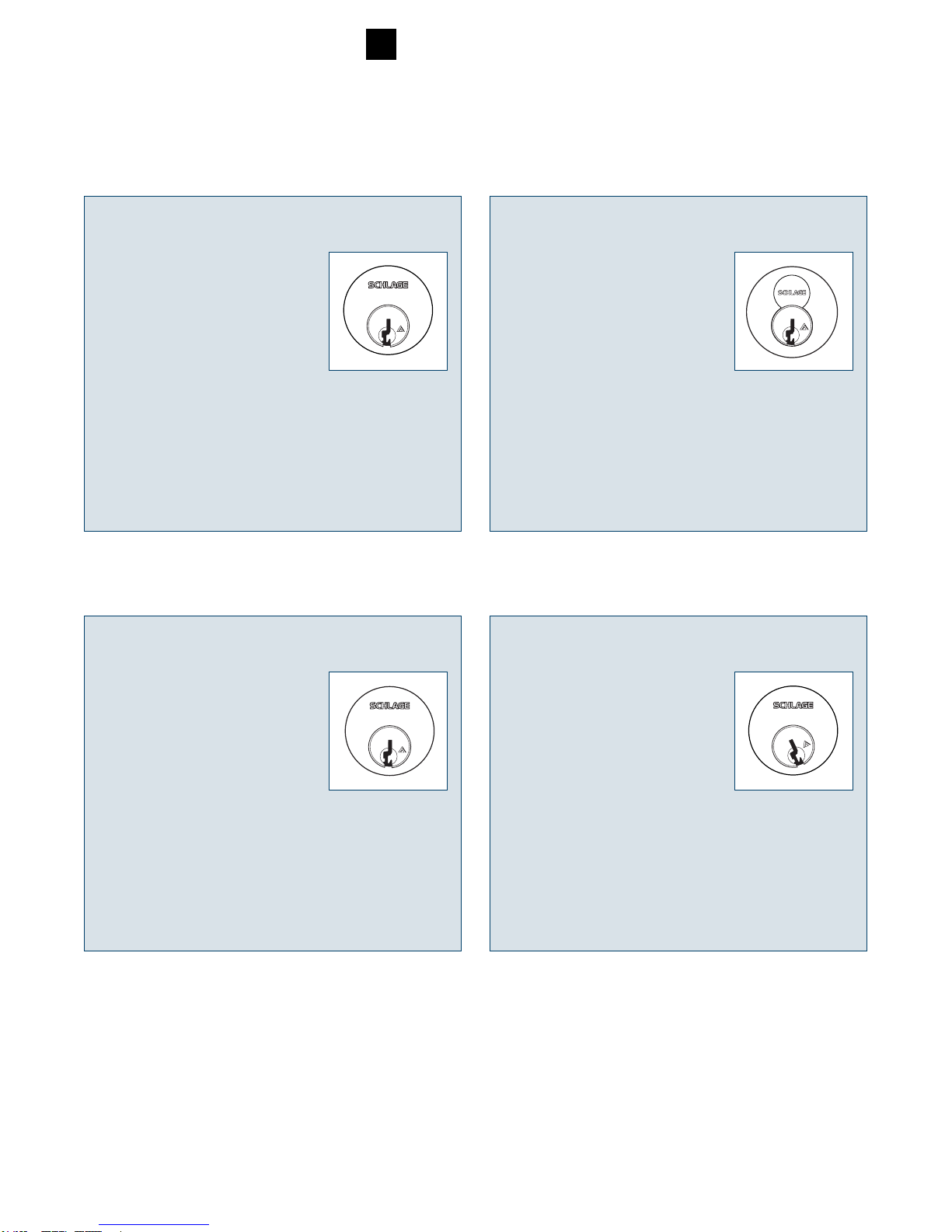

Choose the Right Cylinder for Each Application
Conventional (Standard) Cylinders
Primus high security cylinders are available to add
patented key control and varying degrees of geographical
exclusivity to most Schlage 6-pin
key systems, whether Everest or
Classic keyways.
In addition to a conventional
pin tumbler mechanism, Primus
cylinders incorporate a patented
finger pin and sidebar design
providing a “dual-locking” cylinder that is virtually
pick-proof. Resistance to drilling and other physical
attack is optional by specifying 20-500 Series UL437
Listed cylinders.
P
R
I
M
U
S
Primus®High Security Cylinders
For use where fast rekeying by non-technical personnel is
desired, Schlage Primus and conventional interchangeable
cores offer a great blend of security
and convenience. The special control
key for the system is all that is
required to remove the old core and
install the new one. The core itself
can be rekeyed with standard Schlage
pin kits.
Unlike some other brands, Schlage interchangeable cores
can always be integrated into existing systems with no
adverse affect on the key system.
IC locks are especially well suited to chain stores and
restaurants where frequent employee turnover requires
immediate rekeying by store management.
P
R
I
M
U
S

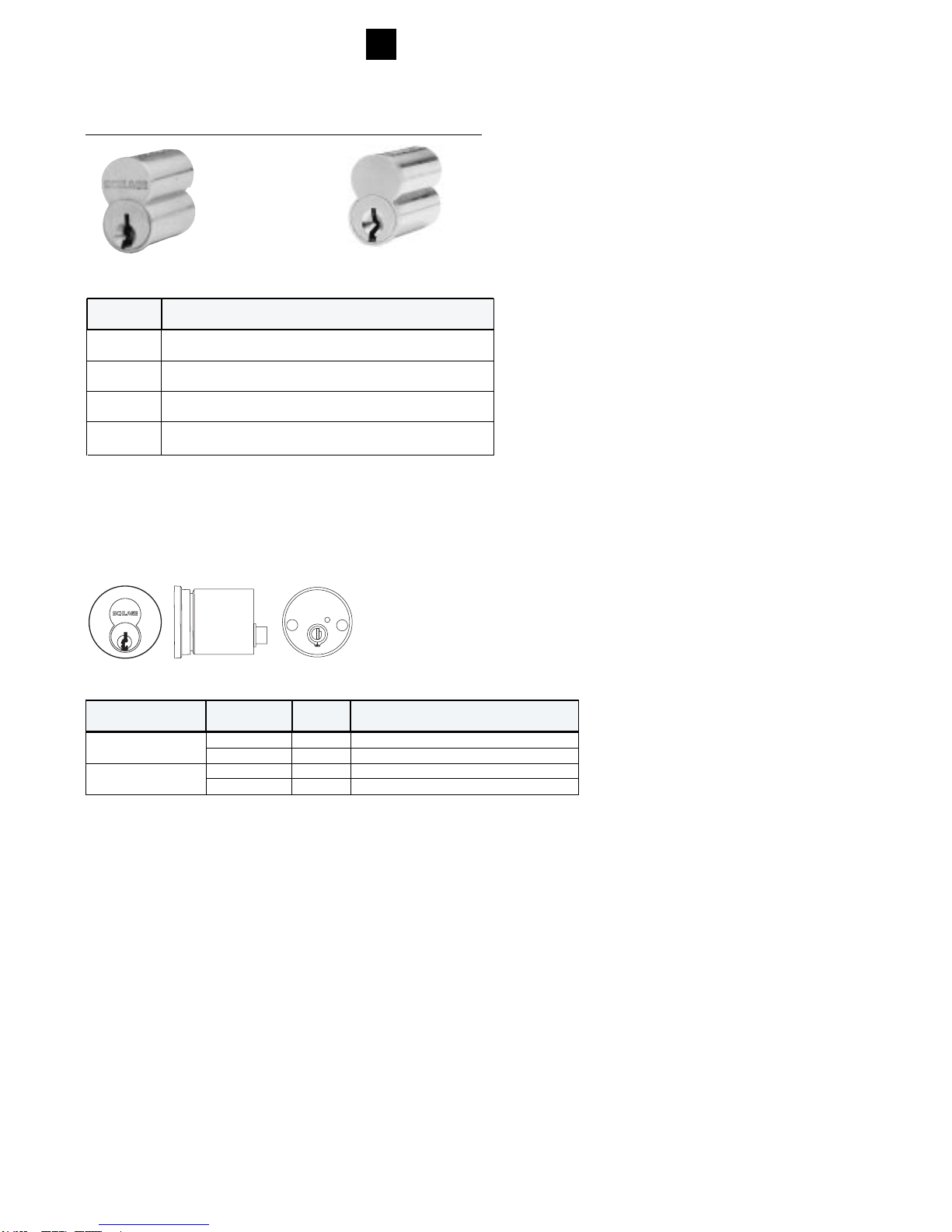

Interchangeable Core (IC) Cylinders
Available in rim and mortise cylinders only, Lockout
cylinders are designed for doors where it is frequently
desirable to disable all keys from
operating the lock temporarily.
The special lockout key can be
removed while the plug is turned to
the 11 o’clock position, preventing
all normal operating keys, including
master keys, from fully entering the
cylinder.
Suggested applications for lockout cylinders include
laboratories, dark rooms, clean rooms, and exterior doors
to dormitories.
Schlage will not master key lockout cylinders.
P
R
I
M
U
S
Primus®Lockout Cylinders
CYLINDERS, KEYS AND KEY CONTROL

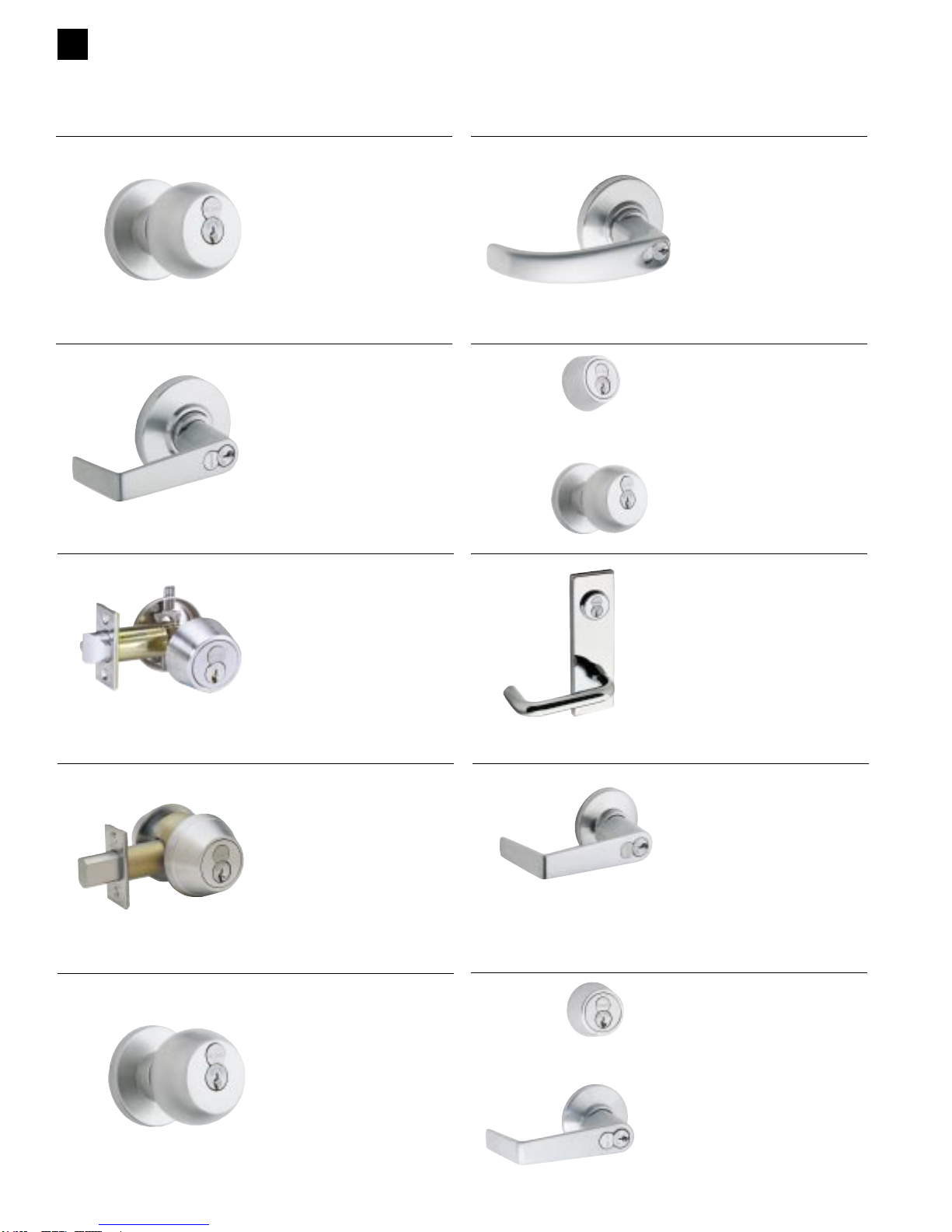

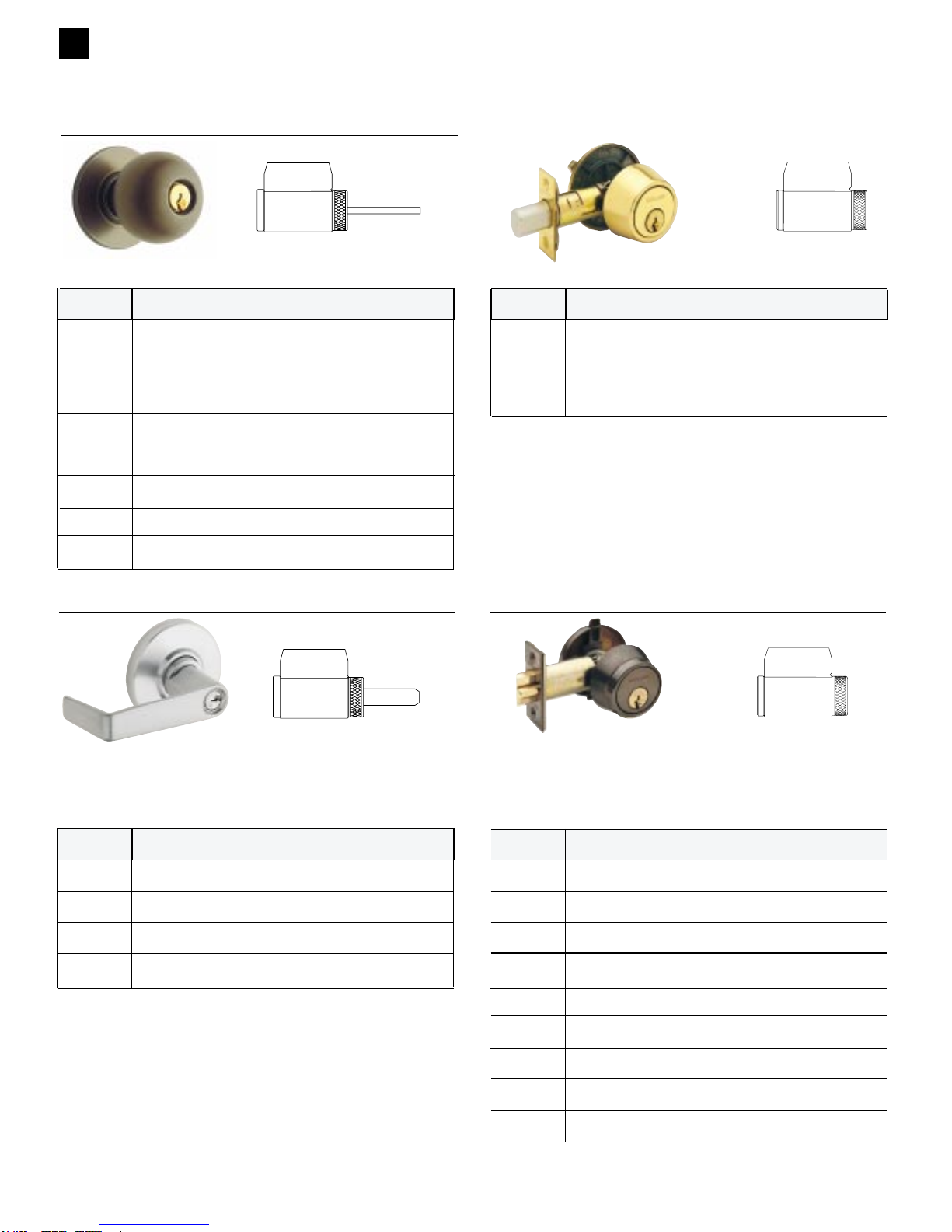

Cylinders for Schlage Locksets
4
CYLINDERS, KEYS AND KEY CONTROL
Number Description
21-020 6-Pin conventional cylinder (standard)
20-728 Primus cylinder
20-528 Primus UL437 Listed high security cylinder
21-021 Conventional hotel function (AL85) with occupancy indicator
Cylinders for AL-Series Levers
Available 606 and 626 finish only. Everest C123 keyway standard.
Number Description
22-002 6-Pin conventional cylinder only
20-729 Primus cylinder only
20-529 Primus UL437 Listed high security cylinder only
22-019 6-Pin conventional cylinder in outside housing
20-730 Primus cylinder in outside housing
20-530 Primus UL437 Listed high security cylinder in outside housing
22-019 6-Pin conventional cylinder in inside housing
20-730 Primus cylinder in inside housing
20-530 Primus UL437 Listed high security cylinder in inside housing

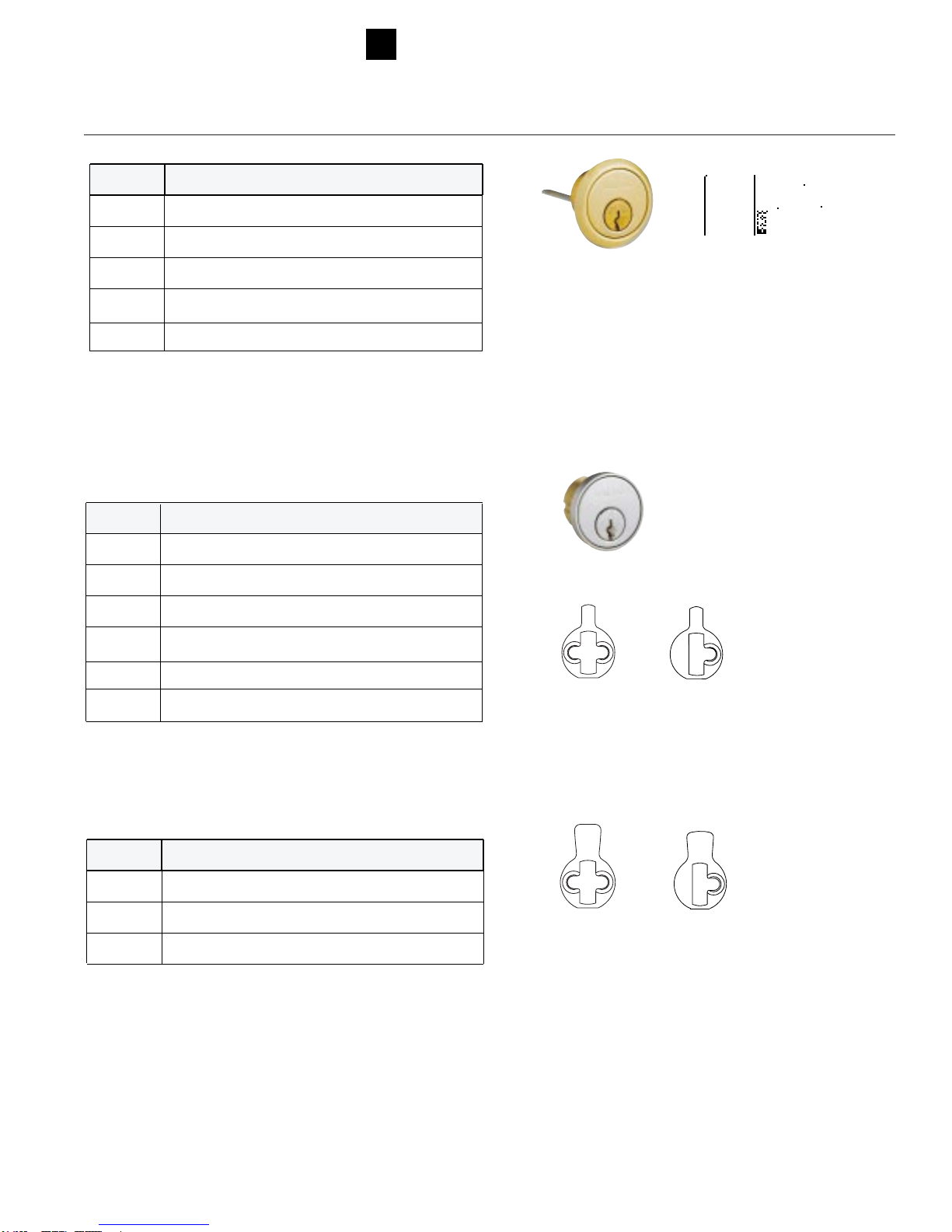

Cylinders for B250-Series (Order tailpieces separately.)
This table also applies to discontinued B100, B200 and B400-Series
deadlocks, and the top cylinders of H and S200-Series interconnected
locksets.
Cylinder itself available 606 and 626 finish only. Housing is available in B250,
H, and S200-Series finishes.
Everest C123 keyway standard.
Number Description
22-002 Conventional cylinder only
20-729 Primus cylinder only
20-529 Primus UL437 Listed high security cylinder only
Cylinders for BC100-Series (Order tailpiece and housing separately.)
Available 606 and 626 finish only. Everest C123 keyway standard.
Number Description
21-002 6-Pin conventional cylinder (standard, non-Orbit)
21-002-122 6-Pin conventional cylinder (standard, Orbit design only)
20-724 Primus cylinder, non-Orbit
20-724-122 Primus cylinder, Orbit design only
20-524 Primus UL437 Listed high security cylinder, non-Orbit
20-524-122 Primus UL437 Listed high security cylinder, Orbit design only
21-003 Conventional hotel function (A85) with indicator, non-Orbit
21-003-168 Conventional hotel function (A85) with indicator, Orbit only
Cylinders for A-Series Knobs
Available 606 and 626 finish only. Everest C123 keyway standard.

B660, B663 22-644 1³⁄₈”- 2¹⁄₂”
B661, B664 Conventional
B662
B760, B763 20-744 1³⁄₈”- 2¹⁄₂”
B761, B764 Primus
B762
B860, B863 20-544 1³⁄₈”- 2¹⁄₂”
B861, B864 Primus UL437 Listed
B862
Cylinders for Schlage Locksets
5
Lockset Cylinder Door
Function Number Thickness Cylinder Mechanism Number Description
23-001 6-Pin conventional cylinder (standard)
20-748 Primus cylinder
20-548 Primus UL437 Listed high security cylinder
23-003 Conventional hotel function (D85) with occupancy indicator
21-002 6-Pin conventional cylinder, 2” - 2¹⁄₂” thick door
20-724 Primus cylinder, 2” - 2¹⁄₂” thick door
20-524 Primus UL437 Listed high security cylinder, 2” - 2¹⁄₂” door
23-003-098 Conventional hotel function (D85) w/indicator, 2” - 2¹⁄₂” door
Cylinders for D-Series Knobs
Available 606 and 626 finish only. Everest C123 keyway standard.
Number Description
23-013 6-Pin conventional cylinder (standard)
20-750 Primus cylinder
20-550 Primus UL437 Listed high security cylinder
23-014 Conventional hotel function (D85) with occupancy indicator
Cylinders for D-Series Levers
Available 606 and 626 finish only. Everest C123 keyway standard.
B600-Series - Conventional Cylinder
B700-Series - Primus Cylinder
B800-Series - UL437 Listed Primus Cylinder
22-642 1³⁄₈”- 2”
22-643 2”- 2¹⁄₂”
22-645 1³⁄₈” - 2”
22-646 2”- 2¹⁄₂”
20-742 1³⁄₈”- 2”
20-743 2”- 2¹⁄₂”
20-745 1³⁄₈” - 2”
20-746 2”- 2¹⁄₂”
20-542 1³⁄₈”- 2”
20-543 2”- 2¹⁄₂”
20-545 1³⁄₈” - 2”
20-546 2”- 2¹⁄₂”
Available 606 and 626 finish only. Everest C123 keyway standard.

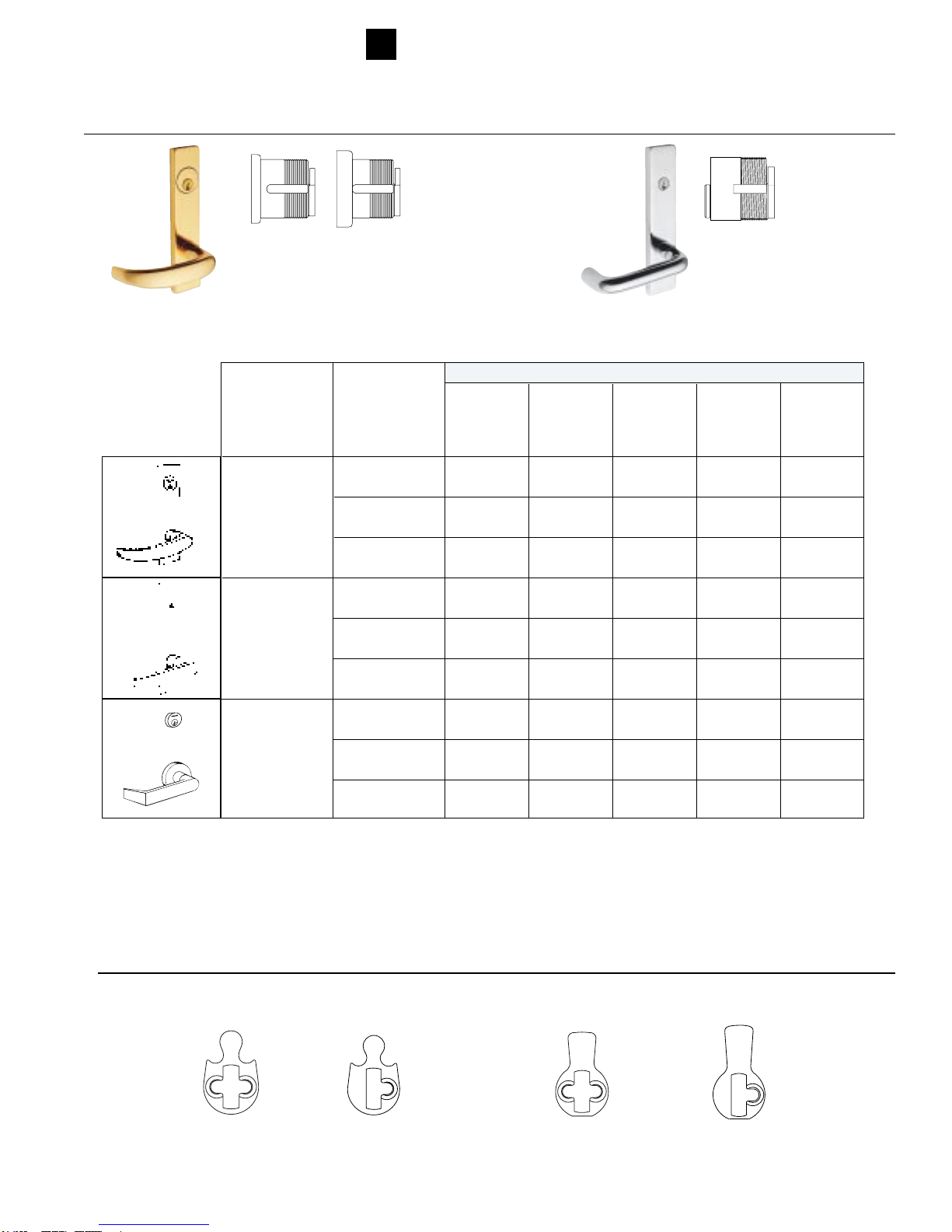

Cylinders for B600/700/800-Series Deadlocks (Housing not included)
CYLINDERS, KEYS AND KEY CONTROL

29-003 29-005
Cylinders for Schlage Locksets
CYLINDERS, KEYS AND KEY CONTROL
Number Description
21-028 Conventional cylinder
20-752 Primus cylinder
20-552 Primus UL437 Listed high security cylinder only

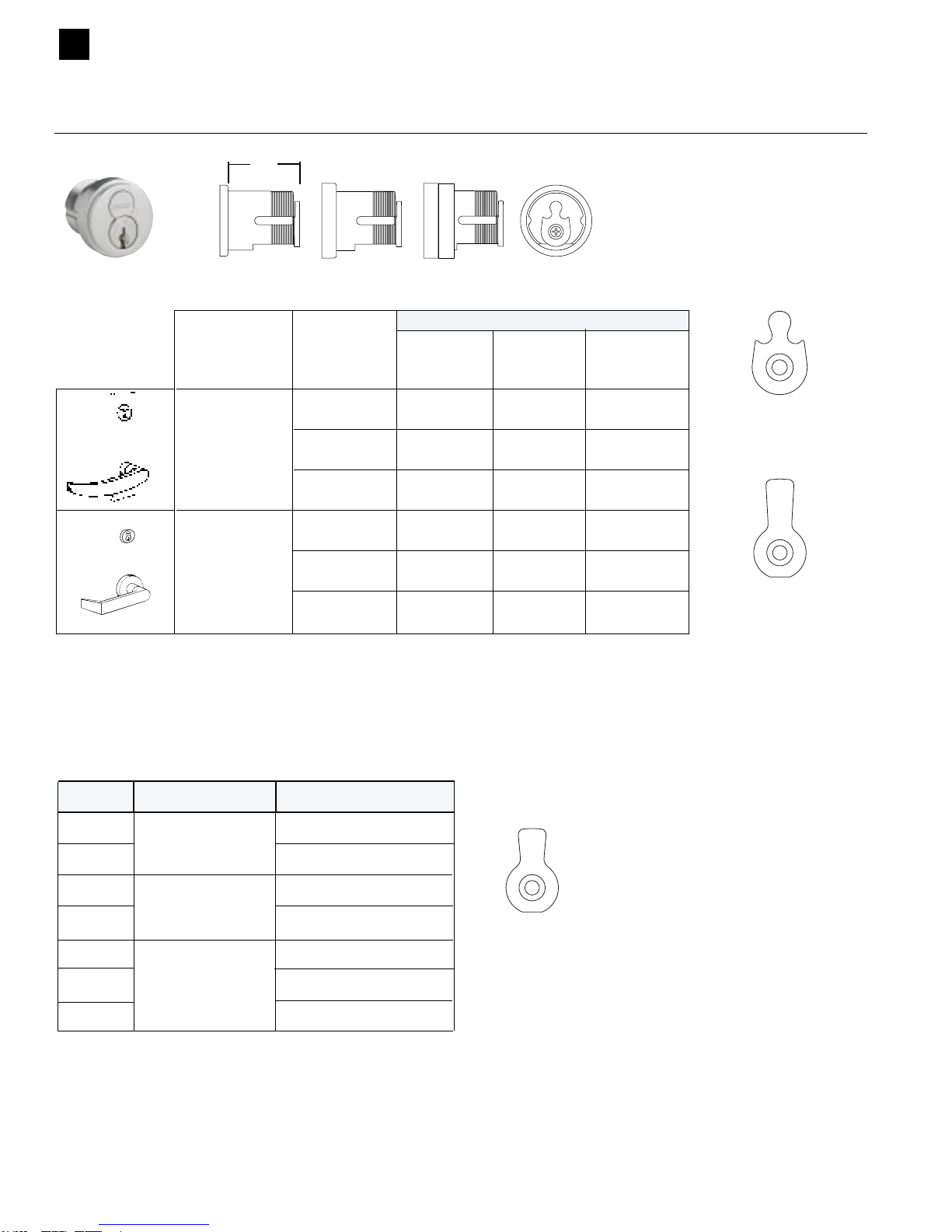

Cylinders for S-Series Levers
Available 606 and 626 finish.
Everest C123 keyway standard.
Number Description
29-002 Bell, Georgian and Plymouth knobs
29-003 Orbit knob
29-005 Accent and Flair levers
Cylinders for F-Series Knobs and Levers
Available 429 (to match 626) and 430 (to match 606) finish.
5-pin C keyway only.
Description Cylinder
Top cylinder (deadlock) See B200/400-Series deadlock cylinder table
Bottom cylinder (knob) See A-Series knob cylinder table
Cylinders for H-Series Interconnected Locksets
Description Cylinder
Top cylinder (deadlock) See B200/400-Series deadlock cylinder table
Bottom cylinder (lever) See S-Series lever cylinder table
Cylinders for S200-Series Interconnected Locksets
6
29-002

Cylinders for Schlage Locksets
Cylinder Only Compr. Ring & Spring
7
Concealed Shell Cylinder
Cam for All Functions Except L9060 Outside Cam for L9060 Outside and Most Brands of
Old Black Cast Iron Mortise Locks
Blocking Rings*
L583-254
Classic Conventional L583-153
Everest & Primus B502-191
Classic Conventional B502-948
Everest & Primus
Primus
Primus Primus UL437
Design Function Conventional Primus UL437 Lockout Lockout
All Except Below 30-021 20-793 20-593 20-717** 20-517**
L9060P Outside 26-021 20-701 20-501 20-715** 20-515**
L9485, L9486 30-022* N/A N/A N/A N/A
Hotel Funtions
All Except Below 30-004 20-789 20-589 N/A N/A
L9080P Outside 26-023 N/A N/A N/A N/A
L9485, L9486 30-005* N/A N/A N/A N/A
Hotel Funtions
All Except Below 30-001 20-787 20-587 20-717 20-517
L9060P Outside 20-001 20-700 20-500 20-715 20-515
L9060P Outside 30-002* N/A N/A N/A N/A
Cylinders for Schlage L-Series Mortise Locks
Cylinder Mechanism
* Specify door hand for hotel function cylinders.
** Discard compression ring for Lockout cylinders with escutcheon trim.
L&N
Escutcheons
(cylinders and
spring only)
L Escutcheon
with concealed
shell cylinder
(C suffix)
Sectional Trim
(cylinder with
compression ring
& spring)
Notes 1. Available 605, 606, 612, 613, 625, 626, 629, and 630 finish. Concealed shell cylinders available 606 and 626 only.
2. To differentiate between Classic and Everest, specify keyway. Example: C or CP (Classic), C123 (Everest).Everest C123 keyway standard.
3. 1-1/8” length standard. Optional lengths available in 1/8” (4mm) increments up to 1-3/4” (44mm).
4. To order less Schlage logo, specify with K510-612 faceplate.
5. Lockout keys must be ordered separately and lockout cylinders will not be master keyed by Schlage.
6. Specify LKB if 0-bitted Primus cylinders are required less key blanks.
CYLINDERS, KEYS AND KEY CONTROL

Complete Padlock Cylinder Only
Conventional Primus Primus UL Conventional Primus Primus UL
PL1001 PL1741 PL1541
PL1002 PL1742 PL1542
PL1003 PL1743 PL1543
PL2001 PL2741 PL2541 47-410 47-740 47-540
PL2002 PL2742 PL2542
PL2003 PL2743 PL2543
PL3001 PL3741 PL3541
PL3002 PL3742 PL3542
8
CYLINDERS, KEYS AND KEY CONTROL
Cabinet Locks and Padlocks
PL-Series Padlocks
CL-Series Cabinet Locks
CL1000 CL2000
Door Drawer
Padlock
Series
PL1000
1³⁄₄”x 2¹⁄₈”x ³⁄₄”
PL2000
2”x 2¹⁄₈”x ³⁄₄”
PL3000
2¹⁄₄”x 2³⁄₈”x ⁷⁄₈”
⁵⁄₁₆”
⁵⁄₁₆”
⁵⁄₁₆”
³⁄₈”
³⁄₈”
³⁄₈”
⁷⁄₁₆”
⁷⁄₁₆”
1¹⁄₈”
2”
3”
1¹⁄₈”
2”
3”
1¹⁄₈”
2”
³⁄₄”
³⁄₄”
³⁄₄”
³⁄₄”
³⁄₄”
³⁄₄”
¹⁵⁄₁₆”
¹⁵⁄₁₆”
Shackle Dimensions
ABC
H
A
R
D
E
N
E
D
CB
A
Complete Lock Cylinder Only
Application Bolt Conventional Primus Primus UL Conventional Primus Primus UL
Door 1” (std) CL1000PB CL1740PB CL1540PB 20-172 20-772 20-572
1/2” CL1009PB CL1749PB CL1549PB
Drawer
1/2” (std) CL2000PB CL2740PB CL2540PB 20-174 20-774 20-574
3/4” CL2009PB CL2749PB CL2549PB
Available 606 and 626 finish.
Everest C123 keyway standard.
Available 606 finish only.
Everest C123 keyway standard.

9
Cylinders for Exit Devices, Aluminum Doors, etc.
Number Description
20-022 Conventional cylinder
20-710 Primus cylinder
20-716 Primus lockout cylinder
20-510 Primus UL437 Listed cylinder
20-516 Primus UL437 Listed lockout cylinder
Rim Cylinders
Available 605, 606, 612, 613, 625 and 626 finish.
Everest C123 keyway standard.
Number Description
26-072 Conventional cylinder only
20-013 Conventional cylinder with 3/8” blocking ring
20-706 Primus cylinder with 3/8” blocking ring
20-510 Primus UL437 Listed cylinder
20-718 Primus lockout cylinder
20-518 Primus UL437 Listed lockout cylinder
Cylinders for Adams Rite MS, 4500 and 4700 Series,
Lori 4500 Series and Corbin Russwin DL3000 Series.
These cylinders include set screw pack B220-050 for Adams Rite locks.
Number Description
26-073 Conventional cylinder only
20-708 Primus cylinder only
20-508 Primus UL437 Listed cylinder only
Cylinders for Adams Rite 4070 Series
B502-292
Cam for Classic
Conventional
B502-944
Cam for Everest
& Primus
B502-945
Cam for Everest
& Primus
B502-380
Cam for Classic
Conventional
Notes 1. Available 605, 606, 612, 613, 625, 626, 629, and 630 finish.
2. To differentiate between Classic and Everest, specify keyway. Example: C or CP (Classic), C123 (Everest).Everest C123 keyway standard.
3. 1-1/8” length standard. Optional lengths available in 1/8” (4mm) increments up to 1-3/4” (44mm).
4. To order less Schlage logo, specify with K510-612 faceplate.
5. Lockout keys must be ordered separately and lockout cylinders will not be master keyed by Schlage.
6. Specify LKB if 0-bitted Primus cylinders are required less key blanks.
CYLINDERS, KEYS AND KEY CONTROL

10
CYLINDERS, KEYS AND KEY CONTROL
Full Size Interchangeable Core
L-Series
ALL DESIGNS
S-Series
ALL DESIGNS
EXCEPT FLAIR
S200-Series
ALL DESIGNS FOR S210.
ALL EXCEPT FLAIR FOR
OTHER FUNCTIONS
D-Series Lever
ALL DESIGNS
D-Series Knob
ORBIT DESIGN
A-Series
ORBIT DESIGN
AL-Series
SATURN DESIGN
B600 / 700-Series
H-Series Knob
ORBIT DESIGN
BC100-Series
B250-Series

Full Size Interchangeable Core Cylinders for Schlage Locksets
BC100-Series Outside B220-203 605, 609, 612, 613, 625, 626
Inside B220-204 See Note Below
B250, H, S200-Series Outside 22-061 605, 606, 609, 610, 611, 612, 613, 616, 625, 626
Inside of B252 22-062
B600 / 700-Series Outside B610-027 605, 606, 609, 612, 613, 625, 626
Inside B610-028 See Note Below
Lockset
Series Description Number Specify Finish
Specify finish of B610-031 inside snap-on faceplate ordered separately for BC162 and B662/762.

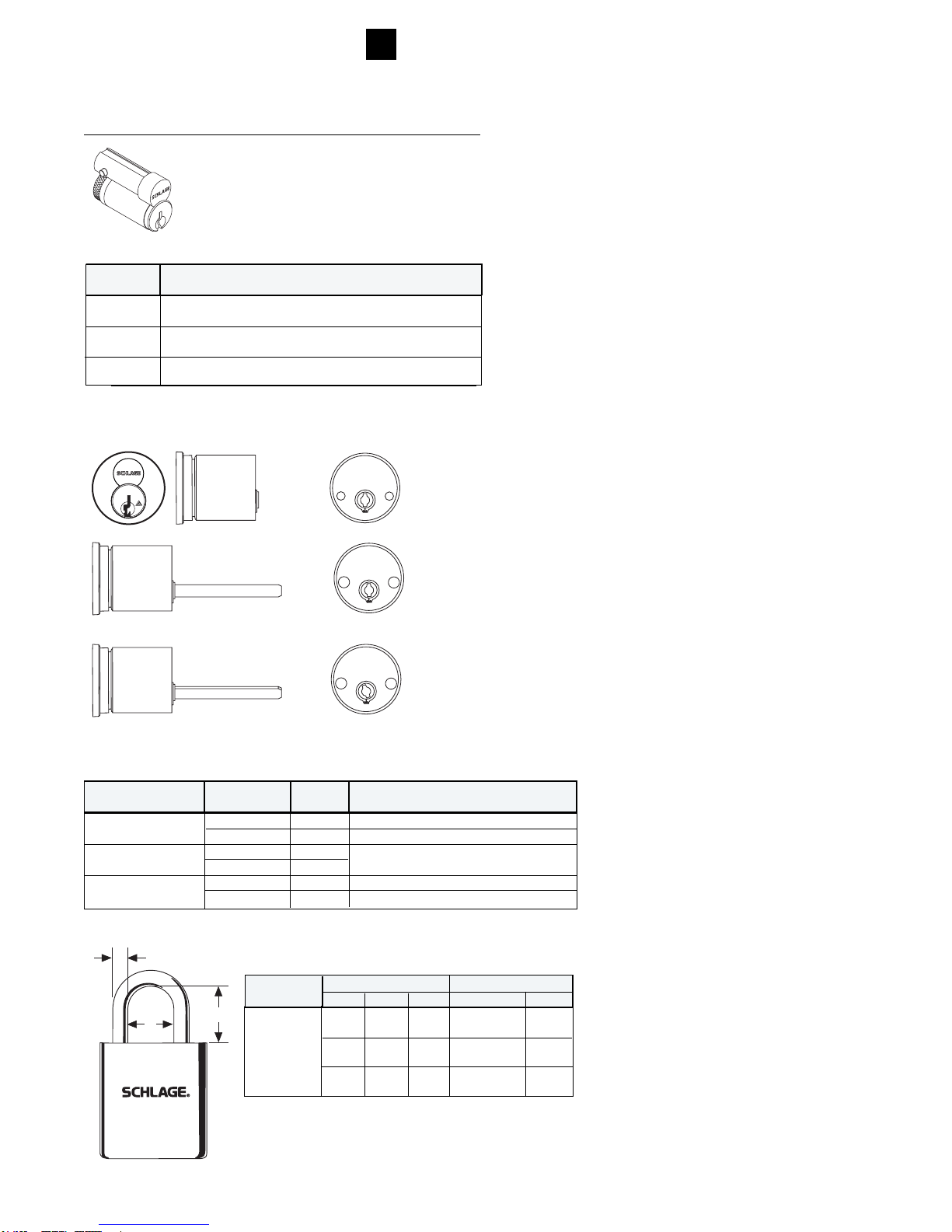

IC Housings for Bored Deadlocks, Less Core
Interchangeable Core Padlocks
Number Mechanism
23-030 Conventional core
30-120 Conventional core for hotel function (specify hand)
20-730 Primus core (not available in hotel function)
Full Size Core Only
Available 606 and 626 finish only. Everest C123 keyway standard.
Order control keys separately.
B600
BC100
B200
H, S200
1/4-28 Bolts, Angled Driver
1/4-28 Bolts, Straight Driver
10-32 Bolts
11
Padlock with Core
Conventional Primus
PL4001 PL4741
PL4002 PL4742
PL4003 PL4743
Padlock
Series
PL4000
2”x 2¹⁄₄”x ⁷⁄₈”
³⁄₈”
³⁄₈”
³⁄₈”
1¹⁄₈”
2”
3”
³⁄₄”
³⁄₄”
³⁄₄”
Shackle Dimensions
ABC
H
A
R
D
E
N
E
D
CB
A
CYLINDERS, KEYS AND KEY CONTROL

12
CYLINDERS, KEYS AND KEY CONTROL
Full Size Interchangeable Core Mortise Cylinders
K510-730
Straight Cam,
Other Applications
L583-255
Cam for All Functions
Except L9060 Outside
K510-680
Cam for
L9060 Outside
* Hotel function cores are handed. Specify hand of door.
Housing
Design Function Conventional Primus Less Core
All Except Below 30-008 20-798 30-007
L9060P Outside 30-030 20-782 30-032 + 36-083
L9485P, L9486P 30-010* N/A 30-007
Hotel Funtions
All Except Below 30-138 20-776 30-137
L9060P Outside 20-061 20-783 30-032 + 36-083 +
35-082-037
L9485P, L9486P 30-140* N/A 30-137
Hotel Funtions
Core Mechanism
L&N
Escutcheons
(cylinders with
compression ring)
Sectional Trim
(cylinder with
compression ring,
spring and
3/8˝ blocking ring)
Cylinders for Schlage L-Series Mortise Locks
Number Core Mechanism Collar
26-091 Conventional core Compression ring & spring
20-061 3/16” + 3/8” blocking rings
20-763 Primus core Compression ring & spring
20-771 3/16” + 3/8” blocking rings
20-059 None
26-064 Housing less core Compression ring & spring
26-094 3/16” + 3/8” blocking rings
Mortise Cylinders with Straight Cam for Exit Devices and
Most Old Black Cast Iron Mortise Locksets
1-1/2”
Notes 1. Available 605, 606, 612, 613, 625, and 626 finish. Cores furnished 606 and 626 only.
2. To differentiate between Classic and Everest, specify keyway. Example: C or CP (Classic), C123 (Everest). Everest C123 keyway standard.
3. All cylinders are 1-1/2” long.
4. Specify LKB if 0-bitted Primus cylinders are required less key blanks.

13
Number Core Mechanism
20-057 Conventional core
20-757 Primus core
20-079 Housing only, less core
Interchangeable Core Rim Cylinders for Exit Devices
Available 605, 606, 612, 613, 625 and 626 finish.
Everest C123 keyway standard.
Full Size Interchangeable Core Cylinders for Exit Devices, Aluminum Doors, etc.
Number Core Mechanism Collar
26-098 Conventional core Compression ring & spring
20-062 Conventional core 3/16” + 3/8” blocking rings
20-766 Primus core 3/16” + 3/8” blocking rings
20-060 Housing less core None
Cylinders for Adams Rite MS and 4700 Series,
Lori 4500 Series and Corbin Russwin DL3000 Series.
Number Core Mechanism Collar
20-091 Conventional core 3/16” + 3/8” blocking rings
20-722 Primus core 3/16” + 3/8” blocking rings
20-090 Housing less core None
Cylinders for Adams Rite 4070 Series Deadlocks
These cylinders include set screw pack B220-050 for Adams Rite locks.
K510-711
Adams Rite
MS Cam
B520-378
Adams Rite
4070 Cam
Notes 1. Available 605, 606, 612, 613, 625, and 626 finish. Cores furnished 606 and 626 only.
2. To differentiate between Classic and Everest, specify keyway. Example: C or CP (Classic), C123 (Everest). Everest C123 keyway standard.
3. All cylinders are 1-1/2” long.
4. Specify LKB if 0-bitted Primus cylinders are required less key blanks.
CYLINDERS, KEYS AND KEY CONTROL

14

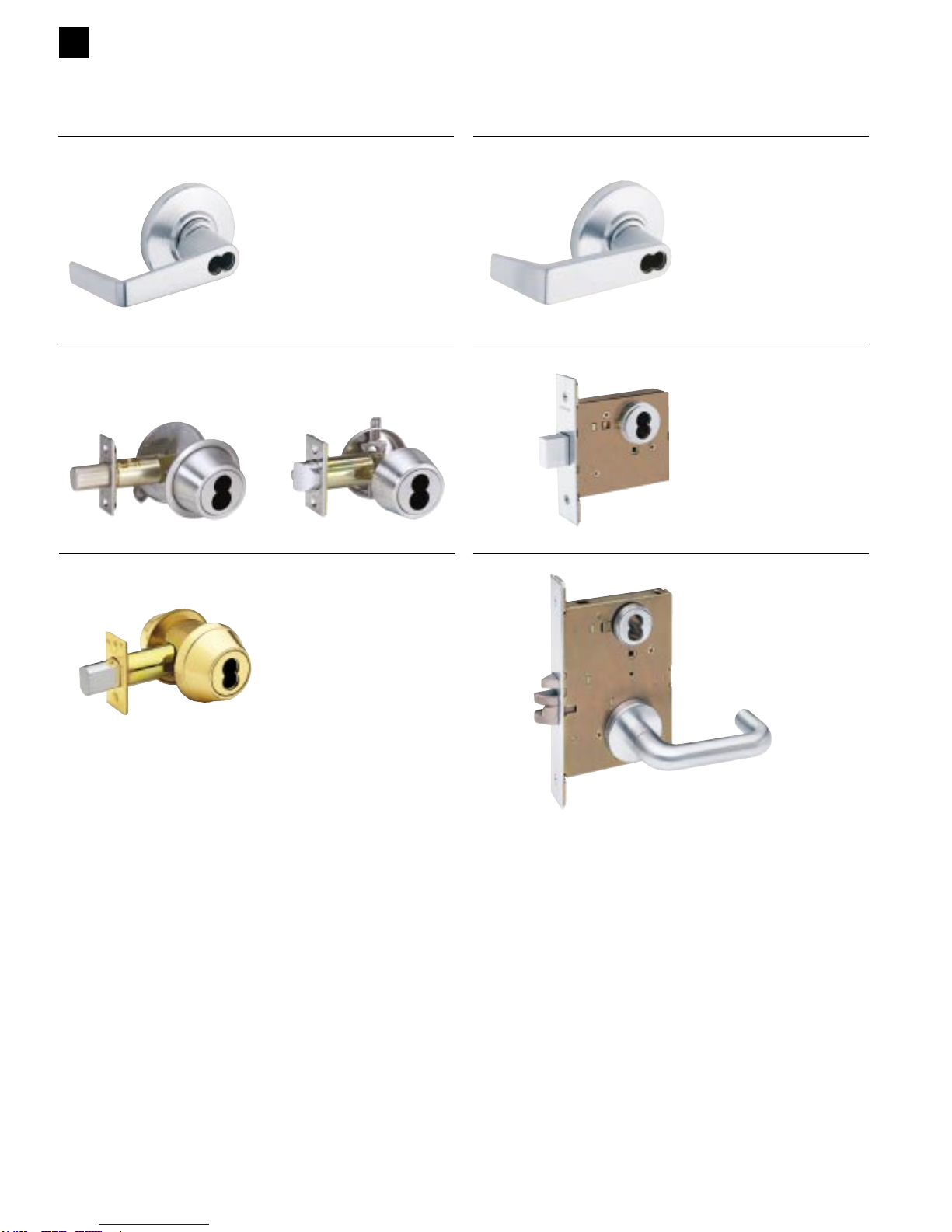

Small Format (Best Style) Interchangeable Core
L9000-Series
ALL DESIGNS
D-Series Lever
ALL DESIGNS
AL-Series
SATURN DESIGN
B600 / 700-Series
BC100-Series
B250-Series L400-Series
CYLINDERS, KEYS AND KEY CONTROL

Small Format Interchangeable Core Cylinders for Schlage Locksets
BC100-Series Outside B610-282 605, 609, 612, 613, 625, 626
Inside B610-281 See Note Below
B600-Series Outside B610-027 605, 606, 609, 612, 613, 625, 626
Inside B610-028 See Note Below
Lockset
Series Description Number Specify Finish
Tailpieces not included.
Specify finish of B610-014 snap-on faceplate ordered separately for inside of BC162 and B662.
IC Housings for Bored Deadlocks, Less Core
Number Mechanism
80-036 7-pin Everest B Family restricted keyway core, uncombinated
80-037 7-pin Everest B Family restricted keyway core, uncombinated
80-043 6-pin Best keyway core, uncombinated
80-033 7-pin Best keyway core, uncombinated
Small Format Core Only
1/4-28 Bolts
15
Notes 1. Available 606 and 626 finish only.
2. Suffix keyway, e.g. 80-036 B235, 80-043 AB, etc.
3. Proper authorization required for Everest cores. Order control keys separately.
4. 80-043 and 80-033 available in Best A, D, E, F, G, H, J, K, L and M keyways. Suffix “B” to keyway letter, e.g. AB, DB, etc.
CYLINDERS, KEYS AND KEY CONTROL

16
CYLINDERS, KEYS AND KEY CONTROL
Small Format Interchangeable Core Mortise Cylinders
K510-730
Straight Cam,
Other Applications
L583-255
Cam for All Functions
Except L9060 Outside
K510-680
Cam for
L9060 Outside
Notes 1. Available 605, 606, 612, 613, 625, and 626 finish. Cores furnished 606 and 626 only.
2. All cylinders are 1-3/8” long.
Furnished with compression ring, spring and 1/4” blocking ring
Cylinders for Schlage L-Series Mortise Locks
Number Core Type
80-302 Everest restricted core
80-110 Disposable constr. core
80-132 Keyed constr. core
80-102 Housing less core
Mortise Cylinders with Straight Cam for Exit Devices and Most Old Black Cast Iron Mortise Locksets
Cylinder Only Compr. Ring & Spring With Blocking Ring
Everest Keyed Disposable Housing
Restricted Construction Construction Less Core
Design Function (GD Suffix) (HD Suffix) (BDC Suffix) (BD Suffix)
All* except
L9060 Outside 80-308 80-138 80-115 80-108
L9060 Outside 80-304 80-134 80-112 80-104
All* except 80-301 80-131 80-109 80-101
L9060 Outside
L9060 Outside 80-304 + 80-134 80-112 80-104
36-082-025 36-082-025 36-082-025 36-082-025
Cylinder Mechanism
L&N
Escutcheons
(cylinders with
compression ring
and spring)
Sectional Trim
(Culinder with
compression ring,
spring, and 1/4˝
blocking ring)

17
Number Core Mechanism
20-057 Conventional core
20-757 Primus core
20-079 Housing only, less core
Interchangeable Core Rim Cylinders for Exit Devices
Available 605, 606, 612, 613, 625 and 626 finish.
Everest C123 keyway standard.
Small Format Interchangeable Core Cylinders for Exit Devices, Aluminum Doors, etc.
Cylinders for Adams Rite MS and 4700 Series,
Lori 4500 Series and Corbin Russwin DL3000 Series.
Cylinders for Adams Rite 4070 Series Deadlocks
K510-711
Adams Rite
MS Cam
B520-378
Adams Rite
4070 Cam
Notes 1. Available 605, 606, 612, 613, 625, and 626 finish. Cores furnished 606 and 626 only.
2. All cylinders are 1-3/8” long.
Number Core Type
80-305 Everest restricted core
80-113 Disposable constr. core
80-135 Keyed constr. core
80-105 Housing less core
Furnished with compression ring, spring and 7/16” blocking ring.
These cylinders include set screw pack B220-050 for Adams Rite locks.
Number Core Type
80-303 Everest restricted core
80-111 Disposable constr. core
80-133 Keyed constr. core
80-103 Housing less core
CYLINDERS, KEYS AND KEY CONTROL
Furnished with compression ring, spring and 1/4” blocking ring

CYLINDERS, KEYS AND KEY CONTROL
Cams for Schlage Mortise Cylinders in Other Manufacturers’ Mortise Locks
The following complete cylinders are available. Specify the desired cam from the correct column above:
Cylinder Mechanism Collar How to Order
Conventional cylinder compression ring and spring 20-001 x cam number
Primus cylinder compression ring and spring 20-700 x cam number
Primus UL437 Listed cylinder compression ring and spring 20-500 x cam number
Full size IC with conventional core compression ring, spring, 3/8” blocking ring 20-061 x cam number
Full size IC with Primus core compression ring, spring, 3/8” blocking ring 20-771 x cam number
Full size IC housing less core compression ring, spring, 3/8” blocking ring 26-094 x cam number
SFIC with Everest core compression ring, spring, 1/4” blocking ring 80-302 x cam number
SFIC with keyed construction core compression ring, spring, 1/4” blocking ring 80-132 x cam number
SFIC with disposable construction core compression ring, spring, 1/4” blocking ring 80-110 x cam number
SFIC housing less core compression ring, spring, 1/4” blocking ring 80-102 x cam number
Other manufacturers’ registered trade names are for identification and reference only.
18
Classic Conventional Interchangeable Core Everest & Primus Non-IC
20-061, 20-771, 26-094, 20-001 Everest
20-001 80-102, 80-110, 80-132, 80-302 20-500 and 20-700 Primus
Dim.
X = .155
Y = .775
Y
X
Dim.
X = .232
Y = .729
Y
X
Dim.
X = .235
Y = .729
Y
X
Dim.
X = .186
Y = .718
YX
B520-295
Corbin Russwin®
DL4000 Series
(Old Corbin 420
and
Russwin 1503)
Corbin Russwin®
ML2200 Series
(Old Corbin 7000-9000
and
Russwin 4000-5000)
All functions except
ML2255 and
ML2242 inside
(see straight cam)
Corbin RusswinA65
ML2200 master ring
deadbolt functions
manufactured before
6/10/93
and
old Russwin cast iron
residential locks
Yale®
2160
Arrow®
#004
Sargent®
13-0660
All functions
except 16 inside
and 50 outside
B520-254 B520-366
B520-233 B520-253 B520-309
B520-223 B520-360 B520-367
B520-256 B520-296 B520-329
