Schwinn Tone 2 User manual

WARNING

Owners Manual

S6011AZ / S6011AZA

S6012AZ / S6012AZA

*Styles may vary

This manual contains important safety and use informaon.

Keep this manual for future reference.

• An adult must read this enre manual

• Adult supervision is required at all mes

Congratulaons on your new scooter!

Proper assembly and operaon of your scooter is important for

your safety and enjoyment. Our customer service department is

dedicated to your sasfacon with Pacic Cycle and its products.

If you have quesons or need advice regarding assembly, parts,

performance, or returns, please contact the experts at Pacic

Cycle. Enjoy the ride!

Toll free: 1-800-626-2811

Customer Service hours: Monday - Friday 8 AM- 5 PM Central

Standard Time (CST)

You may also reach us at:

Web: www.pacic-cycle.com

Email: customerservice@pacic-cycle.com

Mail: P. O. Box 344

4730 E. Radio Tower Lane

Olney, IL 62450

Do not return this item to the store. Please call Pacic Cycle

customer service if you need assistance. You will need your model

number and date code located on the service scker.

About This Manual

It is important for you to understand your new scooter.

By reading this manual before you go out on your rst ride, you’ll

know how to get beer performance, comfort, and enjoyment from

your new scooter. It is also important that your rst ride on your

new scooter is taken in a controlled environment, away from cars,

obstacles and cyclists.

This manual contains important informaon regarding safety,

assembly, use, and maintenance of the scooter but is not intended

to be a complete or comprehensive manual covering all aspects

concerning scooter ownership. We recommend consulng an

expert if you have any doubts or concerns regarding your

experience or ability to properly assemble and maintain the scooter.

A Special Note For Parents and Guardians

As a parent or guardian, you bear the responsibility for the acvies

and safety of your minor child. Among these responsibilies are to

make sure that the scooter which your child is riding is properly

ed to the child; that it is in safe operang condion; that you and

your child have learned, understand and obey not only the

applicable local motor vehicle, scooter, and trac laws, but also the

common sense rules of safe and responsible scoong. As a parent,

you should read this manual before leng your child ride the

scooter. Please make sure that your child always wears an approved

helmet when riding.

Safety

WARNING

CAUTION

Indicates a hazard or unsafe pracce that will result in severe injury

or death. Failure to read, understand and follow the safety

informaon in this manual may result in serious injury or death.

Indicates a hazard or unsafe pracce that could result in minor injury.

Indicates a hazard unrelated to personal injury, such as property damage.

NOTICE

Age and Weight RangeSafety Warning Messages

The following Safety Warning Messages indicates a potenal

personal injury hazard. Failure to follow the warnings may result in

damage to property, injury, or death.

This manual contains many Warnings and Cauons concerning the

consequences of failure to follow safety warnings. Because any fall

can result in serious injury or even death, we do not repeat the

warning of possible injury or death whenever the risk of falling is

menoned.

Product Name Age Max Weight Max Speed

Tone 2 13+ 100 kg / 220 lb 25 km/h / 15.5 mph

Tone 3 13+ 80 kg / 176 lb 25 km/h / 15.5 mph

-- WARNING

• Read and understand all product & safety warnings

• Do not to modify unit from original design and conguraon.

• Before each use, check to conrm: That all guards and pads are

in place and in serviceable condion; That the area that the unit

is to be operated in is safe and suitable for safe operaon; That

the braking system is funconing properly; That all safety labels

are in place and understood by the operator; That any and all

axle guards, chain guards, or other covers or guards are in place

and in serviceable condion; and That res are in good

condion and have sucient tread remaining.

• Do not perform racing, stunt riding, or other maneuvers, which

may cause loss of control, or may cause uncontrolled operator

acons or reacons.

• Do not allow hands, feet, hair, body parts, clothing, or similar

arcles to come in contact with moving parts, wheels, or

drivetrain, while the motor is running.

• The owner shall allow the use and operaon of the unit aer a

demonstraon that such operators can understand and operate

all components of the unit before use.

• Obey all local trac and scooter riding laws and regulaons.

• Do not ride at night. Operate only with adequate daylight

condions of visibility.

• Persons with the following condions shall be cauoned not to

operate: Those with heart condions; pregnant women; persons

with head, back, or neck ailments, or prior surgeries to those

areas of the body; and persons with any mental or physical

condions that may make them suscepble to injury or impair

their physical dexterity or mental capabilies to recognize,

understand, and perform all of the safety instrucons and to be

able to assume the hazards inherent in unit use.

• Always wear safety equipment such as helmet, knee pads, and

elbow pads. Always wear a helmet when riding your scooter

and keep the chinstrap securely buckled. Always wear shoes.

• Wear proper riding are, reecve if possible, and avoid open

toe shoes.

• Avoid sharp bumps, drainage grates, and sudden surface

changes.

• Avoid streets and surfaces with water, sand, gravel, dirt, leaves,

and other debris. Wet weather impairs tracon, braking, and

visibility.

• Never allow more than one rider.

Riding a scooter without protecve gear, clothing, shoes, or a

helmet may result in serious injury or death. Always wear

protecve gear, clothing, and helmet when riding the scooter.

Ensure protecve gear does not interfere with steering,

or braking.

WARNING

Protecve Gear and Clothing

Always wear:

• Colors that are easily seen and, if possible, reecve clothing.

• Clothing appropriate for the weather condions.

• Always wear shoes

• Use of protecve gear such as pads for the knees and elbows is

highly recommended for children.

• A properly ed helmet that complies with ASTM or SNELL

helmet standards.

Do not wear:

• Loose clothing parts, strings, or jewelry that may become

entangled with moving parts on the scooter or interfere with

handling of the scooter.

• Shoes with uned shoe laces

Personal Safety Helmet Use

Important! Many states have passed helmet laws regarding

children. Make sure you know your states helmet laws. It is your

job to enforce these rules with your children. Even if your state

does not have a children’s helmet law, it is recommended that

everyone wear a properly ed helmet that complies with ASTM

or SNELL helmet standards.

The correct helmet should:

• Be comfortable

• Have good venlaon

• Fit correctly

• Cover forehead

Incorrect helmet posion:

• Helmet does not cover the forehead

Baery Warnings

WARNING!

• Liquids on the baery may cause re or electric shock.

Always keep all liquids away from the baery and keep

the baery dry.

• Stop using the scooter if the baery begins to emit odor,

overheats, or begins to leak. Do not touch any leaking

materials or breath fumes emied.

• Seek immediate medical assistance if you are exposed

to any substance that is emied from the baery.

• This baery contains dangerous substances. Never

open the baery or insert anything into the baery.

• Lithium-Ion baeries are considered hazardous

materials. Please follow all local, state, and federal laws

regards to recycling, handling, and disposing of Lithium-

Ion baeries.

• Do not expose scooter, baeries, or baery pack to

excessive heat, such as prolonged direct sunlight or

open ame.

• Never store at freezing temperatures. Freezing will

permanently damage the baery.

Risk of Fire: No User Serviceable Electric Parts. The following safety

hazards may result in serious injury or death to the user of the

scooter:

• Use of a baery or charger other than the supplied

Schwinn rechargeable baeries and charger may cause a

re or explosion. Only use the supplied Schwinn

rechargeable baery and charger with the scooter.

• Using the Schwinn rechargeable baeries and charger for

any other product may result in overheang, re or

explosion. Never use the Schwinn rechargeable baeries

with another product.

• Tampering or modifying the electric circuit system may

cause a shock, re or explosion and permanently damage

the system. Exposed wiring, circuitry in the charger may

cause electric shock. Always keep the charger housing

closed.

• Charge the baery in a well-venlated area. Do not

charge the baery near heat or ammable materials.

• Contact between the posive and negave terminals

may result in re or explosion. Avoid direct contact

between the terminals. Picking up the baery by the

wires or charger can cause damage to the baery and

may result in a re. Always pick up the baery by its case

or handles.

Parts

2Before beginning assembly, check to ensure that the parts are present. Some hardware is aached to the sub assembly.

*Styles may vary

Handlebar grip

Handlebar washer

Baery

charger

Deck

Rear wheel

Brake

Collar

clamp

Steer tube

Rear light

Charge port

(Tone 2)

5 mm hex wrench

(included)

Kickstand

Folding

lever

Brake lever

Power

buon

Mode

buon

Accelerator

lever

Control panel

Charge port (Tone 3)

Unfold the Scooter

Scooter Assembly

❶ The bolt on the folding mechanism will be in the folded slot.

Folded Slot

Unfolded slot ❶

❷Push folding lever down to release bolt from folded slot.

❸ Rotate the steer tube up unl bolt on the folding mechanism is

in the unfolded slot.

❸

Unfolded Slot

❷

❸

Aach the Handlebar Grips

❶ Place a washer over the ends of each handlebar grip.

❷ Twist each handlebar grip into the openings on each side of the

control panel. Note: the handlebar grips are labeled R for right

and L for the le grip.

❹ Ensure the folding handle is locked by pushing the handle

forward towards the frame.

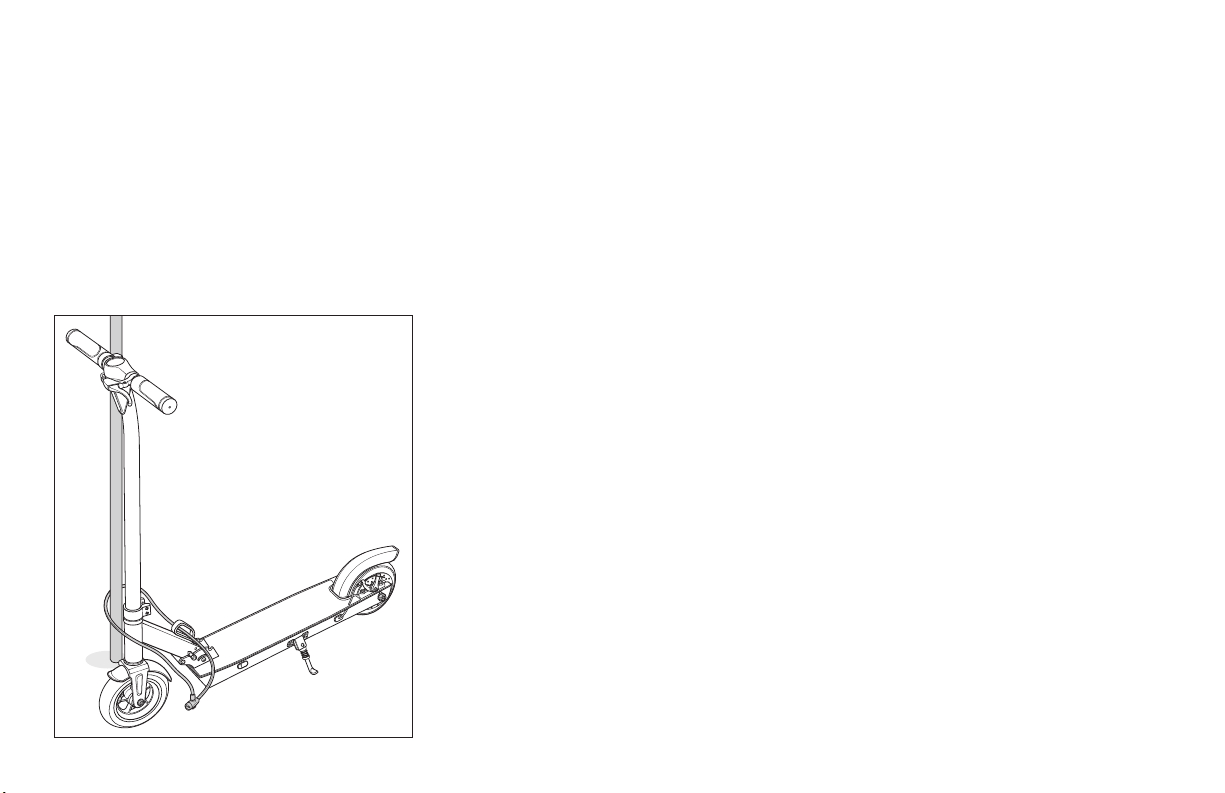

Tip! To fold your scooter again aer use, place your foot on

the rear brake while pulling the folding lever down to assist in

folding scooter.

❹❶

❶

❷

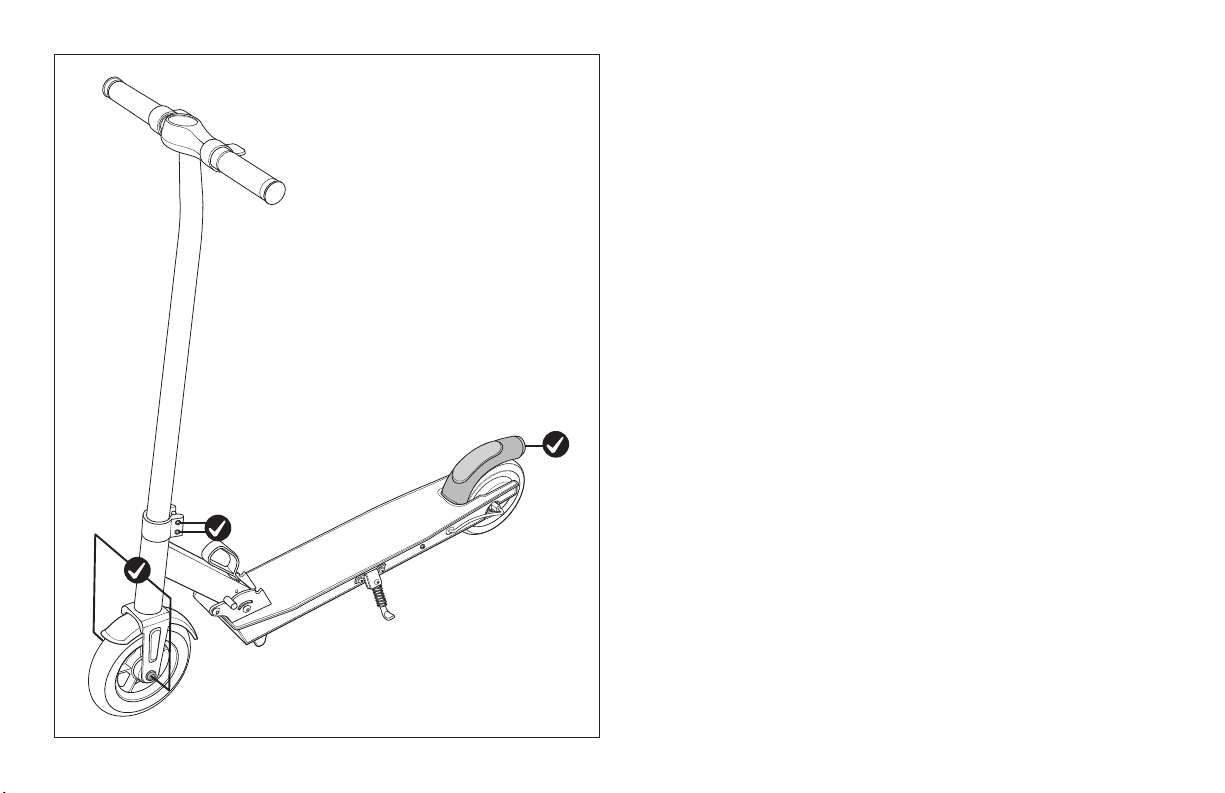

Important

Before you ride:

• Check that the brake can make contact with

the wheel

• Check all of the locking nuts are firmly

tightened

• Check the res are lled at the proper air

pressure of 36 PSI (Tone 2 model only)

Use

WARNING

Riding the scooter in unsafe condions (i.e.: at night), in an unsafe

manner, or disregarding trac laws may result in an unexpected

movement, loss of control, and serious injury or death.

Riding Safely

General Safety

• Familiarize yourself with all the scooter’s features before riding.

Pracce braking.

• Expect the unexpected (e.g., opening car doors or cars backing out

of concealed driveways). Watch out for pedestrians.

• Maintain a comfortable stopping distance from all other riders,

vehicles and objects. Safe braking distances and forces are subject

to the prevailing weather condions.

• Brake will get hot from connuous use. Do not touch aer braking.

• Use original spare parts only. Do not make structural changes or

modicaons to the scooter. Replace worn or broken parts

immediately.

• Wear proper riding are, reecve if possible, and avoid open

toe shoes.

• Do not use items that may restrict your hearing and vision.

• Do not allow passengers and do not carry packages that will

interfere with your visibility or control of the scooter.

• Never hitch on to another vehicle and pull anyone or anything.

• Do not ride indoors or on surfaces that could be damaged such as

carpet or ooring.

Road Condions

• Be aware of road condions. Concentrate on the path ahead.

Avoid pot holes, gravel, wet road markings, oil, curbs, speed

bumps, drain grates and other obstacles.

• Cross train tracks at a 90 degree angle or walk your scooter across.

• Avoid sharp bumps, drainage grates & sudden surface changes

• Wet weather impairs tracon, braking & visibility

Cornering Technique

• Brake slightly before cornering and prepare to lean your body into

the corner.

• Decrease your riding speed, avoid sudden braking and sharp turns.

Safe Riding Rules for Children

• Be aware of other vehicles behind and nearby.

• If riding downhill, be extra careful. Slow down using the brakes and

maintain control of the steering.

• Stunt riding reduces ability to control and maneuver the scooter.

Videos may show people doing stunts or tricks. Do not assume you

can aempt the same tricks without risk to you and the scooter.

• Keep both hands on handlebars at all mes.

Baery Warnings

NOTICE

• The baery contains hazardous material that may cause serious

injury or death if handled, connected, or charged improperly.

Only an adult who has read and understands the warnings and

instrucons in this manual should handle, connect, or charge the

baery. Always contact Pacic Cycle at 1-800-626-2811 if you

have any quesons or concerns regarding handling, connecng,

or charging the baery.

• Charging the baery more than 24 hours could cause the baery

to explode or ignite resulng in serious injury, death or property

damage. Do not charge the baery for more than 24 hours.

Always disconnect the product from the charger aer the baery

is completely charged. Immediately disconnect the charger from

the wall aer the charger indicator light turns green.

• A damaged supply cord, connector, or charger could cause burns

to the skin, an electrical re, serious injury, death, or property

damage. Always inspect the supply cord, connector, and charger

for damage. (e.g., frayed or kinked wires, exposed inner wires,

missing insulaon) before use. If damaged, do not use the supply

cord, connector or charger for any purpose and properly dispose.

• Connecng the baery and baery charger to an extension

cord(s) could result in overheang, explosion, re, serious injury,

death, or property damage. Never charge the baery using an

extension cord. Always plug the charger directly into a wall outlet.

• Do not ride in wet/icy condions or immerse scooter in water.

Water can damage electrical and drive components and create

unsafe condions.

• The average me to charge the baery is 3.5 hours. Failure to

follow the instrucons regarding charging the baery may result

in permanent damage to the baery and void the warranty.

• The baery may become damaged if allowed to drain completely.

Always keep the baery charged.

• Charge the baery once every three months, even when not

using the scooter.

• Devices are not intended for use at elevaons greater than 2000 m

above sea level.

WARNING

• Only use the charger provided by Schwinn:

Charger Model: Tone3: CP2915, Tone2: CP4215

Charger Manufacture: Powsun

• Do not use, charge or store in excessive heat or cold:

Riding Temperature: 14° - 104° Fahrenheit (-10 - 40 Celsius)

Charging Temperature: 32° - 104° Fahrenheit (0 - 40 Celsius)

Storage Temperature: -4° - 122° Fahrenheit (-20 - 50 Celsius)

Charge the Baery

❶

Note: The charger light

is red when charging

and turns green when

charging is complete.

Regular charge No more than

3.5 hours 24 hours

24+

3.5 Tone 3

Charge Port

Tone 2

Charge Port

❷

❸

Scooter Control Panel

Get to know the funcons of the control panel before riding the scooter.

Key/Lever Funcon

❶ Power key Press 2 seconds to turn the scooter ON or OFF.

❷ Mode key When the scooter is on, switch the speed modes to low, middle or high speed.

❸ Speed level

(speed appears at

the top of the

display screen)

When the light is:

White: low speed mode (maximum speed is 6 mph / 10 km/h)

Yellow: middle speed mode (maximum speed is 12.5 mph / 20 km/h)

Red: high speed mode (maximum speed is 15.5 mph / 25 km/h)

❹Baery power

indicator

❺ Brake lever Press down to stop the scooter.

❻Accelerate lever Press down to accelerate the scooter.

75% - 100% power 50% - 75% power 25% - 50% power 0% - 25% power

❺❻

❶❷❸❹

Starng the scooter

❶To turn the scooter on press the power

key for 2 seconds.

❷ Toggle through the Mode key to choose

your speed range. Your speed will

appear in the center of the screen.

❸ Press the accelerate lever and kick

to start.

❹ Grip the handlebars rmly with both

hands while riding.

Stopping the scooter

❺ Brake by pressing down on the brake

lever.

❻ Note: you can use the rear brake to

slow down the scooter.

❼Turn the power switch o when not

in use.

❹

❸❷❺

❻❻

❶

❼

Proper maintenance is crical to the performance and safe

operaon of the scooter. Always inspect the scooter and conduct

necessary maintenance before each use of the scooter. Failure to

conduct maintenance on the scooter may result in malfuncon

of a crical part or serious injury or death.

This secon presents important informaon on maintenance

and will assist you in determining the proper course of acon to

take if you do have a problem with the operaon of the scooter.

If you have quesons regarding maintenance please call our

customer service, toll free, at 1-800-626-2811 or see a qualied

bicycle mechanic. Do not call the store where the scooter was

purchased.

Maintenance

WARNING Basic Maintenance

The following procedures will help you maintain your scooter for

years of enjoyable riding.

• For painted frames, dust the surface and remove any loose dirt

with a dry cloth. To clean, wipe with a damp cloth soaked in a mild

detergent soluon.

• Clear any debris between the wheels and frame

• Store your scooter indoors when not in use. Prolonged exposure

to UV rays, rain, and elements may damage the components.

• Riding on the beach or in coastal areas exposes your scooter to

salt which is very corrosive. Clean your scooter frequently.

• If paint has become scratched or chipped to the metal, use touch

up paint to prevent rust. Clear nail polish can also be used as a

preventave measure.

• Check that the wheels are securely fastened to the scooter and

axle nuts are ght.

Baery Disposal

Important! Recycle the dead baery responsibly. The baery

contains chemicals and must be disposed of properly and legally.

It is illegal in most areas to incinerate lead acid baeries or dispose

of them in landlls. Take it to a federal or state-approved baery

recycler, such as an authorized service center or your local

automove baery retailer. Do not throw the baery away with

your regular household trash!

Scooter Security

You just bought a new scooter! Don’t lose it. Lock your scooter to

help prevent possible the:

• Invest in a high quality lock that will resist hacksaws and bolt

cuers.

• Always lock your scooter to an immovable object if it is le

unaended. Keep in mind that individual parts of a scooter may

be stolen.

• Use a lock that will t through the folding lever.

❶

❷

❸

❹

Removing the battery

❶ Working from the boom of the scooter.

❷ Remove the screws from the baery compartment.

❸ Remove the baery cover.

❹ Disconnect the baery connectors and remove the baery.

❺ Dispose of the baery to a recycling facility.

❺

Service

Do not return this product to the place of purchase. If your scooter

needs service, repairs or replacement parts, please have the model

and serial number available and call:

UNITED STATES

Pacic Cycle Consumer Relaons

Hours: 8:00 am – 5:00 pm (CST) Monday - Friday

Phone: 1-800-626-2811

Email: customerservice@pacic-cycle.com

CANADA

Pacic Cycle Canada

Hours: 8:00 am – 5:00 pm (CST) Monday - Friday

Phone: 1-877-758-4741

Email: customerservice@pacic-cycle.com

MEXICO

Bicicletas Mercurio

Phone: 01-800-2288-2424

Email: soportetecnico@bicmercurio.com.mx

AUSTRALIA

Monza Imports

Phone: 61 3 8327 8080

Email: cyclcing@monzaimports.com.au

Warranty

LIMITED WARRANTY AND POLICY ON REPLACEMENT PROCEDURES & RESPONSIBILITIES

Your purchase includes the following warranty which is in lieu of all other express warranes. This warranty is extended only to the inial consumer purchaser.

No warranty registraon is required. This warranty gives you specic legal rights and you may have other rights which vary from state to state.

FRAME

Frames are guaranteed against manufacturing defects for a period of 1 year. If frame failure should occur due to faulty materials or workmanship during the guarantee

period, the frame will be replaced. For frame replacement under this Pacic Limited Warranty, contact us, stang the nature of the failure, model number, date received

and the name of the store from which the scooter was received, at the address given on this page. Frame must be returned for inspecon at customer’s expense. The

length of the useful life cycle will vary depending on the type of scooter, riding condions and care the scooter receives. Compeon, jumping, downhill racing, trick riding,

trial riding, riding in severe condions or climates, riding with heavy loads or any other non-standard use can substanally shorten the useful product life cycle. Any one or

a combinaon of these condions may result in an unpredictable failure that is not covered by this warranty.

PARTS

All other parts of the unit except Normal Wear Parts are warranted against defecve materials and workmanship for a period of 1 year, 6 months for baery, from the date

of purchase by the inial consumer purchaser, subject to the Terms and Condions of the warranty listed below. If failure of any part should occur due to faulty materials or

workmanship during the warranty period, the part will be replaced. All warranty claims must be submied to the address below and must be shipped prepaid and

accompanied by proof of purchase. Any other warranty claims not included in this statement are void. This especially includes installaon, assembly, and disassembly costs.

This warranty does not cover paint damage, rust, or any modicaons made to the scooter. Normal Wear Parts are dened as grips, wheels, and brake mechanism. These

parts are warranted to be free from defects in material and workmanship as delivered with the product. Any claim for repair or replacement of Normal Wear Parts (grips,

wheels, brake mechanism) and missing parts must be made within thirty (30) days of the date of purchase. The warranty does not cover normal wear and tear, improper

assembly or maintenance, or installaon of parts or accessories not originally intended or compable with the scooter as sold. The warranty does not apply to damage or

failure due to accident, abuse, misuse, neglect, or the. Claims involving these issues will not be honored.

CONDITIONS OF WARRANTY

1. Your scooter has been designed for general transportaon and recreaonal use, but has not been designed to withstand abuse associated with stunng and jumping.

This warranty ceases when you rent, sell, or give away the scooter, ride with more than one person, or use the scooter for stunng or jumping.

2. This warranty does not cover ordinary wear and tear or anything you break accidentally or deliberately.

3. It is the responsibility of the individual consumer purchaser to assure that all parts included in the factory-sealed carton are properly installed, all funconal parts are

inially adjusted properly, and subsequent normal adjustments necessary to keep the scooter in good operang condion are properly made. This warranty does not

apply to damage due to improper installaon of parts, installaon of any kind of power plant or internal combuson engine, modicaon or alteraon of the brakes, or
