Sealey SA55.V2 User manual

Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations
are adhered to when using this equipment.
 WARNING!Disconnect from air supply before changing accessories or servicing.
 Maintain the tool in good condition and replace any damaged or worn parts. Use
genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
 Wear approved safety eye/face shield, ear defenders and hand protection.
 Keep fingers clear of blades.
 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
 Keep children and non essential persons away from the working area.
 DO NOT use the tool for a task it is not designed to perform.
 WARNING! DO NOT use tool if damaged or thought to be faulty. Contact Sealey service agent.
 DO NOT use tool unless you have been instructed in its use by a qualified person.
 DO NOT carry the tool by the air hose, or yank the hose from the air supply.
 DO NOT operate tool if you are tired or under the influence of alcohol, drugs or intoxicating
medication.
 DO NOT carry tool with your hand on the power trigger in order to avoid unintentional starting.
 DO NOT direct air from the air hose at yourself or others.
 When not in use disconnect from air supply and store in a safe, dry, childproof location.
WARNING: The warnings, cautions and instructions discussed in this instruction manual
cannot cover all possible conditions and situations that may occur. It must be understood
that common sense and caution are factors which cannot be built into this product, but must
be applied by the operator.
INSTRUCTIONS FOR:
AIR SCISSORS
MODEL No: SA55.V2
2. INTRODUCTION & SPECIFICATION
Max. Cutting Capacity:1.2mm(Steel) 1.5mm(Aluminium)
Air Consumption: .........................4.3cfm
Operating Pressure: ........................90psi
Air Inlet Size: ...........................1/4”BSP
Weight: ..................................1.4kg
Replacement Blade Left: ...............SA55.V2-34
Replacement Cutter Right:..............SA55.V2-35
Noise Power: ........................96.53dB(A)
Noise Pressure: ......................85.53dB(A)
Vibration: ............................. 4.78m/s²
Uncertainty: ......................... 0.5868m/s²
Polished aluminium housing with textured grip handle. Suitable for accurately cutting metal sheet.
Unlike air shears this tool is ideal for trimming ragged sheet edges to gain a flat finish. Handle
exhaust helps reduce noise level.
Original Language Version SA55.V2 Issue: 2(SP) - 12/11/13
©Jack Sealey Limited

4. OPERATING INSTRUCTIONS
5. MAINTENANCE
fig 1
WARNING! Ensure you read, understand and apply safety instructions before use.
4.1. Remove the scissors from the package. The tool should be assembled and ready to use.
4.2. Connect the scissors to the air hose as in chapter 3.
4.3. To start the scissors, depress the trigger.
DO NOT allow the scissors to free run for an extended period of time as this will shorten its life.
fig 2
3.1. Air Supply

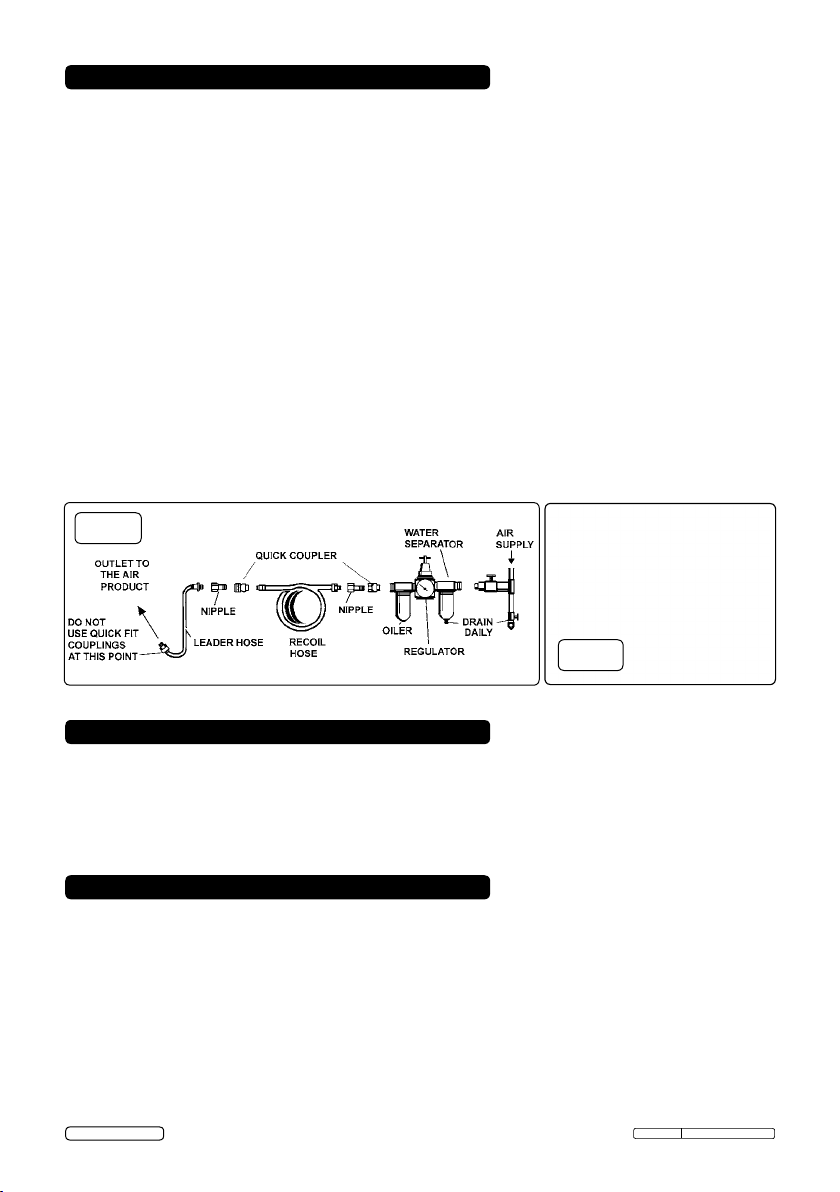

Recommended hook-up procedure is shown in fig 1.
3.1.1. Ensure tool valve (or trigger) is in the "off" position before connecting to the air supply.
3.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
3.1.3. WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the
tool. Too high an air pressure and/or unclean air will shorten the product life due to excessive
wear, and may be dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will damage the tool.
3.1.5. Clean air inlet filter weekly.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8
meters). The minimum hose diameter should be 1/4” I.D. and fittings must have the same
inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain
that all connections are secure.
3.2. Couplings.
Vibration may cause failure if a quick change coupling is connected directly to the tool. To
overcome this, connect a leader hose to the tool. A quick change coupling may then be used
to connect the leader hose to the air line recoil hose. See fig 1 & 2.
3. PREPARING TOOL FOR USE
 WARNING!Disconnect tool from air supply before changing accessories, servicing or
performing maintenance.Replace or repair damaged parts. Use genuine parts only.
Unauthorised parts may be dangerous and will invalidate the warranty.
Note: Numbers in brackets refer to item numbers in the parts diagram.
5.1. To replace the blades (34 and 35), loosen the three lock screws (32) and slide the cutter
housing (31) off the gear case (27). Remove the two lock screws (32) that secure the blades
(34, 35 and 37) and remove the blades.
Fit new blades, ensuring the spacers (36) are correctly positioned and refit the lock screws.
Original Language Version SA55.V2 Issue: 2(SP) - 12/11/13
©Jack Sealey Limited

Slide the cutter housing onto the gear casing and secure using the lock screw. Tighten all
three lock screws.
5.2. If the system does not have an oiler lubricate the tool daily with a few drops of Sealey air tool
oil dripped into the air inlet.
5.3. Clean the tool after use.
5.4. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size
or type of hose connector. To remedy check the air supply and follow instructions in
chapter 3.
b) Grit or gum deposits in the tool may also reduce performance. Flush the tool out with
gum solvent oil or an equal mixture of SAE No 10 oil and paraffin.
Allow to dry before use.
5.5. For a full service contact your local Sealey service agent.
5.6. When not in use, disconnect from air supply, clean tool and store in a safe, dry,
childproof location.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
Original Language Version SA55.V2 Issue: 2(SP) - 12/11/13
©Jack Sealey Limited
Environmental Protection.
Recycle unwanted materials instead of disposing of them as waste.
All tools, accessories and packaging should be sorted, taken to a recycle
centre and disposed of in a manner which is compatible with the environment.

WARNING! – Risk of Hand Arm Vibration Injury.
This tool may cause Hand Arm Vibration Syndrome if its use is not managed adequately.
This tool is subject to the vibration testing section of the Machinery Directive 2006/42/EC.
This tool is to be operated in accordance with these instructions.
Measured vibration emission value (a): 4.78 m/s²
Uncertainty value(k): 0.5868 m/s²
Please note that the application of the tool to a sole specialist task may produce a different average vibration emission.
We recommend that a specific evaluation of the vibration emission is conducted prior to commencing with a specialist task.
A health and safety assessment by the user (or employer) will need to be carried out to determine the suitable duration of use for
each tool.
NB: Stated Vibration Emission values are type-test values and are intended to be typical.
Whilst in use, the actual value will vary considerably from and depend on many factors.
Such factors include; the operator, the task and the inserted tool or consumable.
NB: ensure that the length of leader hoses is sufficient to allow unrestricted use, as this also helps to reduce vibration.
The state of maintenance of the tool itself is also an important factor, a poorly maintained tool will also increase the risk of
Hand Arm Vibration Syndrome.
Health surveillance.
We recommend a programme of health surveillance to detect early symptoms of vibration injury so that management procedures
can be modified accordingly.
Personal protective equipment.
We are not aware of any personal protective equipment (PPE) that provides protection against vibration injury that may result from
the uncontrolled use of this tool. We recommend a sufficient supply of clothing (including gloves) to enable the operator to remain
warm and dry and maintain good blood circulation in fingers etc. Please note that the most effective protection is prevention, please
refer to the Correct Use and Maintenance section in these instructions. Guidance relating to the management of hand arm vibration
can be found on the HSC website www.hse.gov.uk - Hand-Arm Vibration at Work.

01284 757500
01284 703534 [email protected]
www.sealey.co.uk
Web
email
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
PARTS FOR:
AIR SCISSORS
MODEL: SA55.V2
ITEM PART NO DESCRIPTION
1 SA55.V2-01 HOUSING
2 SA55.V2-02 TRIGGER PIN
3 SA55.V2-03 O-RING
4 SA55.V2-04 O-RING
5 SA55.V2-05 O-RING
6 SA55.V2-06 VALVE STEM
7 SA55.V2-07 VALVE BUSHING
8 SA55.V2-08 TRIGGER SPRING
9 SA55.V2-09 TRIGGER
10 SA55.V2-10 SCREW
11 SA55.V2-11 EXHAUST DEFLECTOR
12 SA55.V2-12 SCREW
13 SA55.V2-13 AIR INLET BUSHING
14 SA55.V2-14 BALL BEARING
15 SA55.V2-15 REAR END PLATE
16 SA55.V2-16 ROTOR
17 SA55.V2-17 ROTOR BLADE
18 SA55.V2-18 CYLINDER
19 SA55.V2-19 PIN
ITEM PART NO DESCRIPTION
20 SA55.V2-20 FRONT END PLATE
21 SA55.V2-21 WASHER
22 SA55.V2-22 PLANET GEAR
23 SA55.V2-23 GEAR PIN
24 SA55.V2-24 WORKING SPINDLE
25 SA55.V2-25 INTERNAL GEAR
26 B/6201ZZ BEARING, 6201ZZ
27 SA55.V2-27 GEAR CASE
28 SA55.V2-28 WASHER
29 SA55.V2-29 ECCENTRIC NUT
30 SA55.V2-30 BALL BEARING
31 SA55.V2-31 CUTTER HOUSING
32 SA55.V2-32 SCREW
33 SA55.V2-33 NUT
34 SA55.V2-34 REPLACEMENT LOWER BLADE FOR SA55
35 SA55.V2-35 REPLACEMENT UPPER BLADE FOR SA55
36 SA55.V2-36 BUSHING
37 SA55.V2-37 BLADE SPACE
38 SA55.V2-38 HEX KEY
Issue: 2
Issue Date: 200613
