Sealey POWER PRODUCTS PC2701 User manual

1.1 ELECTRICAL SAFETY
 WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected
by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1 The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2.
and use a Portable Appliance Tester.
1.1.4 Ensure that cables are always protected against short circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none are loose.
1.1.6 Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When an ASTA/BS approved UK
3 pin plug is damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).

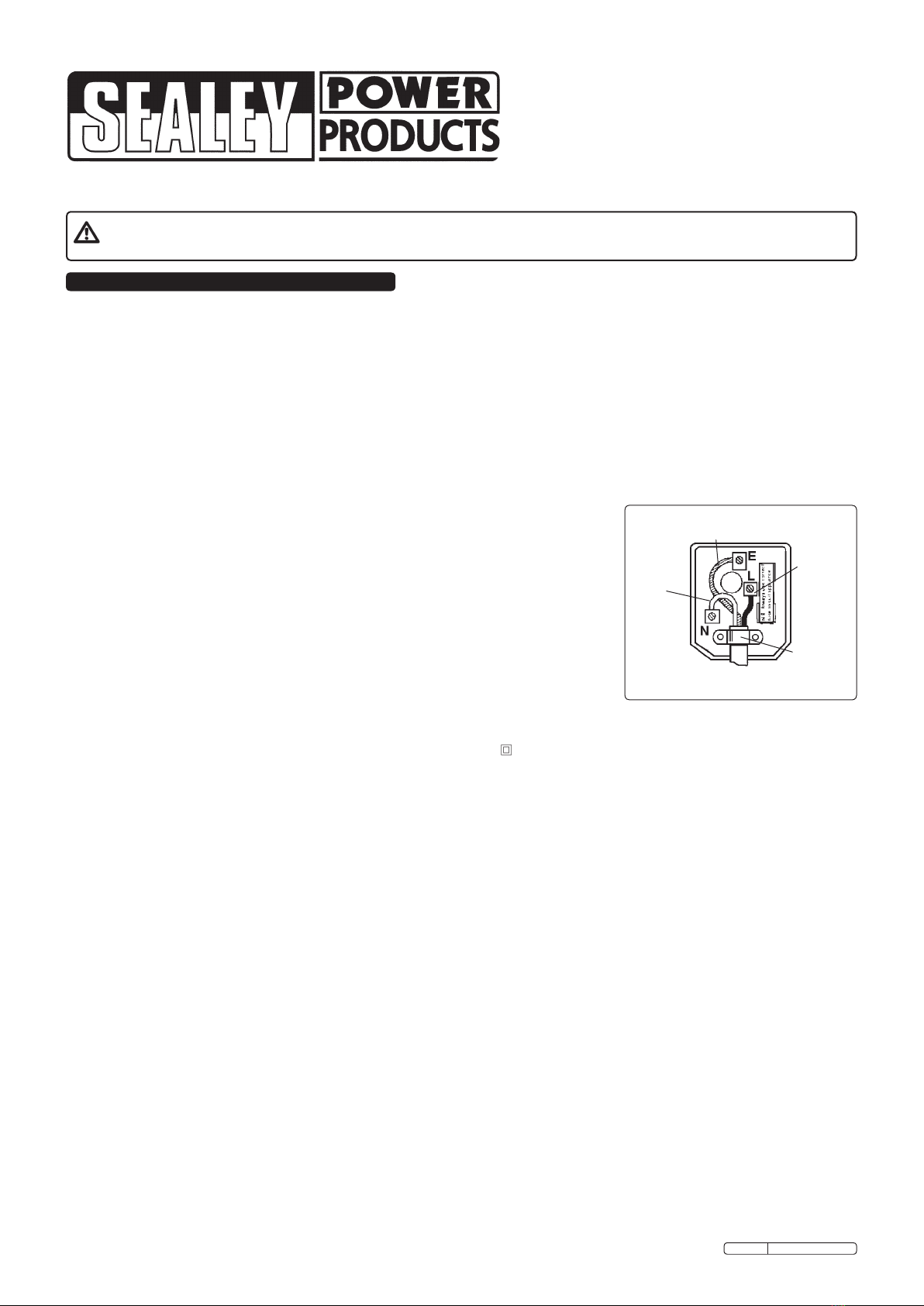

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only.
To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10 Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a 30 amp supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with your
electrician.
1.1.11 If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm², but to be absolutely sure that
the capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the
use of 2.5mm² section cable.
FUSE RATING 13 AMP
1.2 GENERAL SAFETY
WARNING! Water and electricity are dangerous partners. Be extremely cautious and always be aware that this device uses an
electric motor. Always plug into a RCD (See electrical safety above). Unplug from mains before changing accessories or servicing.
WARNING! DO NOT USE the washer if any part of the unit, gun, nozzle, detergent tank, hose or cables is damaged. Replace or
repair using genuine parts only. Unauthorised parts may be dangerous and will invalidate your warranty. Always check connections
are correctly secured and not cracked or damaged in any way before using the machine.
WARNING! Use washer on a flat, levelled surface, in an upright position. Failure to do so will invalidate your warranty.
NEVER lay the washer down during use.
Ensure you comply with all local water supply regulations. Power washers may only be connected to mains water supply if a
back flow preventer valve is installed in the supply hose, or at the tap outlet.
The supply hose must be reinforced, and have an internal diameter of 1/2”. The water supply must be at least equal to the
cleaner capacity. The water temperature must NOT exceed 122°F (50°C). The water supply pressure must NOT exceed 6 bar.
 Always be aware of the hazards that may occur during use. Study all applications and limitations of the washer before use.
 Use where air can freely circulate around the washer to avoid the machine overheating.
Keep the washer in good condition. Use an authorised service agent to service the unit.
 Wear adequate protective clothing, goggles and anti-slip rubber soled footwear.
Position the washer as near to the water supply as possible.
 WARNING! Ensure all persons and animals keep at a minimum distance of 15mtr from the washer when in use.
 WARNING! The pressure washer must only be used with clean water. Unfiltered water or corrosive chemicals must not be used as
these will damage the cleaner.
Ensure the nozzle is aimed correctly at the work surface before switching on the machine.
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
INSTRUCTIONS FOR:
PRESSURE WASHER 110bar with
ROTABLAST NOZZLE & TSS
MODEL No: PC2701
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
Blue
Neutral
Wire
Yellow & Green
Earth Wire
Cable
Restraint
Brown
Live
Wire
Original Language Version
PC2701 Issue: 3- 18/05/11

Before activating the trigger, GRIP the gun firmly to counteract the recoil from the high pressure water jet.
 WARNING! Avoid sudden bursts of water as these will cause water pressure to drop and put extreme pressure on hoses and
connectors.
If, during operation, power failure occurs turn the electricity and water off for safety reasons.
 WARNING! The high pressure jet will cause loose particles to be propelled at high speed, which may cause serious injury.
 WARNING! DO NOT operate the machine without a water supply. Dry running can seriously damage the unit.
 WARNING! DO NOT leave the washer switched on for more than 15 minutes without operating the trigger.
 DO NOT obstruct ventilation grills during operation.
 DO NOT use the washer with flammable or toxic liquids or any other product. Use only recommended detergent. Unapproved
detergents may corrode the machine cover and accessories.
 DO NOT jam the trigger in the operating position.
 DO NOT adjust any internal control valves, as they have been factory set.
 DO NOT connect other appliances to the machine inlet or outlet.
DO NOT move the unit by pulling the hoses or electrical cables. Use the handle.
DO NOT touch plug with wet hands. To avoid the risk of electrocution keep all connections dry and off the ground.
DO NOT direct jet against yourself, other persons, animals, electrical equipment or the machine itself.
DO NOT use washer if you are tired or under the influence of alcohol, drugs or intoxicating medication.
DO NOT allow children or untrained persons to operate the washer.
 WARNING! Discharge residual pressure before disconnecting the washer hose. Pressure left in unit may cause injury.
After use, disconnect washer from electrical mains and water supply and store in a safe, dry, childproof area.
3. CONTENTS & SPECIFICATION
1 Pressure Washer
2 Side Cable and Lance Storage
3 On / Off Switch
4 Water Inlet
5 Water Oulet
6 Lance
7 Patio Brush Extension - for use
with the patio brush only.
8 Rotablast Turbo Nozzle
9 Variable Spray Jet Nozzle
10 Fixed Brush Attachment
11 Rotary Brush Attachment
12 Soap Dispenser
13 Patio Brush Attachment with Integral
Detergent Container
14 Trigger Lock
15 High pressure Hose
16 Nozzle Storage
Unpack the product and check contents against the list below. Also check that the machine has an identification plate or label. If label or parts
are damaged or missing contact your supplier immediately.
Lightweight yet powerful unit designed for light trade and domestic use. Features Automatic Total Stop System (TSS) which switches the
motor on and off when the lance trigger is operated, prolonging the motor life. Supplied with 3mtr hose and accessory kit including Variable
spray jet lance, rotary and fixed brush attachments and patio brush attachment with integral detergent container. Features Rotablast Turbo
Nozzle® which helps develop the same Effective Cleaning Power (ECP) as a 2700psi washer. Includes foam applicator for pre-wash. Suitable
for a wide range of applications.
2. INTRODUCTION
Original Language Version
PC2701 Issue: 3- 18/05/11
Model No. .................... PC2701
Max. Pressure .................. 110bar
Effective Cleaning Power . . . . . . . . 2700psi
WaterFlow ...................360ltr/hr
Motor Power . . . . . . . . . . . . . . . . . . . .1650W
Input Voltage/Current . . . . . . . . . . 230V/7.2A
Rec. Power Supply . . . . . . . . . . . . . . . . . 13A
Max. Inlet Temp. . . . . . . . . . . . . . . . . . . 50°C
HoseLength ......................5mtr
Weight ..........................9.5kg
TotalStop ........................ Yes
3.1 SPECIFICATION
g.1

4. SET-UP
 WARNING! Do not use the 'Patio Brush Extension' with any attachment
other than the patio brush.
Using the 'Patio Brush Extension' with other attachments will cause
damage to the extension and attachments.
4.1 Connecting the water supply. Use a reinforced hose pipe with an
internal diameter of 1/2” and connect to the mains water supply.
Before attaching the hose to the pressure washer flush the hose through
with some clean water to remove any foreign matter from within the hose.
Attach a push fit hose connector to the water inlet on the machine
(fig.1.4).
4.2 Connecting the high pressure hose. Attach the high pressure hose as
in fig.3, ensuring the connector is tight. Attach the other end to the lance,
ensure a tight fit (fig.2). Turn on the water supply.
4.3 Assembling the lance and nozzle.
Push the nozzle into the gun as shown in fig.4 and turn 90° until it locks
into place.
 WARNING! Ensure the nozzle is locked into position, failure to ensure
this could result in the nozzle being ejected under high pressure when
operating the gun.
4.4 Fitting the Fixed or Rotating brush.
If you require either the fixed or rotating brush, fit in the same manner as
assembling the lance in fig.4.
4.5 Fitting patio brush.
When using the patio brush first attach the lance extension fig.1.7 as in
fig.4 then the brush attachment. The patio brush has a integral detergent
dispenser fill this up before starting to use the pressure washer, turn the
cap of the container to adjust the amount of detergent used.
4.6 Connect to supply.
 WARNING! Ensure the On/Off switch is in the 'Off' position.
Using an RCD plugged into a 13A mains socket, DO NOT turn the power
on. DO NOT touch the plug with wet hands.
Original Language Version
PC2701 Issue: 3- 18/05/11
5. OPERATION
 WARNING! Ensure you read, understand and apply Section 1 safety
instructions.
 WARNING! Dry running can seriously damage the unit.
 WARNING! Use washer on a flat, levelled surface, in an upright
position. Failure to do so will invalidate your warranty. Never lay the
washer down during use.
 WARNING! DO NOT leave washer switched on for more than 15
minutes without operating trigger.
g.2
g.3
g.4
g.5
g.6
Important! The washer motor will stop as soon as the gun trigger is
released and will restart when the trigger is squeezed. Always allow at least
5 seconds between releasing the trigger and restarting.
5.1. Primary checks. Check that the inlet filter is clean; pump delivery and
pressure will be reduced if blocked. Never use the machine without a filter
(which is fitted inside inlet connector). Ensure that the water supply, high
pressure hose and gun are correctly connected, and that air can freely
circulate around the washer.
5.2 Operation of safety catch. To prevent inadvertent operation of the unit
the safety catch should always be engaged when the gun is not in use.
Turn the catch 90° away from the trigger to lock it, towards the trigger to
unlock it (fig.6).
5.3 Bleeding The Gun
It is very important to bleed the gun before using the pressure washer.
Squeeze the trigger BEFORE turning the electrical supply on. This allows
any air trapped inside the pressure washer and gun to be removed before
using the unit. Continue holding the trigger for approximately one
minute to allow any excess air out of the unit. Water will flow through the
gun at low pressure during this procedure.

6. TROUBLESHOOTING GUIDE
Original Language Version
PC2701 Issue: 3- 18/05/11
SYMPTOMS REASON REMEDY
Motor will not start. 1. Loose or diconnected plug.
2. Tripped pressure washer thermal switch.
1. Reconnect plug.
2. Allow to cool and restart unit.
Circuit breaker trips or fuse blown. 1. Circuit Overload.
2. Extension cord too long or wire size too
small.
3. Nozzle partially blocked, causing
excessive pressure.
1. Check that the circuit is rated 13amps or
greater. Disconnect all loads on the circuit.
2. Use proper extension cord as
recommended in section 1.
3. Clean nozzle as described in maintenance
section.
Water or oil leaking from bottom of pump. 1. A small amount of leakage is normal. 1. If excessive leaking occurs contact
authorised service agent.
Trigger will not move. 1. Gun safety lock engaged. 1. Release safety lock.
Unit will not stop when trigger is released. 1. Trigger system not operating properly. 1. Contact authorised service agent.
Motor running but pump not building
maximum pressure or has irregular pressure.
1. Water supply not turned on.
2. Unit has been stored in freezing
temperatures.
3. Water inlet screen clogged.
4. Kink in supply hose.
5. Nozzle worn out.
6. Air in pump.
7. Suction or discharge valves clogged or
worn out.
1. Turn on water supply.
2. Thaw out unit completely including hose,
gun and attachments.
3. Clean screen as described in maintenance
section.
4. Straighten hose.
5. Replace nozzle.
6. Let pressure washer run with gun open
and lance removed until a steady stream
of water is released.
7.Contact authorised service agent.
5.4 Operating the machine.
5.4.1 Hold the spray gun firmly to counteract the recoil caused by the high pressure of the water. Before switching on ensure that the lance
is not directed at people, objects or animals prior to being directed at the object to be cleaned.
5.4.2 It is recommended that the trigger is depressed before switching on the unit before every use. This reduces the back pressure and
amperage draw which prevents fuses blowing.
5.4.3 Switch the machine on by turning the switch to the 'On' position as shown in fig.1. Release the handle safety catch (fig.6). Point the
lance at the object to be cleaned and fully depress the trigger. When the trigger is released the motor will automatically switch off.
5.5 Adjusting spray pattern. The fan nozzle attachment can be continuously varied from a fine pencil jet to a fan pattern by rotating the
body of the nozzle as indicated in fig.5.
Caution! The pencil point setting is very aggressive. It is recommended that for most cleaning applications, a twenty degree spray angle is
used to avoid damage to the surface being sprayed.
Note: The pressure of the spray on the surface you are cleaning increases as you move the nozzle closer to the surface.
5.5.1 For the high pressure Turbo spray fit the turbo nozzle (fig.1.8). This nozzle is intended for maximum cleaning affect.
5.6 Using detergent. Use only detergents approved for use in pressure washers.
5.6.1 Remove the nozzle that is attached to the gun and attach the soap dispenser (fig.1.12).
5.6.2 Remove the bottle and check that the tube is not blocked.
5.6.3 Fill with detergent suitable for use with a pressure washer and screw on the bottle. The detergent will automatically be mixed with the
water and discharged through the nozzle.
5.6.4 Dirt is dissolved by applying detergent to the dry surface. On vertical surfaces, work from the bottom upwards.
5.6.5 Leave the detergent to act for 1-2 minutes, but DO NOT allow the surface to dry out.
5.6.6 To wash down select the Variable spray jet nozzle (fig.1.9) set on the wide fan setting (fig.5A).
5.6.7 When you have finished the soap application, remove the bottle and flush clean water through the tube until it is thoroughly cleaned.
Note: Failure to clean properly will cause the injection system to become clogged and inoperable.
5.7 When washing is completed.
5.7.1 Switch the power supply off by turning switch to 'Off' position.
5.7.2 Turn off the water supply tap.
5.7.3 Discharge residual pressure by pressing the trigger until no more water comes out of the nozzle.
WARNING! Failure to discharge pressure could result in personal injury.
5.7.4 Disconnect the inlet and high pressure outlet hoses.
5.7.5 Wipe the machine clean and dry and store in a clean, safe, dry, childproof location.
Note: a) DO NOT leave motor switched on for more than 15 minutes without operating trigger.
b) If the water pressure drops (i.e. someone else using the same water supply), the washer will not operate correctly.
Immediately switch off the motor and wait until the pressure is restored.
c) Should the motor stop and fail to restart, the built in thermal cut-out may have tripped. Check to ensure that the washer is
connected correctly to electrical and water supplies (also see Section 6 Troubleshooting). Wait 5 minutes for the cut-out
to reset and re-start the motor. If the motor continues to cut out contact your authorised service agent.

 WARNING! Ensure the pressure washer is switched off and unplugged from the mains electrical power supply and turned off at the
mains water tap before performing any maintenance tasks.
Check, clean or renew the inlet filter (which is fitted inside the inlet connector,) after every 50 hours of use.
7. MAINTENANCE
7.1 Nozzles
7.1.1 Ensure that both nozzles are kept clean and free of debris.
7.1.2 The variable nozzle should be lubricated regularly. Clogging of the nozzle causes the pump pressure to be too high and cleaning is
immediately required.
7.1.3 Separate the nozzle from the lance by unscrewing anti-clockwise (fig.4).
7.1.4 Clear the nozzle of any debris.
7.1.5 Flush the nozzle with water.
7.1.6 Reconnect the nozzle to the lance. Ensure that the nozzle clicks into place.
7.2 Water Filter
7.2.1 The pressure washer is equipped with a water inlet filter to protect the pump.
7.2.2 To clean the conical filter, remove quick fit connection and the filter from the pump inlet.
7.2.3 Backflush the filter to clean.
7.2.4 Replace filter and quick connection immediately to prevent any ingress of foreign matter into the pump.
7.3 Cooling System
7.3.1 The air vents, in and around the pressure washer, must be kept clean and free of any obstructions to ensure proper air cooling of the
motor during operation.
WARNING! Prevent water from penetrating the vents of the pressure washer to minimise the risk of damage to the machine and to
reduce the risk of shock to the operator.
7.4 General Check unit, gun, nozzle, hose, connections and cables for damage. Immediately replace or repair with genuine parts.
7.5 Storage
7.5.1 Store in a location where the washer will not be subject to freezing conditions.
7.5.2 Make sure that the pressure washer has been drained of water and remove the hoses.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
01284 757500
01284 703534
[e-mail]
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
www.sealey.co.uk
Web
email
Original Language Version
PC2701 Issue: 3- 18/05/11
Environmental Protection.
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycle centre and disposed of in a manner which is compatible with the environment.
When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local
solid waste authority for recycling information.
