Sealey Power Products PC3401 User manual

1.2. GENERAL SAFETY
WARNING! Water and electricity are dangerous partners. Be extremely cautious and always be aware that this device uses an
electric motor. Always plug into a RCD (see electrical safety above). Unplug from mains before changing accessories or servicing.
WARNING! DO NOT USE the washer if any part of the unit, gun, nozzle, detergent tank, hose or cables is damaged. Replace or
repair using genuine parts only. Unauthorised parts may be dangerous and will invalidate your warranty. Always check connections
are correctly secured and not cracked or damaged in any way before using the machine.
WARNING! Use washer on a flat, levelled surface, in an upright position. Failure to do so will invalidate your warranty.
NEVER lay the washer down during use.
Ensure you comply with all local water supply regulations. Power washers may only be connected to mains drinking water supply if a
back flow preventer valve is installed in the supply hose, or at the tap outlet.
The supply hose must must be reinforced, and have an internal diameter of 1/2”. A water supply of at least 7ltr/min must be available
and pressure must NOT exceed 6 bar. The water temperature must NOT exceed 50oC (122oF).
Always be aware of the hazards that may occur during use. Study all applications and limitations of the washer before use.
Use where air can freely circulate around the washer to avoid the machine overheating.
Keep the washer in good condition. Use an authorised service agent to service the unit.
Wear adequate protective clothing, goggles and anti-slip rubber soled footwear.
Position the washer as near to the water supply as possible.
WARNING! Ensure all persons and animals keep at a minimum distance of 15 metres from the washer when in use.
WARNING! The pressure washer must only be used with clean water. Unfiltered water or corrosive chemicals must not be used as
these will damage the cleaner.
Ensure the nozzle is aimed correctly at the work surface before switching on the machine.
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
INSTRUCTIONS FOR:
PRESSURE WASHER 3400Psi
with ROTABLAST NOZZLE
MODEL:PC3401
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
PC3401 Issue No: 1 - 18/07/08
1.1. ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the operator to read, understand and comply with the following:
You must check all electrical products, before use, to ensure that they are safe. You must inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that the risk of electric shock is minimised by the installation of appropriate safety devices. A
Residual Current Circuit Breaker (RCCB) should be incorporated in the main distribution board. We also recommend that a Residual Current
Device (RCD) is used. It is particularly important to use an RCD with portable products that are plugged into a supply which is not protected
by an RCCB. If in any doubt consult a qualified electrician. You may obtain a Residual Current Device by contacting your Sealey dealer.
You must also read and understand the following instructions concerning electrical safety.
1.1.1. The Electricity at Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.
1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of those appliances
and the safety of the appliance operators. If in any doubt about electrical safety, contact a qualified electrician.
1.1.3. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply. See 1.1.1. and 1.1.2.
and use a Portable Appliance Tester.
1.1.4. Ensure that cables are always protected against short circuit and overload.
1.1.5. Regularly inspect power supply cables and plugs for wear or damage and check all
connections to ensure that none are loose.
1.1.6. Important: Ensure that the voltage marked on the appliance matches the power supply
to be used and that the plug is fitted with the correct fuse - see fuse rating at right.
1.1.7. DO NOT pull or carry the appliance by the power cable.
1.1.8. DO NOT pull the plug from the socket by the cable.
1.1.9. DO NOT use worn or damaged cables, plugs or connectors. Immediately have any faulty
item repaired or replaced by a qualified electrician. When an ASTA/BS approved UK
3 pin plug is damaged, cut the cable just above the plug and dispose of the plug safely.
Fit a new plug according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
d) After wiring, check that there are no bare wires, that all wires have been correctly
connected, that the cable outer insulation extends beyond the cable restraint and that the restraint is tight.
Double insulated products, which are always marked with this symbol , are fitted with live (brown) and neutral (blue) wires only.
To rewire, connect the wires as indicated above - DO NOT connect either wire to the earth terminal.
1.1.10. Products which require more than 13 amps are supplied without a plug. In this case you must contact a qualified electrician to ensure
that a 30 amp supply is available. We recommend that you discuss the installation of an industrial round pin plug and socket with your
electrician.
1.1.11. If an extension reel is used it should be fully unwound before connection. A reel with an RCD fitted is preferred since any appliance
plugged into it will be protected. The cable core section is important and should be at least 1.5mm2, but to be absolutely sure that the
capacity of the reel is suitable for this product and for others which may be used in the other output sockets, we recommend the use
of 2.5mm2section cable.
1. SAFETY INSTRUCTIONS
FUSE RATING 13 AMP
Blue
Neutral
Wire
Yellow & Green
Earth Wire
Cable
Restraint
Brown
Live
Wire

Before activating the trigger, GRIP the gun firmly to counteract the recoil from the high pressure water jet.
WARNING! Avoid sudden bursts of water as these will cause water pressure to drop and put extreme pressure on hoses and
connectors.
If, during operation, power failure occurs turn the electricity and water off for safety reasons, (See Note ‘c’ at end of Section 4).
WARNING! The high pressure jet will cause loose particles to be propelled at high speed, which may cause serious injury.
WARNING! DO NOT operate the machine without a water supply. Dry running can seriously damage the unit.
WARNING! DO NOT leave the washer switched on for more than 15 minutes without operating the trigger.
DO NOT obstruct ventilation grills during operation.
DO NOT use the washer with flammable or toxic liquids or any other product. Use only recommended detergent. Unapproved
detergents may corrode the machine cover and accessories.
DO NOT jam the trigger in the operating position.
DO NOT adjust any internal control valves, as they have been factory set.
DO NOT connect other appliances to the machine inlet or outlet.
DO NOT use in damp or wet weather conditions.
DO NOT move the unit by pulling the hoses or electrical cables. Use the handle.
DO NOT touch plug with wet hands. To avoid the risk of electrocution keep all connections dry and off the ground.
DO NOT direct jet against yourself, other persons, animals, electrical equipment or the machine itself.
DO NOT use washer if you are tired or under the influence of alcohol, drugs or intoxicating medication.
DO NOT allow children or untrained persons to operate the washer.
WARNING! Discharge residual pressure before disconnecting the washer hose. Pressure left in unit may cause injury.
After use, disconnect washer from electrical mains and water supply and store in a safe, dry, childproof area.
2. CONTENTS & SPECIFICATION
Unpack the product and check contents
against the list below. Also check that the
machine has an identification plate or
label.
If label or parts are damaged or missing
contact your supplier immediately.
2.1. SPECIFICATION
Model No. ................... PC3401
Manifold Pressure ............. 2000psi
Effective Cleaning Power . . . . . . . 3400psi
Water Flow ..................400ltr/hr
Motor Power . . . . . . . . . . . . . . . . . . 2000W
Input Voltage/Current . . . . . . . . 230V/8.7A
Max. Inlet Temp. . . . . . . . . . . . . . . . . .50oC
Hose Length . . . . . . . . . . . . . . . . . . . . 6mtr
Weight .........................17kg
By rotating the stream of water at high
speed, it is possible to increase the
effective cleaning pressure of washer. We
quote the pressure at which the water
leaves the pump as ‘Manifold Pressure’ and
express the cleaning power of the washer
as the ‘Effective Cleaning Pressure’.
Heavy-duty induction motor unit produces enough power to pump 400 litres of water every hour. Pump fitted with high pressure by-pass to
preserve pump life. Features Automatic Total Stop System which switches the motor on and off when the lance trigger is operated, prolonging
the motor life. Supplied with 6mtr hose, jet/flat lance and Rotablast Nozzle® which helps develop the same Effective Cleaning Power (ECP) as
a 3400psi washer. Includes integral detergent tank and detergent flow control valve. Suitable for a wide range of automotive, industrial,
agricultural, marine and domestic applications.
1. INTRODUCTION
PC3401 Issue No: 1 - 18/07/08

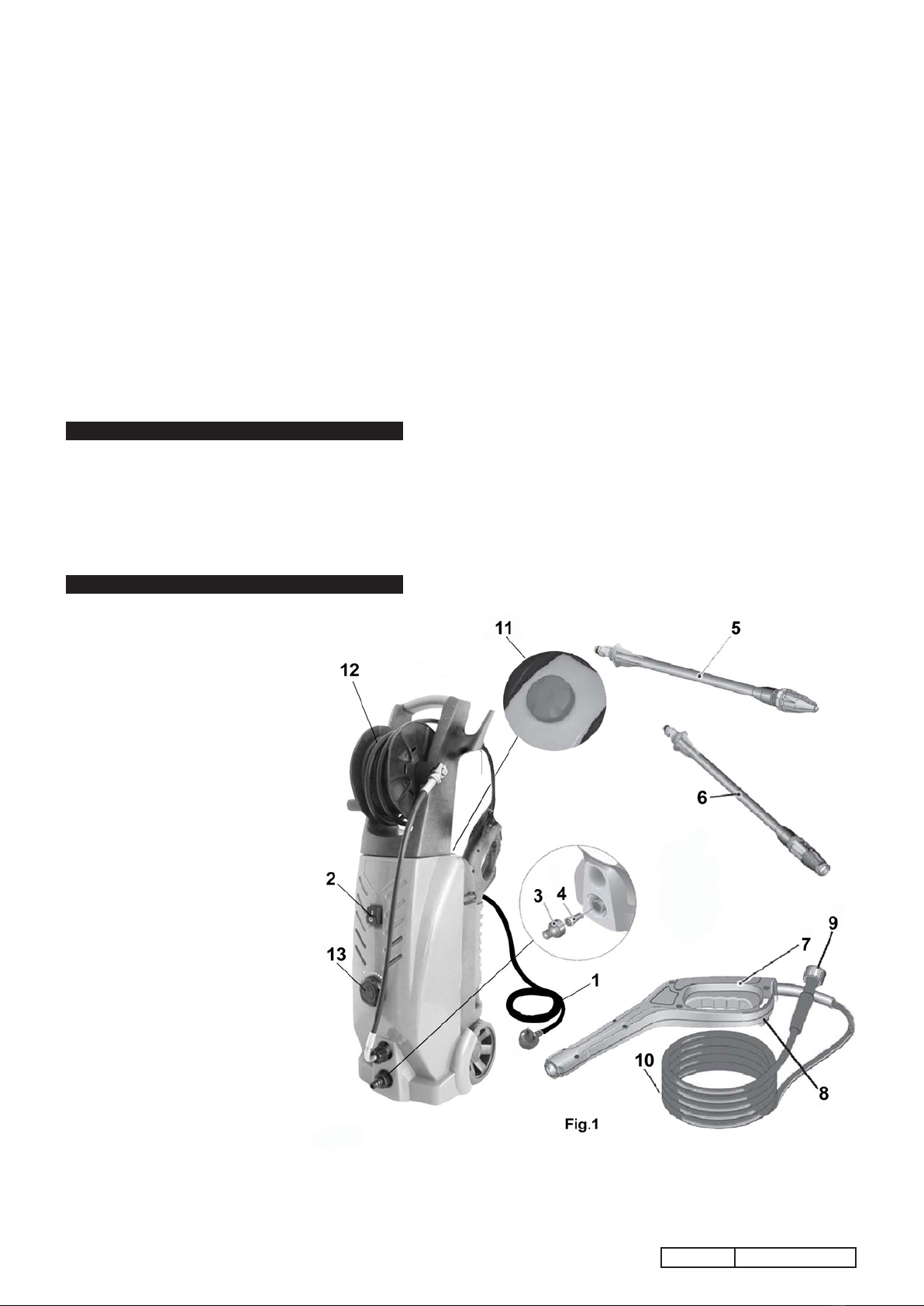

1 Power cable
2 ON/OFF Switch
3 Water supply rapid attachment
4 Filter
5 Rotablast nozzle jet 
6 Variable nozzle jet
7 Spray gun
8 Trigger lock
9 Water supply attachment
10 High pressure pipe
11 Detergent tank
12 Hose Reel
13 Detergent adjustment.

3. SET-UP
WARNING! ALWAYS use the pressure washer in the upright position as shown in Fig.2.
3.1 Connecting the water supply. Use a reinforced hose pipe with an internal diameter of 1/2” and connect to the mains water supply as
indicated in Fig.3. Connect a push fit hose connector (Fig.4-1) to the water inlet on the machine (Fig.4-2). The water supply should
have a minimum pressure of 1.5 bar and a maximum pressure of 6 bar, with a minimum flow rate of 7ltr/min.
Note: Ensure that the inlet filter (Fig.1-4) is fitted into the water inlet before use.
3.2 Connecting the high pressure hose.
Attach the high pressure hose as indicated in Fig.5 ensuring that the connector is tight. Turn on the water supply.
3.3 Assembling the lance and nozzle.
Push the gun onto the lance as shown in Fig.6. There is a spring within the mouth of the gun. Push the lance against the spring and
turn through 90ountil it clicks into place. Insert the nozzle required into the end of the lance as shown in Fig.6 and screw it down.
When the nozzle is seated give it a final twist so that it clicks into place. Fig.1-6 is the variable nozzle with adjustable spray pattern.
Fig.1-5 is the Rotablast nozzle.
PC3401 Issue No: 1 - 18/07/08

Fig.10
Low Pressure
5. MAINTENANCE
 WARNING! Ensure you read, understand and apply Section 1 safety instructions.
 WARNING! Dry running can seriously damage the unit.
 WARNING! DO NOT leave washer switched on for more than 15 minutes without operating trigger.
Important! The washer motor will stop as soon as the gun trigger is released and will restart when
the trigger is squeezed. Always allow at least 5 seconds between releasing the trigger and restarting.
4.1 Primary checks. Check that the inlet filter is clean; pump delivery and pressure will be reduced if
blocked. Never use the machine without a filter (which is fitted inside the hose connector, see Fig.1-4).
Ensure that the water supply, high pressure hose and gun are correctly connected, and that air can
freely circulate around the washer.
4.2 Operation of safety catch. To prevent accidental operation of the unit the safety catch should always
be engaged when the gun is not in use. Swing the catch into position over the end of the trigger as
shown in Fig.7-3. To release the catch press it above the trigger as indicated in Fig.7-1.
4.3 Operating the machine. Hold the spray gun firmly to counteract the recoil caused by the high pressure
of the water. Before switching on ensure that the lance is not directed at people, objects or animals
prior to being directed at the object to be cleaned. Depress the trigger before switching on the unit
before every use. Switch the machine on by pressing the button marked ‘I’ as shown
in Fig.8. Release the safety catch (see Fig.7-1). Point the lance at the object to be cleaned and
fully depress the trigger. (When the trigger is released the motor will automatically switch off).
4.4 Adjusting spray pattern and pressure. The spray pattern can be continuously varied from a fine jet to a fan pattern by rotating the
body of the nozzle as indicated in Fig.11. Furthermore the pressure can be switched between high and low by pushing or pulling the
nozzle along the axis of the lance. Shifting the nozzle forwards selects low pressure and shifting the nozzle backwards selects high
pressure as shown in Fig.10.
4.5 Using detergent. (Variable Nozzle only) Use only detergents approved for use in pressure washers.
For soap application use the low pressure setting on the lance. (If the high pressure setting is selected detergent solution will not be
discharged). Remove the cap from the detergent reservoir situated at the back of the machine and fill it with a suitable cleaning
solution. Select the low pressure setting on the nozzle. The chemical will be automatically mixed with the water and discharged
through the nozzle. The quantity of detergent can be adjusted by the dial on the front of the washer (Fig.9).
4.5.1 Dirt is dissolved by applying detergent to the dry surface.On vertical surfaces, work from the bottom upwards.
4.5.2 Leave the detergent to act for 1 - 2 minutes, but DO NOT allow the surface to dry out.
4.5.3 To wash down select the high pressure setting on the lance.
4.5.4 The Rotablast nozzle (see contents, Item 5) gives a high torque cleaning effect on larger areas (ideal for vehicle washing and
removing grime from patio surfaces). Apply the high pressure jet keeping the end of the nozzle approximately 25cm (10”) from
the surface.
4.6 When washing is completed.
4.6.1 Switch the power supply off by pressing the button marked ‘O’ as indicated in Fig.8.
4.6.2 Turn off the water supply tap.
4.6.3 Activate the trigger to discharge residual pressure until no more water comes out of the nozzle.
4.6.4 Engage the trigger safety catch, unplug the machine from the electrical mains power supply and disconnect from the water supply.
4.6.5 Wipe the machine clean and dry and store in a clean, safe, dry, childproof location.
NOTE: a) DO NOT leave motor switched on for more than 15 minutes without operating trigger.
b) If the water pressure drops (i.e. someone else using the same water supply), the washer will not operate correctly. Immediately
switch off the motor and wait until the pressure is restored.
c) Should the motor stop and fail to restart, the built in thermal cut-out may have tripped. Check to ensure that the washer is
connected correctly to electrical and water supplies (also see Section 6 Troubleshooting). Wait 3 minutes for the cut-out to reset
and re-start the motor. If the motor continues to cut out contact your authorised service agent.
d) If storing the washer for a long period during winter, operate the washer with a non-corrosive, non-toxic anti-freeze before storage.
Store detergents according to instructions on the container label.
4. OPERATION
PC3401 Issue No: 1 - 18/07/08
Fig.8
Fig.9
Fig.11
Fan
Jet
 WARNING! Ensure the pressure washer is switched off and unplugged from the mains electrical power supply and turned off at the
mains water tap before performing any maintenance tasks.
5.1 Check, clean or renew the inlet filter (which is fitted inside the hose connector, see Fig.1-4) after every 50 hours of use.
5.2 Ensure that both nozzles are kept clean and free of debris.
5.3 Check unit, gun, nozzle, hose, connections and cables for damage. Immediately replace or repair with genuine parts.
5.4 Storage. Do not store the unit in premises subject to freezing conditions. If this cannot be guaranteed then the unit should have a
glycol based antifreeze run through it. Immerse the water supply pipe into a container of antifreeze. Immerse the gun/lance into the
same container (without the nozzle attached). Hold the gun trigger open and start the unit. The antifreeze will be drawn into the unit by
suction. When an even, bubble free flow is obtained switch the unit off.
High Pressure

6. TROUBLESHOOTING GUIDE
PC3401 Issue No: 1 - 18/07/08
SYMPTOMS REASON REMEDY
Pump does not reach required pressure Nozzle incorrect or worn Replace the nozzle
Dirty lter Clean or replace lter
Air being sucked into the system Check that hoses and ttings are air tight
Water pressure low Check that hoses/ttings are water tight and
tap is fully open
Worn seals Contact Authorised Service Agent
Fluctuating pressure Nozzle worn or blocked Replace the nozzle
Water too hot Reduce temperature
Pump sucking air Check that hoses and ttings are air tight
Water or oil leaks Seals worn Contact Authorised Service Agent
Motor does not start when switched on No electrical power Check plug connections and mains power
supply is active
Automatic cut-off system fault Contact Authorised Service Agent
Motor hums but does not start when switched on Motor/pump jammed Contact Authorised Service Agent
Unsuitable mains voltage Check for adequate power supply and cable
condition
Pump frozen Leave unit to thaw naturally. The pressure
washer should be protected from the threat
of freezing. Extensive pump damage could
otherwise occur (see Section 4.6.5)
Incorrect extension cable Use a suitable extension cable. See Section
1 Elect. Safety
The motor stops Tripped thermal cut-out due to overheating Check that the mains voltage matches the
specications
Switch off the motor and let machine cool for
3 minutes
No detergent Detergent container is empty Rell detergent container
Detergent pick up body clogged Clear blockage
Injector clogged Clean injector
Nozzle not set to low pressure Move nozzle to low pressure position
Incorrect nozzle tted Fit correct nozzle (see contents, item 6)
Jet is ineffective, ragged or unsteady High pressure nozzle clogged Clean high pressure nozzle
Selector sleeve for type of jet wrongly set Adjust selector sleeve
Fuse blows in plug Back pressure build up of water causes
machine to draw high amperage
Depress trigger before switching on the
machine
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No responsibility is accepted for incorrect use of this equipment.
WARRANTY: Guarantee is 12 months from purchase, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
7. DECLARATION OF CONFORMITY
Declaration of Conformity We, the sole importer into the UK of Sealey Power Products, declare that the product listed below is in
conformity with the following standards and directives.
The construction files for this product is held by the manufacturer and may
be inspected, by a national authority, upon request to Jack Sealey Ltd.
For Jack Sealey Ltd. Sole importer into the UK of Sealey Power Products.
Pressure Washer - Model PC3401
2006/95/EC Low Voltage Directive
2004/108/EC EMC Directive
2006/42/EC Machinery Directive
2000/14/EC Sound Pressure Directive
2002/95/EC RoHS Directive
2002/96/EC WEEE Directive
18th July 2008
Signed by Steve Buckle
01284 757500
[e-mail]
www.sealey.co.uk
01284 703534
e-mail
Sole U.K. Distributor
Sealey Group
Bury St. Edmunds
Suffolk.
Web

PC3401 Issue No: 1 - 18/07/08
