Sealey MS070CR User manual

INSTRUCTIONS FOR
CALIBRATION RIG FOR MS070
MODEL NO: MS070CR
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
9Maintain the calibration rig in good condition.
9Replace or repair damaged parts. Use genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
9Locate the calibration rig in a suitable working area, keep area clean and tidy and free from unrelated materials.
9Keep the calibration rig clean to ensure accurate performance.
8DO NOT use outside in damp or wet weather conditions.
8DO NOT allow untrained persons to operate the calibration rig.
8DO NOT leave the calibration rig unattended.
WARNING! The warnings, cautions and instructions contained within this document cannot cover all possible conditions and situations
that may occur. It must be understood that common sense and caution are factors which cannot be built into this product, but must be
applied by the operator.
LASER SAFETY
The MS070 utilises a Class 2M laser that emits low levels of visible radiation light (i.e. wavelengths between 630 and 640 nanometres)
which are safe for the skin but not inherently safe for the eyes. The Class 2M emission limit is set at the maximum level for which eye
protection is normally afforded by natural aversion responses to bright light. Accidental eye exposure is therefore normally safe,
although the natural aversion response can be overridden by deliberately staring into the beam, and can also be inuenced by the use
of alcohol or drugs.
WARNING! DO NOT look or stare into the laser beam as permanent eye damage could result.
8DO NOT direct the laser beam at any person’s (or animal’s) eyes as eye damage could result. If the beam is obstructed by a person
during use, release the contact switch immediately.
8DO NOT use the equipment while under the influence of alcohol, drugs or whilst on medication.
9Be aware that reflections of the laser beam from mirrors or other shiny surfaces can be as hazardous as direct eye
exposure.
2. in INTRODUCTIONt
Used to check and adjust the alignment of the lasers on Model No. MS070 Motorcycle Wheel Alignment Tool. This unit will allow workshops to
check and adjust in-house.
3. in SET UP
3.1. Rig set up

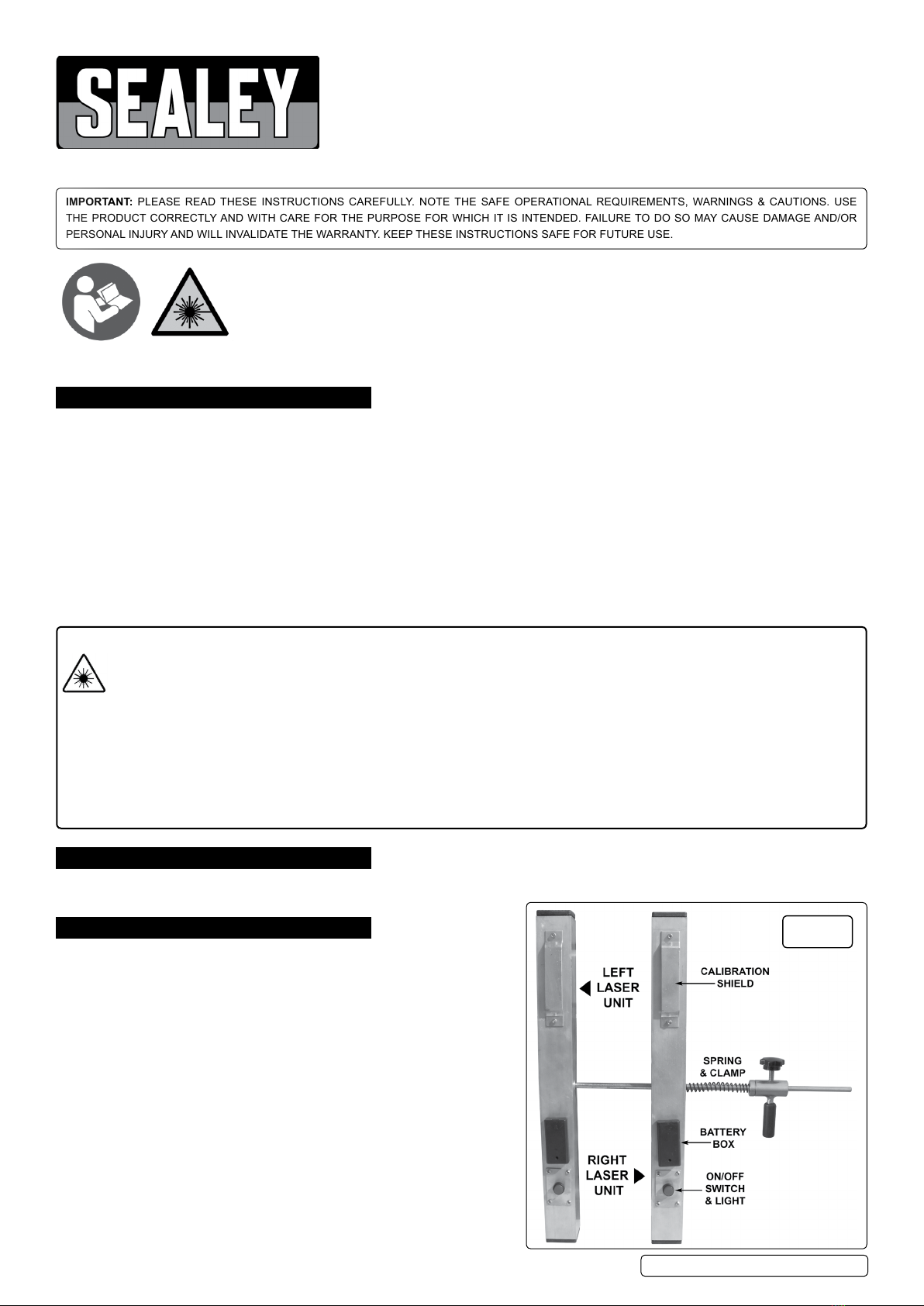

3.1.1. The twin laser units as seen in fig.1 need to be clamped
either side of the calibration rig as shown in fig.2.
3.1.2. Position the left hand laser unit with the rod attached on the left hand
side of the rig and insert the rod through the hole in the rig. Slide the
right hand laser unit onto the rod and up to the other side of the rig,
followed by the spring and clamp unit.
3.1.3. Ensure that the shouldered fixing on the side of the left hand laser from
which the rod emerges, passes into the hole in the side of the rig so that
both laser units lay completely flush either side of the calibration rig.
MS070CR | Issue 3(L) 20/02/17
Original Language Version
© Jack Sealey Limited
Refer to
instruction
manual
Warning!
Laser beam
fig.1

3.1.4. Firmly clamp the assembly together.
3.1.5. Switch on both lasers and observe the position of the projected beams in relation to the calibration marks at the head of the rig. See the
inset diagram in fig.2. If either of the beams are out of alignment they will have to be adjusted as described in the next section.
3.2. Calibrating the lasers
3.2.1. Firstly, remove the calibration shield from the laser that needs adjusting (see fig.3). Undo the two socket cap screws that hold the shield in
place using a 3mm hex key.
3.2.2. Using the 3mm hex key loosen the laser pivot point just enough to allow the laser to pivot within the laser casing.
3.2.3. Loosen the laser adjustment point and, by sliding the screw head, move the laser in very small increments until the projected beam is
dead on the calibration marking on the rig head. If the beam needs to move to the right, slide the screw head to the left and vice versa.
3.2.4. Tighten the laser pivot point first.
3.2.5. Carefully tighten the laser adjustment point keeping an eye on the beam to ensure that the calibration does not change.
3.2.6. Fix the shield back in place and tighten the fixings.
3.2.7. Remove the laser units from the rig.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
Sole UK Distributor, Sealey Group.
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk.
IP32 7AR
www.sealey.co.uk
[e-mail]
01284 757500
01284 703534
Web
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
MS070CR | Issue 3(L) 20/02/17
