Seaory S22 Technical manual

2018
Operation Instruction
Desktop Dual-sided Card Printer
Shenzhen Seaory Technology Co., Ltd.
Model：Seaory S22
Excellent quality
Perfect service

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality , Perfect service www.seaory.com
Statement
⚫Copyright
Copyright© Shenzhen Seaory Technology Co.,Ltd. All rights reserved.
Users shall respect the latest regulations on copyright of their own countries. This manual, no
matter in E-file, text version, or other formats, can never be partially or totally copied, translated
or spread in any way for any reason, without the writing authorization from Shenzhen Seaory
Technology Co., Ltd. Please forgive that any change of this manual will not be further noticed.
Shenzhen Seaory Technology Co., Ltd shall take no responsibility for any errors (if any) in this
manual, accidental damage of printer, or losses caused by this manual contents.
All the pictures and specifications in this manual are made to help description, while the actual
specifications shall be subject to order. If any query, please refer to the products specifications on
the website of Shenzhen Seaory Technology Co., Ltd.
⚫Warranty
With respect to warranty conditions and restrictive clauses, please refer to the Warranty Card
enclosed in the printer package.Thanks for choosing Seaory S Series card printer, to start a
successful cooperation between us. A variety of high quality personalization of identification cards,
visa cards, and membership cards etc. can be realized through simply operation of these card
printers. You shall make sure that printer consumables you bought are from original manufacturer.
To know more information, please visit our website: www.seaory.com. If any errors found, please
let us know by mailing to: [e-mail].
⚫Sign Indicates
⚫Warning Sign
Label meaning: The equipment with the label is only designed and evaluated
according to the altitude of 2000m. Therefore, it is only applicable to the safety
application below the altitude of 2000m. When used above the altitude of 2000m,
there may be safety risks.
Label meaning: The equipment with the logo is only designed and evaluated in
accordance with the non-tropical climatic conditions. Therefore, it is only suitable for
safe use in non-tropical climatic conditions. When used in tropical climatic conditions,
there may be safety risks.
Special Warning Message
More In-depth Information Notice

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality , Perfect service www.seaory.com
Catalogue
1. Product features...............................................1
1.1 Main function .....................................1
1.2 Features.............................................1
2. Product parameter ...........................................1
3. Product introduction .........................................2
3.1 Product Size ......................................2
3.2 Roof ...................................................3
3.3 Front-end ...........................................4
3.4 Back-end............................................5
3.5 Bottom ...............................................5
3.6 Internal structures ..............................6
4. Accessories included .......................................7
4.1 Open-case inspection ......................7
4.2 Accessories list ..................................7
5. Installation and usage ......................................8
5.1 Install cleaning roller ..........................8
5.2 Install ribbon ......................................9
5.3 Adjust the feed card thickness ......... 11
5.4 Place the card, Add the weight module
11
5.5 Install output hopper ........................13
5.6 Wiring installation.............................13
6. Driver installation............................................15
6.1 Operation system.............................15
6.2 Notice before installation..................15
6.3 Driver installation steps (USB
communication interface) ...............................16
6.4 Network setting ................................19
6.5 Driver installation (Ethernet
communication interface) ...............................21
7. Driver setting..................................................22
7.1 Printing preferences.........................22
7.2 Ribbon type setting ..........................23
7.3 Printing orientation setting ...............24
7.4 Printing page rotate setting..............24
7.5 Feeding card mode setting ..............25
7.6 Eject card setting............................. 27
7.7 Reject card setting........................... 28
7.8 Advanced card in and card out options
setting 29
7.9 Image color setting .......................... 30
7.10 Print area setting ............................. 31
7.11 Magnetic encoding setting............... 33
7.12 Heating energy setting .................... 34
7.13 Tool setting ...................................... 35
7.14 Position calibrate ............................. 36
7.15 Cleaning tool ................................... 37
7.16 Magnetic stripe tool ......................... 38
7.17 Ribbon tension adjustment .............. 39
7.18 Other tools....................................... 40
8. Print test ........................................................ 41
8.1 Driver test page ............................... 41
8.2 Seaory iCARDE card design software
42
9. Cleaning and maintenance ............................ 42
9.1 Replace cleaning roller.................... 42
9.2 Cleaning card moving path.............. 42
9.3 Cleaning print head.......................... 45
10. Replace print head ....................................... 46
11. Common fault codes and Solutions .............. 51
12. FAQ.............................................................. 52
12.1 When card print no action................ 52
12.2 When print out the blank card.......... 52
12.3 When partial or error printing........... 52
12.4 When the printed card has a defect. 52
12.5 When the printed card appears white
line 52
12.6 When the printed card appears white
vertical or color lines ...................................... 53
12.7 When the printed card appears blurry
image 53

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 1/ 53
1. Product features
1.1 Main function
A. Dual-sided printing
B. Automatic batch feeding
C. Back-end manual feeding, alarm for no card, few card,
defective card slot was full
D. Card holding, timeout automatic recovery
E. Feeding card by roller & hook
F. Optional Modules:
1. Dual interface card encoding module
2. Contactless ID card encoding module
3. UHF chip card encoding module
4. Magnetic stripe card encoding module
G. Support full panel YMCKO ribbon, half-panel 1/2 ymcKO
ribbon, Single colors ribbons (Black, White, Red, Blue, Gold,
Silver)
1.2 Features
A. Adopt high resolution dye sublimation(direct-to-card) print
method
B. Continuous card printing ability, save time and labor cost
C. Easy and user-friendly operation
D. Light body, easy maintenance
E. Low noise
F. High printing speed
2. Product parameter
Product Name
Seaory S22 desktop dual-sided card printer
Print Method
Dye sublimation (Direct-to-card)
Power Supply
AC 100-240V 50-60Hz ; DC 24-25.5V, 2.7A
Print Dimension
ISO CR80（53.98mm×85.60mm）edge-to-edge printing
Print Resolution
300dpi × 300dpi (300dpi × 600dpi optional)
Print Speed
Monochrome printing: 3-5s per card(single-sided) / 7-11s per
card(dual-sided)
Full-color (YMCKO) printing: 20s per card (single-sided) / 42s
per card (dual-sided)
Card Material
PVC / composite PVC / other material upon request and

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 2/ 53
validation
Card Thickness
0.3-1.05mm
Memory
128M
Input hopper
capacity
100 cards (Standard 0.76mm thickness)
Output hopper
capacity
50 cards (Standard 0.76mm thickness)
Operation system
Driver support: Windows XP/7/8/10, Windows Server
2003/2008/2012/2016,Linux, Android
LCM Display
Chinese:8 characters per line, 2 lines
English:16 characters per line, 4 lines
Support multi-language
Operating
condition
Regular running temp.: 15℃-30℃ (59-86℉)，20%-65%, RH
non-condensing
Lowest / Highest running temp.: 0℃ (32℉)/40℃(104℉)，20%-
65% RH non-condensing
Storage condition
Temp.: -5℃-70℃ (23-158℉)，20%-70% RH non-condensing
Certificate
CCC，FCC，CE，ROHS，BIS
3. Product introduction

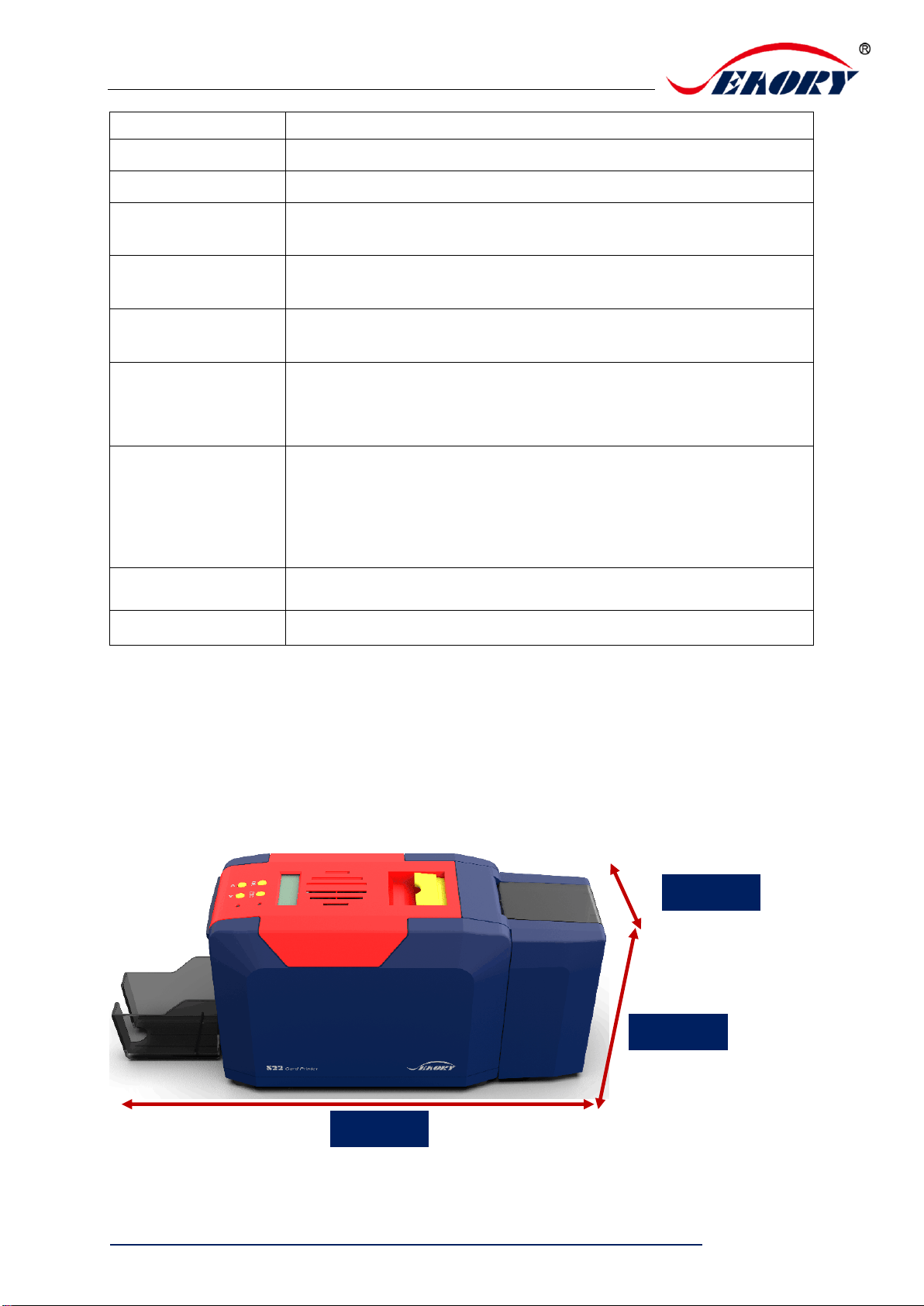

3.1 Product Size
S22 card printer size : 490mm(L)×175mm(W) ×211mm(H) ,Net weight : 6.3Kg
175mm
490mm
211mm

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 3/ 53

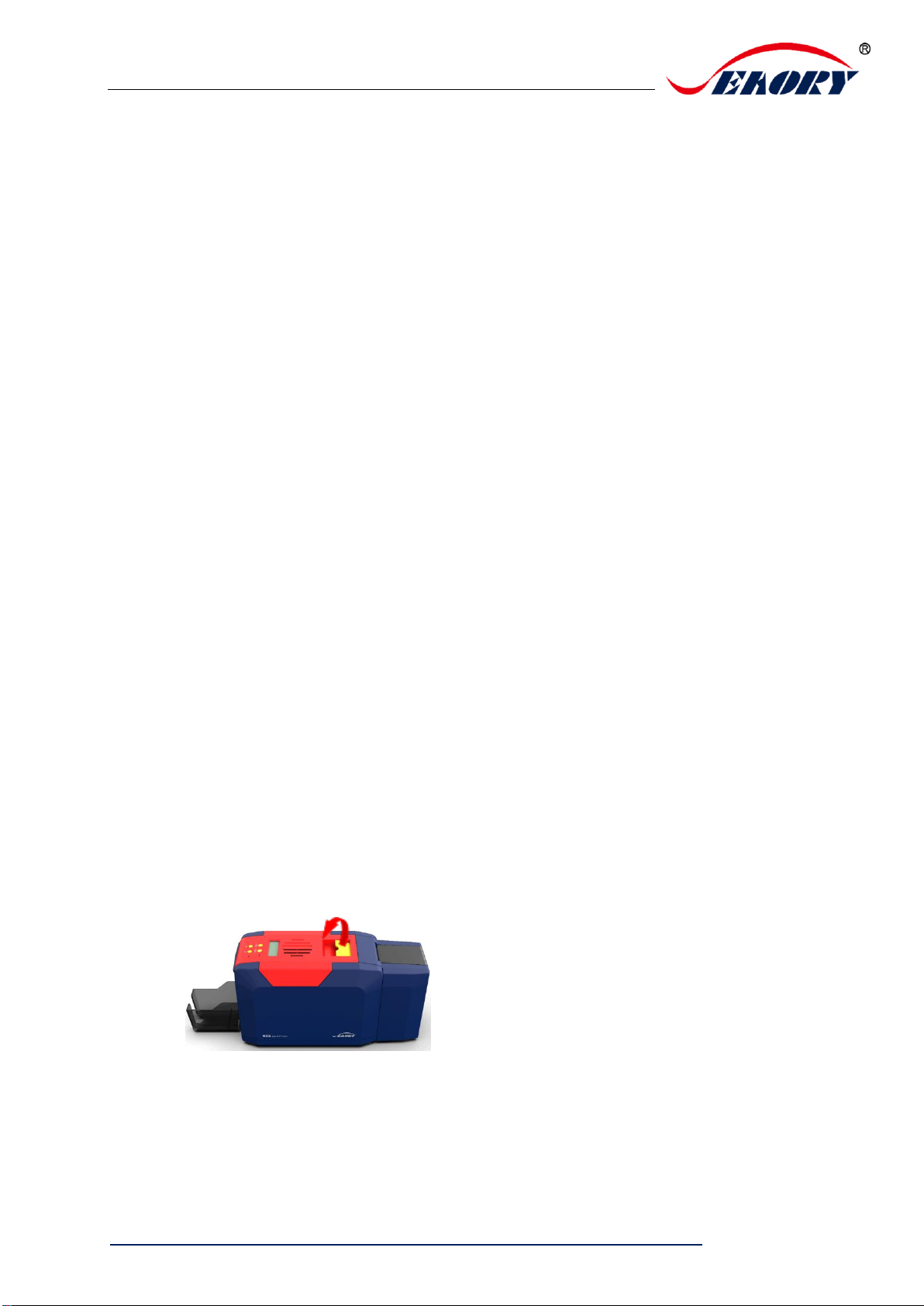

3.2 Roof
Main function description:
(1) Input hopper: Blank cards storage place, 100pcs 0.76mm PVC
cards input capacity.
(2) Output hopper: Printed cards storage place, 50pcs 0.76mm
PVC cards input capacity.
(3) Switch of upper cover: Lift this switch to open the cover.
(4) Control panel buttons: Query and set card printer parameters.
(5) LCM Screen: Display card printer parameters and status.
(6) Air vent: Release the heat generates by card printer and print
head.
(7) Error light: Turns to red when the card printer is not ready or
failure.
(8) Status indicator lamp: Green light indicate the card printer is
working normally.
Input hopper
Switch of upper cover
LCM screen
Output hopper
Control panel buttons
Status indicator lamp
(Green) (Green)
Air vent
Error light

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 4/ 53

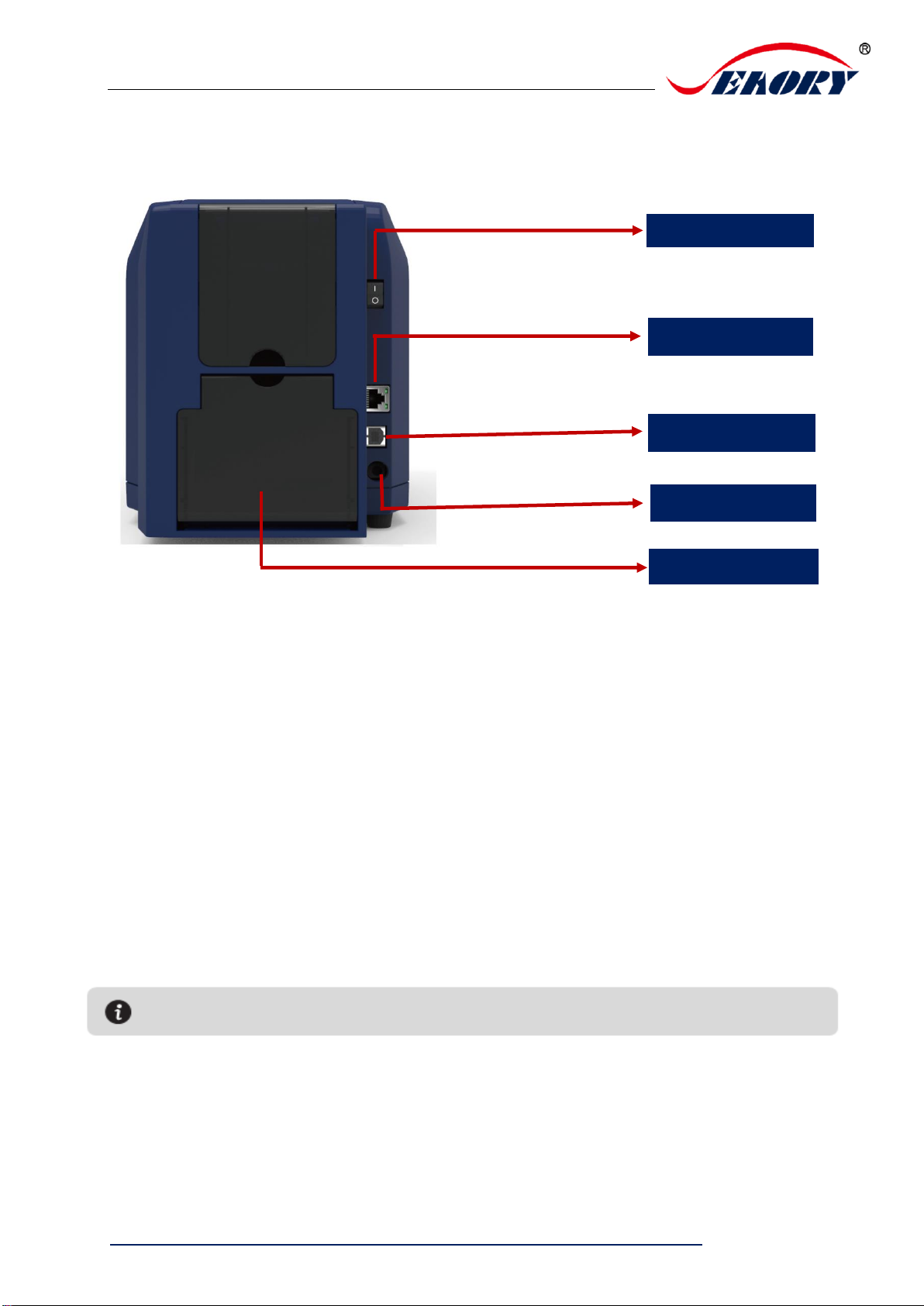

3.3 Front-end
Main function description:
(1) Defective card slot: defective cards storage place, 30pcs
0.76mm PVC cards input capacity.

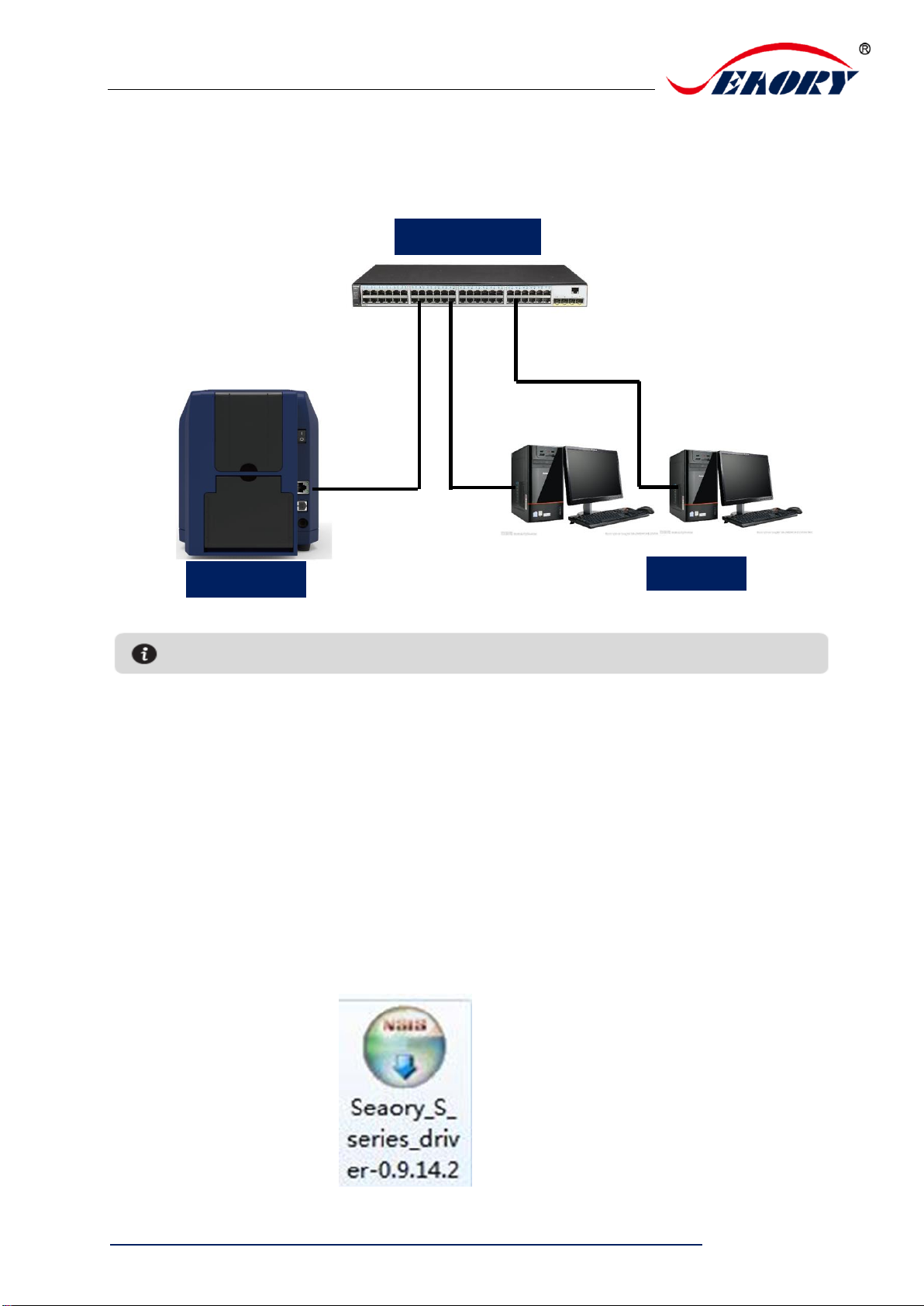

(2) Ethernet Interface: RJ45 interface, TCP/IP protocol, through this
interface can achieve PC and card printer network connection.
(3) USB Interface: USB-B type interface, connect directly to PC side.
(4) Power port: DC24-25.5V 2.7A.
(5) Power switch: connect or disconnect power.
Power switch
Interface: Ethernet
Interface:USB
Power port
Defective card slot
Support USB and Ethernet two communication interface. It’s recommend to choose one.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 5/ 53
3.4 Back-end
Main function description:
Card exit mouth: It can be Manual single card feeding mouth or
Back-end card exit mouth. Card spit out length can be set freely.
Output hopper: Storage printed cards, 50pcs 0.76mm PVC cards
input capacity.

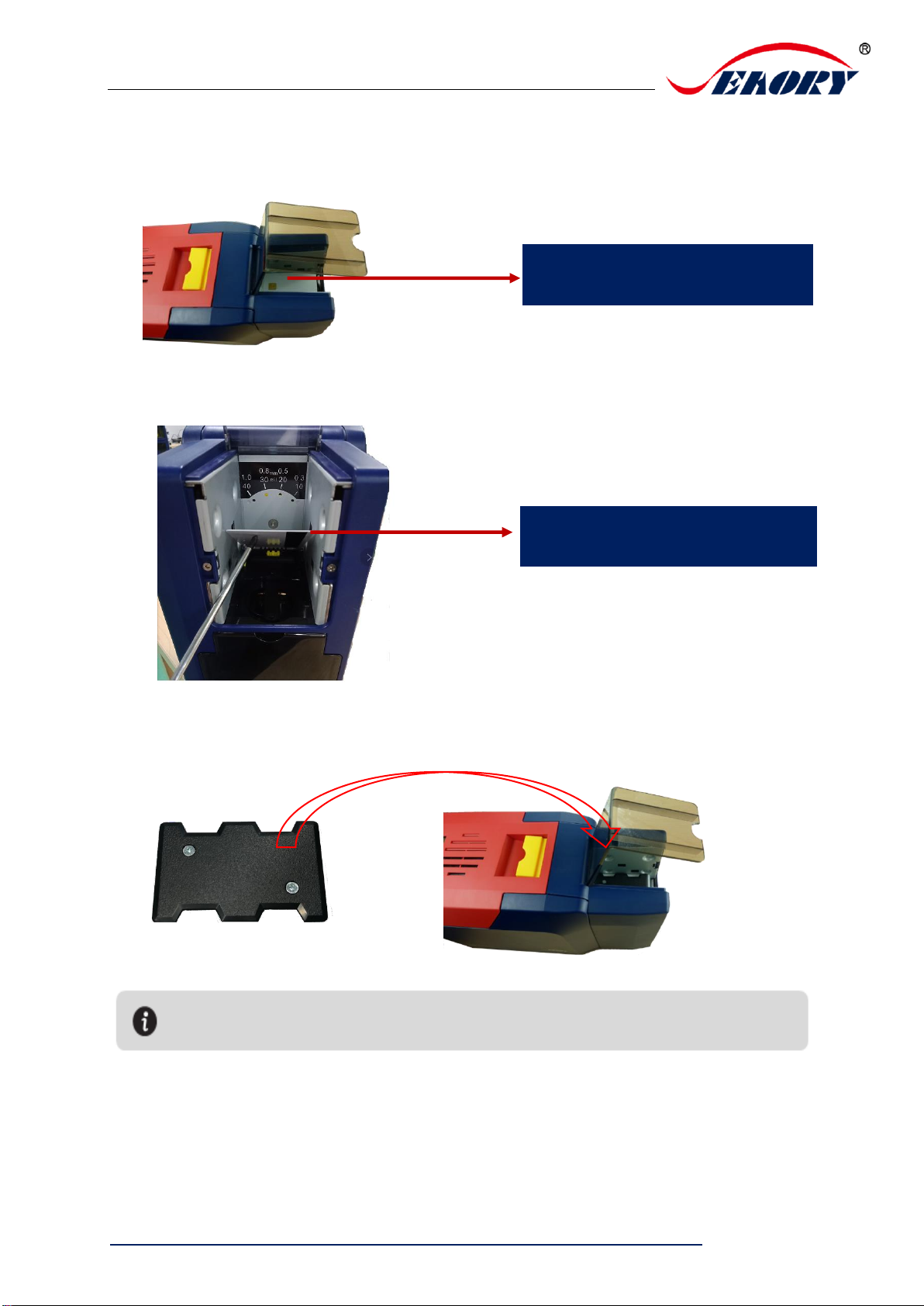

3.5 Bottom
Card exit mouth
Output hopper
Bottom cover
Card printer bar
code
Production bar code

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 6/ 53
Main function description：
Bottom cover: Place to install magnetic stripe card and chip card
encoding module.

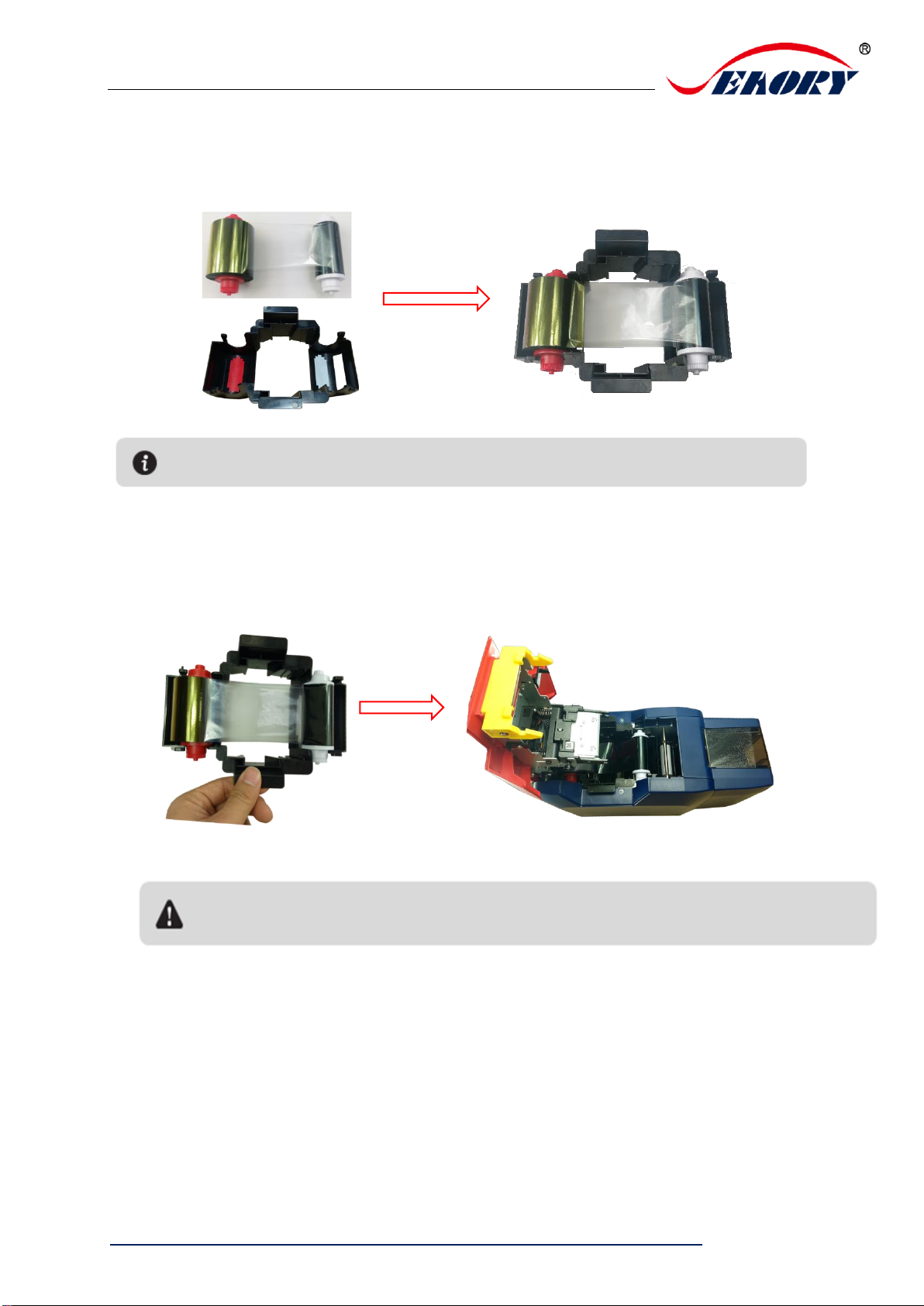

3.6 Internal structures
Main function description：
A Air fan: absorb and release the print head’s heat when it works.
B Print head: need regular cleaning.
C Ribbon cartridge: accessory to install ribbon.
D Ribbon pickup roller: recycle used ribbon.
E Cleaning roller: sticky card surface dust, improve the printing
effect.
A
B
C
D
E
F
G
Card printer bar code: Information needed when you need technical services from us.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 7/ 53
F Card thickness regulator: manual adjust card’s thickness,
support 0.3mm-1.0mm thickness cards.
G Ribbon supply roller: unused ribbon ends.
4. Accessories included
4.1 Open-case inspection
4.2 Accessories list
Accessories box
Output hopper
PE foam
S22 card printer
Output hopper
1PC
Power adapter
1PC
Power cable
1PC
USB cable
1PC
Counting module
1PC
Cleaning roller
1PC
Cleaning card
5pcs
Warranty card
1PC
Cleaning stick
1PC
CD
1PC

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 8/ 53
Main function description:
(1) Output hopper: storage printed cards, 50pcs 0.76mm PVC cards
input capacity.
(2) Power adapter: convert DC voltage.
(3) Power cable: connect to power adapter.
(4) USB cable: communication connection between PC and card
printer.
(5) Counting module: add weight while inputing card, increase the
contact area between the card and the incoming card wheel to
ensure the stable incoming card when the few cards in input
hopper.
(6) Cleaning roller: sticky card surface dust, improve the printing
effect.
(7) Cleaning card: double-sided 3M standard card, cleaning card
printer internal card passing channel dust.
(8) Warranty card: need to use it while supply technical service,
please keep it properly.
(9) Cleaning stick: cleaning the print head.
(10) CD: storage ICARDE software, card printer driver, operation
instruction etc.
5. Installation and usage
5.1 Install cleaning roller
Step1: Gently lift the upper cover switch, open upper cover.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 9/ 53
Step2: Take out the ribbon cartridge.
Step3: Remove 3M hyaline layer on cleaning roller surface, take the
cleaning roller’s both sides by hand. After pushing into the mounting
position, gently press down.
5.2 Install ribbon
Step1: Open the ribbon box, take out the ribbon.
The purpose of cleaning roller is to absorb the dust on the card and card feeding roller, improve the
printing effect.
Cleaning card
Ribbon
Cleaning roller
In order to ensure the normal use of the printer, please use Seaory original ribbon.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 10 / 53
Step2: Install the ribbon into the cartridge according to the color
direction.
Step3: As shown in picture below, take ribbon cartridge’s side, install the
ribbon cartridge and close the upper cover.
Ribbon mounting direction: Red roller close to the Back-end card exit mouth(left), white roller close
to the input hopper (right).
Red roller supply with unused ribbon. White roller supply with used ribbon.
Red end is supply roller with unused ribbon. White end is pickup roller
with used ribbon.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 11 / 53
5.3 Adjust the feed card thickness
Open the upper cover and input hopper dust cap, move the yellow lever
to adjust the feed card thickness. Support 0.3mm to 1.0mm thickness
cards. Factory preset thickness is 0.8mm.
Figure 1: The feed card thickness needs to be adjusted according to the card’s actual
thickness
Figure 2: Factory preset thickness is 0.8mm
5.4 Place the card, Add the weight module
Step1: Open the input hopper dust cap, Place the card.
Yellow lever
Graduated ruler
For the blank or contactless chip
cards,No place direction demands
Figure 1
Figure 2

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 12 / 53
Contact chip cards require the chip face up, otherwise data can not be
read or written to the chip card. (Put the card like an ATM direction).
If you are using magnetic strip card, please place the card according to
below picture (magnetic strip at right side).
Step2: Add the weight module.
It’s function is to increase the friction between the card and the roller, making the card
feeding more smoothly.
⚫Magnetic side face down
⚫Magnetic strip at right side
⚫Chip face up
⚫Chip toward card exit mouth

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 13 / 53
5.5 Install output hopper
Attach output hopper to the card printer’s card exit mouth at back
side.
\
5.6 Wiring installation
Step 1: Take out the power cable and power adapter from the
accessories box. Connected all cables as below picture.
Card exit mouth
Output hopper
Output hopper is to storage printed cards.
Power cable
Power adapter

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 14 / 53
Step 2: The power adapter DC output connected to the card printer
power interface, and the power line AC input connected to the mains
socket.
Step 3: Communication interface cables installation
USB communication interface installation: USB-A interface (square type) connect
to PC end and USB-B interface (round type) connect to card printer’s USB port.
USB-B interface(square type)
USB-A interface (round type)
To ensure the card printer work stably, please use Seaory original power adapter.
Main socket
Power adapter
Card printer

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 15 / 53
Ethernet communication interface installation: RJ45 network interface, 568B
connection mode.
6. Driver installation
6.1 Operation system
Support Windows XP/7/8/10, Windows Server
2003/2008/2012/2016, Linux, Android
6.2 Notice before installation
（1）Card printer driver can be download from accessories box’s
CD or official website : www.seaoryprinter.com.
Interchanger
Card printer
PC
Support USB and Ethernet communication interface. It’s recommended to choose one.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 16 / 53
（2）Some antivirus applications will stop the driver installation, so
please close all antivirus applications before installation. After finished,
you can open all antivirus applications.
（3）Please do not power on card printer until the driver installation
is completed.
（4）Connect card printer power supply and USB communication
interface in advance (please refer to 5.5 wiring installation).
6.3 Driver installation steps (USB communication interface)
Step 1: Double-click the icon “Seaory S series driver exe”.
Step 2: Then click “Install” button as show in below picture.
The driver will be continuously updated, the version number will be the actual version.
Please install driver by administrator and close all antivirus applications before installation.

Seaory S22 Desktop Dual-sided Card Printer
Excellent quality, Perfect service www.seaory.com 17 / 53
Step 3: Wait for one minute.
Step 4: Please select always trust software from “Shenzhen Seaory
Technology Co., Ltd.” in the pop-up windows, then click the “Install”
button.
