SECO-LARM ENFORCER SD-C101-SBBQ User manual

65/16”
(160mm)

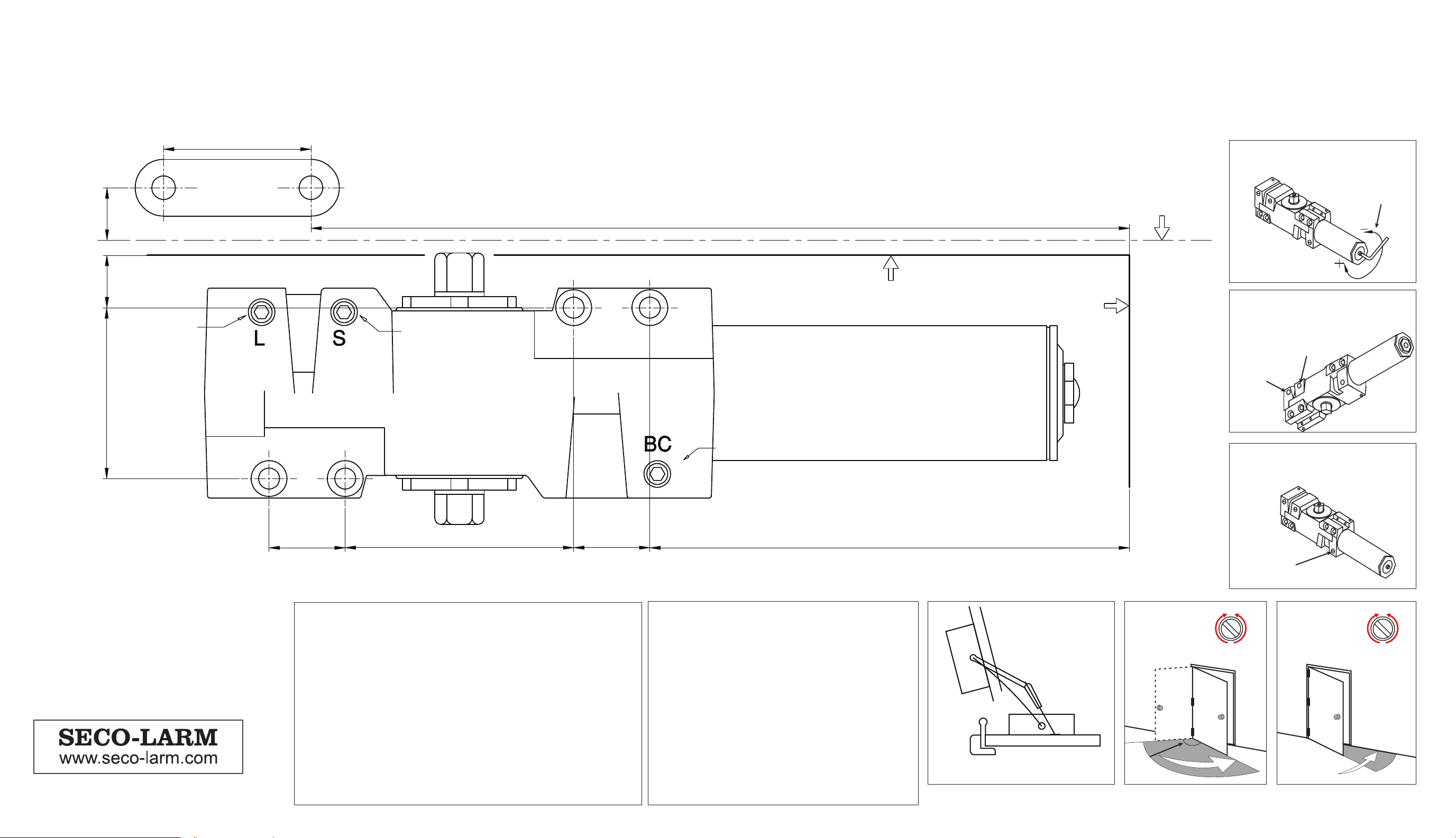

INSTALLATION TEMPLATE FOR ENFORCER HEAVY-DUTY SURFACE-TYPE DOOR CLOSER WITH BACK CHECK
Model: SD-C101-SBBQ
For Left-Hand Door
© 2016 SECO-LARM U.S.A. Inc. All rights reserved. This material may not be reproduced
or copied, in whole or in part, without the written permission of SECO-LARM.
MT_SD-C101-SBBQ_160125.ai
®
Slower
Faster
1”
(25.4mm)
3” (76.2mm)
1”
(25.4mm)
115/16”
(49.2mm)
103/4”
(273mm)
111/16”
(17.5mm)
111/16”
(17.5mm)
21/4”
(57mm)
Edge of Door
Frame Stop
Top of Door
CCW: Counterclockwise CW: Clockwise
Installation Tips:
1. To ease opening and closing of the door, you can “pre-load” the closer arm
by using a wrench on the axle to move it by 45 degrees, so that the arm will
not have to travel through the initial open sweep.
2. Adjust the “Back Check” (BC) setting so that the door will open smoothly to
the full extent of the swing required.
3. Adjust the Sweep ”S” speed to have the door swing slowly.
4. Adjust the Latch “L” speed to have the door swing the last few inches with
enough force to latch.
5. Door closer comes preset as ANSI size “3”. To change size, turn the spring
power adjustment screw:
1: 5 turns CCW 4: 5 turns CW
2: 3 turns CCW 5: 10 turns CW
3: No turns 6: 15 turns CW WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used
in normal service for a period of five (5) years from the date of sale to the original consumer customer.
Hinge
Door
Left-Hand Door Opening
Latch
speed
adjustment
130°
Sweep
speed
adjustment
Slower
Faster
Parts List:
4x Self-tapping & self-drilling machine screw (ST6.3*75)
1x Self-tapping & self-drilling wood screw (ST6.3*50)
4x Self-tapping & self-drilling wood screw (ST6.3*38)
4x Countersunk head self-tapping screw (ST6.3*70)
4x Countersunk head screw (1/4-20*38)
1x Half countersunk head screw (1/4-20*9.5)
1x Arm head screw (1/4-20*13.5)
4x Hollow screws
2x Cover screws
1x Hex wrench (2.5mm)
1x Hex wrench (4mm)
1x Parallel arm bracket
1x Black plastic cushion block
Turn Power Adjustment screw CW to
increase or CCW to decrease Spring
Power
Spring Power
Adjustment
Back Check Screw
Latch
Screw Sweep
Screw
Turn Back Check Adjustment screw
CW to increase or CCW to decrease
Back Check
Back Check
Screw
Turn Latch or Sweep Adjustment screw
CCW to increase or CW to decrease
Latch or Sweep Speed
Latch speed
Screw
Sweep speed screw

65/16”
(160mm)
1”
(25.4mm)
3” (76.2mm)
1”
(25.4mm)
103/4”
(273mm)
111/16”
(17.5mm)
111/16”
(17.5mm)
21/4”
(57mm)
115/16”
(49.2mm)
Frame Stop
Edge of Door Top of Door
INSTALLATION TEMPLATE FOR ENFORCER HEAVY-DUTY SURFACE-TYPE DOOR CLOSER WITH BACK CHECK
Model: SD-C101-SBBQ
For Left-Hand Door
© 2016 SECO-LARM U.S.A. Inc. All rights reserved. This material may not be reproduced
or copied, in whole or in part, without the written permission of SECO-LARM.
MT_SD-C101-SBBQ_160125.ai
®
Slower
Faster
CCW: Counterclockwise CW: Clockwise
Installation Tips:
1. To ease opening and closing of the door, you can “pre-load” the closer arm
by using a wrench on the axle to move it by 45 degrees, so that the arm will
not have to travel through the initial open sweep.
2. Adjust the “Back Check” (BC) setting so that the door will open smoothly to
the full extent of the swing required.
3. Adjust the Sweep ”S” speed to have the door swing slowly.
4. Adjust the Latch “L” speed to have the door swing the last few inches with
enough force to latch.
5. Door closer comes preset as ANSI size “3”. To change size, turn the spring
power adjustment screw:
1: 5 turns CCW 4: 5 turns CW
2: 3 turns CCW 5: 10 turns CW
3: No turns 6: 15 turns CW WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used
in normal service for a period of five (5) years from the date of sale to the original consumer customer.
Hinge
Door
Left-Hand Door Opening
Latch
speed
adjustment
130°
Sweep
speed
adjustment
Slower
Faster
Parts List:
4x Self-tapping & self-drilling machine screw (ST6.3*75)
1x Self-tapping & self-drilling wood screw (ST6.3*50)
4x Self-tapping & self-drilling wood screw (ST6.3*38)
4x Countersunk head self-tapping screw (ST6.3*70)
4x Countersunk head screw (1/4-20*38)
1x Half countersunk head screw (1/4-20*9.5)
1x Arm head screw (1/4-20*13.5)
4x Hollow screws
2x Cover screws
1x Hex wrench (2.5mm)
1x Hex wrench (4mm)
1x Parallel arm bracket
1x Black plastic cushion block
Turn Back Check Adjustment screw
CW to increase or CCW to decrease
Back Check
Back Check
Screw
Latch speed
Screw
Sweep speed screw
Turn Latch or Sweep Adjustment screw
CCW to increase or CW to decrease
Latch or Sweep Speed
Turn Power Adjustment screw CW to
increase or CCW to decrease Spring
Power Spring Power
Adjustment
Sweep
Screw
Latch
Screw
Back Check Screw
