SECO-LARM Enforcer SD-C141S Installer manual

Surface-Type Door Closer
SD-C141S With Adjustable Sweep and Latch Speed
Reversible non-handed design.
For metal or wood doors up to 42" (107cm) wide.
Two independent valve adjustments for easy
setting of sweep and latch speed.
Back plate slides into place to cover adjustment
screws.
3
Narrow projection of only 1 /8" (35mm).
Anodized aluminum body.
Silver finish.
Forged steel arms.
Includes complete mounting hardware.
Two independent
valve adjustments:
1. Latch speed
2. Sweep speed
SD-962AR-36A For Exit Doors from 30" (76cm) to 48" (122cm) Wide
SD-962HL-4A Entry-Type Lever Trim, Non-Handed
For exit doors -- Allows exit from inside while locked
from outside.
Reversible non-handed design.
3
For metal or wood doors up to 1 /4" (45mm) thick.
3
Stainless-steel, /4" (19mm) throw latch bolt.
Deadlocking latch -- Prevents the use of credit
cards or similar means to open the latch bolt.
1
Allen-type /4-turn dogging lock -- Allows the exit
bar to be unlocked for extended periods of time.
Includes all hardware for typical installations.
Works with standard external door handle/lock
devices such as SD-962HL-4A (see below).
Heavy-duty steel construction.
Stainless-steel spring.
Rim-Type Exit Device
SD 962AR 36A
Entry-type lock (locks from outside, opens freely
from inside).
SC4, 6-pin lock.
Two keys included.
SD-962HL-4A
NEW
SD 962HL 4A
SD-962AR-36A
Access
25
Website: www.seco-larm.com e-mail: [email protected]

Request-to-Exit Plates
‧All SECO LARM R T E Plates are available in white as well as without printing (blank). Customized printing is available. Contact SECO LARM for details.‧
7
2 /8(74mm)"
5
2 /16 (59mm)"
2 (51mm)”
S.P.D.T.
Timer
Illum.
SD-7202GC-PTQ
2” Square green, illuminated,
momentary pushbutton.
NO/NC contact rated
3A@120VAC/24VDC.
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR”
button faces.
Built-in timer (1~180 s).
Buzzer output for audio status.
7
1 /16 (37mm)"
1 (26mm)"
NEW
S.P.S.T.
SD-7201KBQ
Black momentary pushbutton
switch with ring guard.
N.C. contact rated 1A@125VAC.
7
1 /8(48mm)"
11/16" (17 5mm)
3
1 /8(36mm)"
D.P.S.T.
Illum.
SD-7103GC-PEQ
Green, illuminated, momentary
pushbutton.
NO/NC contact rated
5A@125~250 VAC.
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR”
button faces.
13
2 /16 (71mm)"
5
2 /16 (59mm)"
11/16 (17 5mm)"
SD-7103GC-PTQ
Green, illuminated, momentary
pushbutton.
NO/NC contact rated
3A@
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR”
button faces.
Built-in timer (1~180 s).
Buzzer output for audio status.
120VAC/24VDC.
S.P.D.T.
Timer
Illum.
1 (26mm)"
7
1 /16 (37mm)"
S.P.S.T.
SD-7101RAEX1Q
Red momentary pushbutton switch
with ring guard.
N.O. contact rated 1A@125VAC.
“EXIT” and “SALIDA” silk-screened
on plate.
S.P.S.T.
SD-7101KBPE1Q
Black momentary pushbutton
switch with ring guard.
N.C. contact rated 1A@125VAC.
“EXIT” and “SALIDA” silk-screened
on plate.
1
2 /8(54mm)"
13
2 /16 (71mm)" SD-7202GC-PEQ
2” Square green, illuminated,
momentary pushbutton.
NO/NC contact rated
10A@125~250 VAC.
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR”
button faces.
S.P.D.T.
Illum.
2" (51mm)
SD-7223GW-LQ
2” Square green, illuminated,
momentary pushbutton.
NO/NC contact rated
10A@125~250 VAC.
Includes: “PUSH TO EXIT” &
“PRESIONE PARA SALIR”
button faces.
White plastic plate to match décor
of certain rooms/walls.
S.P.D.T.
Illum.
NEWNEW
1
2 /8(54mm)"
13
2 /16 (71mm)"
2" (51mm)
D.P.S.T.
SD-7217GWQ
Green, ” dia., mushroom-cap
pushbutton.
NO/NC contact rated
5A@125VAC.
White plastic plate to match décor
of certain rooms/walls.
1½
1
1 /2(38mm)"
7
1 /8(48mm)"
7
2 /8(74mm)"
Access
26
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]

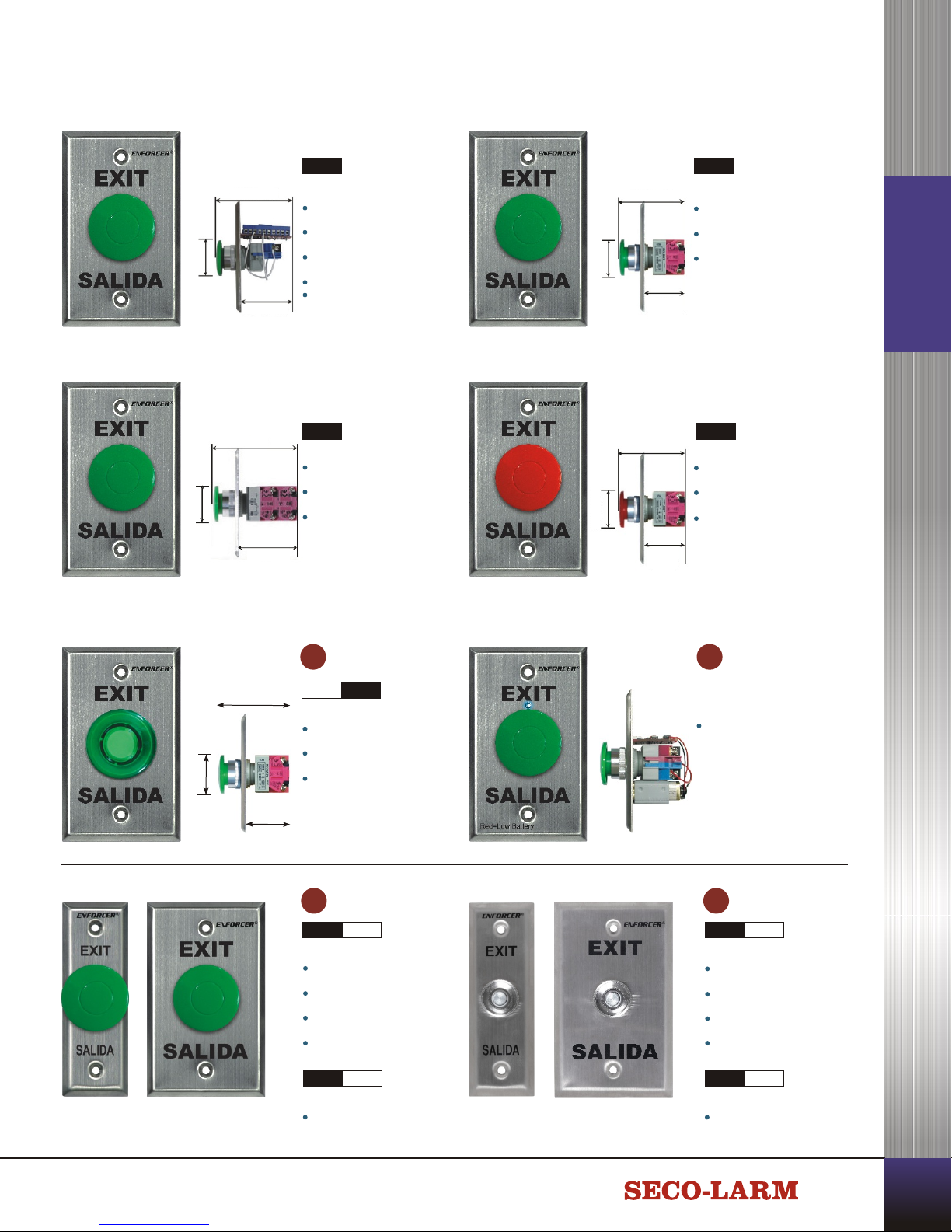

Request-to-Exit Plates
1½ (38mm)"
1½ (38mm)"
7
1 /8(47mm)"
2 (64mm)½"
7
2 /8(74mm)"
9
3 /16 (91mm)"
NEW NEW
1
1 /2(38mm)"
7
1 /8(47mm)"
7
2 /8(74mm)"
D.P.S.T.
SD-7201GC-PE1
Green, ” dia., mushroom-cap
pushbutton.
NO/NC contact rated
5A@125VAC.
“EXIT” and “SALIDA” silk-screened
on plate.
1½
SD-7113-GSP
Green, ” dia.,
mushroom-cap pushbutton.
NO/NC contact rated
5A@125VAC.
"EXIT" and "SALIDA"
silk-screened on plate.
1½
Equipped with a pneumatic
timer (2~60 sec).
1½ (38mm)"
1½ (38mm)"
5
2 /16 (59mm)" 7
1 /8(47mm)"
5
3 /16 (84mm)" 7
2 /8(74mm)"
SD-7201GA-PT1
Green, 1½” dia., mushroom-cap
pushbutton.
NO/NC contact rated
3A@
“EXIT” and “SALIDA” silk-screened
on plate.
Built-in timer (1~180 sec).
Buzzer output for audio status.
120VAC/24VDC.
S.P.D.T.
SD-7201GF-PE1
Green, ” dia., mushroom-cap
pushbutton.
D.P.D.T. switch. Two N.O. and two
N.C. contacts rated 5A@125VAC.
“EXIT” and “SALIDA” silk-screened
on plate.
1½
D.P.D.T.
D.P.S.T.
Illum.
SD-7251GCEX1Q
Green, 1½” dia., illuminated,
mushroom-cap pushbutton.
NO/NC contact rated
5A@125VAC.
“EXIT” and “SALIDA” silk-screened
on plate.
NEW
SD-7201RC-PE1
Red, ” dia., mushroom-cap
pushbutton.
NO/NC contact rated
5A@125VAC.
“EXIT” and “SALIDA” silk-screened
on plate.
1½
D.P.S.T.
RF Wireless
Pushbuttons
For a full line of RF wireless
Request-To-Exit pushbuttons,
see page 30.
Access
27
Timer
D.P.S.T.
SD-7213-GSP
Similar to SD-7113-GSP,
but single-gang.
Timer
D.P.S.T.
SD-7173-SSP
Stainless-steel, ” dia.
pushbutton.
NO/NC contact rated
5A@125VAC.
"EXIT" and "SALIDA"
silk-screened on plate.
1/4
Equipped with a pneumatic
timer (2~60 seconds).
NEW
Timer
D.P.S.T.
SD-7273-SSP
Similar to SD-7173-SSP
but single-gang.
Timer
D.P.S.T.
Website: www.seco-larm.com e-mail: [e-mail]

NEW
NEW
NEW
Wireless RF Request-to-Exit Plates
SD-8201GTPE1Q Single-Gang, 1½" (38mm) Diameter, Mushroom-Cap Pushbutton
SD-8202GT-PEQ , 2" (51mm) Square Illuminated Pushbutton
SD-8103GT-PEQ Slimline, Small Illuminated Pushbutton
Single-Gang
Ideal for hard-to-wire installations such as in cement
walls or brick buildings.
Built-in RF transmitter:
Powered by 9VDC (battery included).
Operates at 315MHz and up to 50ft (15m).
10
Over 68 billion (6.8x10 ) possible codes.
Compatible with all SECO-LARM receivers.
LED to indicate RF transmission and low battery:
Blue: Normal Operation, Red: Low Battery
–
–
–
–
–
SD 8202GT PEQ
SD 8201GTPE1Q
SD 8103GT PEQ
1½
(38mm)
"4½
(115mm)
" 4½
( 115mm)
"
4½
(115mm)
"
2
(51mm)
"
3/4"
( 18mm)
1
2 /8(54mm)" 1
2 /8(54mm)"
1
2 /8(54mm)"
1
3 /8(80mm)" 1
2 /4(57mm)"
11
2 /16 (68mm)"
NEW
NEW
SD-9163-KSVQ Outdoor "No Touch" Slimline Plate with Mechanical Override Button
SD-9263-KSVQ Outdoor "No Touch" Single-gang Plate with Mechanical Override Button
SD 9163 KSVQ SD 9263 KSVQ
NEW
NEW
SD-9163-KSQ Outdoor "No Touch" Slimline Plate
SD-9263-KSQ Outdoor "No Touch" Single-gang Plate
SD-9163-KSVQ
Outdoor slimline "No-Touch" sensor.
Adjustable sensing range and delay time.
Mechanical override button.
SD-9263-KSVQ – Similar to SD-9163-KSVQ,
but single-gang.
SD-9163-KSQ – Similar to SD-9163-KSVQ,
but without mechanical override button.
SD-9263-KSQ – Similar to SD-9263-KSVQ,
but without mechanical override button.
SD 9163 KSQ SD 9263 KSQ
"No Touch" Request-to-Exit Plates
Access
28
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]

NEW
NEW
NEW

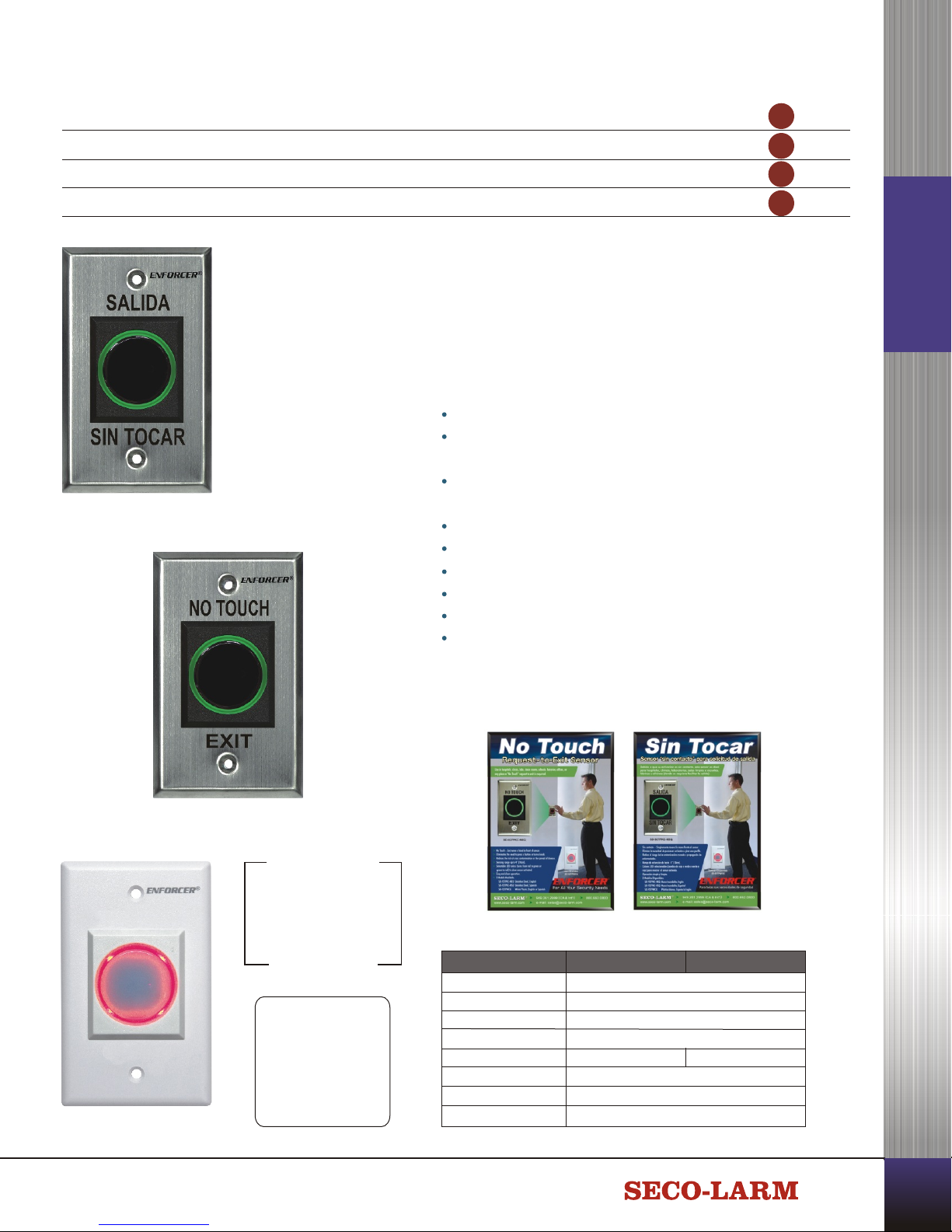

"No Touch" Request-to-Exit Plates
SD-927PKC-NEQ IR RTE Stainless-Steel Plate (English)
SD-927PKC-NFQ IR RTE Plate (French)
SD-927PWCQ IR RTE Plastic Plate (English, French & Spanish)
"No Touch"
"No Touch" Stainless-Steel
SD-927PKC-NSQ IR "No Touch" RTE Stainless-Steel Plate (Spanish)
"No Touch"
SD-927PKC-NxQ
Specifications
Operating voltage
Relay type
Response time
Output time
Sensing range
Operating temperature
Weight
Dimensions
12VDC
Form C dry contact, 3A@12VDC
10ms
0.5s or as long as unit is triggered
4” (100mm) 2” (50mm)
4°~131° F ( 20°~55° C)
3 oz (85g)
131
4 /2”x2 /4”x1 /16” (115x70x27 mm)
SECO-LARM's "No Touch" Request-To-Exit Sensors use IR
technology to open a door or activate a device with the
simple wave of a hand. The trigger distance is up to 4"
(10cm). Since they are no touch, these sensors are ideal
for use in hospitals, clinics, labs, cleanrooms (to reduce the
risk of contamination), schools, factories, or offices
(anywhere an easy way to exit is required).
"No Touch" -- Just wave a hand in front of the sensor.
Sensing range up to 4" (100mm). Range is 2" (50mm)
for SD-927PWCQ.
Selectable LED color, turns from red to green or
green to red.
Reduces the risk of cross contamination.
Easy and clean operation.
Reliable IR technology senses motion.
Durable, stainless-steel, single-gang plate.
Quick-connect screwless terminal block.
SPDT 3 Amp relay output.
SD 927PWCQ
SD 927PKC NEQ
SD-927PWCQ
NO TOUCH
EXIT
SALIDA
SIN TOCAR
SORTIE
SANS CONTACT
SD-927PWCQ
incorporates a white
plastic faceplate to
match the décor of
many walls.
Six decals included:
(AD DBO SD927E) (AD DBO SD927S)
Optional Point-of-Sales Displays -- Display ad available
in English or Spanish, which includes a working
demonstration sensor.
Access
29
NEW
SD 927PKC NSQ SD 927PKC NFQ
Website: www.seco-larm.com e-mail: [email protected]

Request-to-Exit Plates --- Vandal Resistant
SD-7204SGEX1Q
Vandal-resistant, ½” dia.,
stainless-steel pushbutton.
NO/NC contact rated
5A@250VAC.
“EXIT” and “SALIDA”
silk-screened on plate.
D.P.S.T.
SD-7104SGEX1Q
Vandal-resistant, ½” dia.,
stainless-steel pushbutton.
NO/NC contact rated
5A@250VAC.
“EXIT” and “SALIDA”
silk-screened on plate.
D.P.S.T.
1½" (38mm)
1
1 /4" (32mm)
SD-7175SGEX1Q
Vandal-resistant, ½” dia.,
illuminated momentary
pushbutton.
2-Color illuminated
red/green LED (12VDC).
NO/NC contact rated
5A@250VAC.
“EXIT” and “SALIDA”
silk-screened on plate.
D.P.S.T.
Illum.
1½" (38mm)
1
1 /4" (32mm)
1½" (38mm)
1
1 /4" 32( mm)
1½" (38mm)
1
1 /4" (32mm)
D.P.S.T.
Illum.
SD-7275SGEX1Q
Vandal-resistant, ½” dia.,
illuminated momentary
pushbutton.
2-Color illuminated
red/green LED (12VDC).
NO/NC contact rated
5A@250VAC.
“EXIT” and “SALIDA”
silk-screened on plate.
Request-to-Exit Key Switch Plates
SD-72051-V0 Momentary (N.C., turn to open, pre-wired) Switch, Single Gang
SD-71051-V0 Momentary (N.C., turn to open, pre-wired) Switch, Slimline
SD-72002-V0 Shunt (N.C., turn to open, pre-wired) Switch, Single Gang
SD-71002-V0 Shunt (N.C., turn to open, pre-wired) Switch, Slimline
Single Gang
SD-72051-V0
SD-72002-V0
Slimline
SD-71051-V0
SD-71002-V0
Keylock Switch Types:
SD 72051 V0
SD 71051 V0
Maintained ON
Momentary OFF
SD 72002 V0
SD 71002 V0
Maintained ON
Shunt OFF
SD-72051-V0
SD-71051-V0
n to open, pre-wired)
Momentary Switch, Single-Gang Plate
Momentary Switch, Slimline Plate
Stainless-steel plate.
Includes shunt ON, momentary OFF
(N.C., tur spring-loaded keylock switch.
Switch is maintained ON, springs back from OFF.
Key is removable from the ON position only.
SD-72002-V0
SD-71002-V0
Shunt Switch, Single-Gang Plate
Shunt Switch, Slimline Plate
Stainless-steel plate.
Includes maintained ON/OFF,
(N.C., turn to open, pre-wired) keylock switch.
Switch can be left ON or OFF.
Key is removable from the ON or OFF position.
Specifications
Contact Rating 1A@12VDC
Replacement Keys SS 090KN 0
60°
30°
ON (N C ) Springs
Back
OFF (N O )
60°
30°
ON (N C )
OFF (N O )
Access
30
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]

SS-090
Shunt On/Off
Two Terminals, SPST
SS-090-1
Two Terminals, SPST
Shunt On/Off
Maintained ON/OFF,
key removable from OFF position only.
Commonly used in situations which
require return of key to ensure device
is turned OFF.
Replacement keys available.
See chart below.
SS-092-2
Shunt On/Off, Off/On
Four Terminals, Dual SPST
SS-095
Momentary On/Shunt Off
Two Terminals, SPST
Tubular Key Lock Switches
Remote Plates
SS-090 SS-095 SS-090-1 SS-092-2 SS-090KN Key #
SS 090 2H1 SS 095 1H1 SS 090 1H1 SS 090KN 1 1301
SS 090 2H3 SS 095 1H3 SS 090KN 3 1303
SS 090 2H5 SS 095 1H5 SS 090KN 5 1305
SS 090 2H7 SS 095 1H7 SS 090KN 7 1307
SS 090 2H9 SS 095 1H9 SS 090KN 9 1309
SS 090 2H0 SS 095 1H0 SS 090 1H0 SS 092 2H0 SS 090KN 0 1300
SS 090 2H2 SS 095 1H2 SS 090KN 2 1302
SS 090 2H4 SS 095 1H4 SS 090KN 4 1304
SS 090 2H6 SS 095 1H6 SS 090KN 6 1306
SS 090 2H8 SS 095 1H8 SS 090KN 8 1308
SS 090 2HX SS 095 1HX SS 090KN X 1310
SS-090KN
Spare Keys
SS-199 SS-299
Maintained OFF, springs
back from ON, key removable
from OFF position only.
Commonly used for
momentary arm/disarm
alarm inputs or other
applications requiring
high-security momentary ON.
Replacement keys available.
See chart below.
Maintained ON/OFF,
key removable from both
ON and OFF positions.
Commonly used as
ON/OFF switch to arm/
disarm alarm or shunt zone.
Replacement keys available.
See chart below.
Two switches, one always
ON while the other is OFF.
Connect terminals 1
& 2 for SPDT contact.
Use to arm/disarm
car alarms and
break starter circuit.
Replacement keys available.
See chart below.
Replacement keys for the above
tubular key lock switches. Eleven
different key numbers available
(1300-1310).
See chart for information on which
key numbers are available for each
key lock and the correct key lock part
number for ordering.
Keylock Model Number Chart
Stainless-steel single-gang
3
plate with /4” D-hole.
Note: Please specify key number when ordering.
Please see below.
Stainless-steel slimline
3
plate with /4” D-hole.
60°
30°
OFF (N O )
ON (N C )
60°
30°
OFF (N O )
ON (N C )
60°
30°
OFF (N O )
ON (N C )
60°
15°
15°
OFF (N O )
ON (N C )
(Only below key #'s are available)
Access
31
Website: www.seco-larm.com e-mail: [email protected]

NEW
NEW

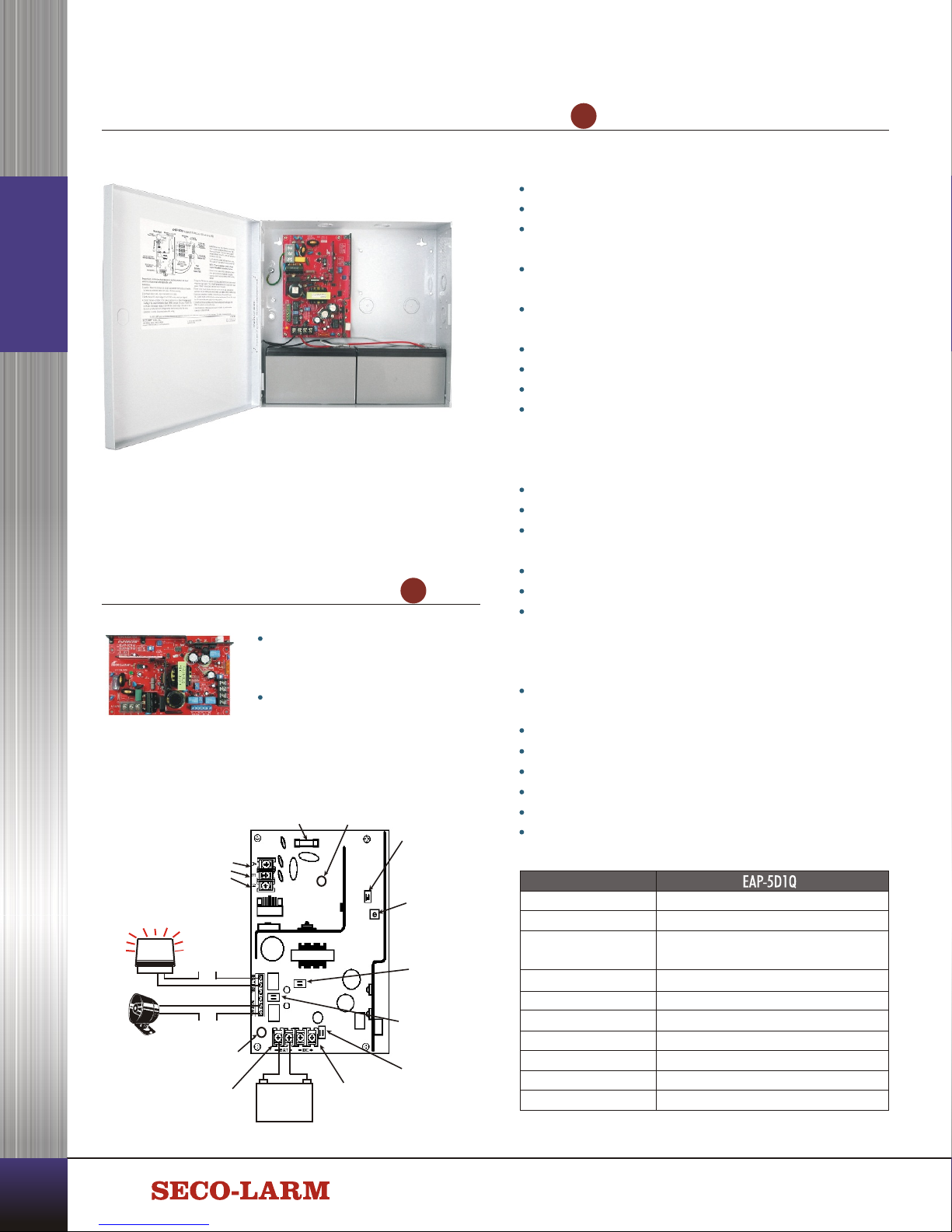

EAP-5D1Q One Output, 5A@12VDC (4.5A@24VDC)
Features :
AC power-failure supervision relay.
Battery-failure supervision relay.
Selectable 2.2 kOhm End-of-Line (EOL) resistor
for AC-failure and battery-failure supervision relays.
Selectable delay timer (5 seconds, 5 minutes,
5 hours) for AC-failure supervision relay.
LED overload indicator and automatic shutdown for
short-circuit protection.
Over-current fuse-protected AC input.
Built-in backup battery charger.
Automatically switch to backup battery if AC fails.
Individual AC input and DC output LED status
indicators.
Power:
Field-selectable 12 or 24 VDC output.
Operating voltage input: 110~240 VAC.
Adjustable output voltage range (11~15 VDC,
23~26 VDC) to compensate for voltage drops.
Supply current: 5A@12VDC, 4.5A@24VDC.
AC input fuse rating 3.15 Amp (glass fuse).
DC output overload sensing with red LED indicator
and automatic shutdown during short circuit.
Enclosure:
Heavy-duty steel case to protect the power
connections.
Removable steel cover for easy access.
Ventilation holes to prevent heat buildup.
Enclosure has enough room for two 7AH batteries.
6ft (1.8m) Power cord and battery leads included.
7 3 9
Dimensions: 12 /16”x12 /16”x3 /16” (316x310x90 mm).
Knockout on the cover for optional cam lock.
Access Control Power Supply
7 3
Dimensions: 12 /16 12 /16
(316x310x90 mm)
9
"x "x3 /16"
EAP-5D1MQ Power Supply Board
+
-
AC input LED
status indicator
AC input fuse DIP switch
for 12 or 24 VDC
output selection
VR1 rotary knob
for DC output
voltage range
adjustment
AC failure
delay timer
DIP switch
End-of Line
(EOL) 2.2 kOhm
resistor DIP switch
Battery presence
and low battery
monitor DIP switch
DC output
terminal block
12 VDC Battery
(Optional)
Back-up
battery terminal
DC output LED
status indicator
AC failure Supervision
Relay Output to
Audio/Visual
warning device
Power Supply
Power Supply
Battery failure & low battery
Supervision Relay Output to
Audio/Visual warning device
110~240 VAC
Input
Same access control power
supply board as is used in
EAP-5D1Q above.
3 3
Dimensions: 7"x4 /4"x1 /4"
(178x120x44 mm).
(Batteries not included)
Sample Application:
Specifications
Output voltage 12 or 24 VDC selectable via DIP switch
Input voltage 110~240 VAC
Adjustable output 11~15@12VDC setting, via VR switch
voltage range 23~26@24VDC setting, via VR switch
# of outputs 1
Supply current 5A@12VDC/4.5A@24VDC
AC input fuse rating 3.15A (glass fuse)
LED status indicator AC input (Green), DC output (Red)
End-of-line resistor (EOL) Selectable ON (2.2 k ) or OFF via DIP switch
AC-failure relay delay timer Selectable 5s, 5min or 5h via DIP switch
Supervision relays Contact rating: 3A@24VDC dry relay output
Ω
Accessory:
Access
32
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]

NEW
NEW
NEW
Video Door Phone
DP-121Q Includes One Monitor and One Camera, Black and White
DP-121-SQ Additional Monitor
DP-121-CQ Additional Camera
Camera
Monitor
Display
Weight
Current draw
Power source
Dimensions
CRT
2 lb 8 oz (1.1kg)
800mA@15~18 VDC
15VDC+/ 15%
11 1
5
9 /8"x7 /16"x3 /8" (245x196x79 mm)
SECO-LARM's Video Door Phone displays an
image of the visitor in real time on the phone's
monitor, and a built-in microphone and speaker on
the camera unit lets users communicate with visitors.
Authorized visitors can then be granted entry with
the push of a single button.
Interconnect up to two cameras and two monitors.
For home or business use.
Camera has six LEDs for nighttime operation.
Remotely and securely talk to visitors.
Remotely unlock doors, gates, etc. from the monitor.
Simple four-wire connection.
Easy surface-mount installation.
Camera and monitor turn on and off with the push
of a button.
Camera and monitor turn off automatically when
not in use.
Adjustable contrast, brightness, and ringer volume.
LED indicators for power and operation.
Camera contains a built-in angle adjustment.
Easily connect an additional monitor
and/or an additional camera
Secondary Monitor: DP-121-SQ
Additional Camera: DP-121-CQ
Sample Application:
Primary Monitor Secondary Monitor
(Optional DP-121-SQ)
Locking Device
(not included)
Locking Device
(not included)
Camera 1 Camera 2
( DP-121-CQ)Optional
Type
Chip
Resolution
Relay output
Lens
Min. illumination
Weight
Dimensions
B/W Camera
CCD
380 TV lines
1A@12VDC max. dry contact
3.6mm
0.8 lux
8 oz (220g)
115 1
5 /4"x3 /16"x1 /2" (134x100x38 mm)
Specification:
Specification:
Access
33
Website: www.seco-larm.com e-mail: [email protected]

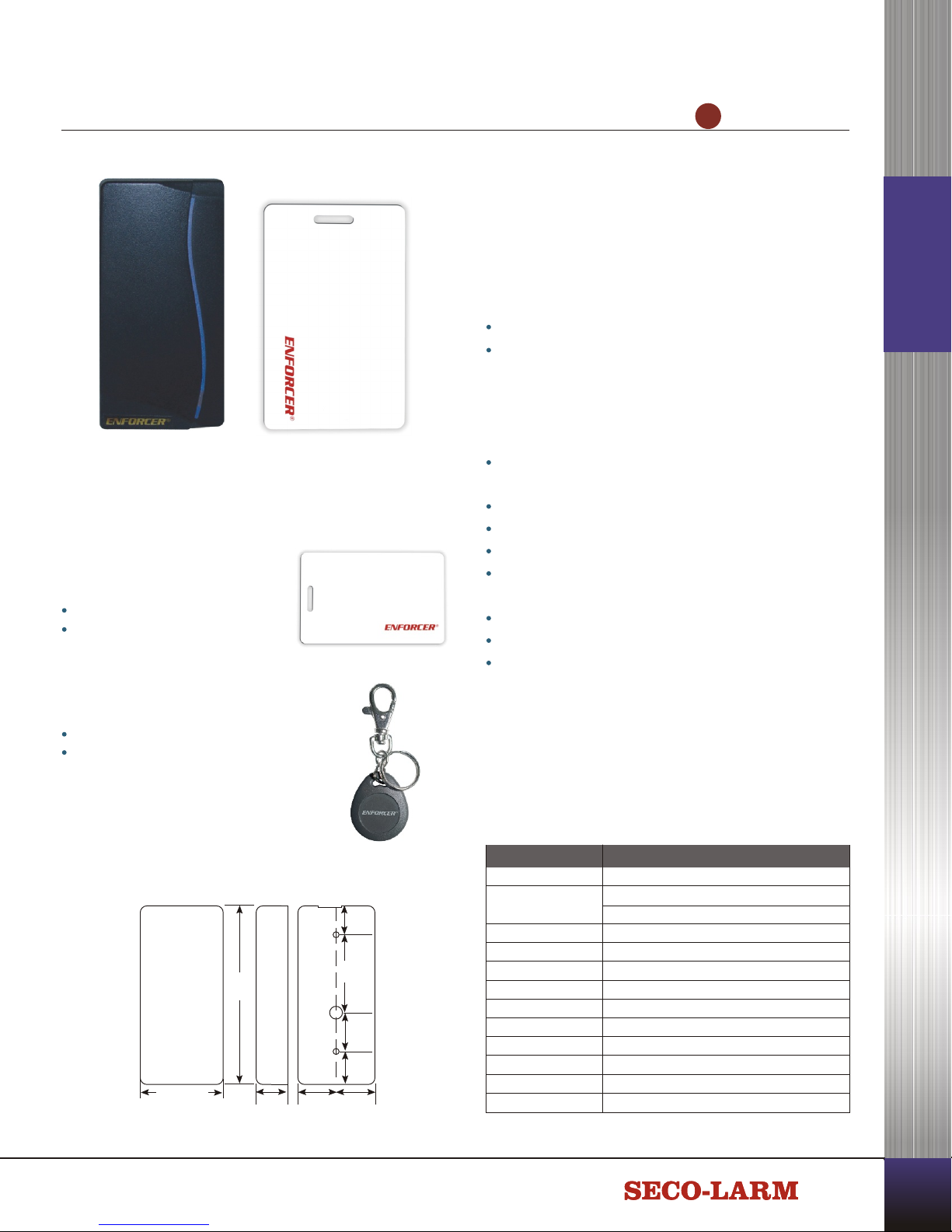

Stand-Alone Proximity Reader
PR-112S-A Tri-color LED Status Bar, Weatherproof, 100-User Capability NEW
Accessories:
PR-K1S1-A Proximity Cards
Additional user cards.
Sold in packages of 10.
PR-K1K1-AQ Key-Fob Proximity Tags
Additional user cards, key-fob style.
Sold in packages of 10.
The stylish case and small size make the PR-112S-A
ideal for use in offices, homes, and apartments.
The wave-shaped tri-color LED status bar accents the
case design. Simple installation, quick programming,
and high reliability make the PR-1125-A ideal for any
situation.
Sealed and weatherproof (IP67).
Tri-color wave-shaped LED status bar indicates
proximity reader's mode and status:
On/Valid Card Indicator
Programming Mode
Invalid Card
Output relay for either timed (1 to 180 seconds) or
"Toggle" mode.
Egress input for exiting the protected premises.
Buzzer for audible confirmation (programmable).
Up to 100 user cards can be programmed.
User cards easily deleted. Delete a single card,
or all cards.
Up to five "Master" cards can be programmed.
10 Cards included.
•
•
•
Additional cards available in standard
(model # PR-K1S1-A) or key-fob
(model # PR-K1K1-AQ) size.
Blue
Green
Red
Proximity
Card Reader
Proximity Card
(10 cards included)
Access
Dimensions:
PR-112S-A
Specifications
Operating voltage
Current draw
Max. read distance
User card limit
Master card limit
Transmit frequency
Output
Contact rating
Relay time delay
Operating temp.
Enclosure rating
Dimensions
12VDC
Standby: 80mA@12VDC
Active: 200mA@12VDC
6" (15cm)
100 Cards
5 Cards
125 kHz
1 Relay (NO/NC/COM)
1A@30V
1~180 s or Toggle mode
4 ~158 F ( 20 ~70 C)
IP67
3
3 / "x1 "x " (95x44x17 mm)
4
° ° ° °
3 11
/ /
4 16
3
3/”
4
(95mm)
3
1 /4” (44mm)
(17mm)
9
1 /16”
(40mm)
13 16”
/
(21mm)
11/16”
(17mm)
5/ ”
8
(16mm)
(21mm)
Front
Back (Mounting Plate)
(21mm)
13 ”
/16
13 ”
/16
11/16”
Website: www.seco-larm.com e-mail: [email protected]
35

3
1 /8"
(34mm)
3
1 /4"
(44mm)
5
4 /8"
(117mm)
7
2 /8"
(73mm)

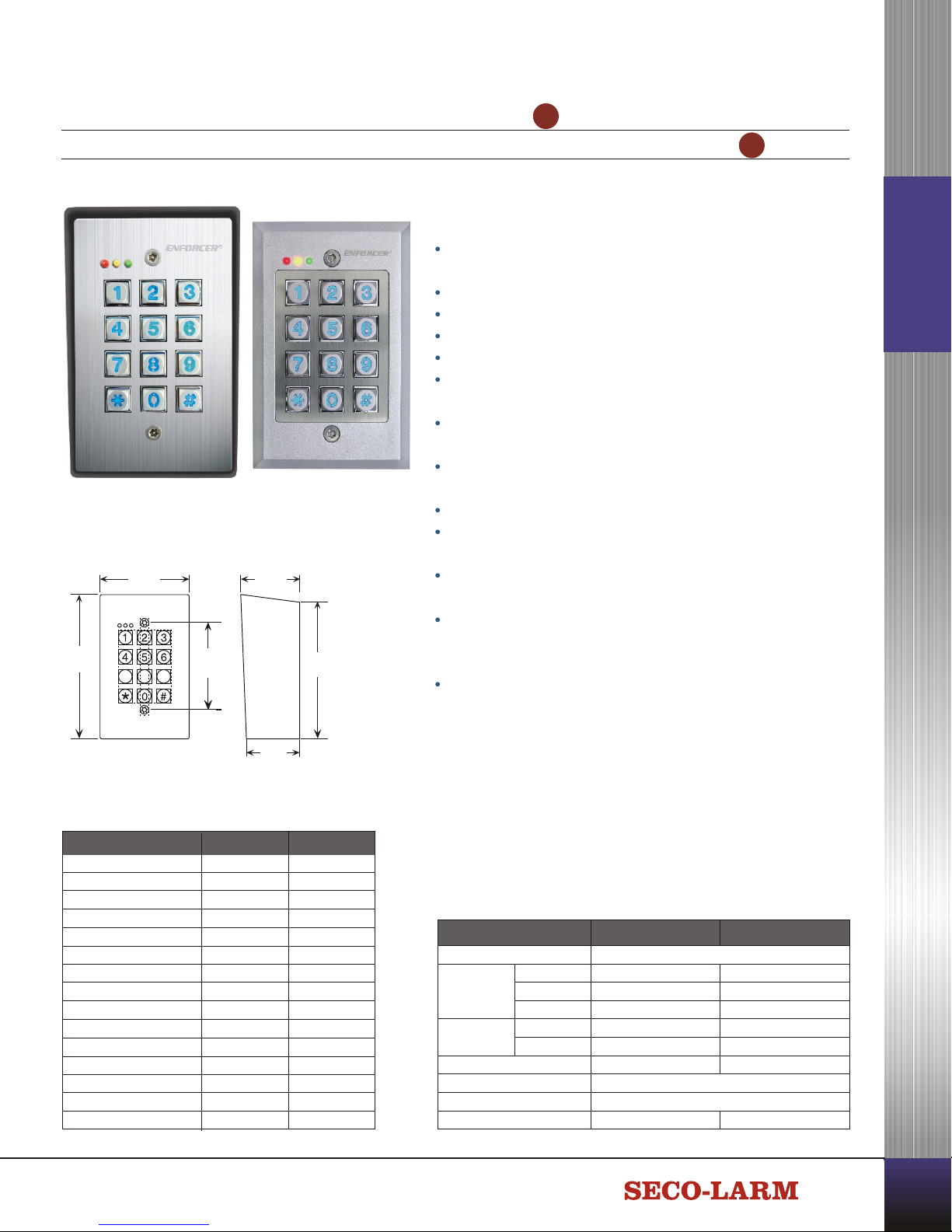

Digital Access Keypads
SK-1011-SQ One Output, 100 Users
SK-1131-SQ Three Outputs, 120 Users, Backlit Keypad
Door unlocked announcer
Request to exit input
Main relay lockout
Tamper switch
Silent operation
Operating voltage
Number of outputs
Number of users
Backlit keypad
Mantrap
Door forced open warning
Door propped open warning
Key activation output
Door auto relock
Alarm output
Duress output
LED connections
Yes
Yes
Yes
Yes
Yes
12~24 VAC/VDC
1
100
No
No
No
No
No
No
No
No
Fixed internal
SK-1011-SQ
Yes
Yes
Yes
Yes
Yes
12~24 VAC/VDC
3
120
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
External connection*
* LEDs can be wired to show status of external devices such as an alarm control panel.
SK-1131-SQ
SK-1011-SQ SK-1131-SQ
Three outputs: Two relays, one transistor.
Backlit keypad: For easy daytime and nighttime use.
Mantrap: Ensures only one door can be opened at a time.
Duress output after multiple failed code entries.
Door-forced-open warning: Keypad beeps continuously
if the door to the protected premises is forced open.
Door-propped-open warning: Beeps continuously if the
door is open after the programmed open time elapses.
Alarm output: Can trigger an optional alarm control panel
if a protected door is forced open or propped open.
Keypad active output: Activates for 10 seconds when
any key on the keypad is pressed.
Door auto relock: Can relock an open door when
the relock time expires or after the door is closed.
Additional Features for SK-1131-SQ:
Ideal for access and security applications.
Code lockout after multiple failed code entries.
Stainless-steel face, durable and attractive.
Built-in buzzer for audible confirmation.
Form C relay output (5A@28VDC).
Output relay activation buzzer.
Relay output inhibit control (programmable) –
Locks the relay output to prevent user access.
Auto or manual code-entry checking.
Egress input -- Lets users exit the protected premises
without keying in the code.
Built-in tamper (N.C.) circuit.
EEPROM memory -- Prevents data loss.
Power -- 12~24 VAC/VDC, no need to change jumpers.
Shared Features:
Dimensions:
Model Comparison Chart:
Operating voltage
10mA@12VDC
30mA@12VDC
80mA@12VDC
5A@28VDC
N/A
10mA@12VDC
30mA@12VDC
130mA@12VDC (2 relays active)
5A@30VDC
6 oz (180g) 7 oz (200g)
1A@28VDC
100mA@24VDC
Standby
Key pressed
Relay output
Relay #1
Relay #2
Current draw
Relay output
N.O. ground
N.C. ground
Transistor ground output
Egress
Door sensor input
Weight
N/A
12~24 VDC/VAC
SK-1011-SQ SK-1131-SQ
Specifications:
Access
36
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]

NEW
NEW
Outdoor Digital Access Keypads
SK-1123-SQ 110 Users, Two Relays, Surface Mount
SK-1123-FQ 110 Users, One Relay, One Transistor Ground O/P, Flush Mount
Model Comparison Chart:
Each relay can be programmed for momentary
(1~999 seconds) or toggle operation.
Code flexibility: Each code can be 4~8 digits long.
Egress input for exiting the premises.
Dual voltage: 12~24 VAC/VDC operation.
Tamper switch: N.C. Dry contact 3A@12VDC.
Mantrap: For a protected area with two doors, this feature
allows only one door to be open at any time.
All features are programmed directly from the keypad,
eliminating the need for an external programmer.
Duress output: Signals a silent alarm if an authorized user
is forced to open the door under duress.
Door-forced-open and door-propped-open alarm output.
Keypad can be programmed to emit beeps for key
presses or operate in silent mode.
Programmable backlight: Always ON, ON when keys
are pressed, Always OFF; suitable for solar applications.
Auto or manual code-entry checking:
– Auto: No # key required after each code.
– Manual: # Key must be pressed after every code.
Anti-Tailgate: Auto-relock to prevent tailgating.
Operating voltage
15mA@12VDC
45mA@12VDC
130mA@12VDC (2 relays)
5A@28VDC
1A@28VDC
10mA@12VDC
45mA@12VDC
100mA@12VDC
5A@30VDC
22 oz (630g) 15 oz (430g)
N/A
100mA@24VDC
SK-1123-SQ SK-1123-FQ
Standby
Key pressed
Relay output
Relay #1
Relay #2
Current draw
Relay output
N.O. ground
N.C. ground
Transistor ground output
Egress
Door sensor input
Weight
N/A
12~24 VDC/VAC
SK-1123-SQ
SK-1123-SQ
SK-1123-FQ
SK-1123-FQ
Specifications:
Number of users
Number of outputs
Number of relays
Backlit keys
Tamper switch
Door unlocked annunciation
Request to exit input
Main relay lockout (inhibit)
Mantrap
Door forced open warning
Door propped open warning
Door auto relock
Alarm/duress output
Key activation output
Type of mounting
110
2
2
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Surface
110
2
1
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
Yes
No
Flush
7 8 9
415/16"
(125mm)
31/8"
(78mm)
2"
(51mm)
45/8"
(118mm)
113/16"
(45mm)
31/4"
(82mm)
Dimensions:
Access
37
Website: www.seco-larm.com e-mail: [email protected]

NEW
Vandal-Resistant Outdoor Keypad
Specifications
Number of outputs
Relay output
Additional outputs
Egress
Inhibit input
Dimensions
Weight
SK-3123-SQ 101 Users, Two Outputs, Rugged Stainless-Steel, Illuminated
The ENFORCER SK-3123-SQ is rugged, vandal resistant,
and weatherproof, making it ideal for outdoor applications.
The keypad can be programmed to operate a fail-safe or
fail-secure locking device.
Unique faceplate hinge allows
for easy installation.
Individual keys are backlit.
Entire keypad illuminated
for easy nighttime use.
Over 100 million possible code combinations.
Code flexibility: Each code can be 2~8 digits long.
Dual voltage: 12~24 VDC/VAC operation.
Two Form C relays, each rated at 5A@24VDC.
Keypad active outputs.
Individual keys are backlit and entire keypad is
illuminated for easy nighttime use.
All features are programmed directly from the keypad:
No need for an external programmer.
Keypad can be programmed to emit beeps for key
presses or operate in silent mode.
EEPROM memory protects programmed information
in case of power loss.
Tamper switch: N.C. dry contact 3A@12VDC.
Egress input for exiting the protected premises.
Rugged stainless-steel construction.
Current draw
Standby
Keys lit
Relay active
@
30mA 12VDC
@
75mA 12VDC
@
125mA 12VDC
2
@
5A 24VDC, Form C, NO/NC/COM
Keypad active
N.O. ground
N.O. ground
313
6 /8”x5 /4”x4 /8” (162x133x111 mm)
4 Ib 7 oz (2.1kg)
Dimensions: SK-3123-SQ
3
6 /8”
(162mm)
1
5 /4” (133mm) 3
4 /8” (111mm)
Access
38
1.949.261.2999 (CA & Int’l) 1.800.662.0800 Fax: [phone]

NEW
NEW
NEW

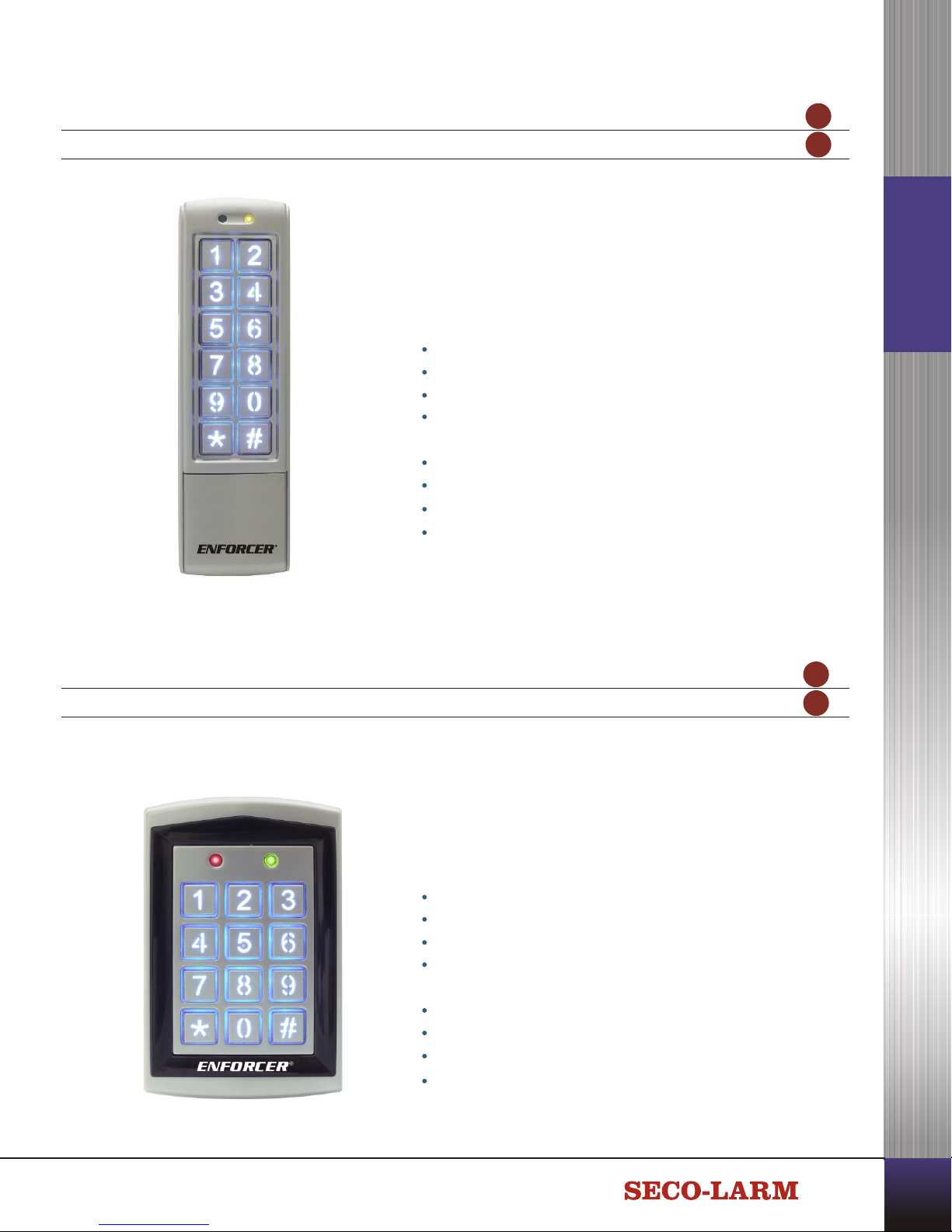

Mullion-Style Weatherproof Stand-Alone Keypads
Sealed-Housing Stand-Alone Keypads
SK-2323-SDQ 1,010 Users, Two Relay Outputs, Illuminated
SK-2323-SPQ 1,010 Users, Two Relay Outputs, Illuminated, Built-in Proximity Reader
SK-1323-SDQ 1,010 Users, Two Relay Outputs, Illuminated
SK-1323-SPQ 1,010 Users, Two Relay Outputs, Illuminated, Built-in Proximity Reader
ENFORCER Mullion-Style Weatherproof Stand-Alone
Keypads are rugged, vandal resistant, and weatherproof,
making them ideal for outdoor applications.
The SK-2323-SPQ also comes equipped with a built-in
proximity reader, allowing it to read proximity cards.
12~15 VDC operation.
Two relay outputs.
Backlit keys for easy nighttime use.
All features are programmed directly from the keypad –
No need for an external programmer.
Weatherproof for outdoor use.
3
Dimensions: 6”x1 /4”x1” (152x44x24 mm).
Rugged aluminum construction.
Additional user cards also available, model # PR-K1S1-A
or PR-K1K1-AQ. See page 35.
ENFORCER Sealed-Housing Stand-Alone Keypads are
contained in a sealed metal housing, making them suitable
for hazardous environments. The SK-1323-SPQ also comes
equipped with a built-in proximity reader, allowing it to read
proximity cards.
12~15 VDC operation.
Two relay outputs.
Backlit keys for easy nighttime use.
All features are programmed directly from the keypad –
No need for an external programmer.
Weatherproof for outdoor use.
37
Dimensions: 4 /4”x3”x /8” (120x76x22 mm).
Rugged stainless-steel construction.
Additional user cards also available, model # PR-K1S1-A or
PR-K1K1-AQ. See page 35.
NEW
SK 2323 SPQ Shown
SK 1323 SPQ Shown
Access
39
Website: www.seco-larm.com e-mail: [email protected]
