Sena SMH10 User manual

User's Guide
www.senabluetooth.com

13. TWO-WAY INTERCOM
13.1 Start and End Two-way Intercom
13.2 Intercom and Mobile Phone Call
13.3 Intercom and GPS
13.4 Intercom and Two-way Radio
14. THREE-WAY CONFERENCE INTERCOM
14.1 Start Three-way Intercom
14.2 End Three-way Intercom
15. FOUR-WAY CONFERENCE INTERCOM
15.1 Start Four-way Intercom
15.2 End Four-way Intercom
16. THREE-WAY CONFERENCE PHONE CALL WITH INTERCOM PARTICIPANT
17. INTERCOM FAILURE
18. INTERCOM RECONNECTION
19. RESET TO FACTORY DEFAULT SETTINGS
20. FAULT RESET
21. FIRMWARE UPGRADE
22. CASE STUDY
BATTERY INFORMATION
MAINTENANCE AND CARE
DISPOSAL
CERTIFICATION AND SAFETY APPROVALS
• FCC Compliance Statement
• FCC RF Exposure Statement
• FCC Caution
• CE Declaration of Conformity
• Industry Canada Statement
• Bluetooth License
WAIVER AND GENERAL RELEASE
• Two-Year Limited Warranty
• Limitation of Liability
• Return for Full Refund
WARNING
1. INTRODUCTION
2. PACKAGE CONTENTS
3. INSTALLING THE SMH10 ON YOUR HELMET
4. POWERING ON/OFF AND CHARGING
4.1 Powering On
4.2 Powering Off
4.3 Charging
4.4 Low Battery Warning
4.5 Checking the Battery Level
5. VOLUME ADJUSTMENT
6. PAIRING THE SMH10 WITH BLUETOOTH DEVICES
6.1 Mobile Phone Pairing
6.2 Bluetooth Stereo Device Pairing
6.3 Bluetooth GPS Navigation Pairing
6.4 Pairing with the SENA SR10, Bluetooth Two-way Radio Adaptor
7. PAIRING WITH SELECTIVE PROFILE: A2DP STEREO OR HANDSFREE
7.1 A2DP Stereo Music Only
7.2 HFP for Phone Call Only
8. INTERCOM PAIRING
8.1 Pairing with Other SMH10 Headsets for Intercom Conversation
8.2 Pairing with Other SENA Headset Models for Intercom Conversation
9. SMH10 CONFIGURATION SETTING
9.1 Enabling/Disabling Voice Activated Phone Answering
9.2 Enabling/Disabling Voice Activated Intercom
9.3 Enabling/Disabling Voice Prompts
9.4 Enabling/Disabling PLC (Packet Loss Consealment)
9.5 Delete All Bluetooth Pairing Information
9.6 Exit Voice Configuration Menu
10. FUNCTION PRIORITY
11. STEREO MUSIC
11.1 By Stereo Audio Cable
11.2 By Bluetooth Wireless Stereo
12. MOBILE PHONE CALL MAKING AND ANSWERING
SMH10SMH10
3
4
5
7
7
7
7
7
8
8
9
9
9
10
11
13
13
13
14
14
15
15
16
16
17
17
17
18
18
19
19
19
20
21
21
22
22
23
24
24
24
26
26
26
27
28
28
28
28
29
29
32
32
33
33
34
34
34
34
34
34
35
36
37
37
38
CONTENTS

English
SMH10
3
Thank you for choosing the SENA SMH10, Bluetooth Stereo Headset
and Intercom for motorcycles. With the SMH10, you can call
handsfree on your Bluetooth mobile phone, listen to stereo music or
voice instructions of GPS navigations by Bluetooth wirelessly, and
have intercom conversations in full duplex with a passenger or other
motorcycle riders.

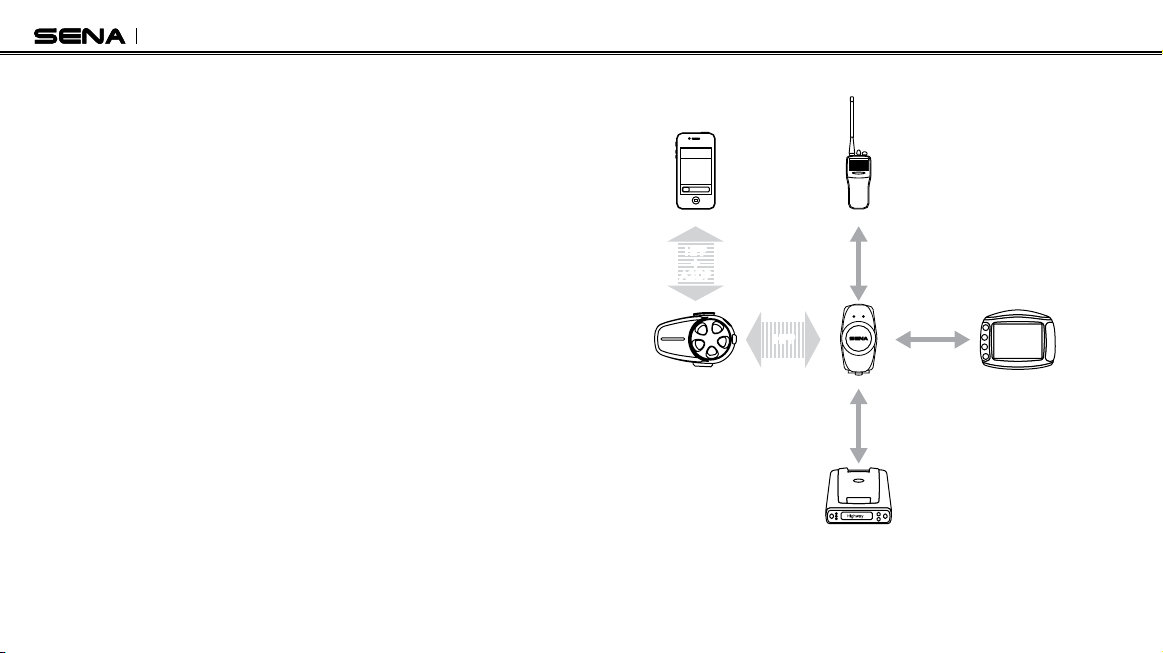

The SMH10 is compliant with the Bluetooth Specification v3.0
supporting the following profiles: Headset Profile, Hands-Free Profile
(HFP), Advanced Audio Distribution Profile (A2DP), and Audio Video
Remote Control Profile (AVRCP). Please check with the manufacturers
of other devices to determine their compatibility with this headset.
Please read this user’s guide carefully before using the headset. Also
check www.senabluetooth.com/support for the latest version of the
user’s guide and additional information related to SENA Bluetooth
products.
The SMH10 features:
•Bluetooth handsfree for Bluetooth mobile phones
•Bluetooth stereo headset for Bluetooth audio devices such as MP3
players
•Bluetooth stereo headset for Bluetooth GPS navigations
•Bluetooth Intercom up to 900 meters (980 yards)*
•Four-way conference intercom
•Three-way conference phone call with intercom participant
•Multipoint Bluetooth Pairing with GPS Navigation or SENA SR10
Two-way Radio Adapter
•Stereo music by 3.5mm audio cable
•Firmware Upgradeable
Key Specifications:
•Bluetooth v3.0
•Supporting profiles: Headset Profile, Hands-Free Profile (HFP),
Advanced Audio Distribution Profile (A2DP), Audio Video Remote
Control Profile (AVRCP)
* in open terrain
English
SMH10
3
English
1. INTRODUCTION

SMH10
4
SMH10
4
• DC Power Charger
• USB Power Cable
• Cigarette Charger
• 3.5mm Stereo Audio Jack Cable
• Glued Surface Mounting Adaptor
MP3 Jack
Microphone
Speakers
Jog Dial
• Answer and end a mobile phone call
• Reject an incoming mobile phone call
• Start and end intercom conversation
• Volume adjustment by rotating
• Play and pause Bluetooth stereo device
• Track-forward and track-back by rotating while pressing the button
• Enter into intercom pairing mode
• Enter into voice configuration setting
• Navigate through configuration menu
Phone Button
• Answer and end a mobile phone call
• Redial last number
• Call transfer between mobile phone and headset
• Enter into mobile phone pairing mode
• Enter into Bluetooth stereo device paring mode
• Enter into factory reset mode
DC Power Charging & Firmware Upgrade Port
• Headset Main Unit
• Speaker-Microphone Clamp Unit
2. PACKAGE CONTENTS

English
SMH10
5
To securely install the SMH10 on the helmet, please follow the
procedure.
1. Loosen the two screws on the back plate of the speaker-microphone
clamp unit using the enclosed Allen Wrench. Insert the back plate
of the clamp unit between the internal padding and external shell
of the helmet, and tighten the two screws. Please make sure that
the microphone is located properly close to your mouth when you
wear the helmet.
English
5
SMH10
• Microphone Sponges
• Speaker Pads
• Velcro Pads for Speakers
• Allen Wrench
3. INSTALLING THE SMH10 ON YOUR HELMET
Insert

SMH10
6

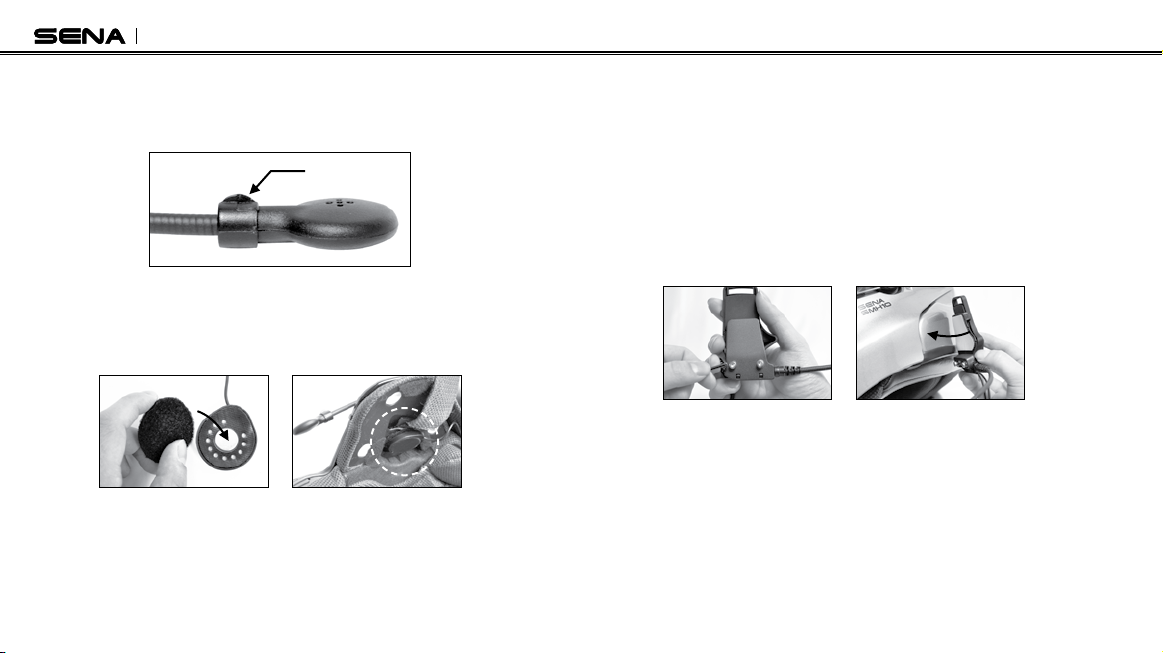

2. Please adjust the direction of the microphone so that the fin side
of the microphone is facing outward; away from your lips. You can
easily recognize it by touching the fin with your fingers.
3. Place the helmet speakers along with the velcro pads, centered to
your ear, in the ear pockets of the helmet. If the helmet has deep
ear pockets, you can use the speaker pads to place the speakers
closer to your ears.
4. If you have any problem to clamp the speaker-microphone unit
on the helmet for any reason, you may use the glued surface
mounting adaptor to attach the speaker-microphone clamp unit on
the external surface of the helmet.
•Remove the back plate of the speaker-microphone clamp unit by
loosening the two screws with the enclosed Allen Wrench.
•Attach the glued external adaptor to the speaker-microphone
clamp unit by tightening the two screws instead of the removed
back plate.
•Locate a proper surface on the helmet to attach the unit, clean the
helmet surface location with a moistened towel, and allow to dry
thoroughly.
•Peel off the cover of the adhesive tape of the adaptor and attach
the unit on the proper surface of your helmet.
Sena recommends the clamp unit over the glued surface mounting
adaptor. Even though the glued surface mounting adaptor is provided
for convenience, Sena does not assume any responsibility for use of
it. Users may have to use the glued adaptor at their own risk and
responsibility.
5. Attach the headset main unit to the speaker-microphone clamp
unit. Insert the bottom part of the main unit completely into the
lower slot of the clamp unit first. Then push the upper part of the
main unit until it clicks into the upper holder of the clamp unit.
SMH10
6
Attach
fin

English
SMH10
7
6. To remove the main headset from the Speaker-Microphone clamp
unit, hold the lower part of the Speaker-Microphone clamp unit with
your thumb and gently press down the hook on the upper part of
the headset main unit with your index finger until it clicks out. You
may have to do this to charge up or to carry the headset main
unit.
To power on and off the headset, you don’t need to press and hold
any button for several seconds. Just short press the Jog Dial and
the Phone Button simultaneously, and you will get quick on-and-off
convenience.
4.1 Powering On
Press the Jog Dial and the Phone Button at the same time for about
1 second to power on. The blue LED turns on and you will hear
ascending beeps.
4.2 Powering Off
Just short press the Jog Dial and the Phone Button simultaneously,
you don’t need to press and hold for a few seconds. The red LED
turns on for a while until it turns off completely and you will hear
descending beeps.
4.3 Charging
The LED turns on red while charging, and turns to blue when the
headset is fully charged. It takes about 2.5 hours to be completely
charged.
English
SMH10
7
4. POWERING ON/OFF AND CHARGING

SMH10
8
4.4 Low Battery Warning
When the battery is low, the blinking blue LED in stand-by mode turns
to red and you will hear mid-tone triple beeps and a voice prompt
saying “Low Battery”.
4.5 Checking the Battery Level
You can check the battery level in two different ways when the headset
is powering on.
4.5.1 LED Indicator
When the headset is powering on, the red LED flashes rapidly
indicating the battery level.
4 flashes = High, 70~100%
3 flashes = Medium, 30~70%
2 flashes = Low, 0~30%
4.5.2 Voice Prompt Indicator
When you power on the headset, keep pressing the Jog Dial and
Phone Button simultaneously for about 3 seconds until you hear
high tone triple beeps. Then you will hear voice prompt indicating
the battery level. However, if you release the buttons as soon as the
headset turns on, you will not hear the voice prompt of battery level
indication.
You can easily adjust the volume by rotating the Jog Dial. You will
hear a beep when the volume reaches maximum or minimum level.
The volume is set and maintained independently at different levels for
each audio source even when you turn off and on the headset. For
example, once you set the volume for mobile phone handsfree, it will
not change even if you adjust the volume when you hear Bluetooth
MP3 music. So you can always maintain the preferred optimum
volume level for each audio source.
SMH10
8
5. VOLUME ADJUSTMENT

English
SMH10
9
Before using the SMH10 Bluetooth headset with any of Bluetooth
devices for the first time, you need to do the pairing operation. It can
be paired with Bluetooth mobile phones, Bluetooth stereo devices
such as MP3, or motorcycle specific Bluetooth GPS, and with other
SENA Bluetooth headsets. This pairing operation is only required
once for each Bluetooth device. The headset will remain paired
with the devices and automatically connects to the paired devices
again when they are within range. You will hear a high tone single
beep and a voice prompt when the headset connects to the paired
device automatically: “Phone connected” to a mobile phone, “Media
connected” to a Bluetooth stereo device.
6.1 Mobile Phone Pairing
1. Turn on the headset and press the Phone Button for 5 seconds
until the LED flashes red and blue alternately and you hear multiple
beeps. You will hear a voice prompt saying “Phone pairing”.
2. Search for Bluetooth devices on your mobile phone. Select the
Sena SMH10 in the list of the devices detected on the mobile
phone.
3. Enter 0000 for the PIN. Some mobile phone may not ask for the
PIN.
4. The mobile phone confirms that pairing has completed and the
SMH10 is ready to use. You will hear a voice prompt from the
SMH10 saying “Your headset is paired”.
5. If the pairing process is not completed within three minutes, the
SMH10 will return to stand-by mode.
6.2 Bluetooth Stereo Device Pairing
1. If the Bluetooth stereo device is integrated with the mobile phone
such as smartphones, you don’t need to pair the SMH10 with it
separately. When the SMH10 is paired with the mobile phone, it is
also paired as a stereo music device.
2. If you have a stand alone Bluetooth stereo device, follow the paring
procedure separately. The procedure is the same as the procedure
in “6.1 Mobile Phone Pairing”.
English
9
SMH10
6. PAIRING THE SMH10 WITH BLUETOOTH DEVICES
Note:
1. If Bluetooth connection between the headset and a mobile phone
is disconnected, tap the Phone Button to recover the Bluetooth
connection immediately.
2. If Bluetooth connection between the headset and a media player is
disconnected, press the Jog Dial for 1 second to recover the Bluetooth
connection and play.

SMH10
10
6.3 Bluetooth GPS Navigation Pairing
You can listen to voice instruction from Bluetooth GPS navigation. Some
GPS systems use mobile phone profile (HFP, Hands-Free Profile) and
others use stereo music profile (A2DP, Advanced Audio Distribution
Profile). Most motorcycle specific GPS systems use mobile phone
profile for turn-by-turn voice instruction. You can simultaneously use
a mobile phone and a GPS which uses mobile phone profile by one of
the following procedures.
6.3.1 Multipoint GPS Pairing
If you use GPS only for turn-by-turn voice instructions, not for Bluetooth
stereo music streaming, multipoint pairing is recommended for the
GPS connection. Multipoint Bluetooth pairing allows the SMH10
to connect two HFP devices at the same time: mobile phone and
GPS navigation. Follow the steps below to pair the GPS using the
multipoint pairing.
1. Turn on the headset and press the Jog Dial for 5 seconds until the
red LED is rapidly flashing and you hear multiple beeps.
2. Within 2 seconds, tap the Phone Button again, then the LED turns
to blue flashing and the beeps turn to high tone double beeps. You
will hear a voice prompt saying “Multipoint Pairing”.
3. Search for Bluetooth devices on the GPS navigation screen. Select
the Sena SMH10 in the list of the devices detected on the GPS.
4. Enter 0000 for the PIN.
5. The GPS confirms that pairing has completed and the SMH10 is
ready to use. You will hear a voice prompt from the SMH10 saying
“Your headset is paired”.
6. If the pairing process is not completed within three minutes, the
SMH10 will return to stand-by mode.
The pairing diagram for multipoint GPS pairing is shown in the figure
below.
SMH10
10
Smart Phone
SMH10 GPS
HFP
+
A2DP
Mobile Phone
Pairing
Multipoint
Pairing
HFP
Multipoint GPS Pairing
