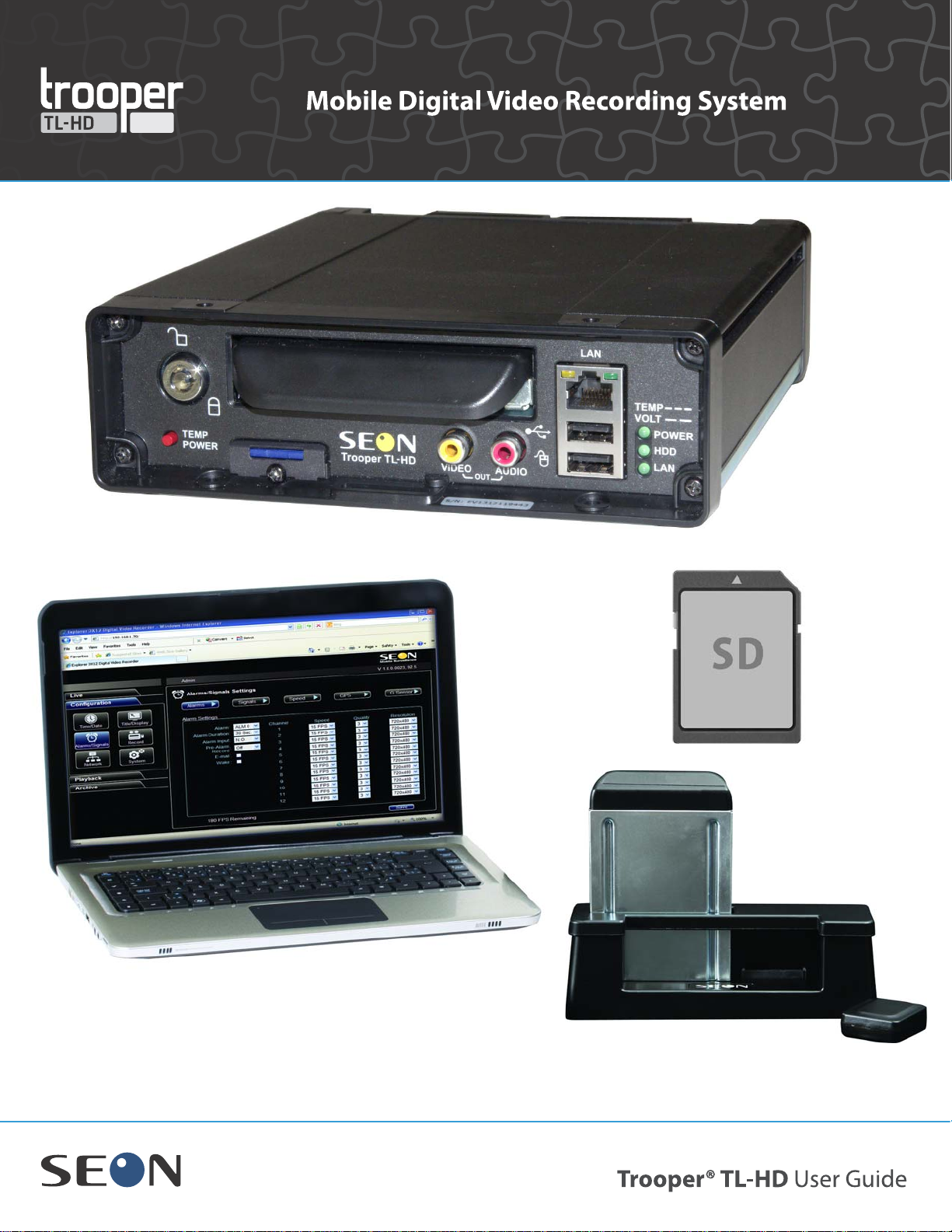

SEON Trooper TL-HD User manual

DVR Firmware Version 2.1
Document Part Number 700-1015 R002
*700-0098*

About This Guide
The User Guide is intended for anyone who needs to operate, configure, or
troubleshoot the Trooper TL-HD DVR System.
Related user guides include:
•Trooper TL-HD DVR Install and Setup Guide, 700-1014
•vMax View User Guide, 700-0137
Conventions Used
Abbreviations and Acronyms
Finding Information Online
You can find more information about Seon Design Inc. as well as its products and services at
www.seon.com.
CAUTION
Cautions identify conditions or practices that could result in damage to the unit or other
equipment.
Tip: These notes provide tips for optimum performance of the DVR system.
Important: These notes provide important information, which are not as serious as a Caution.
Acronym Definition Acronym Definition
CAN Controller area network OSD On-Screen Display
DVR Digital video recorder RA Return Authorization
FPS Frames per second SD Secure Digital
GPS Global Positioning System TCM Transmission Control Module
HD or HDD
Hard drive, or Hard disk drive TCP/IP Transmission Control Protocol/Internet
Protocol
H.264 H.264 video compression USB Universal Serial Bus
LAN Local area network UTC Universal Time Coordinated
MPEG Moving Picture Experts Group

700-1015 R002 3
Introduction
1.1. Overview- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–1
1.2. System Components - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–2
1.3. Product Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–3
1.4. Recording Capacity for DVR Drive Storage- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
1.5. SD Card Backup Recording- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
1.6. Product Interface and Devices- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
1.6.1. DVR Front Panel Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–4
1.6.2. DVR Back Panel Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–6
1.6.3. Trackball mouse - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–7
1.7. DVR Video Configuration Playback and Archiving - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 1–8
DVR Operation
2.1. Search, Playback, and Archive Video- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–1
2.2. Remove and Replace the DVR Drive - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–2
2.3. vMax View and HDD Dock - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–3
2.3.1. On-Screen Display Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–4
2.4. Playback Menu Access- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–6
2.4.1. Using the Search Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–8
2.4.2. Using the Archive Function - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–11
2.4.3. Copy to USB - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–12
2.4.3.1. Archive Segmentation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–12
2.5. Remove and Replace the SD Card - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–13
2.6. vMax View and SD Card- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 2–15
vMax Web Operation
3.1. System Requirements- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–1
3.1.1. vMax Web Display Access - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–2
3.2. Accessing vMax Web - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–3
3.3. vMax Web User Interface - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–5
3.3.1. vMax Web Live Tab - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–6
3.3.2. vMax Web Configuration Tab - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–7
3.3.3. vMax Web Playback Tab - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–8
3.3.4. vMax Web Archive Tab - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–13
3.3.4.1. Archive Segmentation - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–14
3.3.5. Viewing TL-HD Video Archives - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 3–14
Contents

Contents
4700-1015 R002
DVR Firmware and Configuration Uploads
4.1. Firmware Updates - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–2
4.2. DVR Configuration Uploads - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 4–3
4.2.1. USB Memory Device to DVR Configuration Upload - - - - - - - - - - - - - - - - - - - - - - - - - 4–3
4.2.2. Uploading Configuration Files to DVR via vMax Web - - - - - - - - - - - - - - - - - - - - - - - - 4–7
Maintenance and Service
5.1. Returning Product for Service - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–1
5.2. Troubleshooting the Trooper TL-HD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - 5–2
Specifications
A.3. Trooper TL-HD - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–1
A.3.1. Advanced Smart-Temp™ - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–2
A.3.2. Trooper TL-HD Functional Features - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–2
A.3.3. Trooper TL-HD Front Cover, Cable Cover - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - A–2
Legal Notice
Seon Design® Inc. - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
Contact Information - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
Seon Design Inc. Trademarks - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
User Manual Revision - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
Exclusion of Liability - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
Document Part Number - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
Printed in Canada - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - L–1
Seon Design Inc.® Product Warranty
Advance Replacements - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -W–1
Disclaimer - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -W–2
Provisions Applicable to American Customers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -W–2
Provisions Applicable to Canadian Customers - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -W–2
Extended Warranty for Certain Products - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -W–3

Introduction
700-1015 R002 1–1
CHAPTER 1
Introduction
This chapter describes the product features and components of the Trooper TL-HD
Mobile DVR System. This chapter contains the following sections:
Overview, on page 1–1
System Components, on page 1–2
Product Features, on page 1–3
Recording Capacity for DVR Drive Storage, on page 1–4
SD Card Backup Recording, on page 1–4
Product Interface and Devices, on page 1–4
DVR Front Panel Features, on page 1–4
DVR Back Panel Features, on page 1–6
Trackball mouse, on page 1–7
1.1. Overview
This section introduces the product features of the Trooper TL-HD Mobile Digital
Video Recording (DVR) System.
The Trooper TL-HD DVR integrates with optional Smart-Reach Mobile wireless
technology and works with optional vMax Commander and vMax View video
management software for on-board video data management.

Introduction
1–2 700-1015 R002
1.2. System Components
The typical Trooper TL-HD system consists of the following components:
• Trooper TL-HD DVR and hard drive
• Analog cameras and camera cables, one per camera
• HD camera and camera cable
• Alarm input switch and cable
• Wiring harnesses
- power input harness with in-line fuses for constant and switched power lines
- adapter harness
- ignition input harness
- signals harness
• GPS (Global Positioning System) receiver (optional)
• SD Card (optional)
• Smart-Reach Lite Wi-fi (optional)
• Portable video monitor (optional)
• Diagnostic Button (optional)
• HDD Dock (optional)

Introduction
700-1015 R002 1–3
1.3. Product Features
The Explorer TL-HD DVRs contain the following features:
• supports four analog video channels and four audio channels
• has one high-definition video channel at 1280 × 720 pixel maximum resolution
• records up to 30 frames per second (FPS) on all 5 video channels
- 720 x 480 D1 analog
- 1280 × 720 digital
• offers dual stream recording; high-resolution stream for playback on a PC, and a
lower resolution stream for viewing over a cellular phone network
•offersH.264and MJPEG video compression for enhanced compression and
quality
• has removable hard disk DVR drive, that stores up to 1 TeraByte (TB)
• has removable SD card drive, use Seon approved cards only
• DVR Health Check monitors DVR and hard drive status and notifies the
administrator of any issues, ensuring all onboard events are captured, using the
vMax Commander video management software Health Check feature
• uses Global Positioning System (GPS) technology for Geo-fencing, to designate a
geographic boundary for the vehicle and provides an alert if the vehicle leaves the
area
• uses G Sensor technology to provide driver behavior and accident impact velocity
data
• configure, playback, and archive video from the DVR locally with trackball
mouse, monitor, and DVR On Screen Display (OSD) and USB memory stick
• configure, playback, and archive video from the DVR remotely with vMax Web
via Wi-fi network or Ethernet connection
• interfaces with network using the RJ-45 connections on the front and back panel
• has Expansion and Power Thru ports for device connectivity
• mounting options that can accommodate horizontal or vertical installation
• keyed access to front cover and secure cable cover with slotted cable entries to
restrict access to authorized personnel, as shown.

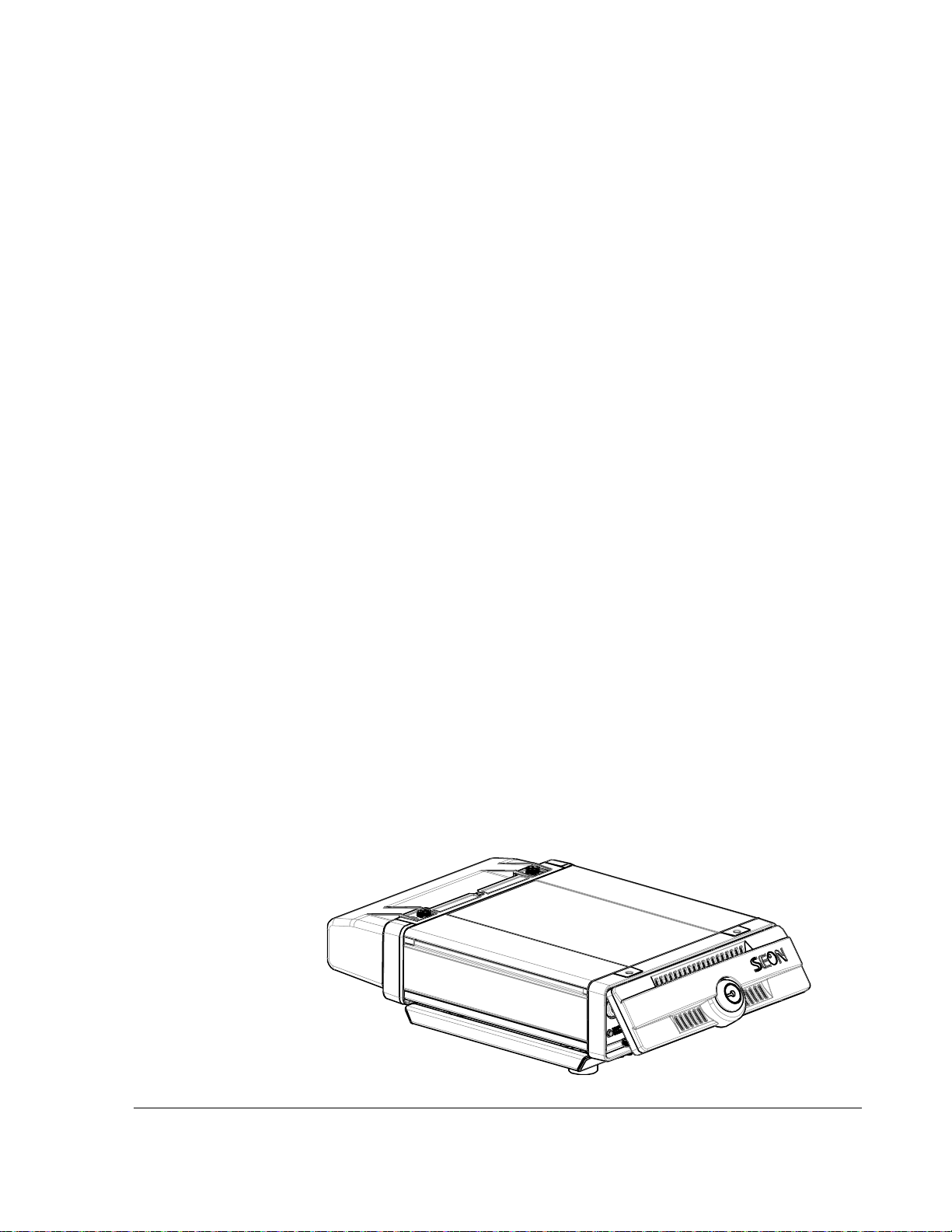

Figure 1-1
TL-HD DVR with Security Front Cover and Secure Cable Cover

Introduction
1–4 700-1015 R002
1.4. Recording Capacity for DVR Drive Storage
The Trooper TL-HD uses H.264 and MJPEG video compression to maximize the
recording time on the drive. The amount of recorded video varies, depending on the
settings for frames per second (speed), resolution (pixel count), picture quality, and
number of cameras being recorded. The picture quality setting determines the amount
a picture is compressed versus the amount of memory the picture takes up on the
drive.
• A lower picture quality of setting 1, for example, means higher compression and a
lower memory requirement.
• A higher picture quality of setting 4, for example, means lower compression and a
higher memory requirement.
1.5. SD Card Backup Recording
The optional SD card is used as a back up storage device to the primary storage
device: the hard drive.
Since the SD card storage capacity is generally a small fraction of that of the HDD,
only the lower resolution Record 2 video stream is stored on the SD card.
Access to the video on the SD card is only possible through vMax View, because it is
recording for backup purposes only.
1.6. Product Interface and Devices
This section describes the features of the DVR (front and back panels) and the
trackball mouse.
1.6.1. DVR Front Panel Features
The TL-HD DVR front panel features are shown in the following figure and described
in the following table.
Figure 1-2
TL-HD Front Panel
2
4
10 7
1
6
85
3
9

Introduction
700-1015 R002 1–5
Table 1-1
Front Panel Features
Item Feature Description
1 DVR Drive lock Requires the DVR drive key to unlock and remove the DVR drive.
See Search, Playback, and Archive Video, on page 2–1 for hard drive
removal details.
2 DVR Drive Remove the drive for playback using the HDD Dock connected to a PC.
See vMax View and HDD Dock, on page 2–3 for hard drive playback
details.
3 Ethernet Port Ethernet port with RJ-45 connector for connecting to LAN. Connect to a
laptop, Smart-Reach
Mobile wireless equipment, or other equipment.
4 LAN activity
(green) Illuminates when there is network activity on the local area network
connection.
HDD activity
(green) Illuminates when the DVR is accessing the drive.
Power (PWR)
indicator (green)
TEMP ---
VOLTAGE — —
Illuminates when the DVR is powered on.
Flashes quickly when the DVR cannot power up due to temperature
limitations.
Flashes slowly when the DVR cannot power up due to voltage limitations.
5 USB port for
trackball mouse Connecting the trackball mouse.
6 USB port Supports USB devices for:
• Copying video and audio information.
• Exporting video clips.
• Updating the DVR firmware.
• Importing/exporting.
7 AUDIO OUT (red) Audio output RCA jack for DVR configuration, troubleshooting, video
playback, live viewing using a portable monitor and a USB mouse.
8VIDEOOUT
(yellow) Video output RCA jack for configuring the DVR and viewing recorded
video with portable monitor.
9 SD card slot cover Unscrew to remove cover and access the optional SD card, if installed.
10 TEMP PWR
(red button) • Power on the DVR for five minutes if held for more than 5 seconds.
• Powers down the DVR if held for more than 5 seconds when the DVR is
in temporary power mode, or in shutdown sequence and the ignition is off.

Introduction
1–6 700-1015 R002
1.6.2. DVR Back Panel Features
The TL-HD DVR back panel features are shown in the following figure and described
in the following table.
Figure 1-3
TL-HD DVR Back Panel Connectors
Table 1-2
Back Panel Features
Item Feature Description
1 CONTROL Control connector for Seon equipment.
2 ALARM Alarm input connector for the alarm button.
3 GPS GPS receiver connector.
4 Camera 1 to camera
4Four camera input connectors (6-pin).
5 Fan Intake fan with filter and removable cover. See Chapter Chapter 5,
“Maintenance and Service”.
6 POWER Power input connector for connecting the power harness.
7 POWER THRU Connector for passing power to other devices.
8 EXPANSION Connector for communication with other devices.
9 SIGNALS Connector for adapter harness. The signal harness connects to the adapter
harness. (The alarm and diagnostic indicator/alarm button connections are
optional.)
10 POE HD CAM Dedicated Ethernet port for connectivity with an HD camera.
11 POE WIFI Dedicated Ethernet port for connectivity with Smart Reach Lite wireless
bridge and other equipment.
76
4
8
9
5
10
12
11
3

Introduction
700-1015 R002 1–7
1.6.3. Trackball mouse
Many other USB mice will also work with the DVR.
Figure 1-4
Trackball Mouse Pointing Device
Table 1-3
Trackball Mouse Features
To do this… Item
Select the highlighted menu option by pressing the middle button. 1
Select the highlighted menu option by pressing the left button with your thumb.
2
• Delete a character entered into a field or go back to a previous item by
pressing the button on the right.
• Press this button to enter the configuration menu.
3
Move the cursor around the screen by rotating the blue button. 4
1
2
3
4

Introduction
1–8 700-1015 R002
1.7. DVR Video Configuration Playback and Archiving
Here is an introductory overview of the configuration, playback, and archiving
methods available on the Trooper TL-HD DVR.
There are three ways of accessing TL-HD DVR content playback and archiving
features:
• locally via OSD and portable video monitor, see DVR Operation, on page 2–1.
• remotely via vMax Web browser interface and wireless or Ethernet
connection, see vMax Web Operation, on page 3–1.
• via vMax View video management software and DVR drive interface, see
vMax View and SD Card, on page 2–15
or
vMax View and HDD Dock, on page 2–3.
See also the vMax View User Guide, 700-0137
The following table shows which methods support specific video configuration,
playback, and archiving functions.
To do this… Use...
On-screen display
with monitor and
trackball mouse
vMaxWebaccess
with Internet
Explorer
HDD Dock or
SD Card &
vMax View
Configure the DVR menu settings.
Playback and view recorded analog camera video with
single channel view or multiple views.
Search for video from a Segment, an Events list, or by time
and date.
Playback recorded HD camera video in single channel view
or with multiple views.
Archive video to .avr file format.
Archive low resolution (Record2) video stream
Archiving options — each individual channel can be
archived as an AVI file and individual images saved as
.bmp or .jpg files

DVR Operation
700-1015 R002 2–1
CHAPTER 2
DVR Operation
This chapter provides information and procedures for operating the Trooper TL-HD. This
chapter contains the following sections:
Remove and Replace the DVR Drive, on page 2–2
Search, Playback, and Archive Video, on page 2–1
Remove and Replace the DVR Drive, on page 2–2
vMax View and HDD Dock, on page 2–3
On-Screen Display Access, on page 2–4
Using the Search Function, on page 2–8
Using the Archive Function, on page 2–11
Copy to USB, on page 2–12
Remove and Replace the SD Card, on page 2–13
vMax View and SD Card, on page 2–15
2.1. Search, Playback, and Archive Video
To search, playback, and archive recorded video, use one of these methods:
vMax View and HDD Dock
Remove the DVR drive from the DVR, and use the HDD Dock and vMax View
software. See vMax View and HDD Dock, on page 2–3.
On Screen Display Menus
For local video access, connect a portable video monitor to the TL-HD DVR’s Video
Out jack. Use the trackball mouse to navigate the OSD menus. See On-Screen Display
Access, on page 2–4.
vMax Web Menus
For local or remote video access, use a laptop and the vMax Web browser user
interface with Ethernet or Wi-fi connectivity. See Accessing vMax Web, on page 3–3.
Access the playback controls via vMax Web. See vMax Web User Interface, on
page 3–5 for access instructions.
vMax View and SD Card Reader
Remove the SD card from the DVR, and use an SD card slot on a PC and vMax View
software version 4.1 or higher. See vMax View and SD Card, on page 2–15.

DVR Operation
2–2 700-1015 R002
2.2. Remove and Replace the DVR Drive
The DVR has a removable drive that is contained in a drive tray. A drive lock secures
the cartridge during operation. Use the drive key to lock and unlock the drive.
To remove the hard drive:
1. Insert the hard drive key.
2. Turn the hard drive key counter clockwise by ¼ turn until the hard drive lock is in
the unlocked position.
3. After the green HDD LED is off, gently pull out the hard drive.
To replace the drive:
1. Slide in a drive until the cartridge seats inside the front panel.
2. Insert the drive key, turn clockwise by ¼ turn until the drive lock is in the locked
position.
CAUTION: Data Loss Risk
Do not remove the DVR hard drive until the green HDD activity indicator is off.
Removal when lit may result in lost data.
While the DVR hard drive is hot swappable (the drive can be removed when the
DVR is powered up), do not remove the DVR hard drive while the DVR is recording,
as some video segments may not be recorded.
CAUTION: Hard Drive Formatting
Placing the TL-HD hard drive in an MX series DVR and vice versa will result in the drive
being formatted and data erased.

DVR Operation
700-1015 R002 2–3
2.3. vMax View and HDD Dock
The HDD Dock is provided with vMax View software to accommodate the TL-HD
drive. The HDD Dock uses AC power and a USB3 compatible connector to the PC.
To access video from the drive using vMax View:
1. Connect the AC adapter to the HDD dock socket.
2. Connect the AC adapter to an AC power outlet.
3. Connect the USB cable to a PC socket.
4. Power on the HDD Dock using the button between the USB and AC cable
connectors.
5. Remove the drive from the DVR.
6. Insert the TL-HD DVR hard drive into the HDD Dock as shown.
7. On the PC, launch vMax View and search the drive for the required video to
archive. See vMax View User Guide 700-0137 for detailed procedures.

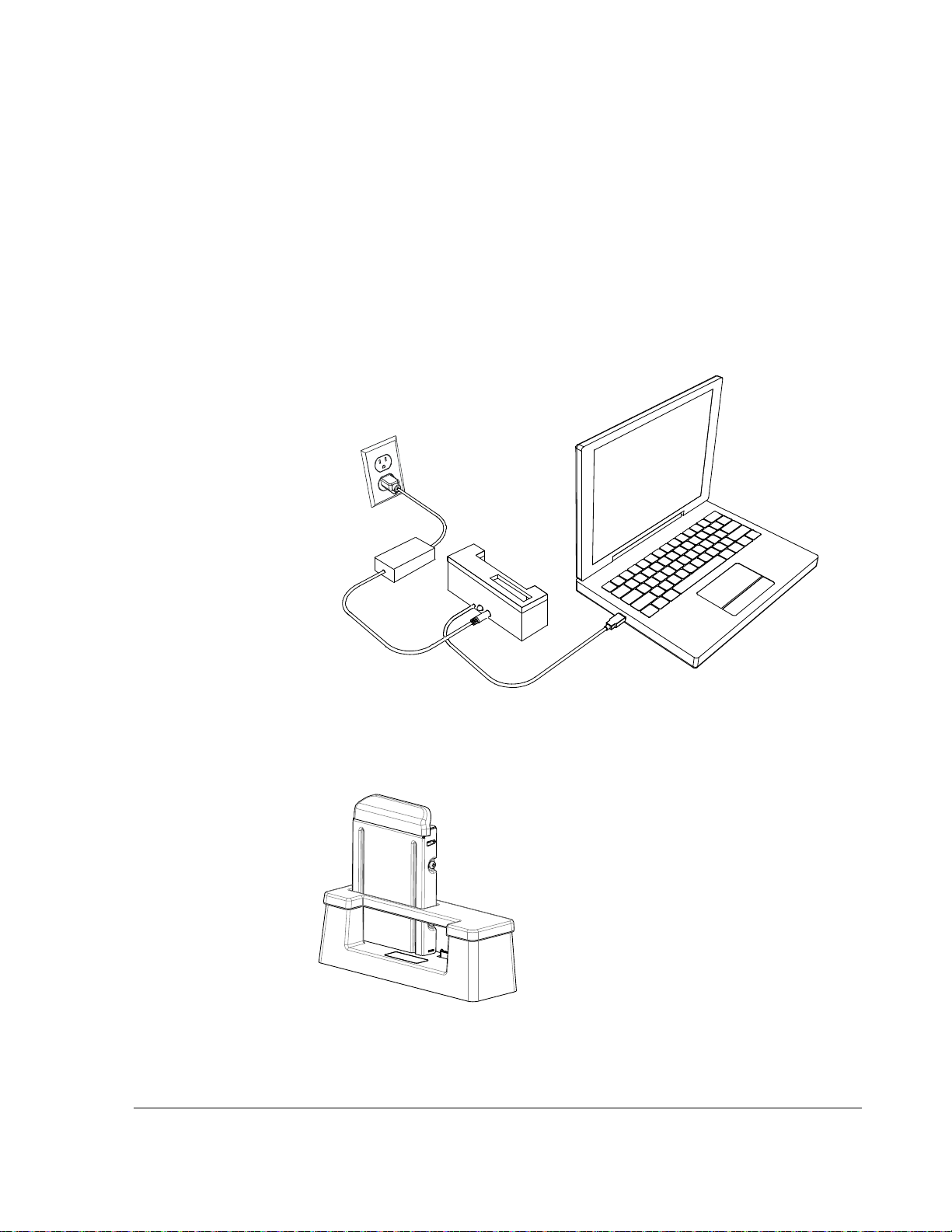

Figure 2-1
HDD Dock Connections
Figure 2-2
HDD Dock with Hard Drive

DVR Operation
2–4 700-1015 R002
2.3.1. On-Screen Display Access
Use the On-Screen Display mode to locally access the DVR drive content.
To use the on-screen display (OSD) with trackball mouse and monitor:
1. Connect a portable video monitor to VIDEO OUT on the TL-HD DVR front
panel.
Plug the USB trackball or mouse in a USB socket on the front of the DVR
.
When the DVR starts up, the TL-HD DVR splash screen appears briefly before
the DVR enters live view.
During live viewing and recording, the information displayed on the screen can
include the items shown and described in the following image and table. The
screen items can be configured in the main menu.
Figure 2-3
Mouse and Monitor Connected to DVR
TL-HD DVR
Portable
Video
Monitor USB Mouse
Figure 2-4
TL-HD Splash Screen
Figure 2-5
On-Screen Display during Live Viewing and Recording

DVR Operation
700-1015 R002 2–5
2. Use the trackball mouse (right-click) to access the DVR’s configuration,
playback, and archiving menu settings as required.
Table 2-1
On-Screen Display Information
Feature Description
Camera 1 to
Camera 4 Camera titles, maximum 8 characters each.
Main_Title Main title of the DVR, maximum 32 characters.
HD_Size Formatted size of the DVR HDD and SD drives, in gigabytes (GB).
HD_Used Percentage of recorded video on the DVR HDD and SD drives. At 100%, the message
displayed depends on the Repeat Record settings in the Recording Settings menu.
• When Repeat Record is set to On, the HD Used message reads “N/A Repeating”.
N/A means that information on how much of the drive space is used is not
available because the drive is full. Repeating means the DVR continues recording,
overwriting the oldest recorded data.
• When Repeat Record is set to Off, the HD Used message reads “100%”. The DVR
stops recording.
Version DVR firmware version. To update, see Firmware Updates, on page 4–2.
Status DVR operation status:
• LIVE (live mode not recording)
• PLAYBACK (the DVR is playing locally, displays RECORD, ALARM, or TIMER)
• RECORD (normal recording)
• ALARM (alarm recording)
• V. LOSS (video loss or camera signal loss)
Camera Off Indicates how long the cameras will record after the DVR powers down. Configured
as Record Delay-Off time from 0 seconds to 30 minutes.
Speed Display Vehicle speed in MPH or KPH.
Voltage System voltage from 8 to 32 VDC.
Temperature DVR temperature in degrees Fahrenheit or Celsius.
GPS If the GPS receiver is installed, the vehicle’s latitude and longitude is displayed.
Time and Date Current/recorded time and date.
AC (Alarm
count) Count of alarm(s) triggered. Resets to 0 when the DVR is restarted.

DVR Operation
2–6 700-1015 R002
2.4. Playback Menu Access
Use the Playback menu to search, playback, and archive video directly from the DVR
hard drive.
The SD card video can only be viewed and archived in vMax View.
To search, playback, and archive video from the OSD menus:
1. In the OSD view, right-click the live view to access the main menu and click
Playback.
2. Click the Show/Hide icon that appears in the center of the playback view.
The Playback tool bar appears.

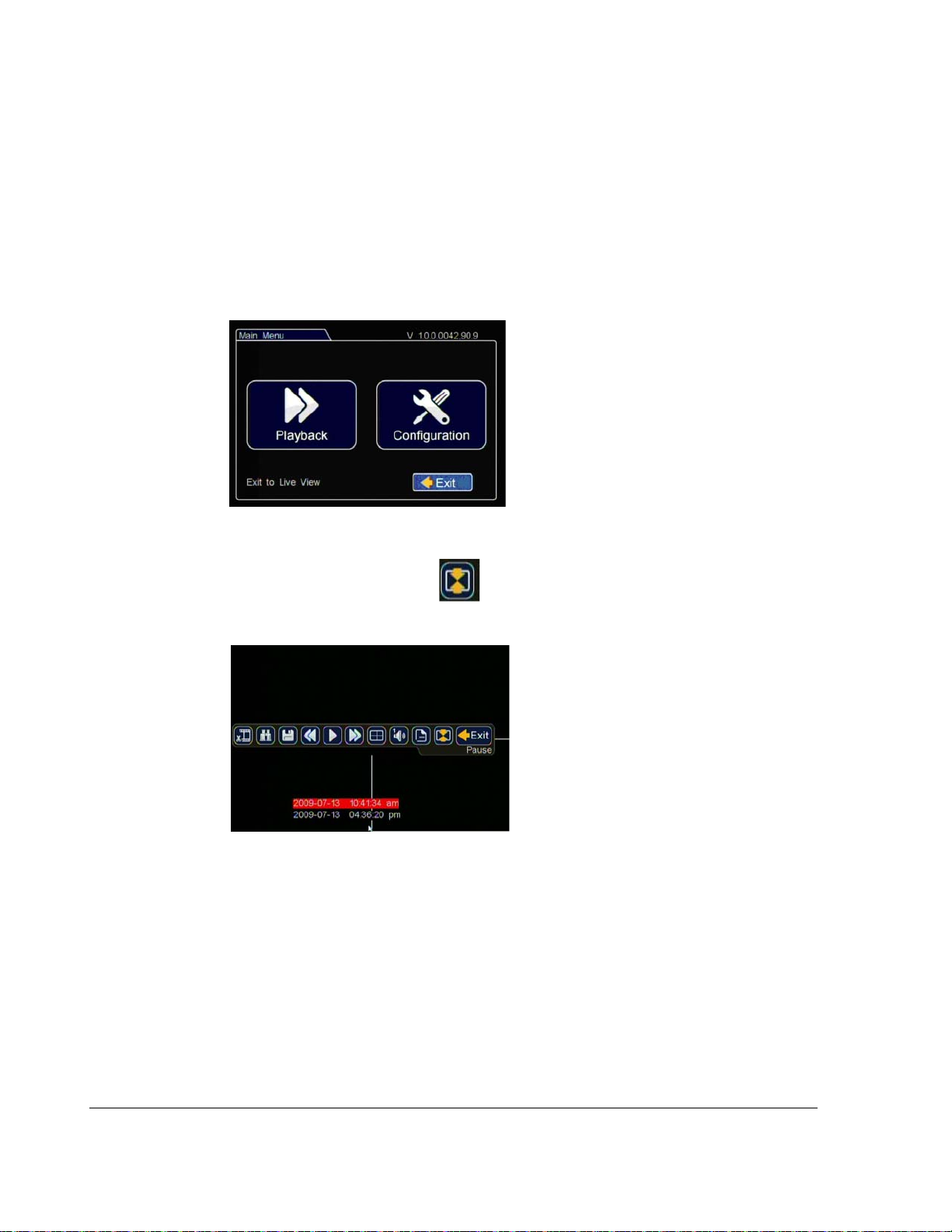

Figure 2-6
Main Menu
Figure 2-7
Playback Tool Bar Window

DVR Operation
700-1015 R002 2–7

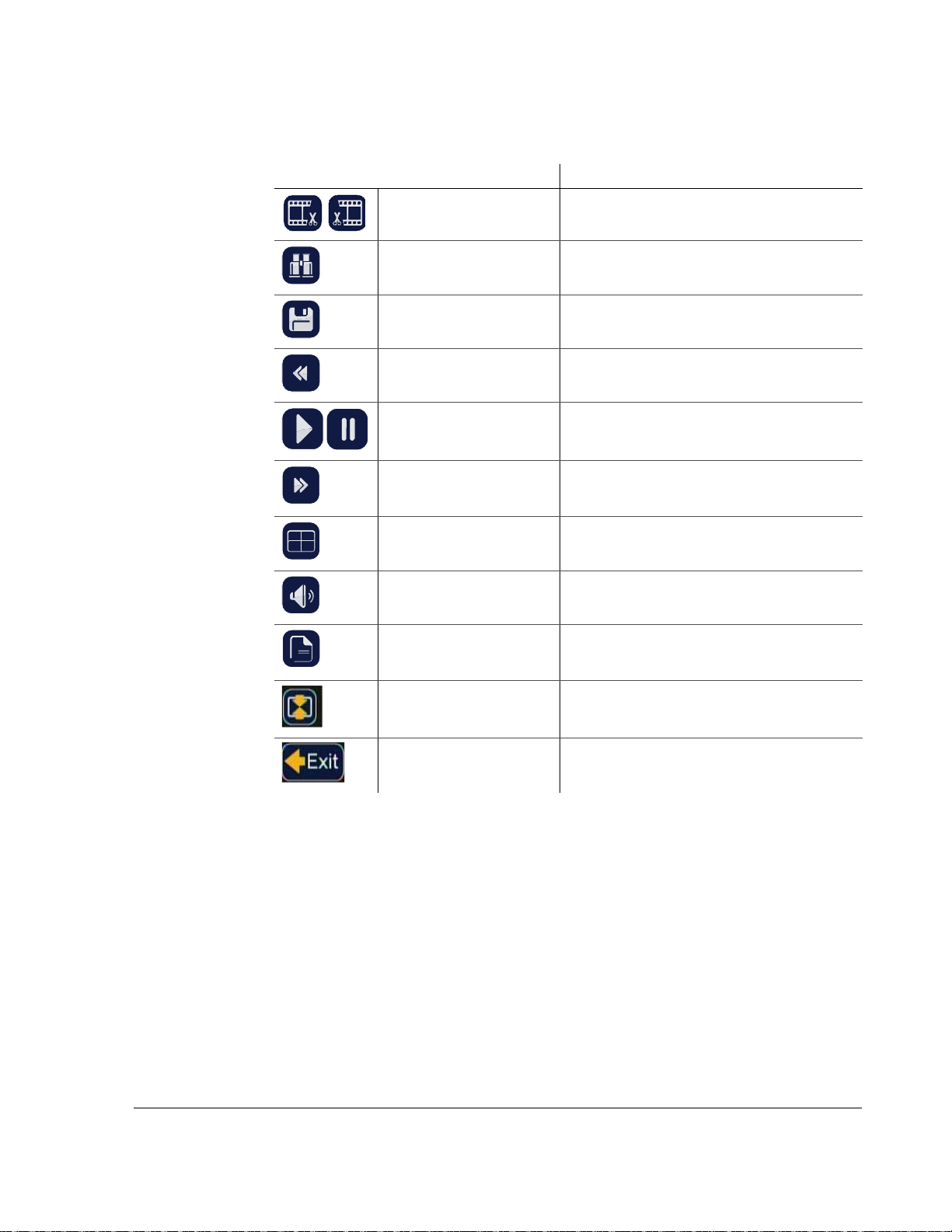

Table 2-2
Playback Tool Bar Items
Tool Bar Icon Description
Start of clip/End of clip Click to set the start of clip and the end of clip
points for archiving. See page 2–11.
Search Click to search by Date, Time, Alarm, Signals, or
System Event.
Archive Click to display the Archive window to save a video
clip to USB memory device.
Fast Rewind Click to reverse during playback. With playback
paused, each click reverses the video by one frame.
Play/Pause Click to start playback.
Click again to pause playback.
Fast Forward Click to fast forward during playback. With
playback paused, each click advances the video by
one frame.
Individual camera/Quad view Click to display Camera 1, 2, 3, 4 or quad view.
Audio Click to cycle through Audio 1, 2, 3 or 4.
Metadata Text overlay Click to turn on text overlay: temperature, system
voltage, GPS data (if recorded), speed, date, and
time.
Show/Hide Playback tool bar Click to show or hide the playback tool bar.
Exit Click to exit to on-screen display.
1

DVR Operation
2–8 700-1015 R002
2.4.1. Using the Search Function
The TL-HD DVR includes a powerful search function that lets you quickly find
recorded information by Date and Time, Alarm, Signals, or System Events.
To view the Search menu:
1. From the Main Menu, click on the Search icon. Playback and press Enter.
See Figure 2-6.
The Search menu appears as shown in Figure 2-8. The items appearing in the
dialog box will depend on the item selected in Search Only box.
Figure 2-8
Search Menu
Table 2-3
Search Configuration Items
Menu Item Description Value [Default]
Start Date Set the start date for the search.
Time Set the start time for the search.
Search Only Select the desired search type. • [Time]
• Alarm • Alm1, Alm2, Alm3, Alm4, All
• Signals • Signal 1 - Signal 10, All
• System
Event •GPS
• Ignition
• Recording
•Timers
•VideoLoss
•GSensor
•Speed
•All
Search Press Enter to Start Search.
Table of contents
Other SEON DVR manuals

SEON
SEON TR4-10 User manual

SEON
SEON TL-HD Operating instructions

SEON
SEON Trooper TL2 User manual

SEON
SEON TR4-20 User manual

SEON
SEON Trooper TR9 User manual

SEON
SEON Explorer Operation manual

SEON
SEON Trooper TL4 User manual

SEON
SEON Explorer DX12 Plus User manual

SEON
SEON Explorer EX8Plus Mobile User manual

SEON
SEON TH8 Operator's manual

SEON
SEON Trooper TL Quick guide

SEON
SEON Trooper Basic TR1-10 User manual

SEON
SEON TL-HD User manual

SEON
SEON DX12 Installation and operation manual

SEON
SEON Trooper TL4 User manual

SEON
SEON HX16 Instructions for use

SEON
SEON Explorer Assembly instructions

SEON
SEON Explorer TX8 User manual

SEON
SEON Trooper TR4 User manual

SEON
SEON Explorer TX8 Operator's manual
