Explorer® DX12 Plus Mobile DVR
Installation and Quick Configuration Guide
This guide provides information to help you install the DX12 Plus Mobile DVR System hardware and
minimally configure the DVR menus to user requirements with the DX12 On Screen Display or vMax®
Web.
Guide Contents
• Tools and Equipment, on page 1
• DX12 Plus System Package Contents (typical), on page 2
• Installation Best Practices, on page 4
• Accessories, on page 8
• Hardware Installation Final Checklist, on page 9
• Configuration, on page 10
• OSD Configuration Menu Tree, on page 14
• vMax Web Configuration Menu Tree, on page 15
• Default Settings for Record, Camera, Record 2, and Timer, on page 16
• G Sensor Settings, on page 16
• Dimensions, on page 17
• Related Documents, on page 18
• Customer Service Contact Information, on page 18
Tools and Equipment
Check that you have all the system components and inspect the units for any scratches or damage before
installing.
Required installation tools:
• Drill with bit to cut 1 ¾" cabling hole
• Phillips bit # 2, for 6-32 x 3/16 screws
Keys included in package contents:
• DVR keys for securing the removable hard drive
• Front cover keys for securing the removable front cover
Configuration equipment:
• For on-screen configuration: LCD monitor and trackball mouse or remote control
• For vMax Web configuration: laptop and an Ethernet cable.

2 700-0116 R003
Installation and Configuration Guide

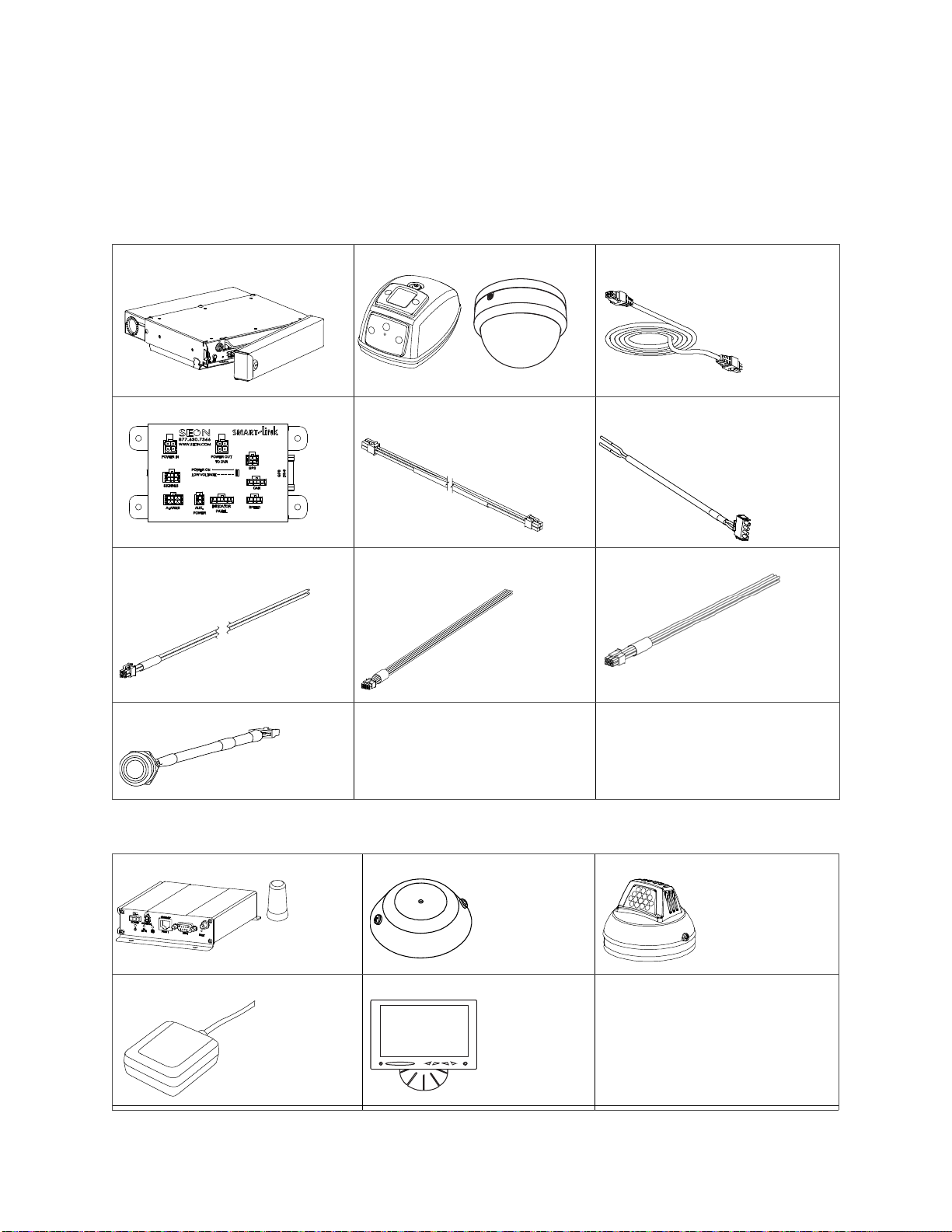

DX12 Plus System Package Contents (typical)
The items for a typical Plus installation package with the Smart-Link™module are shown below. The
actual contents of your installation package may vary, depending on the options selected.
Check that you have all the system components, and inspect the units for any scratches or damage before
installing.
Optional Equipment
DX12 DVR with security front cover,
cable cover, drive, and mounting plate Cameras (up to 12) Camera extension cable (2×3 6-pin overmold connectors)
Smart-Link module for signal interfaces Smart-Link-to-DVR connection harness
(2×2 4-pin connectors) Power cable (1×4 UNML, 2 positive connector)
Ignition harness wire
(2×2 4-pin connector) Alarm input harness (2×4 8-pin connector) Signal harness (2×3 6-pin connector)
Diagnostic Button (1×5 5-pin connector)
Smart-Reach™ Mobile Remote microphone IR Illuminator
GPS receiver LCD monitor

Installation and Configuration Guide
700-0116 R003 3
Installation Diagram: DX12 Plus System
Figure 1 shows the connections for the typical DX12 Plus system.
Figure 1 Typical DX12 Plus System
POWER
OUTPUT
ALARM
INPUT 123 456 78
1211109
LAN2 LAN3
VIDEO
OUTPUT
CONTROL
SMARTLINK
EXTERNAL
DRIVE
POWER
Explorer® DX12
Typical Plus System Setup
Remote Microphone*1
Smart-Link™
Supports 12 Cameras
GPS Receiver*4
8 wires
3 wires
Seon internal
use only
Diagnostic Indicator/
Alarm Button
5 wires
Smart-Reach®Mobile (Wi-Fi) *2
Laptop *2
LCD Monitor*3
DX12 DVR Rear Panel
2 wires
IGNITION
Vehicle Switched + 12V (yellow)
Battery Negative (black)
1A
Seon System Vehicle Electrical InterfacePeripherals
POWER IN
SIGNALS
POWER ON
LOW VOLTAGE
ALARMS AUX.
POWER
INDICATOR
PANEL
POWER OUT
TO DVR
GPS
CAN
SPEED
GPS
DB-9
2 wires
SIGNALS
Signal 1 Left Turn (black)
Signal 2 Stop (green)
Signal 3 Brake Signal (red)
Signal 4 Warning (brown)
Signal 5 Right Turn (white)
4 wires
ALARMS
Alarm 1 (orange)
Alarm 2 (blue)
Alarm 3 (violet)
Alarm 4 (gray)
Alarm 1-4 Ground (black)
SPEED
Red – Call Seon if using hall sensor
Green – Speed sensor high
Black – Speed sensor low
10A
POWER
Backup Battery Negative (black)
Backup Battery Positive (red)
Alarm 0 Wake On Function
External Power for IR options
Power On/Off for Wifi bridge
Battery Negative (black)
Vehicle + 12V (red)
2 wires 10A
Legend:
Connection to optional equipment
*1 The remote microphone requires an optional camera harness if the camera connected to Camera 1 (or Camera 2) does not have a microphone.
*2 An optional Smart-reach Wi-Fi or Laptop can be used from the Ethernet output located on the front or back panel.
*3 An optional LCD Monitor can be used from the video output located on the front or back panel.
*4 For speed tracking, use a GPS receiver or an optional speed harness. For ease of installation and better speed tracking, Seon recommends using a GPS receiver.

4 700-0116 R003
Installation and Configuration Guide
Installation Best Practices
The DX12 DVR is secured with a security front cover and a cable cover. Two cable grommets (and two
knockouts) on the cable cover allow for wiring to enter from the left side, right side, or back of the unit.
The DVR can be installed horizontally or vertically.
Before installing the DX12 DVR, keep in mind that a well-ventilated location and sufficient clearance
around the unit are key factors in performance and maintenance. See Table 1 for information on
installation requirements.
CAUTION
• Do not install the DVR in a location where the unit is exposed to extreme heat. Installation
close to extreme heat will void the product warranty.
• Route the wiring and cables away from sharp edges that might damage the insulation. Avoid
sharp bends in the cable.
• Contact Seon before attaching the DVR to other equipment in the vehicle.
CAUTION
In order for the accelerometer calibration to work correctly, the DVR axis must be parallel to the
vehicle axis. For example, mount the DVR horizontally with the front face of the DVR parallel to
the front/back or left/right sides of the vehicle. When mounting the DVR vertically, the mounting
plate should be vertical and the top of the DVR should be aligned with either the front/back of the
vehicle or the right/left sides of the vehicle. Failure to install either vertically or horizontally will
render the G-Sensor data unusable.
Table 1 Choosing a Location and Other Installation Requirements
Ventilated location Install the DVR away from any sort of heat outlet, heater, or AC blower. Do not operate the DVR in a
closed-in area or restrict ventilation in any way. The DVR requires air circulation to maintain optimum
operating temperature and provide best performance.
Mount to secure
surfaces only Do not mount the DVR to a plastic panel or other surface that is subject to constant vibration.
Mounting
orientation Mount the DVR in either a horizontal or vertical orientation.
Clearance around
the DVR Allow sufficient clearance of at least six (6) inches in front of the DVR and two (2) inches on each side
for removal of the security front cover and easy access to the hard drives and USB ports.
Allow sufficient clearance behind the DVR for camera cables, mounting cables, Ethernet cables, and
power cables.
Mounting cables The radius for the mounting cables will be dictated by the cable cover. The rearmost surface of the
cable cover will be about 3 inches from the back of the DVR to allow camera cables to bend over each
other.
Ethernet cables Avoid right angle bends in the Ethernet cables.
Power cables Provide enough slack on the power cable to prevent any force from being exerted on the connectors. A
single 4-inch diameter loop is sufficient.

Installation and Configuration Guide
700-0116 R003 5
Installation
DVR Installation
The DVR typically ships with the security front cover on and the mounting plate and cable cover off.
To install the DX12 DVR:
1Select an appropriate mounting location and orientation, horizontal or vertical. For the dimensions and
location of the mounting holes, see Figure 15, “DX12 Dimensions with Security Front Cover, Cable
Cover, and Mounting Plate” on page 18.
2Unlock the door lock and remove the security front cover from the unit to access the front panel. Verify
there is a drive inside the DVR. See Figure 2.
3Determine where the wiring and camera cables will enter the unit: on the left side, right side, or back.
4Remove the necessary knockout (s), insert plugs, and cable grommets. See Figure 3.
5Use the mounting plate to mark the desired position of the DVR, and drill the four mounting holes. The
flange secures to the front of the DVR; the tray spring tab attaches to rear. See Figure 4.
6Fasten the mounting plate to the mounting surface with the four #10 × ¾ sheet metal screws or #10 × 1"
self-drilling screws.
Figure 2 Front View of DX12 DVR
Figure 3 Rear View of DX12
DVR drive Door lock Security front cover (reversible)
Cable cover Cable grommet

6 700-0116 R003
Installation and Configuration Guide
7Secure the DVR to the mounting plate with the two screws.
8Connect the necessary components.
Camera Installation
Install the cameras according to the product documentation that is included with the camera.
Feed the cable through the large cable grommets one at a time, or cut a space from the edge of the cable
cover to the grommet and slide the cables into the grommet.
Smart-Link Installation
To mount the Smart-Link:
1Mount the Smart-Link using the four #10 × ¾" sheet metal screws or the four #10 × ¾" self-drilling
screws. For the Smart-Link’s dimensions, see Figure 14, “Smart-Link” on page 17.
2
Connect the constant (red), switched (yellow) 12VDC lines, fuses, and ground wires as shown in Figure 1.
3Connect all other optional items such as GPS, alarms, signals, or speed to the Smart-Link.
Figure 4 DX12 Attaching to Mounting Plate
CAUTION
Route the wiring and cables away from sharp edges that might damage the insulation. Avoid sharp bends in the cable.
Important:
• Choose a dry location with easy access to the electrical panel and cable connections to mount the Smart-Link.
• Always use the supplied fuses to provide over-current protection on the system wiring. The harness kit includes
two fuses for the two 12VDC lines required to complete this installation.
CAUTION
Connect the constant power and ground wires as close to the battery as possible. Ensure the connections are safe and
secure to reduce potential corrosion or premature wear-out that may compromise performance.

Installation and Configuration Guide
700-0116 R003 7
Wake on Alarm Feature Wiring
When the Wake on Alarm function is enabled, if alarm 0 is triggered, the system powers up and starts
recording.
To wire the Wake on Alarm feature:
1Connect the DVR’s back panel alarm input harness connection (2 pin) so that pin 1 (red wire) is toggled
to a 12VDC to 24VDC source to trigger power. The black wire of the alarm input harness can be
connected to ground, or removed.
2On the Diagnostic Button cable, cut the green wire just before it enters the socket. See Figure 5.
3Extend and connect the green wire to an input wire on the Signals harness.
Important: If you are using the Diagnostic Button and cable, and require the Wake on Alarm feature, the
Diagnostic Button cable must be rewired as follows:
Figure 5 Wiring Alarm Button and Signal harnesses for Wake on Alarm

8 700-0116 R003
Installation and Configuration Guide
Diagnostic Button Installation
When installed, press the Diagnostic Button to cause an alarm event to be recorded by the DVR.
To install the Diagnostic Button:
1Determine the proper location before drilling the mounting holes. Ensure the area behind the hole is
clear of obstructions before drilling.
2Drill a ¾" hole in the desired location.
3Remove the mounting nut from the Diagnostic Button.
4Feed the connector and the cable through the mounting hole and reattach the nut.
The button corresponds to Alarm 1 on the Smart-Link alarm harness. The indicator ring shows the DVR
status. See Table 2.
For 12 Volt Installations Only
Accessories
• GPS Receiver Installation – for more information, see the product documentation.
• LCD Monitor – for more information, see the product documentation.
• Smart-Reach Wireless Network – contact your sales representative at Seon Design for wireless
network options.
Table 2 Diagnostic Button Ring Color
Ring Color Function
No green light No power to the DVR, or ignition is not on.
Flashing green The DVR is powered up, but not recording.
Solid green The DVR is powered up and recording.
CAUTION: Adverse operation of the DVR
Seon does not recommend extending the power cable. Power drops created by additional wiring can cause adverse
operation of the DVR. However, if a power cable extension is required, ensure that the voltage drop does not exceed 1.0
volt by using the correct cable size. See Table 3.
Connections for power cables should be soldered and sealed to prevent corrosion and voltage drop across connections.
Once complete, ensure the DVR’s voltage display is above 11VDC with the vehicle off and the DVR recording.
Important: Both the power and ground wires must be of increased gauge.
Table 3 12 Volt Installation Cable Length and Size
Cable length Cable size Voltage drop
20 ft. extension 12 AWG 0.65 VDC
20 ft. extension 10 AWG 0.50 VDC
40 ft. extension 10 AWG 0.79 VDC
40 ft. extension 8 AWG 0.52 VDC

Installation and Configuration Guide
700-0116 R003 9
Hardware Installation Final Checklist
Harnesses (camera, recorder, and accessories)
Check that the cables and the harnesses are properly secured.
Check that sharp metal edges are not touching the cables or harnesses.
Check that the connections are solid (no shorts).
Cameras
Check for tight mount.
Check the internal harness connections.
Check that the lid is properly seated on the gasket and secured tightly.
Check camera(s) field of view.
DVR
Check for tight mounting of hardware.
Confirm that the cable grommet is properly installed.
Check that all connections are tight.
System
Install the fuses.
Plug the LCD video monitor into the DVR.
Switch to temporary power by pressing the DVR front panel STOP/TEMP PWR button with the vehicle ignition
turned OFF.
Configure the DVR to required specifications locally using the remote control or the trackball mouse, or remotely by
accessing vMax Web over the internet using a PC.
See Figure 12, “OSD Configuration Menu Tree” on page 14.
See Figure 13, “vMax Web Configuration Menu Tree” on page 15.
Confirm the LED status indicators on the DVR front panel work properly: LAN, HDD, and PWR.
Confirm that all the cameras and audio sources are operating properly.
Test audio/video record and test audio/video playback.
Reformat the hard drives by navigating to Main Menu > Configuration > System > Program Update > Format.
A warning message appears, “Formatting the Hard Drive will erase all data. Do you wish to continue?” Click Yes.
Once formatting of the hard drive is completed, a confirmation message appears, “Hard drive format completed. Click
OK.” Exit the configuration setting menu and system setup is complete.
Fasten and lock the front cover. Secure the cable cover on the DVR using the screws provided.

10 700-0116 R003
Installation and Configuration Guide
Configuration
The DX12 DVR can be configured in two ways:
• On-screen Display (OSD) Configuration and Playback:
Connect an LCD monitor to VIDEO OUT on the DX12 front panel. Use the trackball mouse or the
remote control to change the configuration settings. For OSD configuration with the DVR, the default
password setting is Off. The password setting can be changed in the System Settings Menu.
• vMax Web Configuration and Playback:
Use an Ethernet connection with a laptop. See the section below.
See also “Default Settings for Record, Camera, Record 2, and Timer” on page 16.
vMax Web Configuration and Playback
The DX12 DVR can be managed via the vMax Web internet portal. Microsoft®Internet Explorer®7.0 or
higher is required. Make sure the DVR and other system components are already installed and configured
in order to access the DVR via vMax Web. Connect the laptop to the DVR using an RJ-45 Ethernet cable.
To configure your laptop:
Configure your laptop to obtain IP addresses automatically, using Dynamic Host Configuration Protocol
(DHCP). If it is not configured to DHCP, or you need to verify the setting, then follow these steps to
configure your laptop.
1Navigate to Windows Local Area Connection properties in Windows 7 or XP as follows:
Windows 7: click Start > Control Panel > Network and Internet > Network and Sharing > Local Area
Connection.
Windows XP: click Start > Control Panel > Network Connections > Local Area Connection.
Important: The default network settings allow for connection to a laptop computer for configuration of the DVR only. For
remote network access, consult with your IT staff or Seon Design to configure the DVR to be on the same subnet as the laptop.

Installation and Configuration Guide
700-0116 R003 11
The Local Area Connection Status window appears.
2In the Local Area Connection Status window, click on Properties.
The Local Area Connection Properties window appears.
3In the Local Area Connection Properties window, select the click to highlight the current Internet
Protocol Version, (in Windows XP select Internet Protocol (TCP/IPvN)), and then click Properties.
Figure 6 Local Area Connection Properties window
Figure 7 Local Area Connection Properties window

12 700-0116 R003
Installation and Configuration Guide
The Internet Protocol Version Properties window appears
4In the Internet Protocol Properties window, select Obtain an IP Address Automatically.
Connecting the DVR to the Laptop
To connect the DVR to the laptop:
1Connect one end of the Ethernet cable to a network port on the laptop. Connect the other end to a
network port on the DVR.
2The laptop uses Automatic Private IP Addressing, (APIPA)1to select an IP address. This process may
take up to 90 seconds.
3Once connected, the laptop Local Area Connection should report limited connectivity using an
Automatic Private IP Address. Confirm by opening your network connections as shown in Figure 9.
Figure 8 Internet Protocol Properties window
1.APIPA is a feature available since Windows 98 that allows for devices to provide their own IP
address when there is no DHCP server present.
Figure 9 Limited Connectivity

Installation and Configuration Guide
700-0116 R003 13
In very rare instances, the laptop may select the same IP address, http://169.254.1.1,used by the DVR
and cause a conflict. If this is the case, manually set the laptop IP address to http://169.254.1.2, as
shown in Figure 10.
4Open Internet Explorer, and in the address bar, type in the DVR default IP address: http://169.254.1.1.
5Press Enter.
The Login Screen appears as shown in Figure 11.
6At the login prompt, enter the following credentials to access the internet browser user interface. The
user name is case sensitive.
Default User name:Admin
Default Password: 11111111
7Click OK or press enter on the keyboard to display the vMax Web interface live view screen.
The following Configuration Menu Trees show how the main menu and sub menu items are organized.
Figure 12 shows the on-screen display configuration menus and Figure 13 shows the Web browser
configuration menus.
Figure 10 IP Address
Figure 11 Login Screen

14 700-0116 R003
Installation and Configuration Guide
OSD Configuration Menu Tree
The OSD Configuration Menu Tree, displayed in Figure 12, shows how the main menu and sub menu
items are organized.
Figure 12 OSD Configuration Menu Tree
Title/Display
Main Title:
Main Title Display:
Camera 1:
Camera 2:
Camera 3:
Camera 4:
Camera 5:
Camera 6:
Camera 7:
Camera 8:
Camera 9:
Camera 10:
Camera 11:
Camera 12:
Monitor Settings
Front Default Settings:
Rear Default Settings:
Display Switch:
Switch To:
Switch On:
Alarm:
Diagnostic Display
Time/Date
Time Format:
Time:
Date Format:
Date:
Auto Daylight Savings:
DST Settings
Start Date:
From:
To:
End Date:
From:
To:
Record
Repeat Record:
Record Delay-On Time:
Record Delay-Off Time:
Power Delay-Off Time:
Emergency Backup Power:
Alarm Partition Size:
Overwrite Alarm Protection:
Watermarking:
Camera
(per Channel)
Speed:
Resolution:
Quality:
Audio:
Record 2
(per Channel)
Speed:
Resolution:
Quality:
Timers
Enable Timers:
(per Timer)
Day:
Start:
End:
Set:
Alarm/Signal
Alarms
Alarm:
(per Alarm)
Alarm Input:
Alarm Duration:
Pre-Alarm Record:
(per Channel)
Speed:
Quality:
Resolution:
E-mail:
Wake:
Speed
(per Signal)
Label:
Level:
Alarm:
Signals
Speed Display:
Speed Units:
Speed Pulse Count:
Speed Limit:
Excessive Speed Action:
Calibrate
GPS
GPS Display:
GPS Time:
UTC Reference:
Fencing Alarm:
Coordinate Style:
Circle Center: LAT:
LONG:
Distance:
Network
Setting Type:
IP Address:
Subnet Mask:
Default Gateway:
DNS Server:
MAC Address
User Levels
(per User)
Name:
Password:
Level:
DDNS Settings
DDNS Server:
User Name:
Password:
Record ID:
FQDN Host Name:
System
Disk Full:
HD Failure:
Password Enable:
Password:
Audio Output Channel:
Program Update
Load Configuration:
Store Current
Configuration to:
File Name:
Store
Update
Format
E-mail
SMTP Server:
SMTP Port:
Authentication:
Password:
User Name:
Sender E-mail:
Receiver E-mail:
Subject:
One-Touch
One-Touch Download:
Download All Alarm Data
From: Date:
Time:
To: Date:
Time:
DX12 DVR Configuration Menu
Signals 6 to 10
(per Signal)
Label:
Level:
Alarm:
Timers 6 to 10
(per Timer)
Day:
Start:
End:
Set:
Load
(misc. data)
Health Check
Export Log
Voltage Display:
Time/Date Display:
HDD Size Display:
% Full Display:
Alarm Count Display:
Idle Display:
Idle Limit Timer:
Fan Failure Notification:
Obstruction Detection:
G Sensor Display:
Internal Temperature
Display:
G Sensor
(per Axis X/Y/Z/Vector)
Current:
Threshold +:
-:
Output:
Peak:
Reset Peak
Calibrate
(per Channel)
Speed:
Quality:
Resolution:
Channel 7-12
Channel 7-12
(per Channel)
Speed:
Resolution:
Quality:
Audio:
Channel 7-12
(per Channel)
Speed:
Resolution:
Quality:
IP Camera
Camera:
IP Address:
HTTP Port:
Enable:
Username:
Password:
Mode:
(per Mode)
Speed:
Quality:
Audio:
Ping Camera

Installation and Configuration Guide
700-0116 R003 15
vMax Web Configuration Menu Tree
The vMax Web Configuration Menu Tree, displayed in Figure 13, shows how the main menu and sub
menu items are organized.
Figure 13 vMax Web Configuration Menu Tree
DX12 DVR vMax Web Configuration Menu
System
Disk Full:
HD Failure:
Password Enable:
Password:
Audio Output Channel:
DVR FW Version:
Program Update
Load Default Configuration:
Load Configuration from File:
Store Current
Configuration:
Firmware Update:
Format Hard Drive:
Store
Update
Format
One-Touch
One-Touch Settings:
Alarns/Today/Time/Clip
Download: (Clip/Today)
or
Download All (Alarm/Time)
Data
From: Date:
Time:
To: Date:
Time:
Load
Network
Setting Type:
IP Address:
Subnet Mask:
Default Gateway:
DNS Server:
MAC Address
DDNS Server:
User Name:
Password:
Record ID:
FQDN Host Name:
User Levels
(per User)
Name:
Password:
Level:
User 1-6
E-mail
SMTP Server:
SMTP Port:
Authentication:
Password:
User Name:
Sender E-mail:
Receiver E-mail:
Subject:
Network
Record
Repeat Record:
Record Delay-On Time:
Record Delay-Off Time:
Power Delay-Off Time:
Emergency Backup
Power:
Alarm Partition Size:
Overwrite Alarm
Protection:
Watermarking:
Camera
(per Channel)
Speed:
Quality:
Resolution:
Audio:
Channel 1-12
Record 2
(per Channel)
Speed:
Resolution:
Quality:
Camera 1-12
Enable Timers:
(per Timer)
Day:
Start:
End:
Set:
Timers 1-12
Timers
Title/Display
Main Title:
Main Title Display:
Camera 1:
Camera 2:
Camera 3:
Camera 4:
Camera 5:
Camera 6:
Camera 7:
Camera 8:
Camera 9:
Camera 10:
Camera 11:
Camera 12:
Display
Diagnostic Display
Voltage Display:
Time/Date Display:
HDD Size Display:
% Full Display:
Alarm Count Display:
Idle Display:
Idle Limit Timer:
Fan Failure Notification:
Obstruction Detection:
G Sensor Display:
Internal Temp Display:
Monitor Settings
Front Default Settings:
Rear Default Settings:
Display Switch:
Switch To:
Switch On:
Alarm:
Time/Date
Time Format:
Time:
Date Format:
Date:
Auto Daylight Savings:
DST Enable
Start Date:
From:
To:
End Date:
From:
To:
Alarm/Signal
(per Alarm)
Alarm Input:
Alarm Duration:
Pre-Alarm Record:
(per Channel)
Speed:
Quality:
Resolution:
E-mail:
Wake:
Channel 1-12
(per Channel)
Speed:
Quality:
Resolution:
Signals 1 to 10
(per Signal)
Label:
Level:
Alarm:
Speed Display:
Speed Units:
Speed Limit:
Excessive Speed Action:
GPS Display:
GPS Time:
UTC Reference:
Fencing Alarm:
Coordinate Style:
Circle/Rectangle
Circle Center:
LAT:
LONG:
Rectangle
Top Left:
LAT:
LONG:
Bottom Right:
LAT:
LONG:
Distance:
Health Check
(per Axis X/Y/Z/Vector)
Current:
Threshold +:
-:
Output:
Peak:
Speed
Title
Hard Drive Temp
Hard drive Hours
General Health
Ethernet
Export Log
Alarms
Signals
GPS
G-sensor
Record

Installation and Configuration Guide
16 700-0116 R003
Default Settings for Record, Camera, Record 2, and Timer
G Sensor Settings
Each bus yard or transportation facility has different requirements for G Sensor sensitivity settings. Seon
has found the following settings work in most cases:
• X – Forward/Back axis, set to +2/-2 and associate with an alarm.
• Y – Left/Right axis, set to +2/-2 and associate with an alarm.
• Z – Vertical axis, set to 0/0 and do not associate with an alarm.
These settings can be adjusted to fit specific requirements. The lower the settings, the higher the chances
are of generating false alarms.
Table 4 Default Record Settings
Record Settings
Repeat Record On
Record Delay-On Time 30 sec.
Record Delay-Off Time 15 sec.
Power Delay-Off Time 15 sec.
Emergency Backup Power Off
Alarm Partition Size Off
Overwrite Alarm Partition Off
Watermarking Off
Table 5 Default Camera Settings (per camera row)
Camera Settings (per camera row)
Speed 15 FPS
Resolution 720x480
Quality 3
Audio On
Table 6 Default Record 2 Settings (per camera row)
Record 2 Settings (per camera row)
Speed 5
Quality 3
Resolution 360x240
Table 7 Default Timer Settings
Timer Settings
Enable Timers: (per timer row) Off
Day WDY
Start 12:00 AM
End 12:00 AM
Set Off

Installation and Configuration Guide
700-0116 R003 17
Dimensions
Smart-Link Dimensions
Important: Specifications are subject to change without notice.
Table 8 Physical Specifications
Smart-Link DX12 DVR
Weight 9 oz (255 g) 6.6 lb (3 kg). With security front cover, cable
cover, and mounting plate
Material Steel, powder-coated black paint
Figure 14 Smart-Link
134 mm
54
16 in
83 mm
34
16 in
514
16 in
150 mm
58 mm
25
16 in

Installation and Configuration Guide
18 700-0116 R003
DX12 DVR Dimensions
Related Documents
For more information, see the
•Explorer DX12 Mobile DVR System User Guide, document number 700-0117.
•vMax View Video Management Software User Guide, document number 700-0137.
Customer Service Contact Information
To contact Seon Customer Service, please call:
©July 2011. Seon Design Inc. All rights reserved. Printed in Canada www.seon.com
Figure 15 DX12 Dimensions with Security Front Cover, Cable Cover, and Mounting Plate
Toll free telephone [phone]
Telephone [phone]
Email [e-mail]
295 mm
11 19
32
37 mm
17
16
295 mm
11 mm
7
16 in
229 mm
9 in
127 mm
5 in
58 mm
29
32
72 mm
227
32
in
11 5
8
in
in
in
in

Installation and Configuration Guide
700-0116 R003 19

Installation and Configuration Guide
20 700-0116 R003
