Sharp FP-P35CX - HEPA Air Purifier User manual

ENGLISH
ESPAÑOL
FP-P35CX
R
Free standing type
Tipo vertical sin soporte
This product earned the ENERGY STAR by meeting
strict energy efficiency guidelines set by the US EPA.
US EPA does not endorse any manufacturer claims of
healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR qualified
model is measured based on a ratio between the
model’s CADR for Dust and the electrical energy it
consumes, or CADR/Watt.
AIR PURIFIER
OPERATION MANUAL
PURIFICADOR DE AIRE
MANUAL DE USO
Read and save these instructions.
Lea y ahorre estas instrucciones.

Please read before operating your new Air Purifier
NOTE
• The air purifier is designed to remove air-suspended dust, but not harmful gases (for example, carbon
monoxide contained in cigarette smoke).
• The unit cannot completely remove any order if the source of the odor is not removed or neutralized
(for example, pet odors and odors from construction materials).
• When someone is smoking. it is suggested that a window be opened slightly to facilitate ventilation.

TRUE HEPA Filter
Pre - Filter
The air purifier uses an internal fan to drawer room air through its air intake.
Once in the unit, the air passes through a Pre-Filter and a True HEPA Filter
(dust collection filter), and then discharges through the air outlet.
A new True HEPA Filter can remove 99.97% of dust particles (as small as 0.3
microns) suspended in the air moving through it.
Some odor ingredients absorbed by the filters may become separated and
may be discharged through the air outlet, resulting in additional odor. If the
purifier is used in an environment with significantly more severe conditions
than normal household use, the order may become stronger for a short period
of time.
If the odor persists, then the filter is expended fully and it is necessary to
install a new filter using replacement kit FZ-P35HFU (sold separately).

ENGLISH
ESPAÑOL
FEATURES CONTENTS
• FOR CUSTOMER ASSISTANCE(U.S).... E-2
• CONSUMER LIMITED WARRANTY(U.S) E-3
IMPORTANT SAFETY INSTRUCTIONS .... E-4
• WARNING ....................................................E-4
• CAUTIONS CONCERNING OPERATION ...E-5
• INSTALLATION GUIDELINES .....................E-5
• FILTER GUIDELINES ..................................E-5
PART NAMES.......................................... E-6
• MAIN UNIT DISPLAY ...................................E-6
• INCLUDED ...................................................E-6
• BACK ...........................................................E-6
PREPARATION........................................ E-7
• FILTER INSTALLATION ...............................E-7
OPERATION ............................................ E-8
• MAIN UNIT OPERATION .............................E-8
CARE AND MAINTENANCE ................. E-10
• MAIN UNIT ................................................ E-10
• DUST SENSOR ........................................ E-10
• FILTER CLEANING................................... E-10
• FILTER REPLACEMENT
GUIDELINES .............................................E-11
TROUBLE SHOOTING.......................... E-12
SPECIFICATIONS ................................. E-13
E-1
ENGLISH
Thank you for purchasing the SHARP Air Puri-
fier. Please read this manual carefully for the cor-
rect usage information. Before using this prod-
uct, be sure to read the section: “Important Safety
Instructions.”
After reading this manual, retain it in a conven-
ient location for future reference.
• Dual Filtration System.
1) Pre- Filter
It collects large particles.
2) True HEPA (High Efficiency
Particulate Air) Filter.
High-efficiency particle collection in-
cluding pollen and dust.
• Automatic operation available
with Dust Sensor .
• Silent operation is quiet as
rustling leaves.

E-2
FOR CUSTOMER ASSISTANCE (the United States)
To aid in answering questions if you call for service or for reporting loss or theft, please use
the space below to record the model and serial number located on the back side of the unit.
MODEL NUMBER
SERIAL NUMBER
DATE OF PURCHASE
Dealer Name
Address
City
State
Zip
Telephone
TO PHONE: Dial 1-800-BE-SHARP (237-4277) for:
SERVICE (for your nearest Sharp Authorized Servicer)
PARTS (for your Authorized Parts Distributor)
ACCESSORIES
ADDITIONAL CUSTOMER INFORMATION
TO WRITE: For service problems, warranty information, missing items and other assistance:
Sharp Electronics Corporation
Customer Assistance Center
1300 Naperville Drive
Romeoville, IL 60446-1091
TO ACCESS OUR WEB SITE: www.sharpusa.com
Please provide the following information when you write or call: model number, serial
number, date of purchase, your complete mailing address (including zip code), your daytime
telephone number (including area code) and description of the problem.

ENGLISH
ESPAÑOL

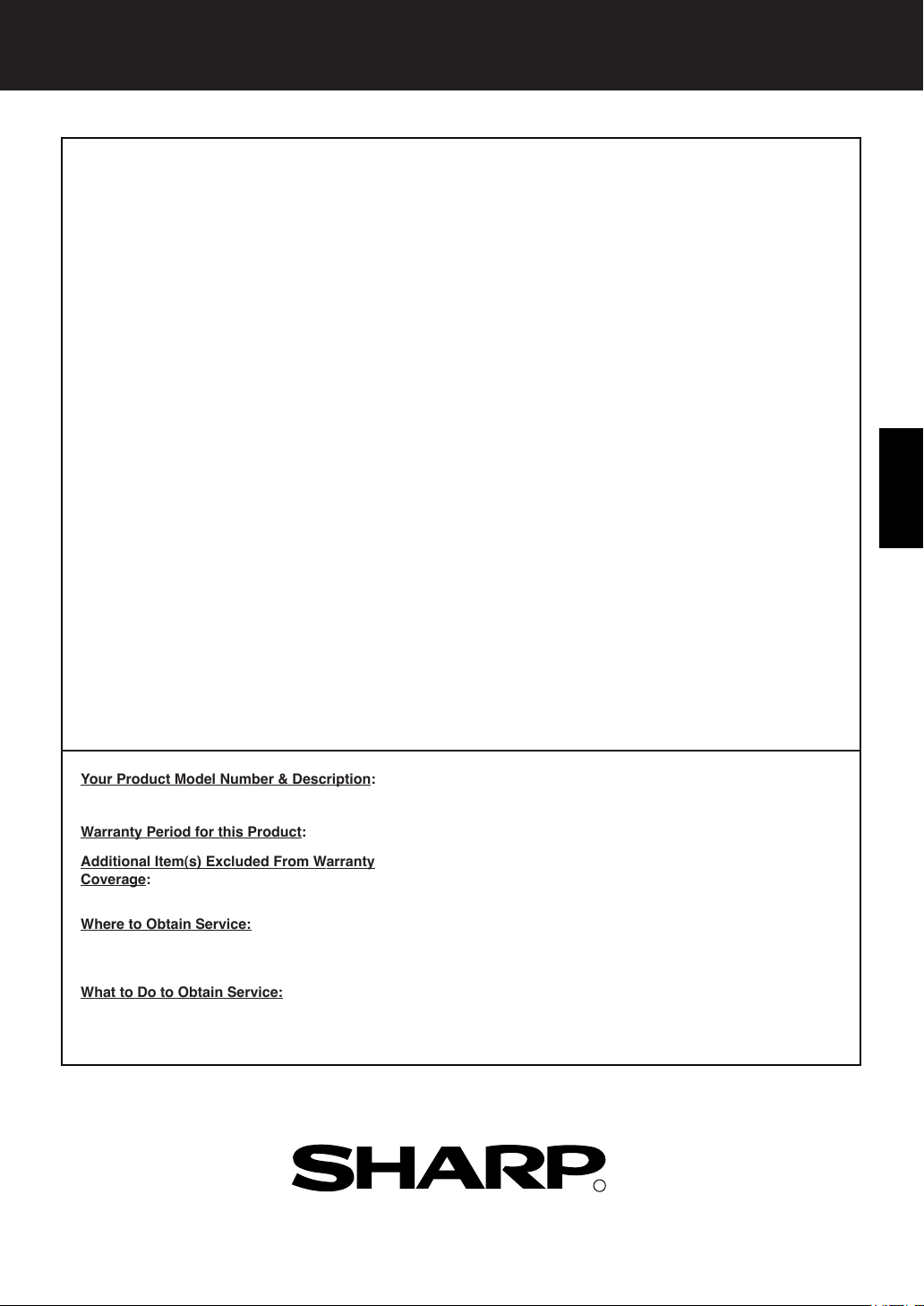

Your Product Model Number & Description:
Warranty Period for this Product:
Additional Item(s) Excluded From Warranty
Coverage:
Where to Obtain Service:
What to Do to Obtain Service:
E-3
CONSUMER LIMITED WARRANTY
CONSUMER LIMITED WARRANTY FOR U.S. USERS
SHARP ELECTRONICS CORPORATION warrants to the first consumer purchaser that this Sharp brand product (the
“Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that
it will, at its option, either repair the defect or replace the defective Product or part thereof with a new or remanufactured
equivalent at no charge to the purchaser for parts or labor for the period(s) set forth below.
This warranty does not apply to any appearance items of the Product nor to the additional excluded item(s) set forth below
nor to any Product the exterior of which has been damaged or defaced, which has been subjected to improper voltage or
other misuse, abnormal service or handling, or which has been altered or modified in design or construction.
In order to enforce the rights under this limited warranty, the purchaser should follow the steps set forth below and provide
proof of purchase to the servicer.
The limited warranty described herein is in addition to whatever implied warranties may be granted to purchasers by law.
ALL IMPLIED WARRANTIES INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR USE ARE
LIMITED TO THE PERIOD(S) FROM THE DATE OF PURCHASE SET FORTH BELOW. Some states do not allow
limitations on how long an implied warranty lasts, so the above limitation may not apply to you.
Neither the sales personnel of the seller nor any other person is authorized to make any warranties other than those
described herein, or to extend the duration of any warranties beyond the time period described herein on behalf of Sharp.
The warranties described herein shall be the sole and exclusive warranties granted by Sharp and shall be the sole and
exclusive remedy available to the purchaser. Correction of defects, in the manner and for the period of time described
herein, shall constitute complete fulfillment of all liabilities and responsibilities of Sharp to the purchaser with respect to the
Product, and shall constitute full satisfaction of all claims, whether based on contract, negligence, strict liability or
otherwise. In no event shall Sharp be liable, or in any way responsible, for any damages or defects in the Product which
were caused by repairs or attempted repairs performed by anyone other than an authorized servicer. Nor shall Sharp be
liable or in any way responsible for any incidental or consequential economic or property damage. Some states do not
allow the exclusion of incidental or consequential damages, so the above exclusion may not apply to you.
THIS WARRANTY GIVES YOU SPECIFlC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER RIGHTS WHICH VARY
FROM STATE TO STATE.
FP-P35CX Air Purifier. Be sure to have this information available when
you need service for your Product.
One (1) year parts and labor from date of purchase.
Appearance items of the Product, filters, accessories, or any printed
materials. Product which has been used for rental and/or commercial
purposes.
From a Sharp Authorized Servicer located in the United States. To find
the location of the nearest Sharp Authorized Servicer, call Sharp Toll Free
at 1-800-BE-SHARP.
Ship prepaid or carry in your Product to a Sharp Authorized Servicer. Be
sure to have Proof of Purchase available. If you ship the Product, be sure
it is insured and packaged securely.
TO OBTAIN SUPPLY, ACCESSORY OR PRODUCT INFORMATION, CALL 1-800-BE-SHARP, OR VISIT OUR WEBSITE AT
www.sharpusa.com
SHARP ELECTRONICS CORPORATION
Sharp Plaza, Mahwah, New Jersey 07430-2135
R

E-4
IMPORTANT SAFETY INSTRUCTIONS
When using electrical appliances, basic safety precautions should be followed, including the
following:
WARNING - To reduce the risk of electrical shock, fire or injury to persons:
• Read all instructions before using the air purifier.
• Use only a 120-volt outlet with a polarized receptacle.
• This appliance has a polarized plug (one blade is wider than the other ). To reduce the risk of electric
shock, this plug is intended to fit in a polarized only one way. If the plug does not fit fully in the outlet,
reverse the plug. If it still does not fit, contact a qualified electrician. Do not attempt to defeat this
safety feature.
• Do not use the air purifier if the power cord or plug is damaged or the connection to the wall
outlet is loose.
•Periodically remove dust from the power plug.
• Do not insert fingers or foreign objects into the intake or air outlet.
• When removing the power plug, always hold the plug and never pull the cord.
Electrical shock and/or fire from short circuit may occur as result.
• Do not remove the power plug when your hands are wet.
• Do not use this air purifier near gas appliances or fireplaces.
• Remove the power plug from the wall outlet before cleaning the unit and when not using the
unit.
Electrical shock from bad insulation and / or fire from short circuit may occur as a result.
• If the power cord is damaged, it must be replaced by the manufacturer, its service agent,
Sharp authorized service or similarly qualified person in order to avoid a hazard.
•Do not operate when using aerosol insecticides or in rooms where there is oily residue, incense,
sparks from lit cigarettes, chemical fumes in the air or in very high humidity condition, such as a
bathroom.
•Use care when cleaning the air purifier. Strong corrosive cleansers may damage the exterior.
•Only Sharp Authorized Servicers should service this air purifier. Contact the nearest Servicer for any
problems, adjustments, or repairs.
NOTE - Radio or TV Interference
If this air purifier should cause interference to radio or television reception, try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the air purifier and radio/TV receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is con-
nected.
• Consult the dealer or an experienced radio/TV technician for help.

ENGLISH
ESPAÑOL
E-5
CAUTIONS CONCERNING OPERATION
• Do not block the intake and air outlet.
• Do not use the unit near or on hot objects, such as a range or where it may come into contact with
steam.
• Do not use the unit on its side.
• Always hold the handle on the back of the unit when moving it.
Holding the front panel when carrying may cause it to detach, thus dropping the unit and resulting in
bodily injury.
• Do not operate the unit without the filter.
• Do not wash and reuse HEPA filter .
Not only does it not improve filter performance, it may cause electric shock or malfunction.
• Clean the exterior with a soft cloth only.
The unit surface may be damaged or cracked.
In addition, the sensor may malfunction as a result.
IMPORTANT SAFETY INSTRUCTIONS
INSTALLATION GUIDELINES
• During the operation of the product, please place the unit at least 7 feet (2m) away from
equipment which involve electric wave such as televisions, radios or wave clocks, in case
electrical interference occurs to such equipment.
• Avoid a location where the sensor is exposed to direct wind.
The unit may not operate properly.
• Avoid locations where curtains, etc., come into contact with the intake or air outlet.
Curtains, etc., may become dirty or a malfunction may occur.
• Avoid locations where the unit is exposed to condensation, due to drastic temperature changes.
• Place on a stable surface with sufficient air circulation.
• Do not install when there is generation of lampblack, such as in a kitchen, etc.
The unit surface may crack or the sensor may malfunction as a result.
• Leave at least 2 feet (60cm) of space from the wall.
The wall behind the air outlet may become dirty as time passes. When using the unit for extensive
period in the same location, use a vinyl sheet, etc., to prevent the wall from becoming dirty. In addi-
tion, periodically clean the wall, etc.
FILTER GUIDELINES
• Follow the instructions in this manual for correct care and maintenance of the filters.

E-6
PART NAMES
MAIN UNIT DISPLAY
INCLUDED
• Operation manual
Dust Sensor
POWER ON/OFF Button See Page E-8
MODE Selection Button See Page E-8
Main Unit
Filter Frame
True HEPA Filter (white) See Page E-7,11
Pre-Filter
Front Panel
Handle
Air Outlet
Date Label
Power Cord
Power Plug
BACK
AUTO Operation Indicator Light
QUICK CLEAN operation Indicator Light
POLLEN Mode Indicator Light
Fan Speed Indicator Lights
CLEAN FILTER
Indicator Light
CLEAN-SIGN Light
(green,orange,red)
(Shape of plug depends on country.)

ENGLISH
ESPAÑOL
E-7
PREPARATION
rd
g
Be sure to remove the power plug from the wall outlet.
FILTER INSTALLATION
12
To maintain the quality of the filter, that is installed in the main unit within the
plastic bag. Be sure to remove the filter from the plastic bag before using the unit.
Remove the filters Install the filters
Pull the bottom of
the Front Panel.
1
Remove the
Front Panel.
2
Pull out the Filter Frame
and remove the Pre-Filter,
and the True HEPA Filter.
3
Remove the True HEPA
Filter (white) from the plastic
bag.
Place the True HEPA Filter
within the Filter Frame.
1
Please make sure that the True
HEPA Filter is placed in proper
orientation.
Do not install the filter backwards or
the unit will not operate properly.
2
Place the Pre-filter.
Insert the tabs of
the pre-filter into
the associated
holes of the Filter
Frame.
3
4
5
Mount the Filter Frame to the
main unit.
Fix the Front Panel to the main
unit.
Fill in the usage
start date on the
Date Label.
Front Panel
Filter Frame
Pre-Filter
True HEPA Filter
Pre-Filter
True HEPA Filter
Filter Frame
True HEPA Filter
Filter Frame
Tabs (4 places)
Holes
Main unit
Date Label
y.)
Filter Frame

OPERATION
MAIN UNIT OPERATION
E-8
AUTO operation
The fan speed is automatically switched
(HIGH*, MEDIUM, SILENT) depending
on the amount of impurities in the air.
The sensor detect the impurities for ef-
ficient air purification.
QUICK CLEAN operation
The unit will operate at HIGH* fan speed
for 15 minutes, then will operate at Auto
operation.
The operation mode is effective when
quick removal of impurities in the air is
desired.
POLLEN mode operation
The unit will operate at HIGH* fan speed
for 10 minutes, then will alternate
between MEDIUM and HIGH* for 20
minutes.
10 minutes: HIGH fan speed
20 minutes: MEDIUM fan speed
20 minutes: HIGH fan speed
Main Unit Controls
• AUTO
• QUICK CLEAN
• POLLEN
• SILENT
• MEDIUM
• MAX
Power ON/OFF Button
• Used to start operation (short beep) and stop operation (long beep)
• Fan Speed Indicator Light turn on/off.
• Unless the power cord is unplugged, the operation starts in the previous mode the
unit was operated in.
MODE Selection Button
• The operation mode can be switched.
* HIGH fan speed is an interme-
diate speed between MEDIUM
and MAX.
MEDIUM operation
The unit will operate at a fan
speed of MEDIUM.
MAX operation
The unit will operate at a fan
speed of MAX.
SILENT operation
The unit will operate quietly
using minimal air intake.
1
2
MODE Selection Button
Power ON/OFF Button
Clean Filter Indicator Light
Clean Sign Light

ENGLISH
ESPAÑOL
DETERMINING THE BASE IMPURITY RATE
For the first 30 seconds after the power plug is inserted into the wall outlet,
the unit will check the conditions of the air. If operation is set to ON during this
time, the CLEAN-SIGN LIGHT will alternately flash in green, orange and red.
CLEAN-SIGN LIGHT
The color changes according to the air condition.
ABOUT THE CLEAN-SIGN
• The condition of the CLEAN-SIGN depends on the room air condition
detected by the Dust Sensor when the plug is inserted into the wall outlet.
• It is possible to have a green CLEAN-SIGN with impurities in the air at the
time that the air purifier was just introduced to the room environment. After
a while, however, the base impurity rate will be adjusted to detect room air
condition correctly.
E-9
CLEAN FILTER INDICATOR LIGHT
Clean the Pre-Filter when the CLEAN FILTER Indicator Light activates.
(The indicator light will activate in about 2 months, when using the unit 24
hours daily.)
Clean (Green) Slightly Impure (Orange) Very Impure (Red)
n
Be sure to press the MODE selection Button for 3 seconds after cleaning the
pre-filter. A long beep will be heard and the operation hours stored in the
memory will be reset. Then the Filter Indicator Light will go out automatically.

CARE AND MAINTENANCE
To maintain optimum performance of this air purifier, please clean the unit including
the sensor and filters periodically.
When cleaning the unit, be sure to unplug the power cord, and never handle the plug
with wet hands. Electrical shock and/or bodily injury may occur as a result.
To prevent dirt or stains on the main unit, clean as often as necessary. If stains are allowed to
remain, they may become hard to clean.
Wipe with a dry, soft cloth
For stubborn stains or dirt, use a soft cloth dampened with warm water.
Do not use volatile fluids
Benzene, paint thinner, polishing powder, etc., may damage the surface.
Do not use detergents
Detergent ingredients may damage the unit.
Keep the unit away from water
DUST SENSOR
Opening of dust sensor
Dust Sensor
Main Unit
True HEPA Filter
Pre-Filter
Do not wash the True HEPA Filter.
Washing will not improve filter performance, and it may
cause electric shock or malfunction.
The sensitivity of the sensor will become
unstable if the sensor is dirty or blocked.
Remove dust from the surfaces of the sen-
sor opening using a vacuum cleaner.
E-10
MAIN UNIT
FILTER CLEANING
Clean the top surface of the Pre- Filter lightly with a
vacuum cleaner.
When Pre- Filter is very dirty, wash it in water with mild
kitchen detergent and dry it well in the shade.
Pre-Filter
After cleaning, press the MODE Selection Button for the
3 seconds with the power cord connected to the outlet.
A long beep will be heard and the operation hours will be
reset. Then the Filter Indicator Light will go out
automatically,
Care Cycle 1 month
Care Cycle 2 months
Care Cycle 2 months

ENGLISH
ESPAÑOL
E-11
Date Label
1
2
FILTER REPLACEMENT GUIDELINES
The replacement period differs depending on the room environment, the
usage hours and location of Air Purifier.
If dust or odors persists, replace the filters.
(Refer to “Please read before operating your new Air Purifier”)
Guide for filter replacement timing
• The filter life can be greatly reduced in poor environments.
The presence of cigarette smoke, pet dander and other concentrations of airborne particles
will cause filters to become clogged in less time. Please check filters regulary and replace as
needed.
• True HEPA Filter : Up to 5 years after opening
REPLACING THE FILTER
See page E-7 for directions on how to install the filters when
replacing.
Fill in the usage start date of the filter
on the Date Label.
Replacement Filter
Model: FZ-P35HFU
• True HEPA Filter : 1 unit
For replacement filters contact Sharp for information.
1-800-BE-SHARP or website at www.sharpusa.com
Disposal of the Filter
Please dispose of replaced filter according to the local disposal laws and regulations.
True HEPA Filter materials:
• Filter: Polypropylene
• Frame: Polyester

TROUBLESHOOTING
E-12
Before calling for repair, please review the list below, since the problem may not be a unit malfunction.
SYMPTOM REMEDY (not a malfunction)
ERROR DISPLAY
LAMP INDICATION REMEDY
The “Silent” Fan Speed Indicator
Light blinks. Fan motor disconnected or abnormal.
Operation stops.
• Pressing the POWER ON/OFF button will reset the error
display, but if error occurs again, contact the shop where you
purchased the unit.
Smoke is not removed • Clean or replace the filters if they appear to be heavily soiled.
(Refer to E-11)
The CLEAN-SIGN Light
illuminates green even when the
air is impure
• The air could be impure at the time the unit was plugged in.
(Refer to E-9)
The CLEAN-SIGN Light
illuminates orange or red even
when the air is clean
• The sensitivity of the sensor become unstable when the open-
ing of the dust sensor is dirty or is clogged.
Clean the dust around the sensor opening using a vacuum
cleaner. (Refer to E-10)
The discharged air has an aroma
or odor.
• Check to see if the filters are heavily soiled.
• Clean or replace the filters.
The unit does not operate when
cigarette smoke is in the air.
• Is the unit installed in a location that is difficult for the sensor to
detect cigarette smoke?
• Is the Dust sensor opening blocked or clogged?
(In this case, clean the opening.) (Refer to E-10)
The CLEAN FILTER Indicator
Light remains activated even
after replacing filter.
• After cleaning the pre-filter, press the MODE Selection Button
for 3 seconds to reset.
(Refer to E-9)

ENGLISH
ESPAÑOL
SPECIFICATIONS
Standby Power
In order to operate the electrical circuits while the power plug is inserted in the wall outlet, this
product consumes about 0.3W of standby power.
For energy conservation, unplug the power cord when the unit is not in use.
E-13
Fan
Speed
Operation
Model
Power supply
Fan Speed Adjustment
Rated Power
Fan Speed CFM (m3/min)
Noise Level
Applicable Floor Surface
CADR(Dust/Smoke/Pollen)
Cord Length
Dust collection
Sensor
Special Program Mode
Optional accessories
Filter type
FP-P35CX
120V 60Hz
MAX
35W
176(5.0)
48 dBA
MED
6.5 W
85(2.4)
30 dBA
SILENT
3.0 W
28(0.8)
14 dBA
228sq.ft(21.2m2) *1
150/147/153
8.3ft(2.5m)
16-3/8in(W)x7-7/8in(D)x23in(H)
415mm(W)x200mm(D)x585mm(H)
13.4 lbs(6.1kg)
Pre-filter & True HEPA with Microbial control
DUST
Pollen / Quick CLEAN operation
Replacement filter [Model :FZ-P35HFU ]
Dimensions
Weight
The applicable floor surface area is appropriate for operating the unit at maximum fan speed.
*1

Lea atentamente antes de
utilizar su nuevo purificador de aire
El purificador de aire aspira el aire de la habitación desde su toma de aire,
permite el paso del aire a través de un pre-filtro, y un filtro verdadero de
HEPA (filtro captador de polvo) en el interior de la unidad, y descarga finalmente
el aire a través de la salida de aire. La unidad purificadora de aire repite este
proceso moviendo su ventilador interno.
Conforme el aire pasa a través de la unidad, un filtro verdadero de HEPA
nuevo puede eliminar un 99,97% de las partículas de polvo, de un tamaño de
hasta 0,3 micras. El filtro de carbón activado absorbe gradualmente los
elementos olorosos que pasan repetidamente por el filtro. (Los elementos de
olor son absorbidos también por el filtro verdadero de HEPA).
Algunos ingredientes olorosos absorbidos por el filtro pueden ser separados
y descargados a través de la salida de aire y resultar en un nuevo olor.
Dependiendo del entorno en que se utilice la unidad, especialmente cuando
el producto se utiliza en condiciones notablemente más severas que en el
caso del uso doméstico normal, este olor puede tornarse fuerte en un periodo
más corto del esperado.
Si el olor persiste, será señal de que el filtro están gastados y es necesario
comprar un juego opcional de filtros de reemplazo FZ-P35HFU.
NOTA
• El purificador de aire ha sido diseñado para eliminar polvo y olores suspendidos en el aire, no así en
el caso de gases perjudiciales (por ejemplo, el monóxido de carbono que contiene el humo de un
cigarrillo). Si aún existen las fuentes de olor, no podrá eliminar el olor completamente (por ejemplo,
los olores de los materiales de construcción o el olor de las mascotas).
• Se sugiere que se abra la ventana un poco si está fumando para facilitar la ventilación.

Filtro verdadero de HEPA

Pre-Filtro

ENGLISH
ESPAÑOL
S-1
• EI sistema dual de la filtración.
1) Pre-Filtro
Recoge partículas grandes.
ESPAÑOL
ÍNDICE
INSTRUCCIONES DE SEGURIDAD
IMPORTANTES ..........................................
S-2
• ADVERTENCIA............................................S-2
• PRECAUCIONES CONCERNIENTES AL
FUNCIONAMIENTO ....................................S-3
• DIRECTRICES DE INSTALACIÓN ..............S-3
• DIRECTRICES ACERCA DEL FILTRO ....... S-3
NOMBRES DE LOS COMPONENTES ... S-4
• PANTALLA DE VISUALIZACIÓN DE LA
UNIDAD PRINCIPAL .................................... S-4
• INCLUIDO ....................................................S-4
• POSTERIOR ................................................S-4
PREPARATIVOS ..................................... S-5
• INSTALACIÓN DEL FILTRO ........................S-5
FUNCIONAMIENTO ................................ S-6
• FUNCIONAMIENTO
DE LA UNIDAD PRINCIPAL ........................S-6
CUIDADO Y MANTENIMIENTO .............. S-8
• UNIDAD PRINCIPAL....................................S-8
• SENSOR DE POLVO ...................................S-8
• LIMPIEZA DEL FILTRO ...............................S-8
• DIRECTRICES DE REEMPLAZO DEL FILTRO .. S-9
RESOLUCIÓN DE PROBLEMAS ......... S-10
ESPECIFICACIONES ............................ S-11
Gracias por adquirir el purificador de aire de
SHARP. Para obtener información sobre el uso
correcto del aparato, lea detenidamente este
manual. Antes de utilizar el producto, asegúrese
de leer la sección “Instrucciones de seguridad
importantes”.
Después de leer el manual, guárdelo en un lugar
apropiado para poder consultarlo en el futuro.
CARACTERÍSTICAS
2) Filtro verdadero de HEPA(aira
particulado de alta eficacia).
Recolección de partículas de alta
eficacia, induides polen y polvo.
• Funcionamiento automático
disponible con Sensor de Polvo.
• El mado silencioso es tan
callado como el murmullo de las
hojas.

S-2
Cuando se utilizan aparatos eléctricos, deben seguirse unas precauciones de seguridad básicas,
entre las que se incluyen las siguientes:
NOTA - Interferencias en radio o TV
Si este purificador de aire causa interferencias en la recepción de ondas de radio o televisión, intente
corregir la interferencia llevando a cabo una o más de las acciones siguientes:
• Cambie la orientación o la posición de la antena receptora.
• Aumente la separación entre el purificador de aire y el receptor de radio/TV.
• Conecte el equipo a un tomacorriente de un circuito diferente de aquél al que está conectado el
receptor.
• Consulte con su distribuidor o con un técnico experimentado en radio/TV para pedirle ayuda.
ADVERTENCIA - Para reducir el riesgo de que se produzcan descargas eléctricas, incendios
o lesiones a personas:
• Lea todas las instrucciones antes de utilizar el purificador de aire.
• Utilice solamente una salida de alimentación de 120 V con un tomacorriente polarizado.
• El purificador de aire posee un enchufe polarizado (una patilla es más ancha que la otra). Este
enchufe encajará en un tomacorriente polarizado en una sola postura. Inicialmente, si el enchufe no
encaja en el tomacorriente déle la vuelta. Si aun así no encaja, póngase en contacto con un electricista
o persona de servicio calificada.
• No use el purificador de aire si el cable o el enchufe de alimentación están dañados o si la
conexión al tomacorriente de la pared no es segura.
•Quite periódicamente el polvo del enchufe de alimentación.
• No introduzca los dedos u objetos extraños en la entrada o la salida de aire.
• Al desconectar el enchufe de alimentación, asegúrese de tomar el enchufe y de no tirar nunca
del cable.
De lo contrario, podrían producirse descargas eléctricas y/o incendios causados por cortocircuitos.
• Ne quite elenchufe con las manos mojadas.
• No utilice el purificador de aire cerca de artefactos a gas o chimeneas.
• Desconecte el enchufe de alimentación del tomacorriente de la pared antes de limpiar el
aparato y cuando no lo esté utilizando.
Pueden producirse descargas eléctricas y/o incendios como resultado de un mal aislamiento o por
cortocircuitos.
• Si el cable de alimentación está dañado, deberá ser reemplazado por el fabricante, su
representante de servicio o por un agente de servicio autorizado de Sharp o una persona
equivalente calificada, para evitar peligros.
•No utilice el aparato junto con insecticidas en aerosol o en habitaciones donde haya residuos aceitosos,
incienso, chispas de cigarrillos encendidos, gases derivados de productos químicos en el aire o en
un ambiente muy húmedo, como un baño.
•Tenga cuidado al limpiar el purificador de aire. Los limpiadores corrosivos pueden dañar el exterior
del mismo.
•Sólo deberían reparar este purificador de aire los agentes de servicio autorizados de Sharp. Si tiene
algún problema o para realizar ajustes o reparaciones, póngase en contacto con el agente de servicio
más cercano.
INSTRUCCIONES DE SEGURIDAD IMPORTANTES

ENGLISH
ESPAÑOL
S-3
PRECAUCIONES CONCERNIENTES AL FUNCIONAMIENTO
• No bloquee la entrada y la salida de aire.
• No use el aparato cerca o encima de objetos calientes, como una cocina o en lugares donde pueda
entrar en contacto con vapor.
• No utilice la unidad echada de costado.
•Tome siempre el mango situado en la parte posterior de la unidad principal para moverla.
Si la toma por el panel frontal el panel podría desprenderse y causar la caída del aparato, lo que a su
vez puede ocasionarle lesiones.
• No haga funcionar el aparato sin los filtros.
• No lave y vuelva a utilizar el filtro HEPA.
No sólo no mejora el rendimiento del filtro, podría causar descargas eléctricas o averías.
• Limpie el exterior del aparato solamente con un paño suave.
La superficie del aparato podría dañarse o agrietarse.
Además, los sensores podrían comenzar a funcionar de forma incorrecta.
DIRECTRICES ACERCA DEL FILTRO
• Siga las instrucciones de este manual para un cuidado y mantenimiento correcto del filtro.
DIRECTRICES DE INSTALACIÓN
• Durante el funcionamiento del producto, sitúe el aparato, al menos, a 7pies (2m) de equipos
que hagan uso de ondas electromagnéticas, como televisores, radios o relojes de onda corta,
para evitar que se produzca una interferencia eléctrica con dichos equipos.
• Evite instalar el aparato en lugares donde los sensores estén directamente expuestos al viento.
De lo contrario, el aparato podría funcionar incorrectamente.
• Evite instalar el aparato en lugares donde elementos tales como cortinas, etc. entren en
contacto con la entrada o la salida de aire.
Las cortinas, etc., podrían ensuciarse o el aparato podría comenzar a funcionar de forma incorrecta.
• Evite instalar el aparato en lugares donde esté expuesto a la condensación, debido a los
cambios drásticos de temperatura.
• Sitúe el aparato en una superficie estable con suficiente circulación de aire.
• No instale el aparato cuando haya generación de hollín, como en una cocina, etc.
La superficie del aparato podría agrietarse el sensor podrían comenzar a funcionar de forma incorrecta.
• Deje un espacio de al menos 2 pies (60cm) entre el aparato y la pared.
La pared situada detrás de la salida de aire puede ensuciarse con el paso del tiempo. Al usar el
aparato durante períodos prolongados en un mismo lugar, use una hoja de vinilo, etc., para evitar
que la pared se ensucie. Además, limpie periódicamente la pared, etc.
TES

S-4
NOMBRES DE LOS COMPONENTES
PANTALLA DE VISUALIZACIÓN DE LA UNIDAD PRINCIPAL
Luz indicadora de funcionamiento AUTO
Luz indicadora de funcionamiento en
limpieza rápida (QUICK CLEAN)
Luz indicadora del modo de polen
Luces indicadoras de la
velocidad del ventilador
Luz indicadora del filtro
Lua de la SEÑAL DE LIMPIAR
Sensor de polvo
Botón ON/OFF de encendido/apagado
Consulte la página S-6
Botón de selección de MODO
Consulte la página S-6
Unidad principal
Filtro verdadero de HEPA
Consulte las páginas S-5, 9
Pre-filtro
Bastidor del filtro
Panel delantero
SE INCLUYE
PARTE POSTERIOR
• Manual de funcionamiento
Mango
Salida de aire
Etiqueta de la fecha
Cable de alimentación
Clavija de alimentación
(El tamaño de la clavija puede variar dependiendo de los países)
