UA-KIN50E, UA-KIN40E
Operation Manual
Air Purifier with Humidifying Function
EN FRDE ITES NL PL
2 / 158

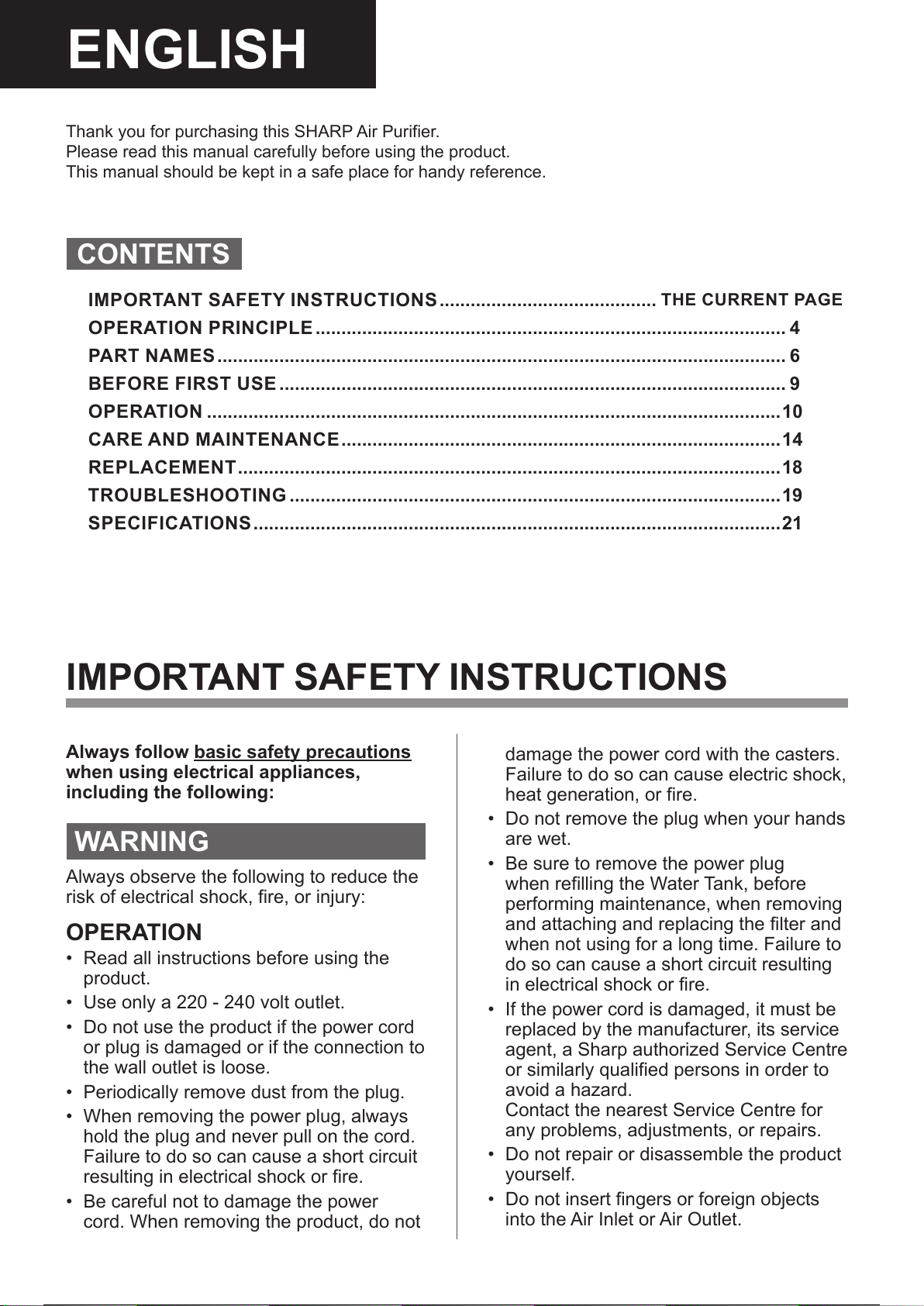

CONTENTS
Thank you for purchasing this SHARP Air Purifier.
Please read this manual carefully before using the product.
This manual should be kept in a safe place for handy reference.
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS.......................................... THE CURRENT PAGE
OPERATION PRINCIPLE........................................................................................... 4
PART NAMES.............................................................................................................. 6
BEFORE FIRST USE.................................................................................................. 9
OPERATION ...............................................................................................................10
CARE AND MAINTENANCE.....................................................................................14
REPLACEMENT.........................................................................................................18
TROUBLESHOOTING...............................................................................................19
SPECIFICATIONS......................................................................................................21
IMPORTANT SAFETY INSTRUCTIONS
Always follow basic safety precautions
when using electrical appliances,
including the following:
WARNING
Always observe the following to reduce the
risk of electrical shock, fire, or injury:
OPERATION
• Read all instructions before using the
product.
• Use only a 220 - 240 volt outlet.
• Do not use the product if the power cord
or plug is damaged or if the connection to
the wall outlet is loose.
• Periodically remove dust from the plug.
• When removing the power plug, always
hold the plug and never pull on the cord.
Failure to do so can cause a short circuit
resulting in electrical shock or fire.
• Be careful not to damage the power
cord. When removing the product, do not
damage the power cord with the casters.
Failure to do so can cause electric shock,
heat generation, or fire.
• Do not remove the plug when your hands
are wet.
• Be sure to remove the power plug
when refilling the Water Tank, before
performing maintenance, when removing
and attaching and replacing the filter and
when not using for a long time. Failure to
do so can cause a short circuit resulting
in electrical shock or fire.
• If the power cord is damaged, it must be
replaced by the manufacturer, its service
agent, a Sharp authorized Service Centre
or similarly qualified persons in order to
avoid a hazard.
Contact the nearest Service Centre for
any problems, adjustments, or repairs.
• Do not repair or disassemble the product
yourself.
• Do not insert fingers or foreign objects
into the Air Inlet or Air Outlet.
3 / 158

EN-1
ENGLISH
• Do not expose the product to water.
Doing so can cause a short circuit or
electrical shock.
• When carrying the product, first remove
the Water Tank and Humidifying Tray, and
then hold the product by the handles on
both sides.
• Do not drink the water in the Humidifying
Tray or Water Tank.
• Replace the water in the Water Tank daily
with fresh tap water, and regularly clean
the Water Tank and Humidifying Tray.
When the product is not in use, dispose
of the water in the Water Tank and
Humidifying Tray. Leaving water in the
Water Tank or Humidifying Tray can
cause mold, bacteria, and bad odours. In
rare cases, such bacteria can be a health
hazard.
• This appliance can be used by children
aged from 8 years and above and
persons with reduced physical, sensory or
mental capabilities or lack of experience
and knowledge if they have been given
supervision or instruction concerning
use of the appliance in a safe way
and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not
be made by children without supervision.
INSTALLATION
• Do not use this product near gas
appliances or fireplaces.
When the product is operated with gas
appliances in same room, Ventilate a
room periodically, otherwise it may cause
Carbon monoxide poisoning.
• Do not operate the product in rooms
where aerosol insecticides are present.
Do not operate the product in rooms
where there is oily residue, incense,
sparks from lit cigarettes, or chemical
fumes in the air.
• Keep the product away from water.
Do not operate the product in places
where it may get wet, such as a
bathroom.
MAINTENANCE
• Be cautious when cleaning the product.
Strong corrosive cleansers can damage
the exterior.
CAUTION
OPERATION
• Do not block the Air Inlet or Air Outlet.
• Always operate the product in an upright
position.
• Do not move the product when it is in
operation.
• Do not move or change the direction of
the product while dragging the casters.
• If the product is on easily damaged
flooring, an uneven surface, or thick-piled
carpet, lift it up when moving.
• When moving the product by its casters,
move it slowly and in a horizontal
direction.
• Turn the product off and remove the
Water Tank before moving, take care not
to catch your fingers.
• Do not operate the product without
the filters, the Water Tank, and the
Humidifying Tray properly installed.
• When refilling the Water Tank, make sure
of no water leaking from the Water Tank.
• Be sure to wipe off any excess water on
the outside of the Water Tank.
• Do not use hot water (40 ºC or more),
chemical agents, aromatic substances,
dirty water, or other damaging
substances. Doing so can deform the
product or cause it to malfunction.
• Use only fresh tap water. Using other
water sources risks the growth of molds,
fungi, or bacteria.
• Do not shake the Water Tank while
holding by the carrying handle.
INSTALLATION
• Do not place the product near or on
hot objects, such as stoves or heaters,
or where it may come into contact with
steam.
MAINTENANCE
• Clean the exterior with a soft cloth only.
Do not use volatile fluids or detergents.
The product surface may be damaged
or cracked with Benzine paint thinner or
polishing powder. In addition, the sensors
may malfunction as a result.
• Do not scrub the Pre-Filter hard during its
maintenance.
4 / 158

EN-2
• Do not wash and reuse the HEPA filter
and the Deodorizing filter.
Doing so will not improve filter
performance and can also cause electric
shock or operating malfunctions.
• The frequency of descaling maintenance
will depend on the hardness of and the
impurities in the water that you use; the
harder the water the more often descaling
will be necessary.
• Do not use detergents other than
instructed when perform maintenance of
the Humidifying Tray and Cover. It may
cause deformation, tarnishing, cracking
(water leakage).
• Avoid spilling water when removing or
cleaning the Humidifying Tray.
• Do not remove the Float and the Roller. If
the Float comes off, refer to Page 15.
• Do not remove the Humidifying Filter from
the Filter Frame except replacing it.
NOTE
What to do if the product
interferes with radio or TV
reception
If the air purifier interferes with radio or
television reception, try one or more of the
following measures:
• Adjust or reposition the receiving
antenna.
• Increase the distance between the
product and the radio or TV.
• Connect the equipment into an outlet on
a circuit different from that of the radio or
TV receiver.
• Consult the dealer or a qualified radio or
TV technician.
INSTALLATION
• Avoid locations where the sensors are
exposed to direct wind.
Doing so can cause the product to
malfunction.
• Avoid locations where furniture, fabrics,
or other objects can come in contact with
the product and interfere with the intake
and outtake of air.
• Avoid locations where the product is
exposed to condensation or drastic
changes in temperature. Appropriate
room temperature is between 0 – 35 ºC.
• Place the product on a level and stable
surface with sufficient air circulation.
Strong wind or Dust through the window
may prevent the unit’s air purifying
performance and efficacy.
When placed on heavy carpet, the
product may vibrate slightly. Place the
product on a level surface to avoid
water leakage from the Water Tank and
Humidifying Tray.
• Avoid locations that generate grease
or oily smoke. Doing so can cause the
product exterior to crack and the sensors
to malfunction.
• The dust collecting ability of the product
is effective even when the product is
as close to 3 cm from the wall, the
surrounding walls and floor may get dirty.
Please place the product at a distance
from the wall. The wall directly behind the
Air Outlet may become dirty over time.
When using the product for an extended
period of time at the same location,
periodically clean the walls adjacent to it.
MAINTENANCE
• Follow the instructions in this manual for
proper filter care and maintenance.
5 / 158

EN-3
ENGLISH
Attention: Your product
is marked with this
symbol. It means that
used electrical and
electronic products
should not be mixed
with general household
waste.
There is a separate
collection system for
these products.
A. Information on Disposal for Users (private households)
1. In the European Union
IF YOU WISH TO DISPOSE OF THIS EQUIPMENT, DO NOT USE THE ORDINARY
WASTE BIN, AND DO NOT PUT THEM INTO A FIREPLACE!
Used electrical and electronic equipment should always be collected and treated
SEPARATELY in accordance with local law.
Separate collection promotes an environment-friendly treatment, recycling of materials,
and minimizing final disposal of waste. IMPROPER DISPOSAL can be harmful to human
health and the environment due to certain substances! Take USED EQUIPMENT to a
local, usually municipal, collection facility, where available.
If in doubt about disposal, contact your local authorities or dealer and ask for the correct
method of disposal.
ONLY FOR USERS IN THE EUROPEAN UNION, AND SOME OTHER COUNTRIES;
FOR INSTANCE NORWAY AND SWITZERLAND: Your participation in separate collection
is requested by law.
The symbol shown above appears on electrical and electronic equipment (or the
packaging) to remind the users of this.
Users from PRIVATE HOUSEHOLDS are requested to use existing return facilities for
used equipment. Return is free of charge.
If the equipment has been used for BUSINESS PURPOSES, please contact your SHARP
dealer who will inform you about take-back. You might be charged for the costs arising
from take-back. Small equipment (and small quantities) might be taken back by your local
collection facility. For Spain: Please contact the established collection system or your local
authority for take-back of your used products.
2. In other Countries outside the EU
If you wish to discard this product, please contact your local authorities and ask for the
correct method of disposal.
For Switzerland: Used electrical or electronic equipment can be returned free of charge to
the dealer, even if you don’t purchase a new product. Further collection facilities are listed
on the homepage of www.swico.ch or www.sens.ch.

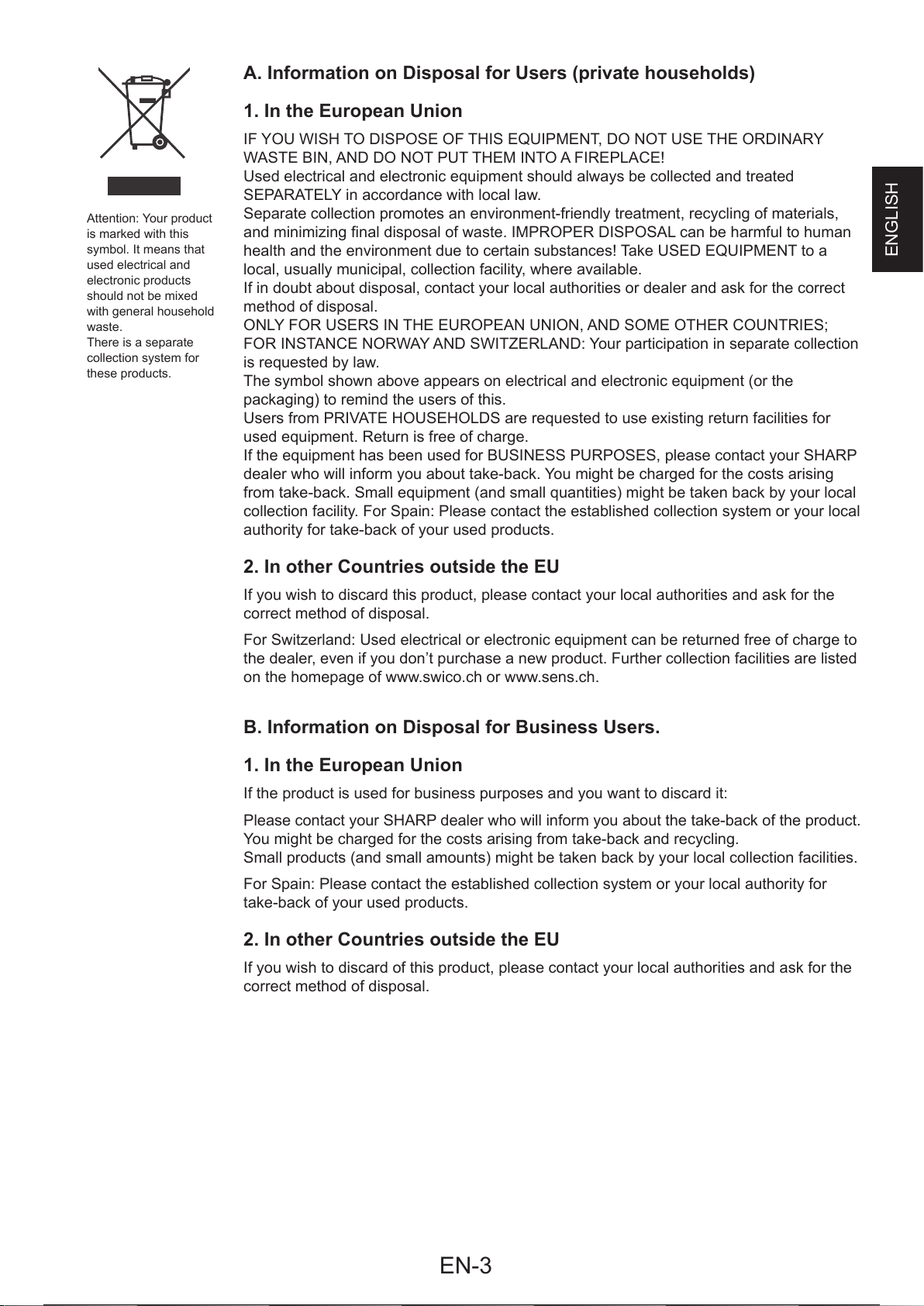

B. Information on Disposal for Business Users.
1. In the European Union
If the product is used for business purposes and you want to discard it:
Please contact your SHARP dealer who will inform you about the take-back of the product.
You might be charged for the costs arising from take-back and recycling.
Small products (and small amounts) might be taken back by your local collection facilities.
For Spain: Please contact the established collection system or your local authority for
take-back of your used products.
2. In other Countries outside the EU
If you wish to discard of this product, please contact your local authorities and ask for the
correct method of disposal.
6 / 158

EN-4

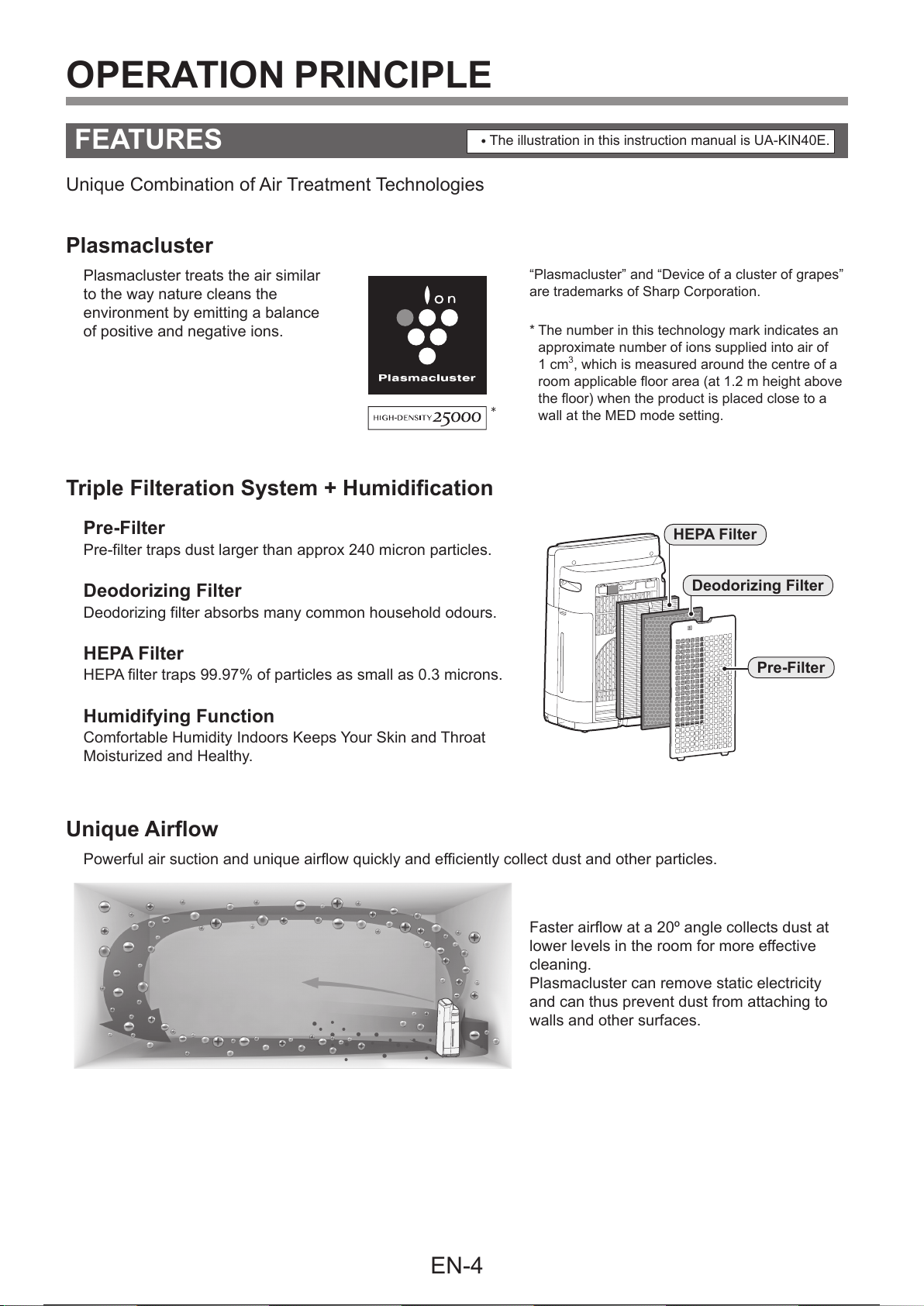

FEATURES
Unique Combination of Air Treatment Technologies
Plasmacluster
Plasmacluster treats the air similar
to the way nature cleans the
environment by emitting a balance
of positive and negative ions.
“Plasmacluster” and “Device of a cluster of grapes”
are trademarks of Sharp Corporation.
* The number in this technology mark indicates an
approximate number of ions supplied into air of
1 cm3, which is measured around the centre of a
room applicable floor area (at 1.2 m height above
the floor) when the product is placed close to a
wall at the MED mode setting.
Triple Filteration System + Humidification
Pre-Filter
Pre-filter traps dust larger than approx 240 micron particles. HEPA Filter
Deodorizing Filter
Pre-Filter
Deodorizing Filter
Deodorizing filter absorbs many common household odours.
HEPA Filter
HEPA filter traps 99.97% of particles as small as 0.3 microns.
Humidifying Function
Comfortable Humidity Indoors Keeps Your Skin and Throat
Moisturized and Healthy.
Unique Airflow
Powerful air suction and unique airflow quickly and efficiently collect dust and other particles.
Faster airflow at a 20º angle collects dust at
lower levels in the room for more effective
cleaning.
Plasmacluster can remove static electricity
and can thus prevent dust from attaching to
walls and other surfaces.
OPERATION PRINCIPLE
• The illustration in this instruction manual is UA-KIN40E.
EN-5
ENGLISH
The air purifier draws in room air through the Air Inlet, circulates it through a Pre-Filter, a Deodorizing Filter
and a HEPA Filter inside the product, and then discharges it through the Air Outlet. The HEPA Filter can
remove 99.97% of dust particles as small as 0.3 microns that pass through the filter and also helps absorb
odours.
The Deodorizing Filter gradually absorbs odours as they pass through the filter.
Some odours absorbed by the filters will break down over time, causing additional odours. Depending on
usage conditions, and especially if the product is used in environments significantly more severe than a
normal household, these odours may become noticeable sooner than expected. If these odours persist,
replace the filters.
When minerals in tap water adhere to the filters and become a hard and white, they absorb odours in
the room that can cause the emission of an unpleasant odour when the Humidifying Filter is dry. (Varies
depending on water quality and other environmental factors)
If this occurs, perform the Humidifying Filter maintenance. (Page 15)
NOTE
• The air purifier is designed to remove air-suspended dust and the odours.
The air purifier is not designed to remove harmful gases such as carbon monoxide contained in
cigarette smoke.
The air purifier may not completely remove an odour if the source of the odour is still present.

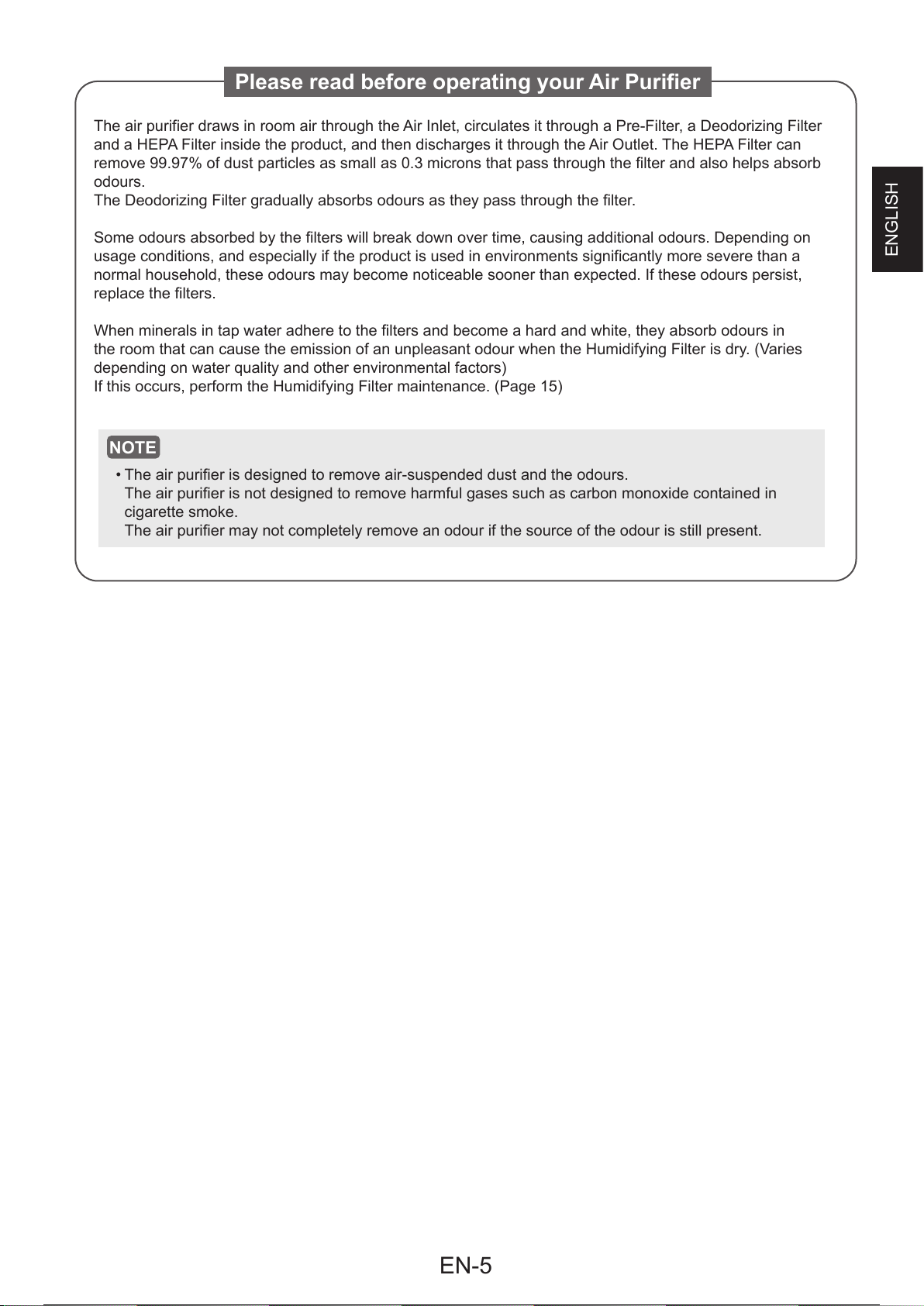

Please read before operating your Air Purifier
7 / 158

EN-5
ENGLISH
The air purifier draws in room air through the Air Inlet, circulates it through a Pre-Filter, a Deodorizing Filter
and a HEPA Filter inside the product, and then discharges it through the Air Outlet. The HEPA Filter can
remove 99.97% of dust particles as small as 0.3 microns that pass through the filter and also helps absorb
odours.
The Deodorizing Filter gradually absorbs odours as they pass through the filter.
Some odours absorbed by the filters will break down over time, causing additional odours. Depending on
usage conditions, and especially if the product is used in environments significantly more severe than a
normal household, these odours may become noticeable sooner than expected. If these odours persist,
replace the filters.
When minerals in tap water adhere to the filters and become a hard and white, they absorb odours in
the room that can cause the emission of an unpleasant odour when the Humidifying Filter is dry. (Varies
depending on water quality and other environmental factors)
If this occurs, perform the Humidifying Filter maintenance. (Page 15)
NOTE
• The air purifier is designed to remove air-suspended dust and the odours.
The air purifier is not designed to remove harmful gases such as carbon monoxide contained in
cigarette smoke.
The air purifier may not completely remove an odour if the source of the odour is still present.
Please read before operating your Air Purifier
8 / 158

EN-6
13

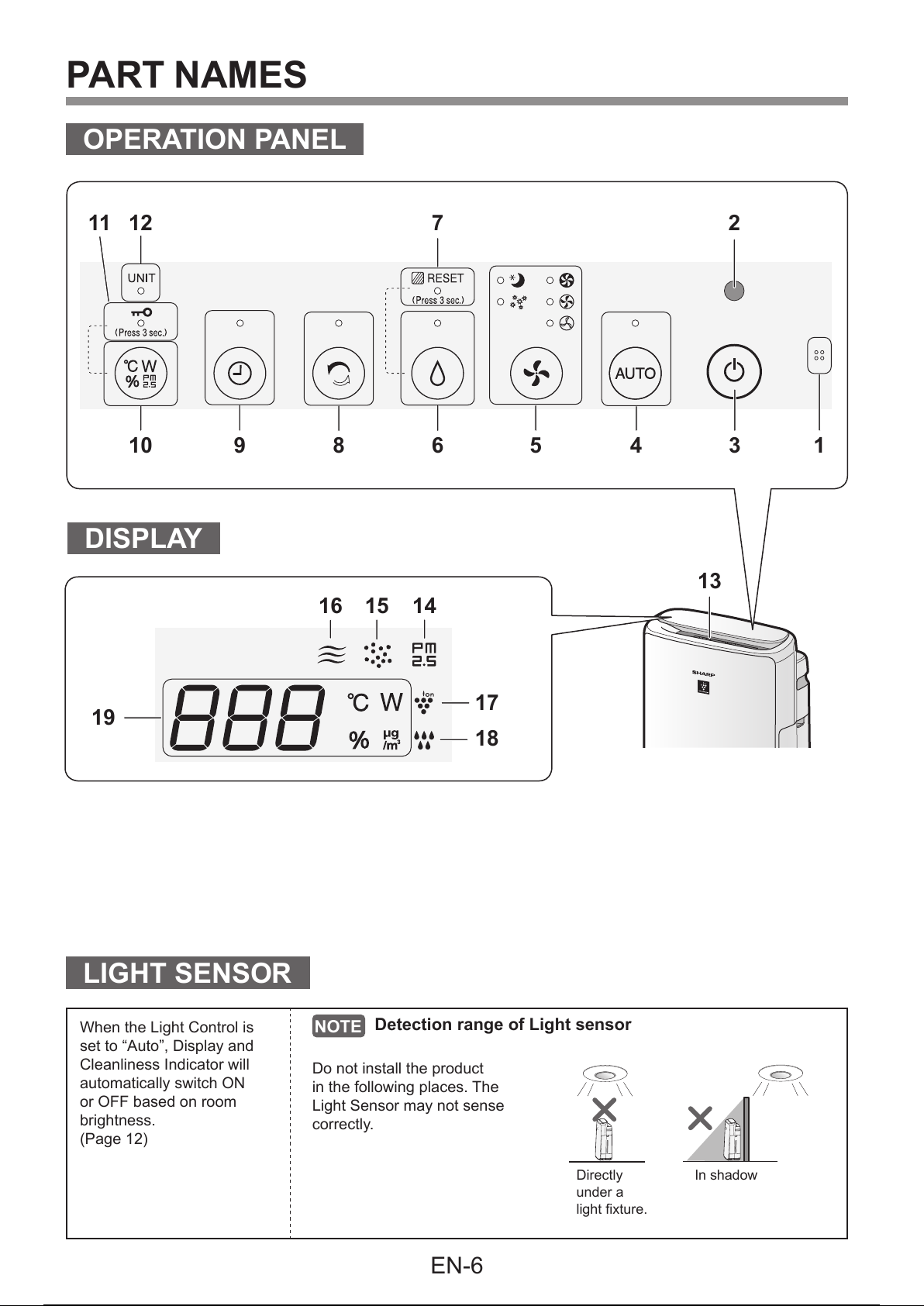

PART NAMES
LIGHT SENSOR
OPERATION PANEL
18 456910
712 2
19
16
18
17
3
1415
11
When the Light Control is
set to “Auto”, Display and
Cleanliness Indicator will
automatically switch ON
or OFF based on room
brightness.
(Page 12)
NOTE Detection range of Light sensor
Do not install the product
in the following places. The
Light Sensor may not sense
correctly.
Directly
under a
light fixture.
In shadow
DISPLAY
9 / 158

EN-7
ENGLISH
1Sensor (Internal)
Odour / Temperature / Humidity
2 Light Sensor
3 Power ON/OFF Button
4 AUTO Button, Lamp (White)
5 Mode Button, Lamps (White)
6Humidify ON/OFF Button, Lamp (White)
(Press 3 sec.) Filter Reset Button
7 Filter Maintenance Lamp (Orange)
8 Clean Ion Shower Button, Lamp (White)
9 ON/OFF Timer Button, Lamp (White)
10 Switching Display Button
(Press 3 sec.) Child-Lock Button
11 Child-Lock Lamp (White)
12 Unit Replacement Lamp (Red)
13
Cleanliness Indicator
• Indicates the air purity of the room in 5 levels
with colour changes.
Clean Blue
Yellow (Flashing)
Impure Red (Flashing fast)
14 PM2.5 Indicator (White)
Indicates the Sensitive Dust Sensor detects
microscopic dust.
15
Dust Indicator (White)
Indicates the Sensitive Dust Sensor detects
usual dust.
16 Odour Indicator (White)
Indicates the Odour Sensor detects odours.
17 Plasmacluster Ion Indicator (Blue)
18
Humidifying Indicator
White Humidify ON
Off Humidify OFF
Red (Flashing) the product needs water
19
Display
(*The displayed numbers are approximate.)
• Timer
Indicates setting time or remaining
time of ON/OFF timer.
• Humidity*
Humidity 25 % to 75 % is displayed.
24 %
or less
76 %
or more
• Temperature*
Temperature 0 oC to 50 oC is displayed.
51 oC
or more
-1 oC
or less
• PM2.5 Concentration*
PM2.5 10 μg/m3 to 499 μg/m3is displayed.
500 μg/m3
or more
9 μg/m3
or less
• Wattage*
Indicates wattage by current
operation.
10 / 158

EN-8
MAIN BODY 1 Operation Panel / Display
2 Air Outlet (Front)
3 Main Body
4 Caster (4 Locations)
5 Caster Stopper (Right & Left)
6Unit* Holder
(Plasmacluster Ion Generating
Unit)
7 Unit* Cleaning Brush
8 Unit* Cover
9 Tank Handle
10 Water Tank
11 Tank Cap
12 Humidifying Filter
13 Humidifying Tray
14 Tray Panel
15 Float
16 Roller
17 Air Outlet (Back)
18 Handle (2 Locations)
19
Sensor Filter /
Sensor (Internal)
Sensitive Dust
20 Power Cord, Plug
(Shape of plug depends on
country.)
21 HEPA Filter
22 Deodorizing Filter
23 Back Panel
24 Air Inlet
* The Unit refers to Plasmacluster Ion
Generating Unit. (The same as below.)
14
15
16
Unlocked
Locked
5
6
7
82
1
3
4
9
10
11
13
12
17
18
20 21 22
23
24
19
(Only UA-KIN50E)
22
• The illustration in this instruction
manual is UA-KIN40E.
EN-9
ENGLISH
BEFORE FIRST USE
FILTER INSTALLATION
1.
Remove the Back Panel.
Back Panel
2.
Remove the plastic bag from the
each filter.
HEPA Filter Deodorizing
Filter (Only
UA-KIN50E)
3.
Install the filters in the correct order
as shown.
HEPA Filter
Deodorizing Filter
Tag
4.
Install the Back Panel.
Click
Click
NOTE
• When replacing the filter, making a memo of
the start of use date is recommended.
REFILLING THE WATER
TANK
1.
Remove the Water Tank.
Tank Handle
Water Tank
2.
Fill the Water Tank with the tap water.
満水 FULL
Tank Cap
3.
To prevent leaks, securely tighten
the Tank Cap.
4.
Install the Water Tank.
Click
Always be sure to remove the power
plug from the wall outlet.
11 / 158

EN-9
ENGLISH
BEFORE FIRST USE
FILTER INSTALLATION
1.
Remove the Back Panel.
Back Panel
2.
Remove the plastic bag from the
each filter.
HEPA Filter Deodorizing
Filter (Only
UA-KIN50E)
3.
Install the filters in the correct order
as shown.
HEPA Filter
Deodorizing Filter
Tag
4.
Install the Back Panel.
Click
Click
NOTE
• When replacing the filter, making a memo of
the start of use date is recommended.
REFILLING THE WATER
TANK
1.
Remove the Water Tank.
Tank Handle
Water Tank
2.
Fill the Water Tank with the tap water.
満水 FULL
Tank Cap
3.
To prevent leaks, securely tighten
the Tank Cap.
4.
Install the Water Tank.
Click
Always be sure to remove the power
plug from the wall outlet.
12 / 158

EN-10

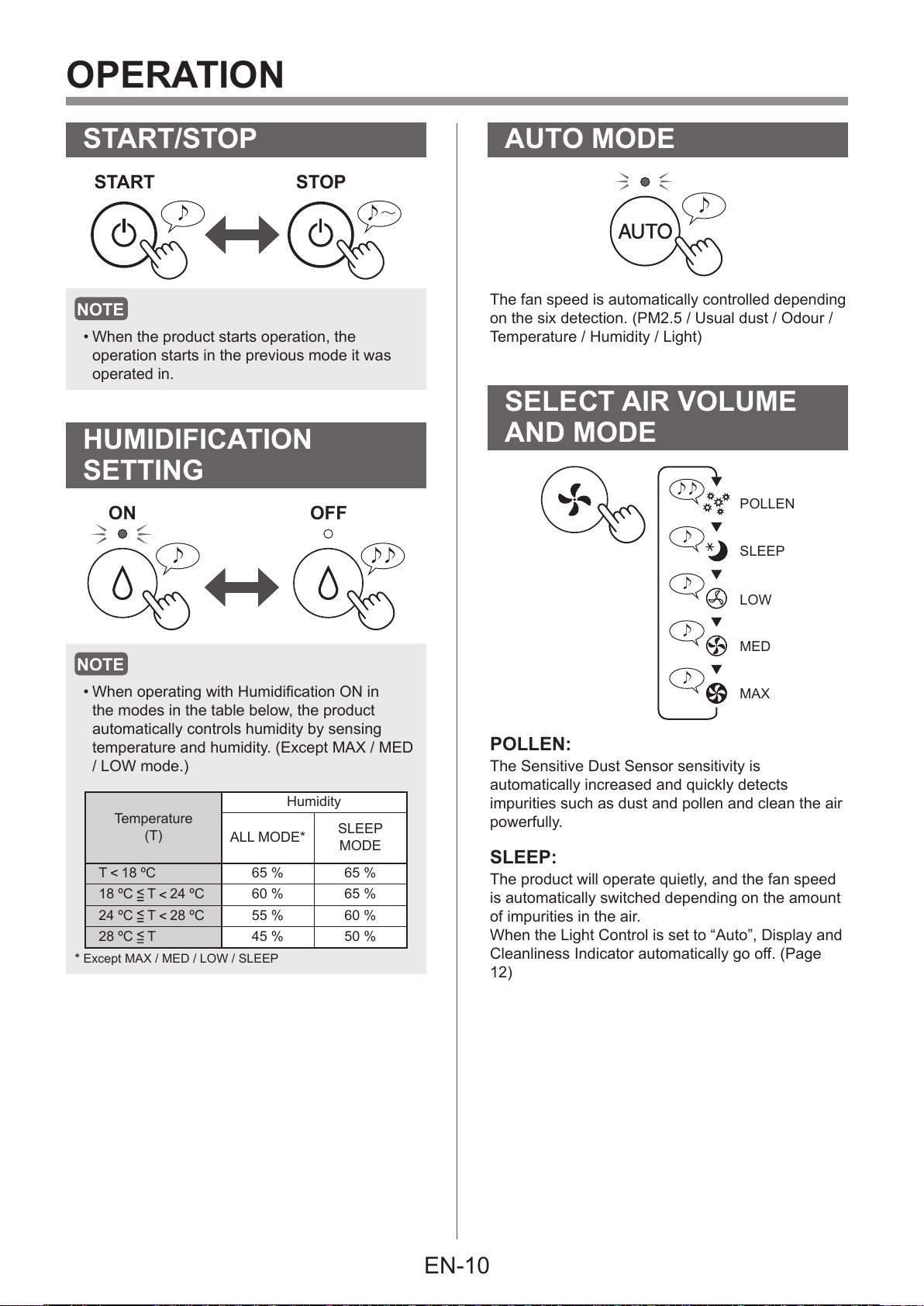

OPERATION
START/STOP
START STOP
♪
♪～
NOTE
• When the product starts operation, the
operation starts in the previous mode it was
operated in.
SELECT AIR VOLUME
AND MODE
♪
♪
♪
♪
♪♪
POLLEN
SLEEP
LOW
MED
MAX
POLLEN:
The Sensitive Dust Sensor sensitivity is
automatically increased and quickly detects
impurities such as dust and pollen and clean the air
powerfully.
SLEEP:
The product will operate quietly, and the fan speed
is automatically switched depending on the amount
of impurities in the air.
When the Light Control is set to “Auto”, Display and
Cleanliness Indicator automatically go off. (Page
12)
AUTO MODE
♪
The fan speed is automatically controlled depending
on the six detection. (PM2.5 / Usual dust / Odour /
Temperature / Humidity / Light)
HUMIDIFICATION
SETTING
♪♪
♪
ON OFF
NOTE
• When operating with Humidification ON in
the modes in the table below, the product
automatically controls humidity by sensing
temperature and humidity. (Except MAX / MED
/ LOW mode.)
Temperature
(T)
Humidity
ALL MODE* SLEEP
MODE
T 18 ºC 65 % 65 %
18 ºC T 24 ºC 60 % 65 %
24 ºC T 28 ºC 55 % 60 %
28 ºC T 45 % 50 %
* Except MAX / MED / LOW / SLEEP
13 / 158

EN-11
ENGLISH

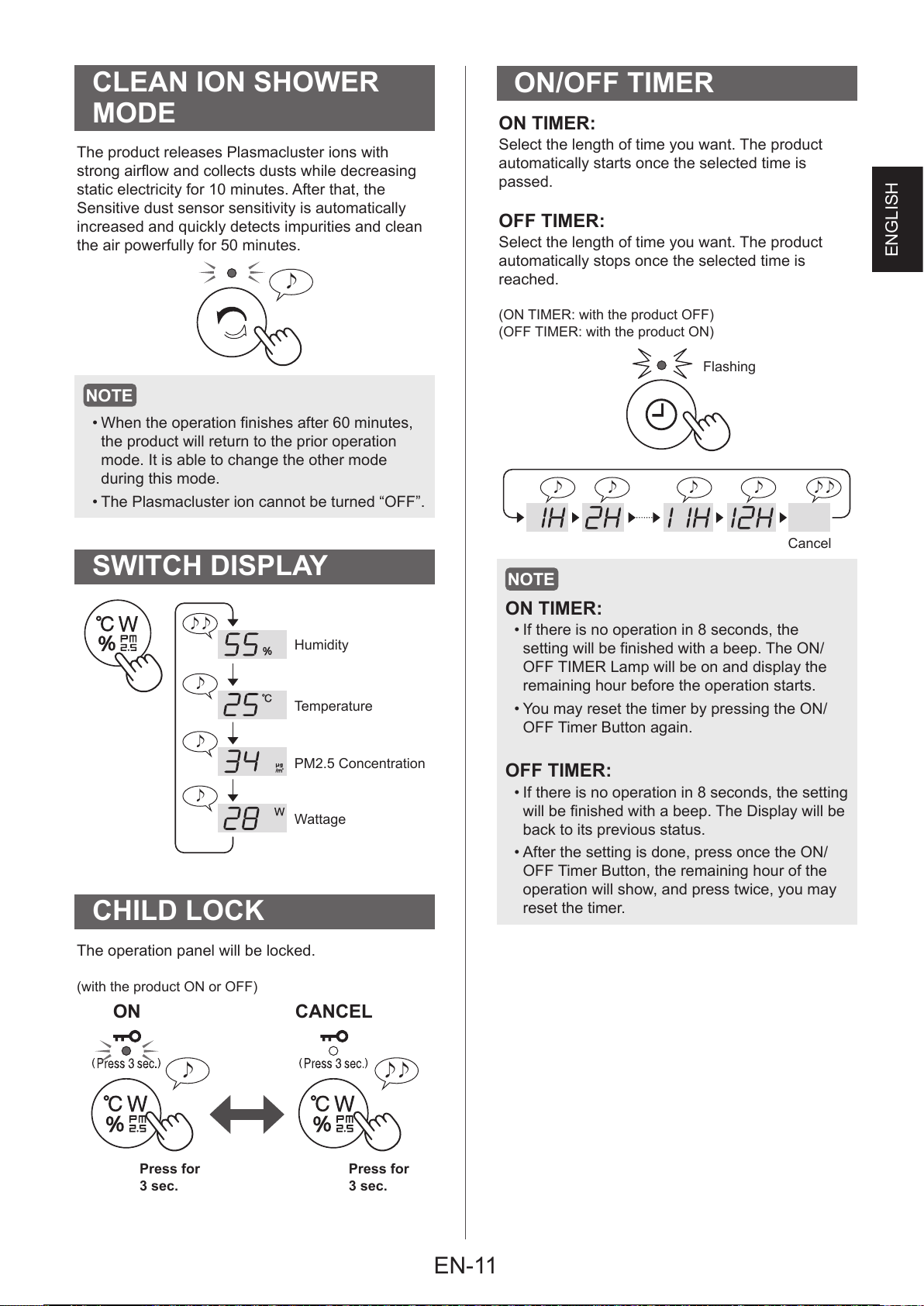

CLEAN ION SHOWER
MODE
The product releases Plasmacluster ions with
strong airflow and collects dusts while decreasing
static electricity for 10 minutes. After that, the
Sensitive dust sensor sensitivity is automatically
increased and quickly detects impurities and clean
the air powerfully for 50 minutes.
♪
NOTE
• When the operation finishes after 60 minutes,
the product will return to the prior operation
mode. It is able to change the other mode
during this mode.
• The Plasmacluster ion cannot be turned “OFF”.
ON/OFF TIMER
ON TIMER:
Select the length of time you want. The product
automatically starts once the selected time is
passed.
OFF TIMER:
Select the length of time you want. The product
automatically stops once the selected time is
reached.
(ON TIMER: with the product OFF)
(OFF TIMER: with the product ON)
♪♪ ♪♪ ♪♪
Cancel
Flashing
NOTE
ON TIMER:
• If there is no operation in 8 seconds, the
setting will be finished with a beep. The ON/
OFF TIMER Lamp will be on and display the
remaining hour before the operation starts.
• You may reset the timer by pressing the ON/
OFF Timer Button again.
OFF TIMER:
• If there is no operation in 8 seconds, the setting
will be finished with a beep. The Display will be
back to its previous status.
• After the setting is done, press once the ON/
OFF Timer Button, the remaining hour of the
operation will show, and press twice, you may
reset the timer.
CHILD LOCK
The operation panel will be locked.
(with the product ON or OFF)
ON CANCEL
Press for
3 sec.
♪
Press for
3 sec.
♪♪
SWITCH DISPLAY
♪
♪♪
♪
♪
Humidity
Temperature
PM2.5 Concentration
Wattage
14 / 158

EN-12

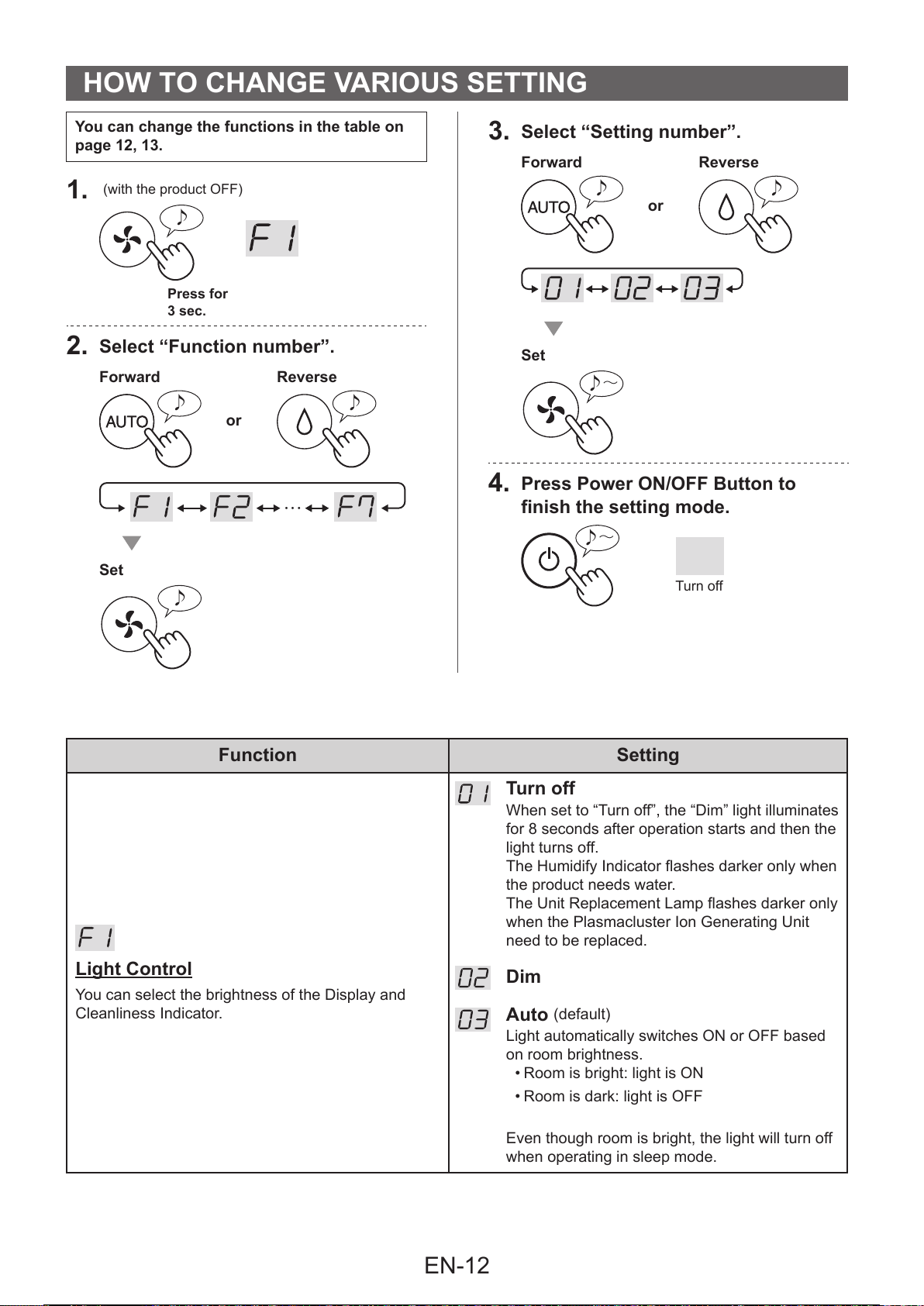

You can change the functions in the table on
page 12, 13.
1. (with the product OFF)
Press for
3 sec.
♪
2. Select “Function number”.
or
Forward
♪
Reverse
♪
･･･
Set
♪
Function Setting
Light Control
You can select the brightness of the Display and
Cleanliness Indicator.
Turn off
When set to “Turn off”, the “Dim” light illuminates
for 8 seconds after operation starts and then the
light turns off.
The Humidify Indicator flashes darker only when
the product needs water.
The Unit Replacement Lamp flashes darker only
when the Plasmacluster Ion Generating Unit
need to be replaced.
Dim
Auto (default)
Light automatically switches ON or OFF based
on room brightness.
• Room is bright: light is ON
• Room is dark: light is OFF
Even though room is bright, the light will turn off
when operating in sleep mode.
HOW TO CHANGE VARIOUS SETTING
3. Select “Setting number”.
or
Forward
♪
Reverse
♪
Set
♪～
4. Press Power ON/OFF Button to
finish the setting mode.
Turn off
♪～
15 / 158

EN-13
ENGLISH

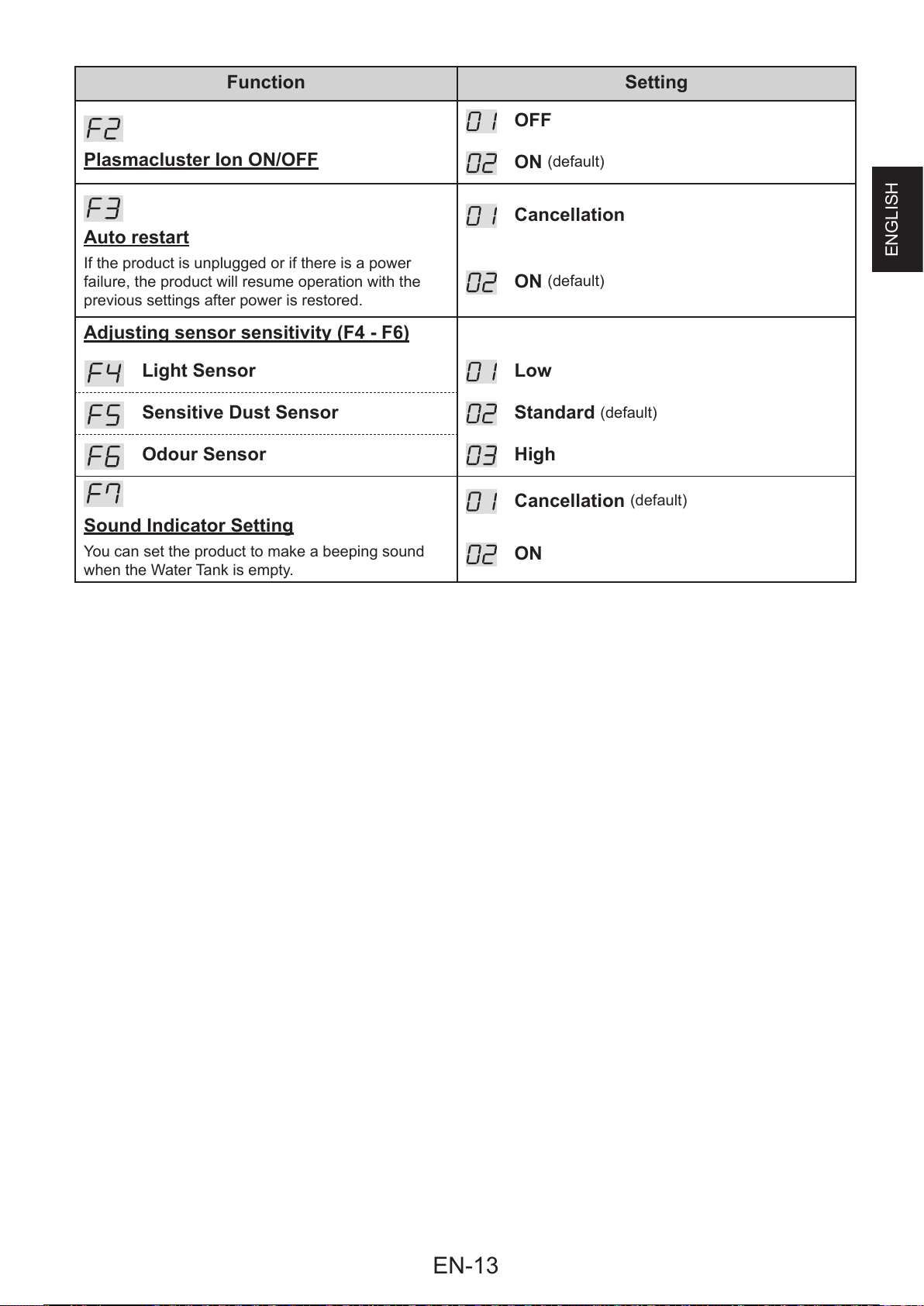

Function Setting
Plasmacluster Ion ON/OFF
OFF
ON (default)
Auto restart
If the product is unplugged or if there is a power
failure, the product will resume operation with the
previous settings after power is restored.
Cancellation
ON (default)
Adjusting sensor sensitivity (F4 - F6)
Light Sensor Low
Sensitive Dust Sensor Standard (default)
Odour Sensor High
Sound Indicator Setting
You can set the product to make a beeping sound
when the Water Tank is empty.
Cancellation (default)
ON
16 / 158

EN-14
CARE AND MAINTENANCE
CARE INDEX
6
2
4
1
3
5
4
(Only UA-KIN50E)
Place Page
1Main Body 14
2Water Tank 14
3Humidifying Filter / Humidifying Tray 15
4Back Panel / Sensors 16
5HEPA Filter / Deodorizing Filter 16
6Plasmacluster Ion Generating Unit 17
Always be sure to remove the
power plug from the wall outlet.
WATER TANK
Rinse the inside with
water.
NOTE How to clean hard to remove dirt.
Clean the inside of the Water Tank with a soft
sponge and the Tank Cap with a cotton swab or
toothbrush.
Tank Cap Toothbrush
FILTER MAINTENANCE
LAMP
When the cumulative operation period or the water
containing period is more than approximately 720
hours, the Filter Maintenance Lamp will turn on.
• It will not calculate the time when the product is
unplugged.
• 30 days × 24 hours = 720 hours
This is a reminder to perform the maintenance
described Humidifying Filter and Tray, Main Body,
Back Panel, and Sensors.
After performing maintenance, reset the Filter
Maintenance Lamp.
Press for
3 sec.
♪
MAIN BODY
Wipe with a dry, soft
cloth.
17 / 158

EN-15
ENGLISH

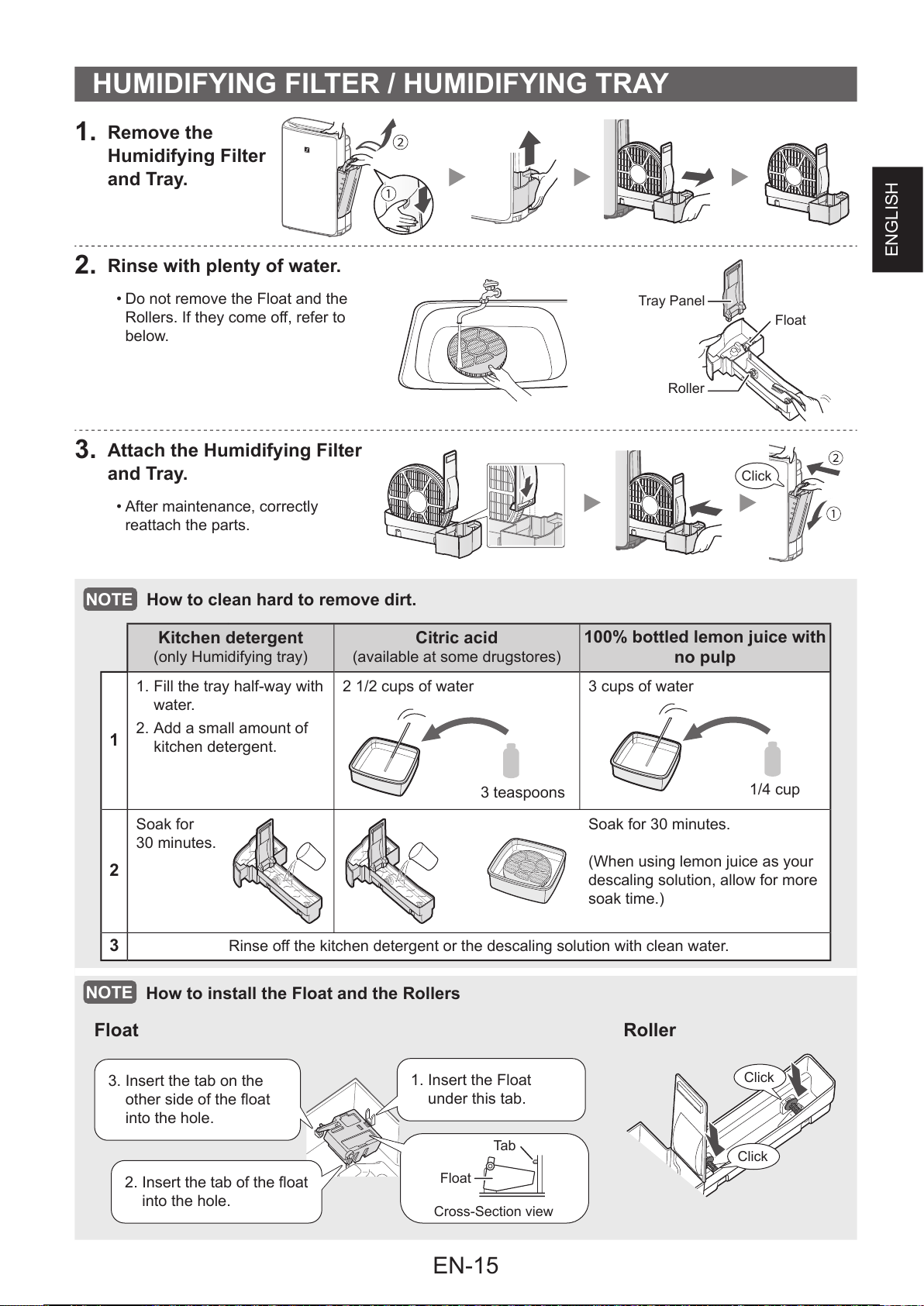

HUMIDIFYING FILTER / HUMIDIFYING TRAY
1. Remove the
Humidifying Filter
and Tray.
2. Rinse with plenty of water.
Float
Tray Panel
Roller
• Do not remove the Float and the
Rollers. If they come off, refer to
below.
3. Attach the Humidifying Filter
and Tray. Click
• After maintenance, correctly
reattach the parts.
NOTE How to clean hard to remove dirt.
Kitchen detergent
(only Humidifying tray)
Citric acid
(available at some drugstores)
100% bottled lemon juice with
no pulp
1
1. Fill the tray half-way with
water.
2. Add a small amount of
kitchen detergent.
2 1/2 cups of water
3 teaspoons
3 cups of water
1/4 cup
2
Soak for
30 minutes.
Soak for 30 minutes.
(When using lemon juice as your
descaling solution, allow for more
soak time.)
3Rinse off the kitchen detergent or the descaling solution with clean water.
NOTE How to install the Float and the Rollers
Float Roller
Click
Click
Tab
Float
Cross-Section view
3. Insert the tab on the
other side of the float
into the hole.
2. Insert the tab of the float
into the hole.
1. Insert the Float
under this tab.
Tab
Float
Cross-Section view
18 / 158

EN-16

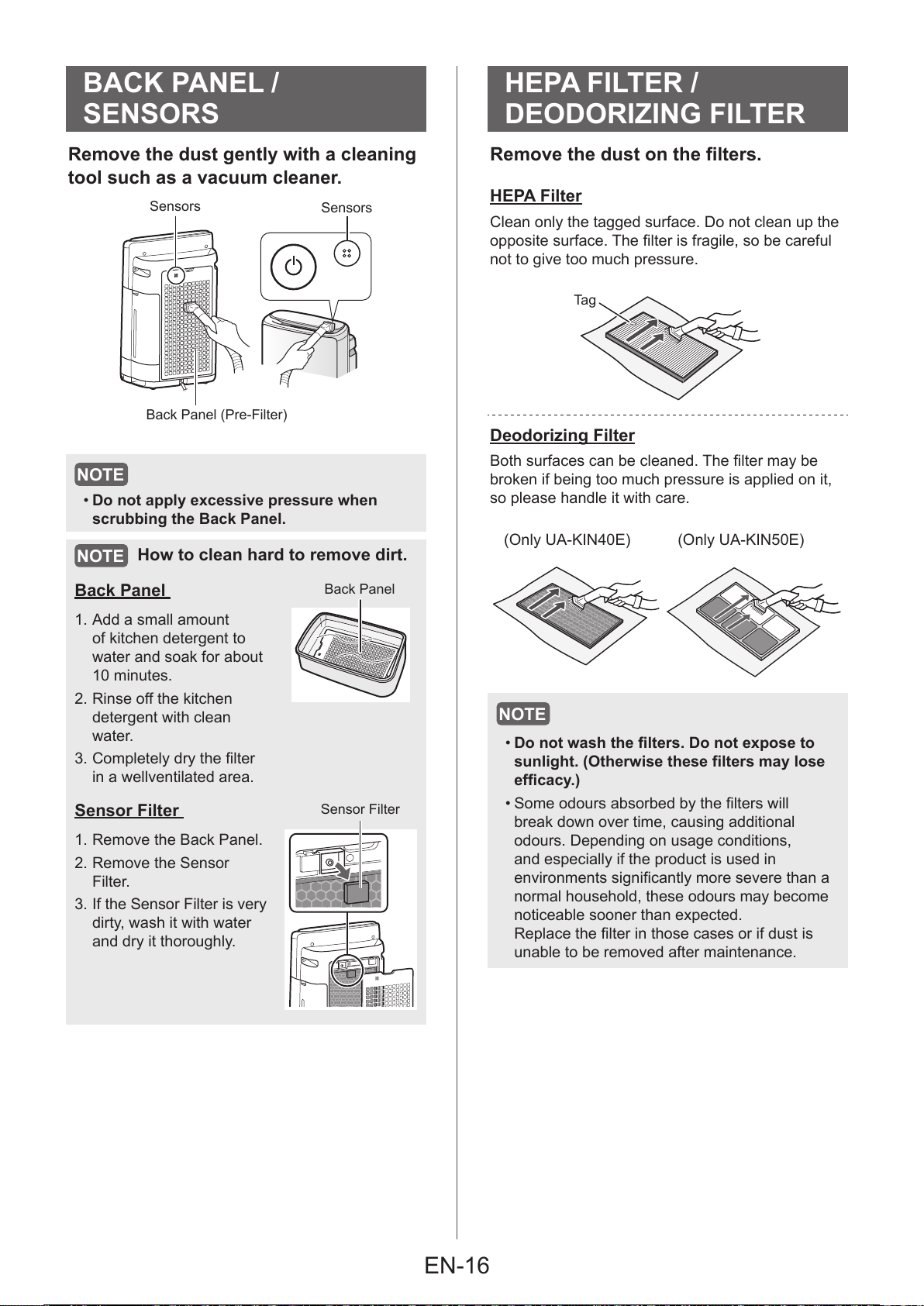

BACK PANEL /
SENSORS
Remove the dust gently with a cleaning
tool such as a vacuum cleaner.
Back Panel (Pre-Filter)
Sensors Sensors
NOTE
• Do not apply excessive pressure when
scrubbing the Back Panel.
NOTE How to clean hard to remove dirt.
Back Panel
1. Add a small amount
of kitchen detergent to
water and soak for about
10 minutes.
2. Rinse off the kitchen
detergent with clean
water.
3. Completely dry the filter
in a wellventilated area.
Back Panel
Sensor Filter
1. Remove the Back Panel.
2. Remove the Sensor
Filter.
3. If the Sensor Filter is very
dirty, wash it with water
and dry it thoroughly.
Sensor Filter
HEPA FILTER /
DEODORIZING FILTER
Remove the dust on the filters.
HEPA Filter
Clean only the tagged surface. Do not clean up the
opposite surface. The filter is fragile, so be careful
not to give too much pressure.
Tag
Deodorizing Filter
Both surfaces can be cleaned. The filter may be
broken if being too much pressure is applied on it,
so please handle it with care.
(Only UA-KIN40E) (Only UA-KIN50E)
NOTE
• Do not wash the filters. Do not expose to
sunlight. (Otherwise these filters may lose
efficacy.)
• Some odours absorbed by the filters will
break down over time, causing additional
odours. Depending on usage conditions,
and especially if the product is used in
environments significantly more severe than a
normal household, these odours may become
noticeable sooner than expected.
Replace the filter in those cases or if dust is
unable to be removed after maintenance.
19 / 158

EN-17
ENGLISH
1. Remove the Unit Cover, and pull out
the Unit Holder.
Unit Cleaning Brush
2. Remove dusts from the Electrode
Section.
Unit Cleaning Brush
Electrode
After
cleaning
Before
cleaning
Around the base
Electrode
3. Insert the Unit Holder in the product,
and install the Unit Cover.
Click
NOTE
• Do not clean with anything other than the Unit
Cleaning Brush. Doing so could lead to failures
in the Unit.
• A bent electrode could be cut off and dropped
during the cleaning process, but it will not
change the performance.
• Do not press the electrode directly. Doing so
could lead to pain / itching.
• Do not transform the Electrode Section. Doing
so can damage it.
• Do not press the Connection Terminals. Doing
so can damage them.
Connection Terminals

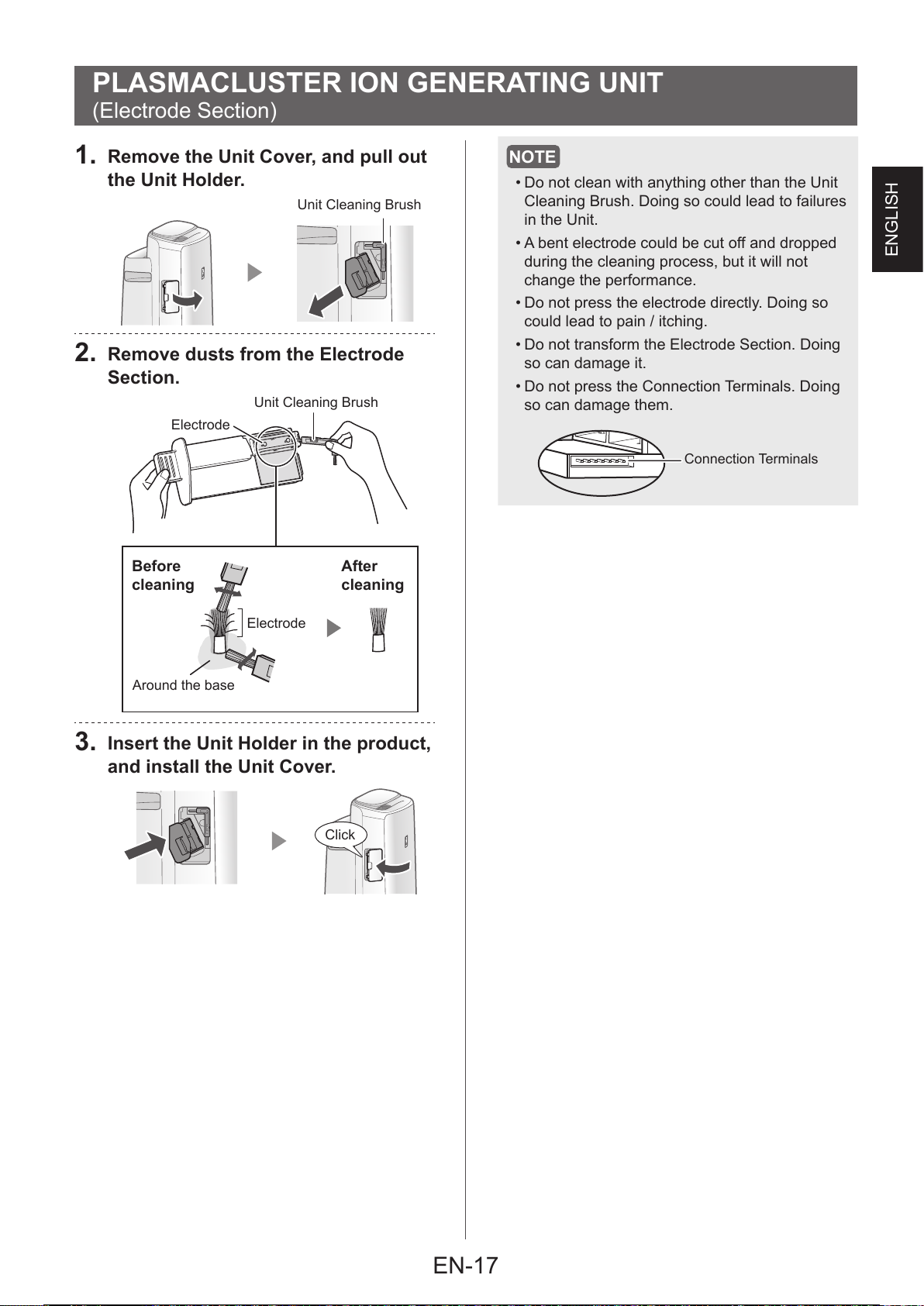

PLASMACLUSTER ION GENERATING UNIT
(Electrode Section)
20 / 158
