Sharp IG-NX2E User manual

“Plasmacluster” and “Device of a cluster
of grapes” are registered trademarks of
Sharp Corporation in Japan, Philippines
and elsewhere.
* 1 The number on this technical mark
indicates more than 50,000 ions
supplied into air of 1 cm3, which is
measured near the center of space
(0.5 m height from floor) when the air
volume is “MED” by placing the
product in an appropriate place such
as a cup holder beside the driver's
seat.
IG-NX2E PLASMACLUSTER ION
GENERATOR OPERATION
MANUAL
ENGLISH
BUKU PANDUAN OPERASI
PENJANA ION
PLASMACLUSTER
MALAYSIA
HƯỚNG DẪN SỬDỤNG
THIẾT BỊTẠO
PLASMACLUSTER ION
TIẾNG VIỆT
PLASMACLUSTERͼŔ᠈ş
ŀ،߽ǟƋ
Зݧ
OM_IG-NX2_EN_MS_VT_CS.indb 1OM_IG-NX2_EN_MS_VT_CS.indb 1 31/5/2564 BE 16:5031/5/2564 BE 16:50

ENGLISH
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS............................. 1
PART NAMES...................................................................... 4
INSTALLATION GUIDANCE ............................................... 6
OPERATION........................................................................ 8
CLEANING AND MAINTENANCE..................................... 10
REPLACEMENT................................................................ 14
TROUBLESHOOTING ...................................................... 15
SPECIFICATIONS............................................................. 17
Thank you for purchasing this SHARP Plasmacluster Ion Generator.
Please read this manual carefully before using the product.
This manual should be kept in a safe place for handy reference.
• While the product can remove suspended viruses and other
contaminants, it cannot create a completely sterile environment.
SHARP does not guarantee its ability to prevent microbial
infection.
• To enable stable emission of high-density Plasmacluster ions,
the Plasmacluster Ion Generating Unit mounted in the product
will need to be replaced periodically*.
• The product is designed for ordinary passenger cars with DC 12
V batteries. It cannot be used in vehicles with DC 24 V batteries
(buses, trucks, etc.).
* Replacement is required approximately every 6 years (17,500 hours) when
operated 8 hours a day. the product will stop operating after about 6 years
and 6 months (19,000 hours) if the Plasmacluster Ion Generating Unit is
not replaced.
OM_IG-NX2_EN_MS_VT_CS.indb 2OM_IG-NX2_EN_MS_VT_CS.indb 2 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-1
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS
Please read these instructions carefully before using this product.
When using electrical appliances, basic safety precautions should
be followed, including the following:
WARNING - To reduce the risk of electric shock, fire or injury :
• Do not operate switches while driving. (Doing so could lead to
accidents.)
• Do not install the product in places where it could hamper visibility
to the front, driving operations, or in places where it could be
dangerous to passengers. (Doing so could lead to accidents or
injury.)
• Do not put in places exposed to direct sunlight. (Doing so could
cause warping or malfunction.)
• This product is designed exclusively for use in vehicles with 12 V
batteries. Do not use it in other vehicles. Do not use the product in
large trucks, buses or other vehicles with 24 V batteries. (Doing so
could lead to fire or electric shock.)
• Do not damage or modify the cord. Also, do not use the cord if it is
damaged. (The damaged section could cause short-circuiting and
the cord could melt, leading to fire.) If the cord is damaged, contact
your store of purchase or wSHARP authorized service center.
• Do not pull on the cord when unplugging the Car Adapter or the
Micro USB Plug. (Doing so could damage the cord, leading to fire
or electric shock.)
• Do not plug in or unplug the Car Adapter or the Micro USB Plug
with wet hands. (Doing so could cause electric shock.)
• When transporting, be careful not to drop the product or subject it
to shocks. (Doing so could cause injury or damage.)
If the product should drop or be damaged, contact your store of
purchase or SHARP authorized service center.
Continued usage of damaged product could lead to fire or electric
shock.
• Do not modify the product. Also, no one other than an authorized
repairman should take apart or repair the product. (Doing so could
OM_IG-NX2_EN_MS_VT_CS.indb EN-1OM_IG-NX2_EN_MS_VT_CS.indb EN-1 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-2
lead to fire, electric shock or injury.) Contact your store of purchase
or SHARP authorized service center for repairs.
• Do not spill beverages or drop cigarette ashes, metal objects,
easily burnable objects, etc., into the product through the Air Outlet
or Air Inlet. Be particularly careful if there are small children in your
family. If water or foreign substances should get inside the product,
unplug the Car Adapter from the accessory socket. (Continued
usage could lead to fire or electric shock.) Contact your store of
purchase or SHARP authorized service center.
• Do not wipe the product with oils, alcohol, benzine or thinners, or
spray hairspray or insecticides on the product. If such substances
should get on the product, wipe them off immediately. (Such
substances could lead to cracking or electric shock or could catch
fire.)
• Do not place the product in a place where it is exposed to oil
smoke or moisture such as kitchen counter or humidifying device.
(Doing so could lead to electric shock.)
• Do not place the product near heating equipment such as the
outlet of hot-air type heater. (Doing so could cause warping or
malfunction.)
• Use the Car Adapter designed exclusively for this product, and
insert the Car Adapter securely all the way in until it stops. (If the
Car Adapter is not inserted securely until it stops, it could heat up,
deforming the accessory socket, and this could lead to fire.)
• Be sure to unplug the Car Adapter from the accessory socket when
cleaning. (Failure to do so could cause electric shock or injury.)
• Be sure to unplug the Car Adapter from the accessory socket when
not in use for long periods of time. (Failure to do so could lead to
electric shock or fire caused by short-circuiting.)
• If the accessory socket is integrated into the ashtray, be sure that
cigarettes are completely extinguished before using the product.
• When leaving the vehicle, unplug the Car Adapter and close the
ashtray’s lid. (Failure to do so could lead to fire caused by the
smoldering cigarettes.)
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
OM_IG-NX2_EN_MS_VT_CS.indb EN-2OM_IG-NX2_EN_MS_VT_CS.indb EN-2 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-3
ENGLISH
person responsible for their safety.
Children should be supervised to ensure that they do not play with
the appliance.
CAUTIONS CONCERNING OPERATION :
• Do not touch the metal parts of the Car Adapter (or of the
accessory socket).
(The metal parts of the Car Adapter could be hot directly after the
car is stopped, and could cause burns if touched.)
• Do not use the product in external cup holders, on shaky or
non-level surfaces or in other unstable places. (The product could
fall, resulting in injury or damage.)
• Move the product out of the car when using room fumigating type
insecticides or deodorizers. If not, the chemicals could get inside
the product and later be ejected from the Air Outlet, possibly
harming your health.
• If the product risks falling out of the cup holder (when driving on
rough roads, over bumps, etc.), either slow down or remove the
product from the cup holder beforehand. (Failure to do so could
cause injury or damage to the product.)
• Do not use silicone-based items* near the product.
The fluororesin or silicone could get stuck inside the product,
preventing it from producing Plasmacluster ions.
If this happens, remove the dust from the electrode section of the
Plasmacluster Ion Generating Unit. (Page 13)
* Hair care items (split end coatings, hair mousses, hair treatments, etc.),
cosmetics, antiperspirants, antistatic agents, waterproofing sprays, polishes,
glass cleaners, chemical-impregnated clothes, wax, etc.
OM_IG-NX2_EN_MS_VT_CS.indb EN-3OM_IG-NX2_EN_MS_VT_CS.indb EN-3 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-4
PART NAMES
Note
NOTE
• Please use the official Car Adapter and power cord.
(Failure to do so could lead to fire / electric shock / failure)
1
2
3
4
5
13
14
15
16
7
9
8
10
6
11
12
OM_IG-NX2_EN_MS_VT_CS.indb EN-4OM_IG-NX2_EN_MS_VT_CS.indb EN-4 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-5
ENGLISH
1Main Unit
2Air Outlet
3Operation Button
(Page 8)
4Operation Lamp
(Blue, Purple)
5Unit Replacing Lamp
(Red) (Page 9)
6Power Supply Port
7Unit* Holder
8Plasmacluster Ion
Generating Unit*

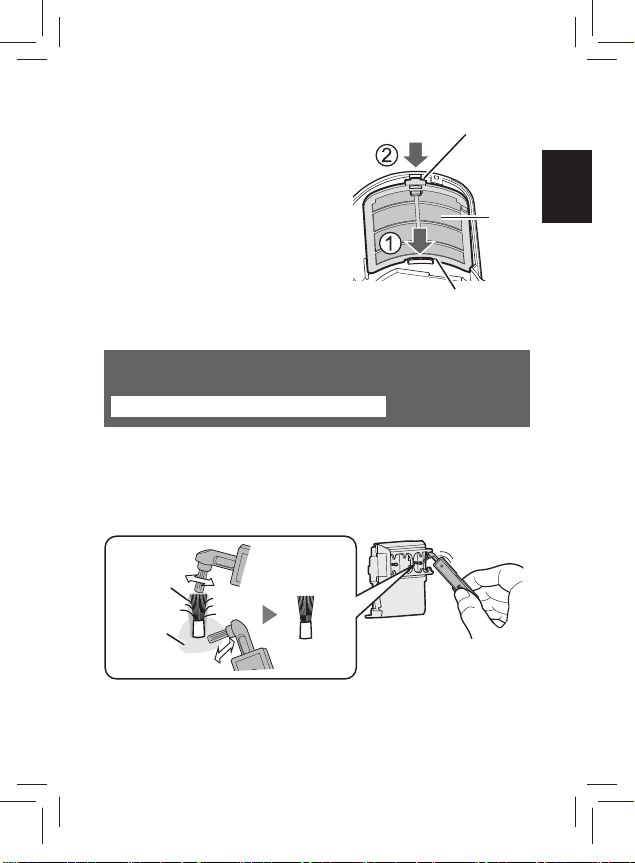

9Unit* Cleaning Brush
10 Main Unit Cover
11 PM10 Filter
12 Filter Cover
13 Micro USB Plug
14 Cord (length 1.5 m)
15
USB Plug
• Do not use with voltages
other than the rated
voltage of DC 5 V.
16 Car Adapter
(with 2 ports)
* The Unit refers to Plasmacluster Ion
Generating Unit. (The same as
below.)
OM_IG-NX2_EN_MS_VT_CS.indb EN-5OM_IG-NX2_EN_MS_VT_CS.indb EN-5 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-6
INSTALLATION GUIDANCE

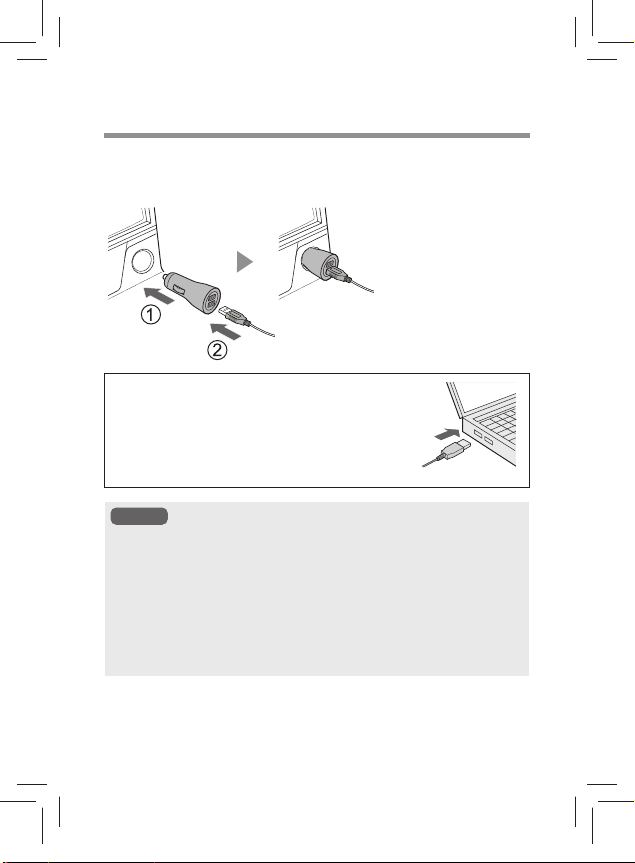

Insert the Car Adapter into the accessory socket and
connect the USB plug to the Car Adapter.
• You can use the product by inserting the
included USB cable into USB connector of
PC, etc.
NOTE
• Be sure to remove any dirt from the accessory socket. Failure to
do so could cause faultily contact or fire.
• The Car Adapter (accessory) for the product has 2 USB ports.
It is possible to connect another equipment of 1.5 A or lower
while the product is connected. However, in this case, the normal
operation of the additional equipment is not guaranteed.
• The Car Adapter and/or connecting section could be hot while in
use and/or right after use.
OM_IG-NX2_EN_MS_VT_CS.indb EN-6OM_IG-NX2_EN_MS_VT_CS.indb EN-6 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-7
ENGLISH
Cautions on wiring the Car Adapter
• Do not let the cord touch or get caught in the seat rails, shift lever
or other moving parts.
• Wire in such a way that the cord does not get in the way of the
driver.
• Consider the movement of the seats (forward / backward, swiveling
or reclining) when wiring.
• Do not bend the cord extremely or compress it.
Cautions on installation
• Separate the product from
electronic key of vehicle by 30 cm
or more. Otherwise, it may
interfere with electronic wave of
product and the electronic key may
not be recognized.
• Be sure to place in a stable
location. (Do not put in a external
cup holder or other unstable
place.)
• Do not obstruct the air inlet or outlet.
• Keep the product away from the vehicle’s in-glass antenna. Failure
to do so could cause interference on the radio.
• If there should be interference on a TV or radio located in the same
car, or if an atomic clock in the car should not display the time
properly, move the product away from the TV, radio, atomic clock,
etc.
• If the product is installed directly in front of the car climate control’s
outlets, the product could get hot when the climate control is
operating in the heating mode.
• The product could get scratched by the vibrations of the vehicle,
etc.
• It might be impossible to use for some types of cars.
OM_IG-NX2_EN_MS_VT_CS.indb EN-7OM_IG-NX2_EN_MS_VT_CS.indb EN-7 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-8
OPERATION
SELECT MODE
LOW MED TURBO
TURBO PLUSOFF
LOW Release high-density Plasmacluster
ions quietly.
MED Release Plasmacluster ions
approximately 2 times as much as
“LOW” at standard air flow.
TURBO Release Plasmacluster ions
approximately 3.6 times as much as
“LOW” at a strong air flow.
TURBO PLUS If you want to remove odors quickly.
Releases Plasmacluster ions with
TURBO mode for 25 minutes, After that,
the mode is switches “MED”.
• After smoking
• After eating in a vehicle
• When you are conscious about odor of air
conditioner
OM_IG-NX2_EN_MS_VT_CS.indb EN-8OM_IG-NX2_EN_MS_VT_CS.indb EN-8 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-9
ENGLISH
UNIT REPLACING LAMP
If the total operating time passes approximately 17,500
hours (approx. 6 years if the product is operated 8 hours a
day), the Unit Replacing Lamp flashes to notify you of the
replacement time of the unit.
• The unit replacement period is the same regardless of the
operation mode.
17,500hours
Flashing
(red)
Replace the Plasmacluster Ion
Generating Unit. (Page 14)
19,000hours
Flashing
rapidly
(red)
Stop working.
Replace the Plasmacluster Ion
Generating Unit. (Page 14)
ENGINE INTERLOCKING FUNCTION
If the vehicle’s engine is turned off and the vehicle is
stopped while the product is operating, the product resumes
operating in the same mode when the vehicle’s engine is
started back up.
• If the product continues to operate even if the key of the vehicle is
pulled out or the engine switch is turned OFF, pull out the Car
Adapter to prevent having a dead battery.
OM_IG-NX2_EN_MS_VT_CS.indb EN-9OM_IG-NX2_EN_MS_VT_CS.indb EN-9 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-10
CLEANING AND MAINTENANCE
DISASSEMBLING
1
Push
Filter Cover
Unit Cleaning Brush
Unit Holder
2 3 4
OM_IG-NX2_EN_MS_VT_CS.indb EN-10OM_IG-NX2_EN_MS_VT_CS.indb EN-10 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-11
ENGLISH
ASSEMBLING
Incorrect wiring could lead to damage
to the power cord and may cause fire /
electric shock.
Unit Cleaning Brush
Unit Holder
When attaching the Main Unit
Cover, put the power cord
through the hole on the Main
Unit Cover.
Filter Cover
1
2 3
4
OM_IG-NX2_EN_MS_VT_CS.indb EN-11OM_IG-NX2_EN_MS_VT_CS.indb EN-11 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-12
FILTER
The filter must be cleaned regularly in order to maintain the ion
density. Filter soiling depends on the usage environment, so clean
the filter frequently as necessary. With frequent cleaning,
Plasmacluster ions can be released efficiently.
1. Remove the Filter Cover.
• See step 1 of “DISASSEMBLING”
on page 10.
2. Remove the filters.
3. Remove dust with a vacuum
cleaner.
• If the filter is dirty, simply wash
with water.
NOTE
• Do not press the vacuum cleaner strongly against the filter, or
the filter could be damaged.
• If using synthetic kitchen detergent, rinse well to remove all
traces of the detergent. Also, be sure to dry the filter in the
shade.
• Dry the product in a shaded area so that water drops do not
remain in the gap between the Filter Cover and the filter.
Frequently as necessary
MAIN UNIT
Wipe with a dry soft cloth.
<For Stubborn Dirt>
Use water and a mild detergent. And then, wipe with a wet
cloth. Make sure to dry out the Main Unit.
Every month or more often if necessary
OM_IG-NX2_EN_MS_VT_CS.indb EN-12OM_IG-NX2_EN_MS_VT_CS.indb EN-12 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-13
ENGLISH
4. Insert the filters into the
Filter Cover.
Insert the Filter to
the upper claw.
Insert the Filter to
the lower claw.
Filter
5. Reattach the Filter Cover.
• See step 4 of “ASSEMBLING”
on page 11
PLASMACLUSTER ION GENERATING UNIT
(Electrode section)
1. Take the Unit Holder and the Unit Cleaning Brush.
• See step 1 to 4 of “DISASSEMBLING” on page 10.
2. Remove dusts from the electrodes and around the
base by the Unit Cleaning Brush.
After
Cleaning
Electrode
Around
the base
3. Assemble the product.
• See step 1 to 4 of “ASSEMBLING” on page 11.
Every 6 months or more often if necessary
OM_IG-NX2_EN_MS_VT_CS.indb EN-13OM_IG-NX2_EN_MS_VT_CS.indb EN-13 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-14
REPLACEMENT
NOTE
• Do not clean with anything other than the Unit Cleaning Brush.
(Doing so could lead to failures in the unit)
• A bent electrode could be cut off and dropped during the cleaning
process, but it will not change the performance.
• Do not touch the electrode
directly. (Doing so could lead to
pain / itching)
• Do not deform the electrodes.
(Doing so could lead to failures
in the unit)
• Do not touch the connection
terminal. (Doing so could lead to
failures in the unit)
Connection
Terminal
Replacement of the Plasmacluster Ion Unit
Model: IZ-C100ME
1. Take the Unit Holder.
• See step 1 to 4 of
“DISASSEMBLING” on page
10.
Remove
Unit
Claw
2. Remove the claw of Unit
Holder ( 1 ), and remove the
Unit ( 2 ).
OM_IG-NX2_EN_MS_VT_CS.indb EN-14OM_IG-NX2_EN_MS_VT_CS.indb EN-14 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-15
ENGLISH
TROUBLESHOOTING
The Plasmacluster Ion Generator does not work.
• Is the Car Adapter connected properly? Ensure it is connected
correctly. (Page 6)
The operation does not stop although the engine of
vehicle is switched OFF.
• If the product is operating even though the key of the vehicle is
pulled out or the engine switch is turned OFF, pull out the Car
Adapter out to prevent having a dead battery. (Page 9)
The product does not operate in conjunction with
engine.
• In a vehicle where the power is supplied to the accessory socket
even if the engine of vehicle is switched OFF, the engine
interlocking function cannot be used.
3. Attach a New Unit to the Unit
Holder. Attach
New Unit
4. Assemble the product.
• See step 1 to 4 of “ASSEMBLING”
on page 11.
5. Insert the Car Adapter in the accessory socket and
check the Unit Replacing Lamp is turned OFF.
<For Disposal>
Please dispose of the used Plasmacluster Ion Generating
Unit according to any local laws and regulations.
- Materials -
• Polybutylene Terephthalate, Electronic parts
OM_IG-NX2_EN_MS_VT_CS.indb EN-15OM_IG-NX2_EN_MS_VT_CS.indb EN-15 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-16
The Unit Replacing Lamp flashes rapidly and the
operation is stopped.
• The product is past its usage period. Replace it with a new
Plasmacluster Ion Generating Unit. (Page 9,14)
All Operation Lamps flash at the same time and the
product stops.
• The Plasmacluster Ions are not generated. Perform maintenance
of the electrode section. (Page 13)
• Is the Plasmacluster Ion Generating Unit installed correctly? Pull
out the unit and insert it again and then press the Operation
Button. (Page 10,11)
• If the Lamps flash repeatedly, contact the store of purchase or
SHARP authorized service center.
A discontinuous noise is heard.
A clicking or ticking sound comes from the product.
• Clicking or ticking sound may be audible when the product is
generating ions. You may feel the sound becomes louder or
softer depending on use environment or operation mode,
however, the effect of Plasmacluster Ion is not changed.
• Dust may block the filter. Clean the filter. (Page 12)
The Operation Lamp flash and the product stops.
• Please remove the Car Adapter and reinsert it, then press the
Operation Button again.
• If this happens repeatedly, contact the store of purchase or
SHARP authorized service center.
Other indication
• Failure
Unplug and contact the store of purchase or SHARP authorized
service center.
OM_IG-NX2_EN_MS_VT_CS.indb EN-16OM_IG-NX2_EN_MS_VT_CS.indb EN-16 31/5/2564 BE 16:5031/5/2564 BE 16:50

EN-17
ENGLISH
SPECIFICATIONS
Model IG-NX2E
Power Car Adapter
Rated input DC 12 V
Rated output DC 5 V (Max. 2 A for 2 ports)
Operation mode LOW MED TURBO
Power consumption 0.6 W 0.8 W 1.4 W
Ion density
Approx.
25,000
ions/cm3
Approx.
50,000
ions/cm3
Approx.
90,000
ions/cm3
Operating noise level 18 dB 25 dB 33 dB
Outer dimensions
Upper dimension: 78 × 76mm
Lower dimension: Φ65 mm
Height: 165 mm
(Excluding accessories)
Weight Approx. 295 g (Excluding accessories)
Capacity applicable for
high-density
Plasmacluster *1
Approx. 3.6 m3*2
* 1 It is the index of capacity that approximately more than 50,000
ions blown out to the air can be measured at the point near the
center of the space (0.5 m height from floor) when the air
volume is “MED” by placing the product at the place supposing
a cup holder beside the driver's seat.
* 2 Space corresponding to a cabin measuring 1.5 (width) x 2.4
(depth) x 1.0 (height) metres.
• Some specifications may be changed for improvement purposes.
OM_IG-NX2_EN_MS_VT_CS.indb EN-17OM_IG-NX2_EN_MS_VT_CS.indb EN-17 31/5/2564 BE 16:5031/5/2564 BE 16:50

MALAYSIA
ISI KANDUNGAN
ARAHAN KESELAMATAN PENTING ................................. 1
NAMA-NAMA BAHAGIAN ................................................... 4
PANDUAN PEMASANGAN................................................. 6
OPERASI............................................................................. 8
PENJAGAAN DAN PENYELENGGARAAN...................... 10
PENGGANTIAN ................................................................ 14
PENGENALPASTIAN DAN PENYELESAIAN MASALAH.15
SPESIFIKASI..................................................................... 17
Terima kasih kerana membeli Penjana Ion Plasmacluster SHARP
ini. Sila baca buku panduan ini dengan teliti sebelum menggunakan
produk anda.
Buku panduan ini hendaklah disimpan di tempat yang selamat untuk
rujukan mudah.
• Walaupun produk ini boleh mengeluarkan virus terampai dan
bahan pencemar lain, ia tidak dapat mencipta persekitaran yang
benar-benar bebas kuman. SHARP tidak menjamin
keupayaannya untuk mencegah jangkitan mikrobiologi.
• Bagi membolehkan ion Plasmacluster berketumpatan tinggi
dikeluarkan, Unit Penjana Ion Plasmacluster yang dipasang
pada produk perlu diganti secara berkala*.
• Produk ini direka bentuk untuk kereta penumpang biasa yang
menggunakan bateri DC 12 V. Ia tidak boleh digunakan di
dalam kenderaan yang menggunakan bateri DC 24 V (bas, trak
dll.).
* Produk perlu diganti lebih kurang setiap 6 tahun (17,500 jam) jika
dihidupkan 8 jam sehari. Ia akan berhenti beroperasi selepas kira-kira 6
tahun dan 6 bulan (19,000 jam) jika Unit Penjana Ion Plasmaclusternya
tidak diganti baru.
OM_IG-NX2_EN_MS_VT_CS.indb 18OM_IG-NX2_EN_MS_VT_CS.indb 18 31/5/2564 BE 16:5031/5/2564 BE 16:50
