ELECTRONIC
CASH REGISTER
MODEL XE-A101
SRV KEY : Not necessary
PRINTER : M-31
(U and A version)
CHAPTER 1. SPECIFICATIONS .....................................................................1
CHAPTER 2. OPTIONS...................................................................................4
CHAPTER 3. MASTER RESET .......................................................................4
CHAPTER 4. HARDWARE DESCRIPTION.....................................................5
CHAPTER 5. TEST FUNCTION.......................................................................8
CHAPTER 6. SERVICE PRECAUTION.........................................................10

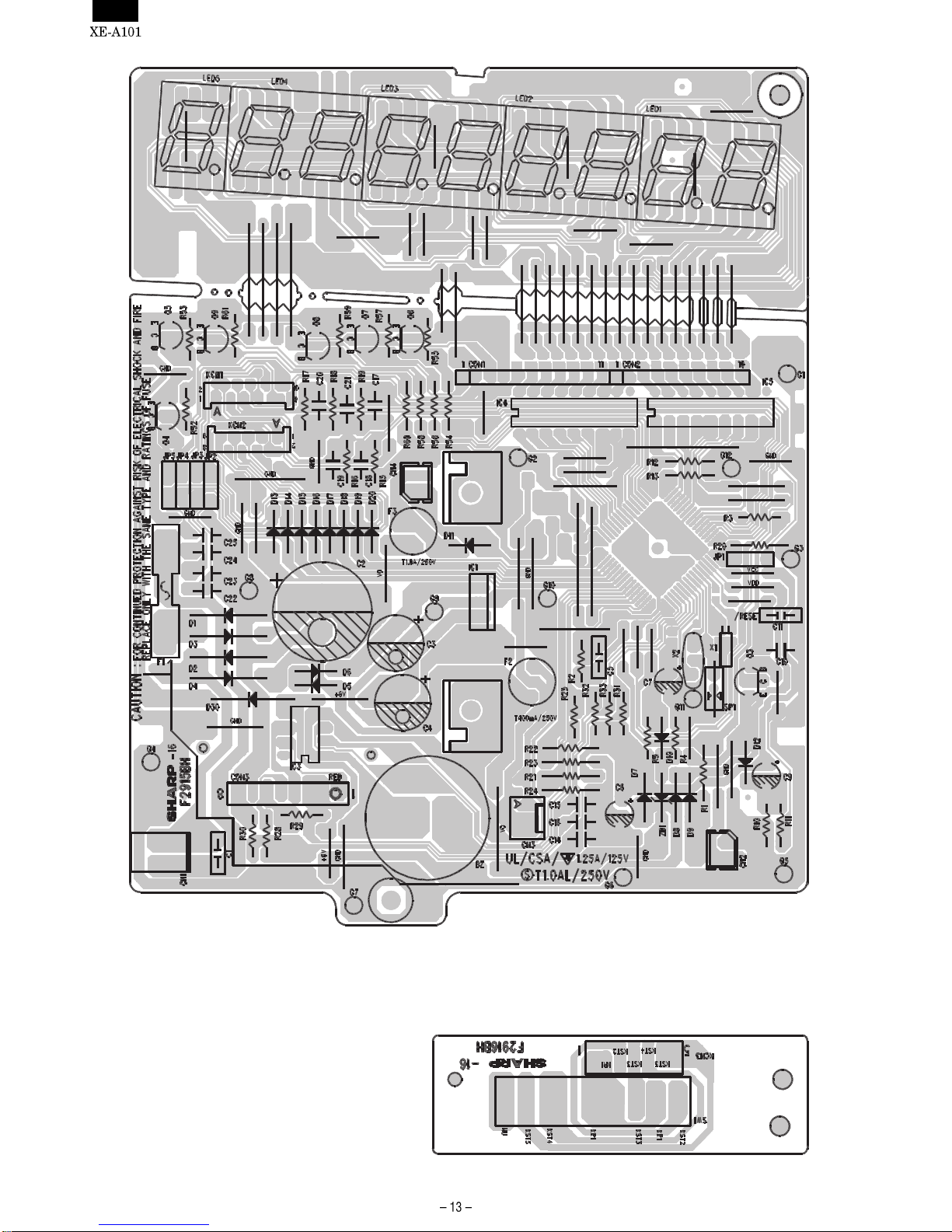

CHAPTER 7. CIRCUIT DIAGRAM AND PWB LAYOUT................................11
PARTS GUIDE
CONTENTS
Parts marked with " " are important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
SHARP CORPORATION This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
SERVICE MANUAL

CHAPTER 1. SPECIFICATIONS
1. APPEARANCE
Front view
2. RATING
Weight Approx 5.0kg
External dimension
(Including the drawer) 330 (W) x 363 (D) x 253 (H) mm 13 (W) x 14.3 (D) x 9.96 (H) inches
Power source AC 120V ( 10%), 60Hz
Power consumption Stand-by 4W
Operating 12.5W
Working temperature 0~40°C (32 to 104°F)
3. KEYBOARD
1) KEYBOARD LAYOUT
Type Normal keyboard
Key position STD/MAX 30
Key pitch 19 (W) x 19 (H) mm
Key layout Fixed type
2) KEY LIST
Keytop Description
0-9,00 Numeric keys
CL Clear key
@/TM Multiplication & Time display key
Paper feed key
Tax 1 Shift/RA Tax 1 shift and Received on account key
Tax 2 Shift/PO Tax 2 shift and Paid out key
% Percent keys
ESC Error escape key
VOID Void key
CLK# Clerk code Entry key
PLU PLU code entry key
SHIFT Department shift key
#/SBTL Non-add code & Tax Included subtotal key
CHK Check key
CH Charge key
CA/AT/NS Cash sale Amount tender and No Sale key
Dept1-8 Department key
4. MODE SWITCH
1) LAYOUT
•Slid type
5. DISPLAY
1) OPERATOR DISPLAY
Display device: LED numeric display
Number of line: 1 line
Number of positions: 8 positions numeric display
Color of display: Yellow / Green
Character size: Numeric 14 (H) x 8 (W) mm
(Layout)
Display
Drawer Drawer lock
Keyboard
Printer cover
Mode switch
@/TM
TAX1
SHIFT
/RA
TAX2
SHIFT
/PO
VOID
SHIFT PLU
ESC
%
3
7
2
6
1
5
4
8
CHK CLK#
#/
SBTL CH
CA/AT/NS
REG X/FZ/PGM
VOID
OFF
PLU code
Repeat
Department code
>>>>> USE FONT <<<<<
Helvetica/ Helvetica-Condensed/ Century-Schoolbook/ Symbol & OriginalFonts: (RingWorld2/RingFont2/Pa
Symbol/PartsCod)
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -

2) DISPLAY CONTENTS
Departments/PLU Code:
The department code or PLU code entered appears on the left.
For example, if the key for department 1 is pressed, "1" would ap-
pear in the extreme left position.
Repeat:
Indicates the number of times the same department key is
pressed. If an entry is repeated more than ten times, only the first
digit is displayed (12 displays as "2").
(E) Error:
This symbol appears, accompanied by a warning beep, when an
error is made. If this occurs during a transaction because of an ex-
cessive digit entry, simply press CL and re-enter correctly.
(P) Program:
This symbol remains on the display when the cash register is be-
ing programmed in the Z/PGM mode.
(F) Finalization:
This symbol appears when a transaction is finalized by pressing
CA/AT/NS , CH or CHK .
(o) Subtotal:
This symbol appears when #/SBTL is pressed and the cash
register computes the subtotal, and also when the amount ten-
dered is less than the total sale amount.
(C) Change:
This symbol appears whenever the change due amount is dis-
played.
(L) Low battery:
This symbol appears when the power of the installed batteries is
below a certain level or you need to replace the batteries with
new ones. (see the "Maintenance" section for explanation.)
(L) No battery:
This symbol appears when no batteries are installed. (see "Main-
tenance" and "Getting Started" sections for explanation.)
In addition, the following appear when appropriate:
•The minus sign (-) can appear in positions 2 to 8.
•The decimal point appears in positions 1 to 3.
•When entry of the secret code is necessary, "---"appears in posi-
tions 1 to 4.
6. PRINTER
1) PRINTER
•Model name: M-31
•No. of stations: 1
•Printing system: Print wheel selective type
•Printing capacity: max. 13 characters
•Character size: 1.6mm (W) x 2.8mm (H)
•Print pitch: Column distance 2.1mm (numeric to numeric),
2.6mm (numeric to symbol)
Row distance 4.6mm
•Print speed: Approximate 1.4 lines/s (6 digits/line)
•Paper feed speed: Approximate 4.3 lines/s
•Reliability: MCBF 0.3 million lines
2) PAPER
•Paper roll dimension: 57.5 0.5mm
max. 80mm in diameter
•Paper quality: Bond paper (paper thickness: 0.06 to
0.085mm paper weight: 47 to 64g/m2)
3) INKING
•Ink supply system: Ink rill
•From: Roller
•Specification: Material - rubber
•Ribbon life: 0.7 million characters
•Print color: purple
4) LOGO STAMP (No)
5) CUTTER
•Manual cutter
6) PRINTING WHEEL LAYOUT
1
2
3
4
5
6
7
8
9
10
11
12
13
0123456789101112
#
13
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
#
1
2
3
4
5
6
7
8
9
0
CG
Z
RA
PO
VD
%
@
ST
TX
CA
X
CK
CH

7.DRAWER
[OUTLINE]
•Standard equipment: Yes (1)
•Max. number of drawers:1
•The drawer consists of:
(1) Drawer box (outer case) and drawer
(2) Money case
(3) Coin case
(4) Lock (attached to the drawer)
[SPECIFICATION]
1)DRAWER BOX AND DRAWER
Size 330 (W) x 363 (D) x 98 (H) mm
13 (W) x 14.3 (D) x 3.9 (H) inches
Material Plastic
Bell–
Release lever Standard equipment: situated at the bottom
Drawer open sensor –
2)MONEY CASE
Separation from the drawer Disallowed
Separation of the bill compartments from the coin
compartments Allowed
Bill separator –
Number of compartments 4B/5C
Layout:
3)LOCK (LOCK KEY : LKGIM7331BHZZ)
•Location of the lock:Front
•Method of locking and unlocking:
To lock, insert the drawer lock key into the
lock and turn it 90 degrees counter clockwise.
To unlock, insert the drawer lock key and turn
it 90 degrees clockwise.
•Key No: SK1-1
8.BATTERY
1)MEMORY BACK UP BATTERY
For memory back up, the dry battery ULM-3 (3 pieces) are needed.
1.Memory holding time:
Approx. 1 year after New dry batteries are installed.
2.Battery exchange method:
When the low battery symbol "L" lights up, replace the batteries (3
AA) replaced by the following method;
1)Power on the ECR.
2)Mode switch turn to "REG" mode.
3)Remove the OLD dry batteries (3 pieces).
4)Insert the NEWdry batteries (3 pieces).
5)Confirm the low battery symbol "L" is off.
2)LOW BATTERY
Low battery indication will appear on the left side of display when the
battery voltage is low.
CASE 1:When sitting idle or after completion of transaction.
The machine can indicate the low battery condition (Always)
CASE 2:Low battery indication will not appear during key opera-
tions, but will appear after power up of the cash register.
[Displaysample]
"0.00":Battery is OK.
"L 0.00": Low battery (You have to change the batteries.)
After finalization
"F 12.34":Battery is OK.
"L 12.34": Low battery ("L" indicate instead of "F".)
3)NO BATTERY
If the user forgets to replace the battery and the battery voltage falls
below a certain level, or if a power failure occurs withno batteries
installed, the memory contents cannot be retained. The CPU judges it
as no battery and performs the master reset. In this case, all the
settings and registrations are cleared. If, however, the power is con-
tinuously supplied to the AC cord, the memory contents are retained.
Low battery:Batteries are installed, but the voltage is low.
Memory back up can be done.
No battery :Batteries are not installed or the voltage is extremely
low.
The master reset is executed when a power failure
occurs,when the batteries are notproperlycharged.
Low battery & No battery indication will appear at the most left posi-
tion of display when the battery voltage is low.
CASE 1:When any numeric entry & item entry is not done or just
after finalization.
The machine can indicate the battery condition. (Always)
CASE 2:When numeric entry or item entry is done.
Battery condition is not appeared.
Exceptionally, at the power is restored after power failure, the
low battery & No battery indication will appear on the display
only when the battery voltage is low.
And the indication will disappear after any key entry.
[Displaysample]
"0.00":Battery is OK.
"L0.00":Low battery
"L0.00":No battery
After finalization
"F12.34":Battery is OK.
"L12.34": Low battery ("L" indicate instead of "F".)
"L12.34": No battery ("L" indicate instead of "F".)
4B/5C
L L

CHAPTER 2. OPTIONS
1. OPTIONS (No)
2. SERVICE OPTIONS (No)
3. SUPPLIES
NO NAME PARTS CODE PRICE RANK DESCRIPTION
1ROLL PAPER AS 5 ROLLS/PACK
2INK ROLLER AF
4 SPECIAL SERVICE TOOLS (No)
CHAPTER 3. MASTER RESET
Master reset:Clears all the memory and initializes each preset pa-
rameter.
The master reset should be performed by using the following proce-
dure.
1. Turn off the power (Power OFF). (See Note 1.)
2. Let the ECR be without the memory back up battery.
3. Turn the mode switch to the others of Power-off position.
4. Turn on the power (Power ON). (See Note 2.)
When the master rest is completed, the buzzer sounds intermittently
three times.
5. Attach the memory back up battery to the ECR.
The master reset can also be accomplished in the following case.
(See Note 3.)
Note 1) Power OFF: Means disconnecting the AC power supply to
the machine.
(Specifically, unplugging the machine.)
Note 2) Power ON: Means connecting the AC power to the ma-
chine.
(Specifically, plugging in the machine.)
Note 3) In case a power failure occurs when the machine has no
battery installed, the master reset operation is automatically
performed after the power has been restored.

CHAPTER 4. HARDWARE DESCRIPTION
1. OUTLINE
•CPU: uPD780023A (ROM 24KB, RAM 1024B)
•KEY BOARD:30key including PF key
•MODE SW: 5position slide SW
DISPLAY: 7seg.+DP x 8digit LED (YELLOW GREEN) FRONT only
•DRAWER: 1ch, no open sensor
•BUZZER: 1beep, piezo buzzer
•PRINTER: M-31(no EURO SYMBOL)
2. BLOCK DIAGRAM
3. DISCRIPTION
1) DISPLAY

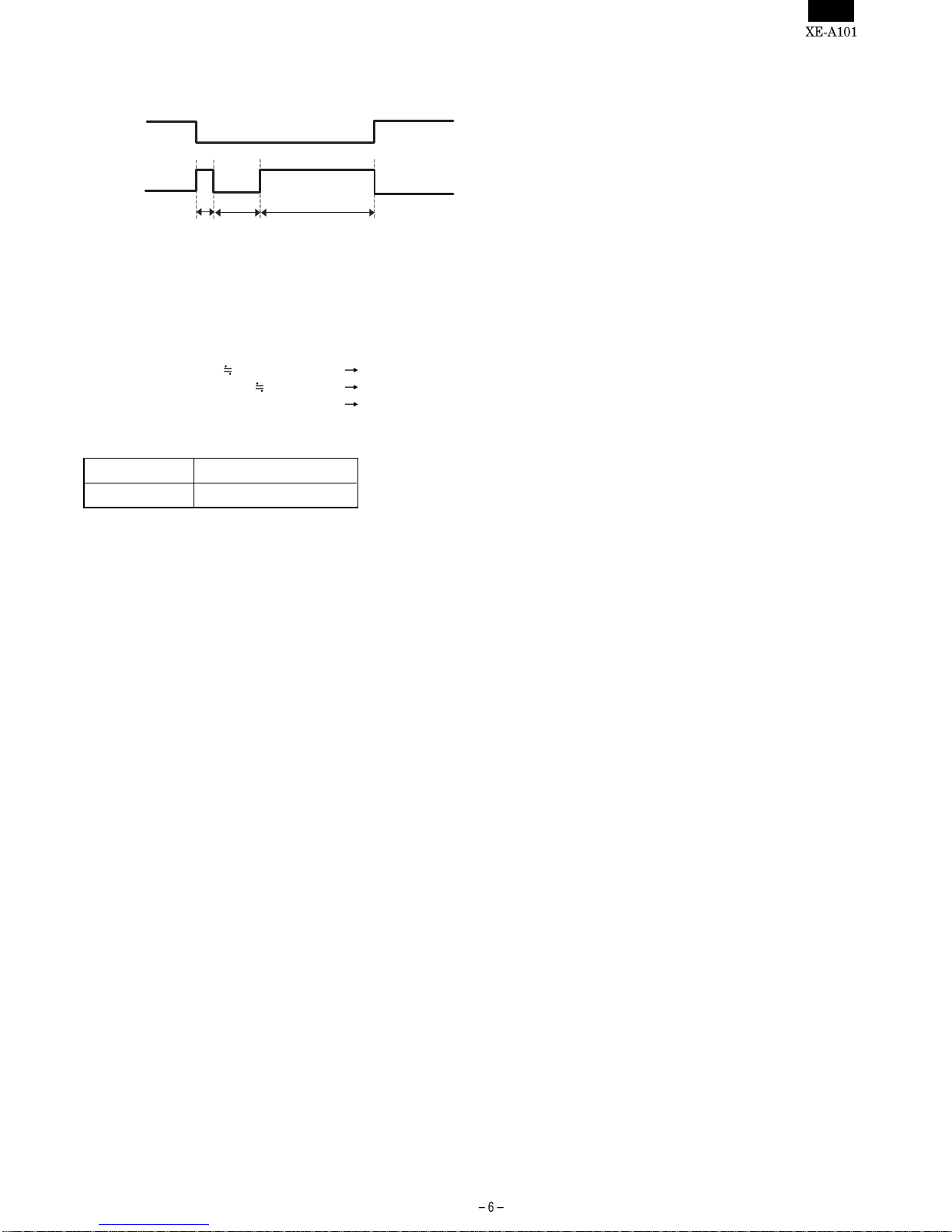

(Output Timing of STROBE signal)
2) KEYBOARD and MODE SW
MODE SW, KEY MATRIX is follows.
Note: Although the XE-A101 has 30 keys, the keyboard circuit is
actually 32 keys (+) the PF key.
3) BUZZER
The BUZZER is driven by the P75/BUZ signal of the CPU.
Frequency : 4.095kHz
6V
CPU
uPD780023A
D
Printer
M-31
RAWER
KEY
BOARD
&
MODE SW
8.8. 8.8.8.8.8.
FRONT display :8digit
POWER
SUPPLY
AC 5V
ST1- ST4-,ST5
A1 G1,DP1,A2 G2~,DP2
KST1 KST8
KR1 KR6
8.
BUZZER
MAIN
4.19MHz For Clock
32.768kHz
Battery
5V
ST4- ST3- ST2- ST1-
ST1-
ST2-
ST3-
ST4-
1ms
30~100us
Display
strobe
12345
SLIDE SW
REG
POWER
OFF VOID X/F Z/PGM
22
31 7
15 16
24 25
26 1 2
8 9 10
17 18 19
27 28
3 4
11 12
21
30
5 6
13 14
32
SW1
MODE SW
KST2
KR1
KST3
KST4
KST5
1
2
3
4
5
6 7 13 25 D13 1SS133 KST1
1 2 8 14 D14 1SS133 KST2
11 12 19 9D15 1SS133 KST3
17 18 323 D16 1SS133 KST4
28 24 20 10 D17 1SS133 KST5
30 26 21 4D18 1SS133 KST6
32 22 15 5D19 1SS133 KST7
29 31 27 16 D20 1SS133 KST8
KST1
1
2
3
4
5
6
7
8
9
KCN2
KR2 KR6 KR5 KR4 KR3
KEYBOARD

4) REWIND MOTOR
When the rewind motor is driven by the signal of the CPU.
5) DRAWER
DRAWER OPEN signal :Output high signal between 50ms
6) DETECTING "LOW VOLTAGE"
•Values obtained by AD conversion and averaging
Register value: 138 ( 2.7V) or less No voltage
139 - 154 ( 2.7V - 3.0V) Low voltage
more than 154 OK
7) DESTINATION DETECTION port
U and A version
P66 L
5ms 10ms 15ms
PRINTER
MOTOR
REWIND
MOTOR

4. CPU PORT TABLE
No. PIN Name Signal Name Description Output/Input Initial state When STBY
1P50/A8 RWND REWIND MOTOR O L O/L
2P51/A9 DR To DRAWER O L O/L
3P52/A10 SA2 DISPLAY SEGMENT O L O/L
4P53/A11 SB2 DISPLAY SEGMENT O L O/L
5P54/A12 SC2 DISPLAY SEGMENT O L O/L
6P55/A13 SD2 DISPLAY SEGMENT O L O/L
7P56/A14 SE2 DISPLAY SEGMENT O L O/L
8P57/A15 SF2 DISPLAY SEGMENT O L O/L
9Vss0 GND
10 Vdd0 VDD
11 P30 ST1- DISPLAY STROBE N-Ch O.D. O H I
12 P31 ST2- DISPLAY STROBE N-Ch O.D. O H I
13 P32 ST3- DISPLAY STROBE N-Ch O.D. O H I
14 P33 ST4- DISPLAY STROBE N-Ch O.D. O H I
15 P34/SI31 ST5 DISPLAY STROBE (H ACTIVE) O L O/L
16 P35/SO31 NU (GND via 56k) I I
17 P36/SCK31- NU (GND via 56k) I I
18 P20/SI30 SA1 DISPLAY SEGMENT O L O/L
19 P21/SO30 SB1 DISPLAY SEGMENT O L O/L
20 P22/SCK30- SC1 DISPLAY SEGMENT O L O/L
21 P23/RXD0 SD1 DISPLAY SEGMENT O L O/L
22 P24/TXD0 SE1 DISPLAY SEGMENT O L O/L
23 P25/ASCK0 SF1 DISPLAY SEGMENT O L O/L
24 Vdd1 VDD
25 Avss GND
26 P17/ANI7 VBAT BATTERY voltage I I
27 P16/ANI6 NU RESERVE FOR KEY RETURN I I
28 P15/ANI5 KR6 KEY RETURN I I
29 P14/ANI4 KR5 KEY RETURN I I
30 P13/ANI3 KR4 KEY RETURN I I
31 P12/ANI2 KR3 KEY RETURN I I
32 P11/ANI1 KR2 KEY RETURN I I
33 P10/ANI0 KR1 KEY RETURN I I
34 Avref VCC
35 Avdd VDD
36 RESET- RESET-
37 XT2 XT2 32.768Khz Xtal
38 XT1 XT1 32.768Khz Xtal
39 IC/VPP GND
40 X2 X2 SYSTEM CLOCK
41 X1 X1 SYSTEM CLOCK
42 Vss1 GND
43 P00/INTP0 /POF POWER OFF I I
44 P01/INTP1 TFromPRINTER I I
45 P02/INTP2 tFromPRINTER I I
46 P03/INTP3/ADTRG R From PRINTER I I
47 P70/TI00/TO0 SG1 DISPLAY SEGMENT O L O/L
48 P71/TI01 SDP1 DISPLAY SEGMENT O L O/L
49 P72/TI50/TO50 SG2 DISPLAY SEGMENT O L O/L
50 P73/TI51/TO51 SDP2 DISPLAY SEGMENT O L O/L
51 P74/PCL NU OLO/L
52 P75/BUZ BUZ BUZZER O L O/L
53 P64/RD- MTR To PRINTER O L O/L
54 P65/WR- TRG To PRINTER O L O/L
55 P66/WAIT- MSL1 MODEL SELECT1 I I
56 P67/ASTB MSL2 MODEL SELECT2 I I
57 P40/AD0 KST1 KEY STROBE O L O/L
58 P41/AD1 KST2 KEY STROBE O L O/L
59 P42/AD2 KST3 KEY STROBE O L O/L
60 P43/AD3 KST4 KEY STROBE O L O/L
61 P44/AD4 KST5 KEY STROBE O L O/L
62 P45/AD5 KST6 KEY STROBE O L O/L
63 P46/AD6 KST7 KEY STROBE O L O/L
64 P47/AD7 KST8 KEY STROBE O L O/L

CHAPTER 5.TEST FUNCTION
1) To execute the diag test, set the mode switch to Z/PGM. Enter the
desired JOB code, and press the PO (paid out) key.
2) The test message is printed by the printer.
3) Test contents and key operations.
NO. Test contents Key operations
1 Mode switch test
2Keytest
3 Display buzzer test
4 Drawer test
5 Printer test
6 CPU version NO. print
7 Battery level test
8 Time display test
9 Destination display
1. MODE SWITCH TEST
1) KEY OPERATION
2) TEST PROCEDURE
Change over the mode switch as follows. If the mode switch data in
the proper sequence is not read with the above operation, an error is
printed.
To cancel this test mode, set the mode switch to any a position other
than Z/PGM to Z/PGM. In this case, the completion print is performed.
During the test , the display indicates hard codes which correspond to
the switch positions.
3) MODE SWITCH OPERATION
Completion print 01
Error print – – – 01
2. KEY TEST
1) KEY OPERATION
2) TEST PROCEDURE
Perform the keyboard check with the sum check data of the key code.
Enter the sum check data of each model in the four digits preceding
the diag number 02, and compare the data with the key position code
which is added until the CA/AT/NS key is pressed.
If the data coincides with the code, the completion print is performed.
If not, the error print is performed.
Completion print 02
Error print – – – 02
XXXX Sum data
3. DISPLAY BUZZER TEST
1) KEY OPERATION
2) TEST PROCEDURE
Check the continuous buzzer sound and the display state.
Display state:
8. 7. 6. 5. 4. 3. 2. 1.
The decimal point will shift from the lower digit to the upper, step by
step (500mSEC). To cancel the test mode, press any key, and the
buzzer will stop and the completion print is performed.
Completion print 03
4. DRAWER TEST
1) KEY OPERATION
2) TEST PROCEDURE
The drawer opens with the above key operation. Check that the
drawer is open. Press any key to terminate the test.
Completion print 04
PO1
PO02
PO3
PO4
PO5
PO6
PO7
PO8
PO9
PO1
Mode:
Display: (01)(02)
X/FLASH
(03)
Z/PGM
(04)
OFFVOID REG
PO02
PO3
PO4

5. PRINTER TEST
1) KEY OPERATION
2) TEST PROCEDURE
With the above key operation , the print test pattern is repeatedly
printed.
Pressing any key will terminate the test after the completion of one
cycle print. (The receipt is issued at the end.)
6. CPU VERSION NO. PRINT
1) KEY OPERATION
2) DESCRIPTION
The CPU version No. are printed with above key operation.
(Print example)
0101 CPU version NO.
06
This test is terminated when printing is completed.
7. BATTERY VOLTAGE SENSOR TEST
1) KEY OPERATION
2) TEST PROCEDURE
Displays A/D conversion port read value.
0155 or greater: Normal
0154 or smaller: Low battery display
0138 or smaller: No battery display and MSR is done when power on.
To terminate the test, press any key.
Completion print 07
8. TIME DISPLAY TEST
1) KEY OPERATION
2) TEST PROCEDURE
To terminate the test and print the date and time, press any key.
9. DESTINATION DISPLAY
1) KEY OPERATION
2) TEST PROCEDURE
Display the destination code as follows.
U and A version V version Japan
Display 0 1 2
Display X (X:0)
To terminate the test, press any key.
Completion print 09
PO5
PO6
PO7
PO8
8
Display
Hour Minute Second
Turn on and off(0.5s)
754 2136
Print
Year Month Date Hour Minute Second
0 8
XXXXXX XXXXXX
PO9

CHAPTER 6. SERVICE PRECAUTION
1. PRINTER
Since there are no service parts for this model printer, only the printer
unit is supplied. Therefore, the printer component parts are not sup-
plied and no service document is issued.
For troubleshooting of the printer, refer to the table below:
Printer life: 300 thousand lines (XE-A101: M-31)
Ink roll life: 1 million characters
Phenomena Check point/possible cause Repair
•The printer motor is locked and the
buzzer sounds intermittently. •Check if the printer cable is disconnected. •Check and repair the printer cable.
•The printer does not work properly •Check if the printer life is reached. •Replace the printer.
•Check if any foreign material is attached to the
printing type wheel or the gear section. •Remove the foreign material. (After removing the foreign material, set the mode switch to
"REG" and press "CL" key.)
•Defective print (Lack on the upper/
lower or left/right side) •Check if the printing type is worn down. •Replace the printer.
•Check if any foreign material is attached to the
printing type wheel. •Remove the foreign material. (After removing the foreign material, set the mode switch to
"REG" and press "CL" key.)
•Thin print •Check if the ink roll life is reached. •Replace the ink roll.
•Check if the ink roll is properly installed. •Install the ink roll properly.
•Check if the printing type wheel is worn down. •Replace the printer.
•Uneven pitch of print paper feed •Check if the roll paper size is proper. •Use roll paper as specified below;
Paper width: 57.5 0.5mm
Outside diameter: ϕ80mm or less
Inside diameter of paper tube: ϕ12mm or less
Paper thickness: 0.06~0.085mm
•Check if a load is applied to the roll paper during
paper feeding. This may result from a foreign
materials attached to the roll paper.
•Remove any foreign material.

R21 R24
XE-A101 X O
*CAUTION*
8 7 6 5 4 32 1
A B
C D
12345678
D C
B A
1/2
R6
100K
VO 1
2 3
CN3
5045-03A
C8
MULTI
0.1uF
Q1
2SD2170
R7
1K
/POF
DR
(for DRAWER)
F2
T400mA/250V
R3
68K
VCC VDD
R4
5.6K
R5
56K
VO VCC
D9 1SS133 D10
1SS133
VBAT
ZD1
MTZ7.5B
C6
47uF/16V
(G3)
C26 47uF/16V
C7
0.1uF
MULTI
C4
100uF
25V
VO +6V
R2
1M
R1
220
C3
330uF 25V
123
IC1
KIA7806P
C5 MYLOR 0.1uF
D5
1N4002
D6
1N4002
D7
1SS133
D8
1SS133
/RESET
1 2
CN2
5267-02BL
BATTERY CN
R70
100
1 2
CN1
5273-02A
VO
C2
3300uF 25V
VDD
C1
MYLOR 0.033uF
D4
1N4002x4
D2
D3
D1
R9
4.7K
F3
T1.0AL/250V
F1
T1.25AL/125V
T1.0AL/250V
DR RWND
VDD
VCC
C9
22uF
50V
D11
1N4002
/ST1 /ST2
Q2
2SD2170 R10
2.7K
1 P50/A8 2 P51/A9 3 P52/A10 4 P53/A11 5 P54/A12 6 P55/A13 7 P56/A14 8 P57/A15 9 VSS0 10 VDD0 11 P30 12 P31 13 P32 14 P33 15 P34/SI31 16 P35/SO31 17 P36/-SCK31 18 P20/SI30 19 P21/SO30 20 P22/-SCK30 21 P23/RXD0 22 P24/TXD0 23 P25/ASCK0 24 VDD1 25 AVSS 26 P17/AN17 27 P16/AN16 28 P15/AN15 29 P14/AN14 30 P13/AN13 31 P12/AN12 32 P11/AN11 P10/AN10 33
AVREF 34
P47/AD7 64 P46/AD6 63 P45/AD5 62 P44/AD4 61 P43/AD3 60 P42/AD2 59 P41/AD1 58 P40/AD0 57
P67/ASTB 56
P66/-WAIT 55
P65/-WR 54
P64/-RD 53
P75/BUZ 52
P74/PCL 51
P73/TI51/TO51 50 P72/TI50/TO50 49
P71/TI01 48
P70/TI00/TO0 47
P03/INTP3/ADTRG 46
P02/INTP2 45 P01/INTP1 44 P00/INTP0 43
VSS1 42
X1 41 X2 40
IC 39
XT1 38 XT2 37
-RESET 36
AVDD 35
IC2 uPD780023A (QFP)
SA2 SB2 SC2 SD2 SE2 SF2
R8
1K
D12
1SS133
1 2
CN4
5267-02
MOTOR CN
(F3:JUMPER)
MTR TRG KST1 KST2 KST3 KST4 KST5 KST6 KST7 KST8 KST1-KST8
BZ
BUZZER
Q3
C3198 C10
MYLOR 0.1uF
C11
MULTI 0.1uF
R11
1K
VCC
STROBE [/ST1-/ST4,ST5]
R23 47K
R24 47K
R21 47K
R22 47K VCC
NOT USE
+6V
R58
330 R59
6.8K R60
330 R61
6.8K
Q8
KTA1271 Q9
KTA1271
41
71
81231
51
6971
25681
01
1
1 41
3
LED1 D568GWA
41
71
81231
51
6971
25681
01
1
1 41
3
LED2 D568GWA
D30
JUMPER WIRE (1N4002)
R51
12K
R50
4.7K
Q4
2SC3198
R52
330
R53
6.8K R54
330 R55
6.8K
Q5 KTA1271 Q6
KTA1271
R56
330 R57
6.8K
Q7
KTA1271
41
71
81231
51
6971
25681
01
1
1 41
3
LED3 D568GWA
1 41
3
LED4 D568GWA
38
41
71
81231
51
6971
25681
01
1
51
0912467
LED5
S568GWA
(XE-A101V only)
IC4
KID65083
KR1
/POF T t R
VDD VCC
2
31
X2 4.19MHz
SG2 SG1
R27
1M
SDP1 SDP2
R25
470
/RESET
/RESET
P74
X1
32.768KHz
J6 7mm
SP1
SHORTPIN
R26
330K
(0)
C12
22pF
(18pF)
C13
30pF (22pF)
SA1 SB1 SC1 SD1 SE1 SF1 VBAT KR6 KR5 KR4 KR3 KR2
KR1-KR6
VDD
/ST3 /ST4
R12
56K
R13
56K
R14
56K
ST5
SI30 SO30 /SCK30
VDD
VDD
VSS VPP
R15 R16 R17 R18 R19 R20
+6V
R28 1K
R29 1K
R30
1K
TRG MTR 47K*6
PRINTER I/F PWB MAIN PWB
1 NC 2 I1 3 I2 4 GND
NC 8 O1 7 O2 6
VCC 5
IC3
LB1268(DIP)
1 2 3 4 5 6 7 8
CN5
52011-0810
(for PRINTER)
1 2 3 4 5 6 7 8
CON3A
HOLE only
1 2 3 4 5 6 7 8
CON3
HOLE only
a2 b2 c2 d2 e2 f2 g2 dp2 a1 b1 c1 d1 e1 f1 g1 dp1
SA2 SB2 SC2 SD2 SE2 SF2 SG2 DP2 SA1 SB1 SC1 SD1 SE1 SF1 SG1 DP1
9PIN :GND 10PIN:N.C
IC5
KID65083 9PIN :GND 10PIN:N.C
VCC
163
154 136 118 172 154 136 145
163 181 127 145 181 IC4A
172 IC4B 118
IC5H
127
IC5G
T R t
+6V
R31 10K R32
10K R33
10K
C14 C15 C16
0.1uF 0.1uF 0.1uF
R34 110 R35 110 R36 110 R37 110 R38 110 R39 110 R40 110 R41 110 R42 110 R43 110 R44 110 R45 110 R46 110 R47 110 R48 110 R49 110
1) MAIN CIRCUIT
CHAPTER 7. CIRCUIT DIAGRAM AND PWB LAYOUT 1. CIRCUIT DIAGRAM

8 7 6 5 4 32 1
A B
C D
12345678
D C
B A
2/2
2) KEY INTERFACE
KR1-KR6
KR2 KR6
C17
100pF
C18
100pF
C19
100pF
1 2 3 4 5 6 7 8 9
10
KCN1
52045-1045
(MAIN PWB)
1 2 3 4 5
SW1
MODE SW
SLIDE SW PWB
REG(1)
VOID(2)
X/FLASH(3)
Z/PGM(4)
KR1 KST2 KST3 KST4 KST5
KR1
KST2
KR5 KR4 KR3
KST3 KST4 KST5
JP1
JUMPER WIRE
JP2
JUMPER WIRE
JP3
JUMPER WIRE
JP4
JUMPER WIRE
JP5
JUMPER WIRE
MAIN PWB
C20
100pF
C21
100pF
1 2 3 4 5
KCN3
5229-05APB
C22
330OpF
C23
3300pF
C24
3300pF
C25
3300pF
C29
330OpF
POWER
OFF
REG(1) VOID(2) X/F(3) Z/PGM(4)
20 11
34
12 21
13
56
14 23
SLIDE SW
22
7
31 15 16
26
8
17 18
9 12
10 19
XE-A101
KST1 KST2 KST3 KST4 KST5 KST6 KST7 KST8 KST1
KST1-KST8
D13 1SS133 D14 1SS133 D15 1SS133 D16 1SS133
D17 1SS133 D18 1SS133 D19 1SS133 D20 1SS133
6 7 13 25 12814
11 17 28 30 32 29 31
22 26 24 18 12 19
3
20 21 15 27 16
5 4
10 23
9
KEYBOARD
1 2 3 4 5 6 7 8 9
KCN2
52045-0945
(5597-09CPB)
24 25 27 28 29 30 32

2.PWB LAYOUTUT
1) A side

1) B side

CONTENTS
PARTS GUIDE
MODEL XE-A101
PRINTER:M-31
(for U.S.A,Canada)
1Exteriors
2Drawer box unit(SK1-1 type)
3Packing material & Accessories
4Main PWB unit
5Slide SW I/F PWB unit
6Articles for consumption
■Index
Parts marked with "!" are important for maintaining the safety of the set.Be sure replace these parts with
specified ones for maintaining the safety and performance of the set.
SHARP CORPORATION This document has been published to be
used for after sales service only.
The contents are subject to change without
notice.
XE-A101U/A

1Exteriors
NO. PARTS CODE PRICE
RANK NEW MARK PART RANK DESCRIPTION
1GCOVB2523BHZZ AS N D PRINTER COVER (GRAY-559)
2PCUT-6652BHZZ AF C Paper cutter
3XJBSD20P04000 AA C Screw (2×4) [PAPER CUTTER]
4GCABB2567BHZZ BD N D TOP CABINET (GRAY(PB-N8.0))
5XJPSD30P10X00 AC C Screw (3×10X)
6PGIDH2403BHZZ AG N C PAPER GUIDE (GRAY(PB-N8.0))
7PFILW2010BHZZ AP N D FRONT FILTER
8HDECP2370BHZZ AM N D DECO PANEL (GRAY(PB-N8.0))
9GFTAB2445BHZZ AG N D BATTERY COVER (GRAY(PB-N8.0))
10 QTANZ2351BHZZ AE N C BATTERY TERMINAL d
11 QTANZ2349BHZZ AG N C BATTERY TERMINAL A
12 QTANZ2350BHZZ AG N C BATTERY TERMINAL B
13 QTANZ2348BHZZ AF N C BATTERY TERMINAL c
14 KI-OB6774BHZZ BE E Printer (M-31)
15 XEBSD30P08000 AA C Screw (3×8) [SET]
16 GCOVB2524BHZZ AS N D DISPLAY COVER (GRAY-559)
17 XBPSD26P04000 AA C Screw (2.6×4) [MOTOR]
18 LHLDZ2388BHZZ AE N C MOTOR HOLDER (GRAY(PB-N8.0))
19 PGUMM2446BHZZ AC N C MOTOR GUM
20 RMOTM2321BHZZ AS N B MOTOR
21 QCNW-3153BHZZ AF N C MOTOR CABLE
22 CPWBF2915BH01 BP N E MAIN PWB UNIT
24 JKNBZ2428BHZZ AE N C SLIDE S/W KNOB (GRAY(PB-N8.0))
25 XBBSD30P06000 AA C Screw (3×6) [HEAT SINK]
26 KI-OK2369BHZZ BF N E KEY BOARD
27 CPWBF2916BH01 AV N E SLIDE SW I/F PWB UNIT
28 LANGK2904BHZZ AH N C HEAT SINK
32 LFRM-2365BHZZ AW N D KEY FRAME
33 PGUMM2445BHZZ AY N C KEY RUBBER
34 CSHEP2942BHZZ AZ N B KEY SHEET UNIT
35 LPLTM2365BHZZ AV N C BASE PLATE
36 XJPSD30P06000 AA C Screw (3×6) [KEY BOARD]
37 CKNBZ2427BHZZ BD N C KEY TOP UNIT (KEY FRAME+KEY TOP)
38 QCNW-3154BHZZ AF N C BATTERY CABLE
40 QCNCW6882BH0H AF C Connector (52011-0810) (for Printer)
XE-A101U/A
– 1 –

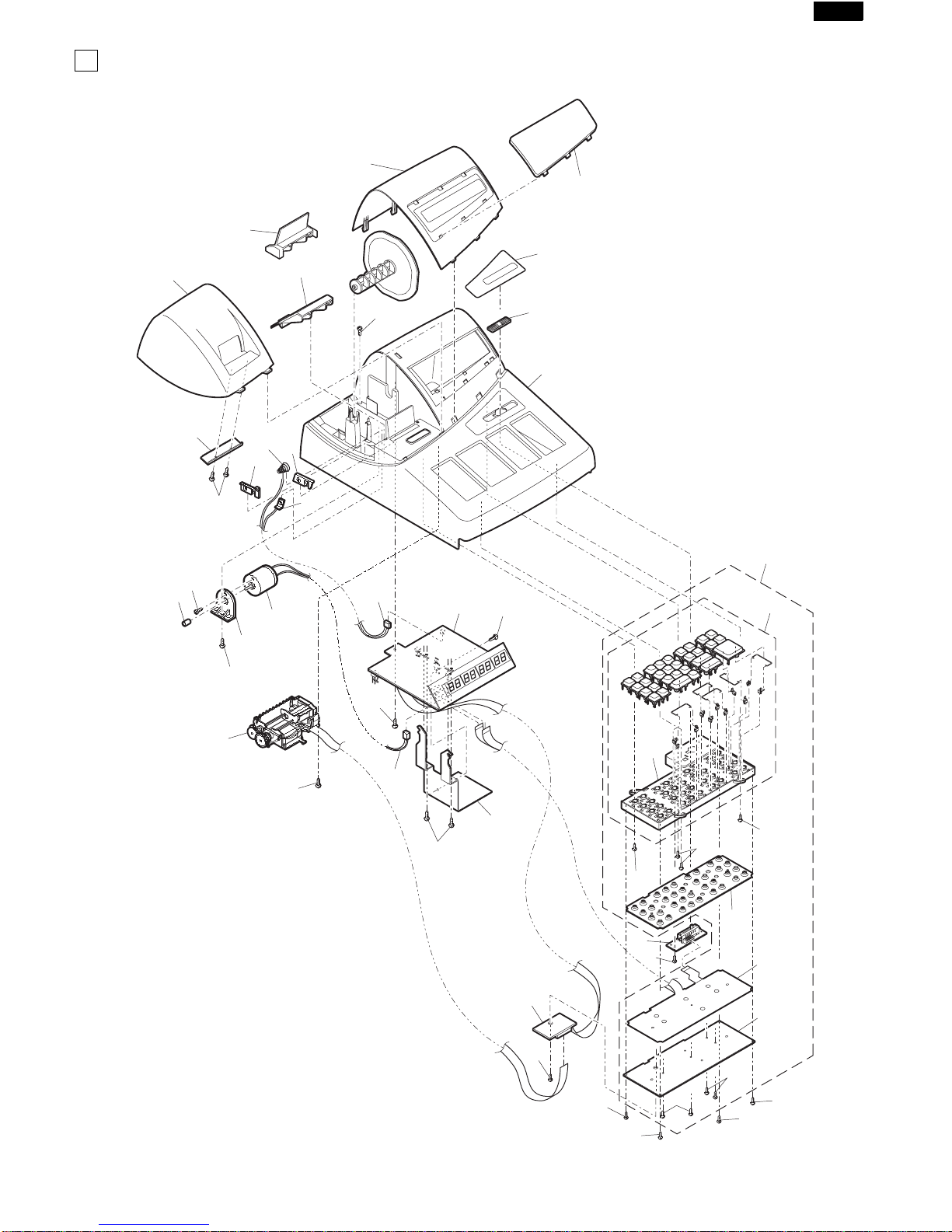

1Exteriors
RCP00399
1
2
3
9
16 7
5
4
10
12 11
13
17
19
15
18
20
14
15
38 22 25
15
21
28
25
26
37
36
36
36
33
34
35
40
15
15
15 15 15
36
36
8
24
27
15
6
32
XE-A101U/A
– 2 –

2 Drawer box unit(SK1-1 type)
NO. PARTS CODE PRICE
RANK NEW MARK PART RANK DESCRIPTION
1XJPSD30P10X00 AC C Screw (3×10X) [TRANS]
2
! RTRNP2426BHZZ AX N B POWER TRANS (U)
3
! QACCD1010CCN1 AP B AC cord
5QCNW-3152BHZZ AH N C PS CABLE
7GCOVH2525BHZZ AG N D TRANS COVER (GRAY(PB-N8.0))
8LPLTM2366BHZZ AM N C EARTH PLATE
13 GCABM2568BHZZ BE N D DRAWER CABINET (PB-N8.0)
14 PSHEP6826BHZZ AE C Gum sheet
15 RPLU-6644BHZA AX N B SOLENOID
16 LX-BZ6775BHZZ AA C Screw (3×5)
17 MLEVF2338BHZZ AF N C LOCK LEVER
18 MSPRT6742BHZZ AD C Open spring
19 XBPSD40P06K00 AA C Screw (4×6K)
20 NROLP6657BHZZ AN C Roller
21 MSPRC6743BHZZ AG C Push out spring
22 LBRC-2002BHZZ AN N C BRACKET (4B)
23 MLEVF6699BHSA AF N C BILL LEVER
24 MSPRT6731BHZZ AD C Bill spring
25 XNESD60-50000 AA C Nut (M6)
26 NROLP6655BHZA AF C Roller
28 GCAS-2333BHZZ BA N D MONEY CASE (4B GRAY)
29 LKGIW7330BHZZ AY B Lock key (body)
30 LKGIM7331BHZZ AE B Lock key (1pc)
31 PRNGT6637BHZZ AA C Key ring
32 MSPRK6718BHZZ AF C Lock key spring
33 MCAMM6633BHZA AE C Lock cam
34 XRESJ50-06000 AA C E type ring (5mm)
35 DUNT-1306BHZA AX E Lock key unit
36 XEBSD30P08000 AA C Screw (3×8)
37 LPLTM2367BHZZ AW N C BOTTOM PLATE
38 LPLTM2372BHZZ AQ N C BALANCE PLATE
40 LANGK2905BHZZ AN N C LOCK ANGLE
41 MSPRC6748BHZZ AD C Plunger spring
44 NSFTA6655BHZZ AE C Roller shaft
45 GCAS-2335BHZZ AU N D COIN CASE (5C GRAY)
501 CCAS-2333BHZZ BF N E MONEY CASE UNIT (4B/5C GRAY)
502 CLOK-6673BHZZ BA N E LOCK UNIT
(Unit)
901 GBOXD7157BHZZ BT N E DRAWER BOX (4B/5C GRAY) [except No.1∼8]
XE-A101U/A
– 3 –

2 Drawer box unit(SK1-1 type)
RCP00400
12
3
5
7
8
13
20
14
14
14
17
16
19
18
41
15
37
36
501
22
23
24
45
44
26
25
25
26
44
30
31
29
34 33
32
35
36
38
40
21
502
28
XE-A101U/A
– 4 –
