CODE: 00ZAR405//A1E
Digital Copier
AR-280
AR-285
AR-335
MODEL AR-405
Parts marked with "!" is important for maintaining the safety of the set. Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
SHARP CORPORATION
AR-405
[ 1 ] GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-3-A
[ 2 ] SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-5
[ 3 ] OPTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
[ 4 ] CONSUMABLE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7
[ 6 ] EXTERNAL VIEW AND INTERNAL STRUCTURE . . . . . . . . . 6-10
[ 7 ] SETTING AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . 7-1
[ 8 ] SIMULATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8-3
[ 9 ] MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-1-A
[10] DISASSEMBLY AND ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . 10-1
[11] TROUBLE CODE LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11-1
CONTENTS
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.

No. AR-280/285/335 AR-405
Page Section Content Change Remark
1 – 1 [1] – 1 A. Touch panel Display change (Refer to the section
of Touch panel in
EXTERNAL VIEW
AND INTERNAL
STRUCTURE.)
1 – 1 [1] C. Automatic document feeder as standard
provision C. Automatic document feeder as standard provision
Without opening the document table cover, documents
can be automatically fed and copied.
The automatic document feeder provided in the
AR-285/335 allows automatic reversion of documents
for duplex copying as well as simplex copying. (The
automatic document feeder of the AR-280 allows only
simplexcopying.)
Without opening the document table cover, documents
can be automatically fed and copied.
The automatic document feeder provided in the AR-405
allows automatic reversion of documents for duplex
copying as well as simplex copying.
E. 776-step zooming E. 376-step zooming
The zooming function allows selection of the
magnification ratio from 25% to 800% in 776 steps (1%
increment). (When the automatic document feeder
(AR-280) is used, zooming from 25% to 200% in 176
steps (1% increment) is allowed.)
The zooming function allows selection of the
magnification ratio from 25% to 400% in 376 steps (1%
increment). (When the automatic document feeder.)
1 – 6 System outline (Options) (Refer to the attached sheet.)
2 – 1 [2] SPECIFICATIONS (Refer to the attached sheet.)
3 – 1 [3] Option spec (Refer to the attached sheet.)
3 – 3
4 – 1 [4] – 1 – A (Refer to the attached sheet.)
4 – 2 [4] – 1 – B
4 – 3 [4] – 1 – C
4 – 4 [4] – 1 – D
4 – 5 [4] – 1 – E
4 – 6 [4] – 4 – A Manufacturing No. identification illustration and description of Manufacturing No.
are changed.
5 – 3 [5] – 2 – C C. Chargercleaning
•Main charger unit electrode cleaning
1Open the front cabinet.
2Press the hook section of the main charger
unit to release lock. Pull out and remove the
main charger unit from the copier body. illustration (Drum positioning plate shape)
change
AR-405
1/21/1999 – 1 –

No. AR-280/285/335 AR-405
Page Section Content Change Remark
5 – 4 [5] – 2 – C Illustration (Drum positioning plate shape)
change
•Transfer/separation charger unit wire cleaning •Transfer/separation charger unit wire cleaning
1Slightly lift the transport section open/close
lever and tilt it to the right. 1Slightly lift the transport section open/close lever and tilt it to the right.
2Remove the driver transfer separation
charger fixing screw, and remove the
transfer/separation charger unit from the
copier body.
2Remove the driver transfer separation
charger fixing screw, and remove the
transfer/separation charger unit from the
copier body.
5 – 6 [5] – 2 – 6 Illustration (Drum positioning plate shape)
change
G. Developing unit setting G. Developing unit setting
(1) Remove the developing unit. (1) Remove the developing unit.
1Open the front cabinet. 1Open the front cabinet.
2Tilt the developing unit lever toward you,
and pull out the toner cartridge until it stops. 2Tilt the developing unit lever toward you, and pull out the toner cartridge until it stops.
Printer kit AR-PB2 installation procedure added.
AR-405
– 2 – 1/21/1999

No. AR-280/285/335 AR-405
Page Section Content Change Remark
6 – 1 [6] EXTERNAL VIEW AND INTERNAL
STRUCTURE (Refer to the attached sheet.)
6 – 7
7 – 1
7 – 4 Two illustrations for AR-405 given.
7 – 5 Separation DC component table illustration for AR-405 given.
illustration for AR-405 given.
7 – 6 [7] – 2 – B illustration for AR-405 given.
7 – 7 Copy mode table Initial value changed.
[7] – 2 – C illustration for AR-405 given.
7 – 8 illustration for AR-405 given.
[7] – 2 – D Copy mode table illustration for AR-405 added.
7 – 22 I. RADF Three illustrations changed.
7 – 23 One illustration, model name of RADF in the
descriptions, and the description of the load
check mode changed.
7 – 24 Continued from the above.
9 – 1 [9] MAINTENANCE (New)
~ (Refer to the attached sheet.)
10 – 2 [10] – 3 A. OPC drum illustration changed.
B. Drum separation pawl illustrationchanged.
10 – 3 C. Cleaner blade illustration changed.
F. Transfer/separation charger illustration changed.
10 – 5 illustrationchanged.
10 – 6 [10] – 7 7. Laser scanner unit illustration changed.
12 – 1 [12] – 2 Image forming section correction (process
correction) operation list
Executionconditions, operation timing
Before process correction
*1
*1
OPC drum specified rotation time (every 20,000 sec)
Immediately after correction of main charger grid
voltage(*1)
OPC drum specified rotation time (every 20,000 sec)
Immediately after correction of main charger grid
voltage(*1)
The developing bias voltage correction is made over
the specified level immediately after developing bias
voltagecorrection.(*1)
OPC drum specified rotation time is changed to (16,600
sec).
OPC drum specified rotation time is changed to (16,600
sec).
AR-405
1/21/1999 – 3 –

No. AR-280/285/335 AR-405
Page Section Content Change Remark
12 – 2 [12] – 3 – B

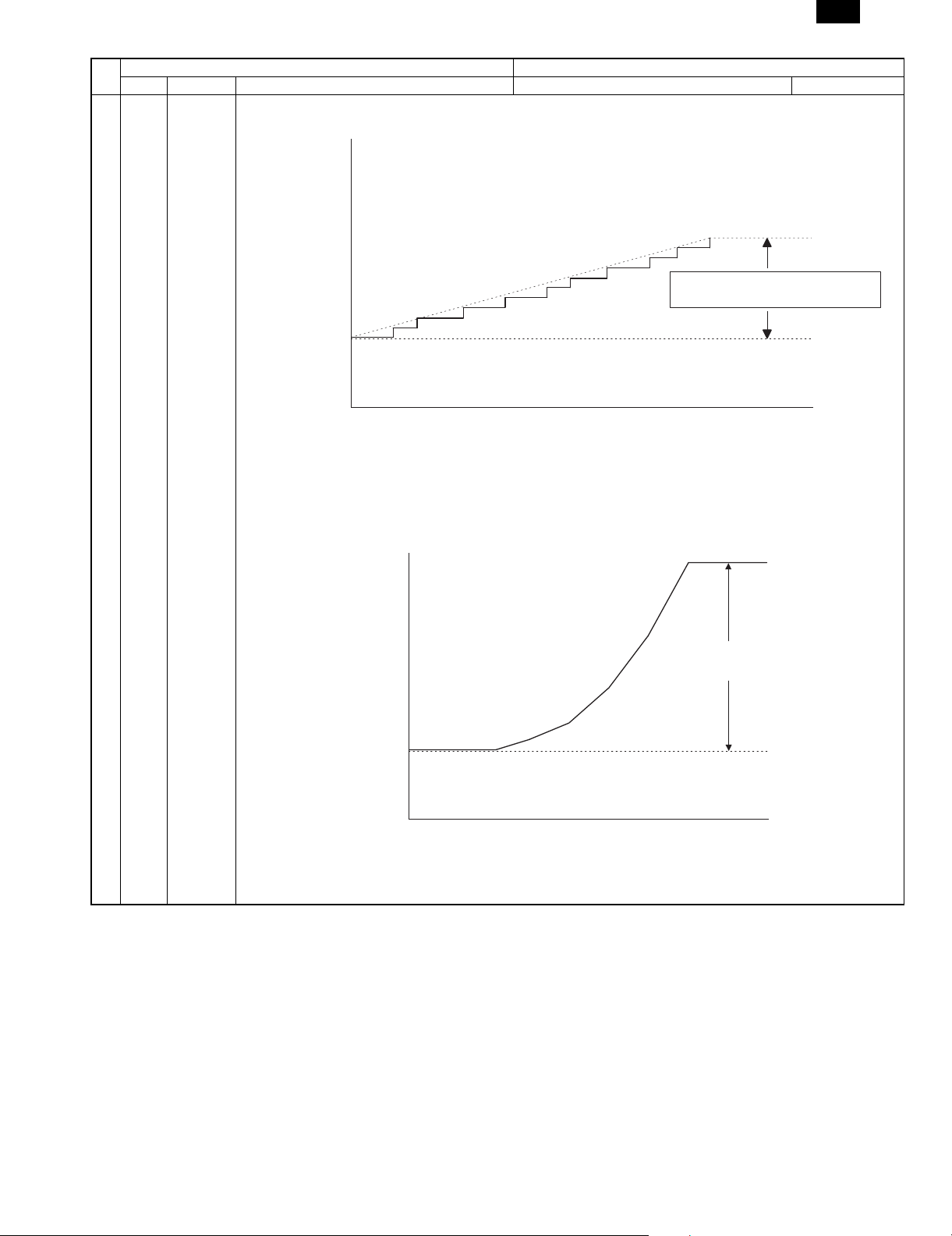

LASER BEAM POWER CORRECTION 1
[mW]
Laser beam power
5101520253035
Photoconductor drum correction counter
1 count: 20,000 sec (Photoconductor drum rotation time) (AR-280/285/335)
16,600 sec (Photoconductor drum rotation time) (AR-405)
0.2mW(max) (AR-280/285/335)
0.16mW(max) (AR-405)
Laser beam power correction value(DLPc1)
MAIN CHARGER GRID VOLTAGE CORRECTION 1
[v]
Main charger grid voltage correction value
5101520253035
Photoconductor drum correction counter
1 count: 20,000 sec (Photoconductor drum rotation time) (AR-280/285/335)
16,600 sec (Photoconductor drum rotation time) (AR-405)
95v (AR-280/285/335)
64v (AR-405)
Main charger grid voltage correction value
AR-405
– 4 – 1/21/1999

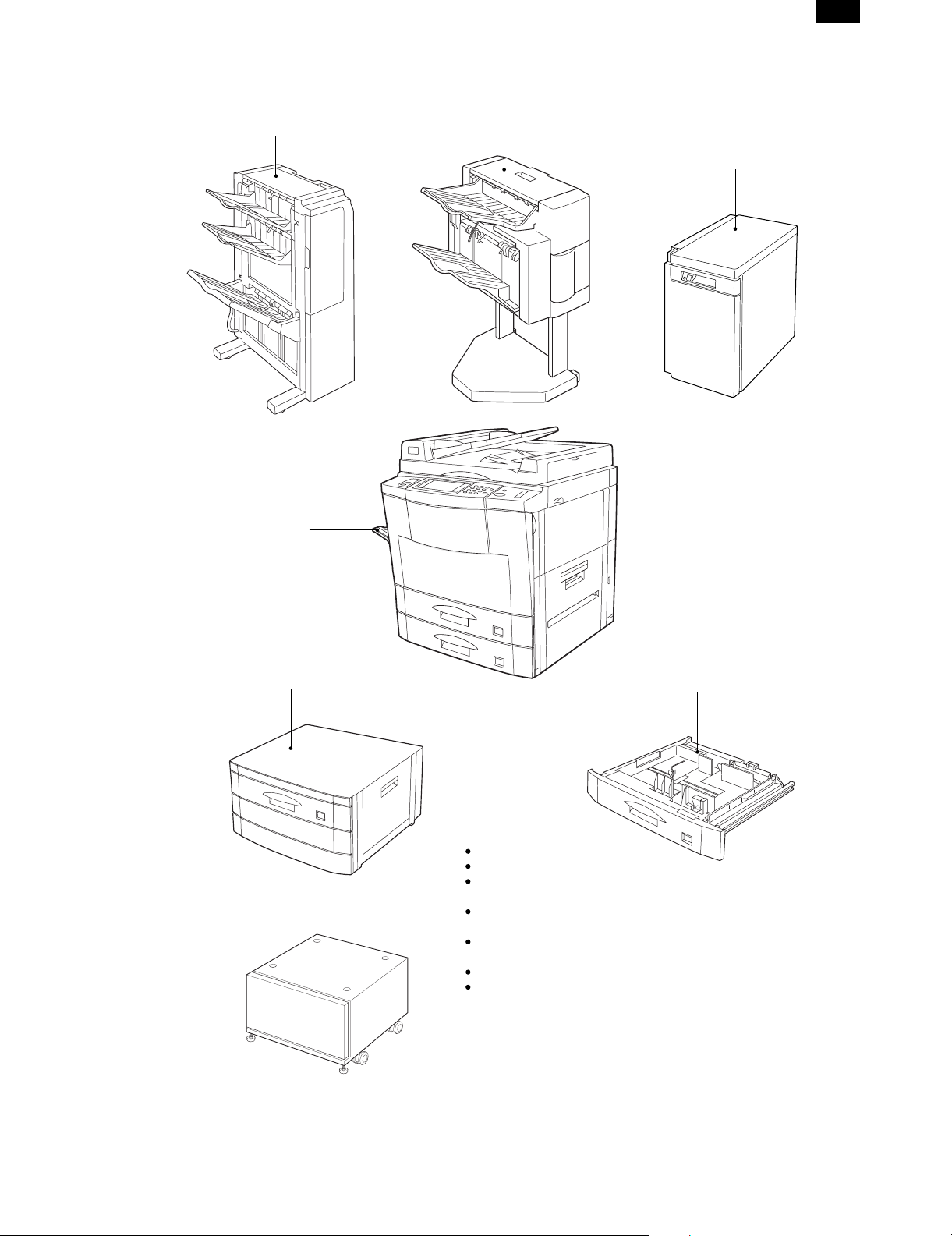

2. System outline (Options) (AR-405)
The options which are available for this copier are shown below.
Large capacity tray (AR-LC1)
Finisher(AR-FN1N)
Stand/500-sheetpaperdrawer(AR-DE1N)
PrinterboardAR-PB2
NICcard
JX96NC08
(10baseT/2)Europe
AR-NCID
(10baseT/2)
AR-NC3D
(10baseT/100baseTx)
AR-NC4D
AXISfixingangle
(AXISscanner)
Desk(AR-DD1N)
500-sheetpaperdrawer(AR-CS1)
Exit tray
(AR-TR1)
Finisher(AR-FN2)
AR-405
1 – 3 – A 1/21/1999

15. Other specifications
Photoconductor kind OPC drum
Photoconductor dia. 65 φ
Process cleaning Blade
Exposure lamp No-electrode xenon lamp
Developing system Dry, 2-component magnetic brush
development
Charging system DC negative scorotron (saw tooth
electrode)
Transfer system DC positive control
Separation system AC corotron/DC bias separation pawl
Fusing system Heat roller
Fusing cleaning None
16. Outlook
AR-280 AR-285 AR-335
W ×D ×H (mm) 600 ×695 ×
698 600 ×695 × 718 600 ×695 × 718
Machine occupying
dimensions 1292 ×695 1292 ×695 1292 ×695
Weight About 89 kg About 101 kg About 101 kg
17. Power Supply
Voltage 100 V, 110 V, 120 V, 220-230 V, 240 V
Frequency 50/60 Hz Common
18. Power consumption
AR-280 AR-285 AR-335
Max. power consumption About
1450 W About 1450 W About 1450 W
Average power consumption
during operation 1150 W 1150 W 1150 W
Power consumption in standby 200 W 200 W 200 W
Energy consumption efficiency 144 wh/h 144 wh/h 144 wh/h
19. Environmental measures
A. EnergyStar
Low power mode
(Pre-heat mode) AR-280 Less than 112.8 W
AR-285 Less than 112.8 W
AR-335 Less than 132.05 W
Recovery time Less than 30 Sec
Sleep mode
(Power save mode) Power consumption Less than 15 W
Shift time Max. 240 min
(Default 60 min)
B. Energy 2000
Standby mode
(Ready state) AR-280 Less than 117.44 W
AR-285 Less than 117.44 W
AR-335 Less than 133.59 W
OFF mode (Power OFF) Less than 1 W
20. Combination of functions
Inde-
pend-
ent
zoom-
ing
AMS Water
mark Stamp Page print
Date
print
Black-
white
rever-
sion
Cen-
tering
Edge
erase
Bind-
ing
mar-
gin
A2
copy
(Docu-
ment
table
only)
1-set
2-
copy
(Docu-
ment
table
only)
Mid-
dle
bind-
ing
Re-
peat
Multi
shot
(DF
only)
OHP
insert
paper
Cover
inser-
tion
(DF
only)
Hi-Fi
copy
Du-
plex
copy
direc-
tion
switch
Offset Group Sort Staple
sort
S →S FFFFFFFFFFFFbFFFFF ×FFFF
S (Even number) →D FFF FFFFFFF ×FbFF ×F×FFFFF
S (Odd number) →D (DF only) FFFF FFFFFF ××bFF ×F×F FFFF
S →D (Auto) FFF FFFFFFF ×FbFF ×F×FFFFF
D →D (DF only) FFF FFFFFFF ××bFF ×F××FFFF
D →S (DF only) FFFF FFFFFF ××bFFFFF ×FFFF
Staple sort FFFF FFFFFF ×F×FF ×F×FF××
Sort FFF FFFFFFF ×FFFFvFvFF×
Group FFFFFFFFFFFFFFFvFFF F
Offset FFFFFFFFFFFFFFFFFFF
Duplex copy direction switch FFF FFFFFFF ××F×××F×
Hi-Fi copy (*)FF ××××××FF ×F×××FF
Cover insertion (DF only) FFF FFF ×FFF ××××××
OHP insert paper FFF FFF ×FFF ×F×××
Multi shot (DF only) ××FFFF×FFF ××××
Repeat F×FF FFFFFF ×××
Middle binding ×FFFFF×FFF ××
1-set 2-copy (Document table only) FFFF FF ×FFF ×
A2 copy (Document table only) F×××××××××
Binding margin FFFFFFFFF
Edge erase FFFFFFFF
Centering FFFFFFF
Black-white reversion FF ×FFF
Date print FFFFF
Page print FFFF
Stamp FF ×
Water mark FF
AMS F
bFollows the setting on the middle binding display.
vOnly one set of copies available.
*Combination with SPF mode is inhibited.
AR-335
2 – 5 1/21/1999

[2] SPECIFICATIONS
1. Machine Type
Product
Name CPM Type Document
Feeder Paper Exit Memory
RAM HD
AR-405 40 Duplex Desk Top RADF 1 Tray 16 MB 2 GB
*Memory capacity is of the main body only, excluding optional ex-
pansion memory.
2. Copy Speed
A. Basic Speed
AR-405
1 Scan 1 Copy 34 cpm
1 Scan Multi-copy 40 cpm
*Speeds from all the paper feed ports including the normal copy
and the manual feed copy.
B. Normal copy (100%)
AR-405
A4/8.5 ×11 40
A3/11 ×17 19
B4/8.5 ×14/8.5 ×13 24
B5/A5/8.5 ×5.5 40
A4R/B5R/8.5 ×11 27
C. Enlargement copy (400%)
AR-405
A4/8.5 ×11 40
A3/11 ×17 19
B4/8.5 ×14/8.5 ×13 24
B5/A5/8.5 ×5.5 40
A4R/B5R/8.5 ×11 27
D. Reduction copy (25%)
AR-405
A4/8.5 ×11 40
A3/11 ×17 17
B4/8.5 ×14/8.5 ×13 24
B5/A5/8.5 ×5.5 40
A4R/B5R/8.5 ×11 27
E. First Copy Time
(1) Basic Speed
Model AR-405
Speed 4.2 seconds
When the paper is fed from the Upper tray on the base unit.
Machines are measured when paper is fed from the upper tray of
2-tray exit unit.
(2) Detail
AR-405
Upper cassette 4.5 seconds
Lower cassette 5.0 seconds
Multi-Bypass Tray 4.6 seconds
Stand/Upper paper drawer 5.9 seconds
Stand/Medium paper drawer 6.2 seconds
LCC 5.2 seconds
Refer to each specification for the first copy time when paper is fed
from the document feeder or the optional paper feed tray.
(3) First copy time from the document feeder
Model AR-405
When the SPF is used —
When the RADF is used 7.6 seconds
When the paper is fed from the Upper tray on the base unit.
3. OC/DF
A. Document Table
Max. document size A3/11 ×17
Document reference position Center left
Document detection Yes
Detection size
Inch Series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R, 8.5 ×5.5
AB Series A3, B4, A4, A4R, A5
Australia A3, 216 ×330, A4, A4R, A5 (Note 1)
B5 areas A3, B4, A4, A4R, B5, B5R
OR guide
display
Inch Series 11, 8.5, 5.5
AB Series A3/A4, B4/B5, A4R/A5, B5R,
11, 8.5 (Note 2)
(Note 1) For also the other areas than Australia, "B4/8.5 ×11" can
be changed to "8.5 ×13" by the simulation.
(Note 2) The display of 8.5" for AB series is of the line display only.
There is no size display.
B. RADF (AR-405)
(1) Document set
Set direction Face up
Setposition Centerreference
Setquantity
A4/8.5 ×11 50 sheets 35 ∼80g/m2:
Thickness Less than 6.5 mm
Greater than
the above 30 sheets 80 ∼128g/m2:
Thickness Less than 5 mm
(50 sheets of 80g/m2)
(2) Document transport system
Document transport system Belt system
Document feed sequence Lower take-up paper feed
(Face up paper feed)
(3) Document size
Document size AB Series A3 ∼A5
Inch Series 11 ×17 ∼8.5 ×5.5
Weight 35 ∼128g/m2(10 ∼34 lbs.)
AR-405
1/21/1999 2 – 6

(4) Document stop system
Document stop system Stopper system
(Position control for single copy )
(Duplex copy)
(5) Document detection on the tray
Document detection
on the tray Yes
Detection size
Inch Series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R, 8.5 ×5.5, 8.5 ×13
AB Series A3, B4, A4, A4R, A5, 8.5 ×13
B5 area A3, B4, A4, A4R, B5, B5R, A5
Australia A3, B4, A4, A4R, A5,
216 ×330
Document guide
display
Inch Series 11, 8.5, 5.5
AB Seires A3/A4, B4/B5, A4R/A5, B5R,
8.5 (Note)
(Note) AB series 8.5" display is of line display only. Size display is
not made.
When setting Sim, "8.5 ×14" and "8.5 ×13" are separately detected.
(7) Document mix feed
Document
mix feed Mix paper feed Possible (Same width size)
Random paper feed Possible
No linkage with AMS is made.
(8) Document reversion
Document reversion Yes
(9) Display
Display section LED display Document feed display section
Document remaining display
(10) Stream mode
Stream mode The stream mode can be selected by the key
operation program.
4. Paper feed
A. Outline of paper feed
Copy size
(Max. ∼Min.) AB Series A3 ∼A6R
Inch Series 11 ×17 ∼8.5 ×5.5
Paper feed system 2 Tray + Manual Feed Tray
Paper feed capacity 500 ×2 + 50 (80g/m2)
Remaining
detection
Paper feed
tray section Level detection available
(0, ∼25%, ∼50%, ∼85%, ∼100%)
Manual
Feed Tray Empty detection only available
B. Details of paper feed section
(1) Paper feed tray
Paper feed
size
AB Series A3/B4/A4/A4R/B5/B5R/A5
Inch Series 11 ×17/8.5 ×14/8.5 ×13/
8.5 ×11/8.5 ×11R/5.5 ×8.5
Paper weight 56 ∼105g/m2(14 ∼28 lbs.)
Paper size selection User operation (slide switch
system)
Slide switch
AB Series A5/A4/A4R/B4/A3/B5/8.5 ×11/
EXTRA
Inch Series 11 ×17/8.5 ×14/8.5 ×13/8.5 ×11/
8.5 ×11R/5.5 ×8.5/A4/EXTRA
Cassette
attachment/detachment Only the lower cassette possible
When the slide switch is set to "Special", the operation is made on the
set size of the key operator program.
(Sizes of 13" in AB series and B5 are set with the key operator
program.)
AR-405
2 – 7 1/21/1999

(2) Manual Feed Tray
Manual feed tray type Folding, complete attachment
Paper size
AB Series A3 ∼A6R
Inch Series 11 ×17 ∼8.5 ×5.5
Paper
Weight 56 ∼128g/m2(14 ∼34 lbs.), 176g/m2(index paper), 200g/m2
(cover paper) (For greater than
105g/m2, 28lbs, the size is A4 or
smaller. For greater than 128g/m2
(34 lbs) portrait feed only.
Paper kind
Multi feed Standard paper, special paper
Single feed Standard paper, special paper, No.
2 original paper
Special
paper
OHP, label paper, reproduction
paper, index paper, cover paper
For multi and back surface copy,
only the single paper feed is
allowed.
Detection
size
AB Series A3/B4/A4/A4R/B5/B5R/A5/A6R/
11 ×17/8.5 ×14/8.5 ×11/
7.25 ×10.5
Inch Series 11 ×17/8.5 ×14/8.5 ×11/
8.5 ×11R/5.5 ×8.5/7.25 ×10.5/
A3/B4/A4/B5/A6R
Manual feed
tray guide
display
AB Series A3/A4, B4/B5, A4R/A5, B5R, 11,
8.5 (NOTE 2)
Inch Series 11 ×8.5, 5.5
(Note 1) Selection between 8.5 ×14 and 8.5 ×13 is possible with
the simulation.
(Note 2) For 11" ×8.5" of AB series, only the line is displayed and
the size is not displayed.
(3) Dehumidifying heater
Yes/No No
5. Multi Copy
Multi max. quantity 999
6. Warm up
Warm up time Less than 75 Sec
Pre-heat yes/no Yes
Jam recovery time About 10sec (Leaving the machine for 60
sec after opening the door, standard
condition, polygon stop.)
7. Copy magnification ratio
Fixed
magnification
ratio
AB Series 25, 50, 70, 81, 86, 100, 115,
122, 141, 200, 400%
5R + 6E
Inch Series 25, 50, 64, 77, 95, 100, 121,
129, 141, 200, 400%
5R + 6E
Zoom width 25 ∼400%
Independent magnification width 25 ∼400% for
horizontal/vertical
8. Exposure
Exposure
mode 2 gradations photo Auto, character, character/photo, photo
Manual steps 9 steps
Resolution Read 400 dpi
Write 600 dpi
Gradation Read 256 gradations
Write 2 gradations
Toner save mode Set with the key operator program.
(In U.K., it is treated by a serviceman.)
9. Print Aria
A. Max. print area
Max. area AB Series 416 ×293 mm
Inch Series 428 ×275 mm
B. Loss width
Void area Lead edge 3 mm or less, rear edge 4 mm or less,
FR total 5 mm or less
Image Loss Less than 5 mm
10. Paper Exit
A. Paper exit form
AR-405
Paper exit form 1-tray paper exit
B. Paper exit section
Paper exit tray capacity Upper Tray 250 sheets
Paper exit surface
(Face up/Face down) Upper Tray Face up
Paper exit timing Upper Tray Copy
C. Paper size
Size Paper Weight
Upper
Tray AB Series A3 ∼A6R 50 ∼128g/m2, 176g/m2, 200g/m2
Inch Series 11 ×17 ∼8.5 ×5.5
Lower
Tray AB Series A3 ∼A5 50 ∼105g/m2
Inch Series 11 ×17 ∼8.5 ×5.5
Duplex pass section : 50 ∼105g/m2
For greater than 105g/m2, the paper size is A4/8.5 ×11 or smaller.
11. Duplex Module
A. Auto Duplex Unit
AR-405
Auto Duplex Unit Standard
AR-405
1/21/1999 2 – 8

B. Paper Size
Paper size AB Series A3, B4, A4, A4R, B5, B5R, A5
Inch Series 11 ×17, 8.5 ×14, 8.5 ×13, 8.5 ×11,
8.5 ×11R, 7.25 ×10.5
Paper Weight 56 ∼105g/m2(Same as the paper
feed section of the main body)
C. Capacity
Capacity 1 Sheet (Single Pass Method)
12. Shipping form
A. Packing form
Body Body/accessories
B. Paper Size
First Tray AB Series A3
Inch Series 11 ×17
Second Tray AB Series A3
Inch Series 11 ×17
13. Additional functions
A. Main body functions
APS |
AMS |AMS by flow scan with DF is not
allowed.
Auto tray switching |
1 scan multi copy |
Rotation copy |
Electronic sort |
Pre-heat |Conditions are set with the key
operation.
Auto shut off |Conditions are set with the key
operation.
Message display |
Key operator program |
Communication (RIC) |
Process control |
Coin vendor |Only the connector is provided on the
PWB.
B. Copy function
Job call/registration |9
Dept. control |Max. 50 dept. (Only the copy function
is controlled.)
Binding margin |Shift width AB series: 9mm, Inch
series: 1/4" with adjustment
(Binding direction selectable)
Edge erase |AB series: 6mm, Inch series: 1/4" with
adjustment
Center erase |
1-set, 2-copy |
Independent zooming |25 ∼400% for vertical/horizontal
White/black reversion |All surface only (only in the manual
mode)
Cover paper |Cover/back cover/cover and back cover
OHP insert paper |Insert paper copy Yes/No selectable
Hatching ✕
Mirror image ✕
Centering |
Multi shot (Nin1) |Paper feed size is up to A4.
Repeat copy |
Date print |Time setting by the key operation.
Stamp registration ✕
Distribution list
composition ✕
Composed data
edition ✕
Stamp function |
Middle binding |
Page print |
14. Options
(Model Name) AR-405
Document Feeder RADF Standard
Paper Feed
1 Tray Desk (AR-DE1N) Option
Large Capacity Tray (AR-LC1) Option
Tray Module (AR-CS1) Option
Desk (AR-DD1) Option
Duplex Module Auto Duplex Module (AR-DU1) Standard
Finishing Dual Tray Output Unit (AR-TR1) Option
Finisher (AR-FN1N) Option
Finisher (AR-FN2) Option
AR-405
2 – 9 1/21/1999

15. Other specifications
Photoconductor kind OPC drum
Photoconductor dia. 65 φ
Process cleaning Blade
Exposure lamp No-electrode xenon lamp
Developing system Dry, 2-component magnetic brush
development
Charging system DC negative scorotron (saw tooth
electrode)
Transfer system DC positive corotron
Separation system AC corotron/DC bias separation pawl
Fusing system Heat roller
Fusing cleaning None
16. Outlook
AR-405
W ×D ×H (mm) 600 ×700 ×718
Machine occupying dimensions 1292 ×700
Weight About 98 kg
17. Power Supply
Voltage 100 V, 110 V, 120 V, 220-230 V, 240 V
Frequency 50/60 Hz Common
18. Power consumption
AR-405
Max. power consumption About 1440 W
19. Environmental measures
A. EnergyStar
Low power mode
(Pre-heat mode) AR-405 Less than 159 W
Recovery time Less than 30 Sec
Sleep mode
(Power save mode) Power consumption Less than 15 W
Shift time Max. 240 min
(Default 60 min)
20. Combination of functions
Inde-
pend-
ent
zoom-
ing
AMS Water
mark Stamp Page print
Date
print
Black-
white
rever-
sion
Cen-
tering
Edge
erase
Bind-
ing
mar-
gin
1-set
2-
copy
(Docu-
ment
table
only)
Mid-
dle
bind-
ing
Re-
peat
Multi
shot
(DF
only)
OHP
insert
paper
Cover
inser-
tion
(DF
only)
Du-
plex
copy
direc-
tion
switch
Offset Group Sort Staple
sort
S →S FFFFFFFFFFFbFFFF×FFFF
S →D (Auto) FFFFFFFFFFFbFF×FFFFFF
D →D (DF only) FFFFFFFFFF×bFF ×F×FFFF
D →S (DF only) FFFFFFFFFF×bFFFF×FFFF
Staple sort FFFFFFFFFFF×FF×FFF ××
Sort FFFFFFFFFFFFFFvFFF ×
Group FFFFFFFFFFFFFFvFFF
Offset FFFFFFFFFFFFFFFFF
Duplex copy direction switch FFFFFFFFFF ×F×××F
Cover insertion (DF only) FFFFFF ×FFF ×××××
OHP insert paper FFFFFF ×FFFF×××
Multi shot (DF only) ××FFFF ×FFF ×××
Repeat F×FFFFFFFF××
Middle binding ×FFFFF ×FFF ×
1-set 2-copy (Document table only) FFFFFF ×FFF
Binding margin FFFFFFFFF
Edge erase FFFFFFFF
Centering FFFFFFF
Black-white reversion FF ×FFF
Date print FFFFF
Page print FF FF
Stamp FF ×
Water mark FF
AMS F
bFollows the setting on the middle binding display.
vOnly one set of copies available.
AR-405
1/21/1999 2 – 10

[3] OPTIONS
A. Large capacity paper feed tray AR-LC1
(1) Paper feed capacity
Paper feed capacity 3,000 sheets (80g/m2equivalent)
(2) Paper feed detection
Remaining paper
quantity detection Available (5-step sensor with empty detection)
Detection width 0% (empty) ∼25%, ∼50%, ∼75%, ∼
100%
(3) Paper size
Paper size AB series A4/B5
Inch series Letter
Paper weight 56 ∼105g/m2, 14 ∼28lbs (same as
the copier paper feed section)
(4) Size selection
Selection Made by serviceman
(5) Size detection
Size detection Set by the simulation.
(6) Dehumidifying heater
Yes/No No
(7) Shipping form
Shipping
size AB series A4
Inch series Letter
(8) Power source
Power source Supplied from the copier
(DC 5V/DC 24V)
(9) Power consumption
Max. power consumption About 17.6W
Stand-by About 1.2W
(10) External view
External dimensions 325 (W) ×536 (D) ×572 (H)mm
Weight About 32kg
Box color Frosty gray
B. Paper feed desk AR-DE1, AR-DE1N
Number of paper feed
steps One step (Two steps when extended.)
Standard/option One step can be optionally added.
(The cassette module can be added.)
Option model AR-CS1
Cassette removal Possible only in the lower stage
Refer to the cassette module.
(1) Paper feed capacity
Standard 500 sheets ×1 stage
Cassette module installed 500 sheets ×2 stages
The capacity is based on 80g/m2.
If the paper weight is 75g/m2, 550 sheets can be loaded.
Remaining
quantity
detection
Remaining paper
quantity detection Available (5-step sensor with empty detection)
Detection width 0% (empty), ∼25%, ∼
50%, ∼85%, ∼100%
Paper feed
size AB series A3, B4, A4, A4R, B5, B5R
Inch series 11 ×17, 8.5 ×14, 8.5 ×11,
8.5 ×11R
Paper weight 56 ∼105g/m2, 14 ∼28 lbs. (Same as the copier
paper feed section.)
A5 (5.5 ×8.5) size cannot be fed.
(2) Shipping form
Shipping size AB series A3
Inch series 11 ×17
Plate display AB series A3
Inch series 11 ×17 (USA: blank)
Size selection Made by user.
AB series A3, B4, A4, A4R
Inch series 11 ×17, 11 ×14, 8.5 ×11, 8.5 ×
11R
When the slide switch is set to EXTRA, the machine operates with
the size set by the key operation.
(Sizes of 13" and B5/B5R in the AB series are set by the key
operation.)
(3) Dehumidifying heater
Yes/No No
(4) Shipping form
Shipping size 11 ×17
A3
(5) Power source
Power source Supplied from the copier.
(DC 5V/DC 24V)
(6) Power consumption
Max. power consumption About 24W
Stand-by About 4.5W
(7) External view
External dimensions 600 (W) ×604 (D) ×403 (H) mm
Weight About 25kg (excluding paper
weight)
Box color Frosty gray
C. Cassette module AR-CS1
(1) Paper feed capacity
Paper feed capacity 500 sheets
The capacity is based on 80g/m2.
If the paper weight is 75g/m2, 550 sheets can be loaded.
(2) Remaining quantity detection
Remaining paper
quantity detection Available (5-step sensor with empty detection)
0% (empty), ∼25%, ∼50%, ∼85%, ∼
100%
(3) Paper size
Paper feed
size AB series A3, B4, A4, A4R, B5, B5R
Inch series 11 ×17, 8.5 ×14, 8.5 ×13, 8.5 ×11,
8.5 ×11R
Paper
weight 56 ∼105g/m2(Same as the copier paper feed section.)
A5 (5.5 ×8.5) size cannot be fed.
(4) Size selection
Size
selection Made by the user (Slide switch system)
Paper size AB series A3, B4, A4, A4R, B5, 8.5 ×11
Inch series 11 ×17, 8.5 ×14, 8.5 ×13, 8.5 ×11,
8.5 ×11R, A4
Cassette
removal Possible by the user
When the slide switch is set to EXTRA, the machine operates with
the size set by the key operation.
(Sizes of 13" and B5R in the AB series are set by the key opera-
tion.)
AR-405
3 – 1 1/21/1999

(5) Shipping form
Shipping
size AB series A3
Inch series 11 ×17
(6) Power source
Power source Supplied from the copier (DC 24V)
(7) Power consumption
Max. power consumption About 3.5W
Stand-by About 0.2W
(8) External view
Weight About 2.6kg (Only cassette)
Box color Frosty gray
D. Exclusive-use desk AR-DD1
(1) Storing space
Storing space Stored upside or downside by the
internal baffling plate.
(2) Open/close door
Open/close door Yes
(3) Fixing method
Fixing adjuster 3 positions (2 in the front, 1 at the
rear left)
Fixing method with the
copier Fixed with screws. (At right and the left, and two in the front)
(4) Anti-pressurecapability
Anti-pressurecapability About 120kg
Bearable with the full installation of
the copier, the RADF, the duplex
module, and the PWB’s.
(5) External view
External dimensions 596 (W) ×576 (D) ×402.7 (H) mm
Weight About 21kg
Box color Frosty gray
E. Duplex module AR-DU1
*For the AR-285/335, this module is a standard provision.
(1) Installation
Installation Made by the serviceman
Installing position At the upper side of the copier’s
upper stage paper feed port.
(2) Necessary option
Additional memory +8MB (16MB in total) required
*If no memory is added, the paper size is limited.
(3) Paper
Size AB series A3, B4, A4, A4R, B5, B5R, A5
Inch series 11 ×17, 8.5 ×14, 8.5 × 13, 8.5 × 11,
8.5 ×11R, 7.25 × 10.5
Paper weight 56 ∼105g/m2(Same as the copier
paper feed section)
(4) Capacity
Capacity 1 sheet (single pass system)
(5) Power source
Power source Supplied from the copier (DC 24V/DC 5V)
(6) Power consumption
Max. power consumption About 25W
Stand-by About 0.2W
(7) External view
External dimensions 515 (W) ×400 (D) ×120 (H) mm
(When installed, it is stored in the
copier body.)
Weight About 5kg
F. Finisher AR-FN1
(1) Type
Copier-fitted type (detachable)
(2) Tray
1Number of
trays 3
2Type Top (tray 1) Normal tray
Middle (tray 2) Normal tray
Bottom (tray 3) Lift tray
3Number of
sheets
loadable
Normal tray 500 (80 g/m2)
Lift tray 1500 (A4/11" ×8.5") 750
(A3/11" ×17") (80 g/m2)
(3) Paper transfer
Center reference
(4) Storage
Face-up/face-down
(5) Discharge size
Face-up Top A3 ∼A6R/11 ×17 ∼8.5 ×5.5,
special paper
Middle A3 ∼A5/11 ×17 ∼8.5 ×5.5
Bottom A3 ∼B5R/11 ×17 ∼8.5 ×11R
Face-down Top A3 ∼B5/11 ×17 ∼8.5 ×11R
Middle A3 ∼B5/11 ×17 ∼8.5 ×11R
Bottom A3 ∼B5R/ 11 ×17 ∼8.5 ×11R
(6) Paper weight
Face-up Top 52 ∼128 g/m2∗1
Middle 56 ∼105 g/m2
Bottom 52 ∼128 g/m2∗1
Face-down 56 ∼105 g/m2, exceeded.
∗1: Paper of 200g/m2∼176m2, can be used.
For paper weight exceeding 105g/m2in the face up mode, only
the paper size of A4/8.5" ×11" or smaller can be used.
(7) Paper full detection
Top Provided
Middle Provided
Bottom Provided
(8) Lift tray
Off-set 30 mm
AR-405
1/21/1999 3 – 2

(9) Staple unit
Paper discharge tray Lift tray
Storage Face-up
Number of sheets
that can be stapled 50 sheets (80 g/m2) 25 sheets when the size is over A4/LT.
Paper size AB series A3, B4, A4, A4R, B5
Inch series 11" ×17"/8.5" ×14"/
8.5" ×13"/8.5" ×11"/
8.5" ×11"R
Stapling reference 1 point (front)/ 1 point (far end)/ 2 points
Needle feed system Cartridge (5000 needles)
Detection No needle/no cartridge/stapler rotation
Service life more than 100 K
Manual mode None
(10) Power supply
Supplied from copier (DC 24V, DC 5V)
(11) Power consumption
MAX 60W
(12) Dimensions
590 (W) ×560 (D) ×998 (H)
(13) Weight
About 50 kg
G. Finisher AR-FN2
(1) Type
Installation to copier body (Separate installation allowed)
(2) Tray section specifications
Upper tray Lower tray
Tray type Normal tray Lift tray
Capacity 250 sheets (A4/Letter,
80g/m2)750 sheets (A4/Letter, 80g/m2)
Storing system Face up Face up/Face
down
Paper exit size A3 ∼A6R
11" ×17" ∼
5 1/2" ×8 1/2", 12" ×18"
A4, B5
8 1/2" ×11"
Paper weight 52 ∼128g/m2, 176g/m2,
200g/m2(For 105g/m2
or above, A4/Letter size
or smaller)
56 ∼128g/m2
Paper full detection None Yes
(3) Lift tray section
Offset amount 15mm, A4 35mm: B5 24mm: 8.5 ×11
(4) Staple section
Storing system Face up
Stapling system Flat clinch
Stapling capacity 30 sheets (80g/m2)
Applicable size AB series: A4, B5
Inch series: 8 1/2 ×11
Alignment Max. shift width: 1mm
Stapling reference One position (front)
Staple supply system Cartridge system (5000 pcs.)
Staple Common with AR-SS1, SF-S54
Detection Detection of no staple/no cartridge/no
stapler
(5) External dimensions
457mm (W) ×518mm (D) ×820mm (H)
552mm (W) ×518mm (D) ×866mm (H)(with the upper tray
extended)
(6) Weight
22Kg
(7) Power
Supplied from the copier body.
H. 3-tray finisher AR-FN1N
(1) Type
Type Installed to the copier body. (Detachable)
Tray type Top stage Normal tray
Middle stage Normal tray
Bottom stage Lift-up tray
(2) Tray capacity
Capacity Top stage 500 sheets
Middle stage 500 sheets
Bottom stage 1,500 sheets
A4/Letter size, 80g/m2
(3) Paper transport/paper exit
Paper transport Center reference
Paper exit system Face up/Face down
Paper exit direction Discharged from the left side of the
document.
(4) Paper size
Paper
exit size Top stage Face up A3 ∼A6R, 11 ×17 ∼5.5 ×8.5, Special paper
Face down A3 ∼B5, 11 ×17 ∼8.5 ×11R
Middle
stage Face up A3 ∼A5, 11 ×17 ∼5.5 ×8.5
Face down A3 ∼B5, 11 ×17 ∼8.5 ×11R
Bottom
stage Face up A3 ∼B5R, 11 ×17 ∼8.5 ×11R
Face down A3 ∼B5R, 11 ×17 ∼8.5 ×11R
Paper
weight Top stage Face up 56 ∼128g/m2, 176g/m2, 200g/m2
Face down 56 ∼105g/m2
Middle
stage Face up 56 ∼105g/m2
Face down 56 ∼105g/m2
Bottom
stage Face up 56 ∼128g/m2, 176g/m2, 200g/m2
Face down 56 ∼105g/m2
For paper weight of greater than 105g/m2, A4/8.5 ×11 or less.
(5) Paper full detection
Paper full
detection Top stage Full detection available
Middle
stage Full detection available
Bottom
stage 5-step sensor with full detection (0% ∼, 25% ∼, 50% ∼, 75% ∼,
100% (full))
AR-405
3 – 3 1/21/1999

(6) Offset
Tray available Bottom tray
Offset amount 25mm
(7) Power source
Power source Supplied from the copier (DC 24V/DC 25)
(8) Power consumption
Max. power consumption About 60W
(9) External view
Dimensions 590 (W) ×560 (D) ×998 (H)
Box color Frosty gray
Weight About 45kg
(10) Staple functions
Stable available Bottom stage tray only
Paper exit
system Face up only
Stapling
capacity 50 sheets (60g/m2) (25 sheets for sizes greater than A4/8.5 ×11)
Sizes available
for stapling AB series A3, B4, A4, A4R, B5, B5R
Inch series 11 ×17, 8.5 ×14, 8.5 ×13, 8.5 ×
11, 8.5 ×11R
Alignment
(when stapling) Max. shift: within 1mm
Stapling
reference One position (Left rear), One position (Left front), 2 positions (left side)
Stapler supply Cartridge (5,000 pcs.)
Stapler SF-SC11 (The staple cartridge case is supplied
as a service part.)
Detection Staple empty detection, no cartridge detection
Manual staple
mode Not available
I. Dual tray output unit AR-TR1
(1) Capacity
No. of bins 2 trays
Capacity Upper stage 250 sheets
Lower stage 100 sheets
(2) Paper transport/paper exit
Paper transport Center reference
Storing system Face up
(3) Paper exit tray
Tray Mode Paper
Upper stage Copy, printer A3 ~ A6R
(11" ×17" ~ 8.5 ×5.5")
Lower stage Printer, interruption
copy A3 ~ A5 (11" ×17" ~ 8.5 ×5.5")
(4) Power
Supplied by the copier (DC 24V)
(5) Weight
3.3 kg
J. AR-PB2
(1) General Specification
PS Specification
Platform IBM PC/AT (or compatible)
Support OS
(Printer Drivers) Custom and PPD Windows 3.1/WfW3.11 (No PPD) Windows 95/98
Windows NT 4.0
PDL
Emulation PCL5e-compatible PostScript Level 2-Compatible
Hex Dump
CPU R4700 (64bit RISC / 150MHz)
Memory Standard 16MB
Maximum 80MB (32MB SIMM x 2 + 16MB)
Slot 2 Slots (16MB / 32MB SIMM can
be attached)
Resident Fonts For PS Type1: 35 fonts (Latin fonts)
For PCL Intellifont : 35 fonts
TrueType : 10 fonts
Line Printer
Stroke Font
Interface IEEE1284 parallel port: 1 port
Port supports Compatible mode
(with PnP on Windows95/98).
Extend Interface 1 Network slot on printer board.
NIC can be attached here.
NIC Support DPI1.10Base-T/2 (AR-NC1D)
Port Selection Automatic Switch or
Fix to each port
Emulation Switching Automatic Switch or
Fix to each emulation
PnP Support Support on Windows95/98
AR-405
1/21/1999 3 – 4

[4] CONSUMABLE PARTS
1. Consumable Parts List
A. USA
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1 Drum OPC Drum ×1 180K AR-400DR
2 Developer (Black) Developer (800g) ×10 90K (×10) AR-400MD AR-400MD = (AR-400ND) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400MT AR-400MT = (AR-400NT) ×10
4 Upper Heat Roller Kit Upper Heat Roller Fusing Separation Pawl (upper)
Heat Roller Gear
×1
×4
×1180K AR-330UH
Replacement of fusing separation
pawl for every 80 K should be
done using those supplied
separately.
5 Lower Heat Roller Kit Lower Heat Roller
Fusing Separation Pawl (lower) ×1 ×2180K AR-330LH
Replacement of fusing separation
pawl for every 80 K should be
done using those supplied
separately.
6 90K Maintenance Kit Cleaner Blade Charging Plate Unit
Drum Separation Unit
×1
×1
×190K AR-400KA
7 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
8 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3SF-SC11 Cartridge for AR-FN1
Common with S55,S55 N
9 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-405
4 – 7 1/21/1999

B. Canada
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1 Drum OPC Drum ×1 180K AR-400DR
2 Developer (Black) Developer (800g) ×10 80K (×10) AR-400MD AR-400MD = (AR-400ND) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400MT AR-400MT = (AR-400NT) ×10
4 90K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
90K AR-400KA
5 180K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
180K AR-400KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3 SF-SC11 Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 180K AR-400HU
10 Fusing Separation
Pawl (upper) Fusing Separation Pawl (upper) ×4×10 90K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 180K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 180K AR-330HR
13 Fusing Separation
Pawl (lower) Fusing Separation Pawl (lower) ×2×10 90K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 90K (×10) SF-240DP SF240DP=SF-240EP(incl.2
pawls) ×10
15 Screen Grid Screen Grid ×10 90K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 90K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 180K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 90K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-405
1/21/1999 4 – 8

C. Europe / U.K. / Australia / New Zealand
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1 Drum OPC Drum ×1 180K AR-400DM
2 Developer (Black) Developer (800g) ×10 90K (×10) AR-400LD AR-400LD = (AR-400DV) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400LT AR-400LT = (AR-400T) ×10
4 90K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
90K AR-400KA
5 180K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
180K AR-400KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3 SF-SC11 Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 180K AR-400HU
10 Fusing Separation
Pawl (upper) Fusing Separation Pawl (upper) ×4×10 90K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 180K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 180K AR-330HR
13 Fusing Separation
Pawl (upper) Fusing Separation Pawl (lower) ×2×10 90K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 90K (×10) SF-240DP SF240DP=SF-240EP(incl.2
pawls) ×10
15 Screen Grid Screen Grid ×10 90K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 90K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 180K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 90K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-405
4 – 9 1/21/1999

D. Asia / Middle & South America
No. ITEM CONTENTS LIFE MODEL
NAME REMARKS
1 Drum OPC Drum ×1 180K AR-400DM
2 Developer (Black) Developer (800g) ×10 90K (×10) AR-400CD AR-400CD = (AR-400SD) ×10
3 Toner (Black) Toner Cartridge (700g) ×10 22K (×1) AR-400CT AR-400CT = (AR-400ST) ×10
4 90K PM Kit
Cleaner Blade
Charging Plate Unit
Waste Toner Bottle
Fusing Separation Pawl (upper)
Fusing Separation Pawl (lower)
Screen Grid
Drum Separation Unit
×1
×1
×3
×4
×2
×1
×1
90K AR-400KA
5 180K PM Kit
Upper Heat Roller
Lower Heat Roller
Toner Receiving Seal
DV Seal
Heat Roller Gear
×1
×1
×1
×1
×1
180K AR-400KB
6 Staple Cartridge Staple Cartridge (SF-SC11) ×3 5K staples ×3 SF-SC11 Cartridge for AR-FN1
Common with S55,S55 N
7 Staple Cartridge Staple Cartridge (SF-SC12) ×3 5K staples ×3 SF-LS12 Cartridge for AR-FN2 Common with S54
SF-LS12= (SF-SC12) ×3
8 Cleaner Blade Cleaner Blade ×10 90K (×10) AR-330CB AR-330CB= (AR-330BL) ×10
9 Upper Heat Roller Upper Heat Roller ×1 180K AR-400HU
10 Fusing Separation
Pawl (upper) Fusing Separation Pawl (upper) ×4×10 90K (×10) SF-216UP SF216UP=SF-216TP (incl.4 pawls) ×10
11 Heat Roller Gear Heat Roller Gear ×10 180K (×10) SF-216HG SF216HG= (SF216JG) ×10
12 Lower Heat Roller Lower Heat Roller ×1 180K AR-330HR
13 Fusing Separation
Pawl (lower) Fusing Separation Pawl (lower) ×2×10 90K (×10) SF-240LP SF240LP=SF-240MP (incl.2 pawls) ×10
14 Drum Separation Pawl Drum Separation Pawl ×2×10 90K (×10) SF-240DP SF240DP=SF-240EP(incl.2
pawls) ×10
15 Screen Grid Screen Grid ×10 90K (×10) AR-330SU AR-330SU= (AR-330TU) ×10
16 Charging Plate Charging Plate ×10 90K (×10) AR-330PU AR-330PU= (AR-330NU) ×10
17 Waste Toner Bottle Waste Toner Bottle ×1 AR-330TB
18 Busing Busing ×2×10 180K (×10) SF-240BU SF-240BU= (SF-240DU) ×10
19 Ozone Filter Ozone Filter ×10 90K (×10) AR-330FL AR-330FL= (AR-330JL) ×10
20 Copy Lamp Copy Lamp ×10 AR-330CL AR-330CL= (AR-330DL) ×10
21 MC Unit MC Unit ×10 AR-330MC AR-330MC= (AR-330NC) ×10
Note: Maintenance parts other than mentioned above must be ordered through the parts department using the proper part number.
AR-405
1/21/1999 4 – 10
