Sharp AR-C150 User manual

CODE: 00ZARC150/F1E
DIGITALFULL
COLOR COPIER
MODEL AR-C150
This document has been published to be used
for after sales service only.
The contents are subject to change without notice.
Parts marked with “ ”are important for maintaining the safety of the set.Be sure to replace these parts with specified
ones for maintaining the safety and performance of the set.
[ 3 ]CONSUMABLE PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
[ 4 ]SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
[ 7 ]SETTING AND ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . .7-1
CONTENTS
AR-C150

AR-C150 Supply List (Europe, Australia, New Zealand)
NAME CONTENT(S) LIFE
Note 1) Model DIMENSIONS
(W ×D ×H): mm
/WHIGHT: kg INCOMPATIBILITY REMARK
1 Color Toner (cyan) "Toner Cartridge (cyan) (267g),
InstructionSheet" ×10 4K Note 1) ×10 AR-C15LT6 329 ×590 ×218/5.62 B (AR-C15T6)×10 = AR-C15LT6
2 ColorToner(magenta) "TonerCartridge(magenta)(267g),
InstructionSheet" ×10 4K Note 1) ×10 AR-C15LT7 329 ×590 ×218/5.62 B (AR-C15T7)×10 = AR-C15LT7
3 Color Toner (yellow) "Toner Cartridge (yellow) (267g),
InstructionSheet" ×10 4K Note 1) ×10 AR-C15LT8 329 ×590 ×218/5.62 B (AR-C15T8)×10 = AR-C15LT8
4 Toner (black) "Toner Cartridge (black) (600g),
InstructionSheet" ×10 8K Note 1) ×10 AR-C15LT1 429 ×610 ×246/10.97 B (AR-C15T1)×10 = AR-C15LT1
5 Color Developer kit [Developer (cyan ×1, magenta ×1,
yellow ×1) (650g each) ×3 40K each ×3 AR-C15LD9 294 ×391 ×170/7.71 (AR-C15DV9)×3 = AR-C15LD9
6 Black Developer kit [Developer (black) (650g)×1 ×10 40K AR-C15LD1 204 ×391 ×290/9.10 (AR-C15DV1)×10 =
AR-C15LD1
7 Drum Unit Drum Unit ×1 40K AR-C15DU 402 ×568 ×198/6.73
(Drum/UnitParts included) ×1
Color Seal (C, M, Y, Bk each ×2)
8 Drum Kit Drum ×1 40K AR-C15DK 418 ×146 ×519/4.60
CleaningBlade ×1
Toner Receiving Seal ×1
ChargerUnit ×1
Color Seal (C, M, Y, Bk each ×1)
Note 1) A4 document with 10% coverage
Note 2) Inner carton printed in 4 languages
AR-C150 supply system (Europe, Australia, New Zealand)
No. Name Content Life Model Remark
1 Developer unit kit Developerunit ×4 — AR-DW1
2 Waste toner container kit Drum waste toner container (AS) ×1 40K AR-C15HB 5% coverage of each of C/M/Y/K, total 20% coverage
Transfer waste toner tank unit ×1
3 Fusing oil Fusing oil (80g) ×10 40K ×10 AR-C15LL AR-C15LL = AR-C15SL ×10
4 Upper heat roller kit Upper heat roller unit ×1 40K AR-C15UH
Uppercleaningroller ×1
5 Lower heat roller kit Lower heat roller unit ×1 40K AR-C15LH
Fusing separation pawl lower ×5
6 Fusing oil applying kit Oil applying unit ×1 40K AR-C15KH
Oil filter unit ×1
Applying unit mini oil bottle ×1
7 Filter kit Process ozone filter ×2 80K AR-C15FL
Toner duct ozone filter ×1
Tonerfilter ×1
8 Transfer belt kit Transfer belt ×1 160K AR-C15TT
Belt separation pawl ×2
9 Transfer roller kit Transfer blade ×1 80K AR-C15TX
Transferroller ×4
10 Staplecartridge Staplecartridge (SF-SC11) ×3 5,000 ×3 SF-SC11 For AR-S22. Common with FN1.
11 Fusing unit Fusing unit
(Except for motor, PWB,
upper/lowerlamps)
×1 AR-C15FU (Forservicing)
12 Transfer unit Transfer unit
(Except for motor) ×1 AR-C15TU (Forservicing)
13 DV seal kit DV seal unit (assemble) ×3 80K AR-C15DS
AR-C150
3 – 2

B.Consumable parts required for setup
No. Name Outside Japan
1Oil bottle AR-C15SL
2Developer cartridge (Y) Color developer kit
(Y, M, C)
Black developer (K)
3Developer cartridge (M)
4Developer cartridge (C)
5Developer cartridge (K)
6Developing unit AR-DW1
(Developing unit ×4)
Toner Y, M, C, K
2
3
6
5
98
7
4
10
11
12
13
14
12
3
4
5
6
6
AR-C150
4 – 3

Operation Manual kit
Language Model name Content Note
English AR-150SE Operation Manual (Bound
together with Key Operator
Guide), Operation panel
sheet
25 sets
Germany AR-150SG
French AR-150SF
Spanish AR-150SS
Italian AR-150SI
Dutch AR-150SH
Swedish AR-150SW
4. Lock release
No. Parts name
1 No. 2/3 mirror base lock screw
2 Belt unit fixing screw B
3 Tray rotating plate fixing material
4 Fusing, transfer unit fixing screw A
5 Paper guide lock screw
A. External fitting section
1) Remove the fixing tape and packing material from the copier body.
[Paper exit side] [Paper feed side]
B. Scanner section
1) Release the No. 2/3 mirror unit lock.
(Remove the fixing screw, washer, and note label of No. 2/3 mirror
unit on the left side.)
1
2
3
4
AR-C150
4 – 5

C. Transfer section
1) Open the front cover (1), and remove the toner hopper unit (2).
2) Remove the toner hopper connector cover (3) in section A and
remove the connector (4).
3) Remove the blue screw (1), and remove the toner hopper unit (2).
4) Loosen the blue screw (1), and remove the process frame cover
(2).
5) Remove the unit fixing screw (1), and hold the lever (2) to remove.
6) Loosen the blue screw (1), and remove the fusing front cover (2)
in the arrow direction.
A
1
2
A
3
B
3
4
1
2
1
2
1
2
1
2
1
AR-C150
4 – 6

7) Remove the unit fixing screw B (1) and the unit fixing screw A (2).
8) Remove the fusing front paper guide fixing screw (1) and the
protector (2).
Keep the removed screw in the screw hole in the transfer section.
When in transit of the machine, fix the fusing front paper guide
with this screw.
D. Fusing and paper exit section
1) Insert and press the front side shaft (1) with a screwdriver.
2) Insert and press the rear side shaft (2) with a screwdriver.
E. Paper feed, paper transport section
1) Remove the rotating plate fixing material of the paper feed tray,
and remove the caution label.
5. Cleaning
A. Main charger
1) Open the front cover.
2) Remove the toner hopper unit.
3) Remove the process frame cover.
4) Press the main charger unit hook section and releaser the lock.
Remove the main charger unit (1) from the copier.
5) Remove the electrode section fixing screw (2) of the main charger
unit (1), and remove the electrode section (3).
6) Clean the tip of the electrode by pushing the electrode cleaner
through it. (Repeat 2 or 3 times.)
(Note) Do not move the cleaner when it is pushed through the
cleaner. When cleaning, clean the whole area evenly.
1
2
2
1
1
1
2
3
AR-C150
4 – 7

7) Install the electrode section to the original position, and fix it with
the fixing screw.
8) Insert the main charger unit fully into the machine along the copier
guide.
B. Document table
(1) Document table cleaning
If the document table is dirty, the dirt is copied.
Wipe and clean with soft cloth with water, then wipe with dry cloth.
(2) Document cover cleaning
If the document cover is dirty, the copy is dirtied or the document size
is erroneously detected.
Wipe and clean with soft cloth with water, then wipe with dry cloth.
(Note) •If the dirt cannot be removed easily, wipe with soft cloth im-
mersed in water or neutral detergent, then wipe with dry
cloth.
•Do not use benzene or thinner for cleaning, which may
change the parts in quality or discolor.
6. Consumable parts setup
A. Fusing oil setup
1) Remove the cap (1) from the oil bottle (2), and remove the inner
cap. Set the cap (3) again.
2) Remove the oil tank cover (1) from the oil tank, and fill oil from the
oil tank (2).
(Note) Do not exceed line A when filling oil.
(Fusing oil handling)
(1) Print operation check procedure without filling oil in
the oil tank
1) Remove the fusing oil applying section cover.
2) Supply 10 – 15cc of fusing oil all over the oil pipe and the oil
blade. Use of fusing oil YYOK-0059FC31 (15cc) is advisable.
This allows to print about 100 pages.
1
2
31
2
1
2
AR-C150
4 – 8

B. Developer setup
(1) Developer setup
1) Remove the blue screw (1), and remove the DSD holder
(2)(3)(4)(5).
(Note) A color label is attached to each DSD holder for identification
of the color. When installing the DSD holders, be sure to
match the label color with the color on the machine.
2) Remove the special tool (2) from the back of the process cover
(1).
3) Fix the drum holder (4) with the special tool (2), and remove the
blue screw (3).
4) Pull out the transfer unit, cover the whole surface of the transfer
belt with paper, and insert the transfer unit. At that time, keep
the lock handle released. This procedure is performed in order to
prevent against dirt by toner dropped from the process frame
unit.
5) Remove the connector (1) and loosen the blue screw (2).
6) Remove the process frame unit from the arrow section.
7) Set the developer units in the sequence of (1) to (4).
(Note) Insert section A into the hole along the arrow indication.
Fit the projection B with the hole in the developer unit, and
connect the connector C.
Set each developer unit to its position. Be careful not to mis-
take the position.
1
2
4
5
3
1
2
2
3
4
4
1
2
3 (M)
4 (Y)
A
1 (K
)
2 (C)
AR-C150
4 – 9

8) Set the developer cartridges in the sequence of black, cyan,
magenta, and yellow.
9) Put the developer cartridge on the developer unit pawl A, and
press is until pawl P clicks.
(Note) Check that the developer color and the developer unit color
are the same.
10) Pull out the developer cartridge film sheet (1). (4 positions for
each color)
(After completion of the above procedures, attach the removed cover
and the cabinet.)
(2) Toner concentration reference control level setup
1) Enter SIM 25-2 mode with the front cabinet open.
2) Close the front cabinet.
3) Select the developing unit to be adjusted. (Select the all.)
4) Press the EXECUTE key and it is highlighted. The OPC drum
motor rotates and the toner concentration sensor detects toner
concentration and the output value is displayed.
After 3 minutes of stirring, the average value of the toner con-
centration sensor detection level is set (stored) as the reference
toner concentration control value.
(Note) If the adjustment is stopped within 3 minutes, the setup result
is not stored.
When the EXECUTE key is pressed during operation, it is
stopped and the EXECUTE key returns to the normal display.
If "EE-EU" or "EE-EL" is displayed, the reference toner con-
centration control value is not set normally.
EE-EL: The value is less than 79 (1.59V).
EE-EU: The value is over 177 (3.41V).
5) Clear the developer counter with SIM 24-5.
6) Execute SIM 44-27 to reset the half tone correction data (correc-
tion conditions) to the default level.
(Note) 1) The developers of yellow, magenta, and cyan must be
replaced at a time.
If individual developer is replaced, color balance is changed
and cannot be adjusted.
The black developer can be replaced individually.
2) After replacement of the developers and the photoconduc-
tor, execute SIM 44-27 to reset the half tone correction data
(correction conditions) to the default level.
If the above procedure is missed, half tone correction may
not be performed properly.
3) Reset the developer counter with SIM 24-5.
C. Toner setup
1) Open the front cover.
2) Remove the toner box.
3) Press the lock release buttons on the both sides to release lock
and pull the toner box out.
4) The toner supply ports on the toner box are arranged as shown
below.
Lock release buttons
KCMY
AR-C150
4 – 10

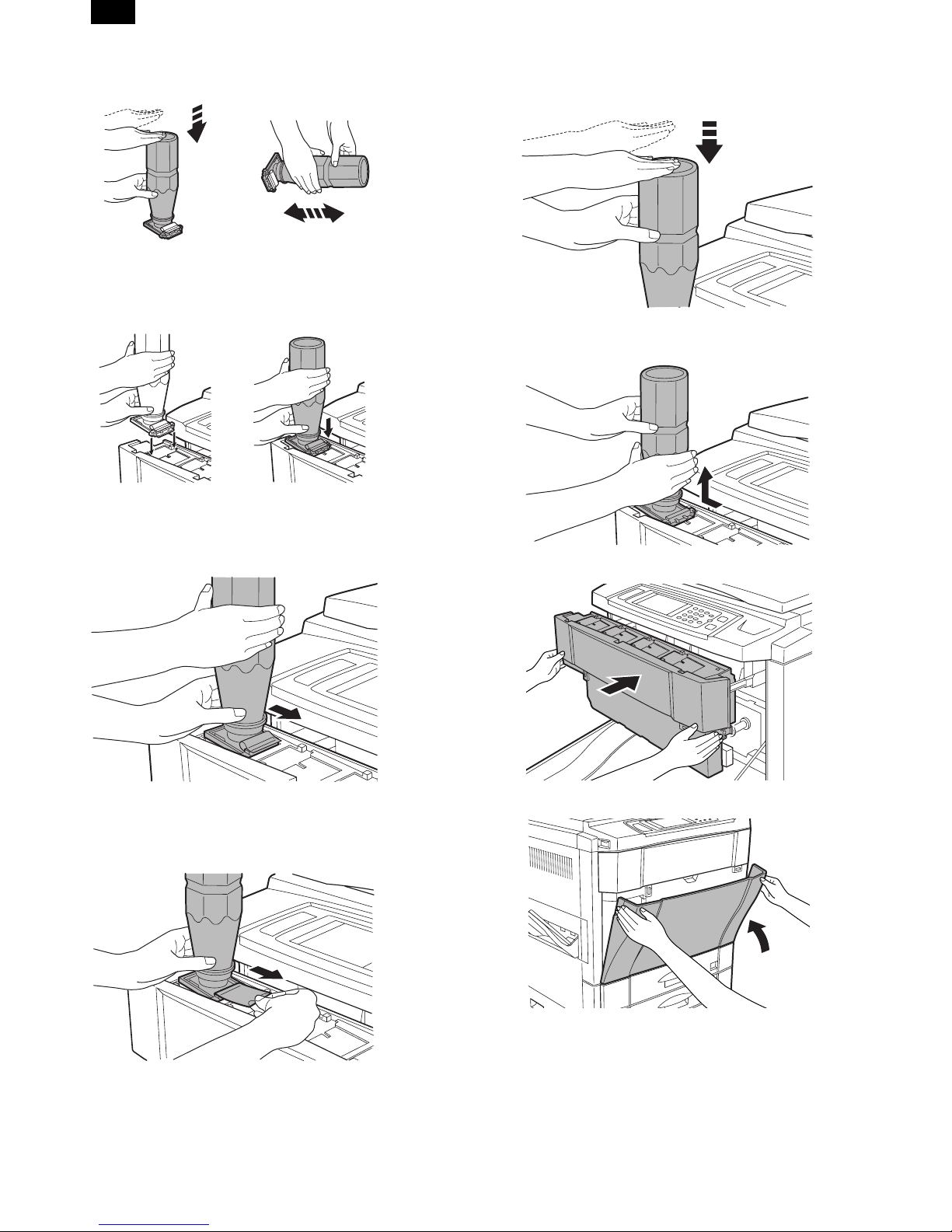

5) Tap the toner cartridge top 5 times, and shake it horizontally 20
times.
6) Attach the toner cartridge to the toner box to be refilled.
(Example) When refilling yellow toner:
Securely insert two projections of the toner cartridge into
the toner supply port.
Be sure to check the color.
The toner cartridge must be attached to the toner supply port of
the same color.
7) Move the toner cartridge in the arrow direction until it stops.
8) Remove the seal.
9) Hold the toner cartridge and remove the seal.
10) It takes about 40 sec to supply toner in the toner cartridge to the
toner box.
11) Tap the toner cartridge top several times.
12) Drop the toner attached to the inside of the toner cartridge com-
pletely.
13) Move the empty toner cartridge in the arrow direction and
remove it.
14) Insert the toner box into the original position.
15) Close the front cover.
5 times
20 times
AR-C150
4 – 11

D. Paper setup
1) Push down the lock lever until it stops to release the tray lock.
(AR-C100 only)
2) Lift the grip upward, and pull out the paper tray slowly until it
stops.
3) Set the paper below the indication line.
At that time, set the paper size detection lever according to the set
paper size.
(Note) •Curled paper, folded paper or copied paper may cause
paper jams.
•When pulling out the tray, do not put a heavy thing on it or
do not press it.
4) Push the tray into the machine slowly and securely.
5) Push up the lock lever until it stops to lock the tray. (AR-C100
only)
(Note) •When a tray is pulled out during copying, a paper jam may
occur. When a paper jam occurs in the tray, if the tray is
pulled out, the jammed paper may be torn.
•Be sure to lock the tray after supplying paper in order to
prevent the copy user from pulling out the tray carelessly.
(AR-C100 only).
7. Parts setup
(1) Paper exit tray setup
(2) Front cabinet stopper setup
(3) Horizontal level check and adjustment
If the copier is tilted back and forth, the following troubles may be
caused.
•Oil leak from the fusing section
•Image distortion and color image resist
To avoid the above troubles, check the horizontal level of the copier
back and forth and adjust if necessary. A small tilt in left and right
direction is allowed due to the margins.
a. Necessary tools
•Horizontal level check sheet (UKOG-0286FCZZ)
•Screw (LX-BZ0870FCZZ)
4 lock release/C transfer section/Use screws other than the screws
removed in Procedure 7).
•Horizontal level check string (with washer) (UKOG-0285FCZZ)
•Spacer disk (UKOG-0287FCZZ)
•Spacer (UKOG-0288FCZZ)
b. Check and adjustment
1) Paste and attach the horizontal level check sheet to the edge of
the cabinet.
Lock lever
Indication line
Paper size detection lever
Lock lever
(AR-C100 only)
AR-C150
4 – 12

2) Remove the cabinet fixing screw.
3) Pass the washer of the horizontal level check string into the screw
(LX-BZ0870FCZZ) and attach it to the copier.
4) Check that the horizontal level check string is in the frame mark of
the horizontal level check sheet. If the horizontal check sheet is
not available, check that the horizontal level check string is within
the cabinet fixing screw width.
If the above condition is satisfied, no need to make further adjust-
ment.
If the above condition is not satisfied, perform the following proce-
dure.
5) Put the spacer disk under the caster.
If the adjustment cannot be performed only with the spacer disk,
use the spacer together.
(4) Adjuster setup
1) As shown in the figure below, turn the adjuster until it makes con-
tact with the floor securely.
8. Copy quality check
Check the following items. For the adjustment and check procedures,
refer to the section of adjustments.
(1) Focus (resolution) (Refer to ADJ M12.)
(2) Copy image off- and center (Refer to ADJ M14 and
ADJ M15.)
(3) Image loss, void area (Refer to ADJ M16.)
(4) Image resist
Check the following items. If the adjustment is improper, make an ad-
justment again.
∗Main scanning direction image resist adjustment (Refer to ADJ
M9.)
∗Sub scanning direction image resist adjustment (Refer to ADJ
M10.)
(5) Copy color balance, density (Refer to ADJ M17.)
There are two check methods.
∗Set the color balance (copy density) setup of each copy mode to
the center. Make a copy of the gray scale chart (UKOG-
0162FCZZ) and a copy of the color test chart (UKOG-0283FCZZ).
Check that the color balance and the density level are within the
specified range.
For details and the judgement criteria, refer to "Copy mode color
balance and density check" in ADJ M17.
Lock Release
Adjuster
AR-C150
4 – 13

∗Perform procedure 1) of ADJ M17 ADJ 3 in the adjustment section
to check the color balance and the density level.
(Note) When performing checking only, do not change the adjust-
ment value.
For details and the judgement criteria, refer to ADJ M17
ADJ3.
If the color balance and the density level are not within the specified
range, make an adjustment according to the flowchart of ADJ M17.
9. Specification setup
Execute SIM 26 to set the specifications according to the customer’s
need.
Sim No. Content
26 1 Used to set options. (When installing an option, use this
simulation to set the option (software). (AR-C150 only)
2 1) Used to set the paper size of the large capacity tray.
(When the paper size is changed, this simulation must
be executed to change the paper size in software.)
2) Used to detect 8.5 ×13" size paper and documents
and to set the display mode. (All paper feed modes)
3) Used to set the paper size in the manual paper feed
mode. (AR-C150 only)
3 Used to set the auditor specification mode. Setting must
be made according to the use conditions of the auditor.
5 Used to set the count mode of the total counter, the
developer counter, and the maintenance counter.
6 1) Used to set the specifications (paper, fixed copy
magnification ratio, machine operations at an image
(process) correction error) depending on the destination.
2) Used to set the user logo. (AR-C100 only)
15 Used to set the fusing operation mode (paper curl
prevention mode).
18 Used to set Enable/Disable of the toner save operation.
(The function of this simulation is effective only in Japan
and UK version. (Depending on the setting of SIM 6-6
(Destination).) For the other destinations, the same
setting can be made with the user program P22.
(AR-C150 only)
22 Used to set the destination specifications (language
display). (AR-C150 only)
28 Used to set the AC power voltage. (For the fusing
section heater lamp power control)
30 Used to set the CE mark complying operation mode.
(Soft start when driving the fusing heater lamp.)
35 Used to set whether the trouble history display of SIM
22-4 is displayed as one time trouble or continuous
troubles when the same trouble repeatedly occurred.
45 Used to set the coy fee. (AR-C100 only)
10. Function and operation check
Check the following operations.
Check item Note
Paper feed operation
(manual paper feed) AR-C150 only
Paper feed by the paper
tray
Paper feed by the large
capacity paper feed tray When the large capacity tray is
installed.
AR-C150
only
Paper size detection
Document size detection
RADF copy (S-S mode) When RADF is
installed. AR-C150 only
RADF copy (S-D mode) When RADF is
installed When the duplex unit is installed. AR-C150 only
RADF copy (D-D mode) When RADF is
installed When the duplex unit is installed. AR-C150 only
RADF copy (D-S mode) When RADF is
installed AR-C150 only
Sort mode copy When RADF is
installed. AR-C150 only
Check item Note
Group mode copy When RADF is
installed AR-C150 only
Staple When RADF is
installed AR-C150 only
11. Recording of setup and adjustment
data
Execute SIM 22-6 to print and keep the various setup data and the
adjustment data (list).
In case of memory trouble, when the PCU PWB or the ICU PWB is
replaced, if there is not the above information, all adjustment must be
made from the beginning.
With the record of the above information, the setup data and the ad-
justment data can be directly inputted efficiently.
12. Procedures for transit
When moving the copier, the following procedures must be per-
formed.
(1) Remove paper from the paper trays.
(2) Remove the developing unit from the copier.
(3) Lock all the locks again.
(4) Remove the fusing unit.
(5) Remove the fusing oil bottle.
After removing the fusing unit, perform the following procedures.
1) Remove the fusing oil bottle cover.
2) Attach the caps (which are appended to the fusing oil bottle) to the
three holes in the fusing oil bottle.
3) Remove the fusing oil bottle from the copier.
AR-C150
4 – 14

[7] SETTING AND ADJUSTMENTS
1. List of setup items
Set item Related
simulations
SET M1 Auto color balance adjustment target setup 46-21,
63-7, 63-8
SET M2 Auto color balance adjustment target
selection 63-8, 46-24
SET M3 User auto color calibration (Copy color
balance, auto density adjustment) 26-53
SET M1 Auto color balance adjustment target
setup
A. Outline
Auto color balance adjustment is performed with a certain color
balance (gamma) as a target. There are following two kinds of tar-
gets:
Only the service target among them allows optional setup of a color
balance (gamma) target.
1) Service target
This is provided to correct the shift in the reference color balance
(gamma) due to the machine fluctuations.
An optional color balance (gamma) target can be set according to
the user’s request.
In addition, the default target can be used as the service target.
Normally this is set to the standard color balance (gamma).
2) Factory target
This is the color balance (gamma) target which is set in the fac-
tory.
It is set to the standard color balance (gamma), and can be used
when the service target falls in an abnormal state by some
reasons.
It cannot be changed in the market.
When shipping from the factory, the service setup and the factory
setup are the same color balance (gamma) target.
This setup must be performed in the following cases:
•When the copy color balance and the density adjustment is
manually performed. (SIM 46-21)
•When a U2 trouble occurs.
•When the ICU main PWB is replaced.
•When the EEPROM on the ICU main PWB is replaced.
B. Setup procedure
(Procedure to set the standard color balance (gamma) or
an optional color balance (gamma) as the service target)
1) Two sheets of color patch image (adjustment pattern) are out-
putted in the copy color balance adjustment (manual adjustment)
(SIM 46-21). (ADJ M17/ADJ3)
At that time, when the color balance is shifted from the standard,
an adjustment is required. If not, there is no need to adjust.
If an optional color balance is required according to the user’s re-
quest, an adjustment is required.
2) Enter the SIM 63-7 mode.
3) Press the SETUP key.
4) Set the color patch image (adjustment pattern) paper printed in
the copy color balance adjustment (manual adjustment) (SIM 46-
21) (ADJ M17/ADJ3) on the original table.
Set the paper on the original table so that the darker density side
comes on the left side. Then place 5 sheets of white paper on the
color patch image (adjustment pattern).
5) Press the EXECUTE key.
The color patch image (adjustment pattern) is read.
6) Press the REPEAT key and set the second color patch image (ad-
justment pattern) on the original table.
7) Press the OK key.
The color balance (gamma) corresponding to the color patch
image (adjustment pattern) printed in the copy color balance ad-
justment (manual adjustment) (ADJ M17/ADJ3) is set as the ser-
vice target.
(Procedure to set the default (standard) color balance
(gamma) as the service target)
1) Enter the SIM 63-8 mode.
2) Press the EXECUTE key.
3) Press the YES key.
The service target becomes the same as the default (standard)
target.
NOTE: To reset to the original service target, SET M1 must be per-
formed.
AR-C150
7 – 1

SET M2 Auto color balance adjustment target
selection
There are following two kinds of targets, and one of them can be
selected.)
(Selection procedure of the service or the factory target)
In the auto color balance adjustment (SIM 46-24), the selection menu
is shown to allow selection between SERVICE and FACTORY.
SET M3 User auto color calibration (Copy color
balance, auto density adjustment)
enable setup
A. Outline
The user can perform the copy color balance and auto density adjust-
ment in the user program mode.
SIIM 26-53 is used to Enable or Disable this operation.
NOTE: This setup is performed only when the user understands the
copy color balance and the auto density adjustment and is
capable of performing the operation.
Full explanations on the operating procedure, notes, and
operations must be given to the user.
•When a U2 trouble occurs.
•When the PCU main PWB is replaced.
•When the EEPROM on the PCU main PWB is replaced.
B. Setup procedure
1) Enter the SIM 26-53 mode.
2) Select Enable/Disable with the 10-key.
Disabling = 0: YES
Enabling = 1: NO
3) Press the OK key.
When "0: YES" (Disabling) is selected, the user auto color calibration
(copy color balance, auto density adjustment) menu is not displayed
in the user program mode.
2. List of adjustment items
ADJUSTMENT ITEM SIMULATION
ADJ M1 DV doctor gap adjustment
ADJ M2 DV roller main pole position adjustment
ADJ M3 Toner concentration control reference level
setting 25-2/44-27
ADJ M4 High voltage adjustment ADJ 1 Main charger grid voltage adjustment 8-2
ADJ 2 DV bias voltage adjustment 8-1
ADJ 3 Transfer voltage adjustment 8-3
ADJ M5 Paper skew adjustment 44-2
ADJ M6 Image density sensor adjustment ADJ 1 Image density sensor calibration 44-13
ADJ 2 Image density sensor sensing position adjustment 44-23
ADJ M7 Image skew adjustment (Scanner (Writing)
unit) 64-1
61-4
ADJ M8 Photoconductor phase adjustment 44-20
ADJ M9 Main scanning direction copy magnification
ratio adjustment (Scanner (Writing) unit) ADJ 1 Main scanning direction copy magnification ratio adjustment (Scanner (Writing) unit) (Black) 50-10
Main scanning direction image registration
adjustment (Scanner (Writing) unit) ADJ 2 Main scanning direction color image resist adjustment (Scanner (Writing) unit) (Color) 50-20
Main scanning direction copy magnification ratio adjustment
(Scanner (Writing) unit) (Color)
ADJ M10 Sub scanning direction color image resist
adjustment (Scanner (Writing) unit) (Color) 50-21
ADJ M11 Image distortion adjustment ADJ 1 Scanner (Reading) unit parallelism adjustment
ADJ 2 Image distortion adjustment (Sub scanning direction)
ADJ 3 Image distortion adjustment (Main scanning direction)
ADJ M12 Image focus (Main scanning direction copy
magnification ratio) adjustment (CCD position
adjustment)
ADJ M13 Sub scanning direction copy magnification
ratio adjustment 48-1
ADJ M14 Image position adjustment (Main scanning
direction) (Print engine) 50-10
ADJ M15 Image position adjustment (Main scanning
direction) (Scanner (Writing) 50-12
AR-C150
7 – 2

ADJUSTMENT ITEM SIMULATION
ADJ M16 "Image position, image loss, void area
adjustment" 50-1/50-2
ADJ M17 Image quality adjustment ADJ 1 CCD gamma adjustment 63-3 (63-5)
ADJ 2 Image color balance adjustment (Auto) 46-24
ADJ 3 Image color balance adjustment (Manual) 46-21
ADJ 4 Copy color balance adjustment (for each copy mode) 46-10 ∼19, 1, 2
ADJ M18 Document size sensor adjustment ADJ 1 Original size sensor detection point adjustment 41-2
ADJ 2 Original size sensor sensitivity adjustment 41-2
ADJ M19 Waste toner full detection level adjustment
ADJ M20 Touch panel coordinates setting 65-1
ADJ M21 Transfer belt level adjustment
(Transfer belt traveling adjustment)
ADJ M22 Fusing pressure adjustment
ADJ M23 Power voltage adjustment ADJ 1 3.4 V power voltage adjustment
ADJ 2 5.0 V power voltage adjustment
ADJ 3 24 V power voltage adjustment
ADJ M24 Manual feed paper size sensor adjustment 40-2
ADJ M25 OHP sensor adjustment 40-5
ADJ M1 DV doctor gap adjustment
This adjustment must be performed in the following cases:
•When the developing unit is disassembled.
•When the print density is low.
•When there is a lot of toner dispersion abnormally.
1) Remove the developing unit from the copier, and remove the
developing unit cover and the blade cover.
2) Loosen the DV doctor fixing screw A.
3) Insert a 0.525 thickness gauge at the point of 40mm ∼70mm from
the DV doctor edge.
4) Push the DV doctor in the arrow direction and tighten the DV doc-
tor fixing screw.
(Perform the same procedure for the front and the rear frame
simultaneously.)
5) Check that the clearance is 0.525 ±0.03mm at two positions which
are 40mm ∼70mm from the both sides of the DV doctor.
∗When inserting the thickness gauge, be careful not to scratch the
DV doctor and the MG roller.
ADJ M2 DV roller main pole position
adjustment
This adjustment must be performed in the following cases:
•When the developing unit is disassembled.
•When the print density is low.
•When there is a lot of toner dispersion abnormally.
1) Remove the developing unit cover and the blade cover, and place
the developing unit on a flat surface.
2) Tie a string to a needle or a pin.
3) Hold the string and put the needle horizontally and move it toward
the MG roller. (Do not use a clip which is too big to have a correct
position.)
4) With the needle tip at 2 ∼3mm from the MG roller surface, mark
the point on the surface which is on the extended line of the
needle tip. (Do not make contact between the needle tip and the
MG roller.)
5) Measure the distance between the marking position and surface P
of the developing unit, and check that the black unit is 13mm,
color unit 24mm.
If the distance is not as specified above, loosen the fixing screw A
of the main pole adjustment plate, and move the adjustment plate
in the arrow direction to adjust.
40mm
30mm
40mm
30mm
AR-C150
7 – 3

4) Loosen the resist roller fixing screw, and change the resist roller
angle.
The standard position is at the center.
Repeat procedures 3) – 4) until the condition of procedure 3) is satis-
fied.
ADJ M6 Image density sensor adjustment
ADJ 1 Image density sensor calibration
This adjustment must be performed in the following cases:
•When the image density sensor is replaced.
•When the transfer belt is replaced.
•When a U2 trouble occurs.
•When the PCU main PWB is replaced.
•When the EEPROM of the PCU main PWB is replaced.
The process control sensor gain adjustment means: The detection
level differs between machines due to variations in density detection
sensors and parts. To prevent against this, attach a seal of a certain
density on the belt to calibrate the sensor.
1) With the power OFF, open the right cover of the machine.
2) Pull out the transfer unit, and attach the adjustment sheet (UKOG-
0281FCZZ) to the belt.
(The attachment position is between the two separation pawls of
the fusing unit.)
3) Return the transfer unit. With the front cover open, turn on the
power.
4) Enter the SIM 44-13 mode.
5) Close the front cover.
6) Press the [EXECUTE] key.
The adjustment is automatically performed. When the adjustment
is completed, the [EXECUTE] key returns to the normal display.
7) Check that the SIM 44-13 values are within the specifications.
Check content Spec
PCLEDC (Sensor current in color calibration) 128 or below
DARK ID (Color image density sensor dark
voltage) 50 or below
P_PSI (Read value of calibration sheet) 102 ±5
P_CYI (Read value of calibration plate) 80 ±15
∗When an error message is displayed, clean the sensor and the
calibration plate, and adjust again.
∗If the above procedure cannot cancel the error, replace the
sensor and the calibration plate.
8) Turn off the power.
9) Pull out the transfer unit, and remove the adjustment sheet.
(The adjustment sheet is positioned in front of the cleaning blade
at the back of the unit as the transfer belt rotates.)
10) Return the transfer unit.
NOTE: If the motor drive power is turned on immediately after at-
taching the adjustment sheet to the transfer belt, the adjust-
ment sheet does not stop at the specified position and the
transfer belt keeps rotating.
As a result, the adjustment sheet may be damaged by the
transfer cleaning blade or the transfer cleaning blade may be
damaged by the adjustment sheet.
To prevent against this, be sure to observe the following.
1) Before entering the SIM 44-13 mode, open the right cover of
the machine to open the motor drive power line.
2) After completion of the adjustment, remove the adjustment
sheet from the transfer belt.
ADJ 2 Image density sensor sensing position
adjustment
This adjustment must be performed in the following cases:
•When the image density sensor is replaced.
•When the image density sensor section is replaced.
•When a U2 trouble occurs.
•When the PCU main PWB is replaced.
•When the EEPROM of the PCU main PWB is replaced.
1) Enter the SIM 44-23 mode.
2) Press the [EXECUTE] key. The adjustment is automatically per-
formed, and the average data is displayed.
When the operation is completed, the [EXECUTE] key is high-
lighted.
In case of an abnormal end, "ERROR" is displayed.
AR-C150
7 – 6

ADJ M7 Image skew adjustment (Scanner
(Writing) unit)
This adjustment must be performed in the following cases:
•When the scanner (writing) unit is replaced.
•When the scanner (writing) unit is removed from the machine.
•When a color image mis-resist occurs.
•When the installing location is changed.
1) Enter the SIM 64-1 mode.
Select the color mode of Black.
2) Set the values of A ∼D of the set item as shown in the table
below, and make an A3 (11" ×17") copy. (The grid pattern is
printed.)
∗Use the paper tray at the bottom.
SIM 64-1 set items
Parameter Set value
A PRINT PATTERN 5
B PRINT START GRADATION LEVEL 1
C SELF PRINT Q’TY SETTING 1
D DENSITY MODE 9
Enter the input value with the 10-key and press the OK key. When
the [EXECUTE] key is pressed, printing is performed. Paper is
selected by the set item E.
3) Check the distortion of the printed image.
If the right-angle level of the traverse print line is 0.5mm or less for
the longitudinal print line of paper, there is no need to adjust.
4) If the image is distorted, loosen the red screw for the holder on the
chassis side, and adjust the LSU inclination with the black LSU
adjustment screw (set screw). (The LSU at the right end is black.)
After completion of the adjustment, fix the holder with the red
screw.
5) Enter the SIM 61-4 mode.
6) Select 11×17 paper and press the [EXECUTE] key. Paper is
selected by the set item B.
The check pattern is printed.
∗Use the paper tray at the bottom.
7) Check that the center shift between the Y/M/C print color patters is
within 0 ±1 step.
(Check the shift between the print patterns of the same color.
Even though there is some shift between different colors, there is
no problem.)
If the above condition is not satisfied, loosen the red screw for the
holder on the front side of the chassis, and adjust the LSU adjust-
ment screw (set screw) to adjust the LSU inclination.
After completion of the adjustment, fix the holder with the red
screw.
Procedures 1) – 4): Black LSU adjustment procedures
Procedures 5) – 7): Color LSU adjustment procedures
0.5mm or less
Longitudinal direction
Reference line
Right-angle
Comporison line
Red screw for the holde
AR-C150
7 – 7

Procedures 1) – 4) : Adjustment procedures of the black LSU
Procedures 5) – 7) : Adjustment procedures of the color LSU
ADJ M8 Photoconductor phase adjustment
This adjustment must be performed in the following cases:
•When the OPC drum is replaced.
•When the OPC drum is removed from the machine.
•When the OPC drum drive section is disassembled.
•When the OPC drum drive unit is replaced.
•When a U2 trouble occurs.
•When the PCU main PWB is replaced.
•When the EEPROM of the PCU main PWB is replaced. 1) Enter the SIM 44-20 mode.
2) Enter "2" in the setup item A (PRINT MODE) with the 10-key, then
press the [OK] key. (Default setting is 3.)
3) Select the paper feed cassette with A3 (11" ×17") paper in the
setup item E (PAPER SELECT), and press the [OK] key.
∗Use the paper tray at the bottom.
4) Press the [EXECUTE] key, and the drum deflection adjustment
pattern is printed in four pages.
∗Pattern N (1, 4, 7, 10) is printed.
Compare the positions (front-rear) of the same color print patterns.
Compare the positions (front-rear) of the same color
AR-C150
7 – 8

5) Check the deflection cycle of 125.6mm pitch of four printed pat-
terns (C, M, Y). Use the output pattern of the smallest deflection
as the set value of each color, and set it to item B, C, and D. (After
entering the adjustment value, press the OK key.)
6) After entering the adjustment value, enter "3" to set item A with
the 10-key and press the [EXECUTE] key to print the adjustment
pattern again.
If the above procedures cannot bring a satisfactory result, select
mode 1 and print twelve pages of the print pattern.
This allows to make more detailed checks and adjustments.
The adjustment procedure is the same as procedure 5).
It, however, takes about 6 min to do this procedure.
NOTE: If there is an extra deflection other than the drum frequency
(125.6mm pitch), check the set values of the PS motor, the
belt motor, and the fusing motor speed.
125mm 125mm 125mm
Check the feflection of 125mm pitch.
AR-C150
7 – 9
