Shiro EX User manual

EX – MP3 Digital Audio Player
User Guide
Version 2.0
（MP3 Player + FM Stereo Radio + USB Disk + Voice Recording )

1
Contents
NOTICE …………………………………………………………………………………………… 3
PACKAGE INCLUDES……………………………………………………………………… 4
PLAYER DESCRIPTION……………………………………………………………………………… 5
1.BUTTON OPERATION ……………………………………………………………………… 6
PLAYER OPERATING PROCEDURE …………………………………………………………… 8
1.MAIN OPERATING PROCEDURE ………………………………………………………… 9
2.MSC …………………………………………………………………………………………… 10
⑴Stop/Pause State ………………………………………………………………………… 10
⑵Play State ………………………………………………………………………………… 11
⑶Repeat ………………………………………………………………………………………12
⑷Equalizer ……………………………………………………………………………………13
⑸Replay ………………………………………………………………………………………13
⑹Replay times ……………………………………………………………………………… 14
⑺Replay gap …………………………………………………………………………………14
⑻LRC …………………………………………………………………………………………14
⑼Local folder …………………………………………………………………………………15
⑽Delete file ………………………………………………………………………………… 15
⑾Delete All ………………………………………………………………………………… 16
3.REC ………………………………………………………………………………………… 16
⑴Stop/Pause State ………………………………………………………………………… 16
⑵REC State ………………………………………………………………………………… 17
⑶REC type ………………………………………………………………………………… 17
4.RPL …………………………………………………………………………………………… 18

2
⑴Stop/Pause State …………………………………………………………………………18
⑵Play State ………………………………………………………………………………… 18
5.FM ………………………………………………………………………………………………19
6.SYS ……………………………………………………………………………………………20
⑴Record Time ………………………………………………………………………………21
⑵Backlight ……………………………………………………………………………………21
⑶Language …………………………………………………………………………………22
⑷Power off ……………………………………………………………………………………23
⑸Replay mode ………………………………………………………………………………23
⑹Contrast ……………………………………………………………………………………24
⑺Online mode ………………………………………………………………………………24
⑻Memory info. ………………………………………………………………………………24
⑼Firmware version …………………………………………………………………………25
⑽Firmware upgrade …………………………………………………………………………25
⑾Exit …………………………………………………………………………………………25
7.VOLUME CONTROL…………………………………………………………………………25
8.LOCK/UNLOCK ………………………………………………………………………………26
USB-DISK APPLICATION ………………………………………………………………………26
1.MINIMUM SYSTEM REQUIREMENT………………………………………………………26
2.USB-DISK OPERATION ……………………………………………………………………27
TECHNICAL SPECIFICATIONS …………………………………………………………………28
TROUBLESHOOTING GUIDE………………………………………………………………29

3
NOTICE
 Please ensure HOLD switch “” into “” position before use.
 When switching on the MP3 Player, the player will initialize without display for
about six seconds.
 EQ selection doesn’t have much effect when playing WMA format music.
 A-B clipping function is not supported when playing WAV format file.
 The player cannot identify MP3 format above third layer.
 Remove batteries when the player is left unused for a long period of time.
 Do not leave the player in a place subject to moisture with temperature higher
than 35℃or lower than –5 ℃
 Do not use the earphones while driving an automobile or riding a bicycle, it’s not
only dangerous, but also against the law.
 Avoid turning up the volume of the earphones while walking down the street,
especially crossing at intersections.
 Do not turn up the volume too high, doctors warn against prolonged exposure to
high volume.
 Stop using the device or decrease volume if you have ringing sound in your ears.
 Follow local guidelines for waste disposal when discarding packages, batteries
and old electronic appliances.
 LCD displays “ ” icon in main menu if MP3 Player has “FM Tuner” Function.

4

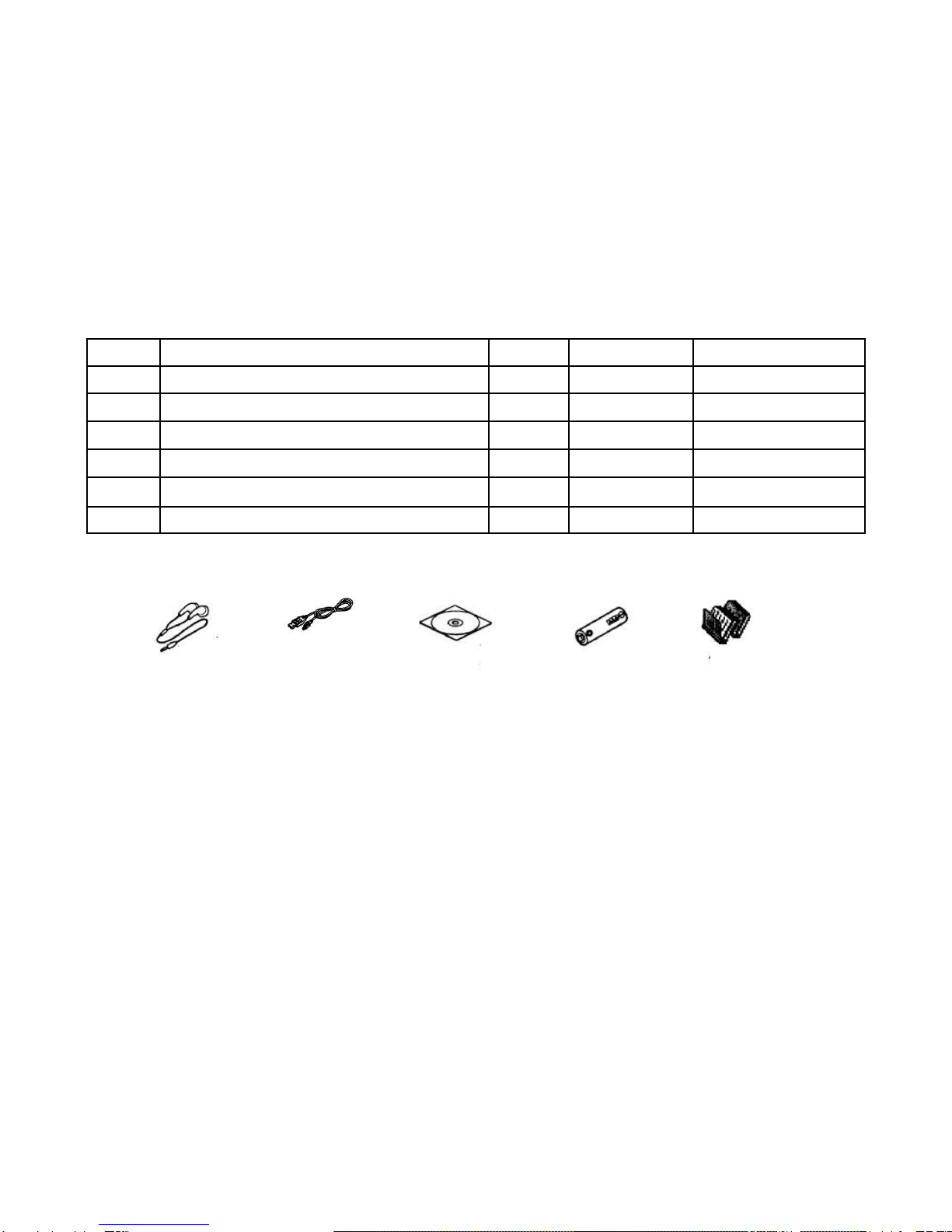

PACKAGE INCLUDES
No. Name Unit Quantity Remark
1 MP3 Player Set 1
2 High-quality stereo earphone Set 1
3 USB extension cable Set 1 1.2metre
4 Installation of CD Set 1
5 Battery Set 1 AAA/LR03
6 User Guide Set 1
Battery User
Manual
Earphone CD
USB extension
cable

5
11. Neck Strap Hook
PLAYER DESCRIPTION
13. LCD Display
3.
4.
12. USB jack cover
2、MENU
10. Battery cover
7. HOLD
9. REC-input port /
Microphone
14. Earphone jack
5. –(Volume Down)
8. A-B/REC
5. +(Volume Up)
1.

6
1. Button Operation
●MSC And RPL
Button Operating Stop/Pause
State Play State Play Menu Stop/Pause Menu
Long Press Power-off Power-off Power-off Power-off
Short Press Play Pause Exit menu
Long Press Enter Main Menu Enter Main Menu Enter Main Menu Enter Main Menu
MENU Short Press Enter Stop/Pause
Submenu Enter Play Submenu Confirm item or
Enter into
Submenu
Confirm item or
Enter into Submenu
Short Press Next song Choose next song
and play Move in Submenu Move in Submenu
Long Press Continue forward
browse Fast forward Continue forward moving Continue forward moving
Short Press Last song Last song and play Move in Submenu Move in Submenu
Long Press Continue backward
browse Fast backward Continue backward moving Continue backward moving
Short Press Increase volume by
step Increase volume by Step X X
+ Long Press Continue increase
volume Continue increase volume X X
Short Press Decrease volume by
step Decrease volume by Step X X
- Long Press Continue decrease
volume Continue decrease volume X X
Short Press X Enter ”A-B “ X X
A-B/REC Long Press Enter REC State
and Start REC Enter ”A-B “ X Enter REC State and Start REC

7
●REC
Button Operating Stop/Pause State REC State
Long Press Power-off Saving REC file
Short Press x Pause REC
Long Press Enter Main-Menu Saving REC file and Return main menu
MENU Short Press Enter REC Sub-Menu X
Long Press Start REC Saving REC file
A-B/REC Short Press Start REC Pause REC
●FM
Button Operating Radio State FM Sub-Menu State
Long Press Power-off Power-off
Short Press With Presetting stations：go to Next
Without presetting station：don’t care Exit menu
Long Press Enter Main Menu Enter Main Menu
MENU Short Press Enter Submenu Confirm item or Enter into Submenu
Short Press Increase 50KHz by step or stop search Move in Submenu
Long Press Continue Increase 50KHz Search Continue forward moving
Short Press Decrease 50KHz by step or stop Search Move in Submenu
Long Press Continue decrease 50KHz Search Continue backward moving
Short Press Increase volume by Step X
+ Long Press Continue increase volume X
Short Press Decrease volume by Step X
-Long Press Continue decrease volume X
Short Press Enter into “REC” mode
A-B/REC Long Press Enter into “REC” mode
(Not support “FM” Button Function if MP3 Player doesn’t have FM Tuner)

8
PLAYER OPERATING PROCEDURE
Note: “LRC” Menu displays if LRC function is available; “FM” menu displays if the MP3
Player has FM Tuner.
FM Save Delete Delete All Normal Band
Japan Band
Fine RECLong RECExit
SYS Record Time Backlight Language Power off
Replay ModeContrastOnline ModeMemory info
Firmware Version Firmware Upgrade
REC Local folder REC type Exit
Play State
Local folder Delete file Delete All Exit
Repeat
PRL Replay Exit
Stop/Pause State
Stop/Pause State Local folder Delete file Delete All Exit
Repeat Equalizer Replay Replay times Replay gap
MSC LRC
Exit
Exit
Play State

9

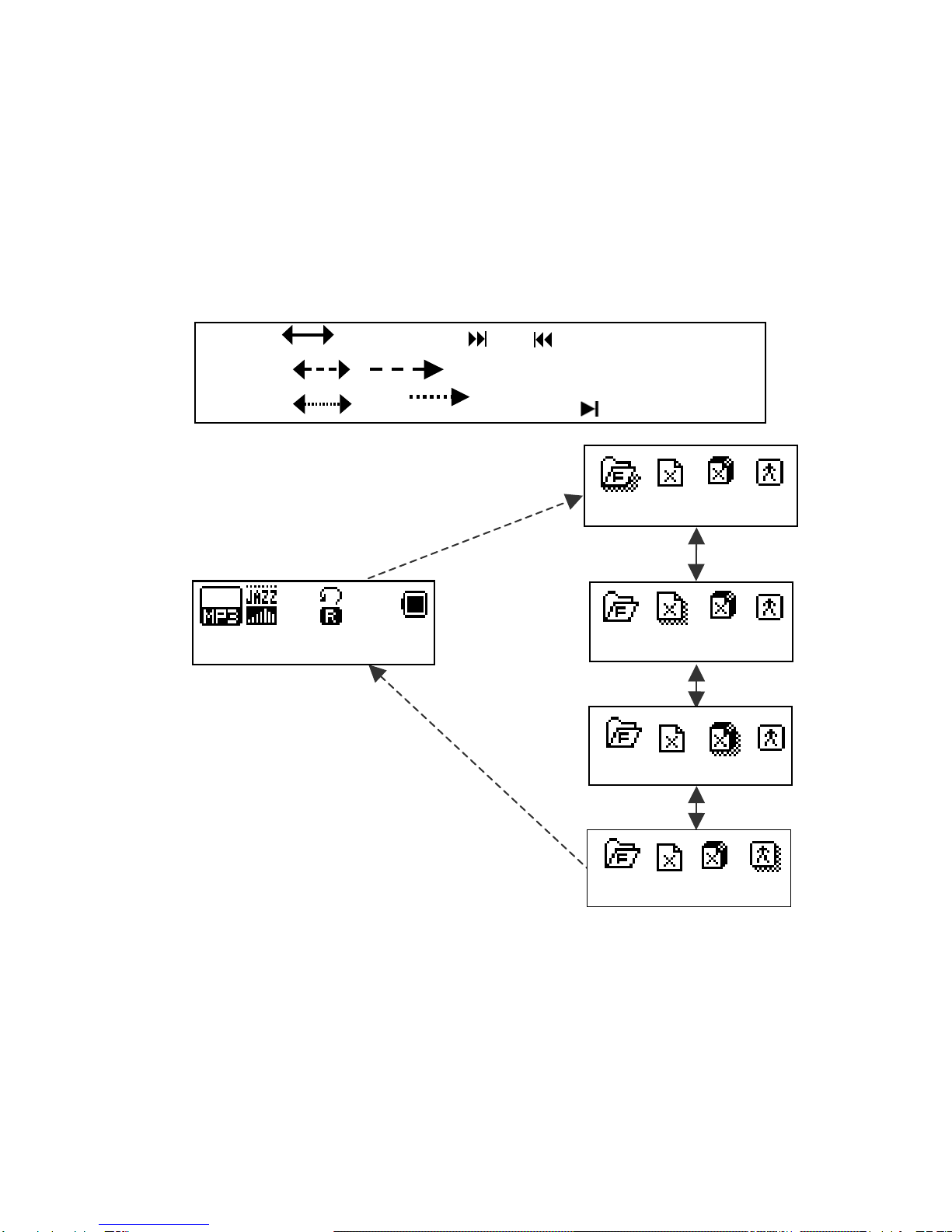

1. MAIN OPERATING PROCEDURE
Switch Hold key into “ ”position，then Power-On by long press of【】button.
Short press/Long press【Menu】button
Love.mp3
123 04:03
006
006 00:00
REC12 2004/01/01
12 00:00:00
11 34:18:52
01 00:00:00
11 34:18:52
REC01 2004/01/01
Love.mp3
123 04:03
006
006 00:20
REC12 2004/01/01
12 00:00:20
11 34:18:52
01 00:00:20
11 34:18:52
REC01 2004/01/01
Main Menu Stop/Pause State Play State
FM97.75
Short press【A-B/REC】button
Record Time

10
2. MSC
(1) Stop/Pause State
Love.mp3
123 04:03
006
006 00:00
Local folder
Delete file
Delete All
Exit
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress【 】button

11
(2) Play State
Note: “LRC” Menu display if LRC feature is present on the player.
Love.mp3
123 04:03
006
006 00:20
Repeat Equalizer Replay
Replay times
Replay gap
Exit LRC
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress
【 】button

12

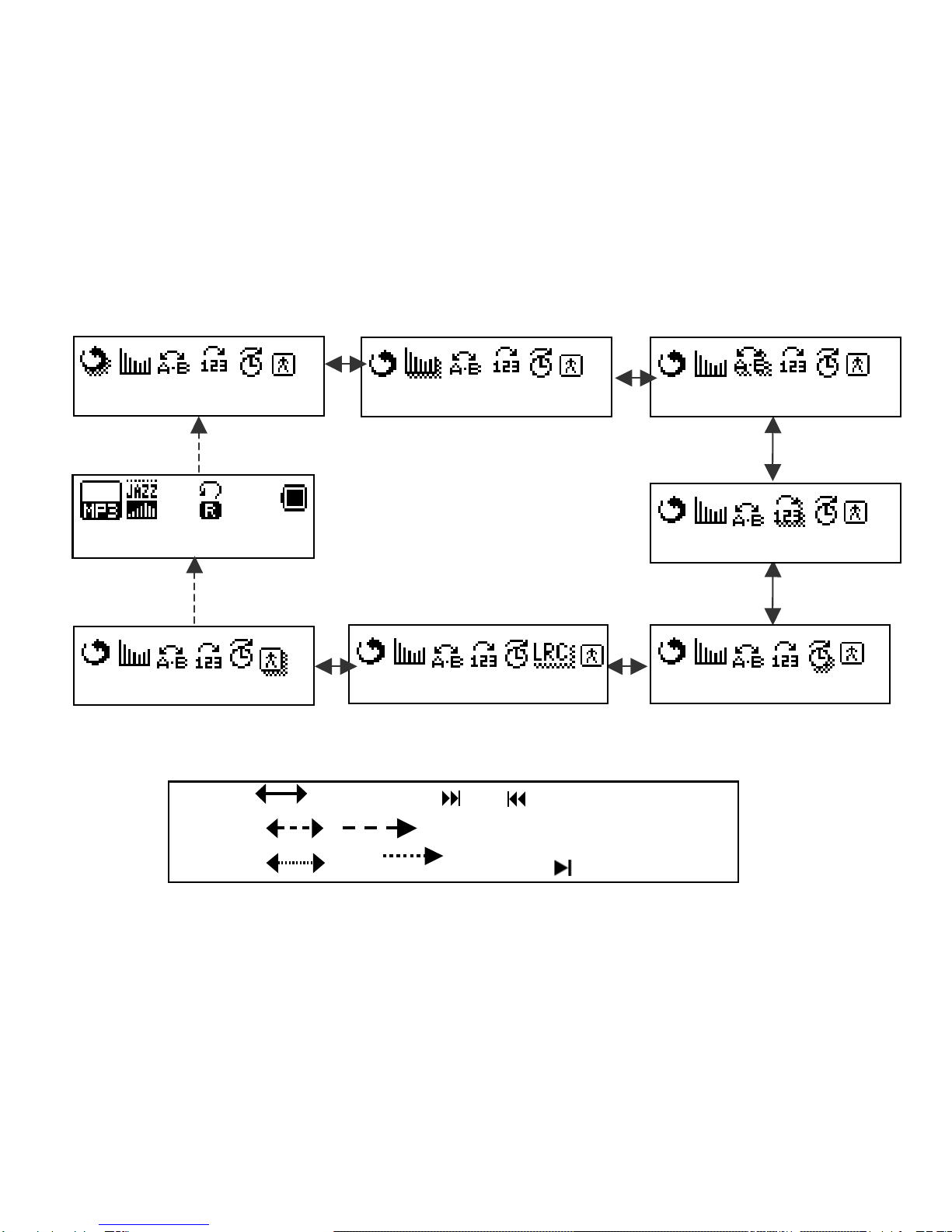

(3) Repeat
Normal Repeat one
Folder
Repeat Folder
Repeat all
Random
Intro
Love.mp3
123 006 00:20
04:03
006
Repeat
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress
【 】button

13

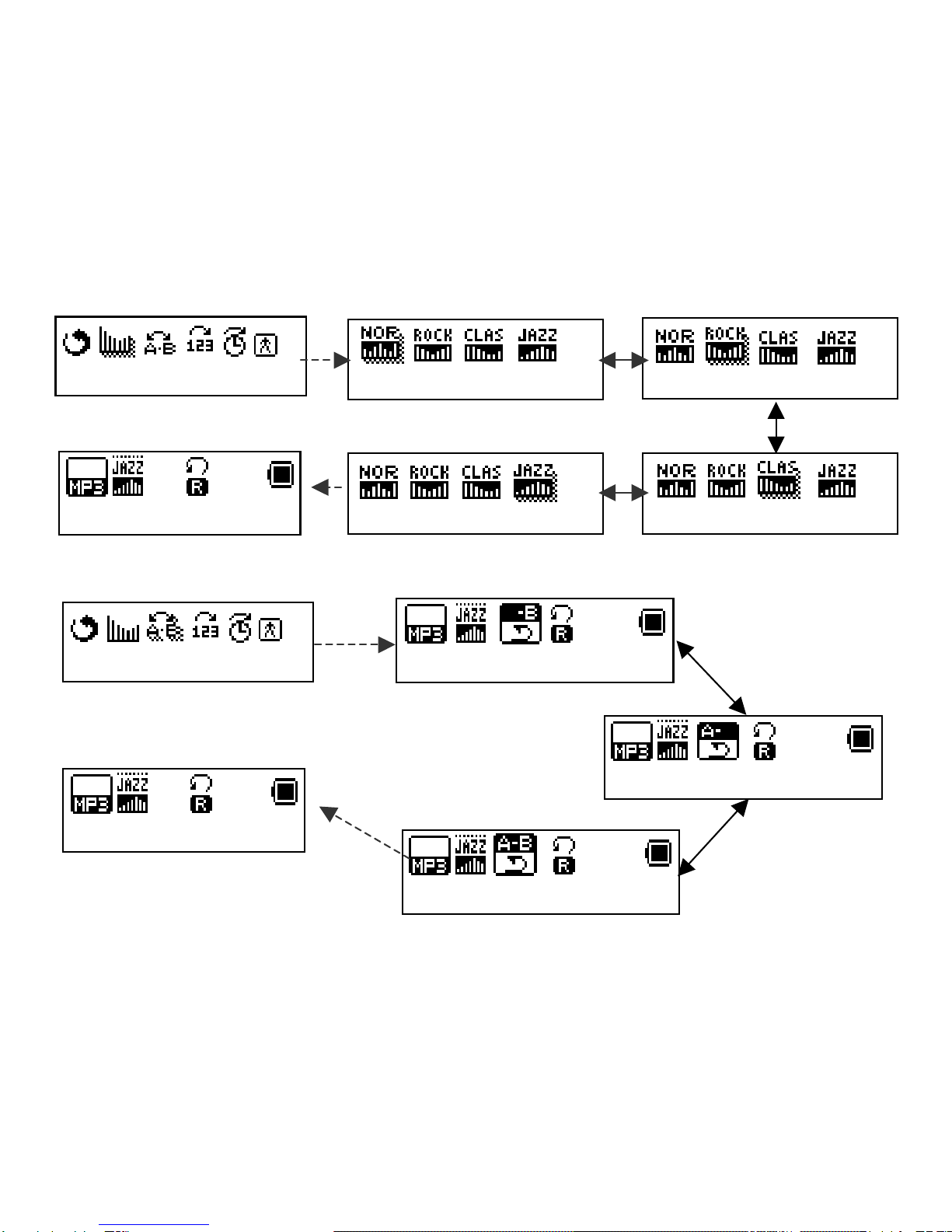

(4) Equalizer
(5) Replay
Equalizer Natural Rock
ClassicJAZZ
Love.mp3
123 04:03
006
006 00:20
Replay Love.mp3
123 04:03
00:20
Love.mp3
123 04:03
00:25
Love.mp3
123 04:03
00:20
Love.mp3
123 04:03
006
006 00:20
Short
p
ress 【
A
-B/REC】button
Short
p
ress 【
A
-B/REC】button

14

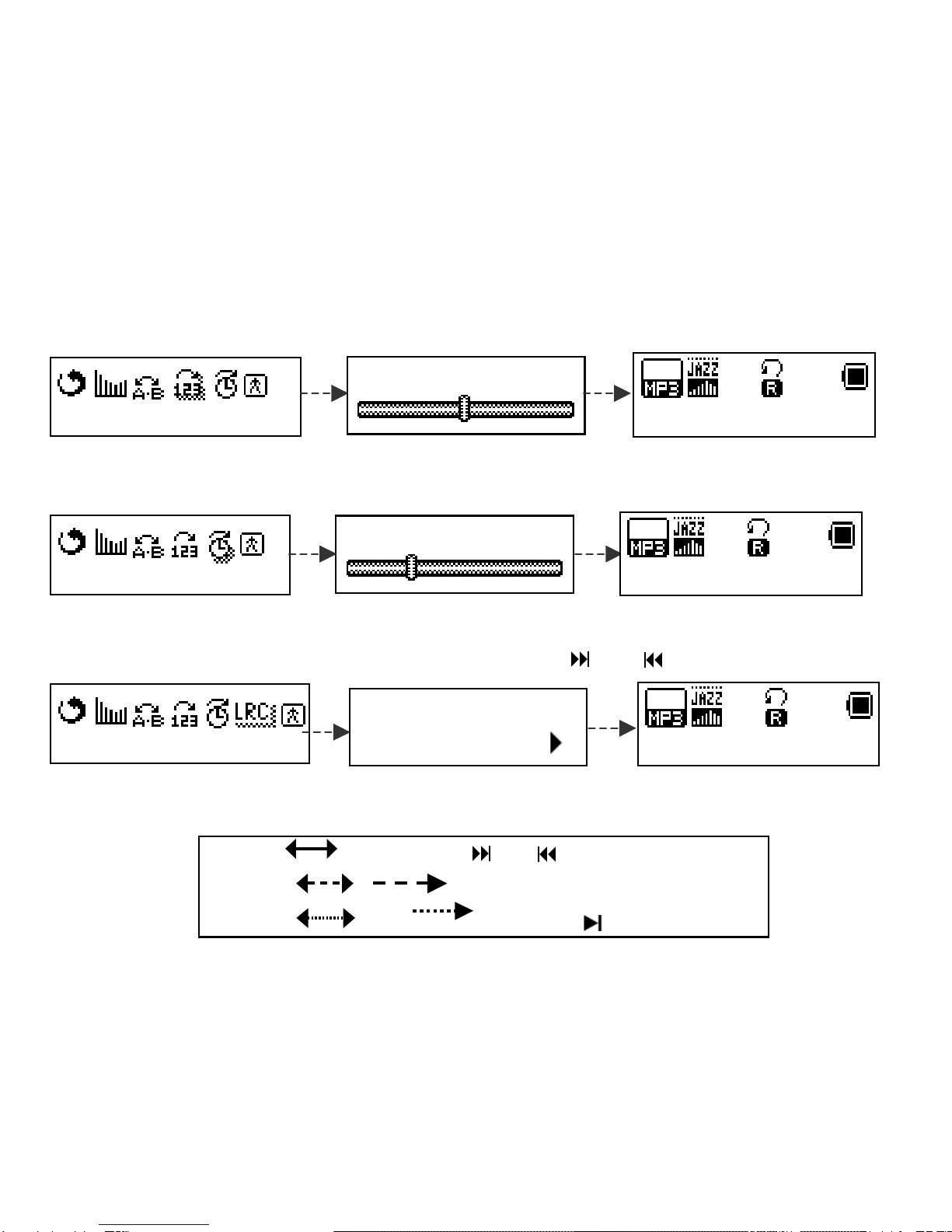

(6) Replay times
Short press【+】/【-】button, choose the number from 1 to 10.
(7) Replay gap
Short press【+】/【-】button, choose the number from 1 to 10. Unit: second.
(8) LRC
Reading Lyrics forward or backward by short press 【】/【 】button.
Note: For synchronous lyrics, the filename.mp3 must have same filename.lrc.
Example: Lyrics.mp3(name of music file) with Lyrics.lrc (name of LRC file).
Replay times <<5>>
Love.mp3
123 04:03
006
006 00:20
Replay gap <<3>>
Love.mp3
123 04:03
006
006 00:20
LRC I love your Love.mp3
123 04:03
006
006 00:50
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress
【 】button

15

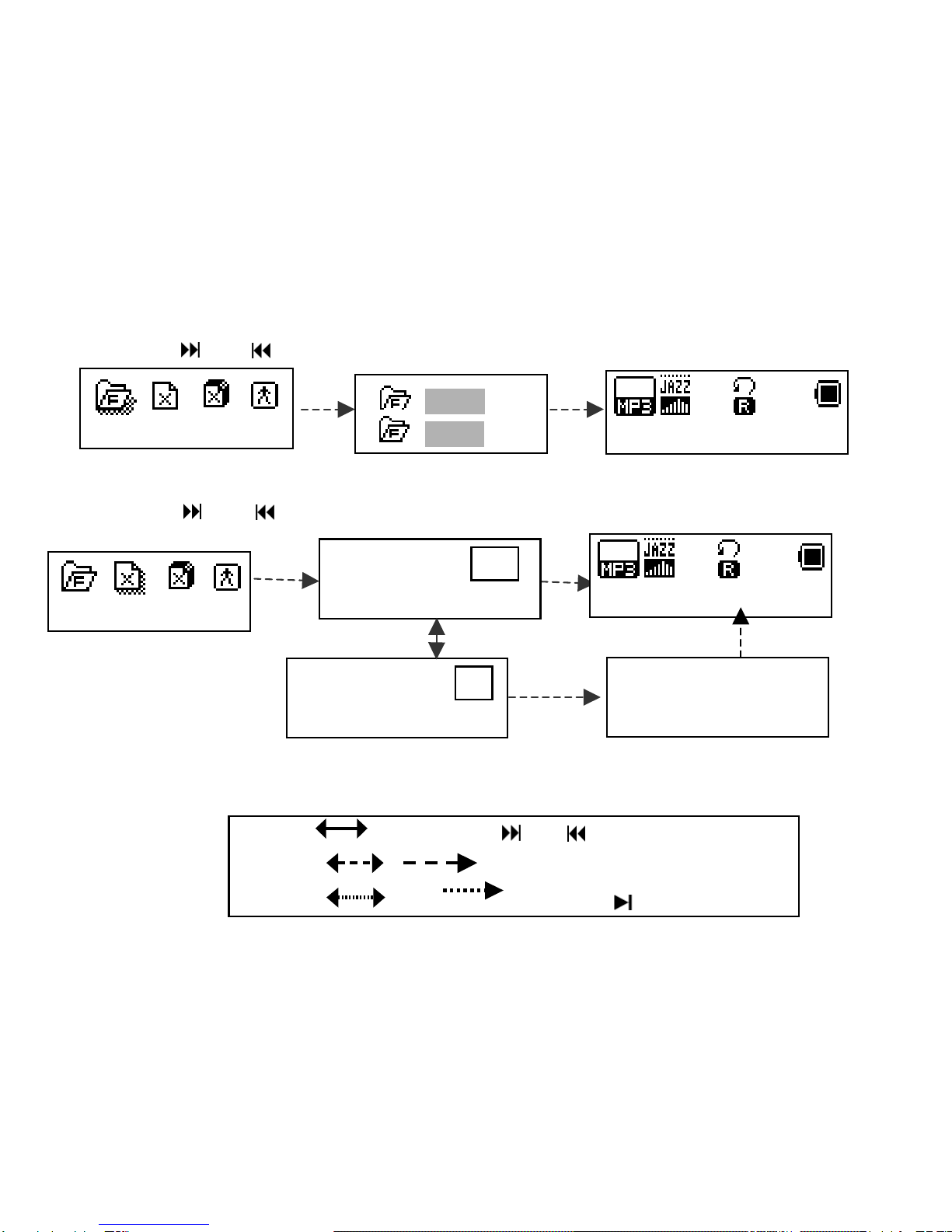

(9) Local folder(Pause state)
Short press【】/【 】button, choose the other directory. Support 99 directories(MAX).
(10) Delete file
Short press【】/【 】button, choose “Y”or “N”
Love.mp3
123 04:03
006
006 00:20
Del. file?
Love.mp3
N
Del. file?
Love.mp3
Y
Everything I do .mp3
123 03:13
005
005 00:00
Delete …
Love.mp3
Local folder
Delete file
ROOT
music
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress【 】button

16
(11) Delete all
Short press【】/【 】button, choose “Y”or “N”
3. REC
(1) Stop/Pause State
No file!
Local folder
REC type
Exit
REC12 2004/01/01
12 00:00:00
11 34:18:52
Delete All
ROOT
Y
Del. all?
Del. all?
ROOT
N
ROOT
Delete …
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress
【 】button

17
(2) REC State
(3) REC type
REC12 2004/01/01
12 00:00:15
11 34:18:52
REC12 2004/01/01
12 00:00:15
11 34:18:52
12 00:00:20
11 34:18:52
Saving…
REC12 2004/01/01
12 00:00:00
11 34:18:52 Short
p
ress 【
A
-B/REC】button
S
h
o
rt
p
r
ess
【
】
bu
tt
o
n
Lon
g
p
ress 【
A
-B/REC】button
REC12 2004/01/01
12 00:00:20
11 34:18:52
REC type
REC12 2004/01/01
12 00:00:20
11 34:18:52
Short
p
ress
【
/
A-B
】
button
Fine REC Long REC
Fine VOR
Long VOR
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress
【 】button

18
4. RPL
(1) Stop/Pause State
(2) Play State
01 00:00:00
11 34:18:52
REC01 2004/01/01
Repeat
Replay
Exit
01 00:00:20
11 34:18:52
REC01 2004/01/01
Local folder
Delete fileDelete All
Exit
Note：1、“ ”：Short press【 】/【 】button
2、“ ”、“ ”：Short press【MENU】button
3、“ ”：” “Shortpress【 】button

19
5. FM
6. SYS
FM84.75
CH01
Delete
Exit
Save
Delete All
Normal Band
Japan Band
Fine REC
Long REC
FM97.75
FM97.75
FM97.75
CH01
Note：
“FM” menu display
if the MP3 Player has
FM Tuner feature
