Shure RP 6004 User manual

@2015 Shure Incorporated
User Manual RP 6004 rev F.docx
Conferencing and Discussion Systems
RP 6004 Repeater
USER GUIDE

DCS 6000 Digital Conference System User Manual
@2015 Shure Incorporated User Manual RP 6004 rev F.docx
Table of Contents
Table of Contents .................................... 2
Important ................................................ 3
Installation precautions ....................... 3
Compliance ........................................... 3
Information to the user .......................... 3
Cleaning ............................................... 3
Repacking ............................................. 3
Warranty .............................................. 4
Your DCS 000 Conference System ......... 5
The DCS 000 system ........................... 5
System components .............................
Central equipment etc. ........................... 6
Interpreter equipment ............................ 6
Conference units and Ch. selectors .......... 6
Accessories ........................................... 6
Operating instructions ............................. 7
RP 004 Repeater ................................. 7
General description ............................... 7
Features .............................................. 7
User Controls, indications & connectors ... 7
S stem design ...................................... 7
System Setup ........................................ 10
General guidelines .............................. 10
Built into 19” Racks ............................ 10

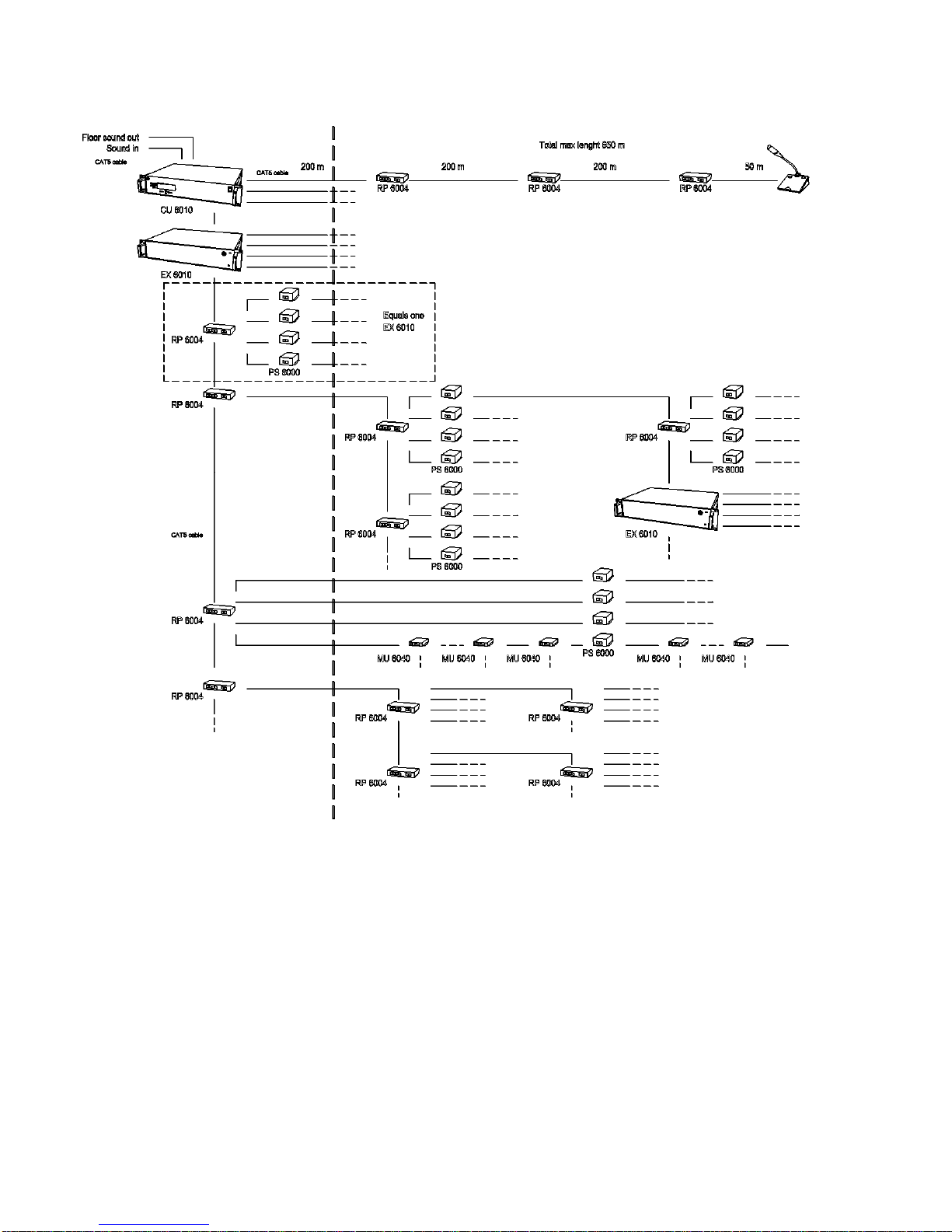

Typical schematics ................................. 11
Large sized conference microphone
system ................................................ 11

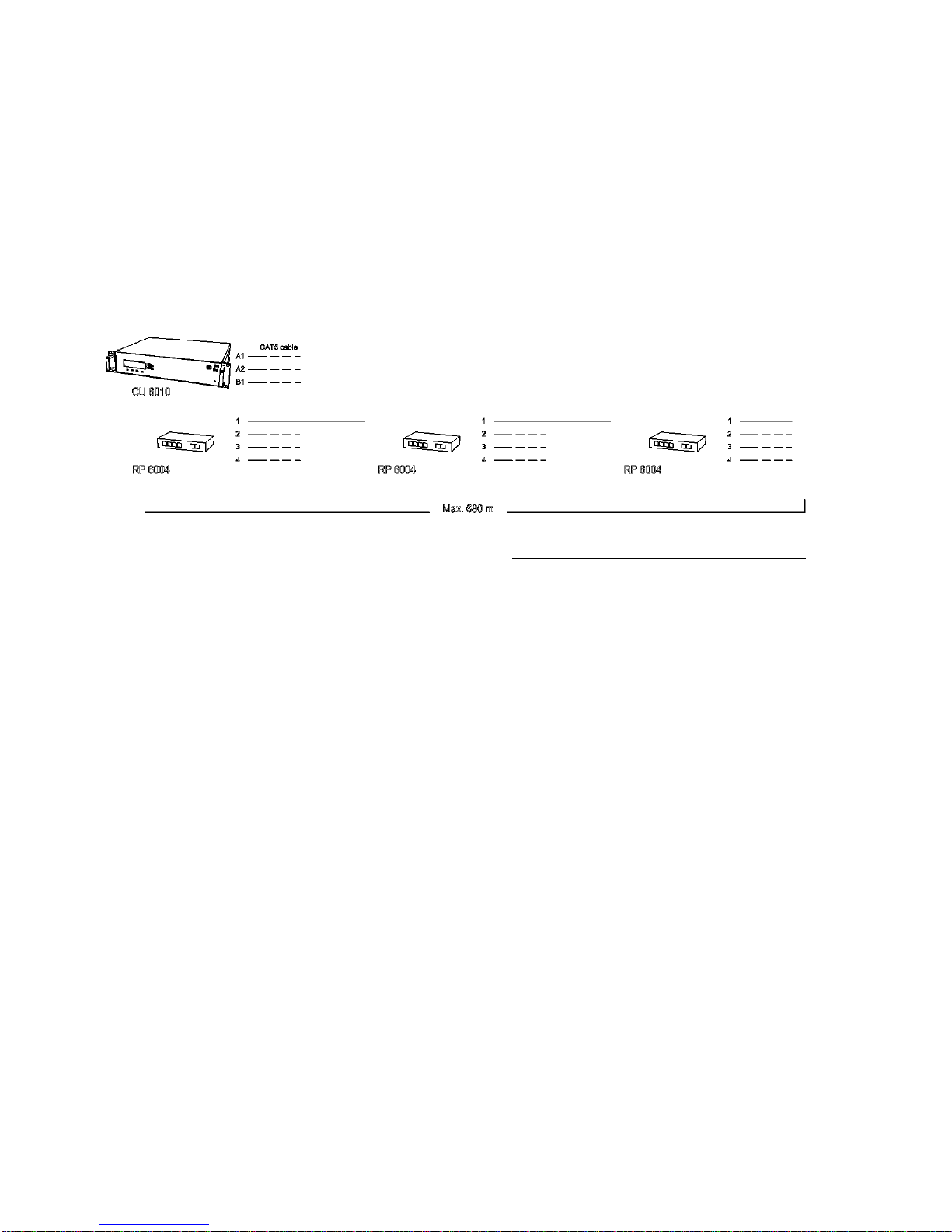

Various configurations with RP 004
Repeater and PS 000 Power Supply .. 12
Technical Specifications ......................... 13
System Specification ........................... 13
Connection Details .............................. 13
Accessories ......................................... 13

DIS Digital Conference System User Manual
3
Important
Installation precautions
Do not install the unit in a location near heat
sources such as radiators or air ducts, or in a place
exposed to direct sunlight, excessive dust or
humidit , mechanical vibration or shock.
To avoid moisture condensations do not install the
unit where the temperature ma rise rapidl .
Compliance
The equipment is intended to be used in
professional audio applications.
Note: This device is not intended to be connected
directl to a public internet network.
EMC conformance to Environment E2:
Commercial and Light Industrial.
Testing is based on the use of supplied and
recommended cable t pes.
The use of other than shielded (screened) cable
t pes ma degrade EMC performance.
Changes or modifications not expressl approved
b Shure Incorporated could void our authorit
to operate this equipment.
This Class B digital apparatus complies with
Canadian ICES-003. Cet appareil numérique de la
classe B est conforme à la norme NMB-003 du
Canada.
Authorized under the verification provision of FCC
Part 15B.
Please follow our regional rec cling scheme for
batteries, packaging, and electronic waste.
Information to the user
This equipment has been tested and found to
compl with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These
limits are designed to provide reasonable
protection against harmful interference in a
residential installation.
This equipment generates uses and can radiate
radio frequenc energ and, if not installed and
used in accordance with the instructions, ma
cause harmful interference to radio
communications. However, there is no guarantee
that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception,
which can be determined b turning the
equipment off and on, the user is encouraged to
tr to correct the interference b one or more of
the following measures:
•Reorient or relocate the receiving antenna.
•Increase the separation between the
equipment and the receiver.
•Connect the equipment to an outlet on a
circuit different from that to which the
•receiver is connected.
•Consult the dealer or an experienced
radio/TV technician for help.
Cleaning
To keep the cabinet in its original condition,
periodicall clean it with a soft cloth. Stubborn
stains ma be removed with a cloth lightl
dampened with a mild detergent solution. Never
use organic solvents such as thinners or abrasive
cleaners since these will damage the cabinet.
Repacking
Save the original shipping cardboard box and
packing material; the will become hand if ou

DIS Digital Conference System User Manual
4
ever have to ship the unit. For maximum protection,
re-pack the unit as originall packed from the
factor .
Warranty
The individual units in the DCS 6000 s stem are
minimum covered b 24 months warrant against
defects in materials or workmanship.

DCS 6000 Digital Conference System User Manual
5
Your DCS 6000 Conference System
The DCS 6000 system
DCS 6000 Digital Conference S stem is a s stem
to be used at meetings, where a number of people
are addressing the ‘Floor’ in a structured manor.
The audio from the Conference units can be heard
in the built in loudspeakers in the units.
The s stem does also allow for simultaneous
interpretation for international conferences where
multiple languages are used.
To enable all participants to understand the
proceedings, interpreters can simultaneousl
translate the speaker’s language as required.
These interpretations are distributed through the
connected Conference units and delegates can
select the language of their choice and listen to it
through headphones.
DCS 6000 Digital Conference S stem comprises of
one CU 61xx Central Unit and a number of
Conference Units, Gooseneck Microphones and
other accessories depending on the s stem
configuration.
The DCS 6000 s stem used with CU 61xx has the
following main features:
•Full digital
•Excellent sound qualit
•“State of the Art” full digital integrated
interpretation, discussion and voting s stem
offering interpretation, language distribution,
conference microphone and voting facilities with
attendance check with Chip Card ™
•Digital transmission of audio from/to the
Conference unit to/from the central unit using a
unique digital DATA and AUDIO bus named
DCS-LAN
•Control of up to 3800 conference units. This
number does not include Channel Selectors,
Repeaters etc. In practical use there are no
limits for the number of Channel Selectors in a
s stem
•Delegate and Interpreter units are powered and
controlled b the CU 61xx Central Unit, which
drives up to app. 50 units with the PS CU power
suppl
•EX 6010 Extension Unit or PS 6001 DCS-LAN
Power Kit is available if more units are required
•Dela ed switching on of power to the two
DCS-LAN chains, to minimize the total ‘in-
rush’ current on the Mains suppl
•Designed for 31 interpreted channels and 8
open microphones
•Audio scrambling of the audio to avoid
eavesdropping
•Designed in a standard 1HE 19” cabinet
•TCP/IP connection on CU 61xx for external
operation of the s stem using a PC or control
s stem such as AMX ® or Crestron ®
•Functionalit on the CU 61xx depends on the
Feature License uploaded into the unit
•Firmware in Delegate units, Interpreter Units,
Central Units etc. is upgradeable
•Operated either stand alone or from a PC
using the CU browser or using SW 6000
software
•Added functionalit and comprehensive
features provided b SW 6000 software
package running on PC
The SW 6000 is an optional software package,
which expands the functionalit of the DCS
6000 s stem. The software runs on standard
computer technolog (Standard PC with
Windows 7, Server 2008 etc.).
Main features of the SW 6000 are:
•Microphone management
•Mimic panel operation
•Interpretation management
•Voting management
•Message handling
•Agenda handling
•Data stored on SQL data base
•Web service interface available for eas links
to external applications
•Multi language user interfaces
•Supports different User t pes with different
priorities, user interfaces and control
possibilities

DCS 6000 Digital Conference System User Manual
6
System components
Central equipment etc.
CU 6105 Central Unit
CU 6110 Central Unit
EX 6010 Extension Unit
PS 6001 DCS-LAN Power Kit consisting of one
PS CU and one PI 6000
PS CU Power Suppl
PI 6000 DCS-LAN Power Inserter
RC 6000 Redundanc Controller
AO 6004 Audio Output box
AO 6008 Audio Output box
RP 6004 Repeater for four chains
JB 6104 Junction Box with 4 outputs
Interpreter equipment
IS 6132 P Interpreter Unit
LS 6132 P Interpreter Loudspeaker
Conference units and Ch. selectors
DC 6990 P Conference Unit (portable) with touch
screen with two built-in channel
selector, Chip-card and 5 voting
buttons, configurable as Delegate,
Dual Delegate or Chairman.
DC 6120 P Conference Unit (portable)
DC 6190 P Conference Unit (portable) with two
built-in channel selectors
DM 6680 P Conference Unit (portable) with voting
CM/DM 6080 F Conference Unit (flush mounted)
with built-in channel selectors
DM 6620 F Conference Unit (flush
mounted) with, Chip-card and 5
voting buttons
CM/DM 6680 F Conference Unit (flush
mounted) with one built-in
channel selector, Chip-card and
5 voting buttons
MU 6040 C/D Microphone Unit for use with
FD/FC front plate with
Loudspeaker, Microphone and
Buttons. Available in Delegate
(D) and Chairman (C) version
MU 6042 D Dual Microphone Unit for use
with FD/FC front plate with
Loudspeaker, Microphone and
two delegate Buttons
DV 6501 F Voting Unit
AM 6040 Ambient Microphone Unit
CS 6340 FV/H Channel Selector (flush
mounted)
Accessories
In addition to the unit a number of accessories
are available like:
•Storage Boxes
•GM 6523 Gooseneck Microphone, 40 cm
•GM 6524 Gooseneck Microphone, 50 cm
•GM 6525 Gooseneck Microphone, 63 cm
•DH 6021 Delegate Headphone
•DH 6223 Stethoscope Headphone
•DH 6225 Ear Clip Headphone
For detailed instruction in how to use the above
units, please refer to the User Manuals for the
relevant products.

DCS 6000 Digital Conference System User Manual
7
Operating instructions
RP 6004 Repeater
General description
The RP 6004 Repeater provides repeater and
splitter functionalit for the DCS 6000 s stem.
One CU 6010 Central Unit is needed in each DCS
6000 s stem, however for expansion of the s stem
the RP 6004 Repeater is suitable.
The RP 6004 consist of the following main parts:
•Repeater board with 4 individual repeated
outputs.
Features
The main features of the RP 6004 Repeater are:
•4 outputs for connection to Delegate Units,
Interpreter Units etc.
•Loop through connectors for connecting
additional RP 6004 or other units, which are
part of the DCS 6000 s stem.
•Dela ed switching on of power to the four
chains, to minimise the total ‘switch-on’
current on the Mains suppl .
•Designed in compact cabinet for eas
installing remotel .
•Optional 19” brackets.
User Controls, indications & connectors
Front plate layout
Front plate controls
The RP 6004 Repeater does not feature an controls
or displa s, however the following indications and
connectors are available:
Loop through connectors
RJ45 connector, 2 pieces
DCS-LAN connectors. Used for connection to one of
the chain connector on the CU 6010 for repeating
the DCS-LAN chain.
The second connector is for connection to other
units with DCS-LAN connector, such as more RP
6004.
The loop through connectors has auto-termination.
Repeated Chain 1, 2, 3 & 4
RJ45 connector, 4 pieces
DCS-LAN connectors. Used for connection to
DM/CM6xxx, CS6032, EX6010, AO6008, JB
6002/4 or IS6032 Interpreter Sets.
Unused repeated chains do not need termination
Power LED
Those LED light up when Power is available on
the connector next to the LED
Incoming data LED
Those LED flashes, when the unit receives
incoming data from connected units on the
connector next to the LED.
System design
There are no settings to be done on the RP 6004
Repeater.
However it is important to observe, that the unit
is onl repeating one of the chains on the CU
6010 Central Unit.

DCS 6000 Digital Conference System User Manual
8
And as so, the specification, which applies to each
of the chain outputs on the CU 6010 Central Units
does also appl to all the repeated outputs in total.
So when designing a s stem to incorporate RP 6004
Repeaters, bear in mind, that as the RP 6004
Repeater is repeating onl one of the four outputs
A (A1 or A2) or B (B1 or B2) the max. number of
languages configured on the four outputs (1, 2,
3 and 4) is totall max. 16.
If more languages are required, Interpreter sets
for those languages have to be connected either
to another RP 6004 Repeater, which is connected
to the other of the two chains (A or B) on the CU
6010, or directl to the other of the two chains
(A or B) on a CU 6010.
‘Repeated chain’ connector
When connecting the RP 6004 Repeaters to the CU
6010 the first RP 6004 is connected to the ‘Loop
through’ connector. The next RP 6004 Repeaters
can be connected to either the other ‘Loop
through’ connector or to one of the ‘Repeated out’
connectors. If using the ‘Repeated’ outputs
maximum two more RP 6004 Repeaters can be
connected extending the maximum cable length
in one chain up to 650 m. The above schematic
is showing the connection using the ‘‘Repeated
out’ connectors.

DCS 6000 Digital Conference System User Manual
9
‘Loop through’ connector
When connecting a number of RP 6004 Repeaters
to the CU 6010 an almost unlimited number of RP
6004 can be connected b using the ‘Loop through’
connector.
The practical limitation is the maximum cable
length in one chain, which is 200 m and suppl of
power to the RP 6004 repeaters. The following
schematic is showing the connections using the
‘Loop through’ connectors.
A combination of the two methods of connection
can be seen in the ‘CU 6010 User Manual’.

DCS 6000 Digital Conference System User Manual
10
System Setup
General guidelines
Connect the RP 6004 to the various units using Cat
5 FTP or STP cables. Please observe the following
guide lines:
•Maximum cable length in one chain is 200 m
without repeater. This includes
interconnection cables between the units.
The max. usable cable length depends on
the units connected and length of feeding
cables etc.
•Maximum cable length in one chain when
using repeaters is 650 m.
•As the RP 6004 Repeater is repeating onl
one of the four outputs A (A1 or A2) or B
(B1 or B2) the max. number of languages
configured on the four outputs (1, 2, 3
and 4) is totall max. 16.
If more languages are required,
Interpreter sets for those languages have
to be divided between both chains (A or
B) on the CU 6010. Normall the
languages are supposed to be divided
equall on chains A (A1 or A2) and B (B1
or B2).
•If the last unit in one chain is a CS 6032
Channel Selector, this unit has to be
terminated with an external termination,
as the CS 6032 does not have an internal
termination.
Built into 19” Racks
The optional 19”-Brackets allow the unit to be
mounted in a rack with either the front (connector
side) or the blank backside to the front side of the
rack. The height is 1HU and allows units to be
stacked using onl 44mm rack height.
Can also be mounted at the back of the rack
cabinet freeing the space at the front of the
rack. The cabinet shall then be deep enough to
allow this.

DCS 6000 Digital Conference System User Manual
11
Typical schematics
The following schematics are showing various configurations:
Large sized conference microphone system

DCS 6000 Digital Conference System User Manual
12
Various configurations with RP 6004 Repeater and PS 6000 Power Supply

DCS 6000 Digital Conference System User Manual
13
Technical Specifications
System Specification
Power consumption ............................... max. 10W
Temperature to guarantee specified performance
........... 5 Deg C. to 40 Deg C. (35 to 80% humidit )
Storage temperature
........ -20 Deg C. to 60 Deg C. (10 to 80% humidit )
Weight ..........................................................1 kg
Dimensions (W x H x D) ............ 264 x 42 x 128 mm
Dimensions with 19” brackets .. 482,6 x 44 x 128 mm
Connectors
DCS-LAN loop through ....................... 2 pieces RJ45
DCS-LAN repeated output .................. 4 pieces RJ45
Specifications are subject to change without
notice.
Connection Details
DCS-LAN Chain
The DCS 6000 s stem uses shielded Cat5e, Cat6
or Cat7 F/UTP or U/FTP cables with shielded RJ45
connectors.
EIA 568-B wiring shall be used.
Important: The names of Cat5/6/7 cable t pe have
changed.
Old name New name
FTP F/UTP
STP U/FTP
UTP U/UTP
Important: Use onl F/UTP or U/FTP (shielded) cables
and shielded RJ45 connectors and not U/UTP cable,
which are unshielded.
How to wire a Cat5e (EIA 568-B) cable to a RJ45
con.:
Pin Function Connector #1 Connector #2
1 In-going + ORG/WHT ORG/WHT
2 In-going - ORG ORG
3 +48V GRN/WHT GRN/WHT
4 0V BLU BLU
5 0V BLU/WHT BLU/WHT
+48V GRN GRN
7 Outgoing - BRN/WHT BRN/WHT
8 Outgoing + BRN BRN
Important: If other color codes are used then the
four pairs are connected as follows:
Pair 2: Pin 1 & 2
Pair 3: Pin 3 & 6
Pair 1: Pin 4 & 5
Pair 4: Pin 7 & 8
The phase of the pairs must be correct and the
wiring spec. as stated in Cat5e (EIA 568-B) have
to be followed.
Note: Cat6 and Cat7 cables can normall onl be
terminated in sockets (female) and not in cable plugs.
Cat6 and Cat7 can thus onl be used for feeding cables
terminating in wall outlets or patch panels.
Accessories
Cat5e Connection Cables (AWG24)
EC 6001-0.5 ....................... Connection Cable 0.5 m
EC 6001-01 ........................... Connection Cable 1 m
EC 6001-02 ........................... Connection Cable 2 m
EC 6001-05 ......................... Connection Cable 5 m
EC 6001-10 ....................... Connection Cable 10 m
EC 6001-20 ....................... Connection Cable 20 m
EC 6001-50 ....................... Connection Cable 50 m

www.shure.com
United States, Canada, Latin
America, Caribbean:
Shure Incorporated
5800 West Touhy Avenue
Niles, IL 60714-4608
USA
Phone: [phone]
Fax: [phone] (USA)
Fax: [phone]
Email: [e-mail]
Europe, Middle East, Africa:
Shure Europe Gmbh
Jakob-Dieffenbacher-Str. 12
75031 Eppingen
Germany
Phone: [phone]
Fax: [phone]
Email: [e-mail]
Asia, Pacific:
Shure Asia Limited
22/F, 625 King's Road
North Point, Island East,
Hong Kong
Phone: [phone]
Fax: [phone]
Email: [e-mail]
