Shure R2 Owner's manual

IMPORTANT!
The Shure UHF MK2 Series wireless systems meet the essential requirements of the
European R&TTE Directive 99/5/E and are eligible to bear the CE marking.
Shure UHF components bearing the MK2 insignia are compatible with other Shure UHF
Series wireless systems, but ARE NOT interchangeable with UHF Series components;
i.e., aUHF MK2 Transmitter cannot be used with a U4 Receiver that lacks the MK2 insig-
nia.
SPECIFICATIONS 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UHF WIRELESS SYSTEM COMPATIBILITY GUIDE 7. . . . . . . . . . . . . . . . . . .
MASTER LIST 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
CARACTÉRISTIQUES TECHNIQUES 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GUIDE DE COMPATIBILITÉ DU SYSTÈME UHF SANS FIL 17. . . . . . . . . . . .
LISTE MAÎTRESSE 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SPEZIFIKATIONEN 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
KOMPATIBILITÄTSLEITSFADEN FÜR UHF–R2–DRAHTLOSESSYSTEME 27. .
HAUPTLISTE 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
ESPECIFICACIONES 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GUÍA DE COMPATIBILIDAD DE SISTEMAS INALÁMBRICOS DE UHF 37. .
LISTA MAESTRA 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
DATI TECNICI 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
GUIDA ALLA COMPATIBILITÀ DEL SISTEMA SENZA FILI UHF 47. . . . . . . .
L’ELENCO PRINCIPALE 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
UHF MK2 Wireless System
27A8754 (AF)
2001, Shure Incorporated Printed in U.S.A.
USER GUIDE SUPPLEMENT
BEDIENUNGSANLEITUNG ANHANG
R2 (800–830 MHz)
RENSEIGNEMENT SUPPLÉMENTAIRES
INFORMACION ADICIONAL
INFORMAZIONI SUPPLEMENTARI

2
SPECIFICATIONS
RF Carrier Frequency Range
800–830 MHz
Working Range
U1, U2: 152.4 m, minimum, under typical conditions; 487.6 m line of sight
NOTE: Actual working range depends on RF signal absorption, reflection and interference
Audio Frequency Response
50 to 15,000 Hz, ±2 dB.
NOTE: Overall system frequency response depends on the microphone element
Gain Adjustment Range
U1: 0 to 40 dB
U2: 0 to 26 dB
Modulation
±18 kHz deviation compressor-expander system with pre-and de-emphasis
RF Power Output
U1, U2: 10 mW maximum
Dynamic Range
>102 dB, A-weighted
RF Sensitivity
U4S U4D
–110 dBm
12 dB SINAD –107 dBm 12 dB SINAD
–105 dBm
30 dB SINAD –102 dBm 30 dB SINAD
Image Rejection
90 dB typical
Spurious Rejection
75 dB typical
Ultimate Quieting (ref. ±18 kHz deviation)
>100 dB, A-weighted
Audio Polarity
Positive pressure on microphone diaphragm (or positive voltage applied to tip of
WA302 phone plug) produces positive voltage on pin 2 with respect to pin 3 of low
impedance output and the tip of the high impedance 1/4-inch output
System Distortion (ref. ±18 kHz deviation, 1 kHz modulation)
0.3% Total Harmonic Distortion typical
Power Requirements
U1, U2: 1.5V AA alkaline battery (Duracell MN1500 recommended); Nicad optional
U4: 230 Vac , 50/60 Hz
Power Consumption:
U4S: 9.6 W min., 13.2 W max.
U4D: 12 W min.,16 W max.
UA845: 15 W min., 16 W max.
Battery Life (Typical)
U1, U2: 12 hours (with Duracell MN1500 1.5V AA alkaline battery)
Operating Temperature Range
-6.7°C to +49°C
NOTE: Battery characteristics may limit this range

3

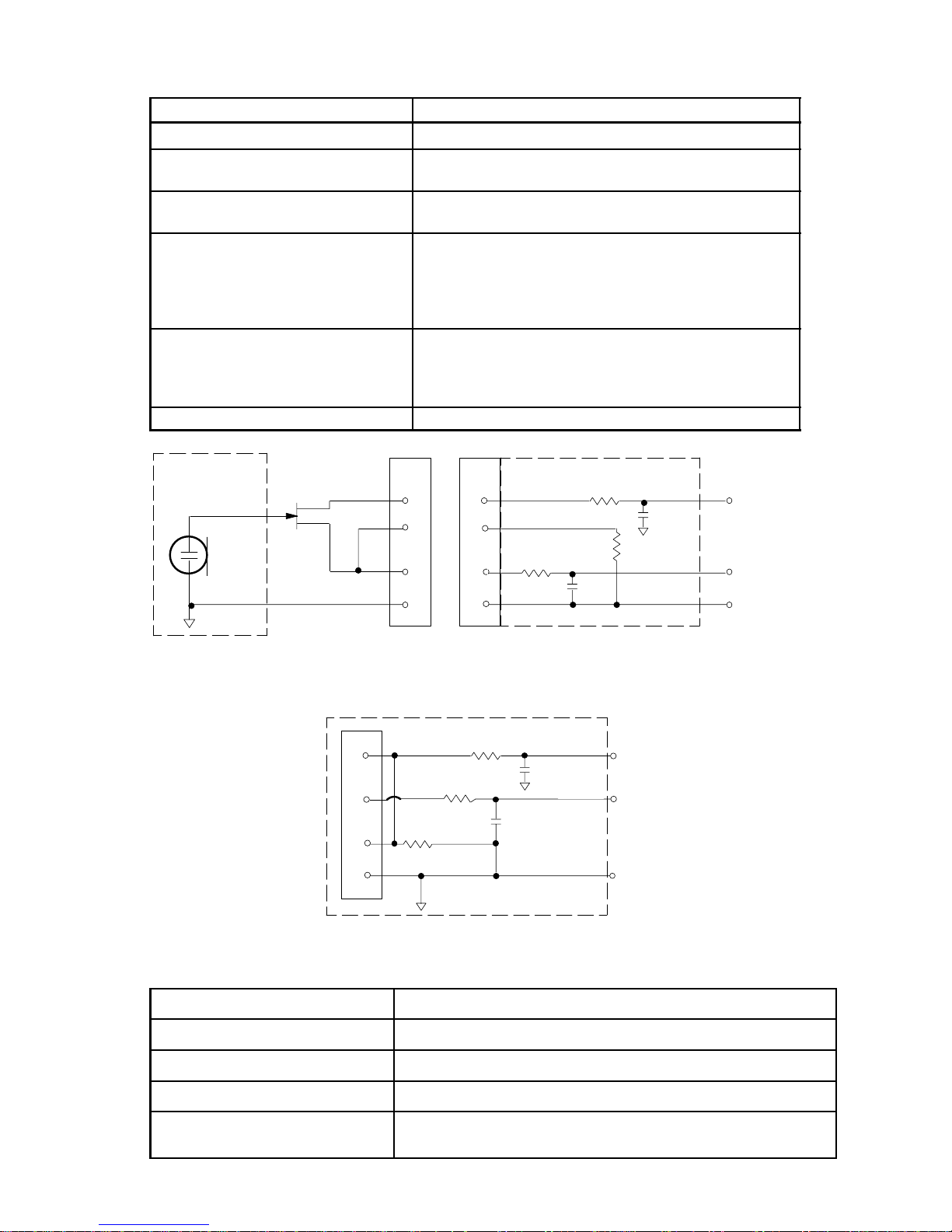

U1 Transmitter Input (Figure 1)
Connector: 4-pin miniature (TA4F) or LEMO
Input Configuration: Unbalanced, active
Actual Impedance: 18 kΩwith lavalier microphone
1 MΩwith instrument cable
Maximum Input Level: 6 Vp–p (+7 dBV) for 1% THD at minimum gain
setting using 1 kHz signal.
TA4F Connector Pin
Assignments:
Pin 1: Tied to Ground
Pin 2: Tied to +5 V
Pin 3: Tied to Audio
Pin 4: Tied thru 20kΩResistor to Ground.
(On instrument adapter cable, Pin 4 floats)
LEMO Connector
Pin Assignments:
Pin 1: Tied to Pin 3 and 10 kΩ to Ground
Pin 2: +5V
Pin 3: Tied to Pin 1
Pin 4: Tied to Shield (Ground for Positive Bias)
Voltage for Remote Power: +5 V supplied to microphone cartridge
27 pF
20K Ω
27 pF
+5 V
AUDIO
GROUN
D
U1 MIC JACK BOARD
2
1
4
500 Ω
500 Ω
MICROPHONE
ELEMENT
3
2
1
3
4
NOTE: LAVALIER MIC TIES PINS 3 AND 4
TOGETHER; GUITAR CABLE DOES NOT.
27 pF
499 Ω
499 Ω
3
27 pF
10K Ω
AUDIO
SHIELD
U1L (LEMO 4 PIN) MIC JACK BOARD
1
4
2BIAS
FIGURE 1
U1 Transmitter Output
Connector: SMC
Actual Impedance: 50 Ω
Nominal Output Level: +10 dBm
Maximum Output Level: +11 dBm
Pin Assignments: Shell = Ground
Center = Signal

4
U2 Transmitter Input
Input Configuration: Unbalanced, active
Actual Impedance: 20 kΩ
Maximum Input Level: 3 Vp–p (0.5 dBV) for 1% THD at minimum gain setting
using 1 kHz signal.
U2 Transmitter Output
Connector: SMC
Actual Impedance: 50 Ω
Nominal Output Level: +10 dBm
Maximum Output Level: +11 dBm
Pin Assignments: Shell = Ground
Center = Signal
U4S and U4D Receiver Input
Connector: Antenna Power Input Network Interface
Connector Type: BNC IEC 25–Pin D
Actual Impedance: 50 Ω–– ––
Nominal Input
Level: –95 to –30 dBm 90–230 VAC, 50/60 Hz CMOS Logic
Maximum Input
Level: +6 dBm (–20 dBm
recommended)
230 VAC, 50/60 Hz ––
Pin Assignments: Shell = Ground
Center = Signal IEC Standard ––
Voltage for
Remote Power: 12 Vdc, 150 mA maximum –– 5V, 700 mA max.
U4S and U4D Receiver Output
Connector: Monitor Power
Output High Z Audio Low Z Audio* Network Interface
Output
Configuration: Unbalanced
mono, 1/4 inch –– Un- balanced Balanced See Appendix
Actual
Impedance: 300 Ω–– 1 kΩ30 ΩSee
Appendix
Nominal
Input Level: –– 90 to 230
VAC, 5A –– –– CMOS Logic
Pin
Assignments: Tip = Hot
Ring = Hot
Sleeve = Gnd
IEC
Standard Tip = Hot Ring/
Sleeve =
Gnd
1 = Ground
2 = Hot
3 = Hot
See
Appendix
Voltage/
Current/
Phantom
Power
Protection?
Yes –– Yes Yes 5V, 700 mA
resettable
polyfuse
*Output Level: Microphone Level = Line Level –30 dB

5
Overall Dimensions
U1: 92.2 mm L x 64.7 mm W x 24.2 mm D
U2/58:254 mm L x 50.8 mm Dia.
U2/BETA 58: 254 mm L x 53.2 mm Dia.
U2/87:228.6 mm x 49.2 mm Dia.
U2/BETA 87: 216 mm L x 50.8 mm Dia
U4S/U4D: 44.5 mm H x 482.6 mm W x 295.3 mm D
Net Weight
U1: 175.2 g without battery
U2/58, U2/BETA 58: 375.6 g without battery
U2/87, U2/BETA 87: 303.1 g without battery
U4S: 3.30 kg
U4D: 3.85 kg
Certification
The Shure UHF series wireless systems meet the essential requirements of the
European R&TTE Directive 99/5/EC and are eligible to carry the CE marking.
U1, U2: Conforms to European ETSI Standard EN 300 422 (Parts 1 and 2) and ETS
300445/A1.
U4, U4D: Conforms to European ETSI Standard EN 300 445/A1 and EN 60950.
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN PROFESSIONAL
ENTERTAINMENT (CLASS I) AND SIMILAR APPLICATIONS.
FURNISHED ACCESSORIES
Microphone Stand Adapter (U2) WA371. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zipper Bag (U1) 26A13. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Zipper Bag (U2) 26A14. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Screwdriver 80A498. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Coaxial Antenna Cable (2 ft) UA802. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1/2 Wave Antenna UA820A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Transmitter Carrying Case 65A8257. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Carrying Case Insert 29B1577. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
OPTIONAL ACCESSORIES
Instrument Adapter Cable (U1) WA302. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument Adapter Cable w/ right angle 1/4”plug (U1) WA304. . . . . . . . . . . . . . . . . . .
TA4F Female 4-Pin Miniature Connector (U1) WA330. . . . . . . . . . . . . . . . . . . . . . . . . . .
In-Line Audio Switch (U1) WA360. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1.8 Meter (6 ft) Receiver-Mixer Cable (1/4”phone to XLR) WA410. . . . . . . . . . . . . . . . .
7.6 Meter (25 ft) Antenna Extension Cable UA825. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15.2 Meter (50 ft) Antenna Extension Cable UA850. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
30.4 Meter (100 ft) Antenna Extension Cable UA8100. . . . . . . . . . . . . . . . . . . . . . . . . . .
In–Line Active Remote Antenna Kit (800 –830 MHz) UA830MB. . . . . . . . . . . . . . . . . .
Antenna/Power Distribution System, 230 Vac UA845MB. . . . . . . . . . . . . . . . . . . . . . . . .
Directional Antenna UA870MB. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6
REPLACEMENT PARTS
Hardware Kit (screwdriver, mounting feet, cable clamps) 90VL1371. . . . . . . . . . . . . . .
Bulkhead Adapters for Front–Mounting Antennas 95A8647. . . . . . . . . . . . . . . . . . . . . . .
230 VAC Power Cord (Schuko mains connector) 95A8247. . . . . . . . . . . . . . . . . . . . . . . .
304 mm (12 in.) Daisy–Chain Power Cord (230 V) 95A8678. . . . . . . . . . . . . . . . . . . . . .
SM58Cartridge with Grille (U2/58) R158. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BETA 58A Cartridge with Grille (U2/BETA 58) R179. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
SM87 Cartridge with Grille (U2/87) R165. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BETA 87A Cartridge with Grille (U2/BETA 87) R166. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
BETA 87C Cartridge with Grille (U2/BETA 87) RPW100. . . . . . . . . . . . . . . . . . . . . . . . . .
Matte Silver Grille (U2/58) RK143G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Matte Silver Grille (U2/BETA 58) RK265G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Matte Silver Grille (U2/BETA 87) RK313G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Black Grille (U2/87) RK214G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Black Grille (U2/BETA 58) RK323G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Black Grille (U2/BETA 87) RK324G. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Belt Clip (U1) 53A8247A. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna (U1) 95A8646. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Antenna (U2) 95A2029. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
LICENSING INFORMATION
Changes or modifications not expressly approved by Shure Incorporated could void
your authority to operate the equipment. Licensing of Shure wireless microphone equip-
ment is the user’s responsibility, and licensability depends on the user’s classification
and application, and on the selected frequency. Shure strongly urges the user to contact
the appropriate telecommunications authority concerning proper licensing, and before
choosing and ordering frequencies.
R&TTE CONFORMITY INFORMATION
IMPORTANT! Shure Models U1 and U2 Transmitters meet the essential requirements
of the European R&TTE Directive 99/5/EC and are eligible to carry the CE marking.
O682
Shure Model U4 Receivers meet the essential requirements of the European R&TTE Di-
rective 99/5/EC and are eligible to carry the CE marking.
THIS RADIO EQUIPMENT IS INTENDED FOR USE IN MUSICAL PROFESSIONAL
ENTERTAINMENT AND SIMILAR APPLICATIONS.
NOTE: THIS RADIO APPARATUS MAY BE CAPABLE OF OPERATING ON SOME
FREQUENCIES NOT AUTHORIZED IN YOUR REGION. PLEASE CONTACT YOUR
NATIONAL AUTHORITY TO OBTAIN INFORMATION ON AUTHORIZED FREQUEN-
CIES FOR WIRELESS MICROPHONE PRODUCTS IN YOU REGION
Frequency Range of Apparatus: 692 MHz –862 MHz
Licensing: A ministerial license to operate this equipment may be required in certain
areas. Consult your national authority for possible requirements.
Shure Transmitters Models U1 and U2 may be used in the countries and frequency
ranges listed in Table 1.

7
TABLE 1
Country Code U1-M3, U2-M3
(692 - 716
MHz)
U1-R3, U2-R3
(774 - 782
MHz)
U1-R7, U2-R7
(782 - 810
MHz)
U1-R6, U2-R6
(800 - 820
MHz)
U1-R2, U2-R2
(800 - 320
MHz)
U1-S2, U2-S2
(838 - 862
MHz)
A 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
B 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
CH 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
D 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
E 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
F 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* *
GB 692–716 MHz* 774–782 MHz* 782–810 MHz* * * 838–862 MHz*
GR 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
I 692–716 MHz* 774–782 MHz* 782–810 MHz* ***
IRL 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
L 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
NL 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
P 692–716 MHz* 774–782 MHz* 782–810 MHz* 800–820 MHz* 800–830 MHz* 838–862 MHz*
DK * * 800–810 MHz* 800–820 MHz* 800–830 MHz* *
FIN * * 800,1–810
MHz* 800,1–819,9 MHz* 800,1–819,9 MHz* *
N * * 800–810 MHz* 800–820 MHz* 800–830 MHz* *
S * * 800–810 MHz* 800–814 MHz* 800–814 MHz* *
All Other
Countries ******
*Please contact your national authority for information on available legal frequencies for your area
and legal use of the equipment.
UHF WIRELESS SYSTEM COMPATIBILITY GUIDE
Table 2 provides a convenient overview of frequency-compatible systems in the 800.000 to
830.000 MHz band. Each of the primary groups contains multiple channels which are all
compatible with one another. Contact the Shure Customer Service Department if you need
additional information on frequency selection and system setup.
Up to 22 Shure UHF Wireless Systems can be operated simultaneously within the
800–830 MHz band if using the discontinued UHF MB versions, or a combination of MB
and MK2 R2 versions. Up to 31 UHF MK2 systems can be operated simultaneously with-
in the 800–830 MHz band.
Note: Combinations of Shure UHF transmitters and UHF MK2 receivers, and combinations
of UHF MK2 transmitters and UHF receivers are NOT supposed to work together. Always
use a transmitter–receiver combination of the same frequency version (R2 or MB).
Groups 1–9 MUST be chosen if the installation includes a pure setup of Shure UHF
Wireless Systems (frequency version MB only) or a mixed setup of Shure UHF and Shure
UHF MK2 Wireless Systems (frequency versions MB and R2)
Groups 1–9 CAN be chosen if the installation includes a pure setup of Shure UHF MK2
Wireless Systems (frequency version R2 only).
Groups 10–25 CAN ONLY be chosen if the installation includes a pure setup of Shure
UHF MK2 Wireless Systems (frequency version R2 only).

8
FREQUENCY GROUP CONTENTS
Groups 1–9*
Group 1 complies with the German RegTP regulations for public users (“Nutzergruppe 4“). It
can also be used in Sweden
Groups 2–8 are for fixed indoor installations (“Nutzergruppe 5“) in Germany (TV Chan-
nels 62–63).
Group 9 is limited to frequencies between 800.100 MHz and 819.900 MHz. (Due to Dan-
ish regulations, these frequencies are centered on 0.1 MHz frequencies).
Groups 10–25*
Groups 10–12 provide the maximum number of compatible frequencies between 800
and 830 MHz.
Groups 13–15 complies with the new German RegTP regulations for public users (“Nut-
zergruppe 4“) in the new legal frequency range up to 814 MHz.
Group 16 complies with the new German RegTP regulations for users of “Nutzergruppe
3A“in the new legal frequency range up to 814 MHz (TV Channels 62–63).
Group 17 complies with the new German RegTP regulations for users of “Nutzergruppe
3B“in the new legal frequency range up to 814 MHz (TV Channels 62–63).
Group 18 complies with the new German RegTP regulations for users of “Nutzergruppe
3C“in the new legal frequency range up to 814 MHz (TV Channels 62–63).
Group 19 complies with the new German RegTP regulations for users of “Nutzergruppe
3D“in the new legal frequency range up to 814 MHz (TV Channels 62–63).
Group 20 complies with the new German RegTP regulations for broadcast users of “Nut-
zergruppe 2“in the new legal frequency range up to 814 MHz (TV Channels 62–63).
Group 21 complies with the new German RegTP regulations for broadcast users of “Nut-
zergruppe 1“in the new legal frequency range up to 814 MHz (TV Channels 62–63).
Groups 22 and 23 are preferred for use in Sweden and provide the maximum number
of compatible frequencies between 800 and 814 MHz.
Groups 24 and 25 are preferred for use in the Netherlands and provide the maximum number
of compatible frequencies between 806 and 814 MHz (European TV channel 63).
*Please contact your national frequency authority to get information on the available legal frequencies for your
area and legal use of the equipment. TABLE 2
SYSTEM COMPATIBILITY GUIDE R2 FREQUENCY BAND (800 –830 MHz)
Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8
1802.325 802.050 802.300 803.050 803.625 803.375 802.425 802.300
2803.075 802.675 803.925 804.550 804.125 804.500 803.300 803.050
3804.800 804.425 804.925 805.300 805.000 806.875 803.675 804.050
4805.200 805.050 806.175 808.175 807.125 808.000 806.675 806.550
5806.850 807.050 808.175 808.800 808.500 808.875 807.125 807.550
6809.150 808.550 808.675 811.300 808.875 810.125 808.925 808.300
7810.150 810.550 810.550 812.050 809.625 810.625 809.425 808.800
8812.800 811.050 812.175 812.550 811.000 811.875 810.425 809.550
9819.100 812.300 813.175 813.550 811.625 812.875 813.425 810.550
10 819.600 814.675 814.425 814.175 816.375 814.625 813.925 811.300
11 821.150 815.300 817.925 816.550 818.750 818.125 815.925 811.800
12 821.750 816.425 819.175 817.550 819.375 819.500 816.800 813.300
13 822.950 819.800 819.675 821.275 820.875 820.125 818.175 819.300
14 825.150 821.550 821.175 822.800 821.375 822.625 818.675 819.800
15 826.000 822.800 821.800 823.300 822.125 823.125 820.925 821.800
16 827.100 823.800 823.425 826.550 822.625 823.875 821.675 822.175

9
Channel Group 1 Group 2 Group 3 Group 4 Group 5 Group 6 Group 7 Group 8
17 827.600 824.550 824.675 827.300 823.625 825.375 822.050 823.050
18 828.800 826.925 826.800 828.800 826.125 826.375 822.675 825.675
19 828.175 828.550 826.875 827.875 825.675 826.050
20 828.800 827.375 828.625 826.175 827.050
21 829.675 828.250 829.125 827.675 827.550
22 829.375 829.875 828.925 828.675
23
24
25
26
27
28
29
30
31
... MB/R2 MB/R2 MB/R2 MB/R2 MB/R2 MB/R2 MB/R2 MB/R2
Channel Group 9 Group 10 Group 11 Group 12 Group 13 Group 14 Group 15 Group 16
1802.200 800.300 800.550 801.350 800.575 800.650 800.650 800.325
2803.100 800.900 801.150 802.400 801.175 801.150 801.125 800.900
3803.500 801.800 802.050 803.300 801.925 801.925 801.450 801.725
4804.300 802.550 802.800 806.150 802.225 802.250 801.925 802.825
5805.900 803.600 803.850 806.750 803.050 803.025 802.550 803.350
6806.700 805.250 805.500 808.850 803.725 803.550 803.025 807.200
7807.100 806.150 806.400 809.300 804.775 806.900 804.775 807.900
8808.000 807.650 807.900 810.050 805.075 807.450 808.575 808.325
9814.100 808.550 808.800 810.500 808.625 808.550 809.175 808.900
10 814.600 809.000 809.250 811.400 809.175 809.100 809.925 809.725
11 815.700 809.900 810.150 812.600 809.925 809.425 810.250 810.825
12 816.100 811.100 811.350 813.050 810.250 809.925 811.050 811.350
13 818.400 811.550 811.800 813.650 811.050 811.025 811.625 812.100
14 818.800 812.450 812.700 814.100 811.600 811.700 812.775
15 819.600 812.900 813.150 815.000 812.775 812.800 813.150
16 815.150 815.400 815.750 813.100 813.300 813.775
17 815.600 815.850 817.100 813.775
18 816.500 816.750 817.550
19 817.550 817.800 819.800
20 819.350 819.600 820.850
21 819.800 820.050 821.300
22 820.850 821.100 823.100
23 823.700 823.950 823.550
24 824.300 824.550 824.450
25 824.750 825.000 825.200
26 825.650 825.900 826.100
27 826.400 826.650 827.900
28 827.300 827.550 828.800
29 827.900 828.150 829.400
30 828.350 828.600 829.850
31 829.550 829.800
... MB/R2 R2 R2 R2 R2 R2 R2 R2

10
Channel Group
17 Group 18 Group 19 Group 20 Group 21 Group 22 Group 23 Group 24 Group
25
1 800.375 800.425 800.475 800.050 800.175 800.025 800.025 806.000 806.000
2 800.950 801.000 801.050 800.800 800.750 800.475 800.475 806.450 806.450
3 801.775 801.825 801.875 801.325 801.575 801.075 801.075 807.050 807.050
4 802.875 802.925 802.975 802.425 802.675 801.525 801.825 807.500 807.500
5 803.400 803.450 803.500 803.250 803.200 802.275 803.025 808.250 808.250
6 804.150 806.750 806.800 803.825 803.950 802.875 803.925 808.850 808.700
7 805.600 808.425 808.475 804.250 804.425 803.925 804.675 809.300 809.300
8 806.700 809.000 809.050 804.950 805.900 804.375 805.125 809.900 810.200
9 808.950 809.825 809.875 805.500 806.500 806.025 805.875 810.800 810.800
10 809.775 810.925 810.975 808.800 809.575 807.075 806.475 811.400 811.250
11 811.400 811.450 811.500 809.325 810.675 807.975 806.925 811.850 812.000
12 812.150 812.675 812.725 810.425 811.200 808.575 808.125 812.450 812.450
13 812.625 813.650 813.700 811.250 811.950 809.025 808.575 813.200 813.050
14 813.600 811.825 812.425 809.625 809.475 813.650 813.500
15 812.250 813.400 810.375 810.075
16 812.950 813.900 810.825 810.975
17 813.500 811.425 811.425
18 812.325 812.175
19 812.925 812.625
20 813.375 813.525
21 813.975 813.975
22
23
24
25
26
27
28
29
30
31
... R2 R2 R2 R2 R2 R2 R2 R2 R2
