Side-Power PJC 212 User manual

Made in Norway
©Sleipner Motor AS 2020
SLEIPNER MOTOR AS
P.O. Box 519
N-1612 Fredrikstad
Norway
www.side-power.com
Document id:
Revision:
Date:
2 917
12
Control Panels
PJC 211 & PJC 212
To download your language go to www.side-power.com
Keep this
manual onboard !
2020

22 917 12 2020
-
PJC 211 & 212
DECLARATION OF CONFORMITY
Sleipner Motor AS
P.O. Box 519, Arne Svendsensgt. 6-8
N-1612 Fredrikstad, Norway
Declare that this product with accompanying standard control systems complies with
the essential health and safety requirements according to:
DIRECTIVE 2013/53/EU
DIRECTIVE 2014/30/EU
DIRECTIVE 2014/35/EU
MC_0020
Considerations and Precautions ........................................... 3
Installation Manual
Panel Layout & Functions ......................................................... 4
Technical Specications & Measurements ............................... 5
Connections .............................................................................. 6
Setup Procedure ....................................................................... 7
Menu System Setup ................................................................. 7
System Devices ........................................................................ 7
Control Panel Setup Buttons .................................................... 8
Combining Stabilizer with AC & DC Thrusters .......................... 8
AC System - PDC 101 Setup ................................................... 8
AC System - PDC 201 Setup ................................................... 8
AC System - PDC 301 Setup ................................................... 9
DC System - Automatic Main Switch Setup ............................ 10
DC System - PPC, SR150000, SR61242 Setup .................... 10
DC System - RCRS 1 & RCRS 2 Setup ................................. 11
DC System - MSI8730 Setup ................................................. 11
DC System - ESI 1 & GW 1 Setup ......................................... 11

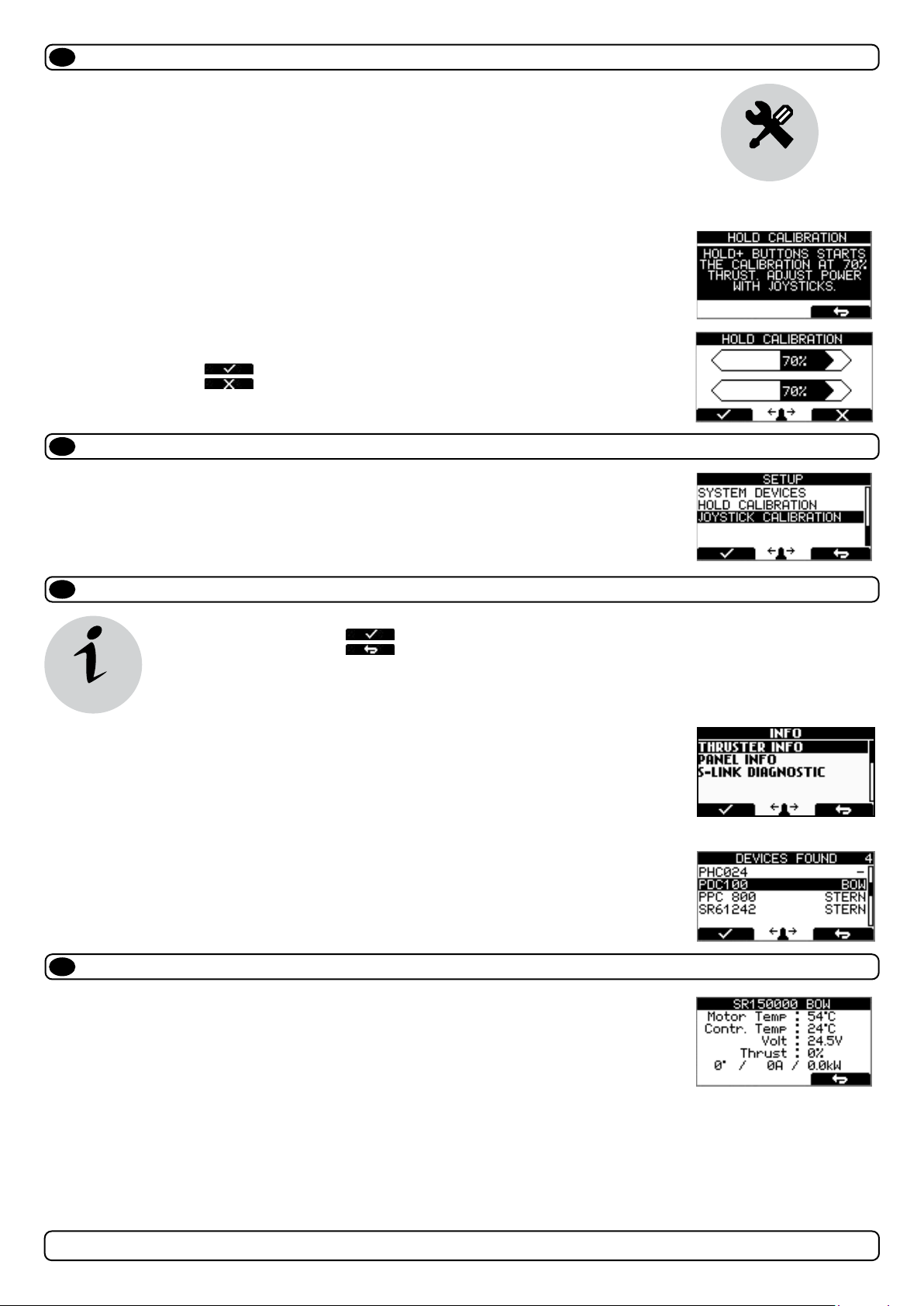

Hold Calibration ...................................................................... 12
Joystick Calibration ................................................................. 12
Menu System Information ....................................................... 12
Information - PPC, SR150000, SR61242 ............................... 12
Information - PDC101 & PDC201 ........................................... 13
Information - PDC301 ............................................................. 13
Panel Information ................................................................... 13
S-Link Diagnostic .................................................................... 13
Menu System - Panel Setup ................................................... 14
Alarm System ......................................................................... 15
SAC Power Managemant Status ............................................ 15
User Manual
Proportional Thruster Display .................................................. 16
Proportional Thruster Display Symbols ................................... 17
HOLD Function........................................................................ 18
Calibration ............................................................................... 18
Warning Signals When Using ’HOLD’ Function....................... 18
MENU System......................................................................... 19
Alarm Descriptions .......................................................... 20 - 21
PHC-3 Alarm Descriptions............................................... 22 - 23
PDC-301 Alarm Descriptions................................................... 23
Notes ............................................................................... 24 - 26
Product Information
Note Type, Location and Serial Numbers................................ 27
Contents
EN

3
2 917 12 2020
-
PJC 211 & 212
DECLARATION OF CONFORMITY
Sleipner Motor AS
P.O. Box 519, Arne Svendsensgt. 6-8
N-1612 Fredrikstad, Norway
Declare that this product with accompanying standard control systems complies with
the essential health and safety requirements according to:
DIRECTIVE 2013/53/EU
DIRECTIVE 2014/30/EU
DIRECTIVE 2014/35/EU
MC_0020
MC_0105
Considerations and Precautions
EN
IMPORTANT
If installing S-link products DO NOT connect any other control equipment to the S-link controlled products except Side-Power original
S-link products or via a Side-Power supplied interface product made for interfacing with other controls. Any attempt to directly control or
at all connect into the S-link control system without the designated and approved interface will render all warranties and responsibilities
for the complete line of Side-Power products connected void and null. If you are interfacing by agreement with Sleipner and through a
designated Side-Power supplied interface, you are still required to also install at least one original Side-Power control panel to enable
effi cient troubleshooting if necessary.
It is the installers responsibility
When installing Side-Power equipment to follow the outlined regulations/ classi cation rules (electrical/ mechanical) according to
international or special national regulations. Instructions in this guide cannot be guaranteed to comply with global electric/ mechanic
regulations/ classi cation rules.
To follow all health and safety laws in accordance with their local outlined regulations/ classi cation rules.
Before installation, it is important that the installer reads this guide to ensure necessary acquaintance with this product.
The recommendations made in this manual are guidelines ONLY, and Sleipner Motor AS (Side-Power) strongly recommend that
before installation, advice is obtained from a naval architect familiar with the particular vessel and regulations/ classi cations.
This manual is intended to support educated/ experienced staff and is therefore not suffi cient in all details for professional
installation. (NB: These instructions are only general instruction. If you are not skilled to do this work, please contact professional
installers for assistance.)
All electrical work must be done by a licensed professional.
Faulty installation of the tunnel, thruster or panel will render all warranty given by Sleipner Motor AS void. MC_0038

42 917 12 2020
-
PJC 211 & 212
Panel Layout & Functions
EN MC_0116
MENU
Speed control joystick
for bow thruster.
Speed control joystick
for stern thruster.
Information display,
see following pages
for details.
Press both “ON” buttons
simultaneously to
activate control panel.
Press to change between
day and night light.
Press and hold for 3 seconds to
access menu system and choose
items in menus.
Press to de-activate
control panel or cancel
or go back in menu system
or mute internal alarm
buzzer.
MENU
MENU
Speed control
joystick for thruster
Information display,
see following pages
for details.
Press both “ON” but-
tons simultanously to
activate control panel.
Press to change
between day and
night light
Press and hold for 3 seconds
to access menu system and
choose items in menus
Press to de-activate
control panel or cancel or
go back in menu system or
mute internal alarm buzzer.
Holding function for continous
running of bow and stern
thrusters together in the
direction of the arrows at
selected power
Press “+” for more and “-”
for less power (6 steps).
If any control unit are
running the thruster in
opposite direction to the
hold function, the hold
function will be deactivated.
PJC-211
PJC-212
MENU
MENU
Holding function for au-
to-running of bow and stern
thrusters together in the direc-
tion of the arrows at selected
power
Press “+” for more and “-”
for less power (6 steps).
If any control unit are
running the thruster in
opposite direction to the hold
function, the hold function will
be deactivated.

5
2 917 12 2020
-
PJC 211 & 212
Panel Layout & Functions
EN MC_0116
MENU
Speed control joystick
for bow thruster.
Speed control joystick
for stern thruster.
Information display,
see following pages
for details.
Press both “ON” buttons
simultaneously to
activate control panel.
Press to change between
day and night light.
Press and hold for 3 seconds to
access menu system and choose
items in menus.
Press to de-activate
control panel or cancel
or go back in menu system
or mute internal alarm
buzzer.
MENU
MENU
Speed control
joystick for thruster
Information display,
see following pages
for details.
Press both “ON” but-
tons simultanously to
activate control panel.
Press to change
between day and
night light
Press and hold for 3 seconds
to access menu system and
choose items in menus
Press to de-activate
control panel or cancel or
go back in menu system or
mute internal alarm buzzer.
Holding function for continous
running of bow and stern
thrusters together in the
direction of the arrows at
selected power
Press “+” for more and “-”
for less power (6 steps).
If any control unit are
running the thruster in
opposite direction to the
hold function, the hold
function will be deactivated.
PJC-211
PJC-212
MENU
MENU
Holding function for au-
to-running of bow and stern
thrusters together in the direc-
tion of the arrows at selected
power
Press “+” for more and “-”
for less power (6 steps).
If any control unit are
running the thruster in
opposite direction to the hold
function, the hold function will
be deactivated.
Description Value
Operating temperature -10 to + 60 degrees C.
Storage temperature -20 to + 70 degrees C.
IP rating front IPx6
IP rating back IPx4
Humidity max 95% RH
EMC tested Acc. to EN 60533
Weight 215 gr.
Description Minimum Maximum Units Comment
Input voltage 9 31 Volt DC Powered from S-Link
Current Voltage 20 120 mA
External Alarm Buzzer Voltage 31 Volt DC
External Alarm Buzzzer Current 500 mA Internally fused













 





 


Cut out dimensions for PJC panel
This illustration is for measurements use only. Use
external template when mounting.
Technical Specifi cations and Measurements
EN MC_0104

62 917 12 2020
-
PJC 211 & 212
Supply
+12V / 24V DC
(S-link)
+
-
External alarm buzzer
12V / 24V DC - max 0,5A
Internal
fuse/relay
External alarm/buzzer connection
Rearside
ofpanel
Connections for optional external buzzer/audible alarm.
Connections
EN MC_0104

7
2 917 12 2020
-
PJC 211 & 212
Supply
+12V / 24V DC
(S-link)
+
-
External alarm buzzer
12V / 24V DC - max 0,5A
Internal
fuse/relay
External alarm/buzzer connection
Rearside
ofpanel
Connections for optional external buzzer/audible alarm.
Connections
EN MC_0104
Setup Procedure
EN MC_0094
At the  rst startup of a new system, one of the two screens below will be shown:
Menu System Setup
System Devices
EN
EN
MC_0094
MC_0094
Setup
SETUP
Move between menu items with the (stern) joystick.
Press the button below to select the highlighted menu entry.
Press the button below to return to the previous menu.
Setting done under SETUP will be sent to all other panels in the system.
Default in systems
without stabilizers
SYSTEM DEVICES
View all devices connected to S-Link and manually change setup values.
A PIN code is required to enter the SYSTEM DEVICES menu. Use the (stern) joystick to set the pin code one
number at a time, press button below the -symbol to jump to next number and con rm. The pin code is
“9 9 9 9”.
The number of devices found is shown in the upper right corner of the display. Use (stern) joystick to move
between the installed devices.
The list of devices found can  ll more than one screeen. A scroll bar indicates the position of the selected item.
(NB: Re-entering the SYSTEM DEVICES menu within 15 minutes does not require re-entering PIN code.)
SETUP DO NOT MATCH SYSTEM.
FOR AUTO SETUP
New devices found. Not in confl ict with other devices.
Press button below the -symbol to auto setup.
Thrusters can not be operated to auto setup is completed.
‘OR’
RUN SETUP! DEVICES IN CONFLICT!
Detected devices in confl ict. Two or more thrusters de ned
as same instance (bow/stern/bow STB/Stern STB). Run Setup
procedure to correct.
Thrusters cannot be operated until setup is completed.
Press and hold the button marked “MENU” for 3 seconds to enter the menu
system. Use the (stern) joystick to select “SETUP”, Press button below the
-symbol to enter the”SETUP”-menu.
Use the (stern) joystick to select “SYSTEM DEVICES”,
Press button below the -symbol to enter the”SYSTEM DEVICES”-menu.
Use the (stern) joystick to set the pin code one number at the time,
press button below the -symbol to jump to next number and con rm.
The pin code is “9 9 9 9”.
(NB: Re-entering the SYSTEM DEVICES menu within 15 minutes does not require entering PIN
code.)
For about 2 seconds an hourglass will appear while scanning the S-link for devices.
The devices found in the system is now displayed with their instance (thruster type and location) and
serial number.
Go through all devices and make sure that they are set to the correct instance and
function (refer to detailed instructions in the SETUP section of “Menu System”-chapter).
Press button below the -symbol to save setting and return to “Setup”- Menu.
The setup procedure requires
knowledge of the serial numer and
location of all the S-link devices.
Write this down in the form on the last
page to have the information at hand
when doing a manual setup.
2.1
1.0
2.0
2.2
2.3
2.4

82 917 12 2020
-
PJC 211 & 212
Press the button below to return to the previous menu.
Press the button below to edit the selected parameter.
Parameter value will start to blink, use joystick to alter value.
Press the button below to save edited parameter to device
Press the button below to cancel editing without saving.
Control Panel Setup Buttons
EN MC_0115
Setup
Default in systems
without stabilizers
Combining Stabilizer with AC & DC Thrusters
EN MC_0115
Setup
SETUP
NOTICE regarding following Location modes: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster
location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display
and thruster(s) at the right side of the display.
Default in systems
without stabilizers
HYD-DC HYD-AC HYD-AC-DC
PDC 101
(SAC Controller) (This device is not able to edit. Pre-setup from factory.)
PDC101 must be setup by authorized personnel.
Firmware version and serial number is Not Available (NA).
Location
Values: BOW/STERN/BOW-STB/STERN-STB
BOW or STERN in a conventional thruster system.
In a system with two bow or stern thrusters (i.e a catamaran),
BOW and STERN is port thruster, BOW-STB and STERN-STB
is starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set
as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and
thruster(s) at the right side of the display.)
Direction
Values: NA (Not Available)
AC System - PDC 101 Setup
AC System - PDC 201 Setup
EN
EN
MC_0096
MC_0096
PDC 201
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for selected device. Use BOW or STERN in a conventional thruster system. In a system
with two bow or stern thrusters (i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or
STERN-STB for starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should
be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in
display and thruster(s) at the right side of the display.)
Direction
Values: Normal (default)/Inverted
Switches between Normal and Inverted
running direction for the thruster.
3.0
3.1
3.2
4.0
4.1
4.2

9
2 917 12 2020
-
PJC 211 & 212
Press the button below to return to the previous menu.
Press the button below to edit the selected parameter.
Parameter value will start to blink, use joystick to alter value.
Press the button below to save edited parameter to device
Press the button below to cancel editing without saving.
Control Panel Setup Buttons
EN MC_0115
Setup
Default in systems
without stabilizers
Combining Stabilizer with AC & DC Thrusters
EN MC_0115
Setup
SETUP
NOTICE regarding following Location modes: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster
location should be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display
and thruster(s) at the right side of the display.
Default in systems
without stabilizers
HYD-DC HYD-AC HYD-AC-DC
PDC 101
(SAC Controller) (This device is not able to edit. Pre-setup from factory.)
PDC101 must be setup by authorized personnel.
Firmware version and serial number is Not Available (NA).
Location
Values: BOW/STERN/BOW-STB/STERN-STB
BOW or STERN in a conventional thruster system.
In a system with two bow or stern thrusters (i.e a catamaran),
BOW and STERN is port thruster, BOW-STB and STERN-STB
is starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should be set
as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in display and
thruster(s) at the right side of the display.)
Direction
Values: NA (Not Available)
AC System - PDC 101 Setup
AC System - PDC 201 Setup
EN
EN
MC_0096
MC_0096
PDC 201
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for selected device. Use BOW or STERN in a conventional thruster system. In a system
with two bow or stern thrusters (i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or
STERN-STB for starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should
be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in
display and thruster(s) at the right side of the display.)
Direction
Values: Normal (default)/Inverted
Switches between Normal and Inverted
running direction for the thruster.
AC System - PDC 301 Setup
EN MC_0096
PDC 301
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for selected device. Use BOW or STERN in a
conventional thruster system. In a system with two bow or stern
thrusters (i.e a catamaran), use BOW or STERN for port thruster,
BOW-STB or STERN-STB for starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should
be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in
display and thruster(s) at the right side of the display.)
Direction
Values: Normal (default)/Inverted
Switches between Normal and Inverted
running direction for the thruster.
Function
Values: SAC (default), SRAC
Setup the control unit behavior.
-SAC: Tunnel speed thruster
-SRAC: SAC with SR150000 retract controller. SR150000 must be set as SRHP/SRAC.
Max output
Values: 50% to 100% (Default 100%)
Set the maximum output thrust of PHC-301 in percent.
PDC-301 will scale the input signal to this value.
Load share limit
Values: 0% to 100% (Default 100%)
The Load Sharing limitation allows the system to limit the combined load on the generator from a bow
and stern thruster when both thrusters are used at the same time. The load sharing will dynamically limit
the thrust request for each thruster depending on the joystick position and limit settings.
See AC series thruster user manual (document ID 6054) for a detailed explanation and setup guide.
5.0
5.1
5.2
5.3
5.4
5.5

10 2 917 12 2020
-
PJC 211 & 212
DC System - Automatic Main Switch Setup
DC System - PPC, SR150000, SR61242 Setup
EN
EN
MC_0097
MC_0097
Main Switch
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for selected device. Use BOW or STERN in a conventional thruster system. In a system
with two bow or stern thrusters (i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or
STERN-STB for starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should
be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in
display and thruster(s) at the right side of the display.)
PPC - DC Speed Controller PPC520/ PPC820/ PPC840/ PPC800
SR150000 - Control unit for SRV80/SRV100/SRV130/SRV170/SRV210/SRH
SR61242 - Control unit for SR80/SR100
Location
Values: BOW/STERN/BOW-STB/STERN-STB
Set the location for selected device. Use BOW or STERN in a conventional thruster system. In a system
with two bow or stern thrusters (i.e a catamaran), use BOW or STERN for port thruster, BOW-STB or
STERN-STB for starboard thruster.
(NB: If the boat has Side-Power stabilizer and AC or DC thrusters the thruster location should
be set as BOW-STB or STERN-STB. This so the hydraulic controller are shown at the left side in
display and thruster(s) at the right side of the display.)
Direction
Values: Normal (default)/Inverted
Switches between Normal and Inverted running direction for the thruster
Function
Values: SR(V/L) ON/OFF, SRP, SRVP/SRLP, SEP, SRHP
Setup the control unit behaviour
- SR(V) ON/OFF: Retract thruster (SR6 1242 or SR150000) without speed controller (PPC520, PPC820,
PPC800, PHC-024).
(NB: The joystick needs to be operated more than 50% for the thruster to run.)
- SEP: Tunnel speed thruster, PPC without retract.
- SRP: Retract SR61242 with PPC, both devices needs to be set to SRP.
- SRVP/SRLP: Retract SR150000 with PPC, both devices needs to be set to SRVP/SRLP.
- SRHP/SRAC: PHC or SAC with retract SRHP needs the PHC024 or PHC-3 hydraulic controller.
SRAC needs the PDC-301 SAC controller.
PPC SR150000 SR61242 PHC 024/
PHC-3
PDC-301
SR(V/L ) ON/OFF x x
SRP x x
SRVP/SRLP x x
SEP x
SRHP/SRAC x x x
Max output
Values: 50%-100%
(this is only for PPC800 from V1.022 and PPC520/820/840 from V1.008)
Set the maximum output thrust of PPC in percent.
PPC will scale the input signal to this value.
Thermo Switch
Values: Disable (default), Enable
(this is only for PPC520/820/840 from V1.016)
Disable or Enables the thermo switch input on the PPC.
(NB: On PPC520/820/840, if the thermo switch input is closed to 0V at power-up then this function
is automatically set to Enable.)
6.0
6.1
7.0
7.1
7.2
7.4
7.3
7.5
