sidhil Inspiration Cot User manual

Electrically Operated Variable Height
Children’s Cot
User Instructions

Thank you for choosing a Sidhil Inspiration Cot. This user manual should be read
carefully before you use your cot as it contains important information regarding safe
operation and maintenance in order to provide long lasting and reliable service.
Please ensure that you understand all the instructions, if you have any questions
concerning the operation and maintenance of the cot please contact your supplier who
will provide you with expert professional advice.
In line with our policy of continuous improvement we welcome any suggestions that
could lead to product improvement.
This product is manufactured to comply with the essential requirements of
the Medical Devices Directive 93/42 EEC
Contents
Section Title Page
1. User Warnings 3
2. Introduction 3
3. Parts Identification 4
4. Installation & Preparing for Use 5
5. Operating the Inspiration Cot 5
6. Electrics 6
7. Emergency Mechanical CPR Function (optional accessory) 7
8. Braking & Steering 8
9. Side Rails 9
10. Shelf 10
11. Head and Foot Ends 10
12. Transfusion Pole (optional extra) 11
13. Do’s & Don’t’s 11
14. Cleaning Procedure 12
15. Maintenance Procedure 13
16. Spares List 15
17. Specification 16
2

1. User Warnings
Warnings in these user instructions identify possible hazards and/or conditions which
should be followed at all times. Failure to do so could result in serious injury or even
death.
2. Introduction
Your Inspiration Cot is suitable for children of high dependency and those who are a
moving and handling risk. To aid the carer the cot is adjustable with a simple touch
button handset.
The cot is designed to support a load of up to:
• 160kg (25 stone) when the mattress platform is flat
• 50kg (8 stone) when in tilt
These total weights should not be exceeded
Features:
• Electrically operated two way tilting mattress platform
• Electrically operated height adjustment
• Battery backup system
• Manual CPR function (optional extra)
• Anti trap mechanism on the mattress platform
• Drop down telescopic side rails
• Anti static castors with steering and braking function
• Removable head and foot ends
• Fold away storage shelf
3
WARNING
Children must not be allowed to play with the controls.
Children must not play with any moving parts of the cot and should be kept away from
the side rails when raising/lowering them at all times.
Electrically operated cots should not be used in operating theatres.
Accessories that have not been approved for use with the cot should not be used.
Misused electrical equipment can be hazardous.

4
3. Parts Identification
1 Removable head / foot end
2 Side rail
3 Side rail release button
4 CPR mechanism (optional extra)
5 Mattress platform
6 Anti static castor
7 Break pedal
8 CPR activation handle (optional extra)
9 Fold down shelf
10 Height adjustment actuator – under base chassis (not shown)
11 Tilt actuators – under mattress platform (not shown)
12 Control box - under mattress platform (not shown)
7
5
6
4
3
2
NB: Cot shown includes an optional transfusion pole
9
8
1
Head End
Foot End

5
4. Installation and Preparing for use
Your Inspiration Cot comes fully assembled and ready for use. Simply remove any
packaging and connect the mains cable to an appropriate mains socket outlet.
Note: The cot must only be used with a mains supply of 240V, 50Hz. If this
product is to be used outside of the UK seek professional advice as to the
compatibility of this product with the mains power supply type.
5. Operating the Inspiration Cot
General Safety
When the cot is operated, ensure that ancillary equipment and general furniture is not
in the way.
Check that all electrical cables are free from tension and are positioned so as to avoid
both patient and carer accidents.
Ensure that the mattress used is of correct size and type. A range of dynamic and static
pressure relieving/reducing mattresses are available from Sidhil Ltd.
Ensure that the patient is positioned appropriately within the cot and ensure that they
are aware in advance of each action taking place.
The cot’s braking system should always be engaged when not in motion.
Ensure these user instructions are kept in a safe place at all times. Additional copies are
available from Sidhil Ltd and via the internet at www.sidhil.com.
WARNING
Ensure that the mains cable is not in tension
when connected to the power supply.
Ensure that all cables and handsets are clear of
any moving parts on the cot to prevent them from becoming
tangled or damaged.

6
6. Electrics
i) Handset
The handset is designed to be used by the carer only. The mattress platform can be
tilted from either the head or foot end and the cot height is adjustable. To adjust the
position of the cot, depress the relevant button until the desired point has been
reached and then release the button.
Head End Tilt - To raise the head end depress
To lower the head end depress
Foot End Tilt - To raise the foot end depress
To lower the foot end depress
Cot Height - To raise the cot depress
To lower the cot depress
Note: When putting the mattress platform into tilt it is only possible to
have one end in tilt at any one time. Before raising one end ensure that
the opposite end is fully lowered.
ii) Battery Backup
A battery backup feature will automatically be engaged when the bed is disconnected
from the mains supply. This allows emergency or temporary operation of the cot for a
limited period but will vary depending on the features used. If operated using the
battery backup an alarm will sound when the battery level becomes low.
The cot should remain connected to the mains supply at all times for normal use, to
ensure that the batteries remain fully charged. This will also prolong the life of the
batteries.

7. Emergency Mechanical CPR Function
(Optional Accessory)
The mattress platform can be levelled by pulling a handle found at the foot end of the
cot. There is one lever to activate the foot end and another for the head end, found to
either side of the shelf.
Note: The foot end is signified by the end with the shelf and the head end
by the drip pole sockets
i) CPR Operation
To operate the mechanical cpr, pull the lever that is applicable to the raised end of the
mattress platform. If the foot end is raised the cpr handle that states ‘cpr – foot’ must
be pulled and vice versa for the handle that states ‘cpr – head’. If there is any doubt
as to which handle should be pulled it is advised that both handles be
pulled at the same time.
Note: The CPR function only flattens the mattress platform.
ii) Resetting the CPR
Once the CPR has been activated the system must be reset. If it is not reset the
mattress platform will fail to operate correctly. Depending on which end has
been activated the head/foot end tilt ‘down’ button must be pressed for 25 seconds to
reset the system. If the foot end cpr lever has been pulled, the foot end down button
must be held down for 25 seconds and if the head end lever is activated the head
end down button should be pressed. When the system has reset, the handle will
drop back to its original position and the mattress platform is ready for use again.
WARNING
When operating the manual CPR function ensure that all limbs/hands
and equipment are clear in order to prevent trapping or injury.
Ensure the correct handle is pulled, if unsure pull both.
Following CPR activation, if the system is not reset the mattress platform
will not operate correctly.
7

8

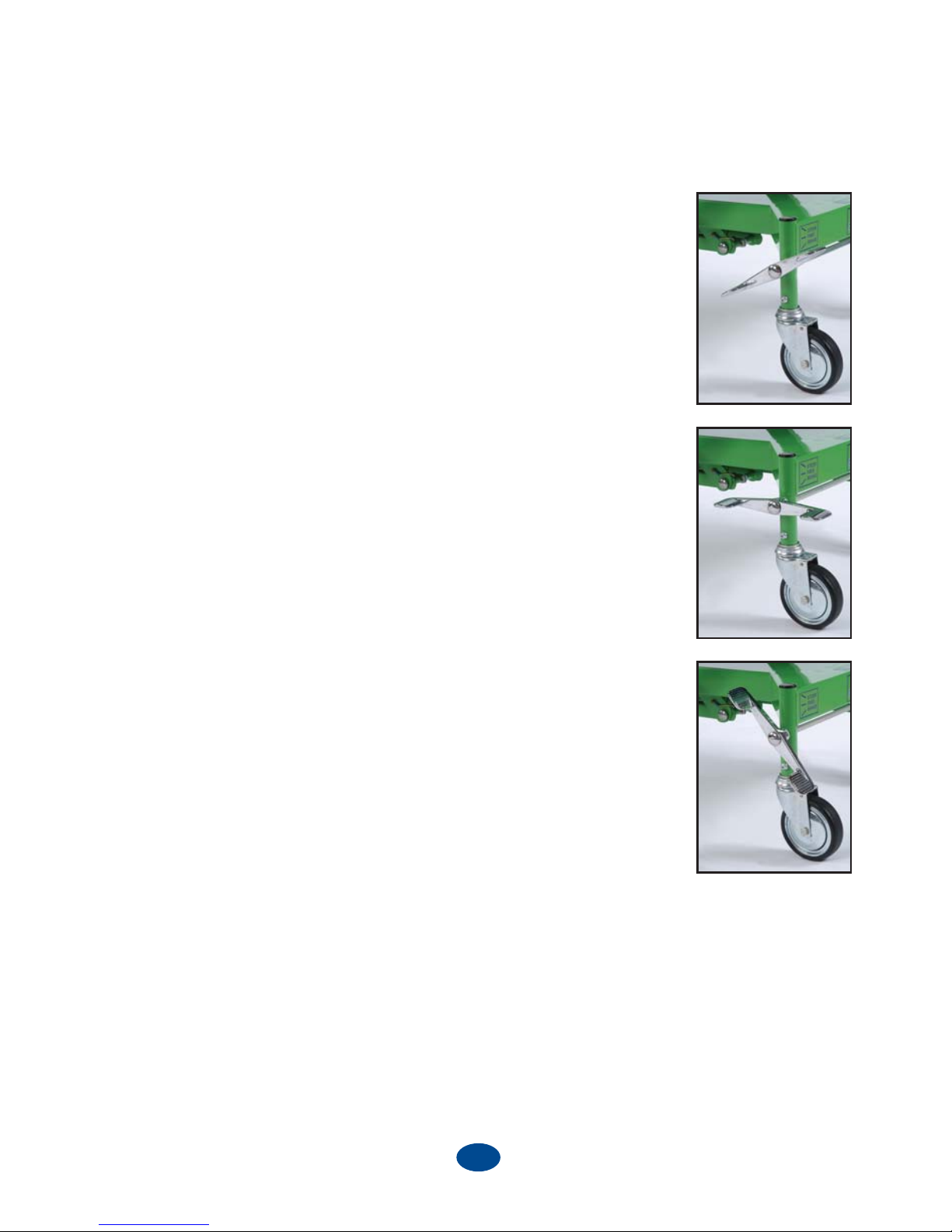

8. Braking & Steering
There are two linked brake pedals at the foot end of the cot which control all the
castors simultaneously.
• When the pedal is in the ‘steer’ position it locks one castor on
the cot so that it cannot swivel. This allows the cot to be steered
when being pushed from the head end of the cot.
• When the pedal is in the ‘free’ position no castors are locked
allowing all to swivel freely.
• When the pedal is in the ‘brake’ position three castors are
locked and the cot then cannot move.

9
WARNING
When operating the side rails ensure that they are free from obstruction
to prevent injury / entrapment
Ensure that the side rails are locked in position at all times
Ensure that the occupant is away from the sides of the cot and cannot fall when
adjusting the mattress platform position, if the side rails are in the lowest position.
9. Side Rails
Your cot comes complete with two integral telescoping side rails which can be locked
in position at six different heights. When the side rail is fully down it provides the carer
with complete access to the mattress platform regardless of the cot height.
i) Adjusting the Side Rail Height
Release the side rail by gently sliding the two yellow buttons outwards, this disengages
the locking mechanism. While holding the buttons out gently lower/raise the side rail
into the desired position and release the buttons. Ensure that the side rail has
locked in position at both ends.

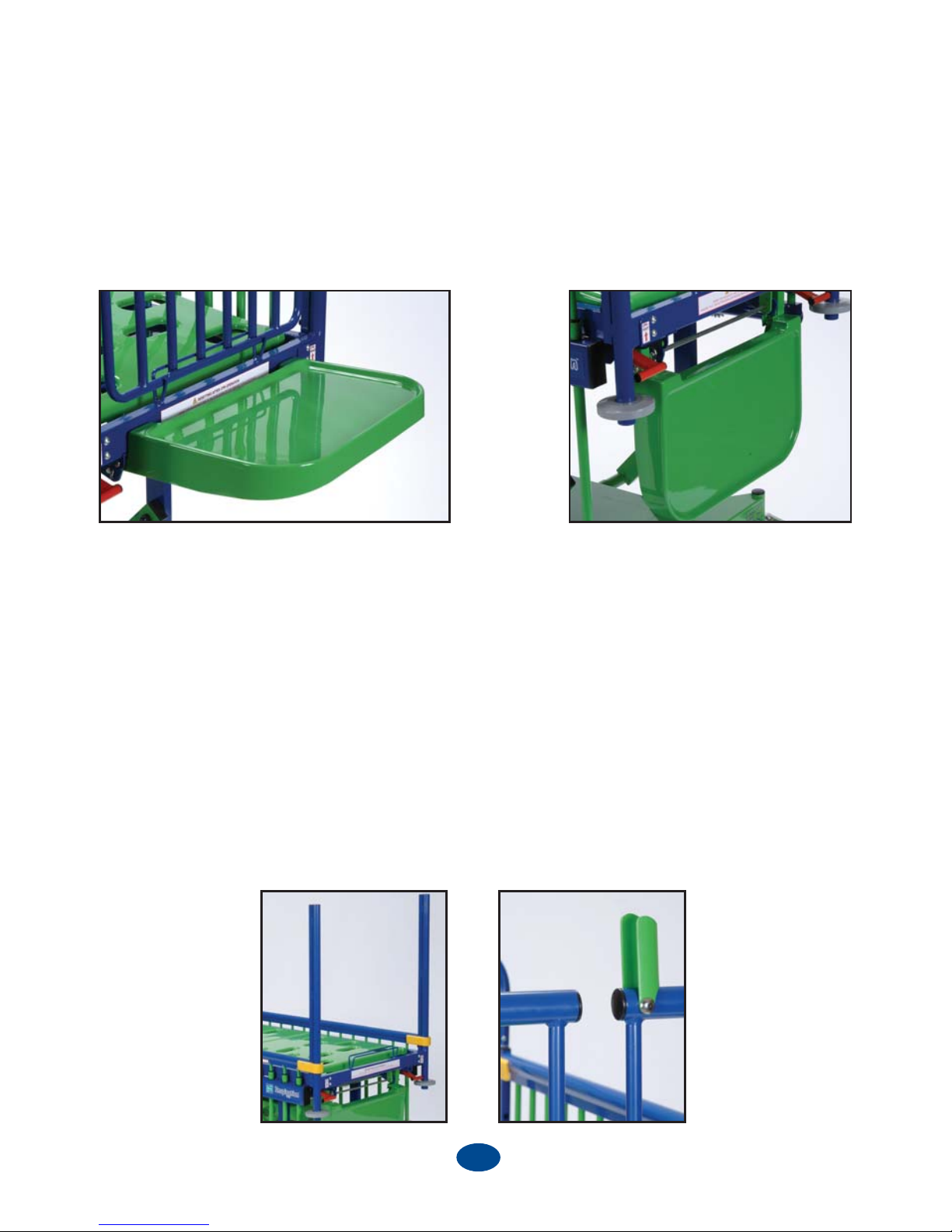

10. Shelf
To raise the shelf, squeeze both spring loaded release handles, these are situated to the
shelf underside on the left and right hand sides. Lift the shelf until it is level, once in
position release the handles and ensure that the handles have locked in position.
To fold the shelf down, squeeze both release handles and gently lower it down.
11. Head and Foot Ends
Your cot comes with removable head and foot ends, allowing for four sided carer
access to the mattress platform. To remove the ends simply lift the frame out of the
location tubes.
The head and foot ends can also be specified to have a break in and out section
(optional extra) allowing for tube access to the patient, whilst keeping the ends in
position. To position the tubes through the gap in the head/foot end, lift the green latch,
position the tubes through the gap and then re-close the latch.
10

11
12. Transfusion Pole (Optional Extra)
The safe working load of the transfusion pole is 10kg, however no more than 3kg
should be hung from each hook. The pole should be inserted into one of the sockets
found to the head end of the mattress platform and the handwheel tightened.
13. Do’s & Don’ts
Do ensure you read these instructions and fully understand them before using the cot.
Do ensure the cot is cleaned on a regular basis.
Do ensure the cot is inspected on a regular basis (minimum once yearly service).
Do ensure that all the control plugs are pushed home firmly.
Do ensure the mains lead is plugged into the mains supply.
Do Not exceed the safe working load of 160kg (25 stone) when the mattress
platform is flat and 50kg (8 stone) when in tilt.
Do Not store any items under the cot.
Do Not allow children to play with or under the cot.
Do Not use the cot if the actuators make any unusual noises, smells or become
excessively hot.
Do Not allow any part of the cot or mattress to come into contact with any naked
flame or excessive heat sources.

12
14. Cleaning Procedure
i) Biocote
Your cot comes with an antibacterial additive incorporated into the powder
coated metalwork. Biocote™ inhibits the growth of bacteria on the surface
of the cot frame. It is effective against a wide range of both gram positive
and negative bacteria as well as fungi. Examples of bacteria that Biocote™
is resistant to include:
Bacillus Subtilis Staphylococcus Aureus (MRSA)
Escerichia Coli 0157 Streptococcus Faecalis
Salmonella Enteritides Listeria Monocytogenes
Biocote™ is an aid to keeping your cot infection free but it does not
substitute the need for the cot to be cleaned at regular intervals.
ii) Cleaning
All surfaces to be wiped down with a soft cloth moistened with a mild detergent (or
the hospital’s recommended cleaning solution) and diluted in hot water. Extra care
should be taken around areas where excess dirt or dust may gather. Rinse down with
clean water and dry off with a paper towel.
If any infectious material(s) have been in contact with the bed or it has been used by a
patient with a known infection, the above procedure should be followed by an
additional clean with NaDCC (Presept, Actichlor) at 10,000 PPM of Chlorine (or
instructions as prescribed by manufacturer). Rinse and dry again.
Always ensure that cleaned parts are allowed to dry before putting the mattress back
in place.
WARNING
Disconnect the cot from the mains power supply before cleaning
Ensure that the handset is plugged in to avoid water ingress into terminals

15. Maintenance Procedure
Only authorised Sidhil service personnel, or approved service agents, should carry out
repairs or service activities. Failure to do so may result in the manufacturer’s warranty
becoming void.
If a fault does occur please try the following suggestions before calling your supplier for
assistance, as these may help in diagnosing the fault.
i) Fault Diagnosis
In the event that the user experiences problems operating the cot the following checks
should be carried out initially:
General
• Check that the cot is free of any obstructions.
• Check that the maximum load has not been exceeded.
• Check that the CPR has not been activated and the system not reset.
• Check that the cot has not reached its maximum or minimum height.
• Check that the cot is plugged into the mains supply.
Partial Electrical Failure
• If the cot only has certain functions working or it operates very slowly the cot may
be working off the battery backup facility. Check the ‘power on’ light on the bottom
of the control box (located under the mattress platform) is lit. If off the cot is running
off the battery backup facility. Make sure the cot is plugged into the mains supply.
• Reset the electrics: connect to the mains supply and reset the cot functions - raise
the cot to its maximum height, once at full height keep the cot height button held
down for a further ten seconds. The cot is now reset.
Disconnect the cot from the mains supply, then:
• Check that the handset is correctly plugged in and that none of the plug pins are
bent or damaged – try another handset if available.
• Check that the actuator controlling the required function is fully plugged in.
• Check that the mains lead is pushed fully into the control box and is not damaged.
• Check that the mains lead is connected to the mains supply.
• If none of the above work, keep the cot unplugged from the mains supply and
contact your authorised service personnel or Sidhil Ltd. Do not use the cot until the
problem has been resolved.
13

14
Total Electric Failure
Check that the green LED located on the bottom of the control box is lit. If off, check
that the cot is plugged into the mains supply and switched on. If on, disconnect the cot
from the mains supply, then:
• Check that all leads and cables are plugged in positively and correctly and that the
red circular clip is locked in position over the mains lead control box plug.
• Check/replace the fuse in the mains plug.
• If none of the above work, keep the cot unplugged from the mains supply and
contact your authorised service personnel or Sidhil Ltd. Do not use the cot until the
problem has been resolved.
Sidhil recommends that every six months the following maintenance procedures
should be carried out to help prolong the life of the cot:
i) General
Ensure that all fixings including nuts and bolts are tight and that none are missing or
incomplete. Check that all cabling is in good condition, and that wear or abrasion has
not caused any excessive bending, kinking or damage. Check that the mains cable plug
is not damaged.
Should damage or deterioration occur to the mains cable or plug, they must be
replaced by authorised service personnel or Sidhil Ltd. Under no circumstances should
the plug be replaced by unauthorised personnel.
WARNING
Prior to any maintenance always disconnect the cot
from the mains supply

15
ii) Braking
Position the brake pedal in the ‘brake’ position (see section 8 for brake operation).
Now try to move the cot with a normal level of force. Should any of the three braked
castors rotate/move, the brake system is not working effectively.
Position the ‘brake’ pedal in the ‘steer’ position and check that the steering lock is
operating efficiently.
If you experience difficulty or lack of effectiveness with either the braking or steering
contact your authorised service personnel or contact Sidhil Ltd.
iii) Batteries
When the cot is being used via the battery backup facility the control box will sound an
audible alarm when a low charge situation is reached. A minimum of 24 hours charging
time should be allowed to fully recharge the batteries.
Sidhil recommends checking the condition of the batteries every six months.
16. Spares List
Part No. Description
Castor/083 Left Hand Brake Pedal
Castor/084 Right Hand Brake Pedal
Castor/085 Free Swivel Castor
Castor/086 Brake Castor
Castor/087 Brake & Steer Castor
Control/034 Carer Handset
Control035 Control Box
Cable/001 Mains Cable
Sidhil Ltd. standard terms and conditions apply to all purchases; a copy is available from the address below:
Sidhil Limited, Sidhil Business Park, Holmfield, Halifax, West Yorkshire HX2 9TN
Sales Tel: [phone] Sales Fax: [phone]
Email: [email protected] Website: www.sidhil.com
Part No. Description
9000/083 Removable Head/Foot Pedal
9000/170 Shelf Assembly
9000/175 Plastic Mattress Cover Kit
9000/180 Mattress Platform Actuator
9000/181 Base Actuator
9000/221 Side Rail Assembly
9003/025 Removable Break In/Out
Head/Foot End

Tel: [phone] Fax: [phone]
Email: [email protected] www.sidhil.com
A member of the Siddall & Hilton Ltd. Group of Companies
17. Specification
Overall Length 1450mm
Overall Width 820mm
Height Range (To Top of Mattress Platform) 585mm to 920mm
Mattress Platform Tilt (Forward and Reverse) 0-12°
Maximum User Weight – When Not in Tilt 160kg
When in Tilt 50kg
Voltage In 230V AC, ±10, 50Hz
Current In Max 3A
Voltage Out 24V DC, max 120VA
Batteries 2 x 12V Rechargeable
Duty Rating Intermittent 10% (6mins/hour)
Electrical Safety Standards Complies with EN 60601-1
(BS 5724: Part1,IEC 601-1)
Electrical Shock Protection Class 1
EMC Complies with BS EN60601-1-2
Liquid Ingress Protection IP54
