Siemens TC3A-107 Instruction manual

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 1 of 19
Document No:
IOM-007
Title:
IOM – TC3A-107 and Similar EDUs
Installation, Operation & Maintenance Manual
For
TC3A-107 Disconnectable junction box
and associated diver EFL’S and similar EDUs.
Created By: Paul Westwell
Revision Number: 02

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 2 of 19
REV SECTION CHANGE DESCRIPTION
01
INITIAL RELEASE
02
Updated for use with similar EDUs
Document Holds

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 3 of 19
TABLE OF CONTENTS
1. INTRODUCTION ........................................................................................................ 4
2. SCOPE ....................................................................................................................... 4
3. ABREVIATIONS ......................................................................................................... 4
4. HEALTH AND SAFETY .............................................................................................. 5
5. PROTECTION, HANDLING AND SHIPMENT............................................................. 5
6. UNPACKING............................................................................................................... 6
7. STORAGE .................................................................................................................. 6
7.1 Short Term Connector Storage........................................................................ 6
7.2 Long Term Connector Storage ........................................................................ 6
7.3 AquaTRON Oil Tube Storage .......................................................................... 7
7.4 Long term storage of elastomers ..................................................................... 7
8. ELECTRICAL FLYING LEADS DESIGN ..................................................................... 7
9. CATHODIC PROTECTION ......................................................................................... 7
10. INSTALLATION & DEPLOYMENT.............................................................................. 8
10.1 Pre – installation checks for EFL’s and EDU.................................................... 8
10.2 Installation of Junction box and mounting brackets.......................................... 8
11. INSTALLATION OF EFLS........................................................................................... 12
11.1 Equipment required ......................................................................................... 12
11.2 Live Mate / De-mate ........................................................................................ 13
11.3 Diver connectors.............................................................................................. 13
12. TESTING OF EFL’S.................................................................................................... 15
13. DIGITRON + CONNECTOR SPECIFICATION............................................................ 16
14. AQUATRON HOSE SPECIFICATION......................................................................... 18
15. MAINTENANCE.......................................................................................................... 18
15.1 Protection of Receptacle Contact Pins............................................................. 18
15.2 Over Current Capacity ..................................................................................... 18
15.3 Marine Growth and Calcareous Deposits......................................................... 19
16. INFORMATION AND NOTES ..................................................................................... 19
17. SIGN OFF SECTION .................................................................................................. 19

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 4 of 19
1. INTRODUCTION
This manual details procedures for the following:
Installation Operation and Maintenance of disconnectbale junction box TC3A-107 and similar
EDUs
2. SCOPE
This manual Includes details of installing a DigiTRON disconnectable junction box and its
associated connecting EFL’s with diver installable connectors.
Electrical and mechanical specification of connectors and hose is also detailed in this document.
The back page includes a sign off point which must be completed by the user of this
manual.
Any information, records or Health and Safety feedback that needs to be detailed can be
recorded in the punch list at the rear of the document.
Sensor installation shall be covered by manufacturer specific procedures.
3. ABREVIATIONS
A Ampere
AC Alternating Current
Assy Assembly
API American Petroleum Institute
AWG American Wire Gauge
BOM Bill of Material
°C Degree Celsius
CE Community European
Comms Communication Signal
CP Cathodic Protection
DC Direct Current
DWG Drawing
EFL Electrical Flying Leads
FAT Factory Acceptance Test
IR Insulation Resistance
ISO International Organization for Standardization
ITP Inspection Test Plan
K Kelvin
LTC Long Term Cover
M Metres
Max. Maximum
MFG Manufacturer
Min. Minimum
No. Number
ROV Remotely Operated Vehicle
SI Standard International
SRT Site Received Test
SST Stainless Steel
TBD To Be Defined
TSP Twisted Screened Pairs
UNS Unified Numbering System for Metals and Alloys
V Volt

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 5 of 19
4. HEALTH AND SAFETY
Manual Handling, Lifting and Carrying are known to be the largest contributors to occupational ill-
health.
Ensure that mechanical handling aids are used whenever possible to avoid manual handling.
Where manual handling is considered appropriate for the task safe lifting guidelines must be
followed, e.g. adopt correct posture, consider team lifting, employ safe lifting technique, etc.
Only competent persons are permitted to perform tasks without supervision, if in doubt ask.
Good Housekeeping avoids Slips Trips and Falls, keep your area clean and tidy.
It is the operator’s responsibility to comply with current Company & regional health and safety
legislation.
Caution shall be exercised during assembly to ensure that fittings and hydraulic / pneumatic
equipment are properly installed.
In the event of a safety incident or any safety improvement suggestions please contact the Health
and Safety Department at [email protected] and/or complete and return the punch list
in section 16.
5. PROTECTION, HANDLING AND SHIPMENT (INCLUDING FROM CUSTOMERS)
Siemens Subsea connectors are manufactured primarily from materials such as 316L stainless
steel (UNS S31603), and Super Duplex stainless steel (UNS S32550), and as such are designed
to withstand harsh saliferous environments. However, the connector insert and exposed parts
are susceptible to mechanical damage if not adequately protected. Dust caps are fitted to all
Tronic connectors before transport, but can be fitted with protective caps if specified by the
customer. Caps are recommended to remain in place until connectors are deployed subsea.
The connectors are generally relatively small items of equipment, and therefore, can be shipped
singularly or in multiples. Care should be taken to protect the connector with either Instapak (or
similar), bubble wrap or similar wrapping materials to avoid surface damage during transit. If
large numbers are shipped in one consignment a suitably reinforced box will be necessary to
withstand the weight. Protection caps must be fitted at all times during transport.
ACCEPTABLE PACKAGING FOR SHIPMENT
Instapak (or similar) bubble wrap (or similar)
UNACCEPTABLE

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 6 of 19
If storage is carried out in saline conditions, e.g. on a ship’s deck or hold, then full dummy
connectors should be used.
The junction box must be secured in a dedictaed transit box and always remain in a horizontal
position to prevent risk of damage to the diaphragms.
If storage is carried out in saline conditions, e.g. on a ship’s deck or hold, then full dummy
connectors should be used.
The following bend radii are recommended for storage/transport of hoses.
AquaTRON 50, TC6A-700 – Minimum inside bend radii - 125mm
AquaTRON 75, TC6A-712 – Minimum inside bend radii - 180mm
Connectors are designed & qualified to withstand vibration that occurs during transportation and
to withstand being dropped from a height of 1m whilst in packaging.
Any connector-specific handling and transport advice is contained within the appropriate section
further on in this document.
Ensure that mechanical handling aids are used whenever possible to avoid manual handling.
6. UNPACKING
Remove wrapping material taking care to inspect for any surface damage or items that may have
become separated from the unit. Do not use a knife to cut the wrapping material, as this may
cause damage to any elastomeric parts of the connector. Do not remove protection caps until
connectors are ready for installation. On removal do not allow the hoses to drag over the edges
of the packing crate.
Connectors/Equipment supplied in boxes must be stored in the box.
7. STORAGE
7.1 Short Term Connector Storage
Prior to installation the connectors are sensitive to environments where grit and dirt are present.
To prevent ingress of the above, they should be stored in a clean dry area and be protected by
their protective wrapping material or similar. Protection caps must be fitted if supplied.
No carbon steel must be present in the storage of the products.
Please note; maximum storage temperature takes into account solar gain. Skin temperature must
not exceed 70°C. Suitable protection must be used to ensure maximum storage temperature is
not exceeded.
7.2 Long Term Connector Storage
The connectors must be stored in a clean dry area and be protected by bubble wrap or similar.
Suitable protection caps must be fitted and the storage temperature should be between -40°C
and 70°C. Humidity of the store room should be below 75%. Very moist or very dry conditions
should be avoided. The Plug connector should be protected from strong sunlight and strong
artificial light with a high ultra violet content. The connectors should not be allowed to come into
contact with solvents, oil, greases or any other semi-solid materials. If glanded connectors are to
be stored bolted into their interfaces ensure the cable entry point into the gland is covered to
prevent water ingress.

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 7 of 19
No carbon steel must be present in the storage of the products.
Please note; maximum storage temperature takes into account solar gain. Skin temperature must
not exceed 70°C. Suitable protection must be used to ensure maximum storage temperature is
not exceeded.
7.3 AquaTRON Oil Tube Storage
Storage temperature range: -40°C to 70°C
Storage humidity: 0% to 85% R.H.
Maximum storage period: 2 years stored in accordance with ISO 2230 (pressurised).
If storage is outside the above guidelines, then protective covering is available on request.
Where Junction Boxes are used ensure protection from strong sunlight and strong
artificial light.
7.4 Long term storage of elastomers
For the recommended storage of elastomeric components e.g. termination sleeves and cable
boots, please refer to Tronic document MH006 - Procedure for Storage and Handling of
Elastomeric Materials.
8. ELECTRICAL FLYING LEADS DESIGN
The EFL’s associated with this assembly are completely independent and are fitted with Diver
installable connectors at each end. All EFL’S are oil filled, pressure compensated and are
supplied complete. They are used to connect various subsea equipment.
All EFL’S should be retrievable and when installed should not cross-over each other.

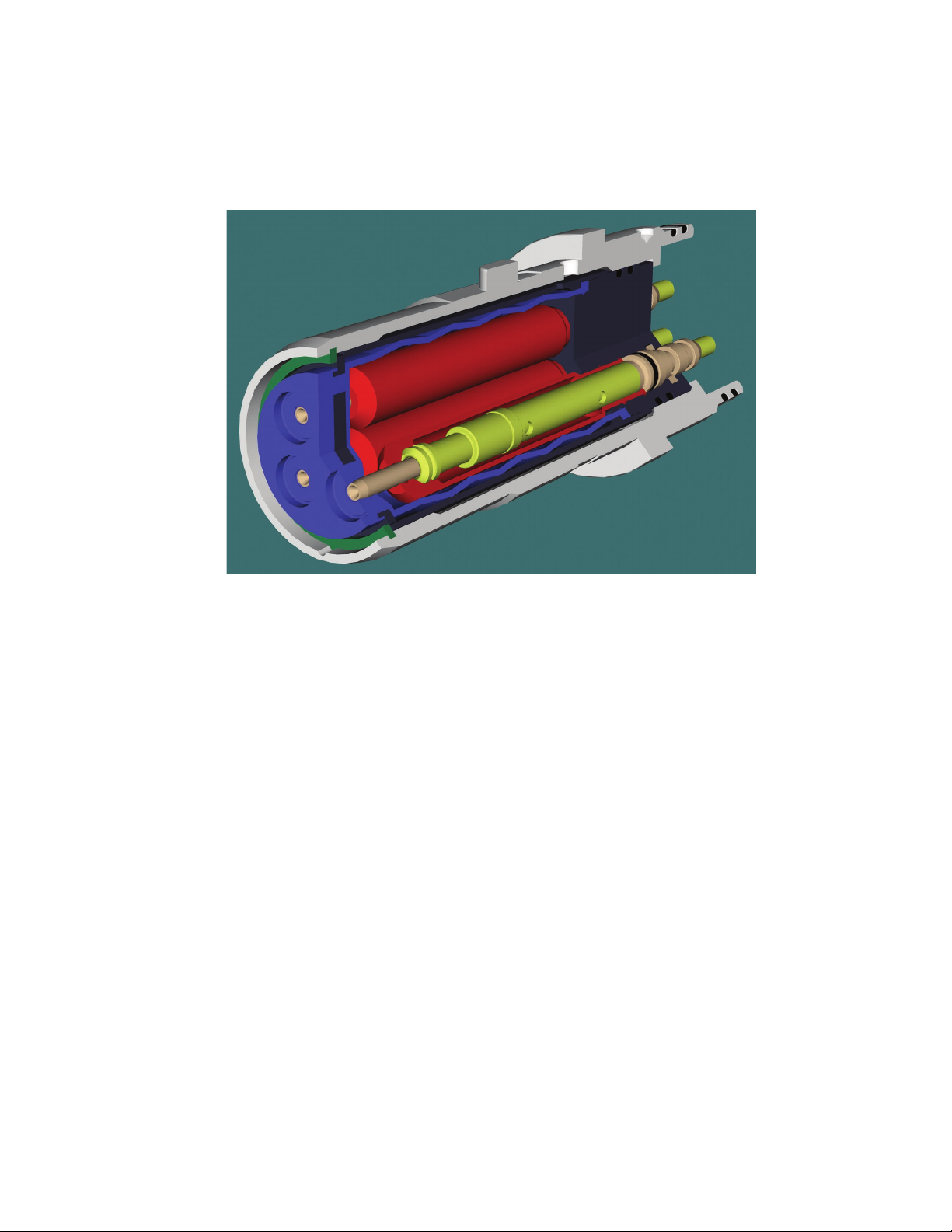

The DigiTRON range of connectors have been developed for long term reliable signal and low
power control system applications associated with offshore installations. The underwater mate
able capacity of these connectors is achieved using pressure compensated electrical inserts
employing the CE principle.
All mild steel sealing surfaces shall be inlayed with Inconel 625, or similar, with no additional
protection (e.g. CP, Paint etc.) required. This is to prevent localised pitting of the interface.
If the connectors are to be left unmated, in seawater, for any length of time dummy connectors
must be used to protect the pin contacts in the receptacle connectors. Over exposure will
increase the risk of corrosion damage or marine growth on the contact surfaces of the receptacle
contact pins. This could lead to damage to the seals and insulation within the socket contacts.
Plug connectors do not require full dummy connectors for protection. Tronic advise the fitting of
acetal caps to protect plugs against marine growth. It is good practice to always fit the protective
cap when a connector is unmated topside prior to deployment to provide mechanical protection.
NOTE: 28 DAYS IS THE MAXIMUM CUMMULATIVE ALLOWABLE EXPOSURE OF
UNPROTECTED CONTACT PINS TO SEAWATER OVER THE LIFE OF THE CONNECTOR.
THIS ONLY APPLIES WITH POWER OFF.
9. CATHODIC PROTECTION

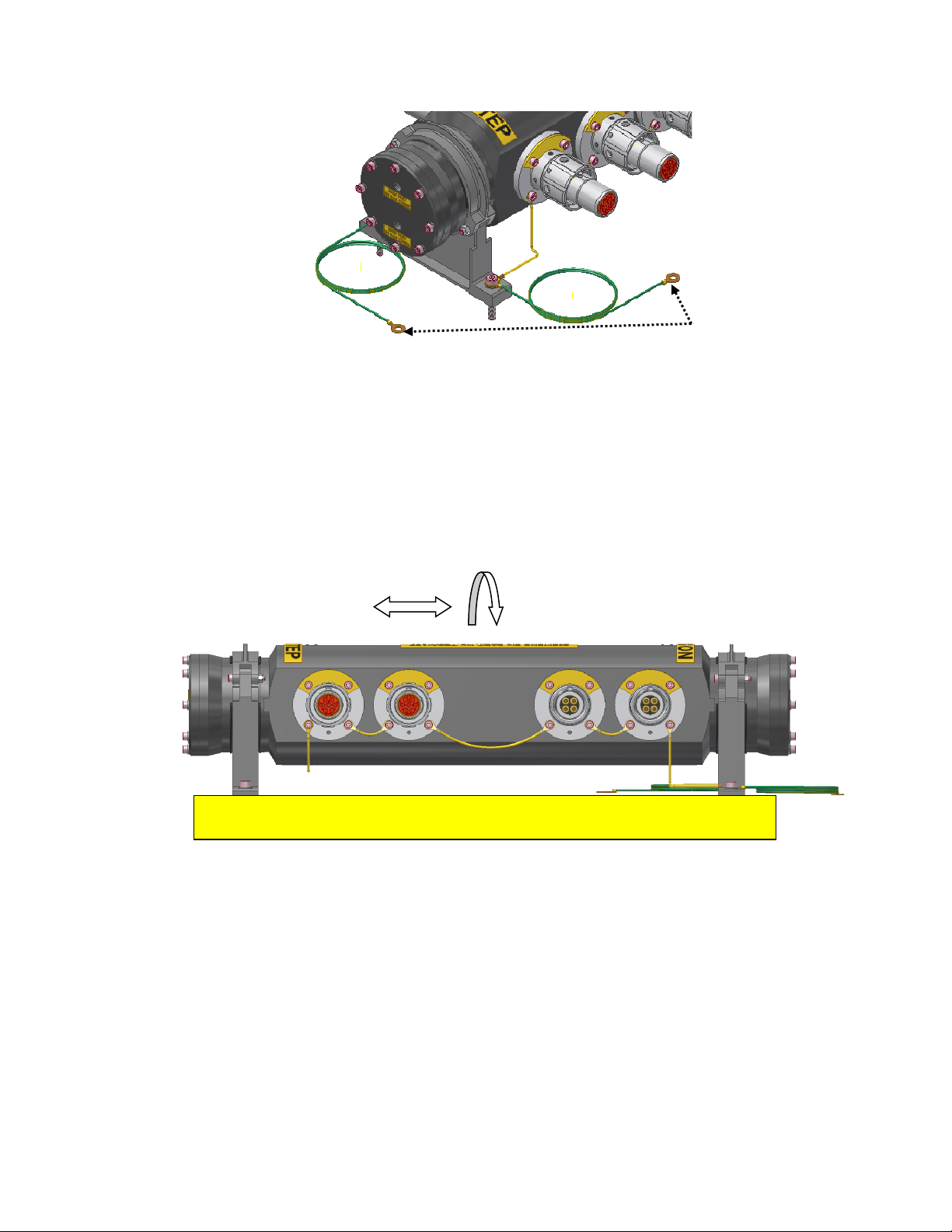

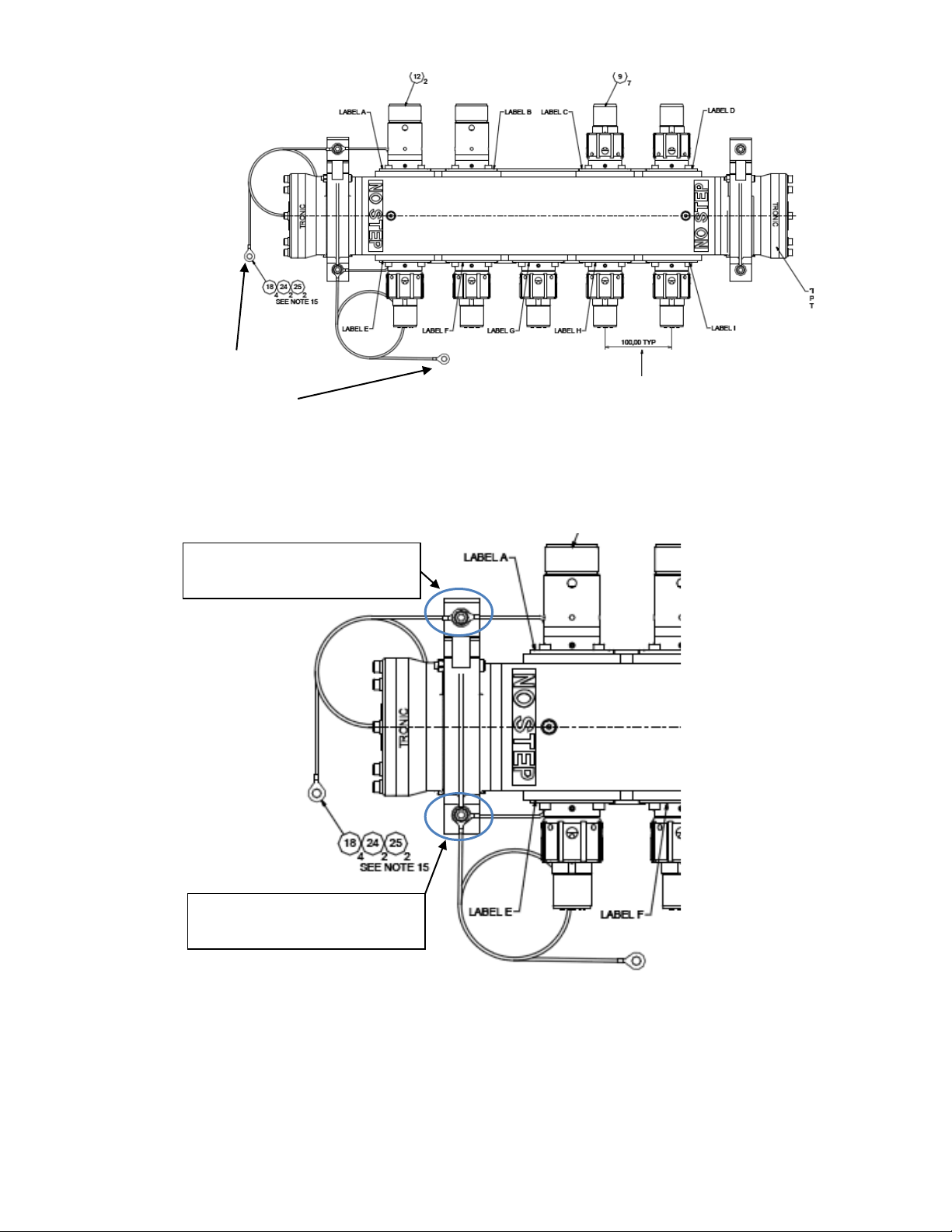

EDU is equipped with external earth straps to provide CP protection to each connector installed
on the junction box. 2 off earth straps are also provided to be fitted to the mounting bracket and
the host structure that is providing a CP connection

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 8 of 19
Stainless steel 316L (UNS S31603) diver mate connectors must be connected to the CP
(Cathodic Protection) system at all times. Super Duplex stainless steel (UNS S32550) connectors
should be isolated from the CP system to reduce the possibility of hydrogen embrittlement.
10. INSTALLATION & DEPLOYMENT
Tools Required for installation
1. Allan keys 5mm and 6mm
2. ¼ inch drive torque wrench 0-25 Nm – with 5mm and 6mm Allan key drive
10.1 Pre – installation checks for EFL’s and EDU
The following section details installation & deployment of Electrical Flying Leads and the EDU.
•Check tagging and any label information is correct according to Project tagging document.
•Ensure all equipment has passed Site installation Test.
•Make sure prior to installation a final visual inspection of the equipment is completed.
•No part of the connectors should be dismantled prior to or during deployment, apart from the
removal of protective caps, since there are no user serviceable parts inside.
•Any defects need to be recorded on the punch list at section 16 of this document and where
possible take photos of any issues that need to be recorded and inform Technical Dept.
•Before mating, the receptacle connector should be checked for debris. The connectors have
been designed to accommodate sand and silt contamination; however large pieces of debris
should be removed. Use a water jet if subsea.
•Before mate / demate all power is to be switched off – The DigiTRON range is designed to
be mated with POWER OFF. In exceptional circumstances it is possible to mate the
connectors with power on but the following is to be considered:
Note:
It is important to isolate and earth prior to disconnect in order to remove any stray
charges in the system. If left, this can induce corrosion on the exposed pins once the plug
is removed.
10.2 Installation of Junction box and mounting brackets
•The junction box is designed to be mounted and deployed in a horizontal position only .
•It is critical the brackets for the junction box are installed as identified on DRG T31014
1. Drill interface holes as required for installation as per drawing T31014 sht 1.
4-off M8X1,25-6H TAPPED HOLES MIN THREAD LENGTH 40mm
Or
4-off M8 THRO’ HOLES – (Client to provide nuts for thro hole fitting option).
See fig 1 & 2 which highlight dimensions from drg T31014 sht1 for hole centres
(images provided for reference only.)

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 9 of 19

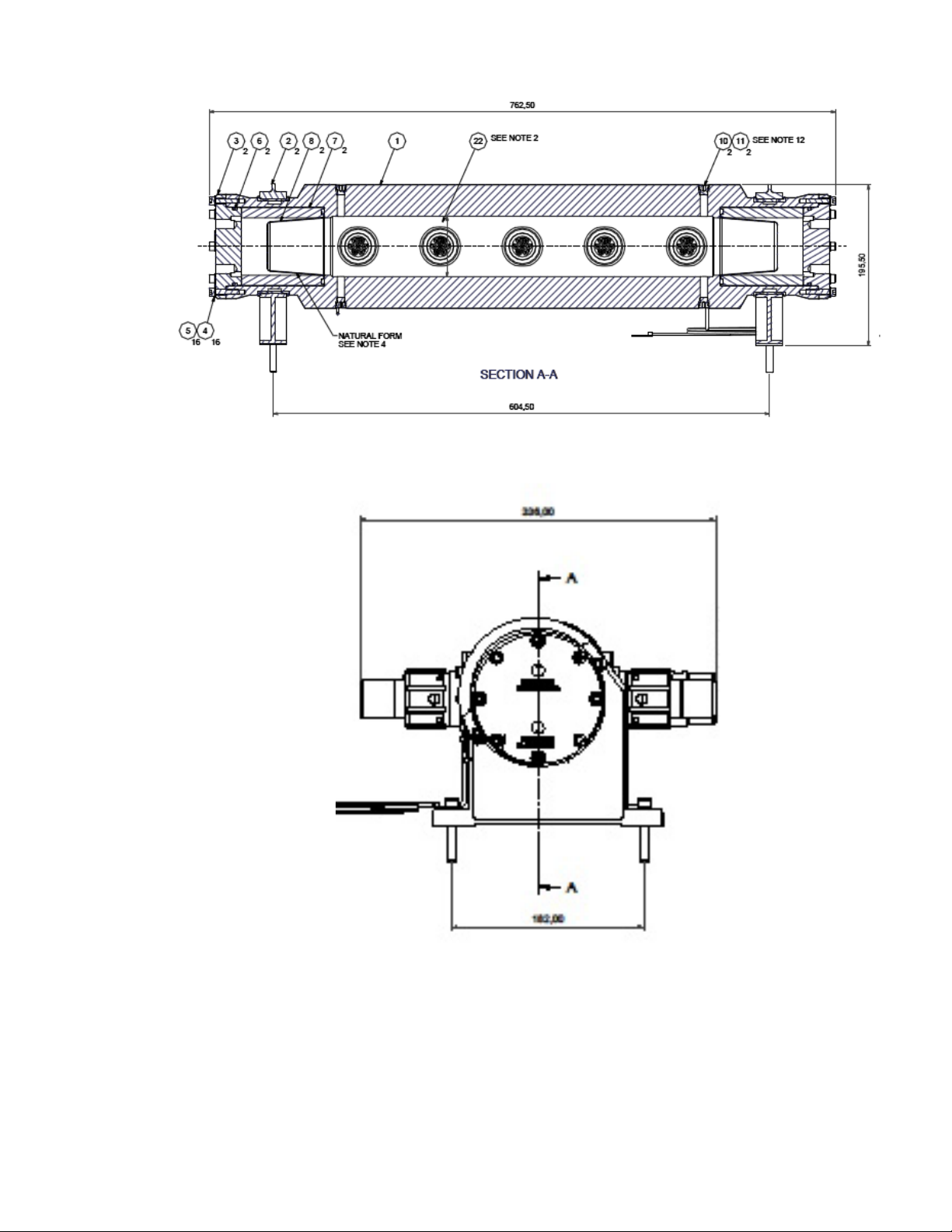

Figure 1 (ref) – Indicates distance of 604.50mm for mounting interface hole positions
(tol. +/- 0.25mm)
Figure 2 (ref) – Indicates distance of 182.00mm for mounting interface hole positions
(tol. +/- 0.25mm)
2. Drill interface holes for CP connection in mating structure for 2 x earth straps (supplied length
max 1 meter).
2 off M8X1,25-6H TAPPED HOLES MIN THREAD LENGTH 20mm. See fig 3

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 10 of 19
Figure 3 – Highlighting length of earth straps for CP connection to structure.
3. The mounting brackets and junction box are required to be installed together due to the earth
strap arrangement securing under the fixing bolts for the mounting brackets. See fig 4.
Figure 4. Image to show earth straps secured under bracket mounting screws
4. In the event that the brackets are not installed to the junction box body these will need to be
assembled and installed. If applicable: Assemble brackets to the body taking into account the
anti-rotation peg is to be situated on the underside of the unit and locates into a recess in the
body. Tighten the M6 fasteners to 3.5Nm to complete the bracket installation. See fig 5
Earth straps max 1m
length. CP
connection from
structure.
Earth straps secured under
mounting screw
Earth straps secured under
mounting screw

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 11 of 19
Figure 5. Mounting bracket assembly
5. Secure the mounting brackets to the structure via the previously drilled interface holes
identified in step 1. Install with the 4 x M8*40 screws and 4 x M8 washers provided
Note: Fit the earth straps under the required mounting screws and torque to 10Nm. See Fig 6
Figure 6. ISO view of box indicating mounting screw positions for reference.
6. Route and fit CP connecting earth strap to structure via the previously drilled interface holes
detailed in step 2 and secure with 2 off item SC-M8*20 cap head screws fitted with the
supplied M8 washers torque to 10Nm.
M8 screws for fixing to
structure
M6 Screws for fixing
bracket to body.
(ALLOY 625 so no CP
required for these)
Anti-rotation peg.
Install 4 off M8
mounting screws.

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 12 of 19
Figure 7. Shows earth straps for to be secured to mating structure.
7. Ensure mounting brackets are secure and the junction box is orientated correctly with any
required protective caps still installed. The Junction box is only designed to operate in a fixed
horizontal position only. This completes the installation of the Junction box.
Figure 8. Shows junction box installed on structure
11. INSTALLATION OF EFLS
The following section will provide information for the correct installation of the required EFL’s.
11.1 Equipment required
•A 2-3” C-spanner or purpose made Tronic tool (T11367) may be used.
Secure earth straps
to mating structure.
Ensure unit is secure with no
lateral or rotational movement.
Mounting Structure

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 13 of 19
11.2 Live Mate / De-mate
Resistive loads
Mating the connectors should not lead to any damage to the sealing mechanisms within the
plugs.
The speed of de-mating should be between 40mm/s to 60mm/s. Following this de-mating
procedure, testing should be carried out on the connector to establish if any damage has
occurred. Under no circumstances shall connectors be partially mated with power on.
Capacitive loads
Mating with power on will lead to an in-rush current. The magnitude of this in-rush current will
depend on the capacitance of the circuit. It is very important that the in-rush current is no more
than 100A for 5 seconds.
Inductive loads
Mating the connectors should not lead to any damage to the sealing mechanisms within the
inserts. De-mating must not be attempted as there is a risk of high back EMF’s which will cause
damage to the seals and insulation within the inserts.
Note:
The maximum number of live mate / demate operations under the above conditions is ONE
only.
NOTE: 28 DAYS IS THE MAXIMUM CUMMULATIVE ALLOWABLE EXPOSURE OF
UNPROTECTED CONTACT PINS TO SEAWATER OVER THE LIFE OF THE CONNECTOR.
THIS ONLY APPLIES WITH POWER OFF.
11.3 Diver connectors
•Alignment
These connectors have been designed to self-align during mating. All that is required is to
ensure that the alignment pin on the plug connector is engaged in the alignment groove
within the receptacle connector before screwing the clamp ring up.
•Pre Mating Check
Before mating remove any protective caps, the connectors should be checked for debris. The
connectors have been designed to accommodate sand and silt contamination, however large
pieces of debris should be removed using a water jet as per section 15.3
•Check EFL location/position
Prior to mating the EFL with the corresponding mating connector, Check the tagging label on
the efl corresponds to the connector label identified on the junction box to prevent any cross
connection.

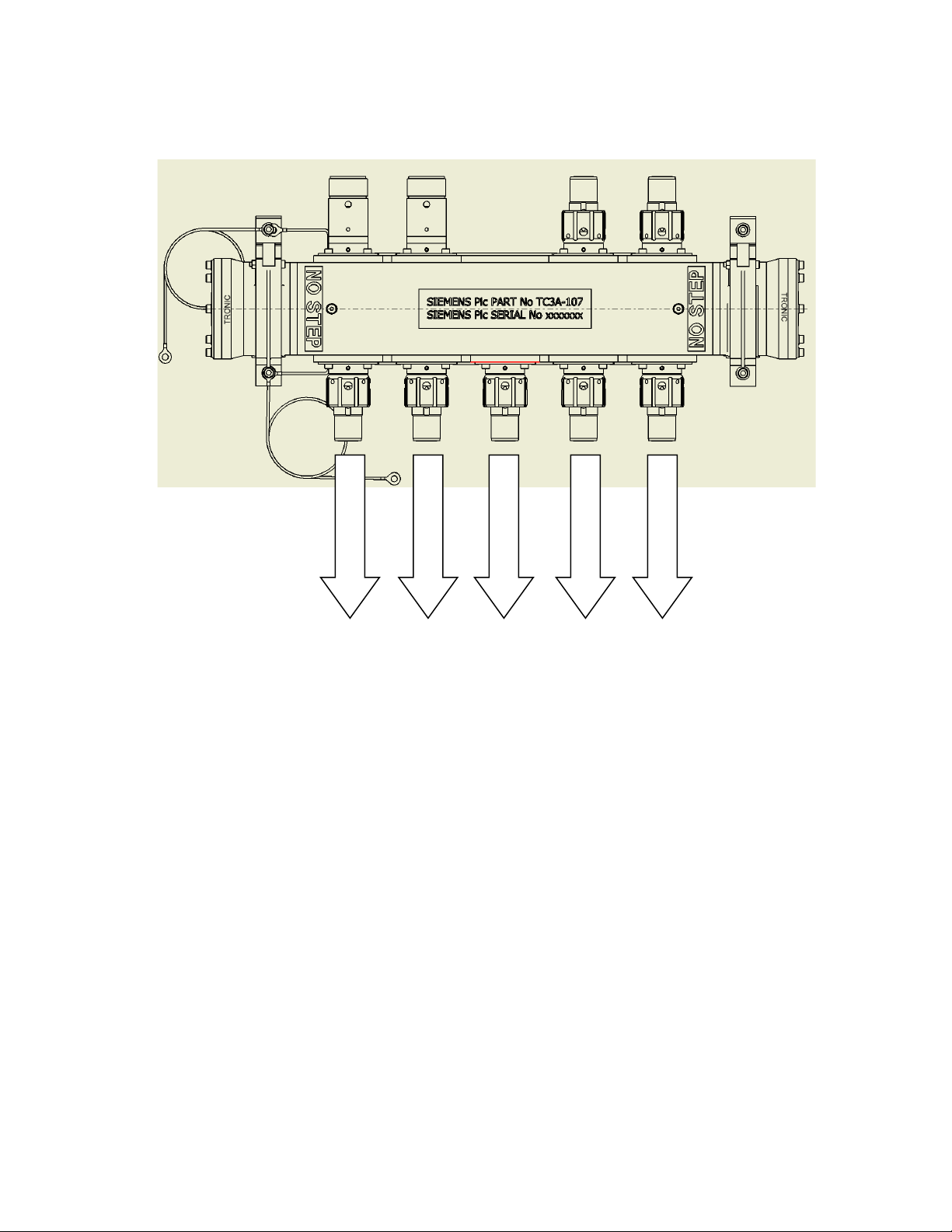

Schematic provided for EFL installation
TYPE 5 EFL
TYPE 6 EFL
TYPE 7 EFL
TYPE 7 EFL
PWR IN
COMS IN
O/PUT 9
O/PUT 6

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 14 of 19
Figure 9 – EFL Schematic
•Mating
The clamp ring should be rotated clockwise by hand until tight. The connectors are designed
to remain clamped together with only firm hand tightness on the clamp ring. If a clamping
torque is required this MUST NOT exceed 15 ft-lbs. [20Nm]. A 2-3” C-spanner or purpose
made Tronic tool (T11367) may be used to apply this torque.
•Post Mating Checks
Full engagement of the connectors can be checked through the viewing hole in the clamp
ring. If the connectors are fully mated then no gap should be visible between the plug and
receptacle.
•Cathodic Protection
Stainless steel 316L (UNS S31603) diver mate connectors must be connected to the CP
(Cathodic Protection) system at all times. Super Duplex stainless steel (UNS S32550)
connectors should be isolated from the CP system to reduce the possibility of hydrogen
embrittlement.
TYPE 7 EFL
TYPE 7 EFL
TYPE 7 EFL
TYPE 7 EFL
TYPE 7 EFL
O/PUT1
O/PUT 5

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 15 of 19
Figure 10
Image to show inspection holes,clamp ring, C-spanner location holes and alignment key on a
diver plug connector.
Figure 11
Image to show inspection hole, clamp ring mating thread, and keyway on a diver receptacle
connector.
12. TESTING OF EFL’S
•The appropriate test connector must always be used to make electrical contact during
testing.
•UNDER NO CIRCUMSTANCES should a foreign object (such as a screwdriver, test probe,
or crocodile clip) be used as a test connection as this could damage the seals and insulation.
•Such actions will invalidate the warranty of the connector.
2. Insp Hole
3. Clamp ring
4. Allignment
key
1. C spanner
location holes
1. Viewing Hole
2. Clamp ring mating
thread.
3. keyway

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 16 of 19
•Guide pins must never be removed from test connectors as this can lead to damage and will
invalidate the connector warranty.
Figure 12 . Tronic test connector examples
•To perform any testing refer to specific project documentation for details of procedures.
NOTE: No part of the connectors should be dismantled prior to or during deployment,
apart from the removal of protective caps, since there are no user serviceable parts inside.
13. DIGITRON + CONNECTOR SPECIFICATION
Electrical and Mechanical
Maximum current (dry topside)
4-way = 18A
7-way = 14A
12-way = 11A
Maximum current (submerged)
4-way = 35A
7-way = 22A
12-way = 20A
Maximum working voltage: 1000V rms phase to earth, 2000V rms phase to phase
Rated number of operations: 1000 mate / de-mate cycles (Power off)
Working pressure: 5800 psi (13,123 ft / 4000 metres water depth)
Working temperature range: -5 to +60°C
Onshore testing temperature range: -20°C to +50°C
Storage temperature range: -40 to +70°C

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 17 of 19
Please note; maximum storage temperature takes into account solar gain. Skin temperature must
not exceed 70°C. Suitable protection must be used to ensure maximum storage temperature is
not exceeded.
Figure 13
View to show DigiTRON Front end assembly
(Fully factory acceptance tested)

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 18 of 19
14. AQUATRON HOSE SPECIFICATION
Figure 14 – AquaTRON hose size 50 & 75
Design life: 30 years
External pressure: 0 to 400 bar (depth pressure)
Recommended fill pressure: 15 bar
Deployment rate: 10 metres / minute
Operational temperature range: -5°C to +55°C
Hose Burst Strength: 90 Bar
Max twisting of AquaTRON Hose: 180° per 5m length
Recommend hose be protected with tarpaulin sheet or equivalent if in direct sunlight.
Axial loads for AquaTRON oil tube
AquaTRON hose can withstand an axial load of 5000N. It has been tested to failure at 11000N.
If cable ties are used leave loose on the hose. Do not compress.
Chemical Compatibility for AquaTRON oil tube
For chemical compatibility use with AquaTRON oil tube see qualification report TR-422 section
3.11 and ERP-001-06.
15. MAINTENANCE
All EFL’S are designed for Subsea immersion and require no maintenance while installed.
15.1 Protection of Receptacle Contact Pins
Under no circumstances must the contact pins in the receptacle connector be exposed to
seawater with power on. If this situation does occur the contact surfaces of the pins will very
rapidly degrade by electrolytic action. If these damaged pins are subsequently mated into a
socket insert there is a very high risk of damage to the insulation and seals within the plug
connector.
15.2 Over Current Capacity
Over current capacity for all DigiTRON connectors is 100A for 5 seconds at no more than 2 per
hour.

IOM-007 Installation Operation Manual for TC3A-107 and Similar EDUs
Page 19 of 19
15.3 Marine Growth and Calcareous Deposits
To remove calcite growth from Tronic connectors, a solution of 50% Citric Acid is recommended.
All Seawater exposed elastomeric materials in Tronic connectors have been fully tested against
50% Citric Acid and are compatible for duration of 1 hour. In addition, the thermoplastic materials
have good resistance to Citric Acid.
Other acid cleaners, such as 50% Acetic Acid, should not be used as they may cause
deterioration of the elastomeric materials.
Any damage found should be recorded and reported to the Technical Department.
16. INFORMATION AND NOTES/HEALTH AND SAFETY FEEDBACK
DATE
DESCRIPTION
17. SIGN OFF SECTION
Please sign and date where indicated to confirm that each page of this document has been read
and complied with in full.
Name ....................................................
Signature …….....................................
