Siemens SL45 User manual

Issued by
Information and Communication mobile
Haidenauplatz 1
D-81667 Munich
Germany
© Siemens AG, 200 0.
All rights reserved. Subject to availability.
Rights of modification reserved.
Siemens Aktiengesellschaft
http://www.siemens.com/mobiles
Ref.-No.: A31008-H4800-A1-1-7619
User Guide
s
be inspiredbe inspired SL45 SL45
SL45 Bedien_cov GB 08.11.2000 16:46 Uhr Seite 1
All manuals and user guides at all-guides.com
all-guides.com

10.11.00 u35vgb.fm U35 - english, A31008-H4800-A1-1-7619

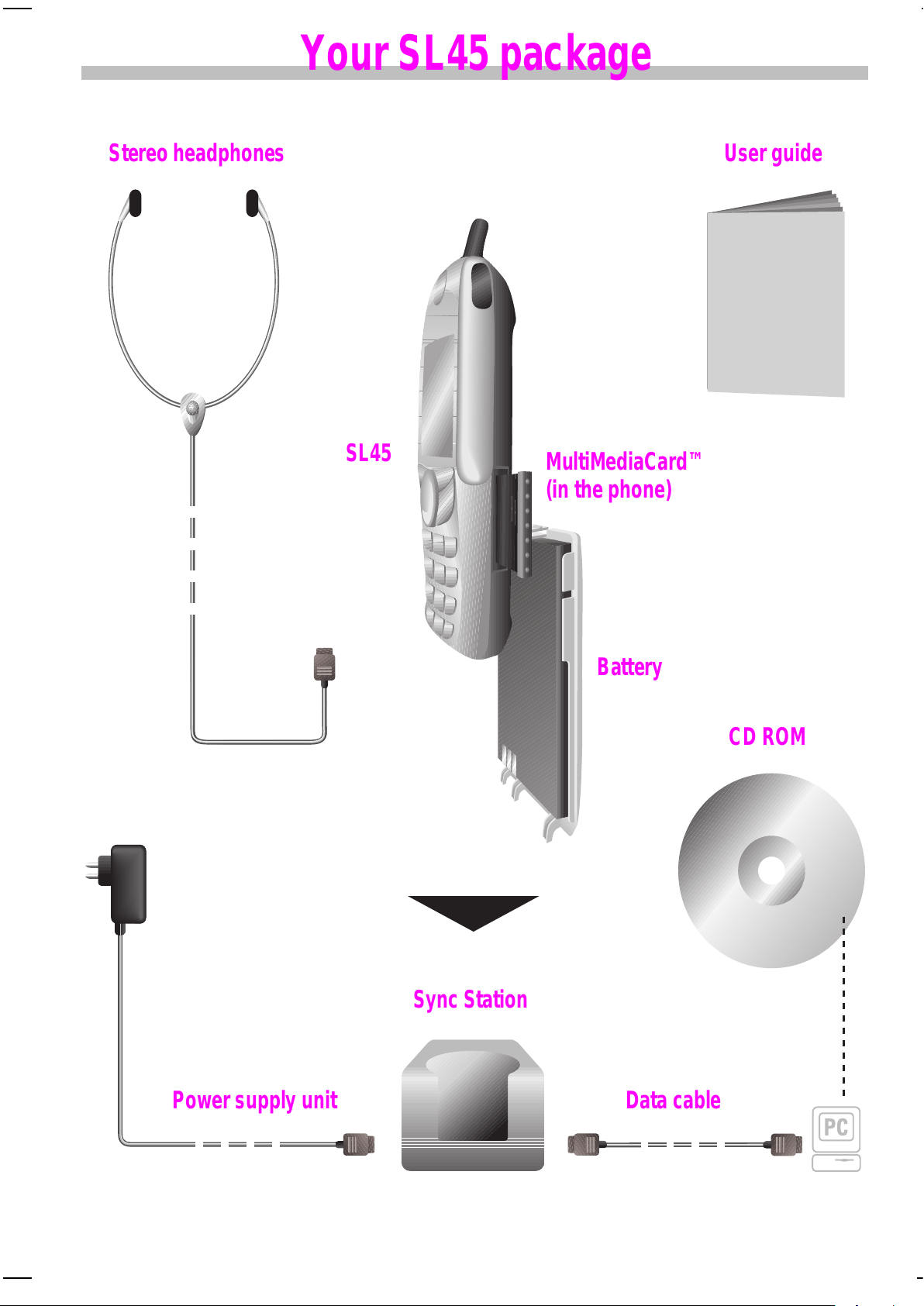

Your SL45 package
User guide
Stereo headphones
Power supply unit
Data cable
Sync Station
CD ROM
SL45
MultiMediaCard
™
(in the phone)
Battery
U2
All manuals and user guides at all-guides.com

31.10.00 u35gbivz.fm U35 - english, A31008-H4800-A1-1-7619
Safety precautions
.........................
3
Overview of keys/display
..............
4
General instructions
......................
5
The User Guide........................ 5
Menu Control........................... 5
Helpsystem ............................. 6
SIM card
..........................................
7
Battery
............................................
8
MultiMediaCard™
..........................
9

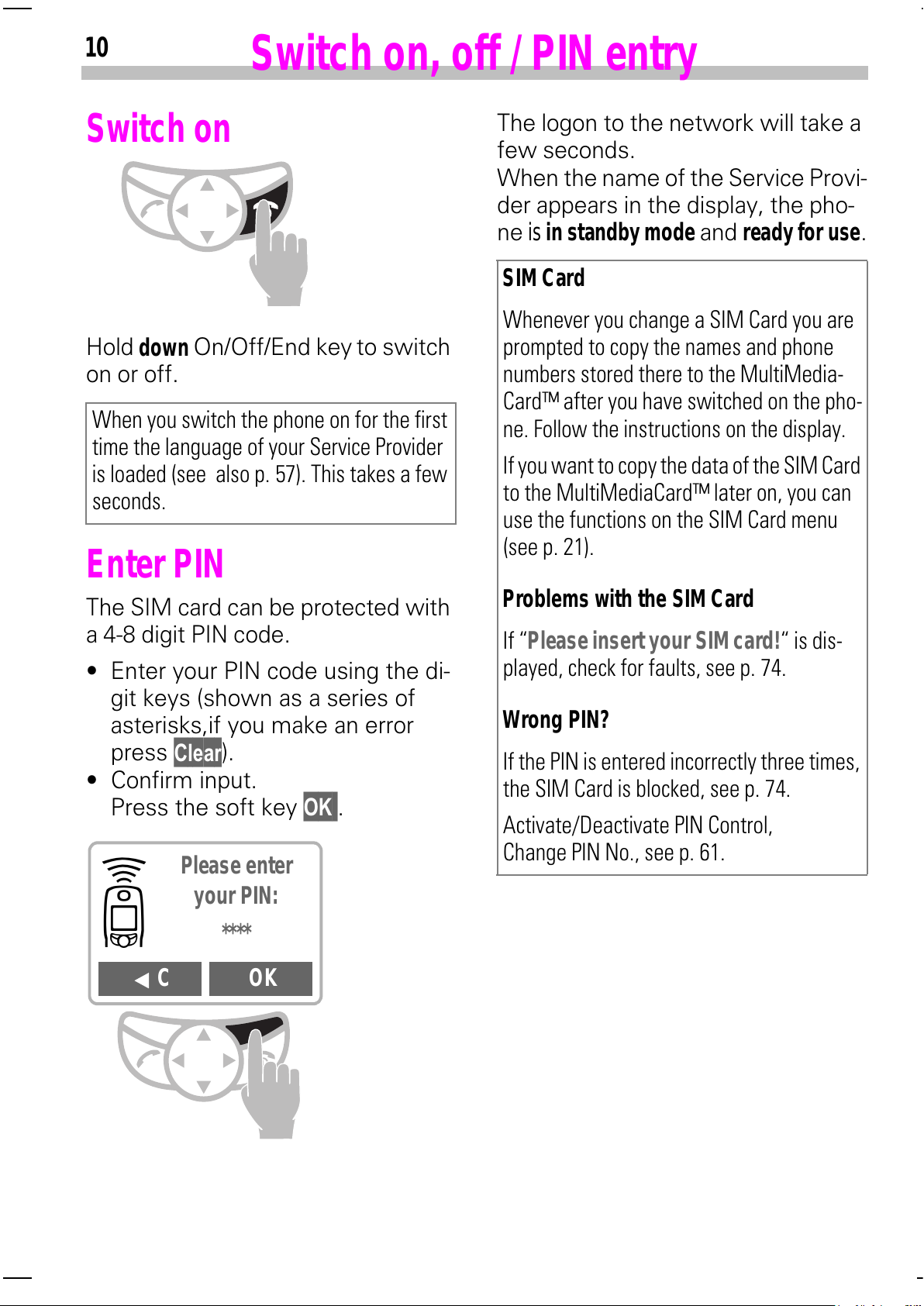

Switch on, off / PIN entry
.............
10
Making a phone call
......................
12
Dialling with digit keys............ 12
End call ................................... 12

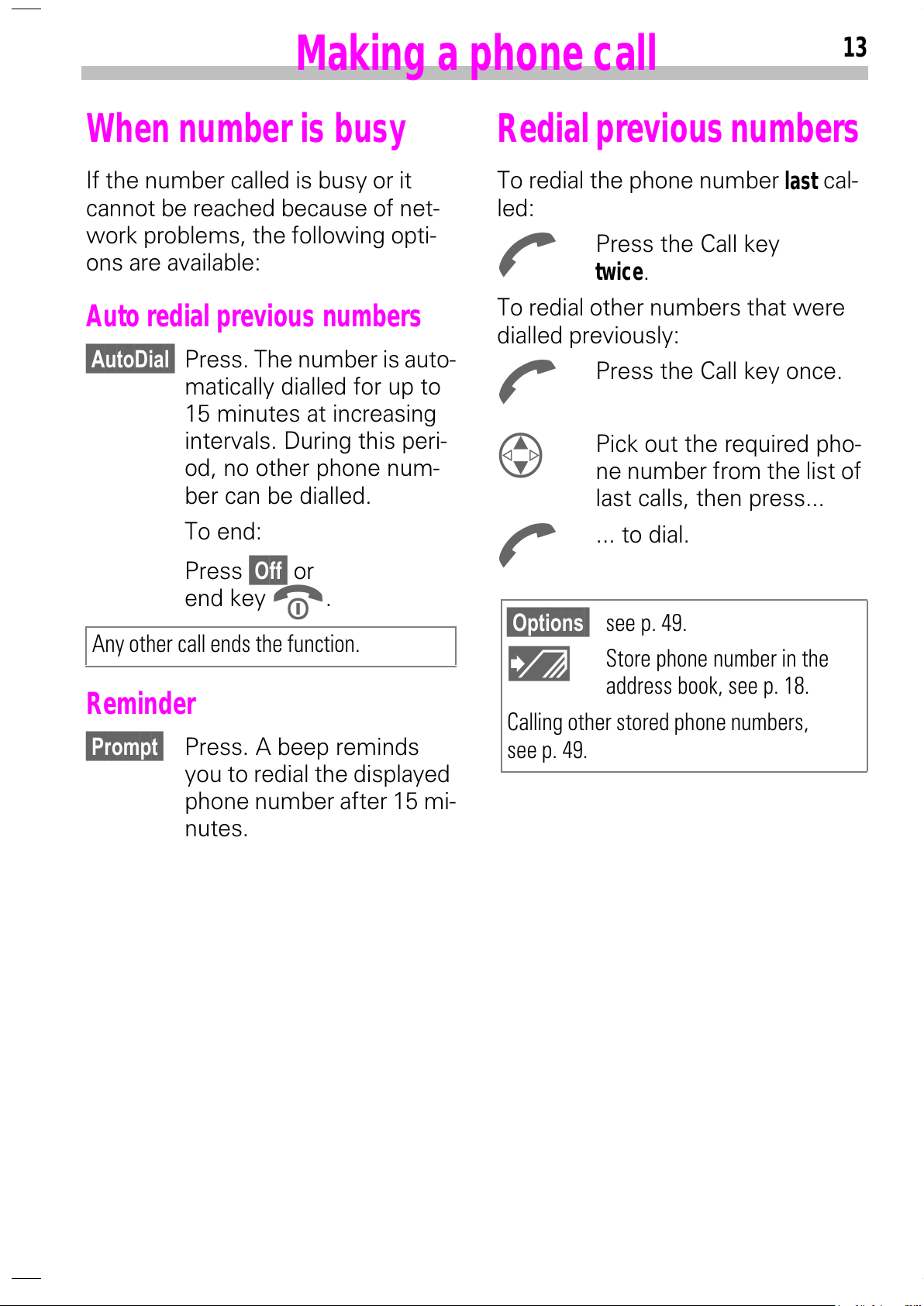

When number is busy ............ 13
Redial previous numbers ........ 13

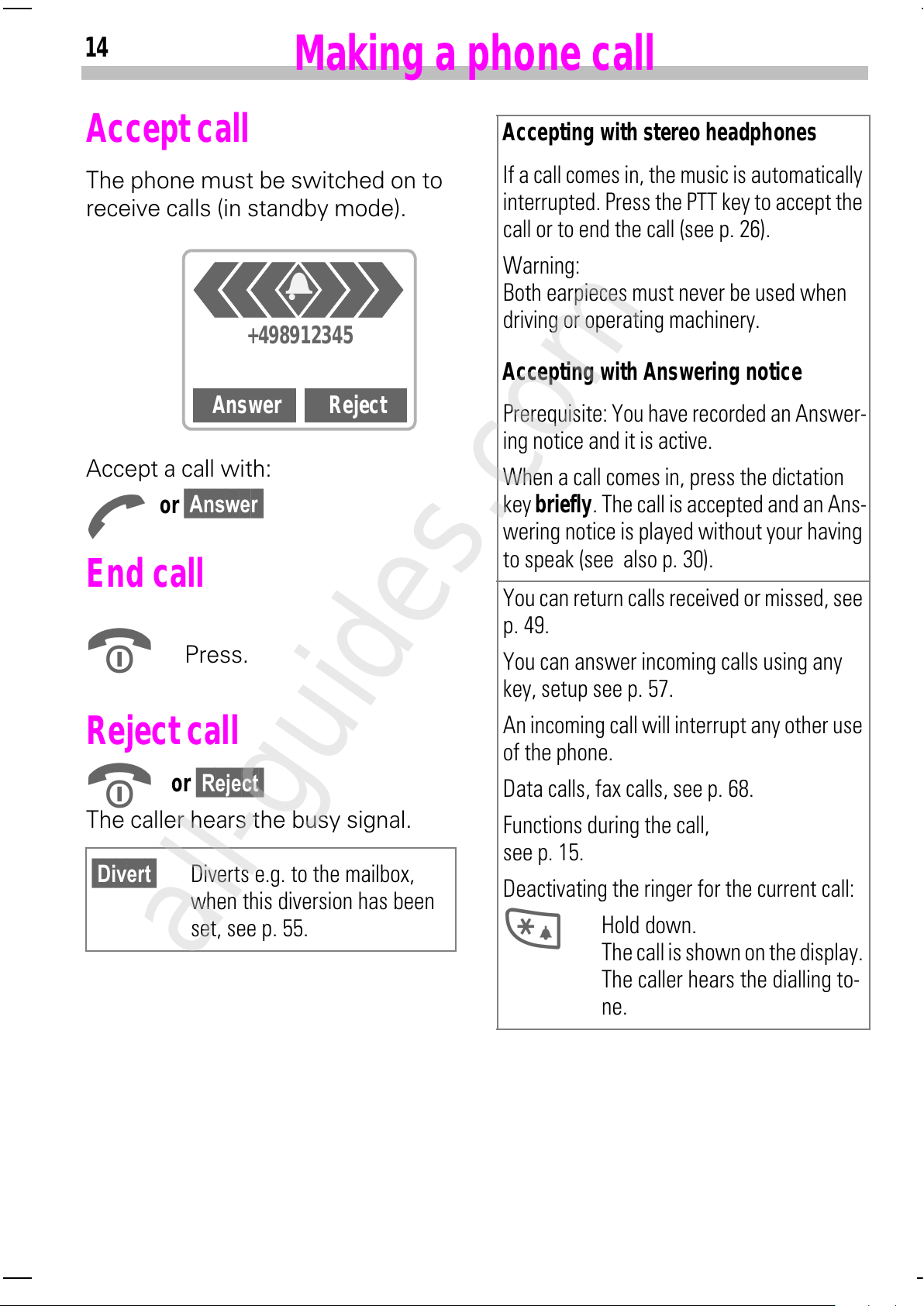

Accept call .............................. 14
Reject call ............................... 14

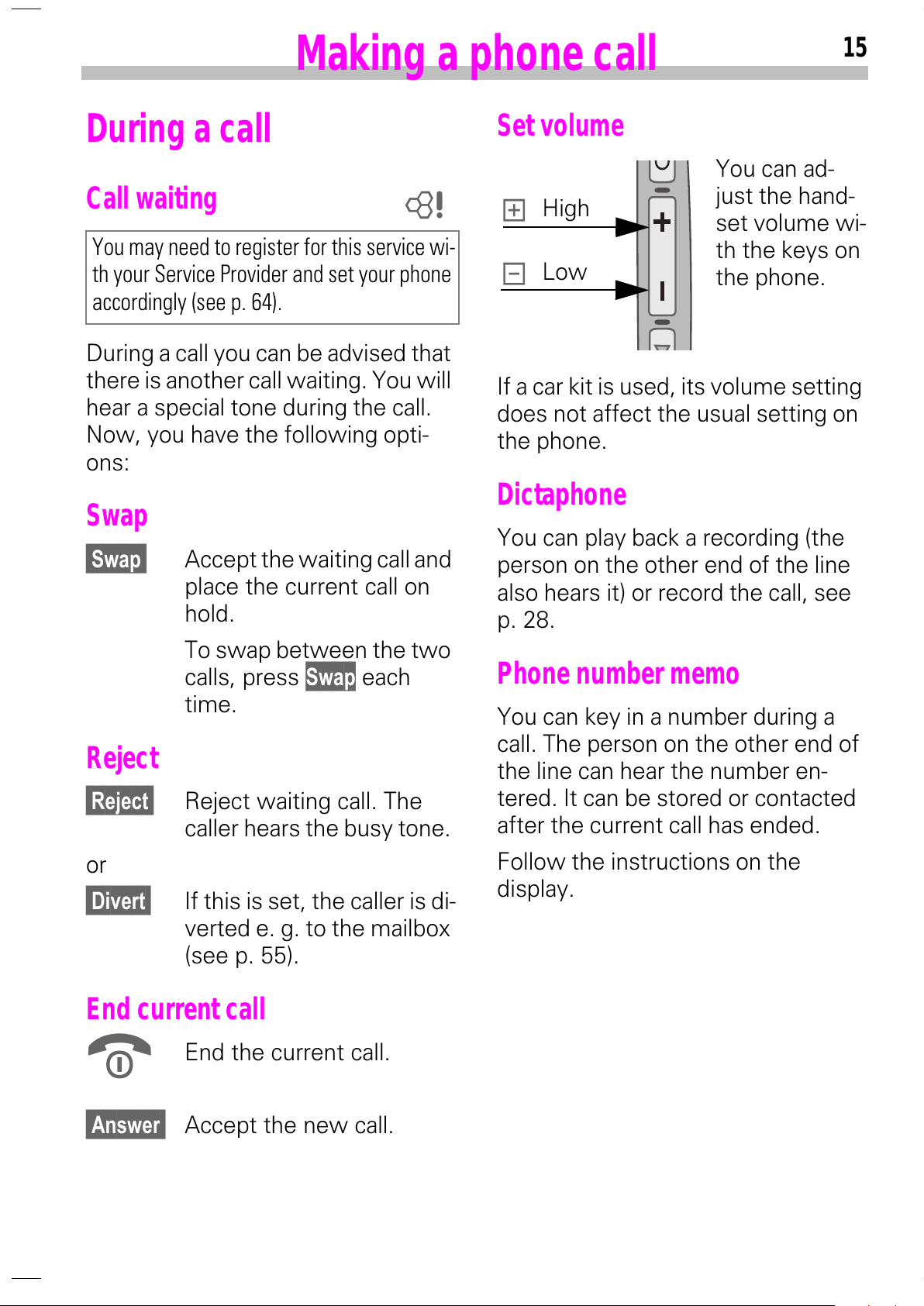

During a call ............................ 15
Send DTMF tones .................. 17
Addressbook
.................................
18
New entry............................... 18
Read entry .............................. 19
Search entry ........................... 20
Call entry................................. 20
SIM Location .......................... 21
Store control code ................. 22
Special numbers ..................... 22
Businesscard
................................
23
Voice Control
................................
24
Voicedialling............................ 24
Voice command...................... 24
MP3 Player
................................. 25
Play ......................................... 25
Load music ............................. 27
Dictaphone
....................................
28
Record .................................... 28
Play ......................................... 29
Answering notice
..........................
30
Calendar
........................................
31
New appointment ................... 32
Calculator / Currency Conver.
.....
33
Internet (WAP)
...............................
34
Settings................................... 34
Internet access ....................... 34
Profiles.................................... 36
Games / Chronometer
..................
38
Chronometer........................... 38
Message (SMS)
.............................
39
Read Messages ...................... 39
Compose message................. 40
Text entry with T9............... 41
Incoming list, outgoing list ...... 43
Archive.................................... 43
Predef. Message .................... 44
Setup ...................................... 45
Voice message / Mailbox
.............
46
Setup ...................................... 46
Listen to.................................. 46
Cell broadcast
...............................
47
Records
.........................................
49
Calls missed............................ 49
Calls received.......................... 49
Calls dialled ............................. 49
Alarms missed ........................ 49
Profiles
..........................................
50
Activate................................... 50
Without Alarm......................... 51
Contents
See also Index
at the end of this User Guide
1
1
All manuals and user guides at all-guides.com

31.10.00 u35gbivz.fm U35 - english,A31008-H4800-A1-1-7619
Audio
..............................................
52
Ringer setting ........................ 52
Volume .................................. 52
Trembler ................................. 52
Filter........................................ 52
Service Tones ........................ 52
Melodies ................................ 53
Time/Charge
..................................
54
Divert
.............................................
55
Setup
..............................................
57
Menu mode ............................ 57
Device..................................... 57
Security................................... 60
Network.................................. 61
During calls ............................. 64
Headset ................................. 64
Car use ................................... 64
IrDA ........................................ 64
Fast access key
............................
65
Soft key .................................. 65
Speed dialling number ............ 66
Quick menu selection............. 66
Card-Explorer
................................
67
Fax/data mode using a PC
...........
68
Fax/data .................................. 68
Speech/fax.............................. 68
Data exchange
..............................
69
Sync Station............................ 69
IrDA (infra-red) ........................ 69
Integral modem ...................... 69
PC software
...................................
70
Data Exchange Software ........ 70
Siemens Quick Sync............... 71
Display symbols
...........................
72
Siemens Service
...........................
73
Troubleshooting
...........................
74
Specifications/maintenance
........
77
Declaration of conformity........ 77
Technical data ......................... 77
Maintenance tips .................... 77
General accessories
.....................
78
Car Accessories
...........................
79
Index
..............................................
81
Contents
See also Index
at the end of this User Guide
2
2
All manuals and user guides at all-guides.com

10.11.00 u35sec.fm U35 - english, A31008-H4800-A1-1-7619
3
Safety precautions
All radio transmitters are subject to
restrictions such as:
Switch off in hospitals; medical
electronics e.g. pacemakers or
hearing aids can be affected.
While driving:
Do not hold the phone in your
hand. Only use one earpiece of
the stereo headphones
("Car Accessories", page 79).
Mobile phones must be
switched off at all times in an
aircraft.
Prevent accidential activation.
Switch off near petrol stations,
fuel depots, chemical plants or
blasting operations.
Minor interference may affect
TVs, radios, PCs, etc.
Do not examine the active infra-
red interface [Class 1LED prod-
uct (classified according to
IEC 60825-1)] using optic magni-
fication devices.
The ring tone is reproduced
through the earpiece. First
accept the call, then hold the
phone to the ear.
MultiMediaCard
™
and SIM
card may be removed, small
parts could be swallowed by
children.
Please note:
Neither the phone nor the bat-
tery may be opened under any
circumstances.
We recommend you use only
Original Siemens batteries and
charging devices. Otherwise
considerable health risks and
damage to the product cannot
be excluded.
Battery and battery cover must
not be separated from each
other.
Dispose of used batteries ac-
cording to the legal regulations.
We recommend you use only
Original Siemens accessories to
avoid possible damage.
Improper use invalidates the warranty!
All manuals and user guides at all-guides.com

10.11.00 u35over.fm U35 - english, A31008-H4800-A1-1-7619
4
Overview of keys/display
Infra-red interface
(IrDA, e.g. for PC/
PDA communication)
Display indicators
Reception strength/
battery level
(see also p. 72).
Key lock
To switch on and off:
Hold
down
.
2. Confirm
(only when
switching
off).
Side keys
At the top:
Activate dictaphone.
Centre
(context-sensiti-
ve)
H: Start voice dialling.
HG:Set volume/
scroll up and down in
menus and messages.
G: Start profiles.
At the bottom:
Activate MP3 player.
Ringer
To switch on and off:
Hold
down
.
Soft keys
The current functions
are displayed as icons
or text above the keys.
The soft keys display
the quick selection
and menu access in
standby mode or offer
access to a special ser-
vice such as
Z
the
SIM service.
Empty?
Menu
Call key

Select displayed phone number
or name, accept calls.
Display last calls in standby mo-
de.
$
On/Off/End key
Press briefly:
End call or jump back to
the previous menu level.
Hold down:
Switch phone on/off
or return to standby mode.
Control key
In standby mode
LVoice dialling active
DOpen address book.
NOpen menu.
In lists and menus:
L DScroll up and down.
NSelect function.
MMenu level back.
SMS and Calendar:
M NMove cursor.
L DScroll up and down.
@0
Provider
0
1.
02
.200
1 1
0:35
Empty? Menu
All manuals and user guides at all-guides.com
all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
5
General instructions
The User Guide
The short guide will suffice for expe-
rienced users and those in a hurry.
We recommend you read this User
Guide carefully, so that you can use
all functions of the phone fully.
The following symbols are used:
Enter numbers or letters.
$On/Off/End key.
Call key.
Press control key on the side in-
dicated.
0HQX Displays
a soft key function.
CFunction depends on the Ser-
vice Provider; special registrati-
on may be necessary.
Steps for menu access (e. g.):
0HQX Î
Audio
Î
Volume
The procedure above corresponds to:
0HQX Press soft key.
'Scroll to
Audio
.
Select
Audio
.
'Scroll to
Volume
.
Select
Volume
.
Menu Control
The menus provide access to
functions, network services and in-
dividual settings.
Main menu
You always reach it from the stand-
by mode when you press the right
soft key:
0HQX or with
Menu control
Use the control key to
scroll in the menus.
Select a submenu or a
function.
*Go back one menu level
(or press
$
briefly
).
Option menu
In other situations (e.g. when
address book is open), a correspon-
ding option menu appears:
2SWLRQV Press.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
6
General instructions
Helpsystem
In every menu, you find the help line
at the top with which you have ac-
cess to the help system by subject.
Calling up the help for the first time
after switching on can take a few se-
conds.
Navigation
lLeave the help. You return
to the point at which you
called up the help.
gLeads to the index of the
help system.
l g
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
7
SIM card
Insert SIM card
The Service Provider supplies you
with a SIM card on which all the im-
portant data for your line are stored.
If the SIM card has been delivered in
credit card size, snap the smaller
segment out and remove any rough
edges.
 Insert SIM card under the retai-
ning ribs
n. Observe correct
position of the angled corner,gold
contacts pointing downward.
 Press SIM card downward oun-
til the latch engages.
 Then insert (see p. 8) the battery
(see p. 8).
Only 3 Volt SIM cards are supported. Older
SIM cards (5 Volt technology) cannot be
used. Please contact your Service Provider.
o
n
Remove SIM card
 Switch off phone.
 Unlock and remove battery.
 Press latch inward puntil the
SIM card jumps out a short way.
 Then remove the SIM card.
Functions without SIM card
If the phone is switched on without
SIM card, the following display ap-
pears:
0HQX Press soft key.
All functions that can be used wit-
hout SIM card are shown. You will
find a description of the functions in
this User Guide.
626 "Emergency number
(SOS)", p. 11.
pLatch
Please insert your SIM
card!
SOS
Menu
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
8
Battery
Insert battery
 Insert battery at the bottom of the
phone nand press inward until it
clicks into place o.
 Switch off the phone before you
remove it!
 Unlock battery o, then remove
n.
Charge battery
 The battery is not fully charged
when delivered, so:
 Interconnect the socket and the
Sync Station
nwith the plug-in
power supply.
 Insert the phone into the Sync
Stationo
and press downward
until it engages. The contact mes-
sage is displayed (alternatively:
plug in power supply directly to
the phone).
n
o
o
n
The voltage indicated on the
Sync Station must not be ex-
ceeded.
Charging
The charger heats up when used for long
periods. This is normal and not dangerous.
%When charging is in progress.
4End of charging
An empty battery is fully charged after
about 2 hours. Charging is only possible in
an ambient temperature of 5°C to 40°C
(the charge icon flashes as a warning when
the temperature is 5°C above/below).
Usage time
A fully charged battery provides 60 to 170
hours of standby time or 1 to 4 hours of talk
time. The standby times/talk times are
average values and depend on the opera-
ting conditions (see table below).
Display of charge level:
Fully
0 12
Empty
charged
A beep sounds when the battery is nearly
empty.
Operation
carried out
Time
(min)
Decrease of
standby time
Calling 1 30 - 60 min.
Playing music 30 30 h.
Display
backlight*
½30min.
Network search 1 5 - 10 min.
CB service 1 30 min.
*Key input, games, organizer etc.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
9
MultiMediaCard™
With the MultiMediaCard, your
phone acquires a very large memory.
It enables you to store numerous
addresses, MP3 music files or voice
memos. You may also use the Multi-
MediaCard like a floppy-disk to sa-
ve any other desired files.
Change the MultiMedia-
Card™
 When you buy your SL45, the
MultiMediaCard is already in
the phone.
 Push open the small button oppo-
site n(using a pen, etc). Remove
the MultiMediaCard carrier
from the phone o.
Please treat the MultiMediaCard careful-
ly. Do not bend it or expose it to static
electricity.
n
o
 Insert the MultiMediaCard into
the carrier
p.
Slide the carrier with the
MultiMediaCard into the
phone again o.
File management
The Card-Explorer is available in the
phone for organising your files (see
p. 67). In combination with a PC, you
can also use the Data Exchange
Software (see p. 70).
Note that the entries on the Multi-
MediaCard are not automatically
linked with the entries on the SIM
card. For example, entries that you
make in the address book are only
stored on the MultiMediaCard.
New MultiMediaCard
1. Save the data of the old MultiMedia-
Card on a PC.
2. Format the new MultiMediaCard with
the aid of the Data Exchange Software.
3. Transfer the data from the PC on to the
new MultiMediaCard.
p
All manuals and user guides at all-guides.com
all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
10
Switch on, off / PIN entry
Switch on
Hold
down
On/Off/End key
to switch
on or off.
Enter PIN
The SIM card can be protected with
a 4-8 digit PIN code.
 Enter your PIN code using the di-
git keys (shown as a series of
asterisks,if you make an error
press &OHDU).
 Confirm input.
Press the soft key 2..
When you switch the phone on for the first
time the language of your Service Provider
is loaded (see also p. 57). This takes a few
seconds.
Please enter
your PIN:
****
M
C
OK
k
The logon to the network will take a
few seconds.
When the name of the Service Provi-
der appears in the display, the pho-
ne
is
instandbymode
and
readyforuse
.
SIM Card
Whenever you change a SIM Card you are
prompted to copy the names and phone
numbers stored there to the MultiMedia-
Card after you have switched on the pho-
ne. Follow the instructions on the display.
If you want to copy the data of the SIM Card
to the MultiMediaCard later on, you can
use the functions on the SIM Card menu
(see p. 21).
Problems with the SIM Card
If 
Please insert your SIM card!
 is dis-
played, check for faults, see p. 74.
Wrong PIN?
If the PIN is entered incorrectly three times,
the SIM Card is blocked, see p. 74.
Activate/Deactivate PIN Control,
Change PIN No., see p. 61.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
11
Switch on, off / PIN entry
Emergency number (SOS)
By pressing the soft key 626 you can make
an emergency call without SIM card or PIN
input via any network. This must only be
used in case of emergency!
Network connection
@
&
Strength of the incoming signal.
A weak signal reduces the call
quality and may lead to a break
off of the connection. In this ca-
se, change your location.
Do not interfere with the antenna at the top
of the phone unnecessarily during operati-
on, otherwise the quality of the connection
may be impaired.
If you are outside your home network,
your phone automatically selects another
GSM network (see also p. 61).
SIM services
ZThis symbol is displayed if your
SIM card supports special appli-
cations provided by your Service
Provider.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
12
Making a phone call
Dialling with digit keys
The phone must be switched on
(standby mode).
Enter the
number
- if necessary with interna-
tional dialling code
- national only for calls to
the national fixed network.
&OHDU A short press clears
the last digit, a long press
the entire number.
[Store phone number
in the address book, see
p. 18.
Press the Call key. The
phone number displayed
is dialled.
End call
$Press the End key. The call
is ended.
Press this key even if the person on
the other end of the line has hung up
first.
International dialling code
You can access international dialling codes
stored in your phone:
Press the key until a + symbol
appears. The two leading digits
will be 00.
/LVW Press.
Select the required country from the list.
The international dialling code is displayed.
Now add the national number (in many
countries without the first digit if it is a zero
and press the Call key.
Stereo headphones:
Plug in the stereo headphones at the bot-
tom of the phone. With the PTT key you can
use the functions answer call, end call 
and in standby mode you can use voice dial-
ling (see p. 24).
If there is a call, the music is automatically
interrupted. Press the PTT key on the head-
set cable to accept the call (see p. 26).
Warning:
Both earpieces must never be used when
driving or operating machinery.
Microphone
PTT key
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
13
Making a phone call
When number is busy
If the number called is busy or it
cannot be reached because of net-
work problems, the following opti-
ons are available:
Auto redial previous numbers
$XWR'LDO Press. The number is auto-
matically dialled for up to
15 minutes at increasing
intervals. During this peri-
od, no other phone num-
ber can be dialled.
To end:
Press 2II or
end key
$.
Reminder
3URPSW Press. A beep reminds
you to redial the displayed
phone number after 15 mi-
nutes.
Any other call ends the function.
Redialpreviousnumbers
To redial the phone number
last
cal-
led:
Press the Call key
twice
.
To redial other numbers that were
dialled previously:
Press the Call key once.
Pick out the required pho-
ne number from the list of
last calls, then press...
... to dial.
2SWLRQV see p. 49.
[Store phone number in the
address book, see p. 18.
Calling other stored phone numbers,
see p. 49.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
14
Making a phone call
Accept call
The phone must be switched on to
receive calls (in standby mode).
Accept a call with:

or
$QVZHU
End call
$Press.
Reject call
$

or
5HMHFW
The caller hears the busy signal.
'LYHUW Diverts e.g. to the mailbox,
when this diversion has been
set, see p. 55.
[phone]
Answer
Reject

Accepting with stereo headphones
If a call comes in, the music is automatically
interrupted. Press the PTT key to accept the
call or to end the call (see p. 26).
Warning:
Both earpieces must never be used when
driving or operating machinery.
Accepting with Answering notice
Prerequisite: You have recorded an Answer-
ing notice and it is active.
When a call comes in, press the dictation
key
briefly
. The call is accepted and an Ans-
wering notice is played without your having
to speak (see also p. 30).
You can return calls received or missed, see
p. 49.
You can answer incoming calls using any
key, setup see p. 57.
An incoming call will interrupt any other use
of the phone.
Data calls, fax calls, see p. 68.
Functions during the call,
see p. 15.
Deactivating the ringer for the current call:
Hold down.
The call is shown on the display.
The caller hears the dialling to-
ne.
All manuals and user guides at all-guides.com
all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
15
Making a phone call
During a call
Call waiting
During a call you can be advised that
there is another call waiting. You will
hear a special tone during the call.
Now, you have the following opti-
ons:
Swap
6ZDS Accept the waiting call and
place the current call on
hold.
To swap between the two
calls, press 6ZDS each
time.
Reject
5HMHFW Reject waiting call. The
caller hears the busy tone.
or
'LYHUW If this is set, the caller is di-
verted e. g. to the mailbox
(see p. 55).
End current call
$End the current call.
$QVZHU Accept the new call.
You may need to register for this service wi-
th your Service Provider and set your phone
accordingly (see p. 64).
C
Set volume
You can ad-
just the hand-
set volume wi-
th the keys on
the phone.
If a car kit is used, its volume setting
does not affect the usual setting on
the phone.
Dictaphone
You can play back a recording (the
person on the other end of the line
also hears it) or record the call, see
p. 28.
Phone number memo
You can key in a number during a
call. The person on the other end of
the line can hear the number en-
tered. It can be stored or contacted
after the current call has ended.
Follow the instructions on the
display.
HHigh
GLow
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
16
Making a phone call
Swap/Conference
You can call another number during
a call.
You can swap back and forth bet-
ween both calls or link all callers to-
gether in a conference.
During a call, inform your partner
about your intention:
+ROG Put the current call on
hold.
Now you can dial a new number.
When the connection is established,
you have the following options:
Swap
6ZDS Swap back and forth bet-
ween both calls.
Some functions may not be supported by
your Service Provider.
C
@ 0
99
Hold
Options
Conference
2SWLRQV Open call menu and select
Conference
.
A held call is added (conference call
with up to five subscribers maxi-
mum).
To end:
$All calls are ended simulta-
neously when the End key
is pressed.
Call transfer
2SWLRQV Open call menu and select
Call transfer
.
The original call is joined to the se-
cond one. For you, both calls are
now ended. Not supported yet by all
Service Providers.
When the current call is ended, the follo-
wing query is displayed: Return to call on
hold?
<HV Return to the held call.
1R The held call is ended.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
17
Making a phone call
Call menu
2SWLRQV
Microphone
off
Switch the micropho-
ne on or off. If switched
off, the person on the
other end of the line
can hear nothing.
Alternatively:
Hold down.
Conference
(see p. 16)
Time/Charge
While the connection
continues, the call dura-
tion and (if set, see
p. 54) the call time/cost
are displayed.
Call transfer
(see p. 16)
Main menu
Direct access to the
main menu.
Call status
List all held and active
calls (e.g. participants
of a conference).
Send DTMF
tones
Transmit the control
codes created using
the keys or address
book.
Send DTMF tones
Digit entries during a call are directly
transmitted as DTMF signals.
All manuals and user guides at all-guides.com

10.11.00 u35gb.fm U35 - english, A31008-H4800-A1-1-7619
18
Addressbook
0HQX Î
Organiser
Î
Addressbook
You can store names, addresses
and phone numbers in the address
book. The address book is only
available if a MultiMediaCard is in-
serted. Without a MultiMediaCard
you can only access the SIM card
(with restricted functionality) (p. 21).
New entry
'Open address book (in
standby mode).
Scroll upward and select...
New entry
....
The entry card for an address is dis-
played.
K
Addressbook
New entry
Businesscard
Barbara
View
Options
K
Addressbook
Last name:
|
First name:
d
Save
Enter
at least
the first or last name
and a phone number.
Make your entries field by
field:
Lastname:
Firstname:
Company:
 Email:
 Phone:
 Tel.office:
 Tel.mobile:
Fax:
 Street:
Zipcode:
City:
 Country:
URL:(Internet adress)
VIP
(see below)
6DYH Press.
VIP
You should only assign important entries to
the VIP group.
You may display the VIP entries at the top of
the address book (see p. 20).
You can set your phone so that the ringer
sounds only for calls from numbers in the
VIP group (see p. 52).
A call from a VIP entry can be announced by
a special melody (see p. 53).
dCopy data from a different
address book entry.
All manuals and user guides at all-guides.com
