V1.1
Version Date Department Notes to change
1.0 ICM MP CCQ SLI RHQ New Document
1.1 08.09.2004 ICM MP CCQ GRM T SW update section
changed,
other minor changes
Our innovation shapes the future

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 2 of 2 Internal Use Only
Table of Contents
1 GPRS (GENERAL PACKET RADIO SERVICE)……….3
2 K JAVA APPLICATION……………………………………………………………….4
3 KEY FEATURES……………………………………………………………………….5
4 COMPARISON WITH PERVIOUS PRODUCT...……………………………………8
5 ACCESSORIES……………………………………………………………………......9
6 UNIT DESCRIPTION SL65....................................................................................11

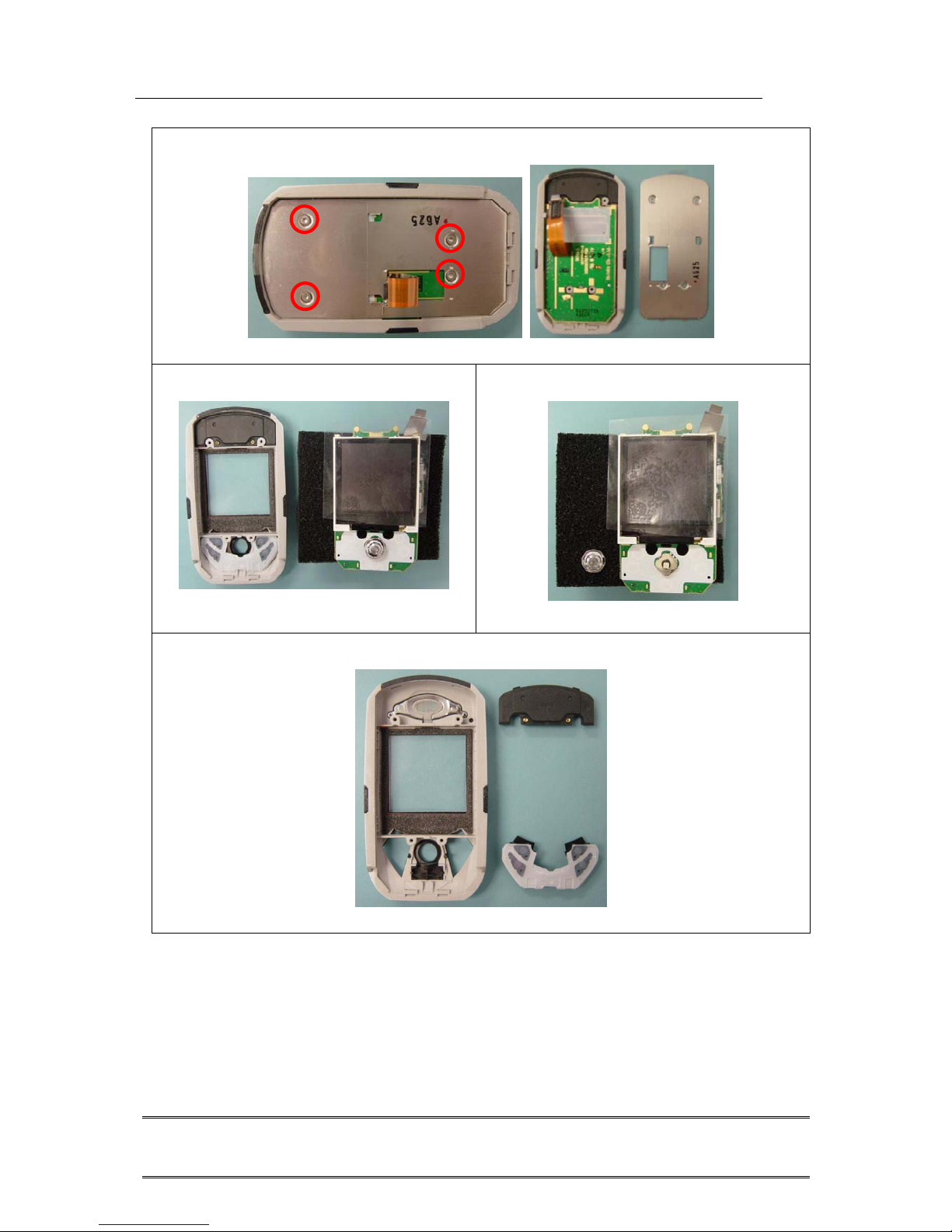

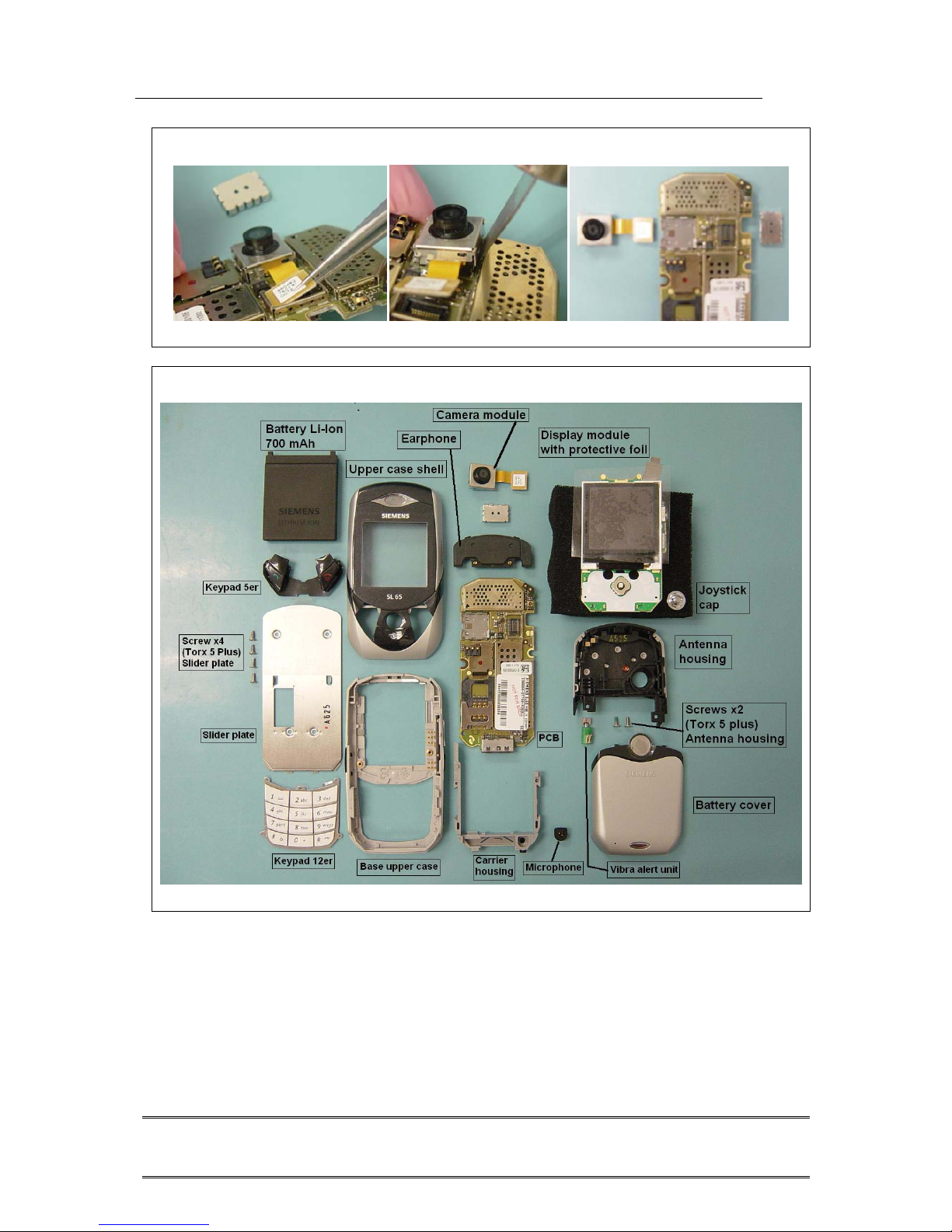

7 DISASSEMBLY OF SL65......…………………………………………..…………..13
8 REASSEMBLY OF SL65….………………………………………………………...19
9 MOBILE SOFTWARE PROGRAMMING…………………………………………..20
10 SIEMENS SERVICE EQUIPMENT USER MANUAL……………………………..23
11 JPICS INTERNET.……………………………………………………………………24
12 INTERNATIONAL MOBILE EQUIPMENT IDENTITY, IMEI…….………………..30
13 GENERAL TESTING INFORMATION……………………………….……………..31
Annex 1……………………………………………………………………………….……….36
Annex 2…………………………………………………………………………….………….37

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 3 of 3 Internal Use Only
1 GPRS (General Packet Radio Service)
GPRS is a new non-voice value added services that allows information to be sent
and received across a GSM mobile telephone network. It supplements today’s Circuit
Switched Data (CSD) and Short Message Services (SMS). GPRS involves overlaying
a packet based air interface on the existing circuit switched GSM network. This gives
the option to use a packet-based data service. The information is split into separated
but related “packets” before being transmitted and reassembled at the receiving end.
Theoretically, maximum speeds of up to 171.2 kilobits per second (kbps) are
achievable with GPRS using all eight timeslots at the same time. This is about 3
times as fast as the data transmission speed possible over today’s fixed
telecommunications networks and 10 times as fast as current Circuit Switched Data
services on GSM networks.

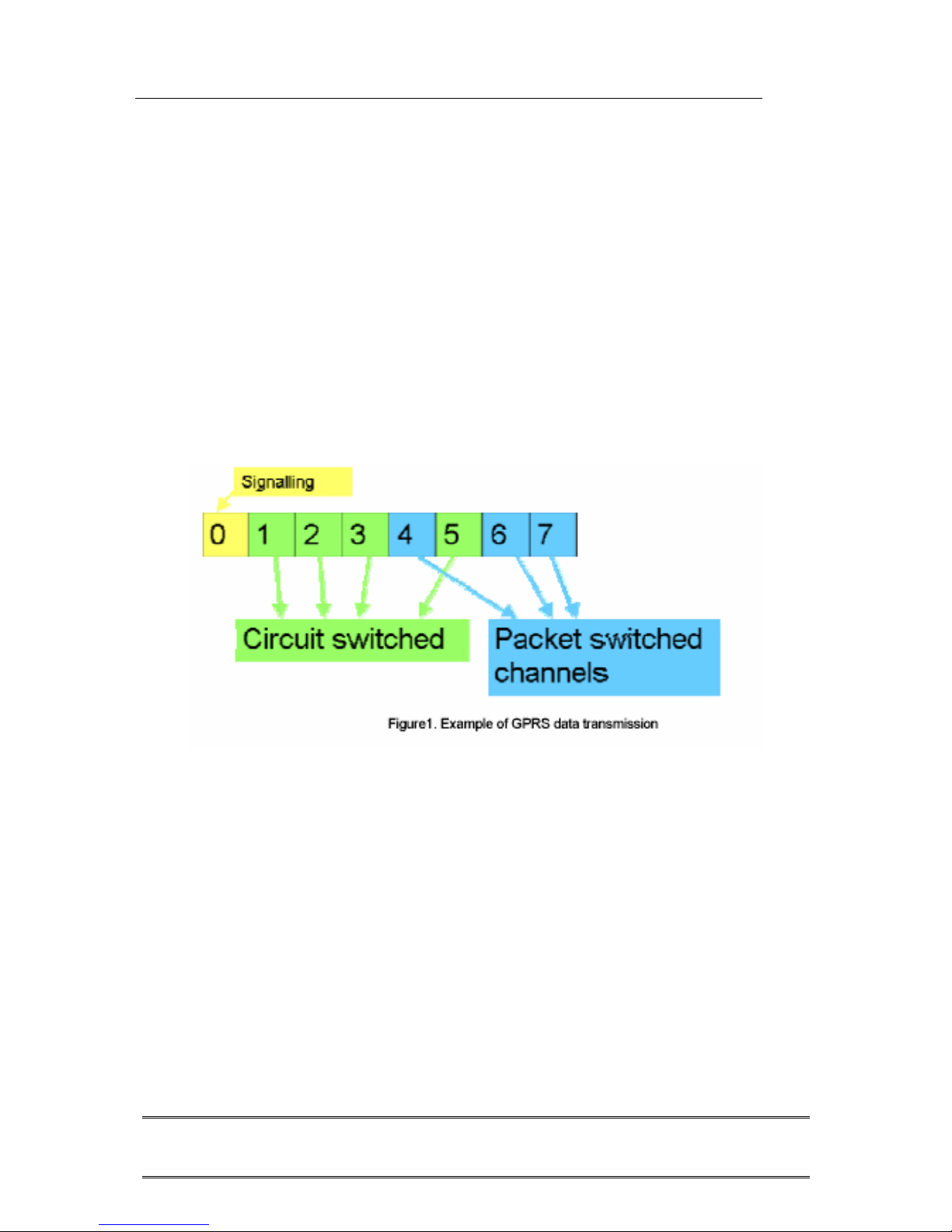

Example: Cell with 1 Frequency channel:
1 physical channel for signaling, 4 physical channels for Circuit switched and 3 physical
channels for Packet switched.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 4 of 4 Internal Use Only
2 K-Java Application
Java-based game system
Java Application Manager
(JAM)
Application launcher and
download manager.
Supports HTTP-based OTA
download of applications over
GPRS and CSD.
yes
RAM for Java applications Available RAM for Java
applications (i.e. Program code
and data) during application
runtime:
Minimum 100 Kbytes (Has to be
taken as working assumption
for application development).
Goal: 145 Kbytes as SL45i (not
committed)
yes
MIDP 1.0, CLDC 1.0 As SL45i, including
performance optimizations from
SL45i-Infusio.
yes
‘OEM extensions’ Proprietary API extension as
SL45i. Including ‘Siemens
Game API’
yes
HTTP API over GPRS Sl45i: only CSD yes

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 5 of 5 Internal Use Only
3 Key Features
Bands •Triple Band E-GSM 900 / GSM 1800 / GSM 1900
•EGSM Phase 2 / phase 2+
•GPRS Multi Class 10
•JavaTM Wireless Technology, MIDP 2.0
Battery •Li-Ion Battery Pack
•Nominal Voltage : 3.7V
•Nominal Capacity : 700 mAh
•GSM Capacity : 670 mAh
Stand-by Time •up to 230 h (standard battery)
Talk Time •up to 270 min (standard battery)
SIM Card
•Small (”Plug In”) 1.8 V or 3V SIM card (Phase II)
•To insert the SIM card, the battery pack must be
removed.
GSM Antenna •Integrated triple band antenna for EMEA/APAC.
Dimensions •90.2 x 47.6 x 20.9 mm (L x W x H)
Volume •78 cm³
Weight •99 g
Charging time •< 2 h for 100%
Storage •Up to 11 MByte
Receiver Sensitivity •GSM 900: -102dBm (Specification, static & with fading)
•GSM 1800/1900: -102 dBm (Specification, static & with
fading)
Receiver sensitivity must comply with the corresponding GSM
recommendations in all operating conditions (temperature,
battery level, etc)
Transmitter Power •GSM 900: nominal 2W (Specification: Class 4 Mobile
phone)
•GSM 1800/1900: nominal 1W (Specification: Class 1
Mobile phone)
Transmitter output characteristics is according to GSM 11.10
specification implying all specified operating conditions
(temperature, battery level ...).
Transmitter set points will be specified for GSM and PCN when
typical values and statistical values become available.
Speech Codec
•Triple Rate (HR/FR/EFR) and Adaptive Multi Rate are
available as standard
Temperature
Range
•-100C to +550C (Normal operation)
•-300C to +850C (Storage capability)

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 6 of 6 Internal Use Only
Display •Type: Full Graphic
•Resolution: 130 x 130 Pixel
•No. of colours: 65K
•Technology: TFT (Epson)
•Active area: 30.03mm x 30.03mm
•Pixel size: 0.077mm x 0.231mm. (1 Pixel consists of 3
sub-pixels in red, green and blue)
•Illumination: White LED (3 LEDs integrated)
•Contrast: Adjustable
•Frame rate: 15 frames/seconds
•No. of lines: 5 / 7
12-Block Keypad •12-digit block (0-9, #, *)
•Bridgeless keypad
•Front side painted technology
•Tactile finder on key “5”
•White as illumination colour
•4 white LEDs for keypad
6-Block Keypad •Front side painted technology
•5-way joystick with design-cap (soft material)
•2 soft-keys for different SW-enabled functions
•2 function keys (SEND, END)
•ON/OFF key combined with the END key; the symbol ¢(I
inside O) is used as a symbol for ON/OFF.
•1 separate Operator Key (non-illumination Operator Key)
•White as illumination colour
•4 white LEDs for keypad
Side Key •Front side painted technology
•Loudness / Voice Memo (as SL55)
Acoustics
•Three-in-one-loudspeaker for handset, handsfree and
ringing tones
•Uni-directional microphone
•Loud signal emitter (sound ringer)
•Polyphonic ringer tones (parallel to GPRS: 16 voices; all
other Use Cases: 32 voices)
•Hands free mode
•Different selectable volume levels for handsfree, handset
and ringer mode (for the amount see SW product
description)
Camera •Integrated VGA camera
•5x digital zoom
•Video recording
•Resolution: Still images: 640 x 480 pixel
Video clips: 128 x 96 SubQCIF, H.263 &
MPEG4
Video capture: 128 x 96 SubQCIF, 3GPP

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 7 of 7 Internal Use Only
H.263 + AMR for audio encoding
•Frames: 8 fps
Connectivity •USB, Serial (RS 232), and IrDA

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 8 of 8 Internal Use Only
4 Comparison with Previous Product
Feature CX65 SL55/56 SL65/66
Supported Systems Triple Band
(EMEA, APAC)
GSM 900/GSM1800/
GSM1900
(NAM)
GSM 850/GSM1800/
GSM1900
Triple/ Dual band
(EMEA, APAC)
GSM 900/GSM1800/
GSM1900
(NAM)
GSM 850/GSM1900
Triple Band
(EMEA, APAC)
GSM900/GSM1800/GSM1
900
(NAM)
GSM 850/GSM1800/
GSM1900
Stand-by Time ≥220h
(approx. 3mA quiescent
current)
SL55: 200h
SL56: 180h (DTX2)
SL65: 230h
SL66: 120h (DRX2)
Talk Time ≥4,5 h
(approx. 150mA average
current for lowest TX-
power level)
SL55: 200min
SL56: 110min(DTX5)
SL65: 270min
SL66: 130min (GSM850
PowerLevel 5 DTX OFF)
Battery Technology
Battery Capacity
Li-Ion Battery Pack
NOMINAL CAP.: 700
MAH
Li-Ion Battery Pack
NOMINAL CAP.: 500
MAH
Li-Ion Battery Pack
NOMINAL CAP.: 700
MAH
Weight Approx. 90 g Approx. 75g Approx. 85g
Volume Approx. 78 cm3Approx. 63 cm3Approx. 78 cm3
Length 108 mm 81,6mm 90,2mm
Width 44…47 mm 44.5mm 47,6mm
Thickness 17…18 mm 21,9mm 20,9mm
SIM Plug-In 1.8V/3V Plug-In 1.8V/3V Plug-In 1.8V/3V
Antenna Integrated Integrated Integrated
Antenna Performance
in comparison to S35
CX65:
-0,8 dB @ 900 MHz
-0,5 dB @ 1800 MHz
CX66
SL55
28,3dBm@900MHz
26,1dBm@1800MHz
25,2dBm@1900MHz
SL56
27,0dBm@850MHz
-
26,2dBm@1900MHz
SL65
28,6dBm@900MHz
26,4dBm@1800MHz
25,2dBm@1900MHz
SL66
27,3dBm@850MHz
25,0dBm@1800MHz
27,0dBm@1900MHz
Antenna Performance
in comparison to C56
-1,5 dB @ 1900MHz
Half Rate Yes Yes Yes
Enhanced Full Rate Yes Yes Yes
AMR Yes Yes Yes
Fax/Data Yes Yes Yes
GPRS Yes (Class 10) Yes (Class 8) Yes (Class 10)
Keypad Illumination Yes (white) Yes (white) Yes (white)
DISPLAY /
DISPLAY
ILLUMINATION
TFT/TFD
65k colour
STN
4k colour
TFT
65k colour
CAMERA Yes
(integrated camera)
No Yes
(integrated camera)
Ringer volume level Min. 95 dB(A) @ 5cm
Typ. ≥98dB(A) @ 5cm
(for dedicated Siemens-
standard melodies)
Min. 100dB(A) @ 5cm
(only for rectangular
sound signals)
-
Typ. ≥95dB(A) @ 5cm
-
Typ. ≥95dB(A) @ 5cm

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 9 of 9 Internal Use Only
5 Accessories
For SL65, the following accessories will be available.
Description Part number
Car Charger Plus ECC-600 L36880-N7101-A109
Car Data Adapter HKO-690 L36880-N7101-A800
Car Kit Comfort HKC-650 L36880-N7701-A300
Car Kit Easy HKP-620 L36880-N7701-A100
Car Kit Portable HKP-500 L36880-N5601-A109
Data Cable DCA-500 L36880-N5601-A110
Data Cable USB DCA-510 L36880-N5601-A111
Data Cable USB DCA-540 L36880-N6501-A102
Flash IFL-600 L36880-N7101-A400
Headset HHS-500 L36880-N5601-A107
Headset with PTT HHS-510 L36880-N5601-A108
Headset Purestyle HHS-610 L36880-N7101-A500
Li-Ion Battery 700mAh EBA-650 L36880-N7701-A600
Mobile Holder Antenna HMH-655 L36880-N7701-A210
Mobile Holder HMH-650 L36880-N7701-A200
SyncStation DSC-600 L36880-N7101-A113
Textile Case FCT-600 L36880-N6051-A700
Travel Charger ETC-500 EU L36880-N5601-A104
Travel Charger ETC-510 UK L36880-N5601-A105
Upgrade Kit HKO-620 L36880-N7101-A103
Note: Visit the Communication Market for updated accessories:
https://communication-market.siemens.de/

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 10 of 10 Internal Use Only
5.1 SL65 Interface to accessories
The phone has got a full compatible interface to accessories. The I/O-Connector
(Lumberg-(slim)-connector) shall be in the same position as in the 55 series.
All shown interfaces are for car-cradle. Interfaces for Belt-Clip will not be necessary.
Slim Lumberg I/O Connector

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 11 of 11 Internal Use Only
6 Unit Description of SL65
The SL65 is a Slider Phone with an integrated camera. The housing parts are made
of lacquered plastic-parts (1-shot-molding; 2 colours). The mechanical concept is based
on the SL55. The two colour concept is realized by single parts, which are joined by
gluing. The silver parts are with a non-glossy coating, the coloured parts are with a high
glossy surface.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 12 of 12 Internal Use Only
6.1 Exploded View of SL65
Operator Key
Keypad 5er
Joystick cap
Upper case shell
Earphone
Display module
Slider plate
Base upper
case
Keypad 12er
Vibra alert unit
Carrier
housing with
microphone
Li-ion Battery
700 mAh
Battery cover
Screws
Antenna housing
Camera module
PCB
Screws slider

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 13 of 13 Internal Use Only
7 Disassembly of SL65
Note: ESD concept; the internal circuits will be more susceptible to ESD because of
the use of exchangeable housing. The construction of the internal block must be/is
designed, in the best possible way, to protect the circuit against sparks.
The keypad must be completely closed to prevent any occurrence of an ESD
disruptive discharge.
The SIM contacts may be open, thus reachable for ESD contact discharge. This
could lead to damage or destruction of the S-Gold pins.
It is a requirement for the service personnel to observe ESD protection rules while
performing servicing the SL65.
Step 1
Front view of the SL65
Step 2
Back View of the SL65
Step 3
Remove Battery cover.
Step 4
Remove Battery – push the catch in the direction shown.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 14 of 14 Internal Use Only

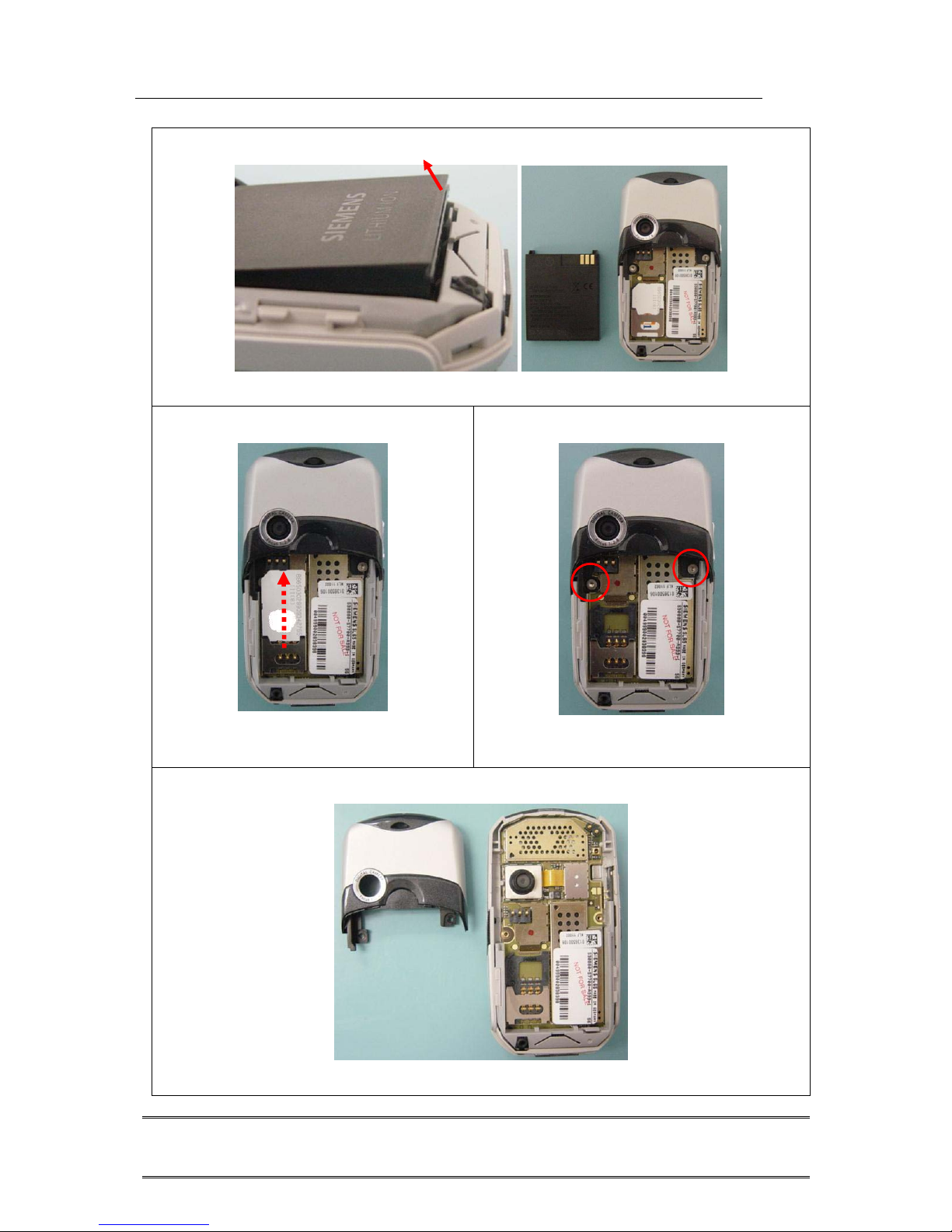

Step 5
Remove Battery – Lift the battery.
Step 6
Remove SIM card
Step 7
Unscrew the 2 screws (as indicated) with T5 Plus screw
driver (set Torque = 16 cNm).
Step 8
Remove Antenna housing.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 15 of 15 Internal Use Only
Step 9
Remove Vibra alert unit.
Step 10
Remove Carrier housing with microphone.
Step 11
Remove Microphone.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 16 of 16 Internal Use Only

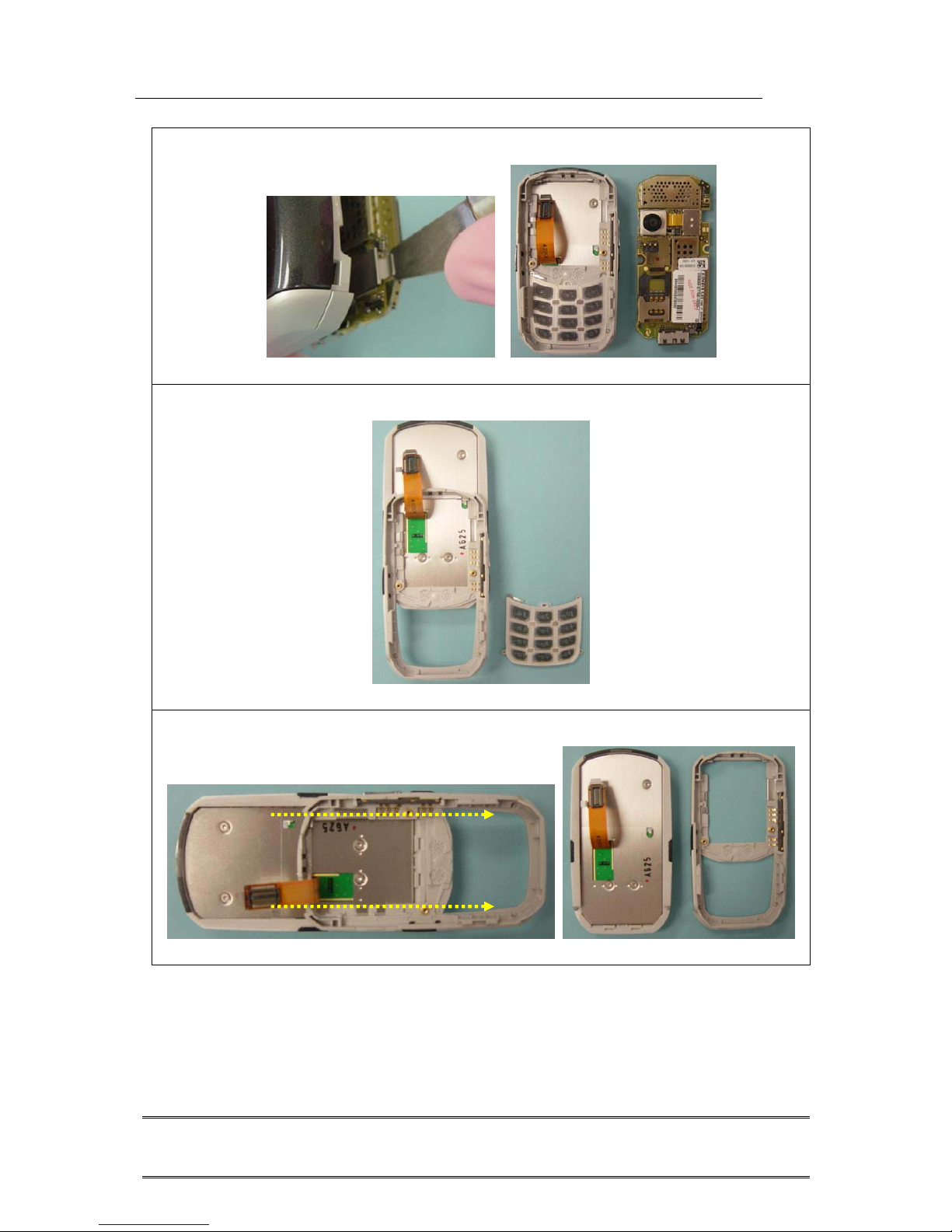

Step 12
Remove PCB.
Step 13
Remove Keypad 12er.
Step 14
Separate Base upper case and Upper case shell.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 17 of 17 Internal Use Only
Step 15
Unscrew the 2 screws (as indicated) with T5 Plus screw driver.
Step 16
Remove Display module. Place a protective foil over the
display module.
Step 17
Remove Joystick cap.
Step 18
Remove Earphone and Keypad 5er.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 18 of 18 Internal Use Only
Step 19
Remove Camera module.
Step 20
Fully disassembled S65

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 19 of 19 Internal Use Only
8 Reassembly of SL65
For the reassembly of the SL65, reverse the disassembly procedures from Step 20 to
Step1. However there are some areas to be taken note of during reassembling of the
phone.

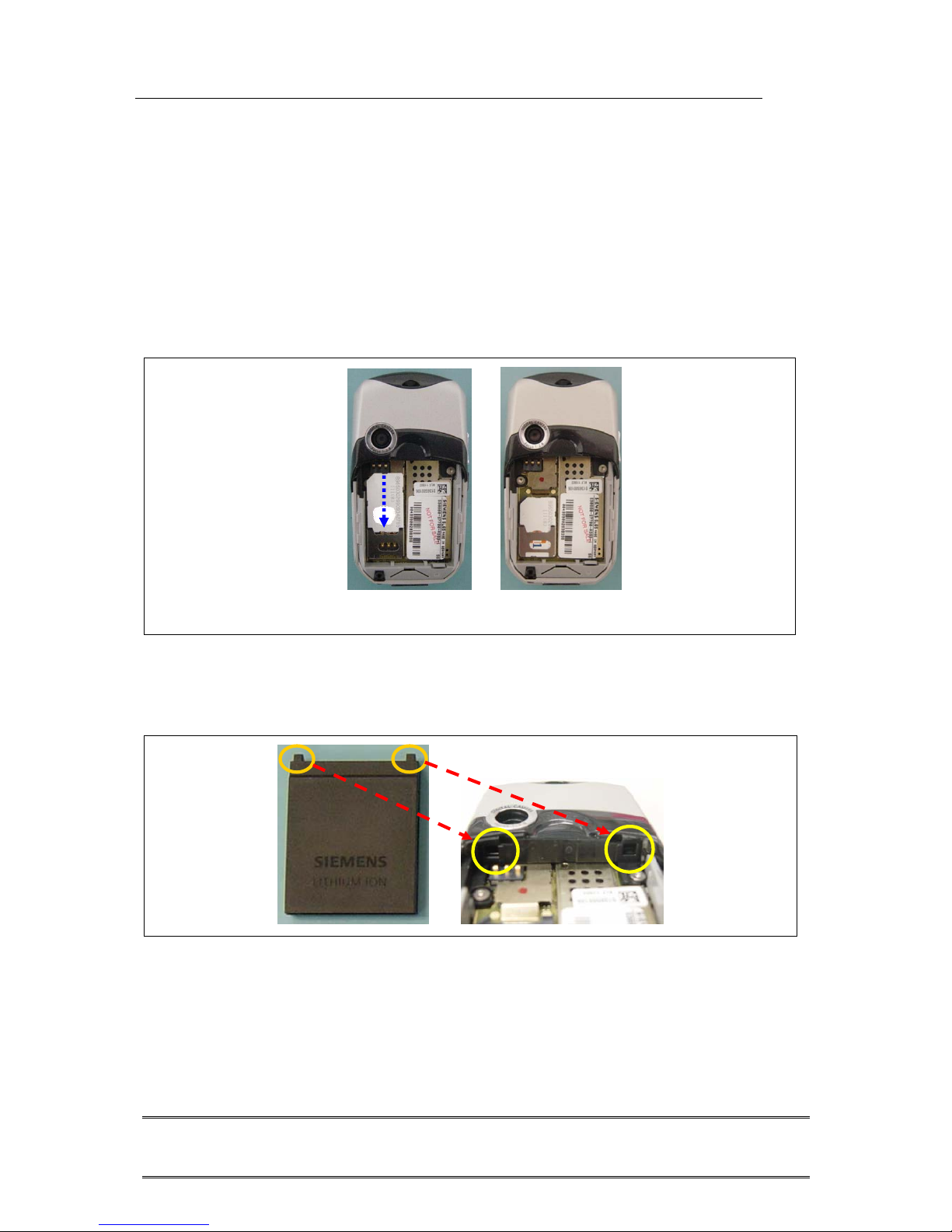

During the installation of the SIM card, make sure that the SIM card is inserted properly and that
the golden contact area is facing downwards. Insert the SIM card downwards to lock the SIM card
into position.
Installation of the SIM card
During the installation of the battery, make sure that the hinges are properly in place (See picture
below). Otherwise the battery will not be able to fit into the phone properly.

SIEMENS PTE LTD
SL65 Level 2 Service Manual
Copyright © Siemens Pte Ltd. Siemens Technical Support Centre
All Rights Reserved July 2004
ICM MP CCQ SLI RHQ Page 20 of 20 Internal Use Only
9 Mobile Software Programming
The common mobile software available is divided into language groups. However, this
software does not contain the specific settings, such as ringing tones, greeting text, and
short dial list etc., required by the operator or service provider. Therefore, it is common to
have some menu item(s) differ in different variants or are not visible at all. These settings
are stored in different memory area of the mobile and will be activated depending on the
customer specific model or variant of the phone by a separate test step during the
production process.
Due to this separation of common mobile software and customer specific initialization, it
is possible to fulfil the demands of the market requiring customization and flexibility. As a
consequence the software programming process in the LSO is divided into two different
steps as followed:
- Software update to actual version and appropiate language group
- Programming of CUSTOMER SPECIFIC INITIALIZATION

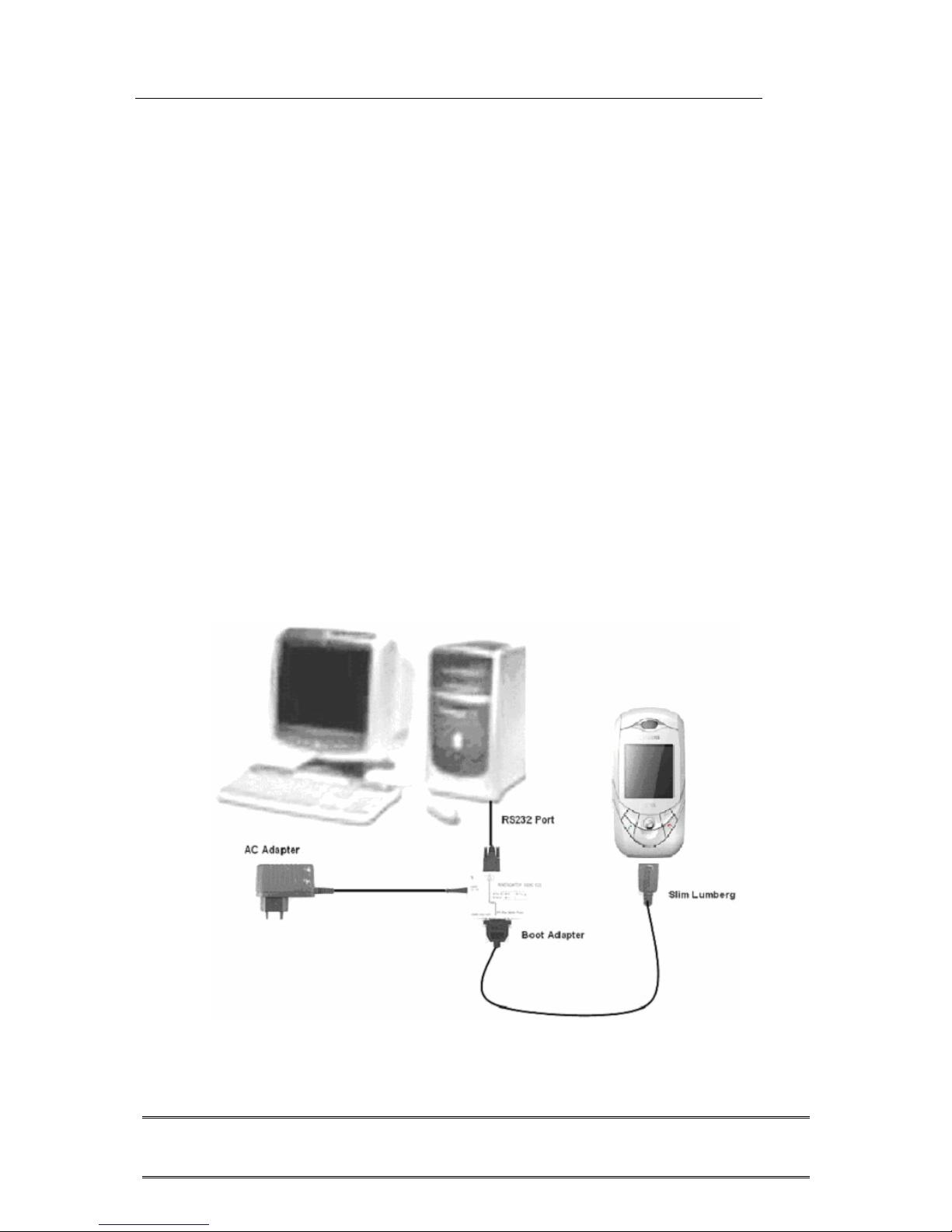

Figure 1. SL65 Software Programming Setup
Other manuals for SL65
3
Table of contents
Other Siemens Cell Phone manuals

Siemens
Siemens S25 User manual

Siemens
Siemens A56 User manual

Siemens
Siemens M65 User manual

Siemens
Siemens CX75 User manual

Siemens
Siemens AL21 User manual

Siemens
Siemens Xelibri X6 User manual

Siemens
Siemens C75 User manual

Siemens
Siemens Gigaset SL55 User manual

Siemens
Siemens S55 User manual

Siemens
Siemens S11 User manual

Siemens
Siemens AP75 User manual

Siemens

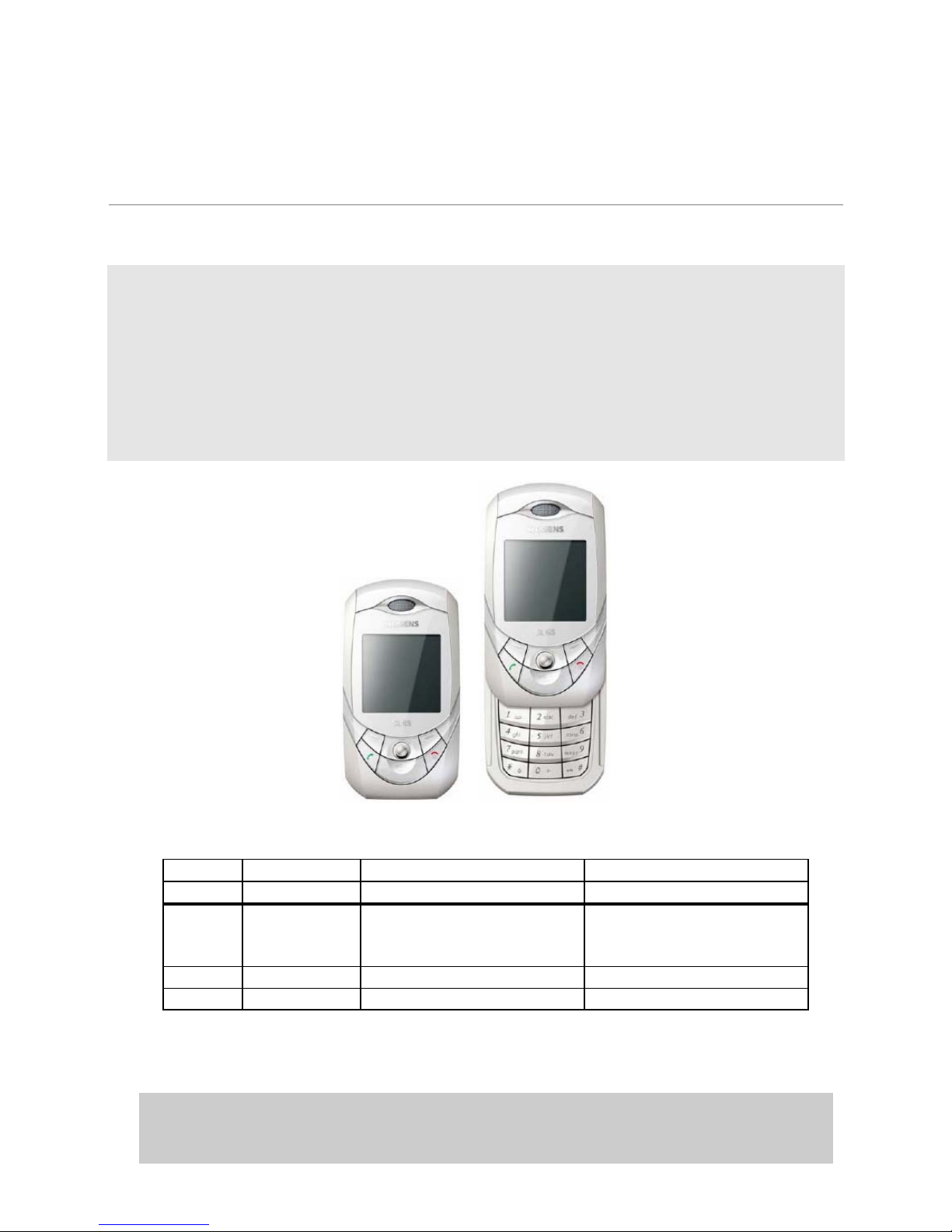

Siemens SL65 User manual

Siemens
Siemens SX66 User manual

Siemens
Siemens Gigaset SL56 User manual

Siemens
Siemens SIMATIC S7 CP340 Operating instructions

Siemens
Siemens C62 User manual

Siemens
Siemens ST60 User manual

Siemens
Siemens SK65 User manual

Siemens
Siemens C61 User manual

Siemens
Siemens SL45 User manual
