Siemens 7153 User manual

CC1N7153en
20.04.2005
Building Technologies
HVAC Products
7153
Oil Burner Controls LAL...
Oil burner controls
•With or without air pressure supervision for checked air damper control
•Flame supervision
– with photoresistive detector QRB1...
– or blue-flame detector QRC1...
– or selenium photocell detector RAR...
The LAL... and this Data Sheet are intended for OEMs which integrate the oil
burner controls in their products!
Use
-For the control and supervision of oil atomization burners
-For burners of medium to high capacity
-For intermittent operation (at least one controlled shutdown every 24 hours)
-Can be universally used with multistage or modulating burners
-Suited for use with stationary air heaters
LAL1... - Yellow- and blue-flame burners without air pressure supervision
LAL2... - Yellow-flame burners with air pressure supervision
LAL3.25 - For special applications, e.g. burners of incinerator plant
(for details, refer to «Type summary» and «Notes»)
LAL4... - Yellow- and blue-flame burners with air pressure supervision
For burner controls used in connection with burners for continuous operation, refer to
Data Sheet 7785 (LOK16...).
Avda. San Ignacio de Loyola, 185
24010 - San Andrés del Rabanedo
LEON - ESPAÑA
Tfno: 987.248.305 - Fax: 987.248.405
E-Mail : [email protected]
www.simelec.es
S
IMELEC
DISTRIBUIDOR OFICIAL

2/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Warning notes
To avoid injury to persons, damage to property or the environment, the following
warning notes should be observed!
Do not open, interfere with or modify the unit!
•All activities (mounting, installation and service work, etc.) must be performed by
qualified staff
•Before performing any wiring changes in the connection area of the LAL…, com-
pletely isolate the burner control from the mains supply (all-polar disconnection)
•Ensure protection against electric shock hazard by providing adequate protection
for the burner control’s connection terminals
•Check to ensure that wiring is in an orderly state
•Press the lockout reset button / operation button only manually (applying a force of
no more than 10 N), without using any tools or pointed objects
•Do not press the lockout reset button on the unit or the remote reset button
for more than 10 seconds since this will damage the lockout relay in the unit
•Fall or shock can adversely affect the safety functions. Such units must not be put
into operation, even if they do not exhibit any damage
Mounting notes
•Ensure that the relevant safety regulations are complied with
Installation notes
•Always run high-voltage ignition cables separately, with the greatest possible dis-
tance to the unit and to other cables
•Live and neutral conductors must not be mixed up
Electrical connection of the flame detector
It is important to achieve practically disturbance-free signal transmission:
•Never run the detector cable together with other cables
– Line capacitance reduces the magnitude of the flame signal
– Use a separate cable
•Observe the permissible cable lengths (refer to «Technical data»)
Commissioning notes
•Prior to commissioning, check to ensure that wiring is in an orderly state
•When commissioning the plant or when doing maintenance work, make the follow-
ing safety checks:
Safety check Anticipated response
a) Burner startup with flame detector
darkened Lockout at the end of «TSA»
b) Burner startup with flame detector
exposed to extraneous light Lockout after 40 seconds at the latest
c) With wire strap «B»:
Simulation of loss of flame during
operation. For that purpose, darken
the flame detector during operation
and maintain that state
Lockout
d) Without wire strap «B»:
Simulation of loss of flame during
operation. For that purpose, darken
the flame detector during operation
and maintain that state
Repetition followed by lockout at the
end of «TSA»

3/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Engineering notes
•Install switches, fuses, earthing, etc., in compliance with local regulations
•Connect valves and other plant components as specified in the burner manufac-
turer’s documentation
H
N
L
EK2 AL
211 2
1(3)
3
M1 M2
R
4 5 67
BV2
BV1
Z
SA
15 16 17 18
az
M
2019 9
LR
7153a03/0204
24
m
LK
11 10 822
B
vLP
141213 23
LAL2
12 3 4 5 6 7 8 9 10
QRB1...
22 24
+
RAR...
SB W
Si
cConnect safety limit thermostats (manual reset) in the line (e.g. «SB»)
dRemote reset
When connecting lockout reset button «EK2» between terminals 21 and
- terminal 3: For remote reset only
- terminal 1: For remote reset and remote emergency shutdown
With LAL1…: Required switching capacity of
- switching devices connected between terminals 4 and 5 (refer to «Technical data»)
e
With LAL2... / LAL3... / LAL4...: Required switching capacity of
- switching devices connected between terminal 12 and «LP» (refer to «Technical data»)
- «LP» (refer to «Technical data»)
When using series connection, the control contacts of other devices contained in the burner plant must be con-
nected as follows:
- to terminal 4 or 5 →contacts that must be closed from startup to controlled shutdown →otherwise no startup
or shutdown
- to terminal 12 (not with LAL1...) →contacts that must only be closed on startup →otherwise no startup
f
- to terminal 14 (not with LAL1...) →contacts that must be closed no later than at the beginning of «t3» or «t3´»
and that must remain closed until controlled shutdown occurs →otherwise lockout
gMaximum current draw, refer to «Technical data»
h«Z» connected to terminal 15 →«t3´» and «t3n»
iConnection of «BV...» to terminal 20, refer to «Connection examples»
jWhen using burners without air damper, or with an air damper not controlled and monitored by the LAL…, ter-
minal 8 must be connected to terminal 6
kWire link «B» clearly marked on the underside of the LAL…
When wire link «B» is fitted, the LAL... initiates lockout if loss of flame occurs during operation. For repetition of
the startup sequence, wire link «B» on the plug-in section of the LAL... must be cut away. Just cutting is not
permitted!
lFor the permissible lengths and laying of detector cables, refer to «Flame supervision»

4/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Standards and certificates
Conformity to EEC directives
- Electromagnetic compatibility EMC (immunity)
- Low-voltage directive
89 / 336 EEC
73 / 23 EEC
ISO 9001: 2000
Cert. 00739 ISO 14001: 1996 Cert. 38233
Certified with plug-in base and flame detector:
Type
LAL1.25 x x x x x x x --- ---
LAL2.14 x x x x x x x x ---
LAL2.25 x x x x x x x x x
LAL2.65 x x x x x x x x ---
LAL3.25 x x x --- x x --- x x
LAL4.25A27 x x --- x --- x x --- ---
Service notes
•Each time a unit has been replaced, check wiring to ensure that it is in an orderly
state and make the safety checks as indicated in «Commissioning notes»
Disposal notes The unit contains electrical and electronic components and must not be disposed of
together with domestic waste.
Local and currently valid legislation must be observed.
Mechanical design
-Plug-in design
-Exchangeable unit fuse (including spare fuse)
Difference to LAL1... / LAL2... / LAL4...:
-Extraneous light does not initiate lockout, during burner off times or during the pre-
purge time
-Extraneous light prevents burner startup
-Made of impact-proof and heat-resistance black plastic
-Lockout reset button with viewing window; located behind it:
– Lockout warning lamp
– Lockout indicator
- coupled to the spindle of the sequence switch
- visible in the transparent lockout reset button
- uses easy-to-remember symbols to indicate the type of fault and the point
in time lockout occurred
LAL...
LAL3.25
Housing

5/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Type summary
Switching times are given in the order of the startup sequence, valid for 50 Hz mains frequency. At 60 Hz frequency, switching times
are about 17 % shorter.
Flash steam genera-
tors Universal use Medium- or heavy-oil burners
Flame supervision with QRB1... or QRC1... for blue-
flame burners LAL1.25
3)
LAL4.25A27
Flame supervision with QRB1... or RAR...
Choice of air pressure supervision
Choice of semiautomatic startup
LAL2.14 3) LAL2.25
3) LAL2.65 3)
Same as LAL2.25 with the following exception:
No lockout, but prevention of startup in the case of
extraneous light
Special applications
such as incinerator
plants
LAL3.25 3)
t1 10 s 22.5 s 66.5 s
TSA 4 s 5 s 5 s
t3 2 s 2.5 s 2.5 s
t3´ From the start ¹)
t3n 10 s 15 s 15 s
t4 8 s 7.5 s 7.5 s
t5 4 s 7.5 s 7,5 s
t6 10 s 15 s 15 s
t7 2 s 2.5 s 2.5 s
t8 30 s 47 s 91 s
t10 6 s 10 s ²) 10 s
t11 Optional
t12 Optional
t13 10 s 15 s 15 s
t16 4 s 5 s 5 s
t20 32 s 35 s 12.5 s
¹) With air pressure supervision: From the time the air pressure signal is received
²) Does not apply to LAL1...
3) Available as AC 100...110 V versions; add type suffix «– 110 V» when ordering
Ordering
Oil burner control, without plug-in base refer to «Type summary»
Plug-in base is not included in standard delivery, must be ordered as a separate item!
Accessories for medium-capacity burner controls refer to Data Sheet N7230
- Plug-in base AGM410490500 with Pg11 thread for cable entry glands
- Plug-in base AGM13.1 with M16 thread for cable entry glands
Flame detectors
- Photoresistive detectors QRB1... refer to Data Sheet N7714
- Blue-flame detectors QRC1... refer to Data Sheet N7716
- Selenium photocell detectors RAR... refer to Data Sheet N7713
Test unit KF8806 for burner controls refer to Manual Document B7987
- For the simulation of faults
- For measuring the pull-in and drop-out values of the flame relay in the case of fla-
me supervision with QRB... photoresistive detectors

6/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Technical data
Mains voltage
- With LAL1... / LAL2... / LAL3... incl. AC 230 V –15 / +10 % AC 100 V –15 %...AC 110 V +10 %
Mains frequency 50...60 Hz ±6 %
Unit fuse (built-in) T6.3H250V to DIN EN 60 127
Primary fuse (external) max. 10 A (slow)
Weight approx. 1,000 g
Power consumption approx. AC 3.5 VA
Mounting position optional
Degree of protection IP 40, when fitted, with the exception of the
connection area (terminal base)
Safety class II
Perm. input current at terminal 1 max. 5 A (peaks of 20 A / 20 ms)
Perm. current rating of control terminals
3, 6, 7, 9...11 and 15...20 max. 4 A (peaks of 20 A / 20 ms)
Required switching capacity of switching
devices
-Between terminals 4 and 5
-Between terminals 4 and 12
-Between terminals 12 and «LP»
-Between terminals 4 and 14
-«LP»
1 A, AC 250 V
1 A, AC 250 V
1 A, AC 250 V
5 A (peaks of 20 A)
5 A
Storage DIN EN 60721-3-1
Climatic conditions class 1K3
Mechanical conditions class 1M2
Temperature range -20...+60 °C
Humidity < 95 % r.h.
Transport DIN EN 60 721-3-2
Climatic conditions class 2K2
Mechanical conditions class 2M2
Temperature range -50...+60 °C
Humidity < 95 % r.h.
Operation DIN EN 60 721-3-3
Climatic conditions class 3K5
Mechanical conditions class 3M2
Temperature range -20...+60 °C
Humidity < 95 % r.h.
Condensation, formation of ice and ingress of water are not permitted!
General unit data LAL...
Environmental
conditions

7/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Technical data (cont´d)
LAL1... with LAL2... / LAL3... with LAL4... with
QRB1... QRC1... QRB1... RAR... QRB1... QRC1...
Min. detector current required
at AC 230 V 95 µA 80 µA 8 µA 6,5 µA 95 µA 80 µA
Max. permissible detector
current with no flame 12 µA 12 µA 0.8 µA 0.7 µA 12 µA 12 µA
Max. detector current that can
occur 160 µA 130 µA 35 µA 30 µA 160 µA 130 µA
Instrument’s +pole To terminal
23 To terminal 23 To terminal 22 To terminal 22 To terminal 23 To terminal 23
Length of detector cable
In the same cable as the
control lines Max. 30 m --- Not permitted --- Max. 30 m ---
Separate cable in cable duct Max. 1000 m --- 20 m RAR7...:
30 m Max. 1000 m ---
3-core cable --- Max. 1 m --- --- --- Max. 1 m
2-core cable for the detector
line (bl, sw); separate single-
core cable for the live conduc-
tor (br)
--- Max. 20 m --- --- --- Max. 20 m
Shielded cable (e.g. RG62,
shield insulated) --- --- 200 m RAR8...: 100 m --- ---
Shield --- --- To terminal
23 --- --- ---
23 LAL1...
22
µA DC
+
QRB1...
7153v01/0498
LAL4... 23
22 LAL1...
LAL4...
1
sw
bl br
µA DC
+
QRC1...
7153v05/0498
23 LAL2...
LAL3...22
+
µA DC
QRB1...
7153v02/0498
24 LAL2...
LAL3...
22
+
µA DC
+
RAR...
7153v03/0498
Flame supervision

8/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Function
2-stage expanding flame burner Modulating expanding flame burner
FS
BV2
min.
LK 0...
M
R
100%
LR
BV1
M1
M2
Z
~
M
PR
T
t12
t4
t16 t5
ABCD
t11 t13
t6
t7 t1
t3 t3n
TSA
t3´
7153a09/0498
RLR t5
t11 t12
t13
FS
min.
LK 0...
M100%
RV
A
BV1
M2
Z
~
M
PR
M1
T
t4
t3
t7 t1
TSA
B
t6
CD
7153a10/0498
BV... Fuel valve M... Fan or burner motor
FS Flame signal amplifier R Control thermostat or pressurestat
LK Air damper RV Modulating fuel valve
LR Load controller Z Ignition transformer
The following features of the LAL... afford a high level of safety:
-Detector and flame simulation test are restarted on completion of the afterburn time
«t13». Open or not fully closed fuel valves immediately initiate lockout at the end of
«t13». The test ends on completion of the prepurge time «t1» of the next startup
sequence
-The correct functioning of the flame supervision circuit is automatically checked
during each burner startup sequence
-The control contacts for the release of fuel are checked to ensure they have not
welded «t6»
-A built-in unit fuse protects the control contacts against overloads
-Burner operation with or without postpurge
-Fan motors with a current draw of up to 4 A can be connected directly →starting
current max. 20 A (for max. 20 ms)
-Separate control outputs for
– preignition from start command
– postignition until shortly before the burner startup sequence is completed
– short preignition with postignition up to the end of «TSA»
-Separate control outputs for the actuator’s positioning directions «OPEN»,
«CLOSE» and «MIN»
-Checked air damper operation to ensure prepurging with the nominal air volume
-Checked positions:
- «CLOSED» or «MIN» on startup →low-fire position
- «OPEN» at the beginning of prepurging
- «MIN» on completion of prepurging
If the actuator does not drive the air damper to the required position, the burner
startup sequence will be stopped
-2 control outputs for the release of the second and third output stage or for load
control
-When load control is enabled, the control outputs for the actuator will be galvani-
cally separated from the burner control’s control section
-Connection facilities for
– remote lockout warning device
– remote reset
– remote emergency shutdown
-In addition, with LAL2... / LAL3... / LAL4...:
– possibility of air pressure supervision with functional test of the air pressure
monitor on startup
– possibility of semiautomatic burner startup
Legend
General
Control of the burner

9/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Function (cont´d)
-Flame detector and flame simulation test are made automatically during burner off
times and the prepurge time «t1»
-If loss of flame occurs during operation, the burner control will initiate lockout
-If automatic repetition of the startup sequence is required, the clearly marked wire
link on the plug-in section of the LAL... must be cut away →start repetition
-Burner control is not in the lockout position
-Sequence switch is in its start position
→with LAL1..., voltage is present at terminals 4 and 11
→with LAL2... / LAL3... / LAL4..., voltage is present at terminals 11 and 12
-Air damper is closed
-End switch «z» for the «CLOSED» position must feed power from terminal 11 to
terminal 8
-Contact of the limit thermostat or pressure switch «W» and the contacts of any
other switching devices in the control loop between terminals 4 and 5 must be
closed →e.g. a control contact for the oil preheater’s temperature
-Normally closed contact of the air pressure switch must be closed →«LP» test
Startup sequence
A Start command by «R»
→«R» closes the start control loop between terminals 4 and 5
-The sequence switch starts to run
- Only prepurging, fan motor at terminal 6 receives power
- Pre- and postpurging, fan motor or flue gas fan at terminal 7 receives power on completion of «t7»
-On completion of «t16», the control command for opening the air damper is delivered via terminal 9
-Terminal 8 receives no power during the positioning time
-The sequence switch continues to run only after the air damper has fully closed
t1 Prepurge time with air damper fully open
-The correct functioning of the flame supervision circuit is checked during «t1»
-The burner control will initiate lockout if correct functioning is not ensured
With LAL2... / LAL3... / LAL4...:
Shortly after the beginning of «t1», the air pressure switch must change over from terminal 13 to terminal 14
→otherwise, the burner control will initiate lockout
→start of the air pressure check
t3 Short preignition time
«Z» must be connected to terminal 16, release of fuel via terminal 18.
t3´ Long preignition time
«Z» connected to terminal 15.
With LAL1...
«Z» is switched on when start command is given.
With LAL2... / LAL3... / LAL4...
«Z» is switched on when «LP» changes over.
→no later than at the end of «t10»
-On completion of «t1», the LAL... drives the air damper to the low-fire position via terminal 10
→the low-fire position is defined by the changeover point of auxiliary switch «m» in the actuator
-During the positioning time, the sequence switch maintains its position
→until terminal 8 receives power via «m»
-The motor of the sequence switch is switched to the control section of the LAL...
→positioning signals delivered to terminals 8 now have no impact on the further startup sequence and
on subsequent burner operation
Flame supervision
Preconditions for
burner startup
With the exception of LAL1...

10/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Startup sequence (cont´d)
TSA Ignition safety time
On completion of «TSA», a flame signal must be present at terminal 22. It must be available until controlled
shutdown occurs
→otherwise, the burner control will initiate lockout and lock itself in the lockout position
t3n Postignition time
-«Z» must be connected to terminal 15
-With short preignition, «Z» remains on until «TSA» has elapsed
→connection to terminal 16
t4 Interval «BV1 – BV2» or «BV1 - LR»
-On completion of «t4», voltage is present at terminal 19
-The voltage is required to power «BV2» connected to auxiliary switch «v» in the actuator
t5 Interval
-On completion of «t5», terminal 20 receives power. At the same time, control outputs 9 to 11 and input 8
are galvanically separated from the LAL...’s control section
→LAL... is now protected against reverse voltages from the load control circuit
-With the release of «LR» at terminal 20, the startup sequence of the LAL... ends
-After a few idle steps (steps with no contact position changes), the sequence switch switches itself off
B Operating position of the burner
B-C Burner operation
-During burner operation, «LR» drives the air damper to the nominal load or low-fire position, depending
on heat demand
-Release of the nominal load takes place via auxiliary switch «v» in the actuator
-In the event of loss of flame during operation, the LAL... will initiate lockout
-For automatic start repetition, the clearly marked wire link «B» on the plug-in section of the LAL... must
be cut away
C Controlled shutdown
In the case of controlled shutdown, «BV...» will immediately be closed. At the same time, the sequence
switch is started to program «t6».
C-D Sequence switch travels to start position «A»
t6 Postpurge time
-Fan «M2» connected to terminal 7
-Shortly after the start of «t6», terminal 10 receives power
→air damper is driven to the «MIN» position
-Full closing of the air damper starts only shortly before «t6» has elapsed
→initiated by the control signal at terminal 11
-During the following burner off time, terminal 11 is live
t13 Permissible afterburn time
During «t13», the flame signal input may still receive a flame signal
→no lockout
D-A End of control program
→start position
As soon as the sequence switch has reached the start position – having thereby switched itself off – the
flame detector and flame simulation test will start again.
During burner off times, the flame supervision circuit is live.
When the start position is reached:
With LAL1..., a voltage signals is fed to terminal 4
With LAL2... / LAL3... / LAL4..., a voltage signal is fed to terminal 12

11/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Control sequence under fault conditions and lockout indication
Whenever a fault occurs, the sequence switch stops and with it the lockout indicator.
The symbol appearing above the reading mark indicates the type of fault:
•One of the contacts is not closed (also refer to «Preconditions for burner startup»)
No start
•Extraneous light:
Lockout during or after completion of the control program
Examples:
– Nonextinguished flame
– Leaking fuel valves
– Faulty flame supervision circuit
•No «OPEN» signal at terminal 8 from the changeover end switch «a»
=Interruption of
startup sequence •Terminals 6, 7 and 15 are live until fault has been corrected
Does not apply to LAL1...:
•No air pressure indication at the beginning of the air pressure check
P Lockout
•Air pressure failure after the air pressure check
Lockout •Defect in the flame supervision circuit
•No positioning signal at terminal 8 from the auxiliary switch «m» for the low-fire posi-
tion
>Interruption of
startup sequence
•Terminals 6, 7 and 15 are live until fault has been corrected
1 Lockout •No flame signal at the end of the safety time «TSA»
I Lockout •Flame signal has been lost during operation
a-b Startup sequence
b-b´ Idle steps
(with no contact confirmation)
b (b´)-a Postpurge program
LAL1 LAL2..., LAL3..., LAL4...
•Burner control can immediately be reset after lockout:
– Do not press the lockout reset button for more than 10 seconds
•The sequence switch always travels to the start position first
– After resetting
– After rectification of a fault that led to shutdown
– After each power failure
During this period of time, power is only fed to terminals 7 and 9...11.
•Then, the LAL.... will program a new burner startup sequence
Lockout indicator

12/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005

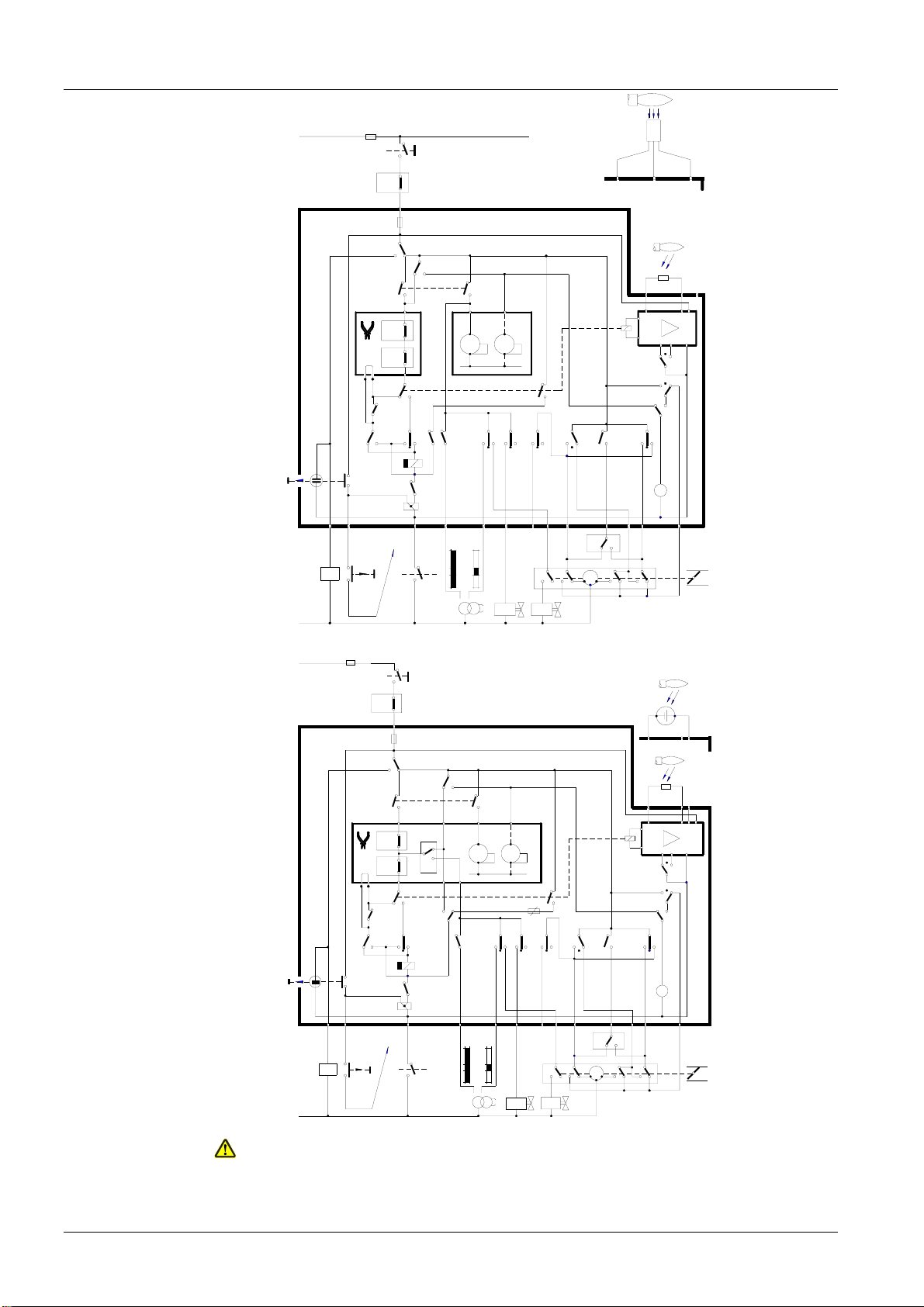

Connection diagrams (for variants, refer to «Connection examples»)
LAL1...
H
N
t3n
t3´
C
D
A
L
EK2
AL
21
1
AS
2
1(3)
3
W
R
4 5 67
t6
B
A
t7
BV2
BV1
Z
SA
15 16 17 18
az
M
2019 9
LR
t4
t3
TSA
t5t1
t12
t16
t11
ma
z
23
m
11 10 822
B
t13
1
v
7153a01/0204
LK
Si
QRB1...
sw
bl br
QRC1...
23
22 1
SB
M1 M2
LAL2... / LAL3...
H
N
t3n t3´
C
D
A
L
EK2
AL
21
1
AS
2
1(3)
3
R
4 5 67
t6
B
A
t7
BV2
BV1
Z
SA
15 16 17 18
az
M
2019 9
LR
t4
t3TSA
t5 t1
t12
t16
t11
ma
z
7153a02/0402
24
m
LK
11 10 822
B
t13
1
vLP
141213
t10
P
23
Si
QRB1...
SB
M1 M2
W
2422
+
RAR...

13/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Connection diagrams (for variants, refer to «Connection examples»)
LAL4...
H
N
t3n t3´
C
D
A
L
EK2
AL
21
1
AS
2
1(3)
3
R
4 5 6 7
t6
B
A
t7
BV2
BV1
Z
SA
15 16 17 18
az
M
2019 9
LR
t4
t3
TSA
t5 t1
t12
t16
t11
ma
z
7153a04/0204
24
m
LK
11 10 822
B
t13
1
vLP
141213
t10
P
23
Si
QRB1...
SB
M1 M2
W
swbl br
QRC1...
23
22 1

14/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Connection diagrams
L
H
1
AS
br1
abI
ab
ar1
4
W
R
5
B
fr1
ab
IX
XI
baab
XIII XII
L1 br2
AR
BR
M
E
A
IV II XVIII
baababab ab
VVI III
SMM
ab
ab
ar3
VII
ab
XIV
fr2
FR
V
N
M1 M2
67
ar2
QRB1...
22 23 24
81011
20
919171816152213
EK1
N
AL EK2
1 (3)
H
ZBV1 BV2
va z m
MLK
LR
7153a07/0204
Si
SA
sw
bl br
QRC1...
23
22 1
SB
LH
1
AS
br1
ab
ar1
4
W
R
B
5
fr1
ab
IX
LP
XI XIII
AR
br2
L1
EK1
ba a b
ME
321 2
1 (3)
EK2
AL H
NZBV1
15 16 18
BR A
13 14
XII
IV
ab
II X
baab
M1 M2
N
6712
ar2
ab
I
fr2
ab ba
VIII V VI
17 19 9 20
LR
M
vaz
BV2
mLK
7153a08/0204
M
1110 8
SM
III ar3
VII
ab
ba
ba
ab
XIV
FR
V
22 23 24
QRB1...
22 23 24
RAR...
+
NTC
SA
SB
Si
Do not press the lockout reset button «EK...» for more than 10 seconds!
For the connection of the safety shutoff valve, refer to the plant diagram provided by
the burner supplier.
LAL1...
LAL2... / LAL3...

15/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Connection diagrams (cont’d)
LH
1
AS
br1
ab
ar1
4
W
R
B
5
fr1
ab
IX
LP
XI XIII
AR
br2
L1
EK1
ba a b
ME
321 2
1 (3)
EK2
AL H
NZBV1
15 16 18
BR A
13 14
XII
IV
ab
II X
baab
M1 M2
N
6712
ar2
ab
I
fr2
ab ba
VIII V VI
17 19 9 20
LR
M
vaz
BV2
mLK
7153a17/0204
M
1110 8
SM
III ar3
VII
ab
ba
ba
ab
XIV
FR
V
22 23 24
QRB1...
SA
SB sw
bl br
QRC1...
23 1
22
Si
Do not press the lockout reset button «EK...» for more than 10 seconds!
For the connection of the safety shutoff valve, refer to the plant diagram provided
by the burner supplier.
LAL4...

16/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Sequence diagram
At11
t7
t1 t12
t4
t3
t3n
BC D
t6
t3´
TSA
t5
t20
t13t10*
t16
t8
Positions of lockout indication
Control output
at terminal:
P1
*
20
47
19
8
17
15
9
9
10
*
I
II
III
IV
V
VI
VII
VIII
IX
X
XI
XII
XIII
XIV
a
b
a
b
a
b
a
b
a
b
a
b
a
b
a
b
a
b
a
b
a
b
7153d01e/0404
12
16
11
18
XV a
b
* These data do not apply to LAL1...

17/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Legend
a Changeover end switch for air damper´s OPEN position
AL Remote lockout indicator (alarm)
AR Load relay with «ar...» contacts
AS Unit fuse
B Wire link
bl Blue
br Brown
BR Lockout relay with «br...» contacts
BV... Fuel valve
EK... Lockout reset button
FR Flame relay with «fr...» contacts
H Mains isolator
L... Lockout warning lamp
LK Air damper
LR Load controller
LP Air pressure switch
m Auxiliary switch for air damper´s MIN position
M Fan or burner motor
NTC Resistor with negative temperature coefficient
QRC1... Blue-flame detector
QRB1... Photoresistive detector
R Control thermostat or pressurestat
RAR... Selenium photocell detector
Si External primary fuse
SA Air damper actuator
SB Safety limit thermostat
SM Synchronous motor of sequence switch
sw Black
v In the actuator: Auxiliary changeover switch for position-dependent release of fuel
V Flame signal amplifier
W Limit thermostat or pressure switch
z In the actuator: End switch for air damper’s CLOSED position
Z Ignition transformer
Control signals delivered by the LAL...
Permissible input signals
Required input signals:
If these signals are not present during or , the burner control will stop the startup sequence or initi-
ate lockout
TSA Ignition safety time
t1 Prepurge time with air damper fully open
t3 Preignition time, short («Z» connected to terminal 16)
t3´ Preignition time, long («Z» connected to terminal 15)
t3n Postignition time («Z» connected to terminal 15)
t4 Interval between voltage at terminals 18 and 19 («BV1-BV2»)
t5 Interval between voltage at terminals 19 and 20 («BV2» load controller)
t6 Postpurge time (with «M2»)
t7 Interval between start command and voltage at terminal 7 (start delay time for «M2»)
t8 Duration of startup sequence (excluding «t11» and «t12»)
t10 Only with LAL2... / LAL3... / LAL4...: Interval from startup to the beginning of the air pressure check
t11 Air damper running time to the OPEN position
t12 Air damper running time to the low-fire position (MIN)
t13 Permissible afterburn time
t16 Interval to the OPEN command for the air damper
t20 Not with all LAL…: For self-shutdown of the sequence switch

18/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Connection examples
Connection of actuators without
changeover end switch for the
«CLOSED» position
19 20 911 10 8
LR
SA az
MLK
BV2
N
v
7153a11/0498
«z» adjusted for low-fire air volume.
Control of actuator during operation
by control signals fed to terminal 17 18 19 17 9 20 11 10 86
LR
NBV1 BV2 LK 7153a12/0498
For signal path, refer to «Connection
diagrams».
Control of «BV...» via terminal 20 19 20 911
10 86
NBV2 BV3 7153a14/0498
Relay is not required if «BV3» at
terminal 20 is hydraulically series-
connected with «BV2».
«BV2» is controlled by terminal 18 or
19.
→Burner with no air damper or
with air damper not controlled
by the LAL…
Wiring required with LAL2... for op-
eration with no air pressure supervi-
sion
13 12 14 45 6
R
W
d1
NM
7
7153a15/1001
If an auxiliary contact «d1» of the fan
contactor is included in the circuit as
shown in the diagram, ignition and
release of fuel take place only when
the contact is closed.
Semiautomatic startup 312 13 14 45
AL IW
N
L3 LP
0
7153a16/0498
The burner is switched on manually
by pressing the «I» button.
Then, the LAL... programs startup
and flame supervision.
Burner shutdown is also made manu-
ally by pressing the «0» button, or
automatically when limit thermostat or
pressure switch «W» responds.
«L3» indicates when the burner is
ready for startup. It extinguishes
shortly after the burner is started up.
For other connections, refer to «Con-
nection diagrams».

19/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Connection examples (cont’d)
2-stage expanding flame burner
M
N
SA
ZBV1
IV
13 12 N3
BV2
LR
11 716
49
LK
5210
8
20
15
16 (t3´/t3n) (t3) 17 18 19 911 10 8
IIIIII
7153a05/1195
LR
SA
L...
BV1 BV2
Load control with a 2-position controller.
During burner off times, the air damper is closed.
FS
BV2
min.
LK 0...
M
R
100%
LR
BV1
M1
M2
Z
~
M
PR
T
t12
t4
t16 t5
ABCD
t11 t13
t6
t7 t1
t3 t3n
TSA
t3´
7153a09/0498
Control of actuator according to the single-wire control
principle.
→For actuator «SA» type SQN..., refer to Data Sheet
N7808; for other connections, refer to «Connection
diagrams»
Pre- and postignition when the ignition
transformer is connected to terminal 15
Modulating expanding flame burner
16 8
20
LR
N
911
M
10
Z
N
17 18 19
RV LK
SA
am z
BV1
7153a06/1195
L...
LR
SA
BV1
RV
Load control with modulating controller with galvanically
separated control contacts for positioning directions
«OPEN» and «CLOSE».
RLR t5
t11 t12
t13
FS
min.
LK 0...
M100%
RV
A
BV1
M2
Z
~
M
PR
M1
T
t4
t3
t7 t1
TSA
B
t6
CD
7153a10/0498
During burner off times, the air damper is fully closed.
When using actuators with changeover end switch «z»
for the «CLOSED» position, terminals 10 and 11 must be
interconnected.
For other connections, refer to «Connection diagrams».

20/20
Building Technologies CC1N7153en
HVAC Products 20.04.2005
Dimensions
Dimensions in mm
1,5
108,5
27,5 27,5
37
7,5
103
103
7153m03/0305
123
LAL...
©2005 Siemens Building Technologies Production GmbH
Subject to change!
Plug-in base AGM410490500 /
AGM13.1
