Siemens Flowrite 599 Series Owner's manual

Flowrite™ 599 Series
Technical Instructions
Document No. 155-185P25
VF 599-4
June 10, 2014
Three-Way Valves
1/2 to 2-inch Bronze Body
Siemens Industry, Inc.
Description The Flowrite VF 599 Series ANSI Class 250 three-way valves are designed to work with
either a pneumatic or electronic actuator with a 3/4-inch (20 mm) stroke.
Features •ANSI Leakage Class IV (0.01% of Cv)
•Cartridge type packing
•Choice of brass or stainless steel trim
•Direct-coupled universal bonnet
Application A typical application for the Flowrite three-way valve is the mixing of two different
temperatures of water supplies.
The valve can also be used for throttling or bypass coil control applications. A pump is
recommended on the coil circuit to improve the heat transfer characteristics of the coil
and for freeze protection.
Product Numbers See Table 1.
Ordering a Valve
Plus Actuator
Assembly
To order a complete valve plus actuator assembly from the factory, combine the
actuator prefix code with the suffix of the valve assembly product number. See Flowrite
Technical Bulletins 155-772 and 155-776 for complete selection procedure and ordering
codes.
Valve assemblies can be ordered using the valve part numbers in Table 1 and the
actuator prefix codes in Table 7.

Technical Instructions Flowrite 599 Series Three-Way Valves
Document Number 155-185P25
June 10, 2014
Page 2Siemens Industry, Inc.
Specifications
Material
Line size 1/2 to 2 inches (15 to 50 mm)
Capacity See Table 2, Table 3 and Figure 3.
Body style Globe style
Seat style Metal-to-metal
Action Three-way mixing
Valve body rating ANSI Class 250. See Table 4.
Stem travel (Stroke) 3/4-inch (20 mm)
Body UNS CA 844 bronze
Body trim See Table 1.
Stem Stainless steel ASTM A582 Type 303
Packing EPDM O-rings
Operating
Controlled medium 50% water-glycol solutions
Medium temperature range 20°F to 250°F (-7°C to 120°C)
Maximum inlet pressure See Table 4.
Maximum recommended differential pressure for modulating service
Bronze trim 25 psi (173 kPa)
Stainless Steel trim 50 psi (345) kPa)
Rangeability > 100:1
Close-off pressures See Table 5, Table 6, and Figure 4.
Close-off ratings According to ANSI/FCI 70-2
Leakage rate Class IV (0.01% of Cv)
Flow characteristics Equal percentage for NC
Linear for NO
Mounting location NEMA 1 (interior only)
Miscellaneous
Canadian Registration Numbers 0H7645.5ADD2
0C0838.9
Dimensions See Table 7, Table 8, and Figure 6.
Valve Weight See Table 8.
Accessories

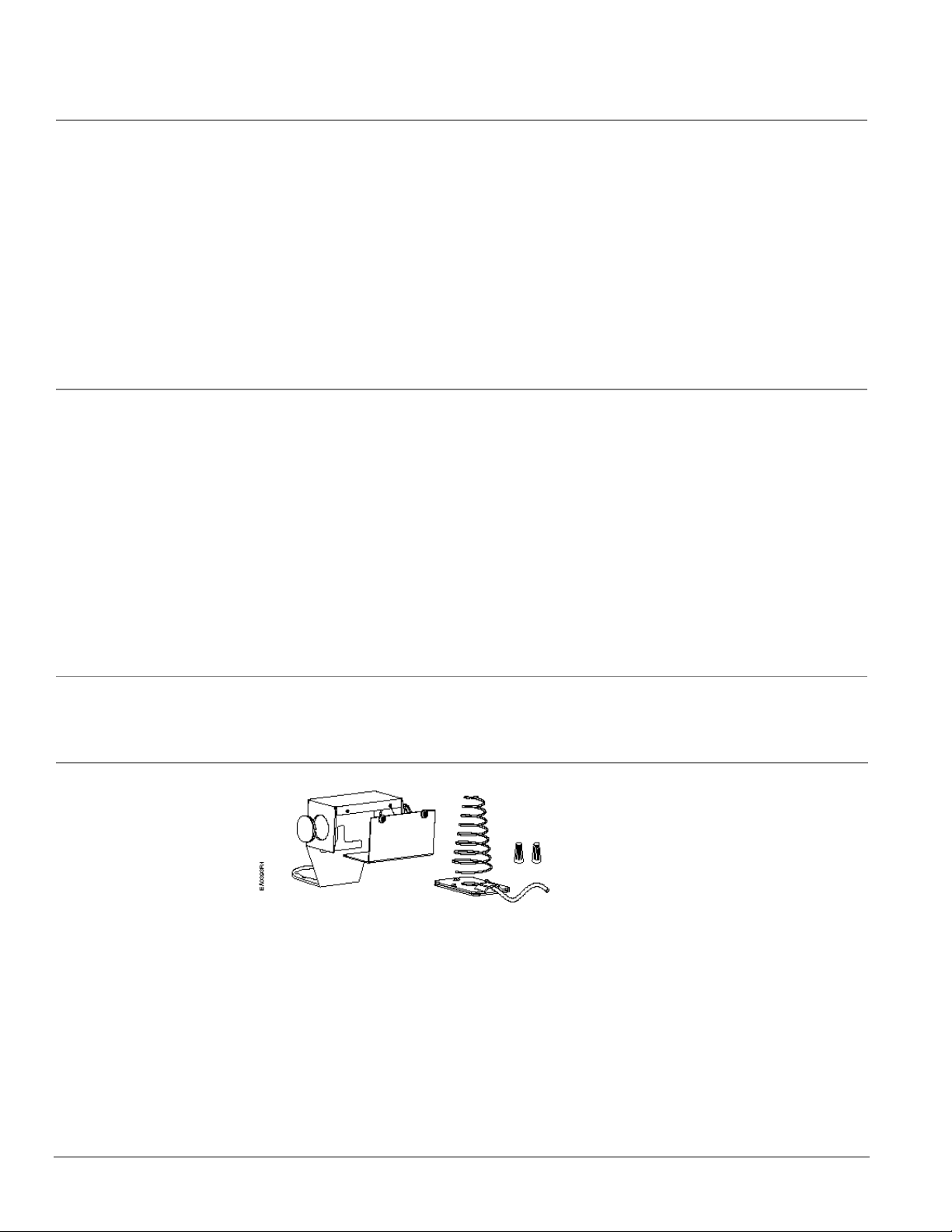

Figure 1. Packing Heating Element for
Use With SKD Actuators.
599-00417 Packing heating element.
The heater allows the stem to move freely
in valves that control fluids at temperatures
below 32°F (0°C). It reduces ice crystal
formation on the stem that can damage the
packing.
Operating Voltage 24 Vac
Heating Output 20 W

Flowrite 599 Series Three-Way Valves Technical Instructions
Document Number 155-185P25
June 10, 2014
Siemens Industry, Inc. Page 3
Accessories,
Continued

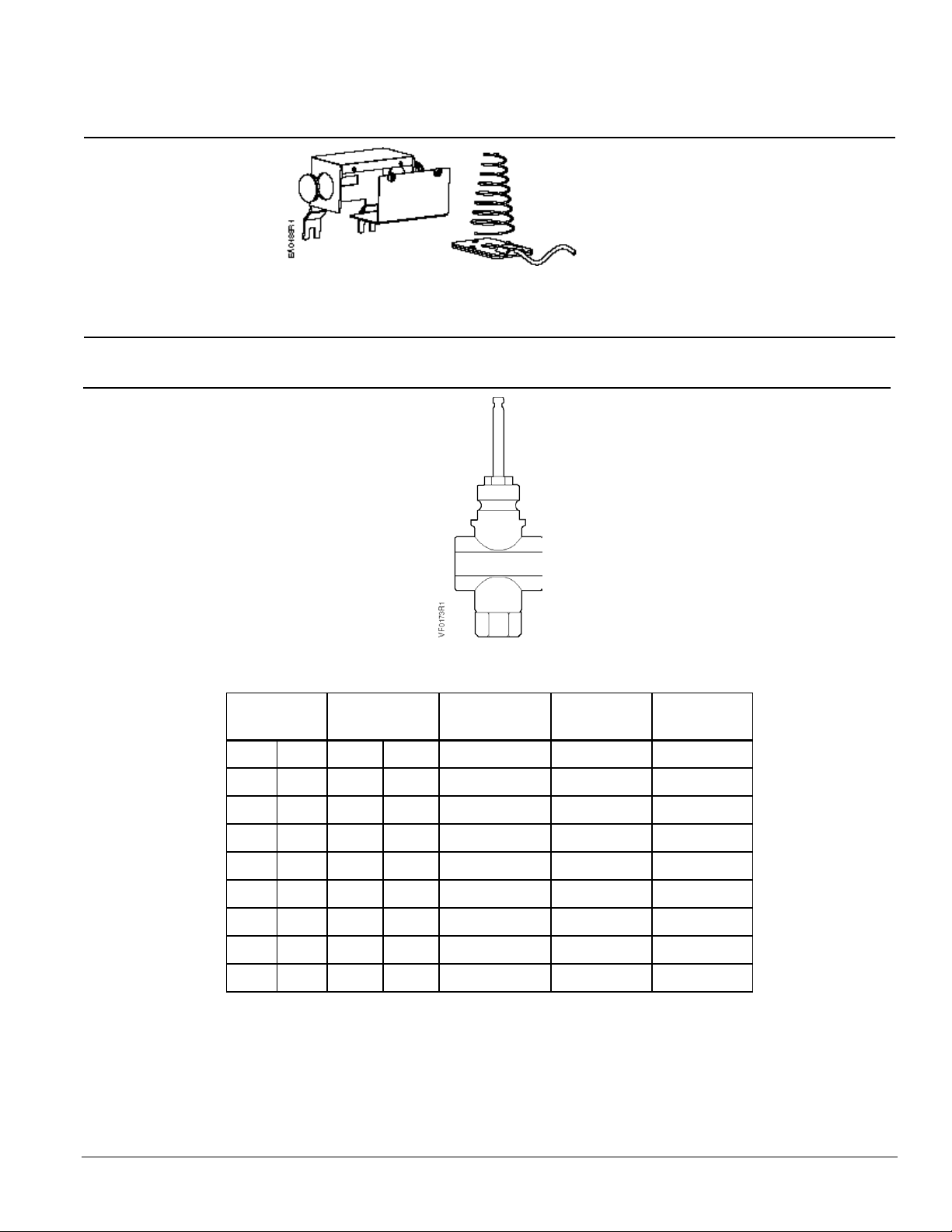

Figure 2. Packing Heating Element for
Use With SKB/C and 8-inch Actuators.
599-00418: The packing heating element.
The heater allows the stem to move freely
in valves that control fluids at temperatures
below 32°F (0°C). It prevents ice crystal
formation on the stem that can damage the
packing.
Operating Voltage 24 Vac
Heating Output 20 W
Service Kits Valve packing kit 599-03390
Rebuild/repack kits See Table 10.
Table 1. Female NPT x Female
NPT (F×F) 3-Way Valves.
Flow Rate
Cv (Kvs) Line Size
Inch (mm) Connection Stainless
Steel Trim Bronze Trim
1
(0.85)
1/2
(15)
FxF 599-03144 599-03198
1.6
(1.37)
1/2
(15)
FxF 599-03145 599-03199
2.5
(2.15)
1/2
(15)
FxF 599-03146 599-03200
4
(3.44)
1/2
(15)
FxF 599-03147 599-03201
6.3
(5.43)
3/4
(20)
FxF 599-03148 599-03202
10
(8.6)
1
(25)
FxF 599-03149 599-03203
16
(13.8)
1-1/4
(32)
FxF 599-03150 599-03204
25
(21.5)
1-1/2
(40)
FxF 599-03151 599-03205
40
(34.4)
2
(50)
FxF 599-03152 599-03206

Technical Instructions Flowrite 599 Series Three-Way Valves
Document Number 155-185P25
June 10, 2014
Page 4Siemens Industry, Inc.
Table 2. Maximum Water Capacity - U.S. Gallons per Minute.
Valve
Size
in
Inches
Pressure Differential - psi
Cv\1
2
3
4
5
6
8
10
15
20
25
30
40
50
60
75
1/2
1.0 1.4 1.7 2.0 2.2 2.5 2.8 3.2 3.9 4.5 5.0 5.5 6.3 7.1 7.8 8.7
1.6 2.3 2.8 3.2 3.6 3.9 4.5 5.1 6.2 7.2 8.0 8.8 10.1 11.3 12.4 13.9
2.5 3.5 4.3 5.0 5.6 6.1 7.1 7.9 97 11.2 12.5 13.7 15.8 17.7 19.4 22
4 5.7 7 8.0 8.9 10 11.3 12.6 15.5 17.9 20.0 21.9 25 28 31 35
3/4 6 8.9 10.9 12.6 14.1 15.4 17.8 20 24 28 32 35 40 45 49 55
1 10 14.1 17.3 20 22 24 28 32 39 45 50 55 63 71 77 87
1-1/4 16 23 28 32 36 39 45 51 62 72 80 88 101 113 124 139
1-1/2 25 35 43 50 56 61 71 79 97 112 125 137 158 177 194 217
2 40 57 69 80 89 98 113 126 155 179 200 219 253 283 310 346
Table 3. Maximum Water Capacity - Cubic Meters per Hour (m3/hr).
Valve
Size
in
mm
Pressure Differential - kPa
1
10
20
30
40
50
60
80
Kvs/
100
150
200
300
400
500
15
0.09 0.3 0.4 0.5 0.5 0.6 0.7 0.8 0.9 1.0 1.2 1.5 1.7 1.9
0.14 0.4 0.6 0.8 0.9 1.0 1.1 1.2 1.4 1.7 1.9 2.4 2.7 3.1
0.2 0.7 1.0 1.2 1.4 1.5 1.7 1.9 2.2 2.6 3.0 3.7 4.3 4.8
0.3 1.1 1.5 1.9 2.2 2.4 2.7 3.1 3.4 4.2 4.9 6.0 6.9 7.7
20 0.5 1.7 2.4 3.0 3.4 3.8 4.2 4.9 5.4 6.7 7.7 9.4 10.9 12.1
25 0.9 2.7 3.8 4.7 5.4 6.1 6.7 7.7 8.6 10.5 12.2 14.9 17.2 19.2
32 1.4 4.4 6.2 7.6 8.7 9.8 10.7 12.3 13.8 16.9 19.5 23.9 27.6 30.9
40 2.2 6.8 9.6 11.8 13.6 15.2 16.7 19.2 22 26 30 37 43 48
50 3.4 10.9 15.4 18.8 22 24 27 31 34 42 49 60 69 77
Table 4. Body Temperature-Pressure Rating.
Valve
Body
Temperature
Pressure
psig (kPa)
°F °C
ANSI Class 250
Bronze
-20 to +150 (-30 to 66)
+200 (93)
+250 (121)
+300 (149)
+350 (177)
400 (2758)
385 (2655)
365 (2586)
335 (2300)
300 (2068)

Flowrite 599 Series Three-Way Valves Technical Instructions
Document Number 155-185P25
June 10, 2014
Siemens Industry, Inc. Page 5

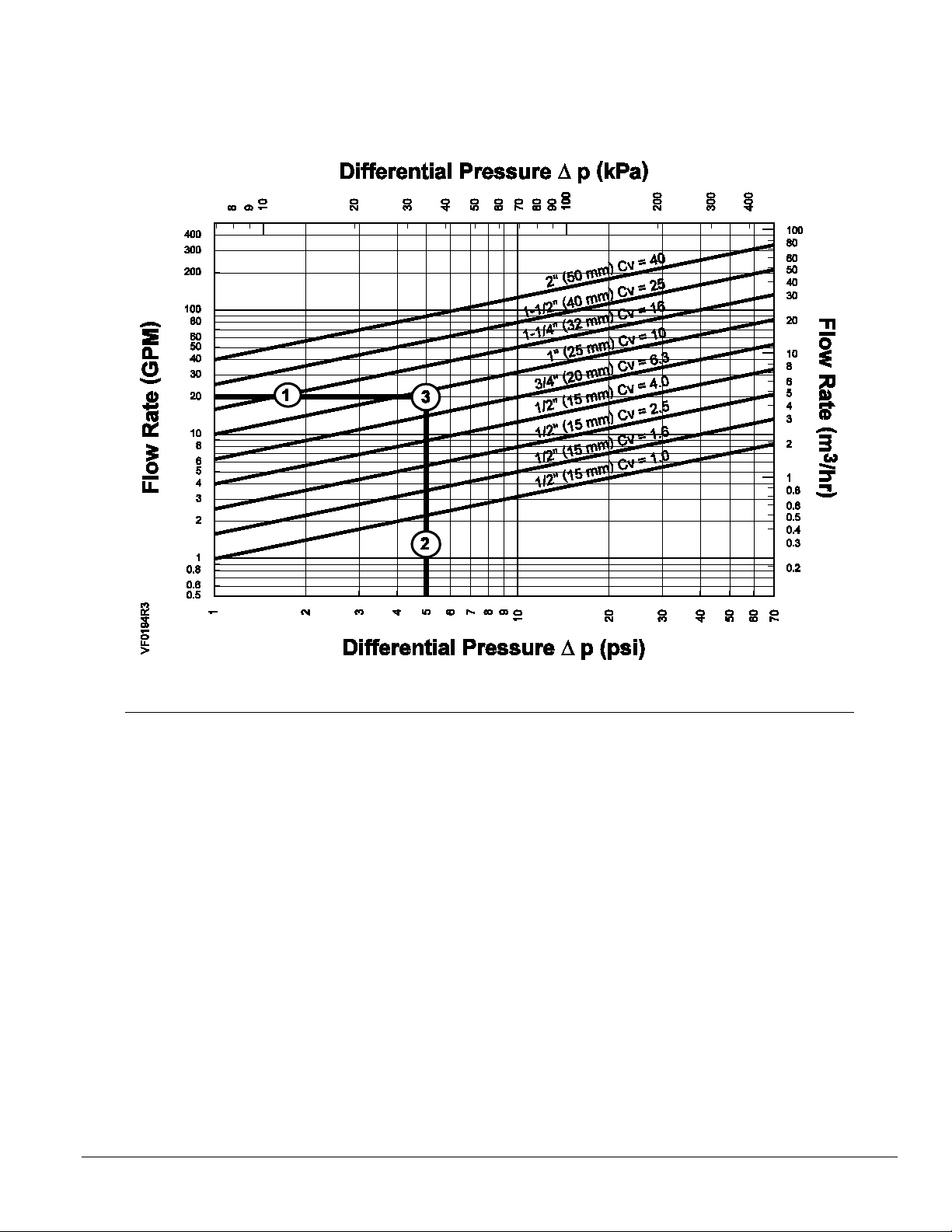

Figure 3. Water Capacity Graph.
Selection
Example Select a valve given:
1. Required flow = 20 gpm.
2. Desired pressure drop = 5 psi.
3. Select a 1 inch (25 mm) valve, Cv 10.

Technical Instructions Flowrite 599 Series Three-Way Valves
Document Number 155-185P25
June 10, 2014
Page 6Siemens Industry, Inc.
Table 5. Maximum Available Close-Off Pressures for Pneumatic Actuators
Action
Valve
Size
Inch
(mm)
Spring Range
3 to 8 psi ( 21 to 55 kPa)
10 to 15 psi (69 to 103 kPa)
4-Inch
Actuator
8-Inch Actuator 12-Inch Actuator
4-Inch
Actuator
8-Inch
Actuator
12-Inch
Actuator
15 psi
(103 kpa) 15 psi (103 kpa) 30 psi (207 kPa) 15 psi (103 kpa) 30 psi (207 kPa) 0 psi (0 kPa) 0 psi (0 kPa) 0 psi (0 kPa)
Lower Port
(Normally Open)
1/2 (15) 142 (979) 250 (1724) 250 (1724) — — — — —
3/4 (20) 80 (552) 231 (1593) 250 (1724)
— — — — —
1 (25) 52 (359 150 (1034) 250 (1724)
250 (1724) 250 (1724)
— — —
1-1/4 (32)
32 (221) 93 (641) 250 (1724)
250 (1724) 250 (1724)
— — —
1-1/2 (40 ) 20 (138) 60 (414) 198 (1365) 198 (1365)
250 (1724)
— — —
2 (50) 12 (83) 37 (255) 123 (848) 130 (896) 250 (1724) — — —
Upper Port
(Normally Closed)
1/2 (15) — — — — — 236 (1627) 250 (1724) —
3/4 (20) — — — — — 155 (1069) 250 (1724)
—
1 (25) — — — — — 91 (627) 250 (1724) 250 (1724)
1-1/4 (32) — — — — — 52 (359) 148 (1020) 250 (1724)
1-1/2 (40 ) — — — — — 32 (331) 92 (634) 250 (1724)
2 (50) — — — — — 20 (138) 55 (379) 185 (1776)
Table 6. Close-off Pressures for Electronic Actuators.
Action Valve
Size SAX Rack &
Pinion SKD SKB
Inch (mm)
psi (kPa)
psi (kPa)
psi (kPa)
psi (kPa)
Lower
Port
1/2 (15) 250 (1724) 250 (1724) 250 (1724) 250 (1724)
3/4 (20) 211 (1456) 231 (1593) 250 (1724) 250 (1724)
1 (25) 137 (945) 149 (1028) 201 (1386) 250 (1724)
1-1/4 (32) 85 (586) 92 (634) 124 (855) 250 (1724)
1-1/2 (40) 55 (379) 59 (407) 80 (552) 250 (1724)
2 (50) 34 (235) 36 (248) 49 (338) 201 (1386)
Upper
Port
1/2 (15) 250 (1724) 250 (1724) 250 (1724) 250 (1724)
3/4 (20) 250 (1724) 250 (1724) 250 (1724) 250 (1724)
1 (25) 159 (1097) 173 (1193) 203 (1400) 250 (1724)
1-1/4 (32) 92 (634) 100 (690) 117 (807) 250 (1724)
1-1/2 (40) 57 (393) 61 (421) 73 (503) 208 (1334)
2 (50) 35 (241) 37 (255) 44 (303) 126 (869)

Flowrite 599 Series Three-Way Valves Technical Instructions
Document Number 155-185P25
June 10, 2014
Siemens Industry, Inc. Page 7
ELECTRICAL PNEUMATIC
Figure 4. Close-off Pressures.
Operation As the valve stem moves downward, the flow
through the NO port decreases and the flow
through the NC port increases. As the valve stem
moves upward, the flow through the NO port
increases and the flow through the NC port
decreases.
In the event of power failure, a spring return
actuator returns the valve to its normal position with
the upper port closed and the bottom port open.
Non-spring return actuators will hold the last
commanded position. See the Technical
Instructions of the various actuators for additional
information.
Figure 5.
If this valve is used in diverting applications, the following conditions apply:
Diverting service with modulating control can use mechanical actuators such as the
SAX and SKB/D. The differential pressure must not exceed 90% of the maximum
differential pressure specified for the three-way valve in mixing service.
Diverting service with a pneumatic actuator can only be used with two-position control.
To change over from one port to another there must be no system pressure. The pump
is turned off.

Technical Instructions Flowrite 599 Series Three-Way Valves
Document Number 155-185P25
June 10, 2014
Page 8Siemens Industry, Inc.
Sizing The sizing of a valve is important for correct system operation. An undersized valve will
not have sufficient capacity at maximum load. An oversized valve can initiate cycling,
and the seat and throttling plug can be damaged because of the restricted opening.
Correct sizing of the control valve for actual expected conditions is considered essential
for good control.
Some variables that must be determined are:
•The medium to be controlled, such as water, etc.
•The maximum inlet temperature and pressure of the medium at the valve.
•The pressure differential that will exist across the valve under maximum load
demand.
•The maximum capacity the valve must deliver.
•The maximum line pressure differential the valve actuator must close against.
•See the Control Valve Selection and Sizing (AB-1) section of HVAC
Systems/Controls Reference Data (125-1853) for further recommendations.
See Table 2 and Table 3 for valve capacities.
Mounting and
Installation •Install the valve so that the flow follows the direction of the arrow indicated on the
valve body.
•For best performance, install the valve assembly with the actuator above the valve
body. The valve and actuator can be installed in any position between vertical and
horizontal. Siemens Building Technologies does not recommend installing the valve
assembly so that the actuator is below horizontal or upside down.
•Allow sufficient space for servicing the valve and actuator. See Table 8 for valve
body dimensions. See Figure 6 and Table 7 for dimensions of the service envelope
recommended around the actuator.
NOTE: Instructions for field mounting an actuator, wiring diagrams, and start-up are
covered in the Technical Instructions and Installation Instructions for each
actuator.

Flowrite 599 Series Three-Way Valves Technical Instructions
Document Number 155-185P25
June 10, 2014
Siemens Industry, Inc. Page 9
Dimensions The letters in Figure 6 refer to actuator and service envelope dimensions in Table 7.
See Table 8 for valve body dimensions.
Figure 6.
Table 7. Dimensions of the Actuator and Recommended Service Envelope.
Dimensions in Inches (millimeters).
Actuator Actuator Prefix
Code
Actual
Height of
Actuator
H1
Service
Height
H
Actual Width or
Diameter of Actuator
W1
Service
Width
W
4-inch Pneumatic
268, 269
270
5-3/4
(146)
14
(350)
5-1/2 (137)
diameter
18
(450)
8-inch Pneumatic
277, 278
283, 284
14-1/8
(359)
26
(660)
8-3/4 (222)
diameter
21
(533)
12-inch
Pneumatic
279, 285 17-7/8
(454)
30
(762)
15-1/8 (384)
diameter
27
(686)
SAX 371, 373 9-9/16
(242)
17-1/4
(442)
4-7/8 (124) Width
5-7/8 (150) Depth
17-4/4
(450)
Rack and Pinion 298, 299 14-1/2
(368)
24-1/2
(622)
5 (127) Width
5-1/8 (131) Depth
13
(331)
SKD 267, 274
275, 276
11-13/16
(300)
19-3/4
(500)
5 (127) Width
6-5/8 (169) Depth
14-1/2
(360)
SKB 289,
290, 291
14-3/4
(375)
22-3/4
(578)
7 (178) Width ×
8-15/16 (226) Depth
25
(635)

Technical Instructions Flowrite 599 Series Three-Way Valves
Document Number 155-185P25
June 10, 2014
Page 10 Siemens Industry, Inc.
Table 8. Female NPT by Female NPT (F×F) 3-Way Valve Dimensions.
Valve
Valve
Size
Inches
(mm)
Dimensions in Inches (mm) Weight
lbs (kg)
A B C
3-Way
1/2 2-7/8 4-5/16 2-11/16 3
(15) (72) (110) (68) (1.4)
3/4 3-3/8 4-5/16 2-3/4 4
(20) (85) (110) (69) (1.8)
1 3-15/16 4-1/2 2-7/8 5
(25) (100) (114) (72) (2.3)
1-1/4 4-15/16 4-5/8 2-15/16 7
(32) (125) (116) (74) (3.2)
1-1/2 5-1/8 4-5/8 3 9
(40) (130) (117) (76) (4.1)
2 6-1/4 5-1/8 3-3/16 13
(50) (158) (130) (81) (5.9)

Flowrite 599 Series Three-Way Valves Technical Instructions
Document Number 155-185P25
June 10, 2014
Siemens Industry, Inc. Page 11
Parts List
Table 9. Parts List for 3-Way Bronze Valves.
Item
Part Name
Part No.
Qty
Material
1
Packing Cartridge Assembly
—
1
—
2
Gasket
—
1
Copper
3 Stem and Plug Assembly — 1 Bronze or Stainless
Steel
4
Valve Body
—
1
Bronze
5
O-ring
1
EPDM
6
Lower port
—
1
Bronze
Packing Kit 599-03390 — Items 1 and 2
Rebuild/Repack Kit See Table 10. — Items 1, 2, 3, and 5

Technical Instructions Flowrite 599 Series Three-Way Valves
Document Number 155-185P25
June 10, 2014
Information in this publication is based on current specifications. The company reserves the right to make changes in specifications and models as
design improvements are introduced. Flowrite is a registered trademark of Siemens Industry, Inc. Teflon is a registered trademark of DuPont. Other
product or company names mentioned herein may be the trademarks of their respective owners.
© 2014 Siemens Industry, Inc.
Siemens Industry, Inc.
Building Technologies Division
1000 Deerfield Parkway
Buffalo Grove, IL 60089-4513
USA
[phone]
Your feedback is important to us. If you have
comments about this document, please send them
to [e-mail]
Document No. 155-185P25
Printed in the USA
Page 12
Service Kits To select the service kit, know your valve body part number and model number. Read
down the Part Number column until you find the valve body part number and then read to
the far right to identify the correct kit.
NOTE: The valve body part number and model number are stamped on the metal tag on
the valve body.
Table 10. Rebuild/Repack Service Kits Part Numbers.
(See Table 9 for Items in Kit.)
Valve
Size Part Number Valve Description Model 1
Kit No. Model 2 Kit No.
1/2-Inch
599-03144 Stainless steel trim 1.0 Cv 599-03372 —
599-03145 Stainless steel trim 1.6 Cv 599-03373 —
599-03146 Stainless steel trim 2.5 Cv 599-03374 —
599-03147 Stainless steel trim 4.0 Cv 599-03375 —
3/4-Inch 599-03148 Stainless steel trim 599-03376 —
1-Inch 599-03149 Stainless steel trim 599-03377 —
1-1/4-Inch 599-03150 Stainless steel trim 599-03378 599-09225
1-1/2-Inch 599-03151 Stainless steel trim 599-03379 599-09226
2-Inch 599-03152 Stainless steel trim 599-03380 599-09227
1/2-Inch
599-03198 Bronze trim 1.0 Cv 599-03381 —
599-03199 Bronze trim 1.6 Cv 599-03382 —
599-03200 Bronze trim 2.5 Cv 599-03383 —
599-03201 Bronze trim 4.0 Cv 599-03384 —
3/4-Inch 599-03202 Bronze trim 599-03385 —
1-Inch 599-03203 Bronze trim 599-03386 —
1-1/4-Inch 599-03204 Bronze trim 599-03387 599-09228
1-1/2-Inch 599-03205 Bronze trim 599-03388 599-09229
2-Inch 599-03206 Bronze trim 599-03389 599-09230
