1 About this manual
1.1 Target readers
This user's guide is written for the users of the plant and for
service engineers. It is assumed that the users of the manual
will have the necessary understanding of the system and
plant.
1.2 Content
The descriptions in this manual cover the commissioning,
basic configuration and use of the PXM10 operator unit.
As there may be significant differences between one plant
and another, and between one object and another, it follows
that it is not possible to provide a description which is
generally applicable to every individual case. The question of
exactly which objects are integrated with which values in a
plant, is determined in the engineering phase according to
the individual needs of the plant operator.
Important The descriptions in this manual are intended as examples
only, and are designed to clarify the basic operating
principles of the PXM10 operator unit.

6/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
1.3 Printing conventions
1.3.1 Text in display panel
Bold text is used to denote the exact text which appears in
the display, e.g. Main menu or Settings.
1.3.2 Labeling of the push-dial and buttons
The main operator control element, the "push-dial", is not
named on the housing.
The "Acknowledge" function ("OK") is integrated into the
push-dial.
The "Info" and "Esc" buttons are labeled accordingly on the
housing.
The "Alarm" button is not named on the housing, but can be
identified by the alarm symbol.
Press the Info button or, more briefly Confirm with OK.
1.3.3 Notes
STOP Caution The symbol shown here acts as a warning in cases where an
action may result in permanent loss of data.
Important This indicates an important statement which requires your
special attention.
Note A "Note" qualifies an immediately preceding statement or
statements.
Examples:

7/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
2 Display and control
elements
2.1 Layout
PXM10
INFO
ESC
OK
9230Z01
12 3
45
Figure 2-1 Housing
Key:
1. Info button
2. Display panel
3. Push-dial
4. Alarm button with alarm LED
5. Esc button

8/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
2.2 Push-dial and buttons
2.2.1 Push-dial
Figure 2-2 Push-dial
The push-dial is the main operator control element.
By rotating the dial, you can move from top to bottom of the
text field and set or modify setpoints.
By pushing the dial, you can navigate to the next level down,
and acknowledge a selected option or input; this function is
equivalent to selecting "OK".
2.2.2 Esc button
Figure 2-3 Esc button
Pressing the "Esc" button lets you abandon a process you
have already started (e.g. editing a value), navigate to the
next higher level or close a pop-up window.
Rotary action
Push action

9/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
2.2.3 Info button
Figure 2-4 Info button
You can use the Info button to display a pop-up window
containing all the available information about the selected
line. You can close the pop-up window by pressing the Info
button (or Esc button) again.
2.2.4 Alarm button with alarm LED
Figure 2-5 Alarm button with alarm LED
The alarm LED lights up or flashes when an alarm or event is
tripped in the system. The alarm button takes you straight to
the alarm list.
Alarm
LED Sym- bols Event
Flashing Pending alarm, unacknowledged
(pop-up window and alarm list)
Incoming event (pop-up window only)Steady
light Pending alarm, acknowledged, and
extended alarm, acknowledged but
not reset (alarm list)
Off No active alarms
Alarms are operated by use of the push-dial (see Section 5).
Alarm LED
response
Note

10/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
2.3 Display panel
Figure 2-6 Opening screen
The PXM10 has a five-line display. It can be used to view all
the visible elements of a plant with values or other
information. Figure 2-7 shows the layout of the display. The
areas of the display and the symbols used are described in
the next section.
The push-dial and buttons used for navigation and editing
are adjacent to the display panel, set into the housing itself.
These buttons are described in Section 2.2.
Menu line
Working area, with four
lines of text, one of
which is highlighted.
Figure 2-7 Layout of display with one line of text highlighted

11/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
2.3.1 Menu line
Figure 2-8 Menu line
The line at the top of the display shows you the menu in which
you are currently located. The menu line is underlined,
separating it from the rest of the display with a horizontal line.
Under Scheduler > Special period you will see the entry
Others which, as a submenu, is also underlined:
Figure 2-9 Submenu
2.3.2 Working area
Figure 2-10 Working area
Below the menu line is the working area, which consists of a
maximum of four alphanumeric lines of text.
Graphs are only displayed in the Scheduler menu.
If there are more lines than can be displayed at once, this is
indicated by the scroll arrows.
Exception
Note

12/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
A line highlighted in inverse video (light print on dark
background) indicates an option associated with one or more
hierarchically subordinate lines; you can display these with
the push-dial.
Figure 2-11 Text lines, one of which is highlighted
If a line of text is outlined, this indicates that you are at the
lowest level, and you can only read, but not edit the value on
this line. Use the Esc button to navigate back to the next
higher level.
Figure 2-12 Outlined text at the lowest level
A "pop-up" is a dialog box used to display an alarm or an
event. The alarm button provides direct access to the list of
pending alarms.
Figure 2-13 Pop-up display for an alarm
Figure 2-14 Pop-up display for an event
Highlighted line
Outlined text
Pop-up

13/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
Time schedules are displayed in graph form .
Figure 2-15 Time schedule graph
2.3.3 Symbols
The following is a list of all the symbols used in the display,
and their meanings. The same symbol may represent
different entries, or have a different meaning, depending on
the context.
Symbol Description
Favorite objects These are defined at the engineering stage
.
Pop-up window: Alarm or event
Uncleared alarm, neither acknowledged
nor reset
Uncleared but acknowledged alarm
Alarm cleared but not acknowledged
Alarm list:
Alarm cleared, acknowledged but not
reset
Info window Info symbol
Override Manually overwritten (forced) value
Cursor Only used in Scheduler graphs.
Wildcards Only used in Scheduler > Special period.
Description in Section 6.2.
Graphs

14/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
3 Commissioning
the PXM10
The PXM10 is used for local operation of a compact or
modular DESIGO PX automation station. No user login is
required. The PXM10 allows you to work at the "Basic" and
"Standard" operating levels.
All the objects from these operating levels are mapped in the
device.
"Favorite" objects are defined at the engineering stage and
mapped separately.
Step Action
1 Mount the PXM10 on the housing of the modular
automation station.
or Connect the PXM10 to the compact or modular
automation station with a PXA-C1 cable.

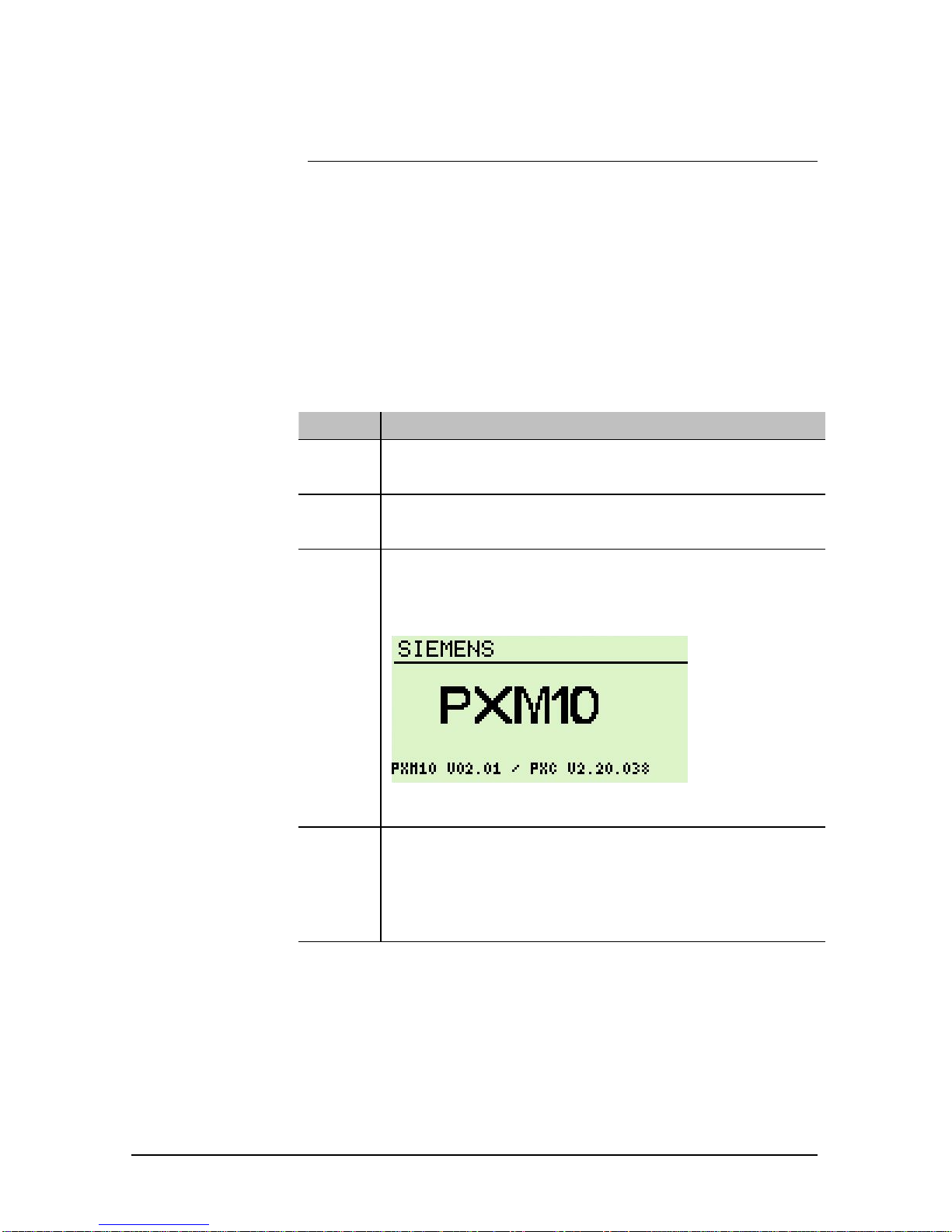

2 After a few seconds, the display will light up and
the opening screen will appear. The PXM10 is now
ready for operation:
Figure 3-1 Opening screen
3 Either open the plant data with OK
or Press the alarm button to go directly to the alarm
list.
The PXM10 and PXM20 can be used in parallel for operation
and monitoring of a PXC…-U automation station by
mounting the PXM10 directly on the automation station and
connecting the PXM20 to the MMI/tool socket with a PXA-C1
cable.
Note
Notes

15/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
If the PXM10 connection is interrupted briefly, it may take up
to 15 seconds for the polling cycle to resume. The display
can be re-enabled by operating any of the operator controls.
There is no need to log out.
Wait 30 seconds before reconnecting.
3.1 Settings on the device
Figure 3-2 Display showing plant data
Step Procedure
1 Press OK to open the Settings menu.
Figure 3-3 Individual entries
2 Set individual values by rotating the dial and
acknowledge the settings with OK. You can also
use OK to move from one input field to the next
within a value.
Logout
STOP Caution

16/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
Step Procedure
3 When the last value has been acknowledged, the
plant data screen is displayed automatically.
Contrast 100 = High; 0 = Low
Default = 50
Time Digital display, format: hh.mm
Date Digital display, format: dd.mm.yy
Event pop-up Active/inactive
View Favorites / Both
Both lets you display both the Favorite
objects and all the objects in the
"Standard user" view.

17/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
4 Reading and editing
values
4.1 Example: Setting a setpoint
The screenshots below illustrate which values you can edit
and which you can only read:
Figure 4-1 Highlighted values can be edited Figure 4-2 Outlined values are read-only
Step Procedure
1 Navigate to the required setpoint (the relevant line
is highlighted)
2 Select setpoint with OK.
3 A dialog box opens, in which you can set the value.
Figure 4-3 Setting a manual setpoint, with one input
field only
Figure 4-4 Setting the time, with two input fields

18/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
4 Rotate the dial to set the required value in the input
field. Acknowledge with OK.
If a value is made up of two or more input fields, the
input focus will then switch to the next field.
5 Confirm with OK or press Esc to cancel. Press the
Esc button to return automatically to the Setpoints
screen (Figure 4-2).
Note

19/34
Siemens Building Technologies PXM10 operator unit CM110397en
Siemens Building Automation 31.08.2004
5 Alarms and events
The LED display in the alarm button lights up in response to
incoming alarms and events, and, in the case of alarms,
starts flashing.
Events do not require acknowledgement, nor do they appear
in the alarm list.
5.1 Pop-up windows
If an alarm or event occurs while the PXM10 is in operation,
you will be notified accordingly in a pop-up window (Figure
5-1). If the PXM10 is only switched on after the occurrence of
the alarm or event, there will be no pop-up window. These
alarms do, however, appear in the alarm list.
If you want to be notified of events in a pop-up window, you
can activate this option under Settings > Event popup.
Figure 5-1 Settings screen Figure 5-2 Activate event pop-up window
A pop-up window contains the main information about the
event or alarm concerned:
Figure 5-3 Pop-up window with event Figure 5-4 Pop-up window with
unacknowledged alarm
Difference
between alarm
and event
Activating event
pop-up windows

20/34
Siemens Building Technologies PXM10 operator unit CM110397en
Building Automation 31.08.2004
The display shows a time stamp, the object name, the
notification text and the alarm priority. In the case of alarm
messages, you can display the Alarm list directly (see
Section 5.2).
Press Esc to delete a pop-up window without affecting the
alarm.
5.2 Displaying the alarm list
Figure 5-5 The Alarms menu (alarm list)
The alarm LED lights up and flashes.
Step Procedure
1 Display the alarm list either by use of the alarm
button.
or by selecting the Alarms option.
Figure 5-6 Plant data screen
2
The alarm list opens. Unacknowledged alarms
and alarms that have been acknowledged but not
yet reset are displayed here.
Each line contains the object name and the alarm
symbol. All the associated information can be
displayed by use of the Info button.
Deleting a pop-
up window
