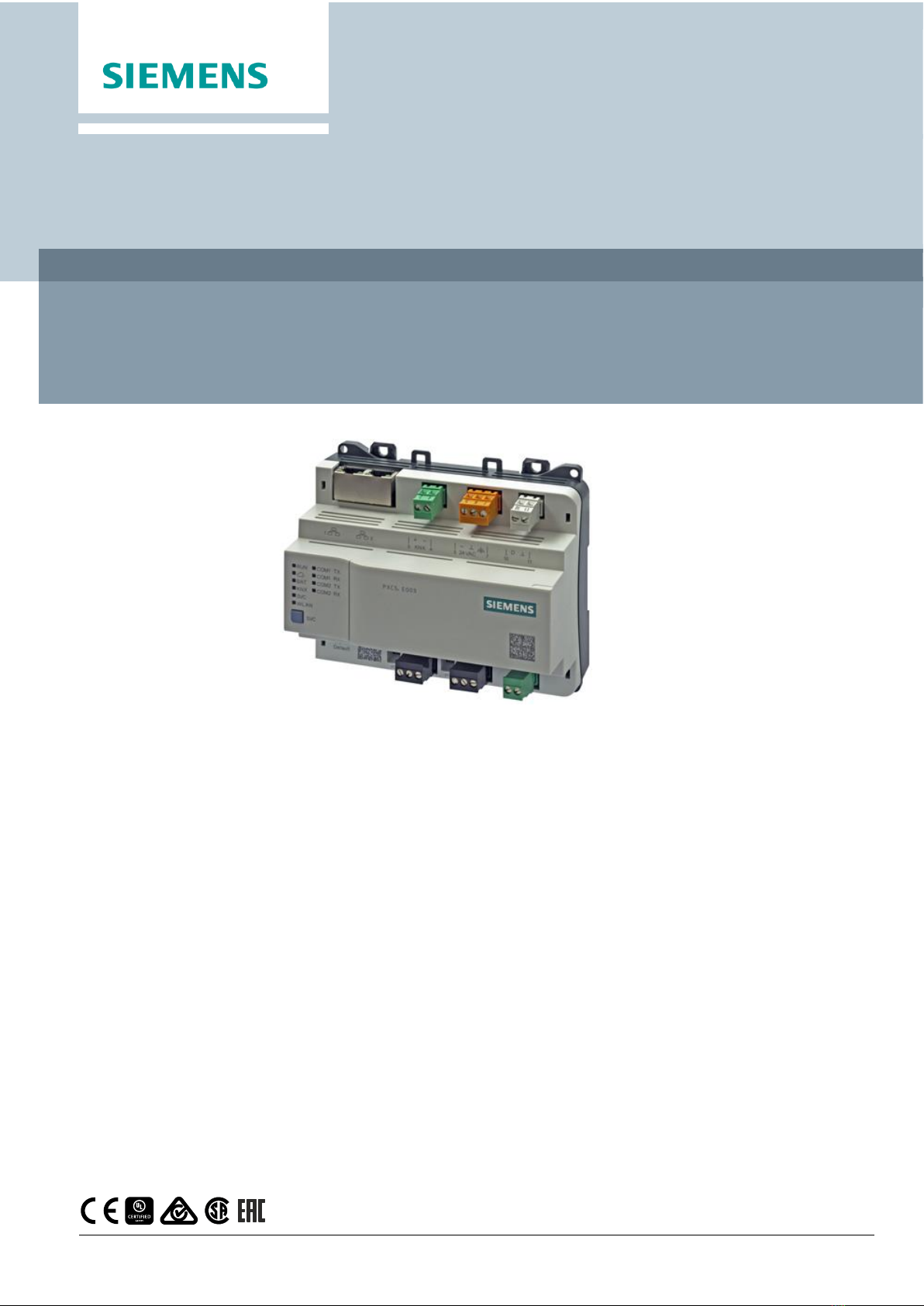

Siemens Desigo PXC5.E003 User manual

A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Desigo™
System controller
PXC5.E003
Feature overview
●System controller to integrate BACnet MS/TP and Modbus devices
●Communication BACnet/IP
●2-port Ethernet switch for low-cost cabling
●Integration of Modbus data points via RTU and/or TCP
●Integration of BACnet MS/TP devices
●WLAN interface for engineering and commissioning
●Operating voltage AC 24 V
●Mounted on standard rails or on the wall
●Plug-in screw terminal blocks

2
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Functions
Freely programmable system controller.
●System functions (alarming, scheduling, trending, access protection with individually
definable user profiles and categories)
●System controller for system networks with PXC5, PXC4 and DXR controllers over
BACnet/IP or BACnet MS/TP
●Integrates third-party devices and systems
●Generic object viewer for data points of several assigned devices via embedded web
interface
●Generic object viewer for local data points and assigned devices via embedded web
interface
●Engineering and commissioning with the ABT Site Tool using graphical function charts
●BACnet communication on IP or MS/TP, in compliance with the BACnet standard
including B-BC profile (Rev. 1.15)
●Wireless connection for engineering and commissioning
●Cloud connectivity for remote access
●Integration of Modbus data points via RTU and/or TCP
Type summary
Type
Order number
Description
PXC5.E003
S55375-C103
System controller to integrate
●up to 500 Modbus data points (via RTU and/or TCP)
●up to 30 devices in a field level network BACnet/MSTP
Equipment combinations
Desigo Control Point
Description
Type
Data sheet
BACnet touch panels with integrated Web server
7.0 "
10.1 "
15.6 "
PXM30.E
PXM40.E
PXM50.E
A6V11664137
Touch panels clients with data storage in Web-server PXG3.Wx00-1
7.0 "
10.1 "
15.6 "
PXM30-1
PXM40-1
PXM50-1
A6V11664139
BACnet/IP Web server with standard functionality
BACnet/IP Web server with extended functionality
PXG3.W100-1
PXG3.W200-1
A6V10808336

3
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10

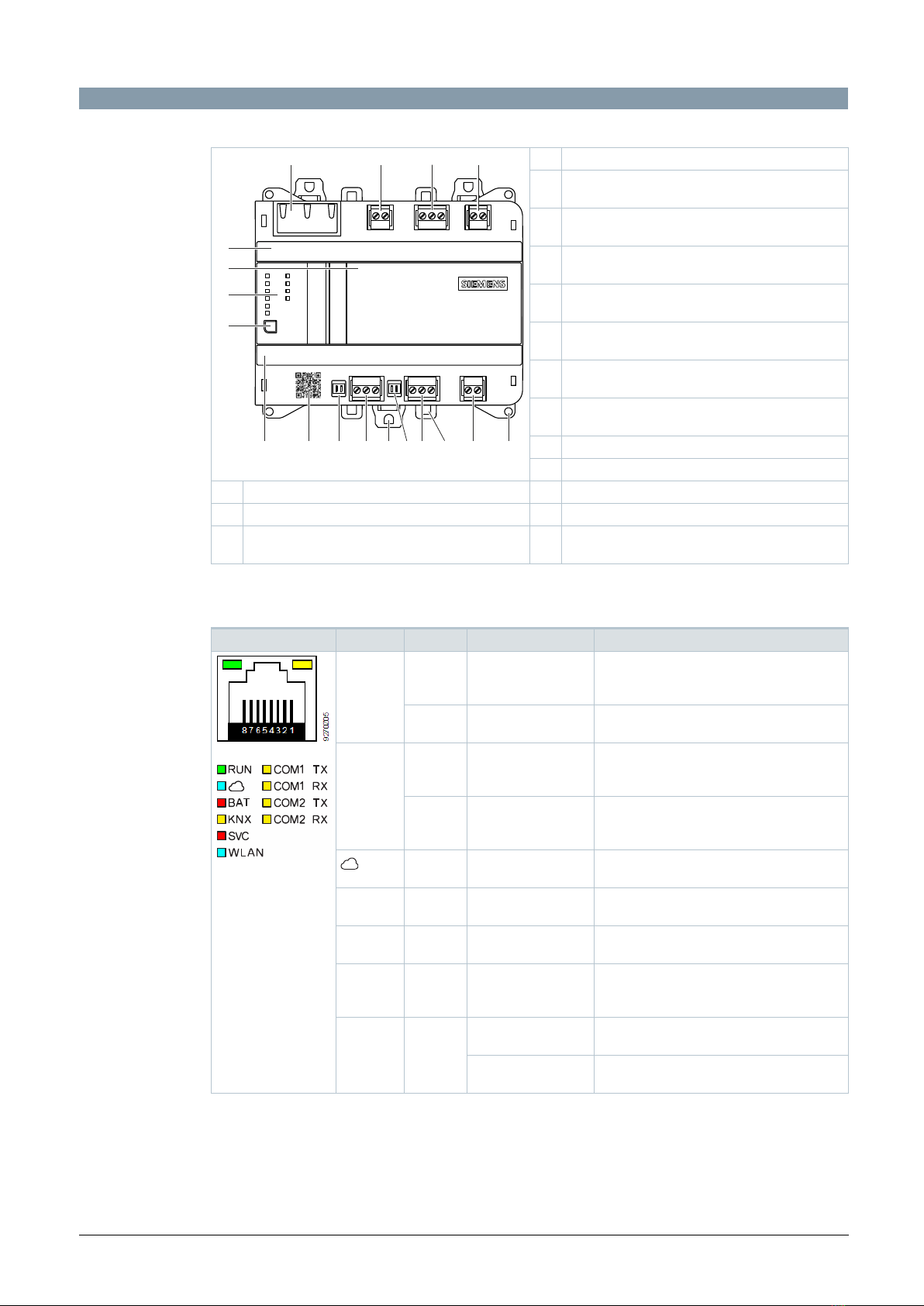

Technical and mechanical design
The compact build allows for mounting the devices on a standard rail or a wall.
1
2
3
4
5678
910
11 12 13 14
15 16
Date/Series
S/N
WLAN
Default
10 11
4
Service button (network login and WLAN on/off)
5
2-port Ethernet switch with 2 LEDs per port for
display purposes
6
Plug-in terminal block with screw terminals
KNX, PL-link, for future use
7
Plug-in terminal block with screw terminals
Power supply
8
Plug-in terminal blocks with screw terminals
Digital input, for future use
9
Plug-in terminal block with screw terminals
M-bus, for future use
10
Plug-in terminal block with screw terminals
COM1 / COM2 (MS/TP or Modbus)
11
DIP switches for bus termination and polarization
COM1 / COM2
12
Slider for mounting on standard mounting rails
13
Eyelets for cable ties
1
Plastic housing
14
Holes for wall mounting
2
Front cover
15
Date / Series and Serial number
3
LEDs for communication and state
16
QR code for default WLAN access
Description see Technical data
LED displays

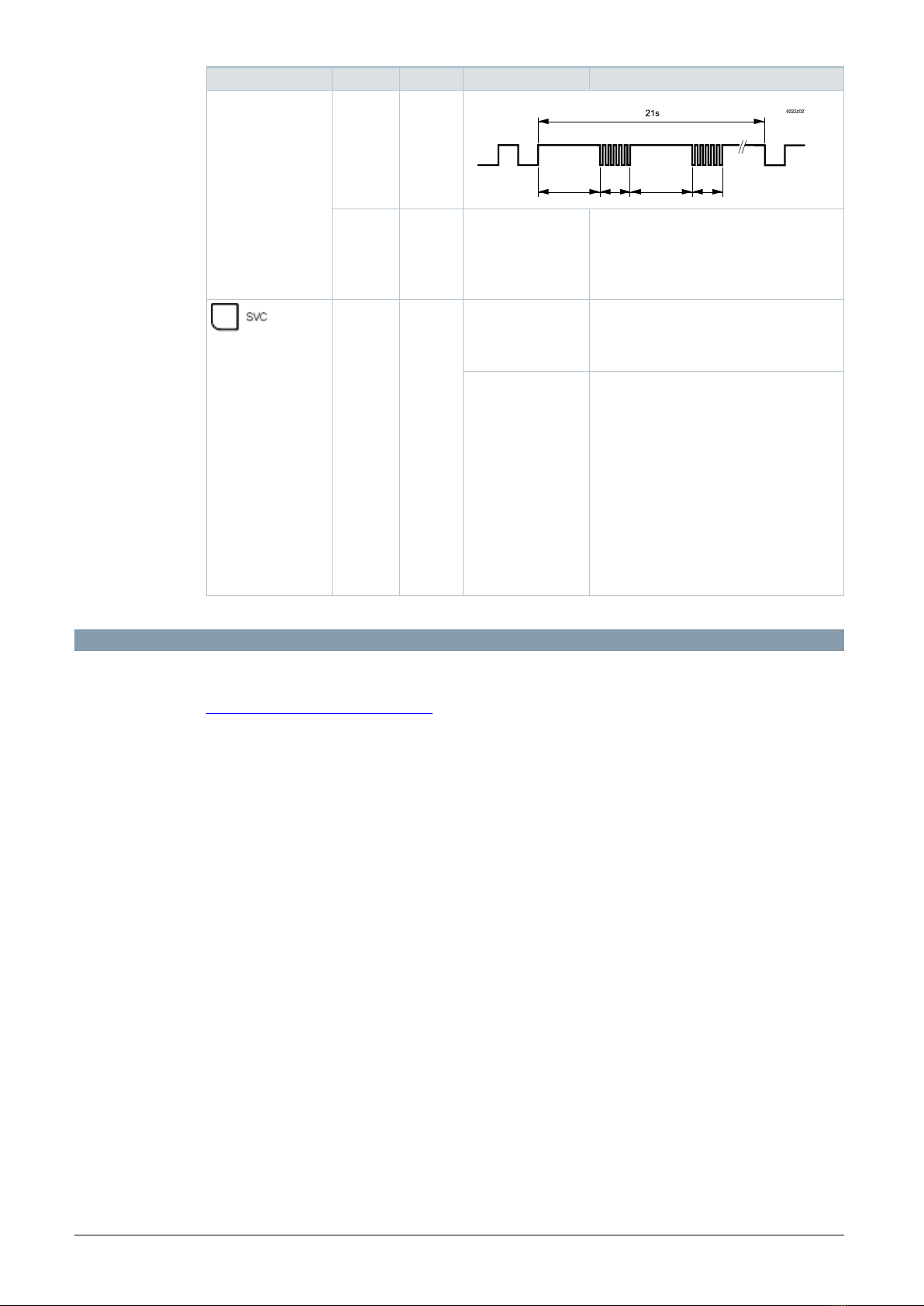

Activity
LED
Color
Activity
Function
Ethernet
1/2
Green
Continuously ON
Continuously OFF
Flashing
Link active
No connection
Network traffic
Yellow
Continuously ON
Continuously OFF
Link 100 Mbps
Link 10 Mbps
RUN
Green
Continuously ON
Continuously OFF
Flashing
Device operational
Device not operational
Start-up or program halted
Red
Continuously OFF
Continuously ON
Rapid flashing
OK
HW or SW fault
Firmware or application missing/corrupted
Blue
Continuously ON
Continuously OFF
Connection to the cloud OK
No connection to the cloud
BAT
Red
Continuously OFF
Continuously ON
Optional battery OK
Optional battery empty - replace
COM…
Yellow
Flashing
Continuously OFF
Communication
No communication to subsystem
KNX
(for future
use)
Yellow
SVC
Red
Continuously OFF
Flashing
OK
Device is not configured
Flashing per wink
command
Identification of the device after receipt of
wink command

4
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Activity
LED
Color
Activity
Function
2s 1s
5 Hz 5 Hz
2s 1s
WLAN
Blue
Steady OFF
Steady ON
Flashing
WLAN inactive
WLAN active and at least one WLAN client
connected
WLAN active and no WLAN client
connected
Service
button
Short press (< 1 s)
Long press (> 3 s)
Identification in the network
Enable/disable WLAN
WLAN is disabled automatically after 10 min
if no client is connected
As per description
Do the following to reset the device to
factory state:
1. Power off the device.
2. Power on the device.
3. Wait until all LEDs light up and turn off
again, then press the Service button.
4. Keep the Service button pressed until
all LEDs light up, then release the
button.
All LEDs go off, the device restarts.
5. Wait until the device has fully started –
unconfigured (green RUN LED and red
SVC LED are flashing)
Product documentation
Related documents such as the environmental declarations, CE declarations, etc., can be
downloaded from the following Internet address:
https://siemens.com/bt/download

5
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Notes
Safety
CAUTION
National safety regulations
Failure to comply with national safety regulations may result in personal injury and
property damage.
●Observe national provisions and comply with the appropriate safety regulations.
●This equipment is intended only for use in a restricted access area (lockable cabinet)
●This equipment is not suitable for use in locations where children are likely to be
present.
●Conductors with a cross-section of 0.5 mm2 (AWG24) or greater shall comply with the
requirements of IEC 60332-1-2 and IEC 60332-1-3 or IEC TS 60695-11-21.
Mounting position and ambient temperature
The devices can be snapped onto standard rails or screwed onto a flat surface.
Plug-in screw terminals connect power and interfaces.
Ambient temperature -5...50 °C (23...122 °F)
Ambient temperature -5...45 °C (23...113 °F)
●Wall, horizontal
–From left to right
–From right to left
●Overhead
●Wall, vertically
–From top to bottom
–From bottom to top
●On a horizontal surface
CAUTION
Risk of overheating for failure to comply with ambient temperature
Burning and damage to the device
●Ensure sufficient ventilation to comply with the permissible ambient temperature within
the panel or installation box. The temperature must be at least 10 K (18° F) lower
outside the installation box.
Disposal
The device is considered an electronic device for disposal in accordance
with the European Guidelines and may not be disposed of as domestic
garbage.
●Dispose of the device through channels provided for this purpose.
●Comply with all local and currently applicable laws and regulations.
●Dispose of empty batteries in designated collection points.

6
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Technical data
Power supply
Operating voltage (24 V~, ⏊, )
AC 24 V -15 / +20 % (SELV / PELV) or
AC 24 V Class 2 (US)
48…63 Hz
Functional ground (US)
Functional earth
The terminal for the functional ground must be
connected on the installation side with the building
grounding system (PE).
Screw terminals for wire cross sections up to
Max. 2.5 mm2(14 AWG)
Internal fusing
3.15 A irreversible / non-replaceable
External supply line fusing (EU)
Non-renewable fuse max. 10 A slow-blow
or
circuit breaker max. 13 A
Tripping characteristic B, C, D per EN 60898
or
Power supply with current limitation of max. 10 A
Power consumption (for transformer planning)
Base load
With M-Bus, with KNX
12 VA / 0.5 A
19 VA / 0.8 A
Function data
Hardware information
Processor
NXP i.MX8 DualX
Storage
1 GByte RAM
8 GByte eMMC
Data backup in the event of power failure
Energy reserve (Supercap) to support real-time clock (7 days).
Energy reserve can be extended to min. 1 month using optional battery CR2032
(Battery safety requirement and specification for CR2032 according to IEC 60086-4 or UL1642.
Battery must be rated for ambient temperature 70 °C (158 °F))
Data available if stored to flash memory. Occurs every 5 minutes.
Interfaces
Ethernet interface
Plug
2 x RJ45, shielded
Interface type
10Base-T / 100Base-TX, IEEE 802.3 compatible
Bit rate
10/100 Mbps, autosensing
Protocol
BACnet on UDP/IP and HTTPS on TCP/IP
Cabling (in-house cabling only), cable type
10 Mbps: Min. CAT3, shielded cable is recommended
100 Mbps: Min. CAT5, shielded cable is recommended
Cable length
Max. 100 m (330 ft)
Screw terminals, plug-in
Cu-wire or Cu-strand with wire end sleeve
1 x 0.6 mm ∅ to 2.5 mm2(22 to 14 AWG)
or 2 x 0.6 mm ∅ to 1.0 mm2(22 to 18 AWG)
Cu-strand without wire end sleeve
1 x 0.6 mm ∅ to 2.5 mm2(22 to 14 AWG)
or 2 x 0.6 mm ∅ to 1.5 mm2(22 to 16 AWG)

7
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Screw terminals, plug-in
Stripping length
6...7.5 mm (0.24...0.29 in)
Screwdriver
Slot screws, screwdriver size 1
Max. tightening torque
0.6 Nm (0.44 lb ft)
The two COM interfaces can be used either for Modbus or for MS/TP, according to
configuration.
Modbus RTU interface
Interface type
EIA-485, electrically isolated
Baud rate
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200
(depending on the configuration)
Internal bus termination
120 Ohm, switchable with DIP switch
Internal bus polarization
270 Ohm pull-up/pull-down resistances, switchable with
DIP switch
Cabling (in-house cabling only)
Cable length
3-wire cable
Max. 1000 m (3300 ft)
Protection
Short-circuit proof
Protection against faulty wiring with AC 24 V
BACnet MS/TP interface
Interface type
EIA-485, electrically isolated
Baud rate
9600, 19200, 38400, 57600, 76800, 115200 (depending
on the configuration)
Internal bus termination
120 Ohm, switchable with DIP switch
Internal bus polarization
270 Ohm pull-up/pull-down resistances, switchable with
DIP switch
Cabling (in-house cabling only)
Distance between 2 devices
Length of the MS/TP line
3-wire cable, shielded
Max. 500 m (1650 ft)
Max. 1000 m (3300 ft)
Protection
Short-circuit proof
Protection against faulty wiring with AC 24 V
WLAN interface
Interface type
Wireless access point
Supported standards
Frequency band
WLAN channels
Maximum radio-frequency power
IEEE 802.11b/g/n
2.4…2.462 GHz
1…11
16.4 dBm
Distance (unobstructed field)
Min. 5 m (16 ft)
Device pairing
Activation / Deactivation with service button
Automatic switch off after 10 minutes if no WLAN-client
is connected.
Optionally, for cyber security reasons, the WLAN can be
permanently disabled via configuration.
Default SSID and WLAN password: Scan the QR code.
It will show something like WIFI:S:PXC5.E003_0000550;T:WPA;P:1400052738;;
Then SSID = PXC5.E003_0000550 and password = 1400052738
Determine manually: Use the information from the Date/Series/SN block It will show something like:
Date/Series: 20190423A0000550
S/N: 1400052738
SSID = <ASN>_<Running number after the series letter> and password = <S/N>

8
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Conformity
Ambient conditions and protection classification
Classification as per EN 60730
Automatic action
Control function
Degree of pollution
Overvoltage category
Type 1
Class A
2
III
Design
Suitable for use in protection class I or II systems
Degree of protection of housing to EN 60529
Front parts in DIN cut-out
Terminal part
IP30
IP20
Climatic ambient conditions
●Storage / Transport (packaged for transport) as per
IEC EN 60721-3-2
●Operation as per IEC/EN 60721-3-3
●Class 1K22 / 2K21
Temperature -25...70 °C (-13...158 °F)
Air humidity 5...95 % (non-condensing)
●Class 3K22
Temperature -5...50 °C (23...122 °F)
(for details see chapter Mounting)
Air humidity 5...95 % (non-condensing)
Mechanical ambient conditions
●Transport per IEC/EN 60721-3-2
●Operation as per IEC/EN 60721-3-3
●Class 2M11
●Class 3M11
Standards, directives and approvals
Product standards
EN 60730-1, EN 62368-1
Product family standard
EN 50491-x
Electromagnetic compatibility (EMC)
For residential, commercial, and
industrial environments
EU conformity (CE)
See CE declaration 1)
EAC compliance
Eurasian compliance
RCM conformity
See RCM declaration 1)
UL/cUL approbation (US / Canada)
UL916; http://ul.com/database
CSA certification
C22.2, http://csagroup.org/services-industries/product-
listing
FCC
CFR 47 Part 15 Class B
BACnet.
B-BC
Environmental compatibility 1)
The product environmental declaration 1) contains data
on environmentally compatible product design and
assessments (RoHS compliance, materials
composition, packaging, environmental benefit,
disposal).
1) Documents can be downloaded at http://siemens.com/bt/download.
FCC Statement
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the following measures:
●Reorient or relocate the receiving antenna.
●Increase the separation between the equipment and receiver.

9
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
●Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
●Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions:
1. This device may not cause harmful interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation
FCC Caution: Changes or modifications not expressly approved by Siemens Switzerland
Ltd. could void the user’s authority to operate the equipment. United States representative
https://new.siemens.com/us/en/products/buildingtechnologies/home.html
Industry Canada statement
This device complies with ISED’s licence-exempt RSSs. Operation is subject to the following
two conditions:
1. This device may not cause interference, and
2. this device must accept any interference received, including interference that may cause
undesired operation.
Radio frequency radiation exposure Information for USA and Canada
This equipment complies with FCC and IC radiation exposure limits set forth for an
uncontrolled environment.
This equipment should be installed and operated with a minimum distance of 20 cm (8 in)
between the radiator and your body.
This transmitter must not be co-located or operated in conjunction with any other antenna or
transmitter.
Housing
Color top/bottom
RAL 7035 (light grey) / RAL 7016 (anthracite grey)
Dimensions
per DIN 43880, see dimensions
Weight without/with packaging
351 g / 391 g
Connection terminals
65 66 67 68 69 70 71 72
34 5 6 7 10 11
Terminal
Symbol
Description
1, 2
2 x RJ45 interface for Ethernet with switch
3, 4
KNX
KNX PL-Link (for future use)
5, 6
~ , ⏊
Operating voltage AC 24 V
7
Functional ground (must be connected on the installation side with the building

10
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
grounding system (PE).
10, 11
D, ⏊
Digital input (for future use)
Term
On, off
Switch for bus termination
Polar
On, off
Switch for polarization
65, 66, 67
COM1
Interface EIA-485 (Modbus MS/TP)
68, 69, 70
COM2
71, 72
MBUS
M-bus interface (for future use)
Warranty
Technical data on specific applications are valid only together with Siemens products listed
under "Equipment combinations". Siemens rejects any and all warranties in the event that
third-party products are used.

11
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Dimensions
All dimensions in mm and inches
124 (4.88")
117 (4.61")
110 (4.33")
129 (5.08")
4.1(0.16")
144 (5.67")
26.5 (1.04")
45 (1.77")
65.5 (2.58")
70.5 (2.78")
4 (0.16")
21.5 (0.85")
11 (0.43")
45 (1.77") 21.5 (0.85")
11 (0.43")
35.5 (1.40")
49 (1.91")

12
Siemens Schweiz AG
A6V11646020_en--_b
Smart Infrastructure
2020-07-10
Issued by
Siemens Switzerland Ltd
Smart Infrastructure
Global Headquarters
Theilerstrasse 1a
CH-6300 Zug
Tel. [phone]
www.siemens.com/buildingtechnologies
© Siemens Switzerland Ltd, 2020
Technical specifications and availability subject to change without notice.
Document ID
A6V11646020_en--_b
Edition
2020-07-10
